| Table 1: | Amplifier C1 (U65) |
| Table 2: | Amplifier C2 (U65) |
| Table 3: | Digital Radio Receiver (U2K) |
| Table 4: | Radio C1 |
| Table 5: | Radio C2 |
| Table 6: | Speaker - LF |
| Table 7: | Speaker - LF (Tweeter) |
| Table 8: | Speaker - LR |
| Table 9: | Speaker - RF |
| Table 10: | Speaker - RF (Tweeter) |
| Table 11: | Speaker - RR |
| Table 12: | Speaker - Subwoofer (U65) |
| Table 13: | Steering Wheel Control Switch - Left (K34 w/o UK3) |
| Table 14: | Steering Wheel Control Switch - Left (K34/UK3) |
| Table 15: | Steering Wheel Control Switch - Right (K34 w/o UK3) |
| Table 16: | Steering Wheel Control Switch - Right (K34/UK3) |

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
A1  | D-GN  | 117  | Right Front Speaker Output (-)  | ||||||
A2  | L-GN  | 200  | Right Front Speaker Output (+)  | ||||||
A3  | L-BU  | 115  | Right Rear Speaker Output (-)  | ||||||
A4  | D-BU  | 46  | Right Rear Speaker Output (+)  | ||||||
A5  | OG  | 360  | Amplifier Control  | ||||||
A6  | PU  | 5747  | Amplifier Sense Signal  | ||||||
A7-A8  | --  | --  | Not Used  | ||||||
A9  | L-GN  | 117  | Right Front Speaker Output (-)  | ||||||
A10  | D-GN  | 200  | Right Front Speaker Output (+)  | ||||||
A11  | TN  | 115  | Right Rear Speaker Output (-)  | ||||||
A12  | D-BU  | 46  | Right Rear Speaker Output (+)  | ||||||
B1  | GY  | 118  | Left Front Speaker Output (-)  | ||||||
B2  | TN  | 201  | Left Front Speaker Output (+)  | ||||||
B3  | YE  | 116  | Left Rear Speaker Output (-)  | ||||||
B4  | BN  | 199  | Left Rear Speaker Output (+)  | ||||||
B5-B8  | --  | --  | Not Used  | ||||||
B9  | D-GN  | 118  | Left Front Speaker Output (-)  | ||||||
B10  | TN  | 201  | Left Front Speaker Output (+)  | ||||||
B11  | BN  | 116  | Left Rear Speaker Output (-)  | ||||||
B12  | BN/WH  | 199  | Left Rear Speaker Output (+)  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
A  | L-GN/BK  | 1794  | Subwoofer Speaker Coil 2 Output (-)  | ||||||
B  | D-BU/WH  | 346  | Subwoofer Speaker Coil 2 Output (+)  | ||||||
C  | BK  | 850  | Ground  | ||||||
D  | RD/WH  | 2340  | Battery Positive Voltage  | ||||||
E-F  | --  | --  | Not Used  | ||||||
G  | D-GN  | 1795  | Subwoofer Speaker Coil 1 Output (+)  | ||||||
H  | L-BU/BK  | 315  | Subwoofer Speaker Coil 1 Output (-)  | ||||||

 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |



  | ||||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||||
1  | --  | --  | Not Used  | ||||||||
2  | BN/WH  | 367  | Radio Left Audio Signal (+)  | ||||||||
3  | D-GN/WH  | 368  | Radio Right Audio Signal (+)  | ||||||||
5-8  | --  | --  | Not Used  | ||||||||
9  | BK  | 750  | Ground  | ||||||||
10  | YE/WH  | 372  | Audio Common  | ||||||||
11  | GY  | 813  | Drain Wire  | ||||||||
12-14  | --  | --  | Not Used  | ||||||||
15  | PU  | 1807  | Class 2 Serial Data  | ||||||||
16  | RD/WH  | 440  | Battery Positive Voltage  | ||||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
A1  | GY  | 118  | Left Front Speaker Output (-)  | ||||||
A2  | TN  | 201  | Left Front Speaker Output (+)  | ||||||
A3  | L-BU  | 115  | Right Rear Speaker Output (-)  | ||||||
A4  | D-BU  | 46  | Right Rear Speaker Output (+)  | ||||||
A5  | BN  | 199  | Left Rear Speaker Output (+)  | ||||||
A6  | YE  | 116  | Left Rear Speaker Output (-)  | ||||||
A7  | L-GN  | 200  | Right Front Speaker Output (+)  | ||||||
A8  | D-GN  | 117  | Right Front Speaker Output (-)  | ||||||
A9  | D-BU  | 1796  | Steering Wheel Controls Signal (UK3)  | ||||||
A10  | WH/BK  | 644  | 10-Volt Reference (UK3)  | ||||||
A11  | --  | --  | Not Used  | ||||||
A12  | BK/WH  | 151  | Ground  | ||||||
B1  | RD/WH  | 2140  | Battery Positive Voltage  | ||||||
B2  | PU  | 5747  | Amplifier Sense Signal (U65)  | ||||||
B3-B5  | --  | --  | Not Used  | ||||||
B6  | OG  | 360  | Amplifier Feed (U65)  | ||||||
B7-B8  | --  | --  | Not Used  | ||||||
B9  | PU  | 1807  | Class 2 Serial Data  | ||||||
B10-B12  | --  | --  | Not Used  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
A-G  | --  | --  | Not Used  | ||||||
H  | D-GN/WH  | 368  | Right Audio Signal (+)  | ||||||
J  | BN/WH  | 367  | Left Audio Signal (+)  | ||||||
K  | YE/WH  | 372  | Audio Common  | ||||||
L  | OG/BK  | 2061  | Navigation Audio Mono Signal (-) (UE1)  | ||||||
M  | PK/BK  | 2062  | Navigation Audio Mono Signal (+) (UE1)  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|

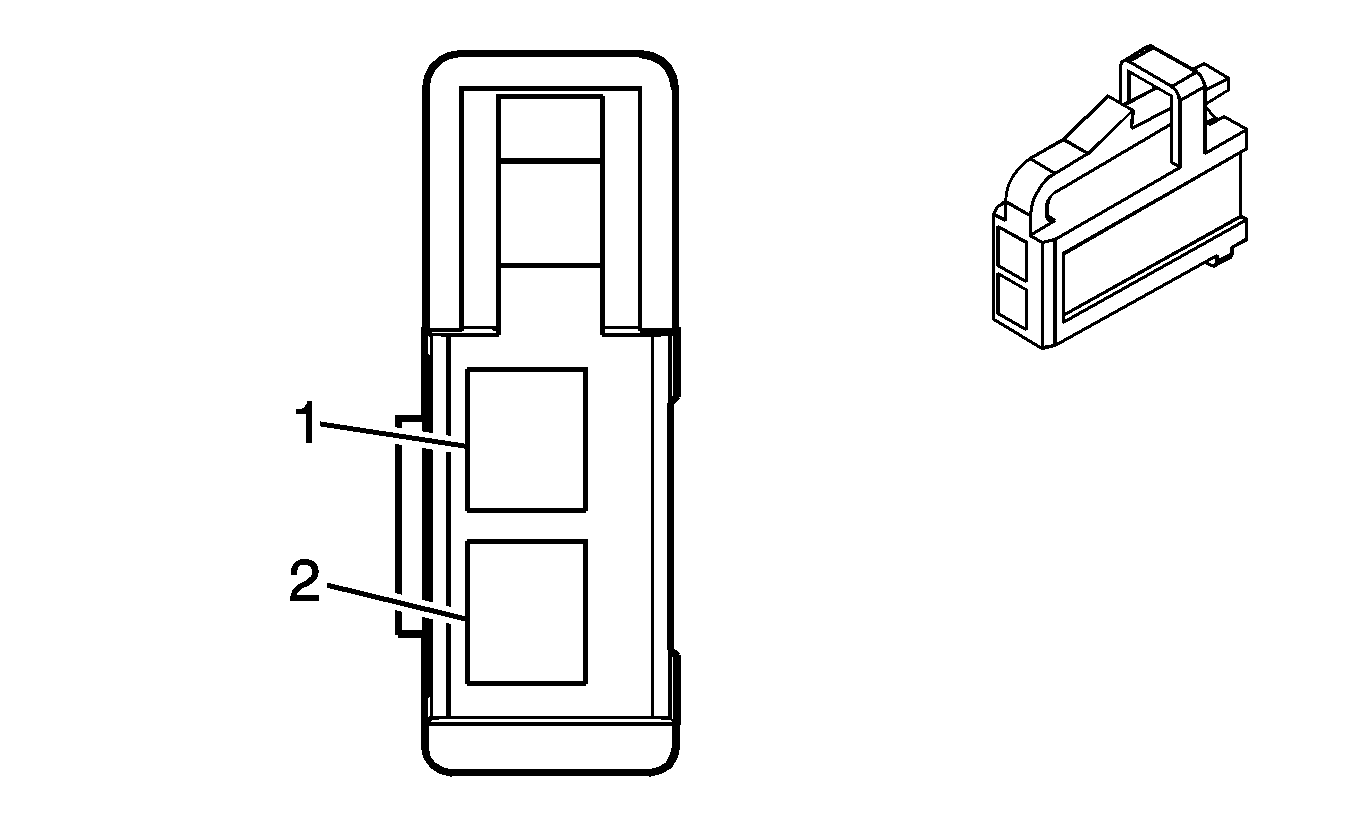

Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
1  | GY  | 118  | Left Front Speaker Output (-)  | ||||||
2  | TN  | 201  | Left Front Speaker Output (+)  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
1  | GY  | 118  | Left Front Speaker Output (-)  | ||||||
2  | TN  | 201  | Left Front Speaker Output (-)  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|

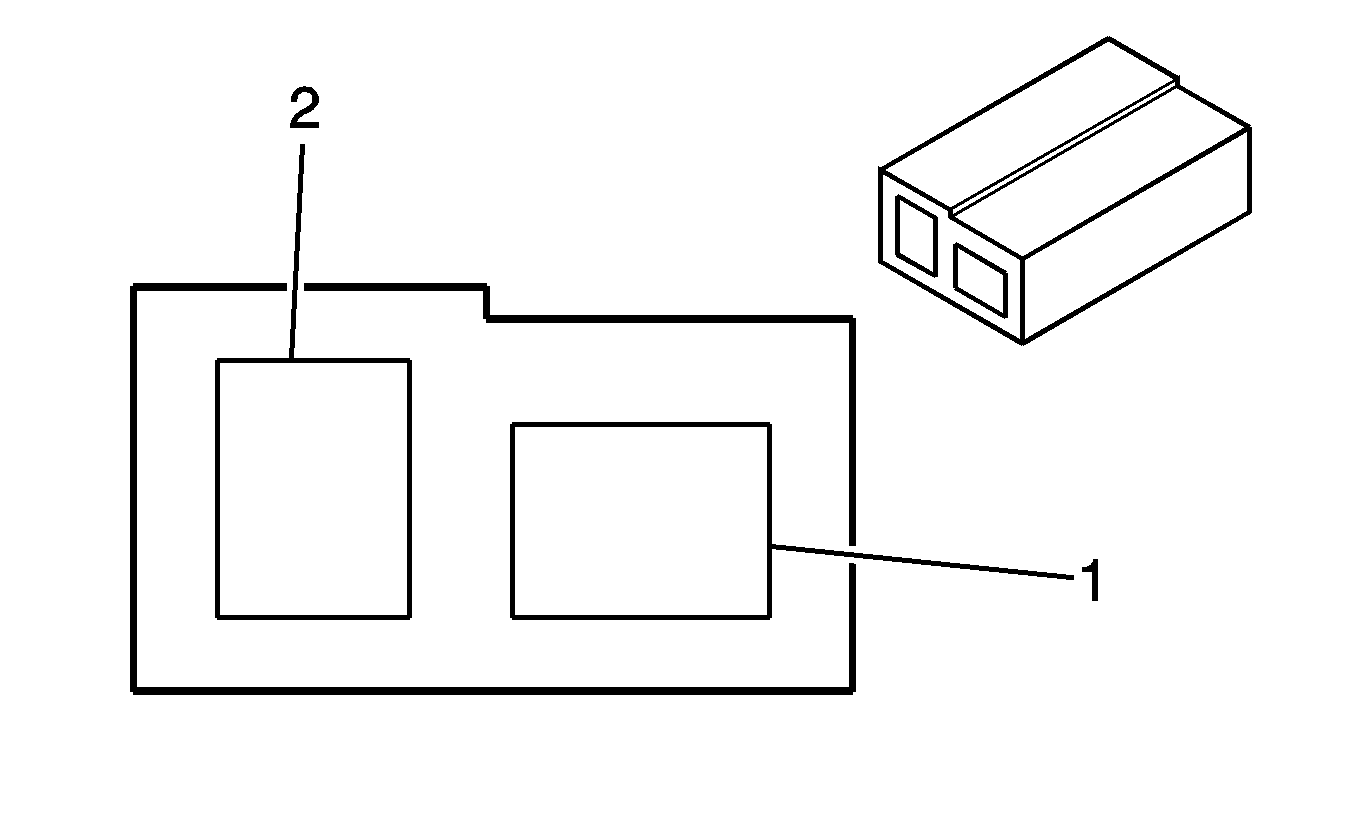

Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
1  | YE  | 116  | Left Rear Speaker Output (-)  | ||||||
2  | BN  | 199  | Left Rear Speaker Output (+)  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
1  | GY  | 117  | Right Front Speaker Output (-)  | ||||||
2  | TN  | 200  | Right Front Speaker Output (+)  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
1  | GY  | 117  | Right Front Speaker Output (-)  | ||||||
2  | TN  | 200  | Right Front Speaker Output (+)  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
1  | YE  | 115  | Right Rear Speaker Output (-)  | ||||||
2  | BN  | 46  | Right Rear Speaker Output (+)  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
A  | D-BU/WH  | 346  | Subwoofer Speaker Coil 2 Output (+)  | ||||||
B  | L-GN/BK  | 1794  | Subwoofer Speaker Coil 2 Output (-)  | ||||||
C  | D-GN  | 1795  | Subwoofer Speaker Coil 1 Output (+)  | ||||||
D  | L-BU/BK  | 315  | Subwoofer Speaker Coil 1 Output (-)  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
1  | BK/WH  | 151  | Ground  | ||||||
2  | GY  | 8  | Instrument Panel Lamp Supply Voltage  | ||||||
3  | PK  | 1339  | Ignition 1 Voltage  | ||||||
4  | GY  | 397  | Cruise Control On Switch Signal  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
1  | L-GN  | 1011  | Remote Radio Control Signal  | ||||||
2  | GY  | 8  | Instrument Panel Lamp Supply Voltage  | ||||||
3  | BK/WH  | 151  | Ground  | ||||||
4  | D-BU  | 1796  | Steering Wheel Controls Signal  | ||||||
5  | PK  | 1339  | Ignition 1 Voltage  | ||||||
6  | OG  | 397  | Cruise Control On Switch Signal  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
1  | BK/WH  | 151  | Ground  | ||||||
2  | GY  | 8  | Instrument Panel Lamp Supply Voltage  | ||||||
3  | GY  | 397  | Cruise Control On Switch Signal  | ||||||
4  | GY  | 1884  | Cruise Control Set/Coast/Resume/Accelerate Switch Signal  | ||||||
5  | --  | --  | Not Used  | ||||||

 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information  |


  | ||||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||||
1  | WH/BK  | 644  | 10-Volt Reference  | ||||||
2  | GY  | 8  | Instrument Panel Lamp Supply Voltage  | ||||||
3  | BK/WH  | 151  | Ground  | ||||||
4  | D-BU  | 1796  | Steering Wheel Controls Signal  | ||||||
5  | L-GN  | 1011  | Remote Radio Control Signal  | ||||||
6  | OG  | 397  | Cruise Control On Switch Signal  | ||||||
7  | GY  | 1884  | Cruise Control Set/Coast/Resume/Accelerate Switch Signal  | ||||||
