Power Door Systems Connector End Views. Chevrolet Equinox 2005

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Equinox 🢒 HVAC 🢒 HVAC Systems - Manual 🢒 Power Door Systems Connector End Views

Connector 1:	Door Latch - Driver
Connector 2:	Door Latch - Front Passenger
Connector 3:	Door Latch - LR
Connector 4:	Door Latch - RR
Connector 5:	Door Lock Switch - Driver
Connector 6:	Door Lock Switch - Front Passenger
Connector 7:	Outside Rearview Mirror - Driver
Connector 8:	Outside Rearview Mirror - Front Passenger
Connector 9:	Outside Rearview Mirror Switch
Connector 10:	Power Window Switch - Main
Connector 11:	Window Motor - Driver
Connector 12:	Window Motor - Front Passenger
Connector 13:	Window Motor - LR
Connector 14:	Window Motor - RR
Connector 15:	Window Switch - LR
Connector 16:	Window Switch - RR

Door Latch - Driver

Connector Part Information

OEM: 6-1355679-1, 6-1355683-1
Service: See Catalog
Description: 6-Way F (BK)

Door Latch - Driver

Pin	Wire Color	Circuit No.	Function
1	BK	746	Not Used
2	TN	694	Driver Door Lock Actuator Unlock Control
3	GY	295	Door Lock Actuator Lock Control
4	RD/BK	745	Left Front Door Ajar Switch Signal
5	PU	294	Not Used
6	BK	650	Ground

Door Latch - Front Passenger

Connector Part Information

OEM: 6-1355679-1, 6-1355683-1
Service: See Catalog
Description: 6-Way F (BK)

Door Latch - Front Passenger

Pin	Wire Color	Circuit No.	Function
1	BK	746	Passenger Door Ajar Switch Signal
2	TN	694	Not Used
3	GY	650	Ground
4	RD/BK	745	Not Used
5	PU	294	Door Lock Actuator Unlock Control
6	BK	295	Door Lock Actuator Lock Control

Door Latch - LR

Connector Part Information

OEM: 6-1355679-1, 6-1355683-1
Service: See Catalog
Description: 6-Way F (BK)

Door Latch - LR

Pin	Wire Color	Circuit No.	Function
1	BK	746	Not Used
2	TN	294	Door Lock Actuator Unlock Control
3	GY	295	Door Lock Actuator Lock Control
4	RD/BK	746	Passenger Door Ajar Switch Signal
5	PU	294	Not Used
6	BK	750	Ground

Door Latch - RR

Connector Part Information

OEM: 6-1355679-1, 6-1355683-1
Service: See Catalog
Description: 6-Way F (BK)

Door Latch - RR

Pin	Wire Color	Circuit No.	Function
1	BK	746	Passenger Door Ajar Switch Signal
2	TN	294	Not Used
3	GY	850	Ground
4	RD/BK	746	Not Used
5	PU	294	Door Lock Actuator Unlock Control
6	BK	295	Door Lock Actuator Lock Control

Door Lock Switch - Driver

Connector Part Information

OEM: 6098-0241
Service: See Catalog
Description: 3-Way F (BK)

Door Lock Switch - Driver

Pin	Wire Color	Circuit No.	Function
1	OG/BK	244	Passenger Door Lock Switch Lock Control
2	RD/BK	245	Passenger Door Lock Switch Unlock Control
3	OG	440	Battery Positive Voltage

Door Lock Switch - Front Passenger

Connector Part Information

OEM: 6098-0241
Service: See Catalog
Description: 3-Way F (BK)

Door Lock Switch - Front Passenger

Pin	Wire Color	Circuit No.	Function
1	OG/BK	244	Passenger Door Lock Switch Lock Control
2	RD/BK	245	Passenger Door Lock Switch Unlock Control
3	OG	440	Battery Positive Voltage

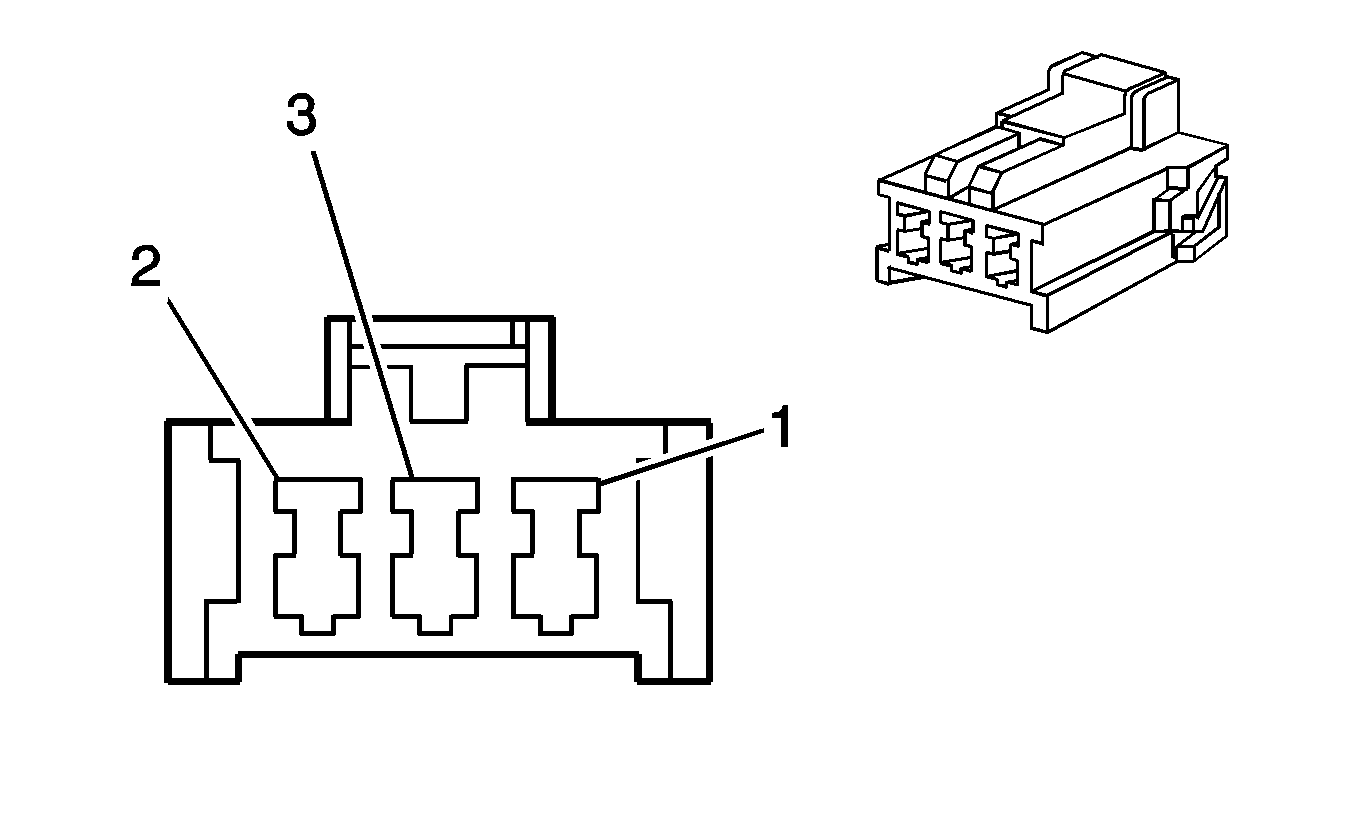

Outside Rearview Mirror - Driver

Connector Part Information

OEM: 12047781
Service: 12101864
Description: 3-Way F (BK)

Outside Rearview Mirror - Driver

Pin	Wire Color	Circuit No.	Function
A	YE	1496	Mirror Motor Right/Up Control
B	WH	81	Driver Mirror Motor Right Control
C	L-GN	89	Driver Mirror Motor Down Control

Outside Rearview Mirror - Front Passenger

Connector Part Information

OEM: 12047781
Service: 12101864
Description: 3-Way F (BK)

Outside Rearview Mirror - Front Passenger

Pin	Wire Color	Circuit No.	Function
A	YE	1496	Mirror Motor Right/Up Control
B	WH	881	Passenger Mirror Motor Right Control
C	L-GN	889	Passenger Mirror Motor Down Control

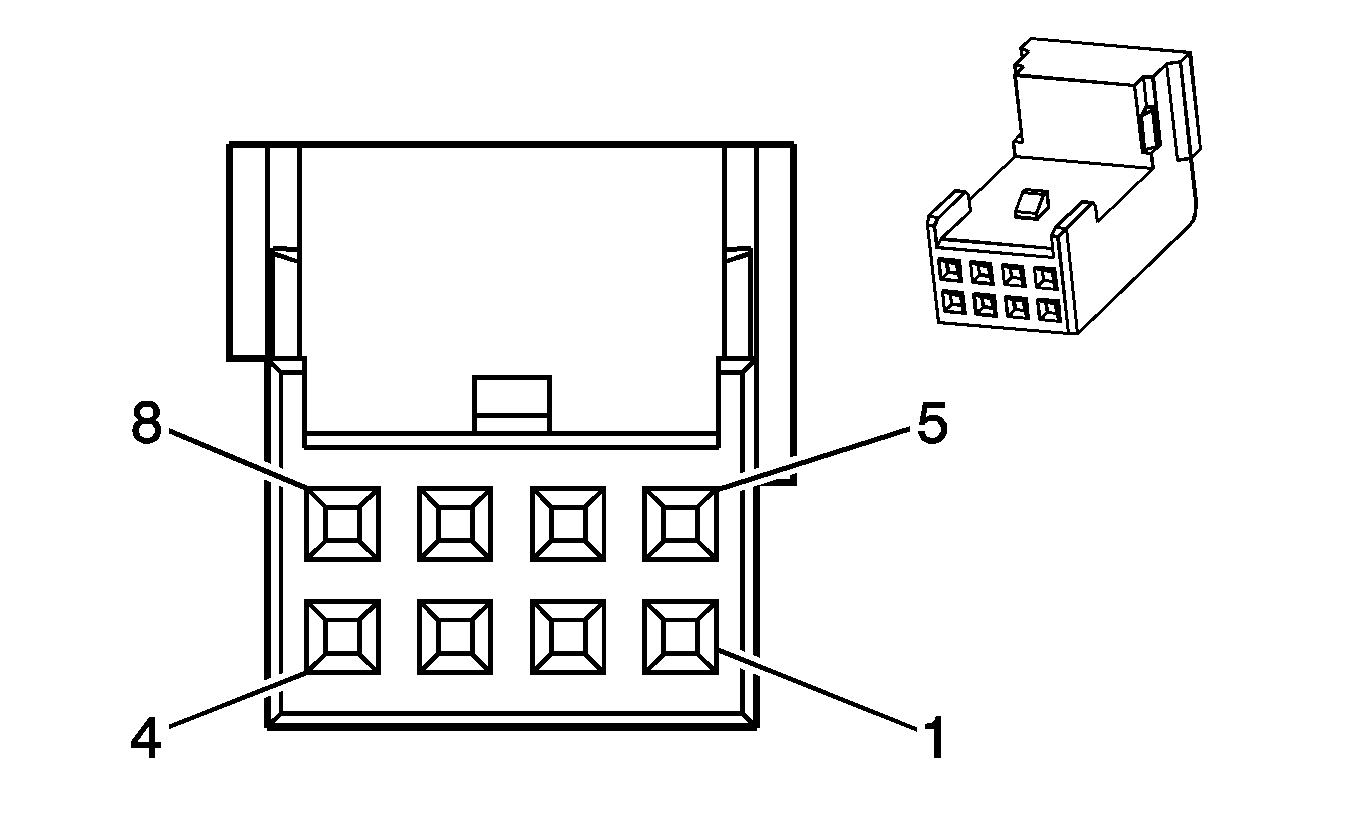

Outside Rearview Mirror Switch

Connector Part Information

OEM: 15336862
Service: See Catalog
Description: 8-Way F REI DUCON (GY)

Outside Rearview Mirror Switch

Pin	Wire Color	Circuit No.	Function
1	RD/WH	440	Battery Positive Voltage
2	BK	550	Ground
3	PU/WH	889	Passenger Mirror Motor Up/Down Control
4	WH	81	Driver Mirror Motor Right/Left Control
5	YE	1496	Mirror Switch Control
6	--	--	Not Used
7	L-GN	89	Driver Mirror Motor Up/Down Control
8	OG/WH	881	Passenger Mirror Motor Right/Left Control

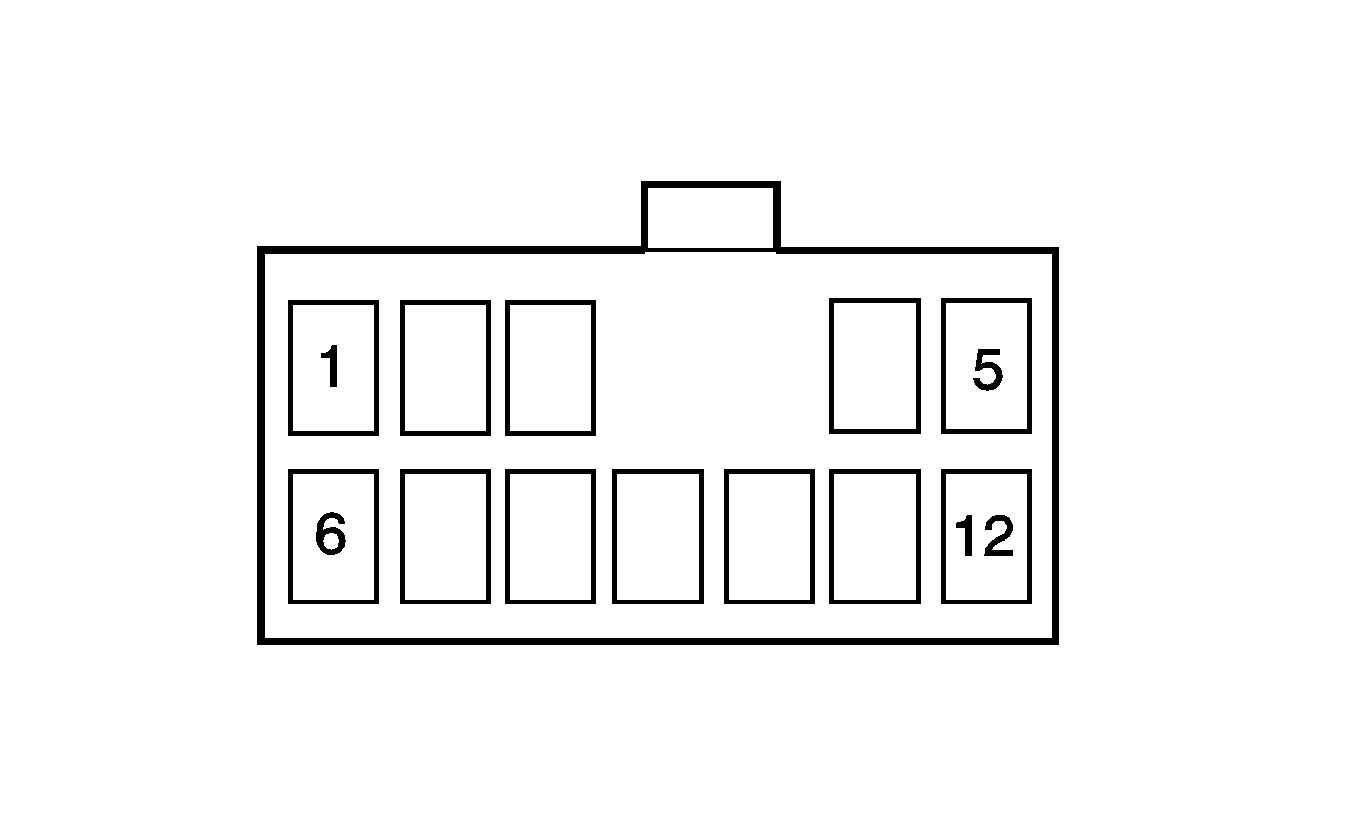

Power Window Switch - Main

Connector Part Information

OEM: 7283-1120
Service: 15383359
Description: 12-Way F (WH)

Power Window Switch - Main

Pin	Wire Color	Circuit No.	Function
1	YE	643	Accessory Voltage
2	L-GN	170	Power Window Master Switch Right Rear Up Signal
3	PU	171	Power Window Master Switch Right Rear Down Signal
4	D-GN	168	Power Window Master Switch Left Rear Up Signal
5	PU	169	Power Window Master Switch Left Rear Down Signal
6	BN	667	Power Window Motor Right Front Down Control
7	D-BU	666	Power Window Motor Right Front Up Control
8	BK	650	Ground
9	D-BU	1307	Power Window Master Switch Lockout Signal
10	D-BU	1307	Power Window Master Switch Lockout Signal
11	BN	165	Power Window Motor Left Front Down Control
12	D-BU	164	Power Window Motor Left Front Up Control

Window Motor - Driver

Connector Part Information

OEM: 7283-5565-40
Service: See Catalog
Description: 2-Way F YESC/USCAR Unsealed Series (GY)

Window Motor - Driver

Pin	Wire Color	Circuit No.	Function
1	BN	165	Power Window Motor Left Front Down Control
2	D-BU	164	Power Window Motor Left Front Up Control

Window Motor - Front Passenger

Connector Part Information

OEM: 7283-5565-40
Service: See Catalog
Description: 2-Way F YESC/USCAR Unsealed Series (GY)

Window Motor - Front Passenger

Pin	Wire Color	Circuit No.	Function
1	BN	667	Power Window Motor Right Front Down Control
2	D-BU	666	Power Window Motor Right Front Up Control

Window Motor - LR

Connector Part Information

OEM: 7283-5565-40
Service: See Catalog
Description: 2-Way F YESC/USCAR Unsealed Series (GY)

Window Motor - LR

Pin	Wire Color	Circuit No.	Function
1	BN	669	Power Window Motor Left Rear Down Control
2	D-BU	668	Power Window Motor Left Rear Up Control

Window Motor - RR

Connector Part Information

OEM: 7283-5565-40
Service: See Catalog
Description: 2-Way F YESC/USCAR Unsealed Series (GY)

Window Motor - RR

Pin	Wire Color	Circuit No.	Function
1	BN	671	Power Window Motor Right Rear Down Control
2	D-BU	670	Power Window Motor Right Rear Up Control

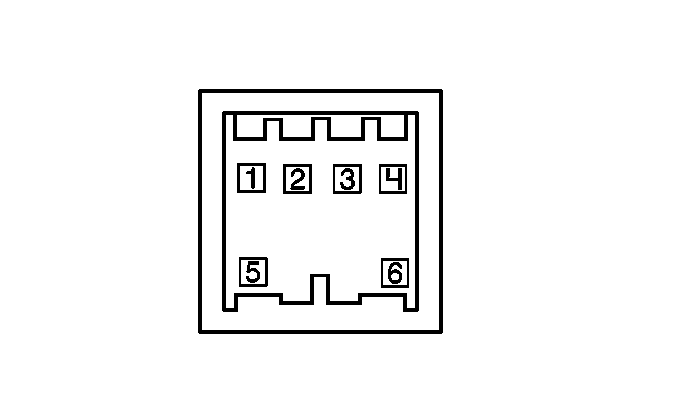

Window Switch - LR

Connector Part Information

OEM: 6098-0245
Service: See Catalog
Description: 6-Way F (GY)

Window Switch - LR

Pin	Wire Color	Circuit No.	Function
1	BN	669	Power Window Motor Left Rear Down Control
2	PU	169	Power Window Master Switch Left Rear Down Signal
3	--	--	Not Used
4	D-BU	668	Power Window Motor Left Rear Up Control
5	D-BU	1307	Power Window Master Switch Lockout Signal
6	D-GN	168	Power Window Master Switch Left Rear Up Signal

Window Switch - RR

Connector Part Information

OEM: 6098-0245
Service: See Catalog
Description: 6-Way F (GY)

Window Switch - RR

Pin	Wire Color	Circuit No.	Function
1	BN	671	Power Window Motor Right Rear Down Control
2	PU	171	Power Window Master Switch Right Rear Down Signal
3	--	--	Not Used
4	D-BU	670	Power Window Motor Right Rear Up Control
5	D-BU	1307	Power Window Master Switch Lockout Signal
6	L-GN	170	Power Window Master Switch Right Rear Up Signal
