| Connector 1: | Engine Oil Pressure (EOP) Switch |
| Connector 2: | Fuel Pump and Sender Assembly - Primary |
| Connector 3: | Fuel Pump and Sender Assembly - Secondary |
| Connector 4: | Instrument Panel Cluster (IPC) |
Engine Oil Pressure (EOP) Switch
Connector Part Information
|
Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
A | TN/BK | 231 | Oil Pressure Switch Signal |
Fuel Pump and Sender Assembly - Primary
Connector Part Information
|
Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
A | GY | 120 | Fuel Pump Supply Voltage |
B | PU | 1589 | Fuel Level Sensor Signal |
C | BU | 930 | Fuel Level Sensor Signal - Common |
D | BK | 850 | Ground |
Fuel Pump and Sender Assembly - Secondary
Connector Part Information
|
Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
A | -- | -- | Not Used |
B | BU | 930 | Fuel Level Sensor Signal - Common |
C | BK/WH | 2759 | Low Reference |
D | -- | -- | Not Used |

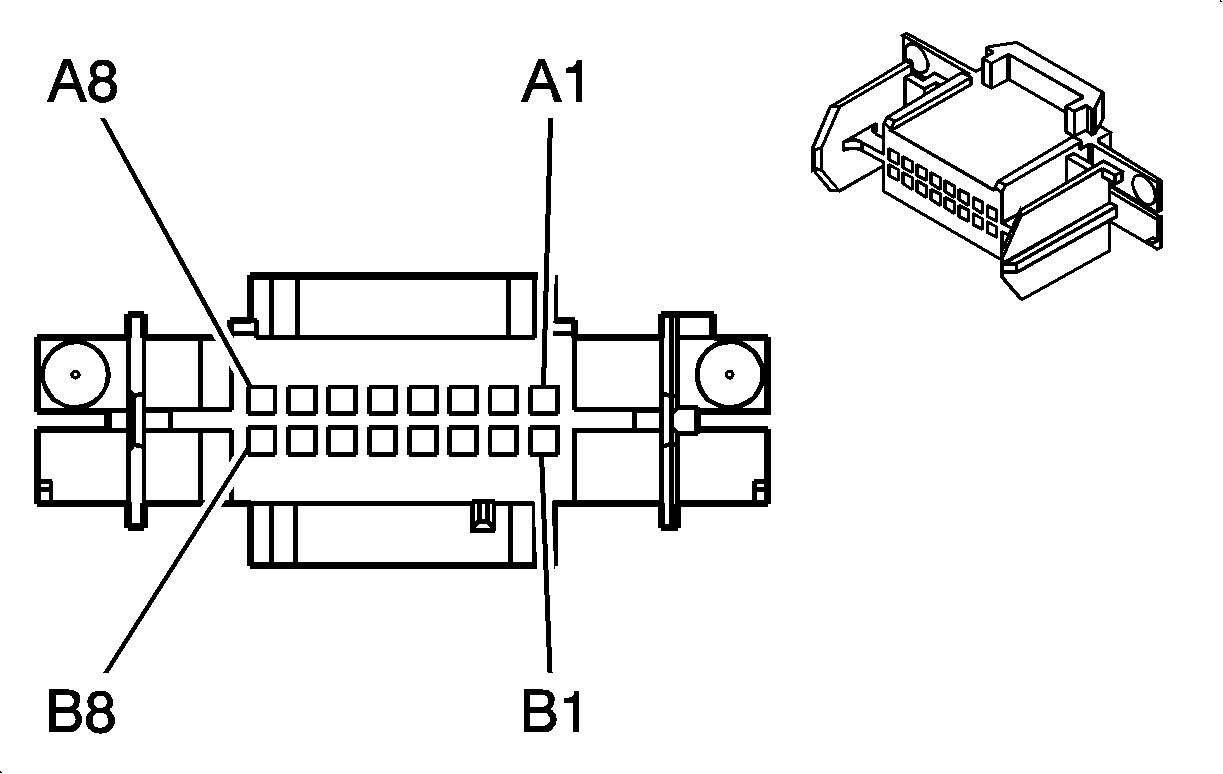

Instrument Panel Cluster (IPC)
Connector Part Information
|
Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
A1 | PK | 139 | Ignition 1 Voltage |
A2 | YE | 749 | Security Indicator Control |
A3 | -- | -- | Not Used |
A4 | D-BU | 15 | Right Turn Signal Lamp Supply Voltage |
A5 | L-BU | 14 | Left Turn Signal Lamp Supply Voltage |
A6 | -- | -- | Not Used |
A7 | BN/WH | 419 | MIL Control |
A8 | GY | 8 | Instrument Panel Lamps Supply Voltage |
B1 | -- | -- | Not Used |
B2 | RD/WH | 2540 | Battery Positive Voltage |
B3 | -- | -- | Not Used |
B4 | BK/WH | 151 | Ground |
B5 | PU | 1807 | Class 2 Serial Data |
B6-B8 | -- | -- | Not Used |
