Makes 🢒 Chevrolet 🢒 2005 🢒 Equinox 🢒 HVAC 🢒 HVAC Systems - Manual 🢒 Stationary Windows Connector End Views
Connector 1: Ambient Air Temperature Sensor (DH3/DF5)
Connector 2: Inside Rearview Mirror (ISRVM) (DH3/DF5/UE1)
Connector 3: Rear Defogger Grid C1
Connector 4: Rear Defogger Grid C2

Ambient Air Temperature Sensor (DH3/DF5)
Object Number: 684793 Size: CH

Connector Part Information

  • OEM: 12052642
  • Service: 12101856
  • Description: 2-Way F Metri-Pack 150 Series Sealed (L-GN)

Ambient Air Temperature Sensor (DH3/DF5)

Pin

Wire Color

Circuit No.

Function

A

L-GN/BK

735

Ambient Air Temperature Sensor Signal

B

GY

720

Low Reference

Inside Rearview Mirror (ISRVM) (DH3/DF5/UE1)
Object Number: 872580 Size: CH

Connector Part Information

  • OEM: 917981-2
  • Service: See Catalog
  • Description: 16-Way F Hybrid Series (BK)

Inside Rearview Mirror (ISRVM) (DH3/DF5/UE1)

Pin

Wire Color

Circuit No.

Function

1-5

--

--

Not Used

6

L-GN/BK

735

Ambient Air Temperature Sensor Signal

7

GY

720

Low Reference

8

BK

750

Ground

9

L-GN

24

Backup Lamps Supply Voltage

10

--

--

Not Used

11

D-BU/WH

2514

Keypad Signal (UE1)

12

L-GN/BK

2515

Keypad Supply Voltage (UE1)

13

YE

43

Accessory Voltage

14

YE/BK

2516

Keypad Green LED Signal (UE1)

15

BN/WH

2517

Keypad Red LED Signal (UE1)

16

--

--

Not Used

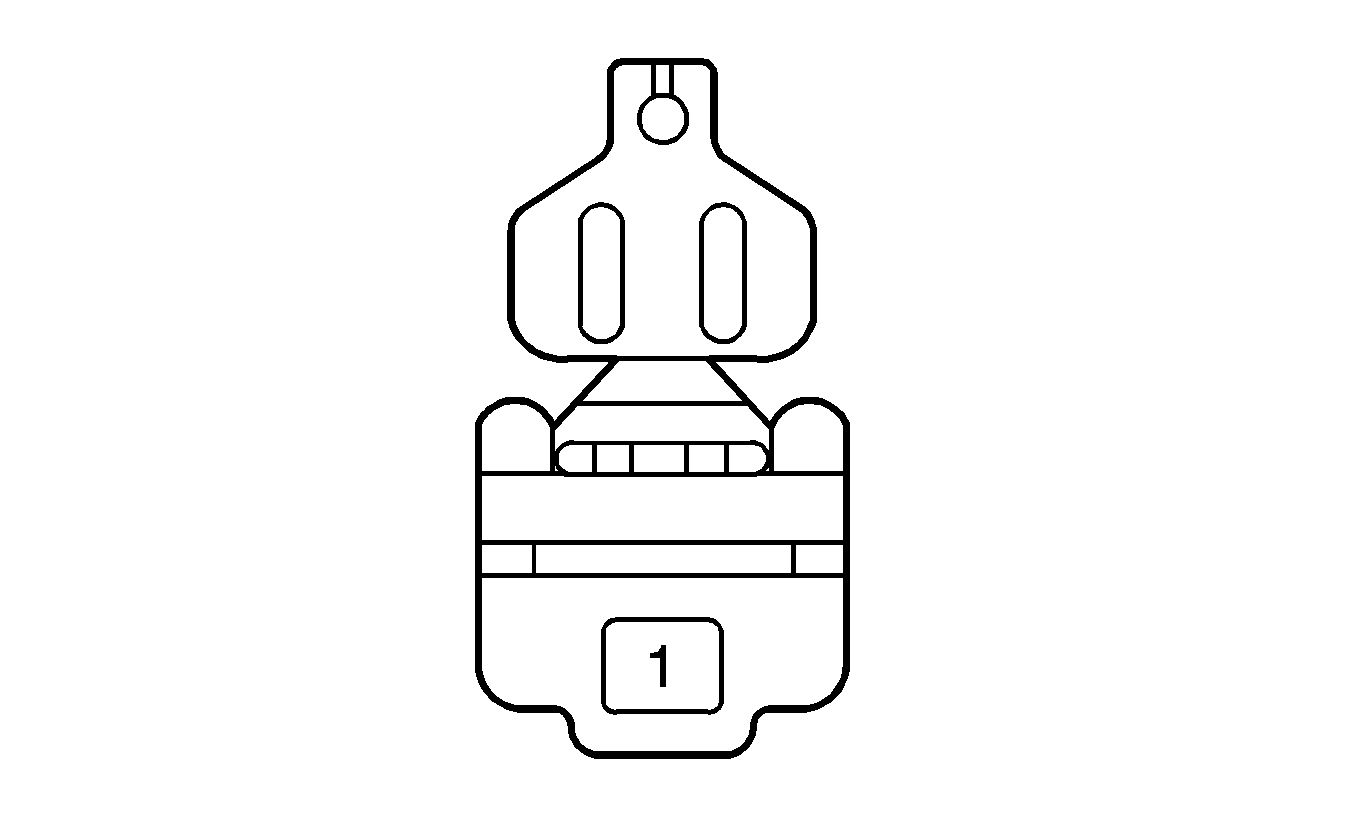

Rear Defogger Grid C1
Object Number: 1413086 Size: CH

Connector Part Information

  • OEM: 7123-5014-30
  • Service: See Catalog
  • Description: 1-Way F (BK)

Rear Defogger Grid C1

Pin

Wire Color

Circuit No.

Function

1

PU

293

Rear Defogger Element Supply Voltage

Rear Defogger Grid C2
Object Number: 1413086 Size: CH

Connector Part Information

  • OEM: 7123-5014-30
  • Service: See Catalog
  • Description: 1-Way F (BK)

Rear Defogger Grid C2

Pin

Wire Color

Circuit No.

Function

1

BK

750

Ground
