| Connector 1: | Windshield Washer Fluid Pump |
| Connector 2: | Windshield Wiper Motor |
| Connector 3: | Windshield Wiper/Washer Switch |
| Connector 4: | Wiper Motor - Rear |

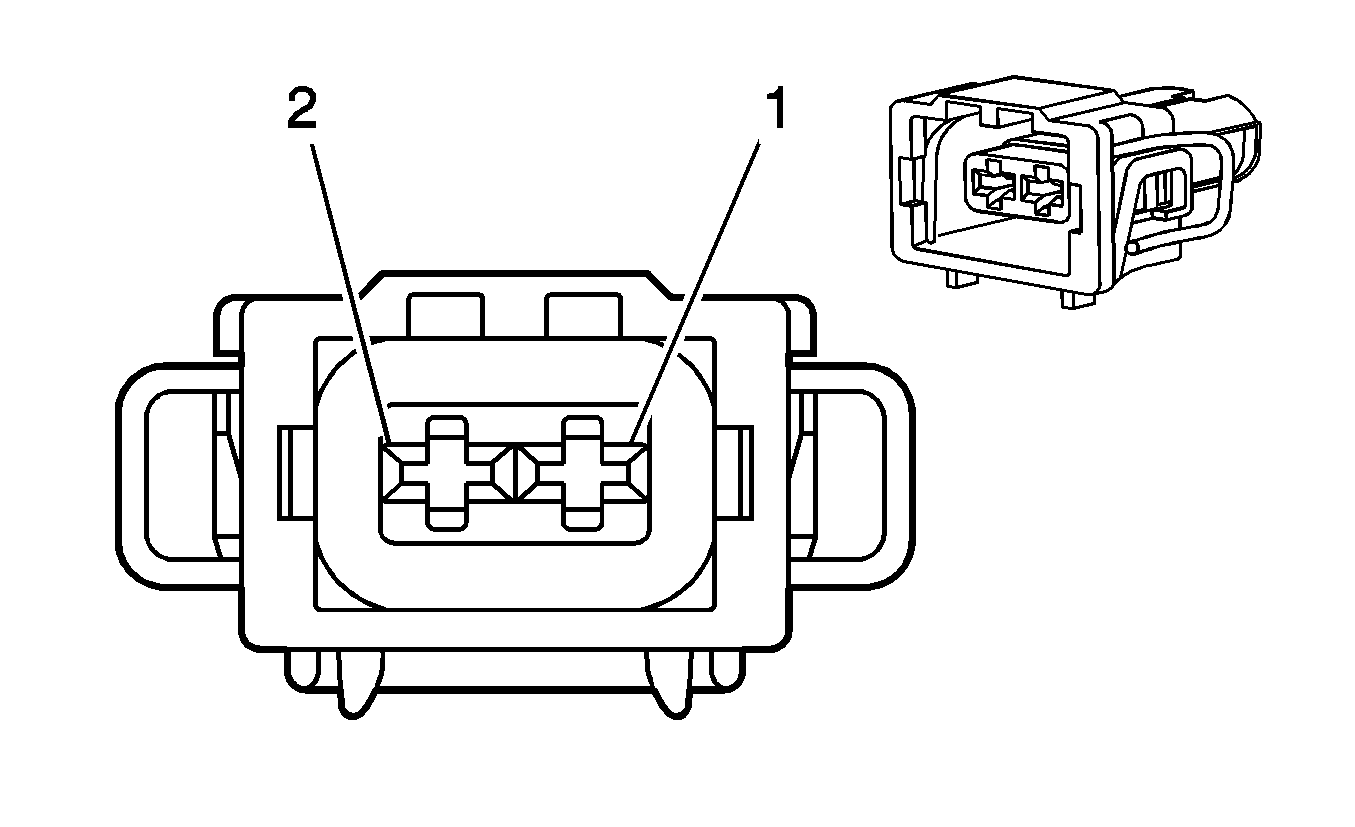

Windshield Washer Fluid Pump
Connector Part Information
|
Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
1 | D-GN | 392 | Rear Window Washer Pump Control |
2 | OG | 228 | Windshield Washer Pump Control |
Windshield Wiper Motor
Connector Part Information
|
Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
A | YE | 343 | Accessory Voltage |
B | YE | 196 | Windshield Wiper Motor Park Switch Signal |
C | BK | 650 | Ground |
D | PU | 92 | Windshield Wiper Motor High Speed Control |
E | D-GN | 95 | Windshield Wiper Motor Low Speed Control |
Windshield Wiper/Washer Switch
Connector Part Information
|
Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
A | BK | 550 | Ground |
B | D-GN | 392 | Rear Window Washer Pump Control |
C | D-GN | 113 | Windshield Wiper Switch On Signal |
D | GY | 112 | Low Reference |
E | PK | 94 | Rear Wiper Switch Signal |
F | YE | 343 | Accessory Voltage |
G | PU | 92 | Windshield Wiper Motor High Speed Control |
H | D-GN | 95 | Windshield Wiper Motor Low Speed Control |
J | L-BU | 97 | Windshield Wiper Switch Mist/Off/Low Signal |
K | BN | 96 | Windshield Wiper Switch Pulse Delay Signal |
L | -- | -- | Not Used |
M | OG | 228 | Windshield Washer Pump Control |

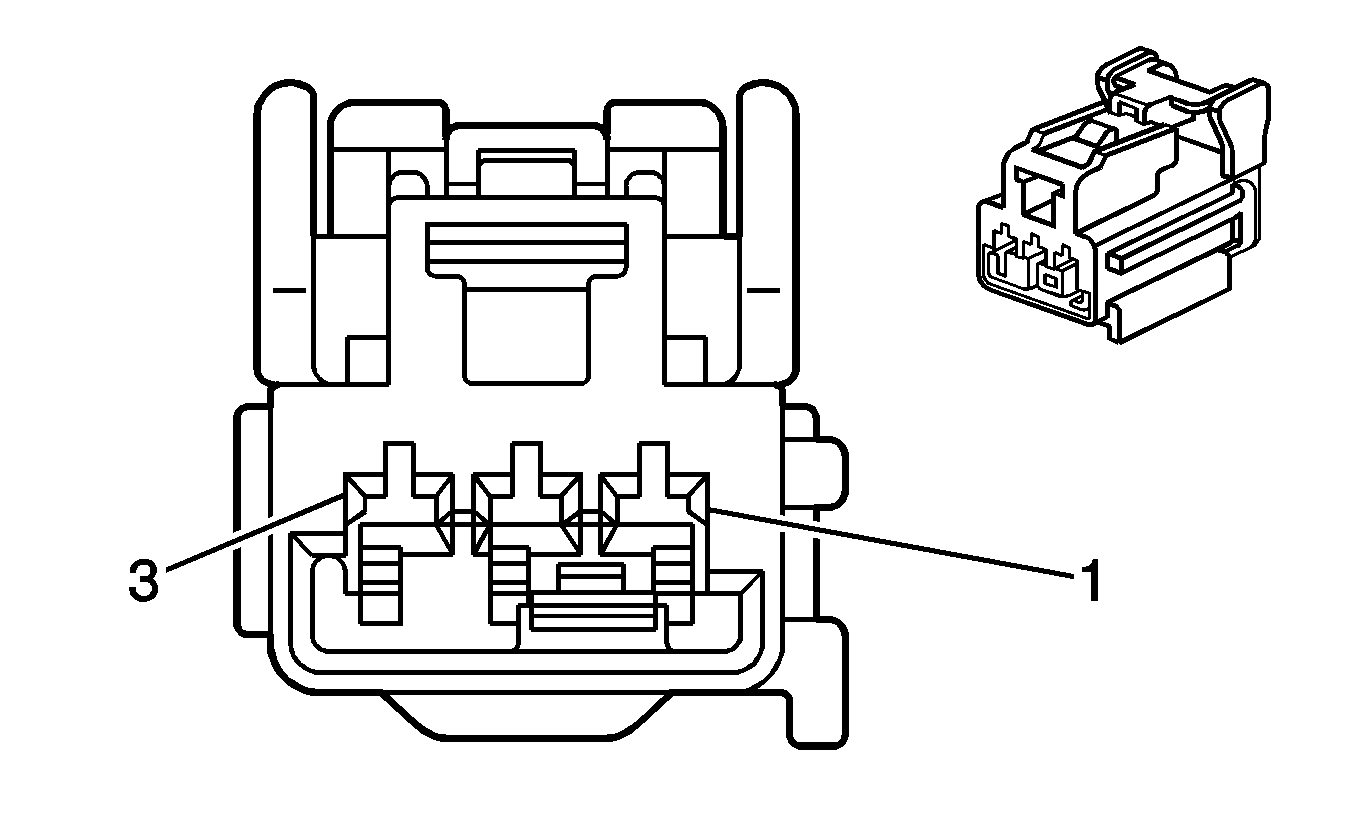

Wiper Motor - Rear
Connector Part Information
|
Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
1 | WH | 393 | Rear Window Wiper Relay Control |
2 | BK | 750 | Ground |
3 | YE | 143 | Accessory Voltage |
