Makes 🢒 Chevrolet 🢒 2008 🢒 Equinox 🢒 Body Systems 🢒 Vehicle Access 🢒 Front Side Door Outside Handle Replacement

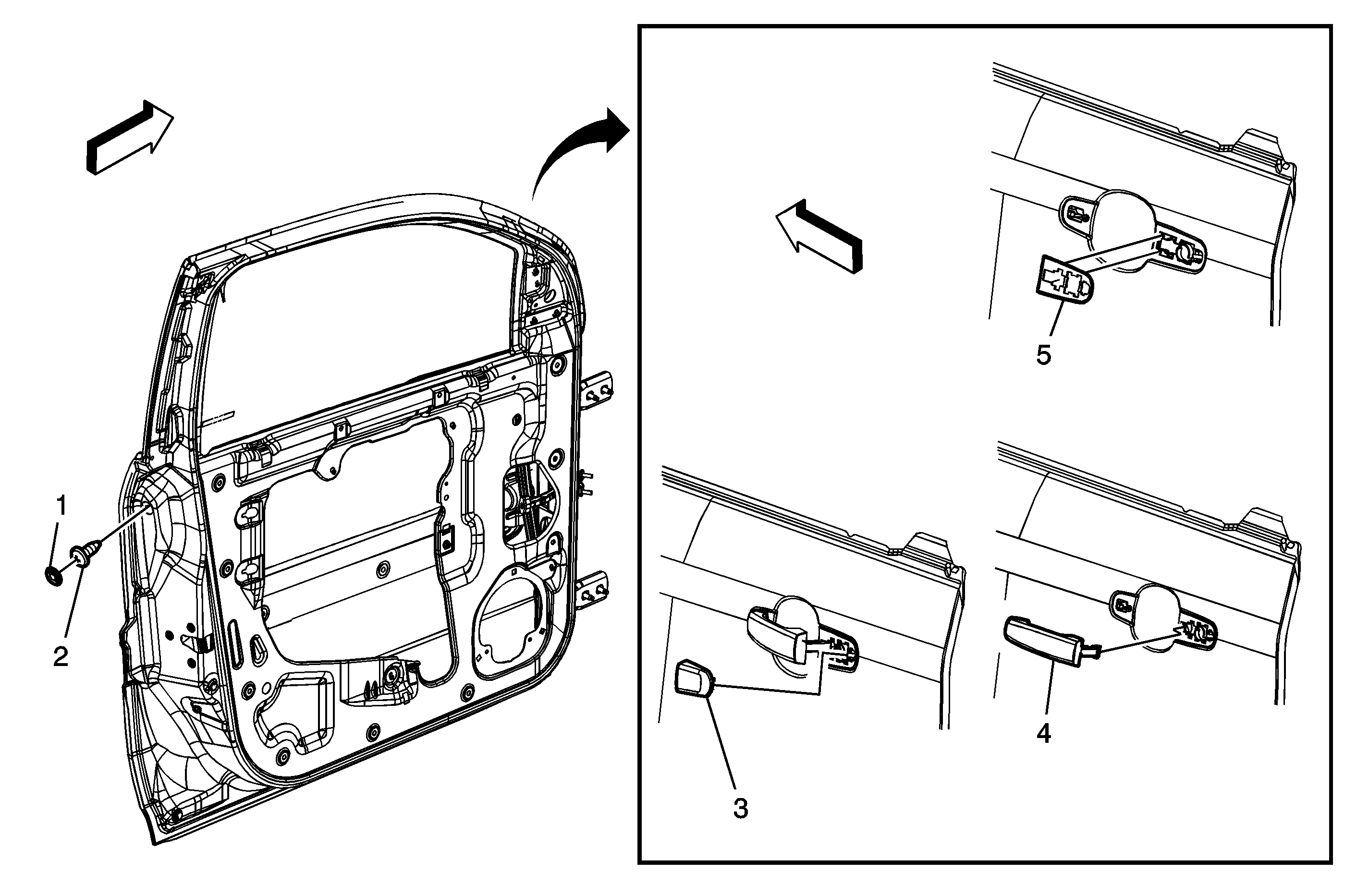

Object Number: 1718375 Size: MF

Callout

Component Name

1

Front Side Door Pull Handle Bolt Cap

2

Front Side Door Pull Handle Bolt

Notice: Refer to Fastener Notice in the Preface section.

Tighten
8 N·m (71 lb in)

3

Front Side Door Lock Cylinder Cap Assembly

4

Front Side Door Outside Handle Lever Assembly

5

Front Side Door Outside Handle Seal
