Power Door Systems Component Views. Chevrolet Evaluator 1985

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1985 🢒 Evaluator 🢒 Body 🢒 Doors 🢒 Power Door Systems Component Views

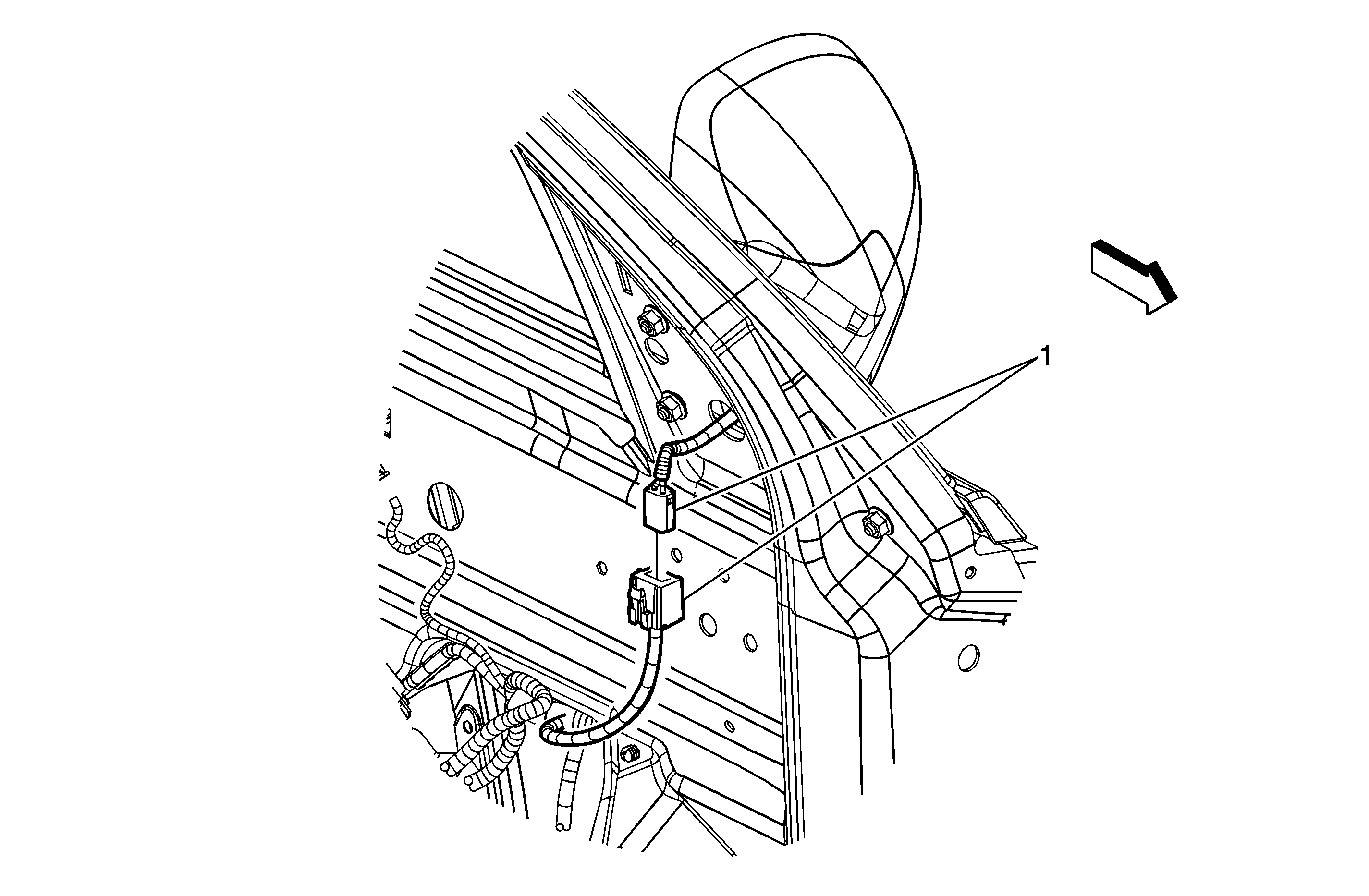

Figure 1:


(1)	Outside Rear View Mirror - Left (Right Similar)

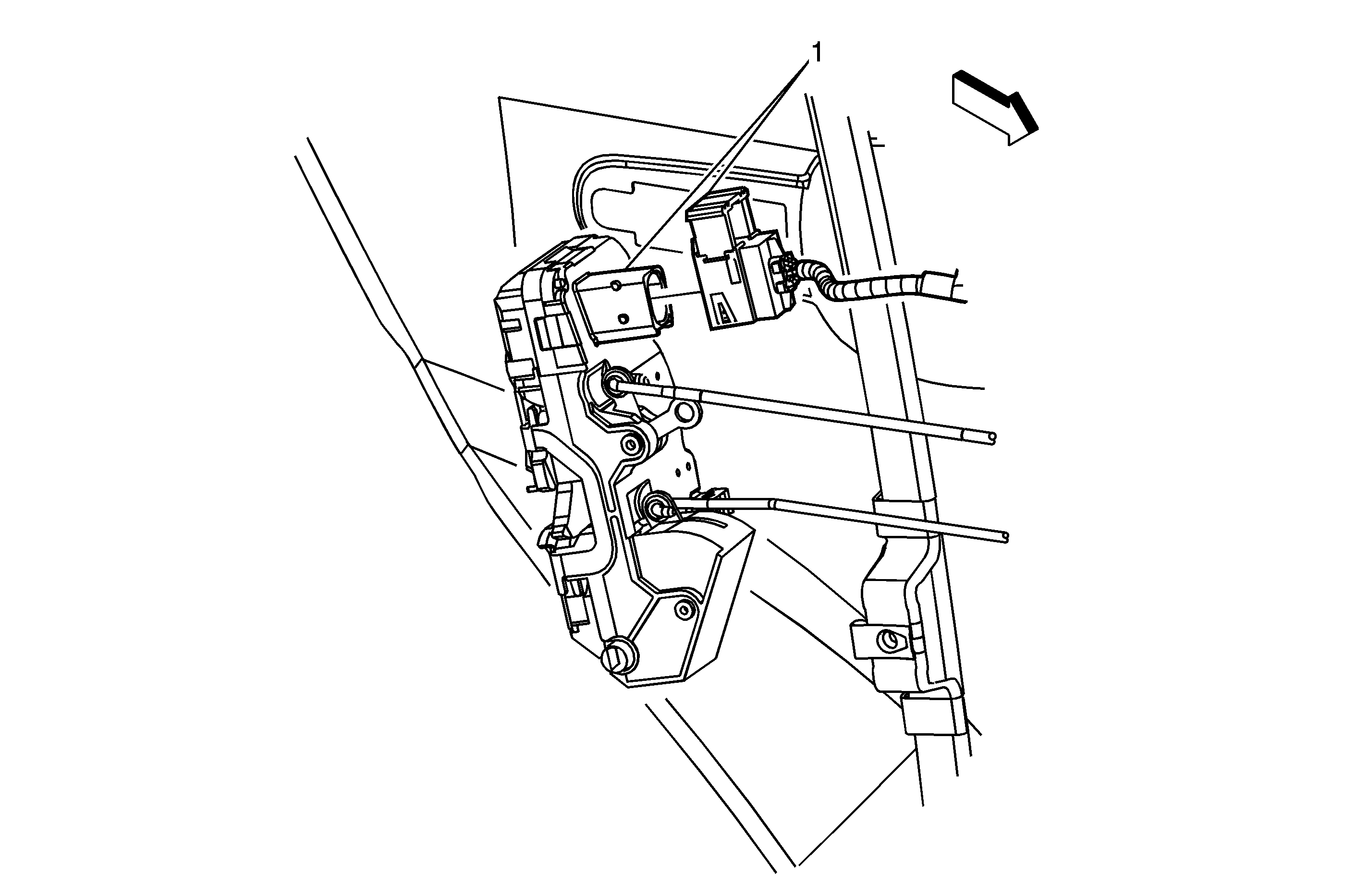

Figure 2:


(1)	Door Latch Assembly - Driver Side (Passenger Side Similar)

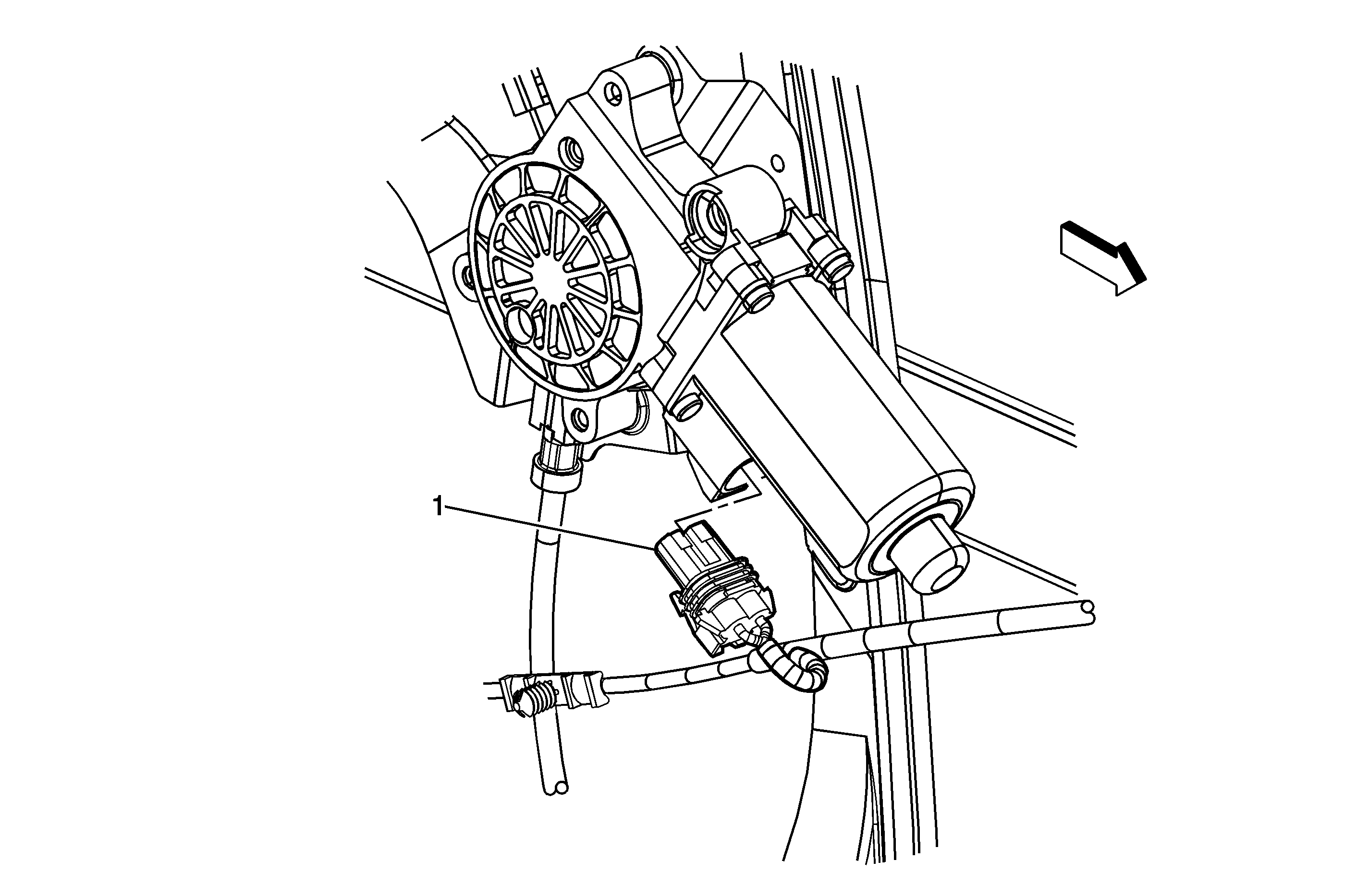

Figure 3:


(1)	Window Motor - Driver Side (Front Passenger Side Similar)

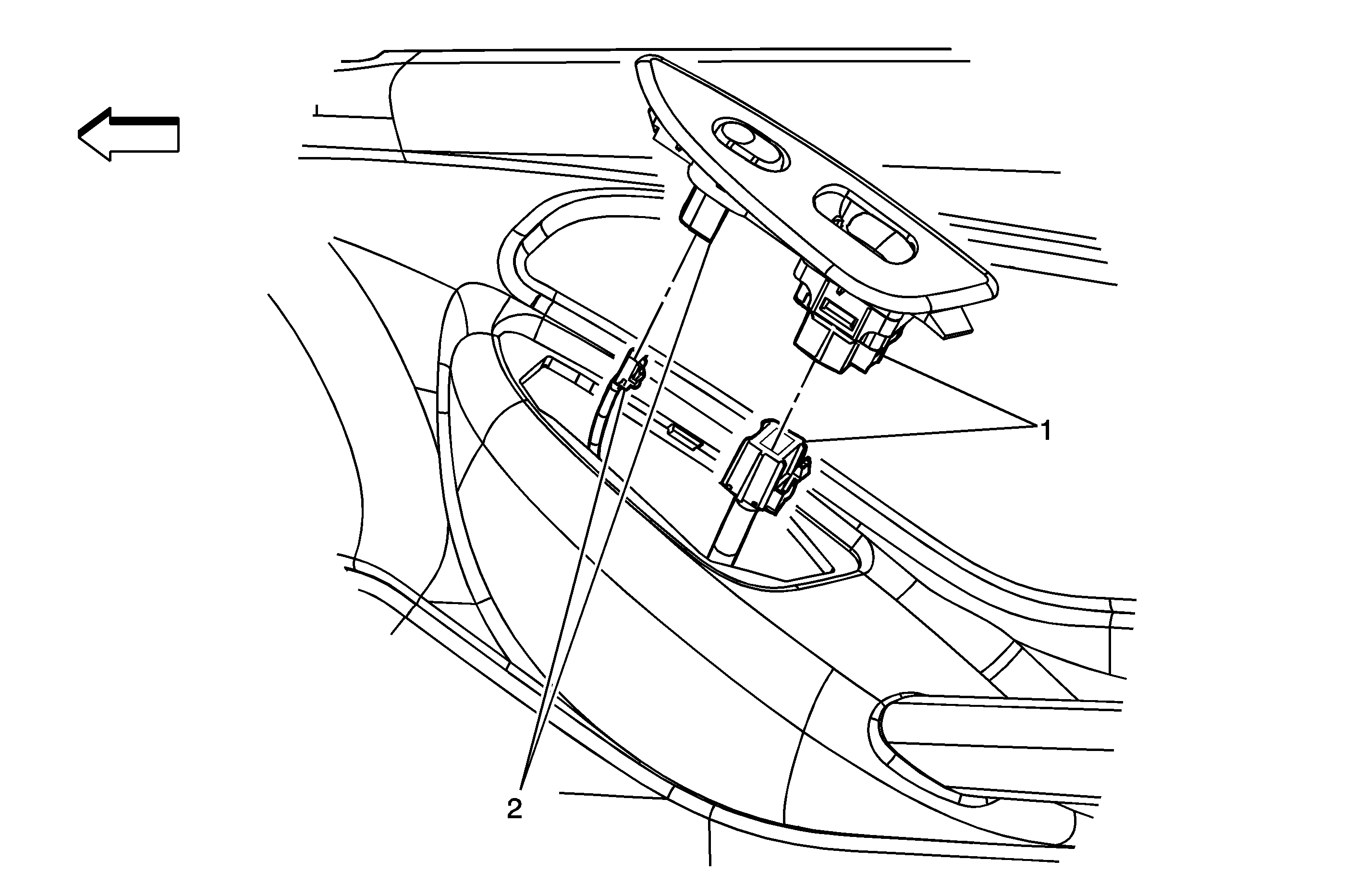

Figure 4:


(1)	Door Lock Switches - Front Passenger
(2)	Window Switches - Front Passenger

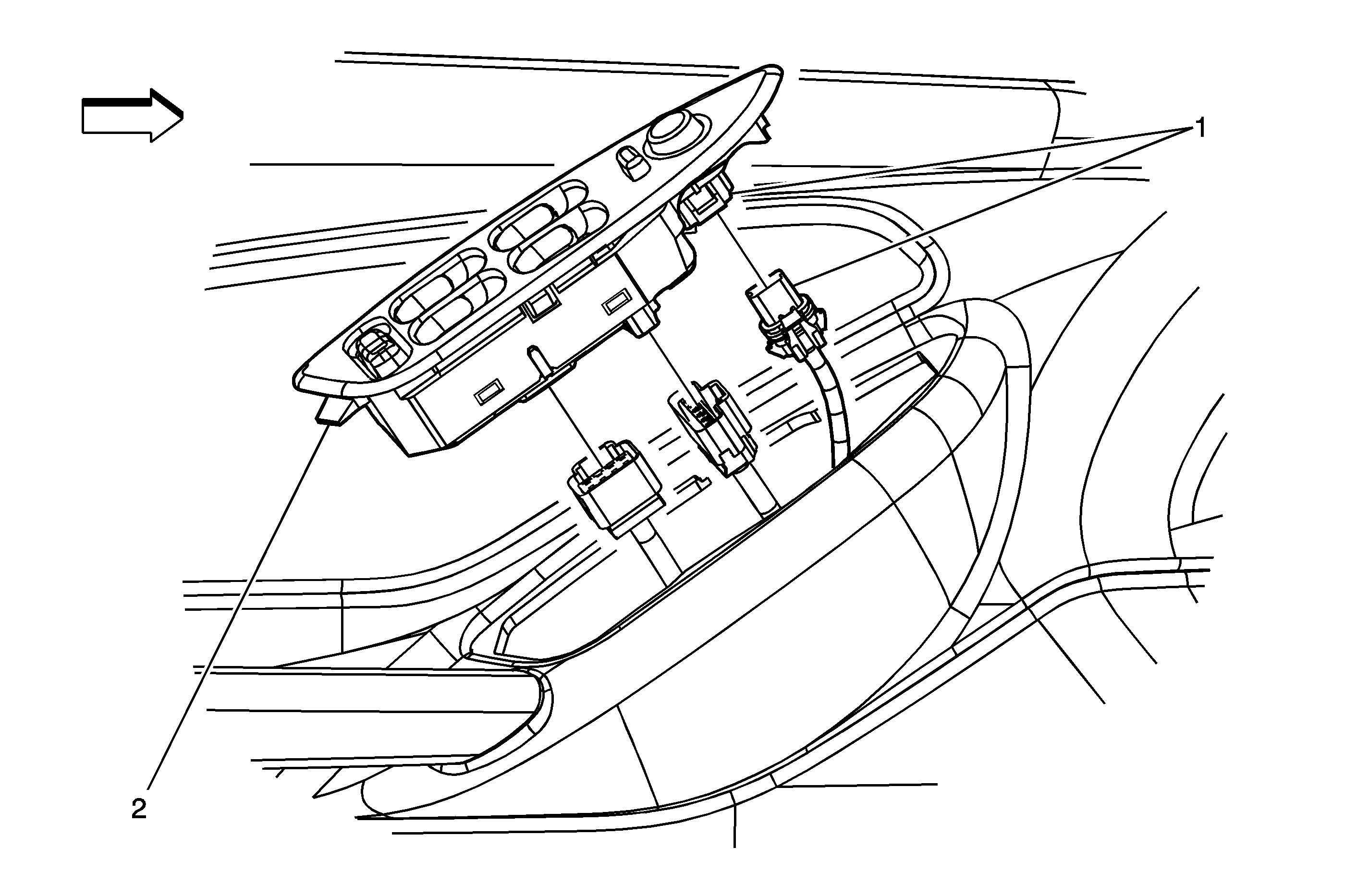

Figure 5:


(1)	Outside Rearview Mirror Switch
(2)	Window Switch - Master

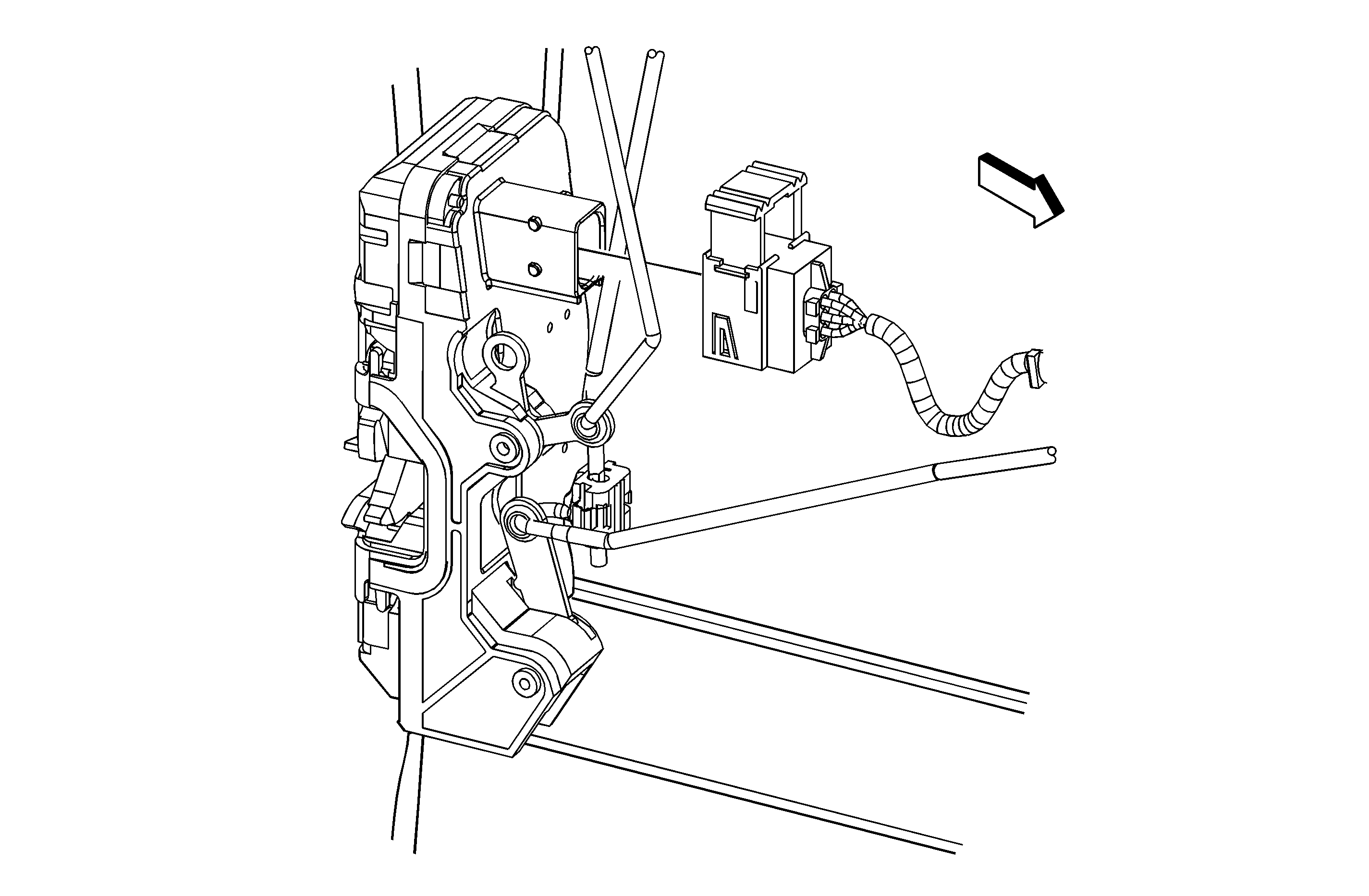

Figure 6:


(1)	Door Latch Assembly - LR (RR Similar)

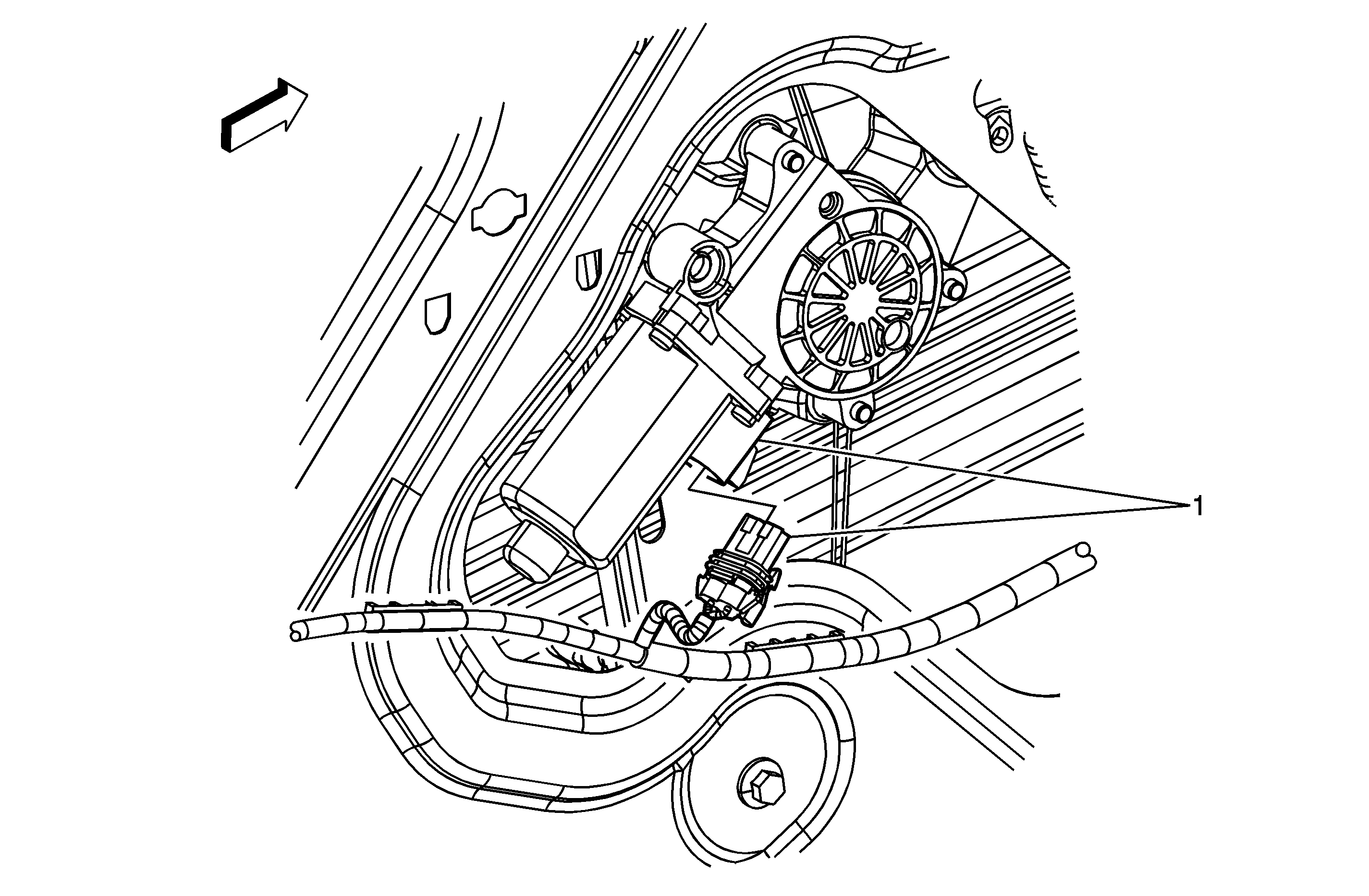

Figure 7:


(1)	Window Motor - LR (RR Similar)

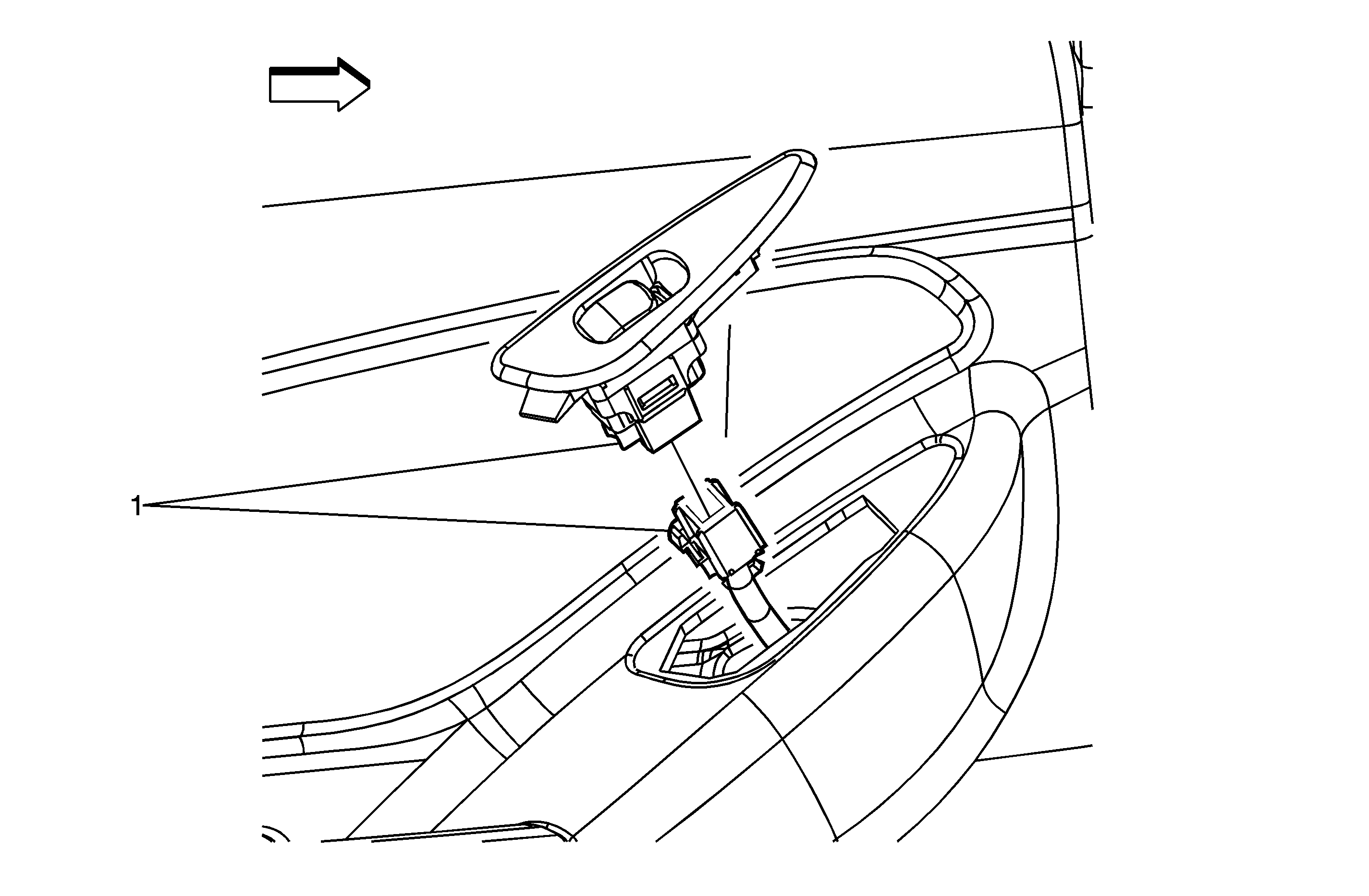

Figure 8:


(1)	Window Switch - LR Door (RR Door Similar)
