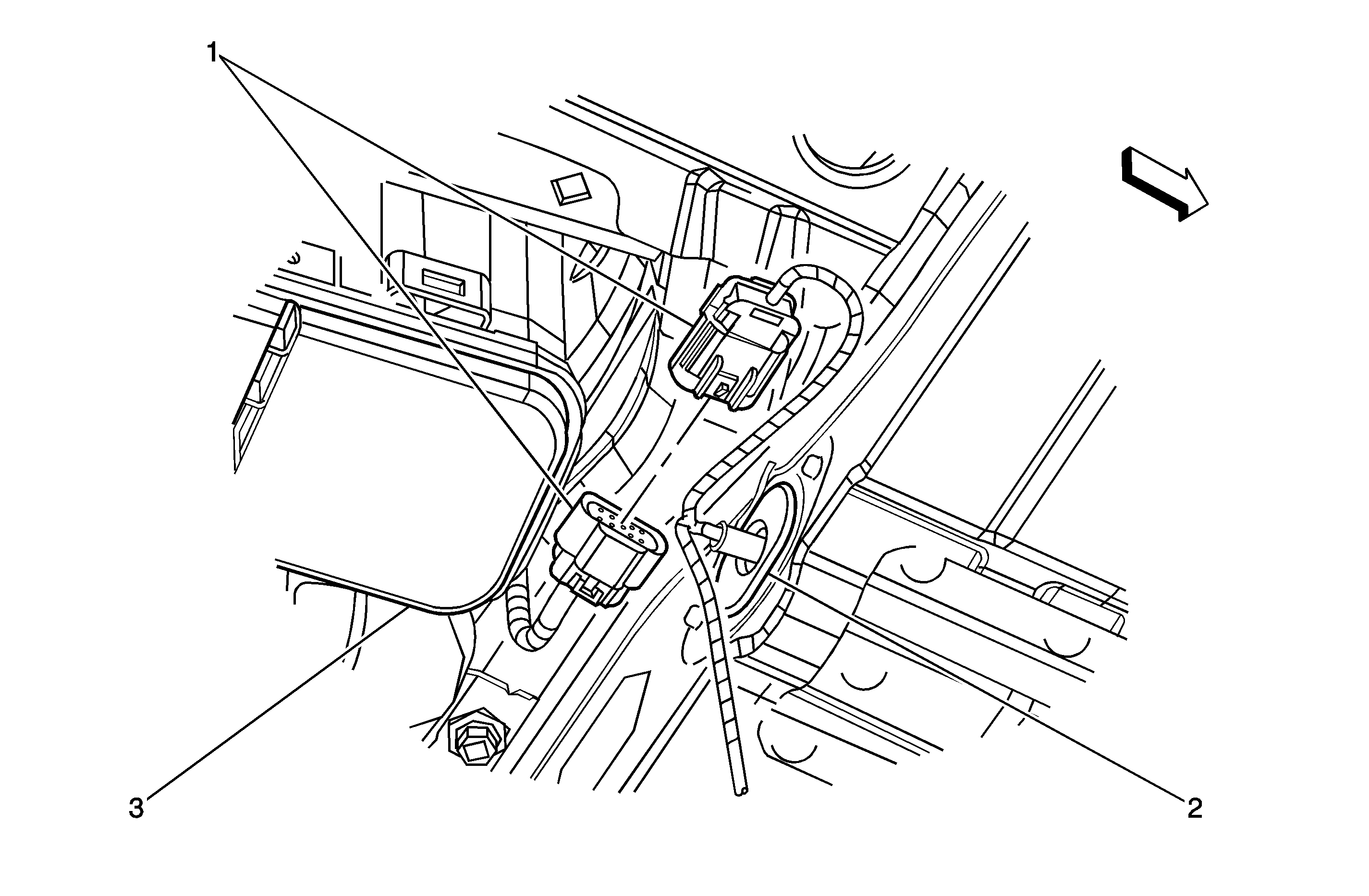

Figure 1:

Under the Right Rear of the Vehicle
Object Number: 1263929 Size: MF
(1)C413
(2)Evaporative Emission (EVAP) Canister Vent Solenoid
Figure 2:

Under Vehicle Forward of RR Wheel
Object Number: 1263945 Size: MF
(1)C403
(2)C413
Figure 3:

Right Rear of Passenger Compartment - Extended Sedan
Object Number: 1263949 Size: MF
(1)G301
(2)Inflatable Restraint Side Impact Module - Right (AY1)
(3)C701
(4)Digital Radio Receiver
Figure 4:

Passenger Compartment Floor
Object Number: 1263958 Size: MF
(1)Inflatable Restraint Sensing and Diagnostic Module (SDM)
(2)Automatic Transmission Shift Lever Position Indicator
(3)C214
(4)Body Control Module (BCM), C1
(5)Body Control Module (BCM), C3
(6)C310
Figure 5:

Rear of the Engine Compartment
Object Number: 1263963 Size: MF
(1)Brake Fluid Level Switch
(2)C101
(3)Fuse Block - Underhood
(4)Electronic Brake Control Module (EBCM)
(5)Powertrain Control Module (PCM)
(6)G109
(7)Coolant Level Switch
(8)C102

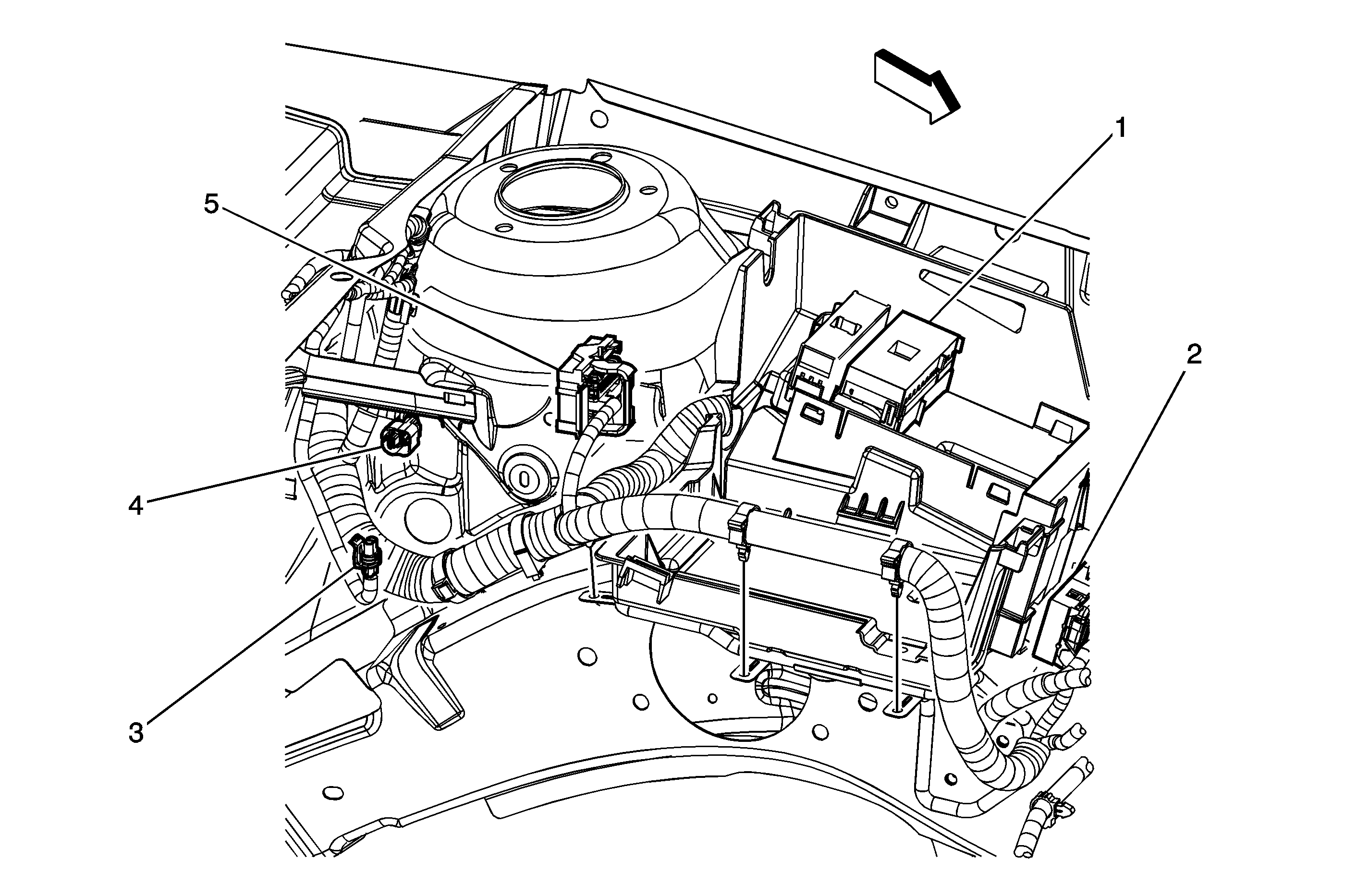

Figure 6:

Left Side of Engine Compartment
Object Number: 1263967 Size: MF
(1)Fuse Block -- Underhood
(2)Powertrain Control Module (PCM)
(3)Engine Coolant Level Switch
(4)Brake Fluid Level Switch
(5)Electronic Brake Control Module (EBCM)
Figure 7:

Left Rear of Passenger Compartment - Extended Sedan
Object Number: 1263973 Size: MF
(1)Fuse Block - Rear
(2)C651
(3)Inflatable Restraint Side Impact Module - Left (AY1)
(4)C404
(5)C801
(6)Remote Control Door Lock Receiver (RCDLR)
(7)G302

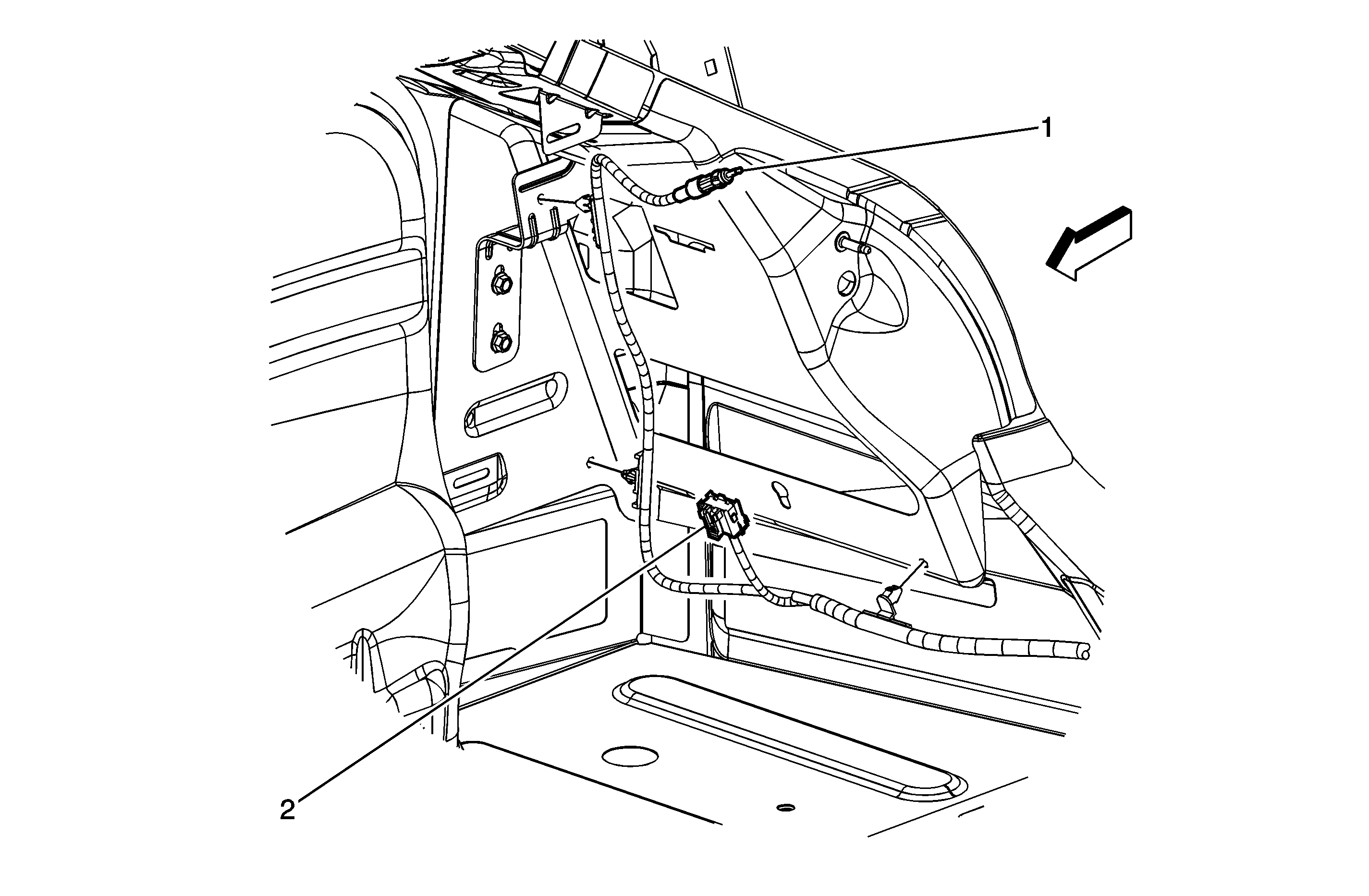

Figure 8:

Right Side of Rear Compartment - Extended Sedan
Object Number: 1263974 Size: MF
(1)Radio Antenna Connector
(2)Digital Radio Receiver

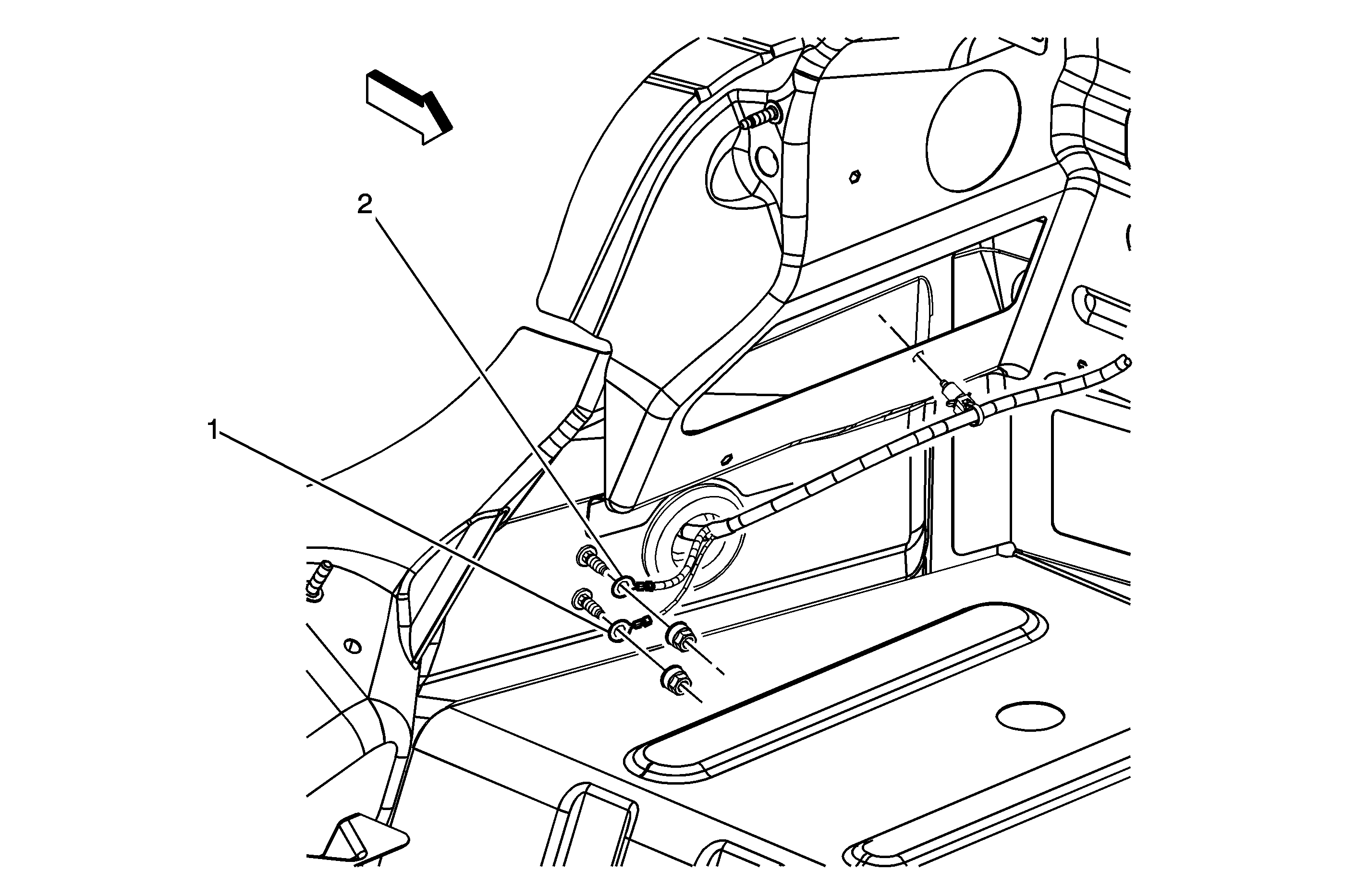

Figure 9:

Left Rear Side of the Rear Compartment - Extended Sedan
Object Number: 1263977 Size: MF
(1)G403
(2)G401

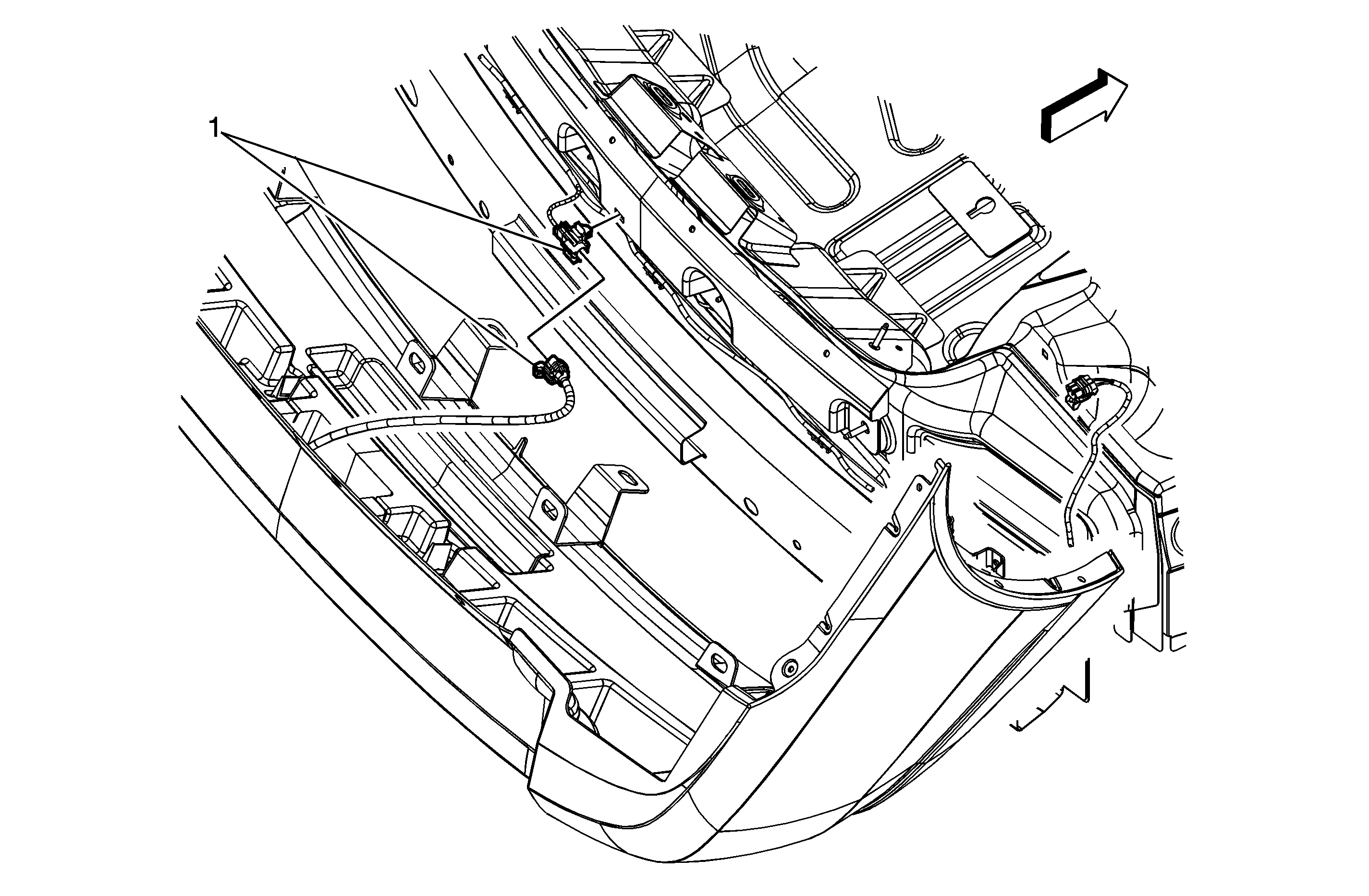

Figure 10:

Rear Lamp Harness Connector
Object Number: 1263980 Size: MF
(1)Body Harness to License Plate Lamp Connector
Figure 11:

Top Right Front of Engine - L61
Object Number: 1263982 Size: MF
(1)G106
(2)Generator

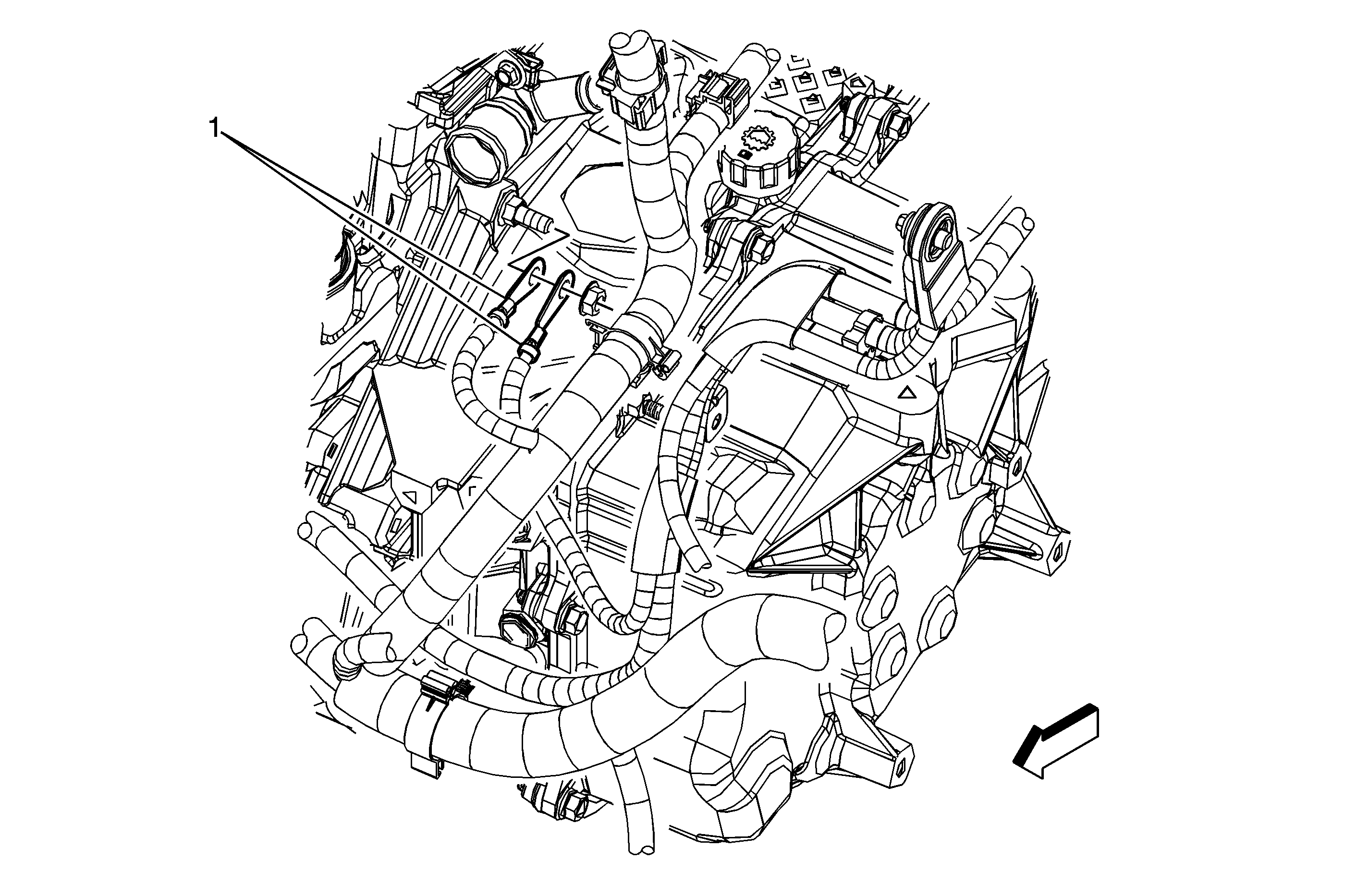

Figure 12:

G107 and G109
Object Number: 1263984 Size: MF
(1)G107 and G109

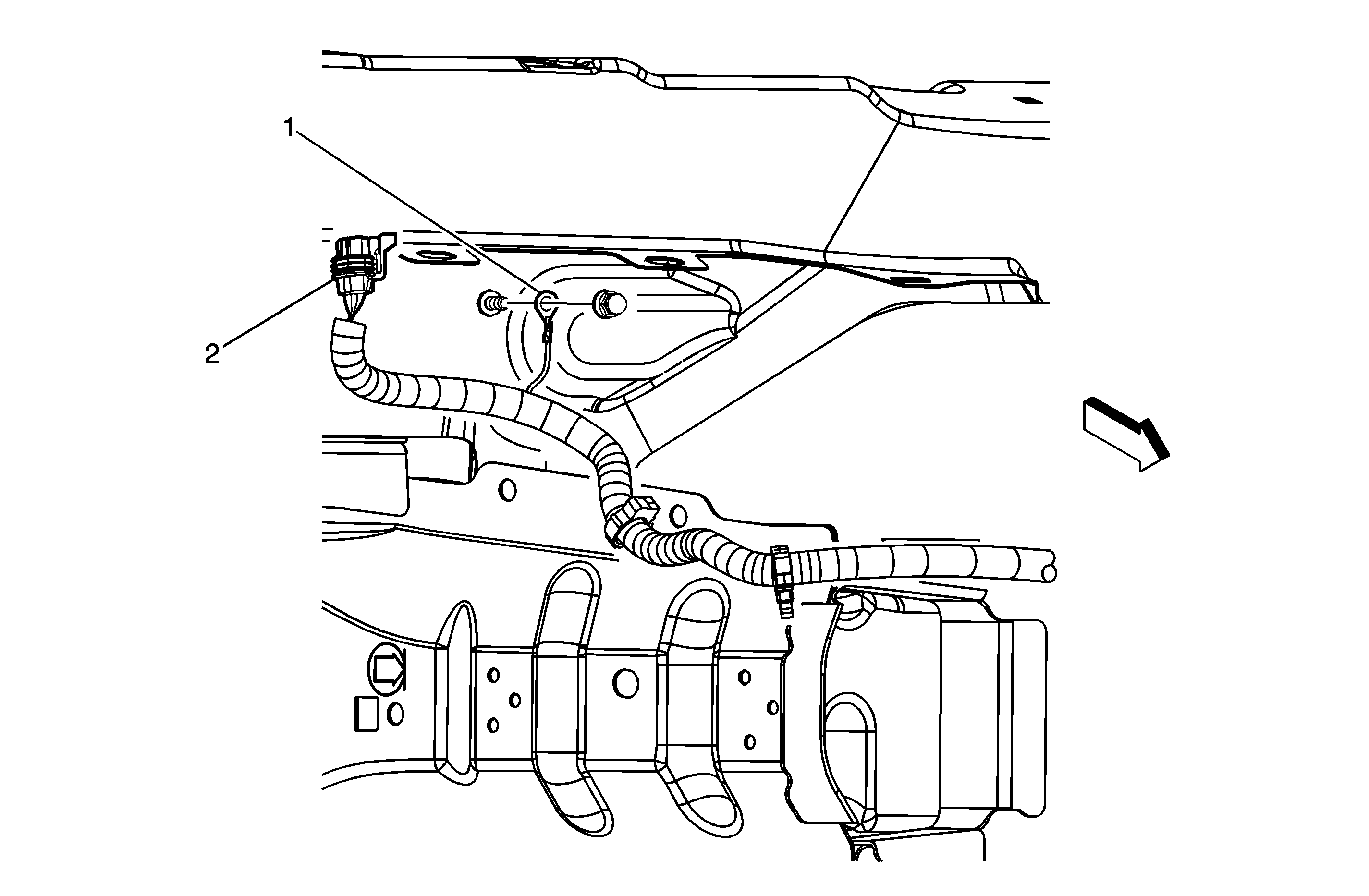

Figure 13:

C109
Object Number: 1263985 Size: MF
(1)Forward Lamp Harness to Headlamp Assembly Harness Connector C109
(2)Ground G101

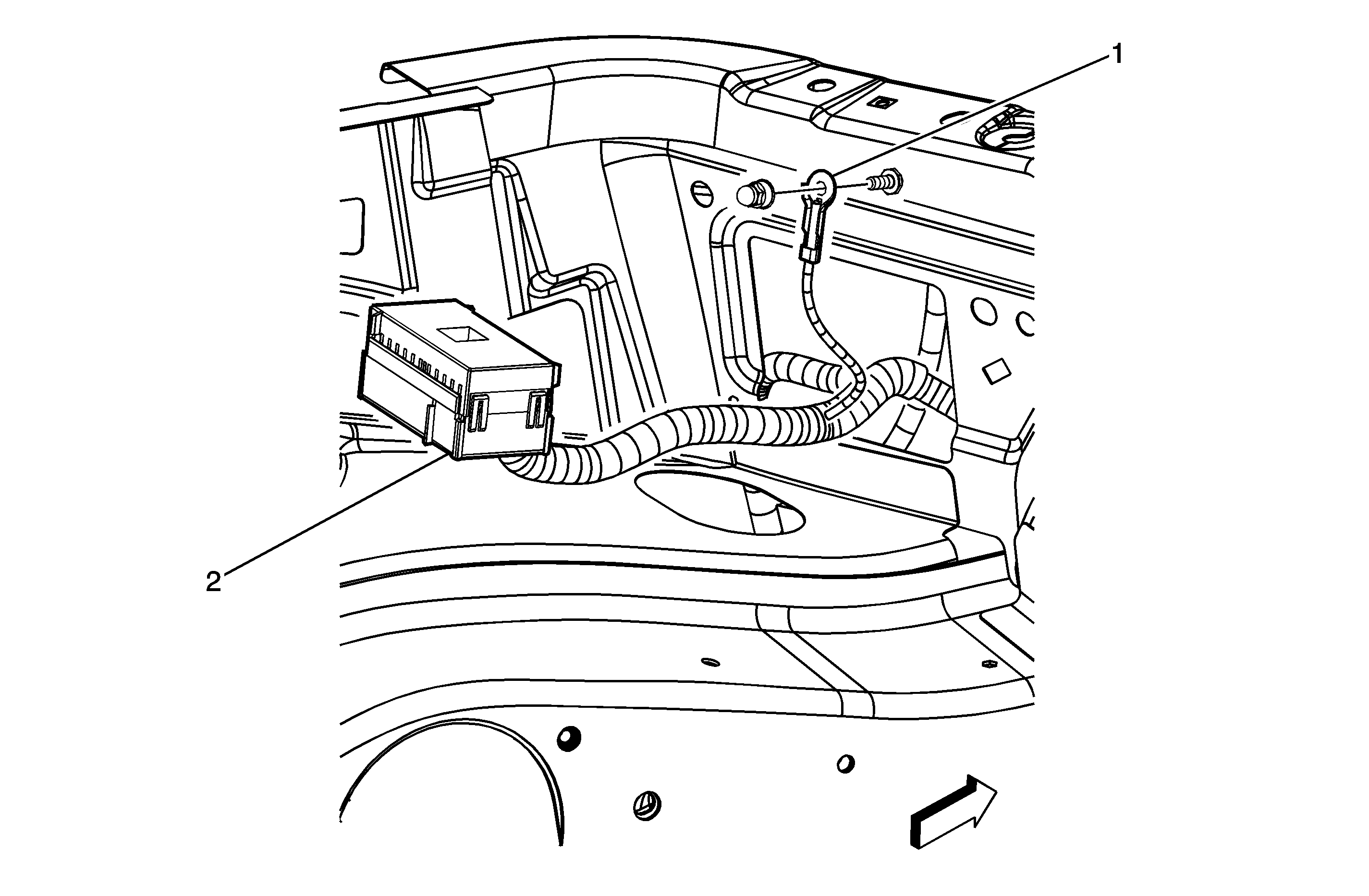

Figure 14:

Forward Left of Engine Compartment
Object Number: 1263986 Size: MF
(1)Ground G106
(2)Fuse Block -- Underhood C2
Figure 15:

Under the Left Kick Panel
Object Number: 1263987 Size: MF
(1)G303
Figure 16:

Under the Right Kick Panel
Object Number: 1263988 Size: MF
(1)G304
(2)G305
Figure 17:

Behind the Left Side of the Rear Seat (Sedan/Hardtop)
Object Number: 1263990 Size: MF
(1)G302
Figure 18:

Left Front of Floor Console
Object Number: 1263995 Size: MF
(1)C214
(2)Cigar Lighter
(3)Traction Control Switch (NW7/NW9) or Auxiliary Power Outlet - Front (w/o NW7/NW9)

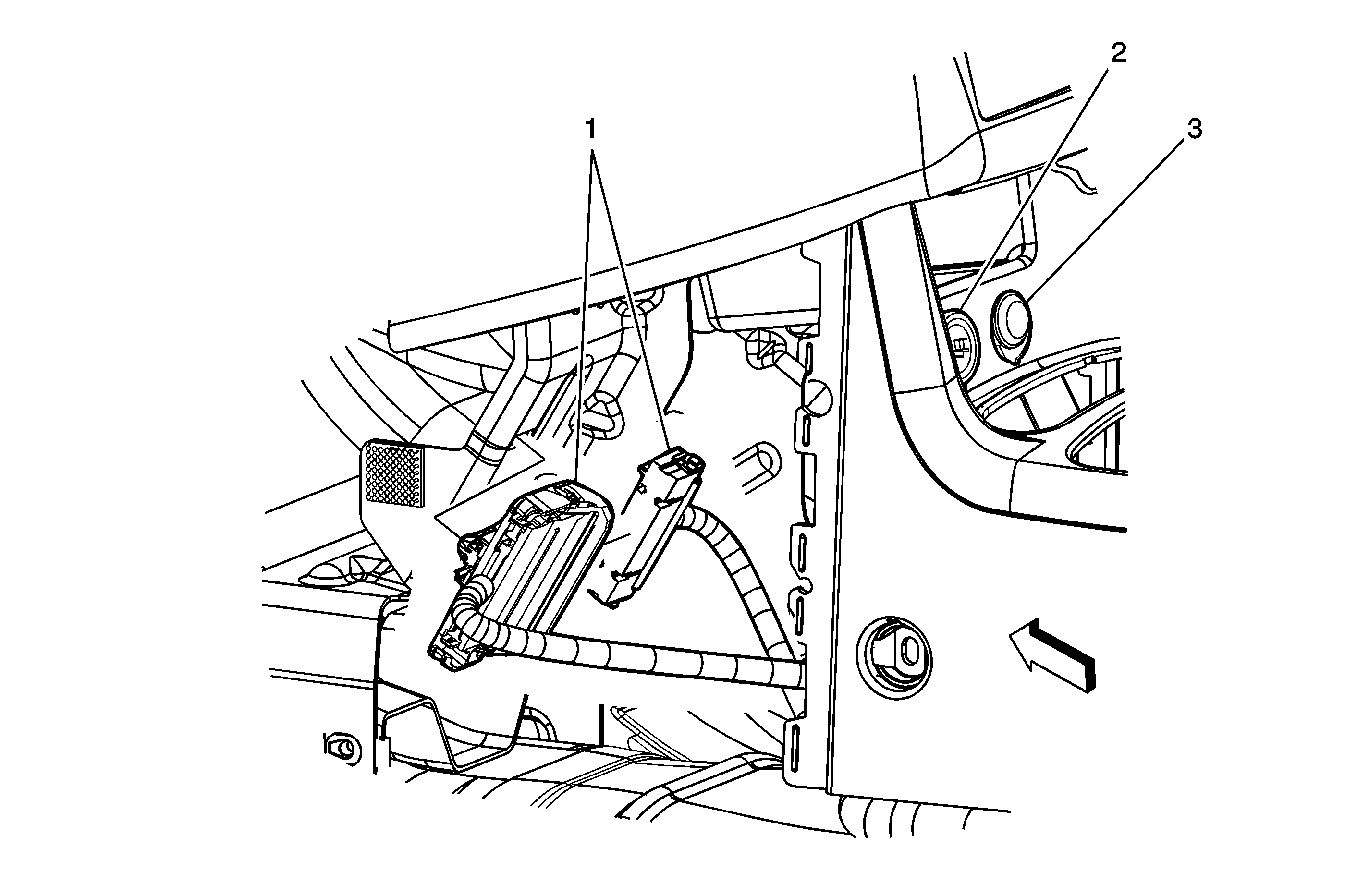

Figure 19:

Left Front of Console w/ DVD
Object Number: 1264000 Size: MF
(1)Body Harness to Console Harness Connector C214
(2)Cigar Lighter
(3)Auxiliary Power Outlet #1
Figure 20:

Right Front of Engine Compartment
Object Number: 1264004 Size: MF
(1)Ground G101
(2)Connector
(3)Fog Lamp - RF
Figure 21:

Left Side of the Instrument Panel
Object Number: 1264007 Size: MF
(1)Radio Antenna Connector
(2)C206
(3)C208
Figure 22:

Right Side of the Instrument Panel
Object Number: 1264012 Size: MF
(1)Inflatable Restraint I/P Module Connector
(2)GPS Antenna Connector
(3)C207

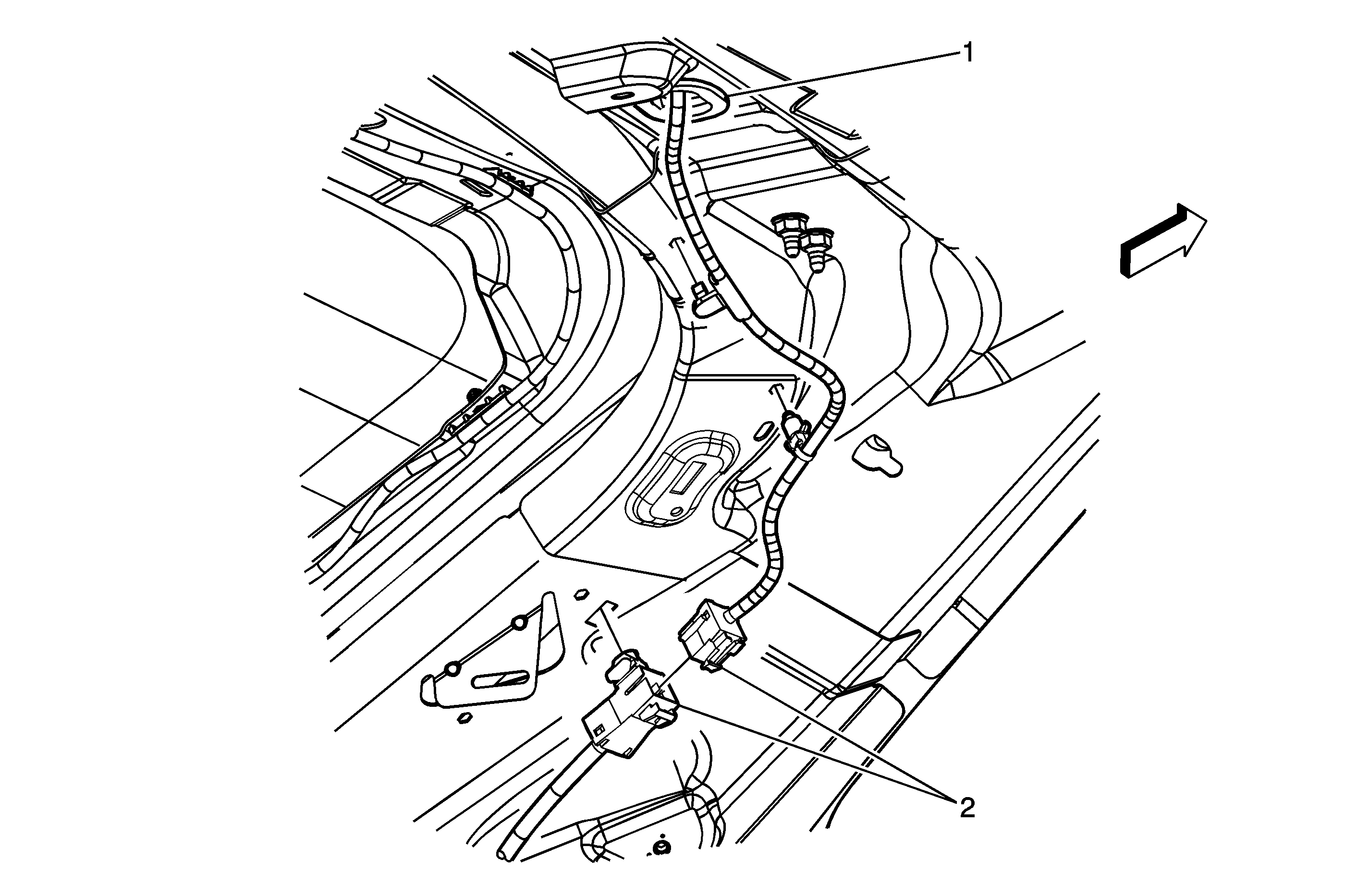

Figure 23:

Top Left Side of the Liftgate
Object Number: 1264015 Size: MF
(1)Body Harness
(2 )C404
Figure 24:

LF of the Engine Compartment
Object Number: 1264016 Size: MF
(1)C108 (LX9)
(2)Powertrain Control Module (PCM), C1
(3)Powertrain Control Module (PCM), C2
(4)Powertrain Control Module (PCM), C3
(5)Fuse Block - Underhood
Figure 25:

Right Rear Door Jamb
Object Number: 1264017 Size: MF
(1)C800
Figure 26:

Left Rear Door Jamb
Object Number: 1264019 Size: MF
(1)C700
Figure 27:

Right Front Door Jamb
Object Number: 1264024 Size: MF
(1)C600
Figure 28:

Left Front Door Jamb
Object Number: 1264028 Size: MF
(1)C500
Figure 29:

Left Rear of Engine Compartment
Object Number: 1264030 Size: MF
(1)Coolant Level Switch
(2)Battery
(3)Electronic Brake Control Module (EBCM)
(4)C101
(5)G103
(6)Fuse Block - Underhood
(7)Powertrain Control Module (PCM)
(8)Powertrain Control Module (PCM), C3
(9)Powertrain Control Module (PCM), C2
(10)Powertrain Control Module (PCM), C1
Figure 30:

Inside Left Rear Quarter Panel - Sedan
Object Number: 1264036 Size: MF
(1)Fuse Block - Rear
Figure 31:

Inside Left Rear Quarter Panel - Extended Sedan
Object Number: 1264039 Size: MF
(1)G401
(2)Fuse Block - Rear
(3)C351
(4)Cargo Lamp, Connector
(5)Auxiliary Power Outlet - Rear, Connector
(6)G403
