Engine Harness Routing Views. Chevrolet Express 2000

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Express 🢒 Engine 🢒 Engine Electrical 🢒 Engine Harness Routing Views

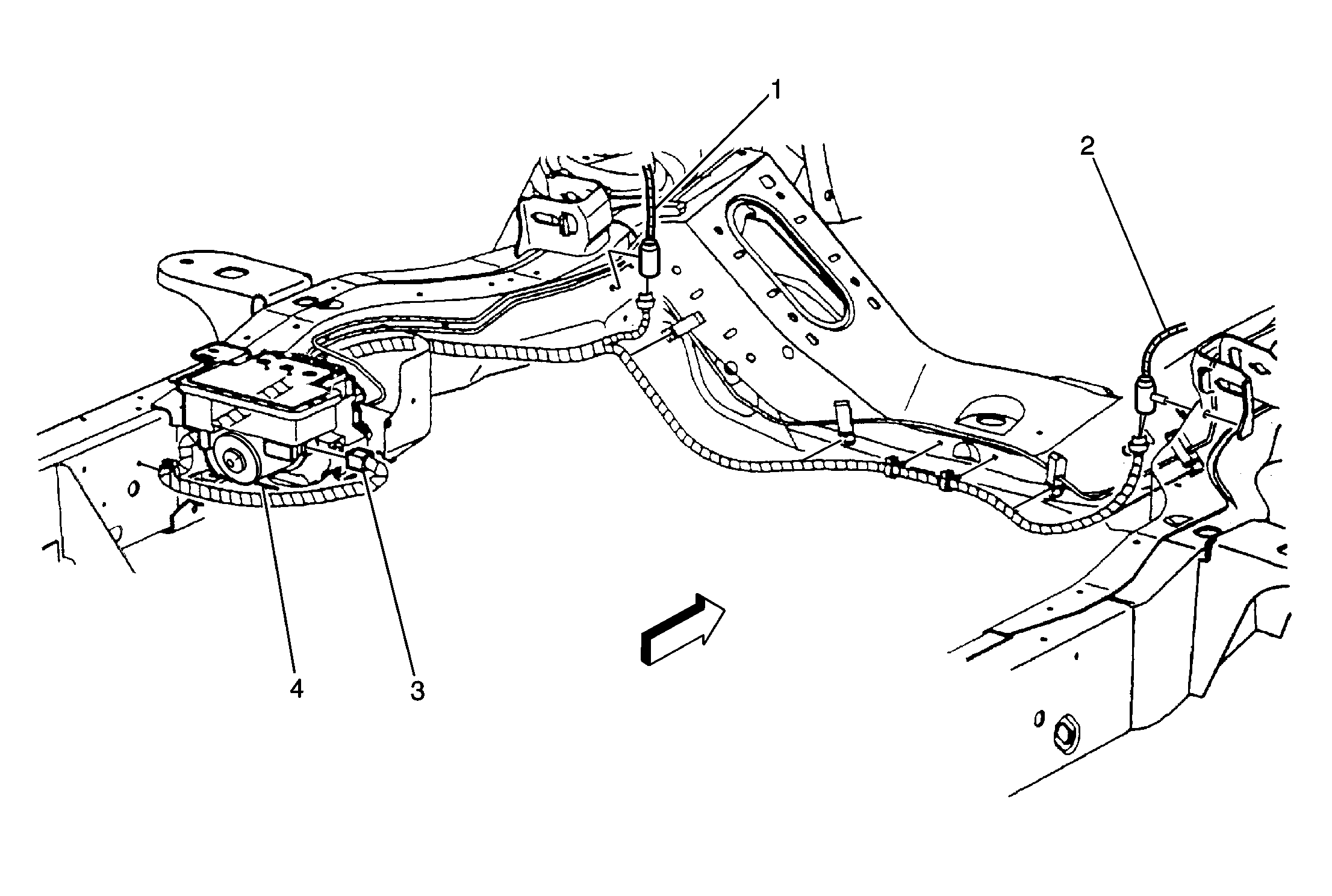

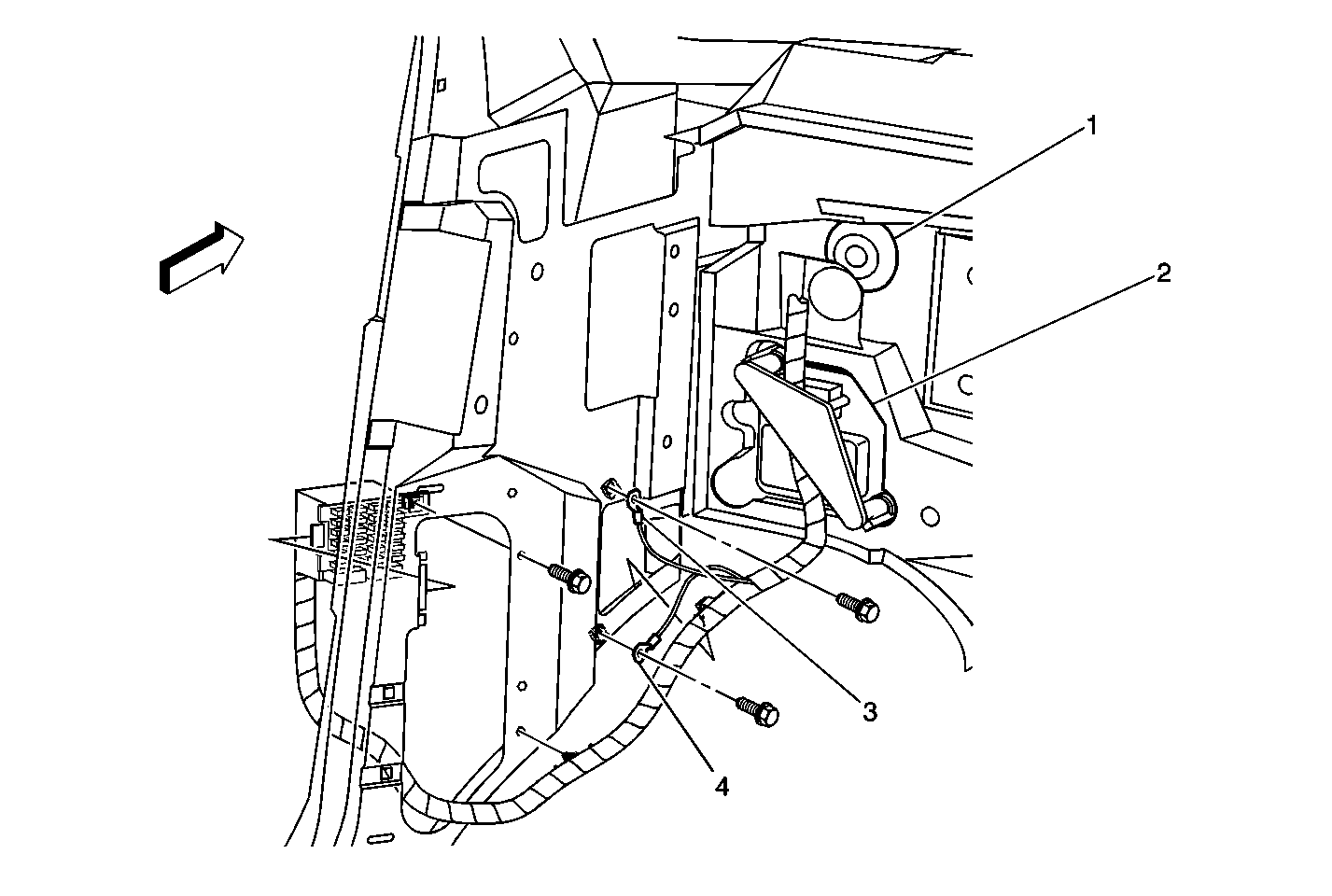

Figure 1:

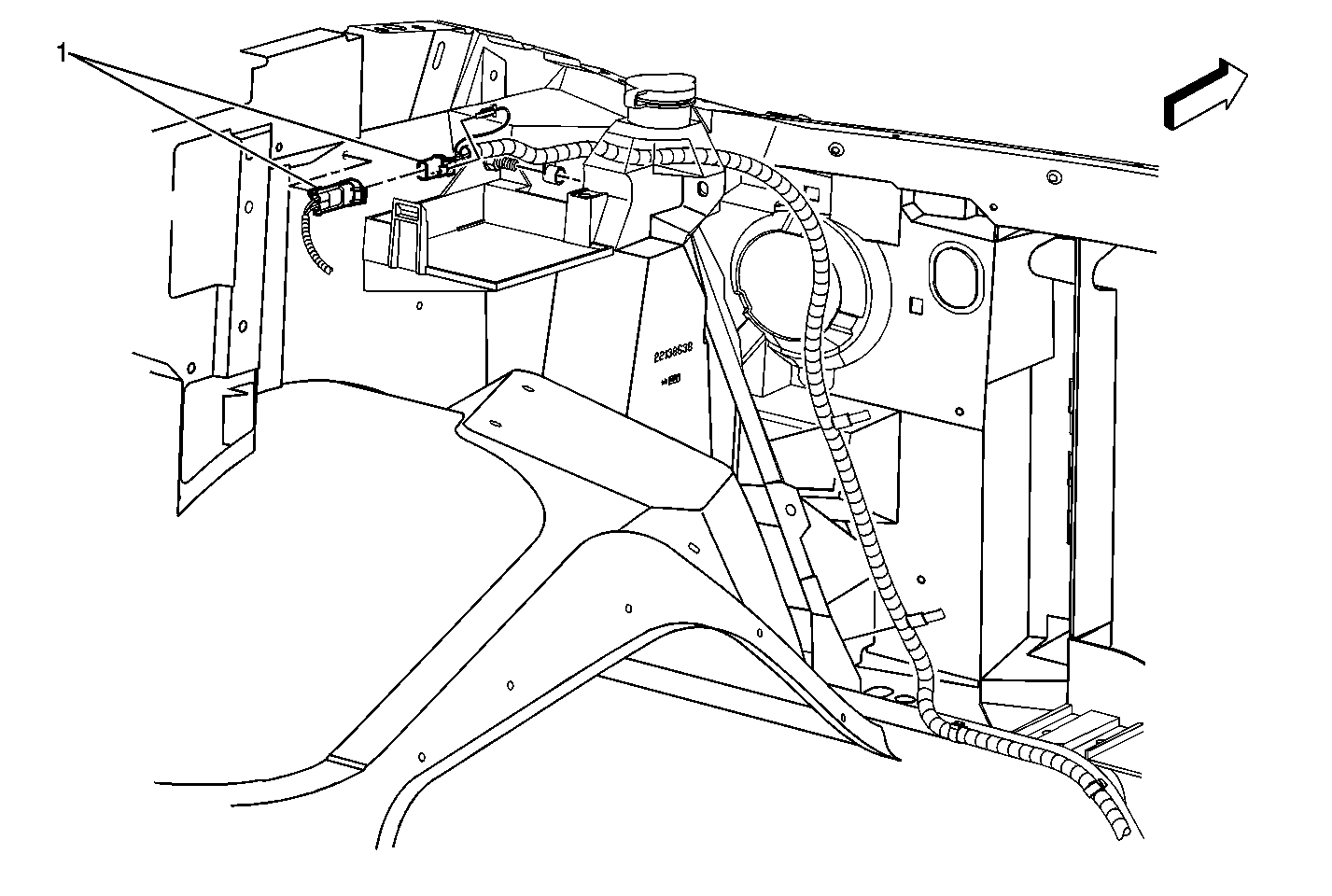

Figure 2:


(1)	C114

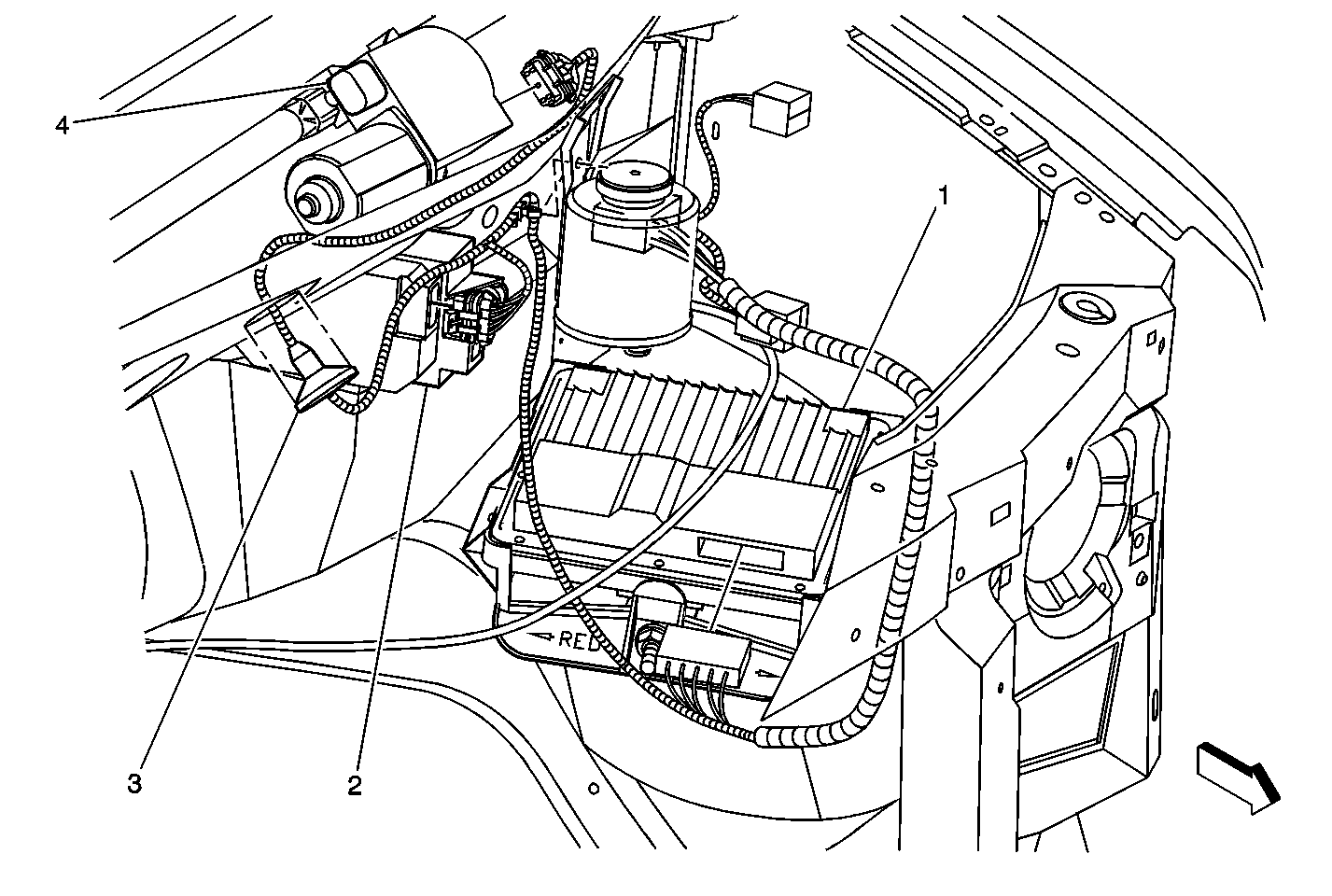

Figure 3:

Figure 4:

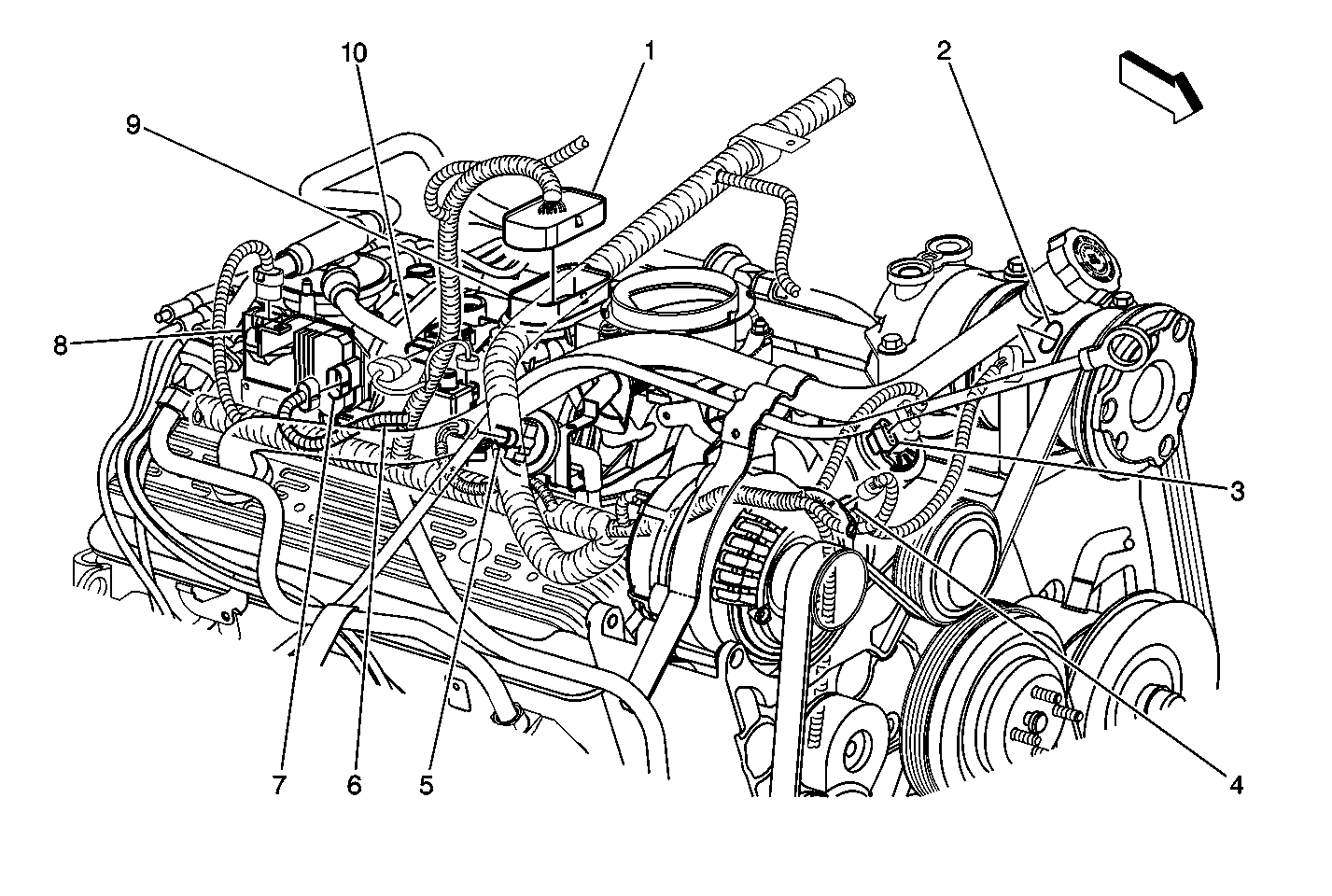

Figure 5:


(1)	C112
(2)	A/C Compressor Clutch
(3)	Exhaust Gas Recirculation (EGR) Valve
(4)	Engine Coolant Temperature (ECT) Sensor
(5)	Evaporative Emission (EVAP) Canister Vacuum Switch
(6)	C110
(7)	Ignition Control Module
(8)	Ignition Coil
(9)	Fuel Injectors (1-8)
(10)	Manifold Absolute Pressure (MAP) Sensor

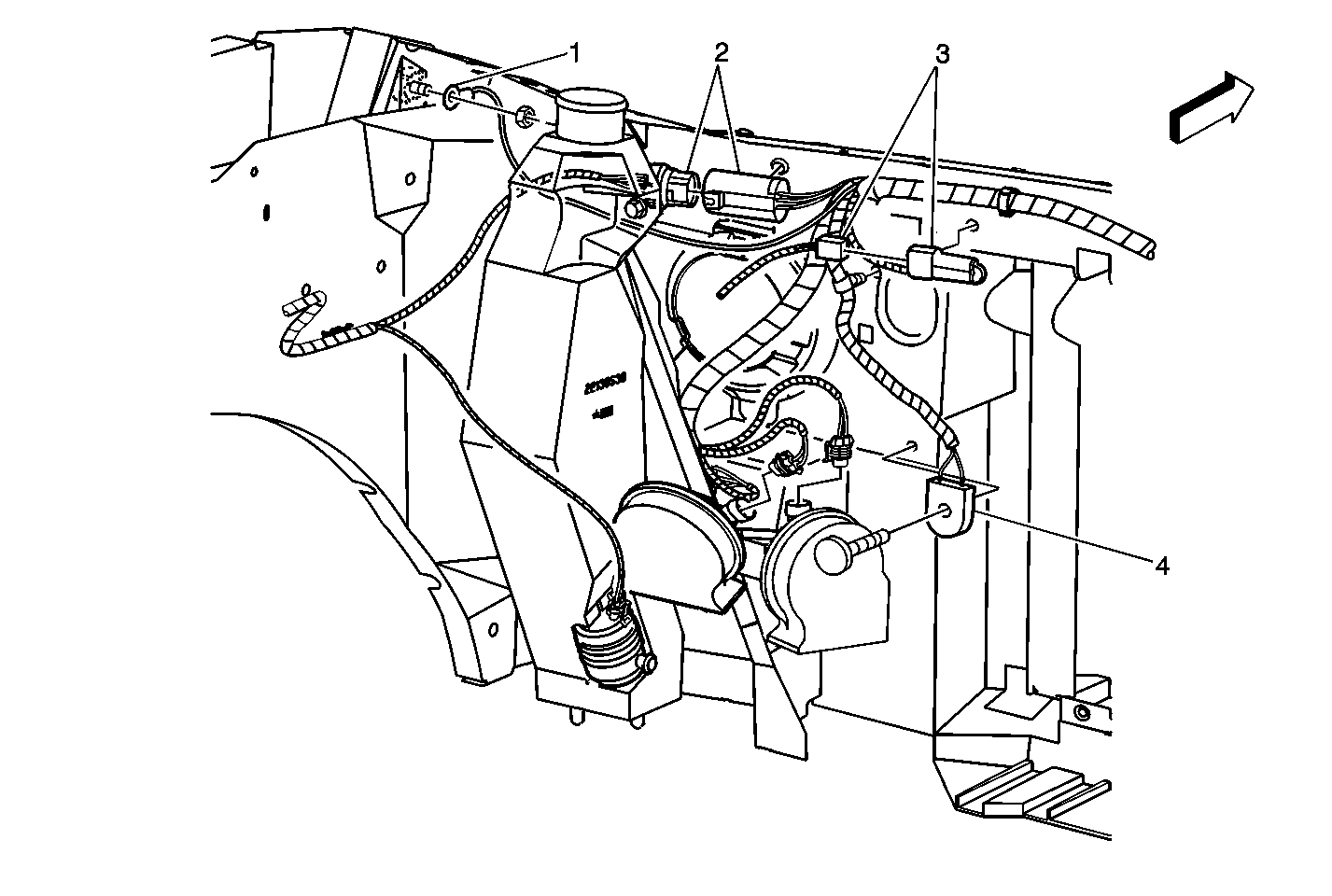

Figure 6:


(1)	Glow Plug Relay (Federal)

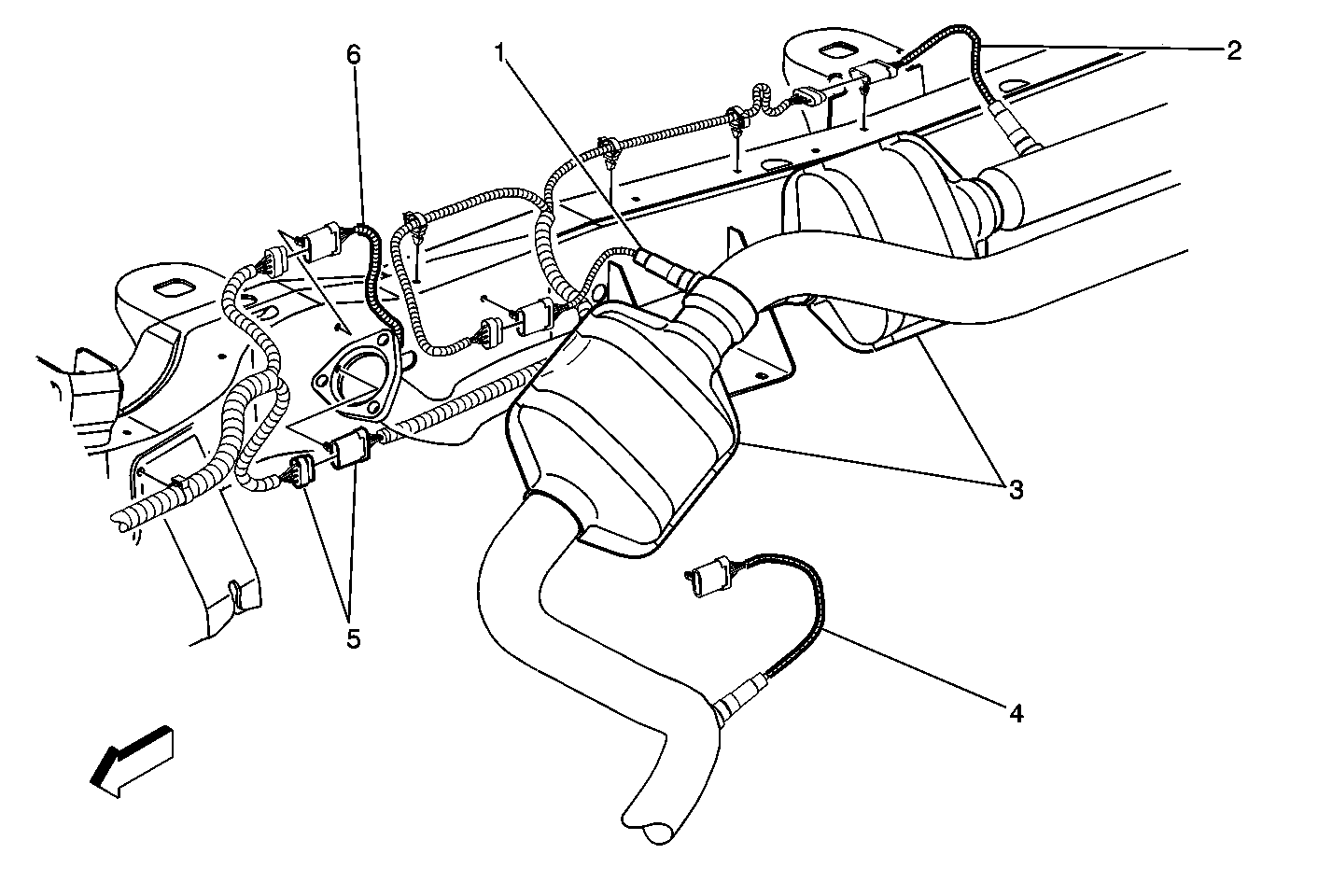

Figure 7:


(1)	Heated Oxygen Sensor Bank 1, Sensor 2
(2)	Heated Oxygen Sensor Bank 2, Sensor 2
(3)	Catalytic Converter
(4)	Heated Oxygen Sensor Bank 1, Sensor 1
(5)	C105
(6)	Heated Oxygen Sensor Bank 2, Sensor 1

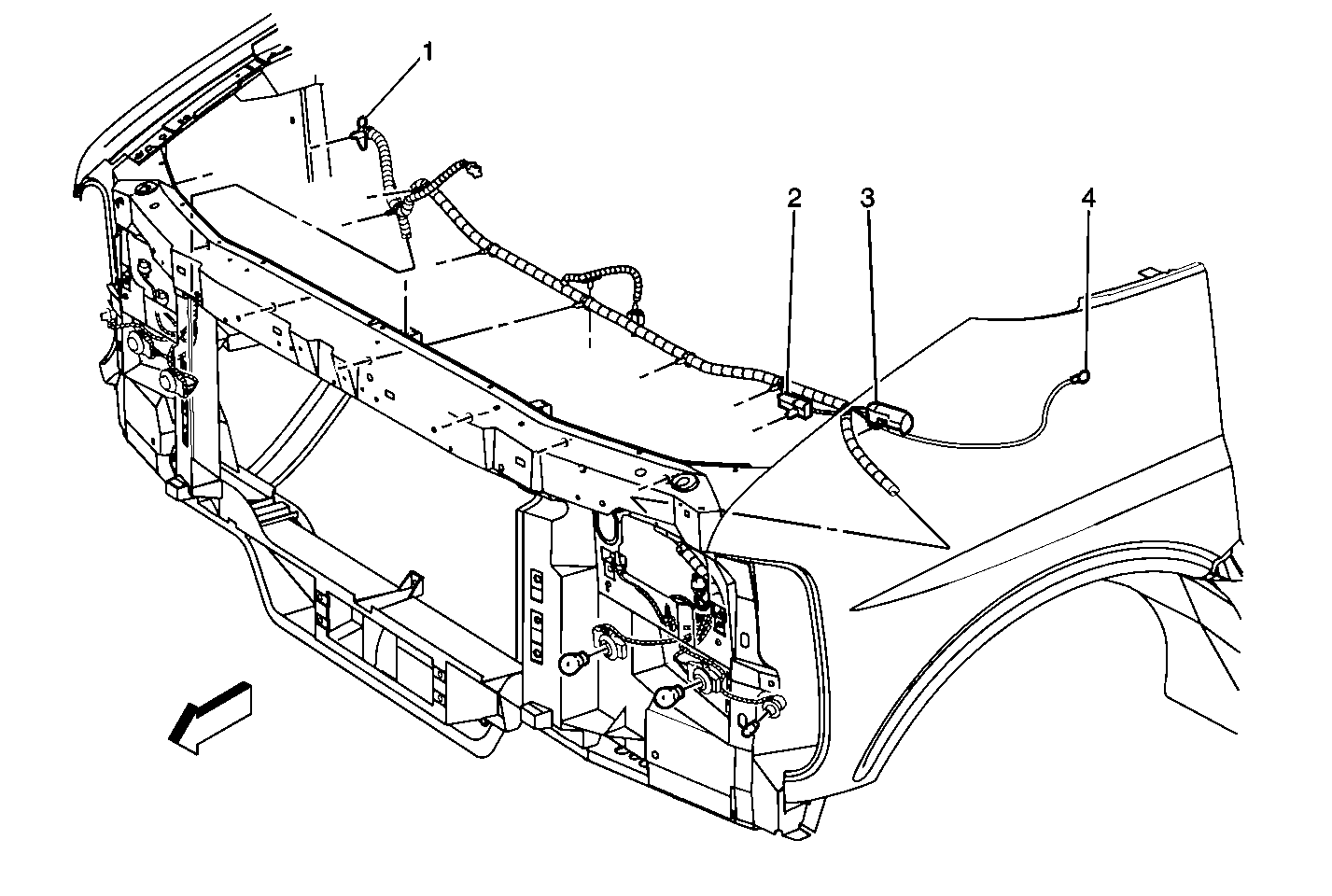

Figure 8:


(1)	Wheel Speed Sensor, LF
(2)	Wheel Speed Sensor, RF
(3)	Connector C3
(4)	Electronic Brake Control Module (EBCM)

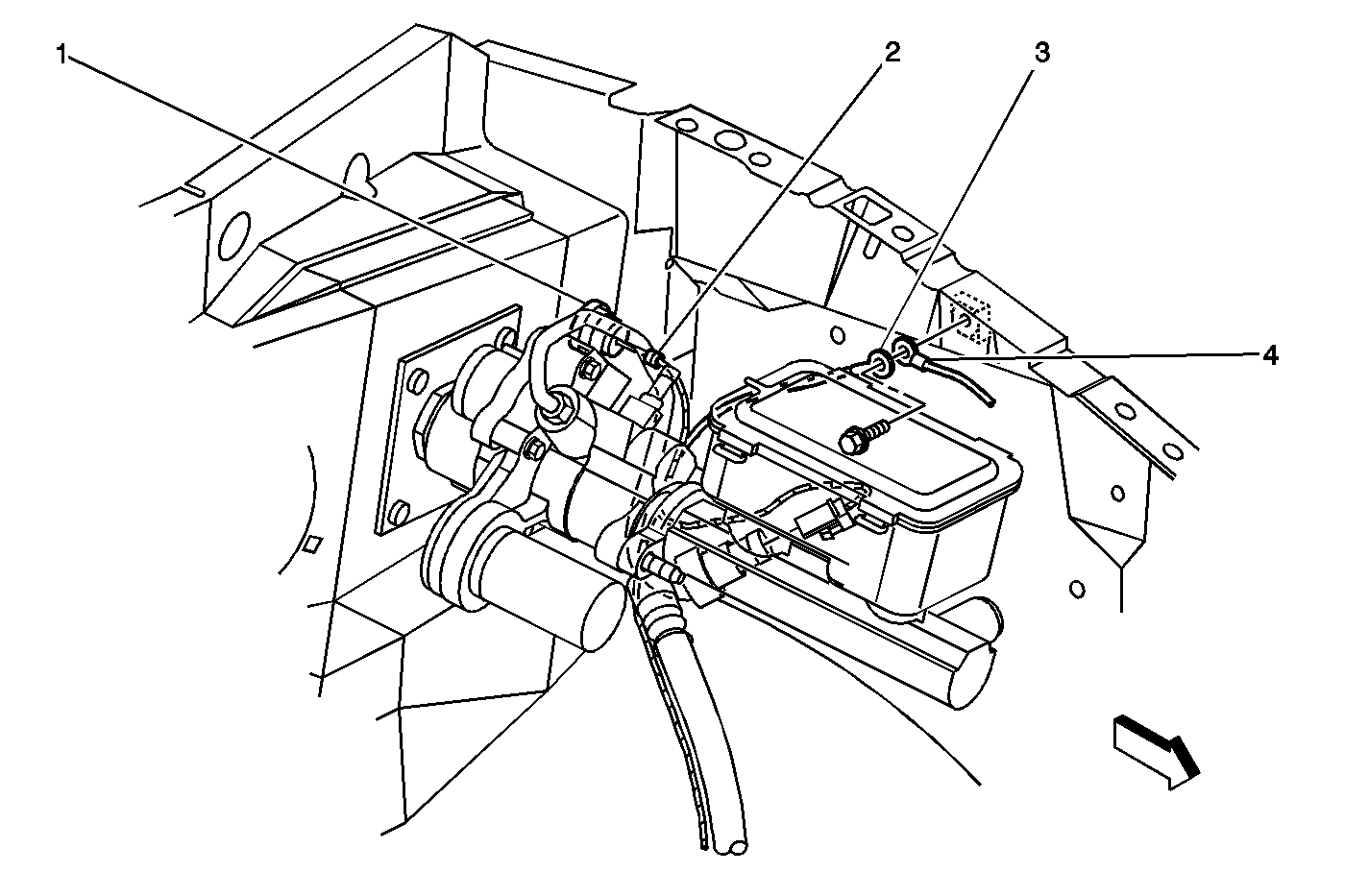

Figure 9:


(1)	C301
(2)	Electronic Brake Control Module (EBCM)
(3)	Fuel Lift Pump

Figure 10:

Figure 11:
