Makes 🢒 Chevrolet 🢒 2000 🢒 Express 🢒 HVAC 🢒 HVAC Systems - Manual 🢒 HVAC Component Views
Figure 1:

A/C Compressor
Object Number: 310511 Size: MF
(1)A/C Compressor Clutch Connector
(2)A/C Compressor
(3)Exhaust Gas Recirculation (EGR) Valve Connector - 4.3L
(4)A/C High Pressure Switch Connector

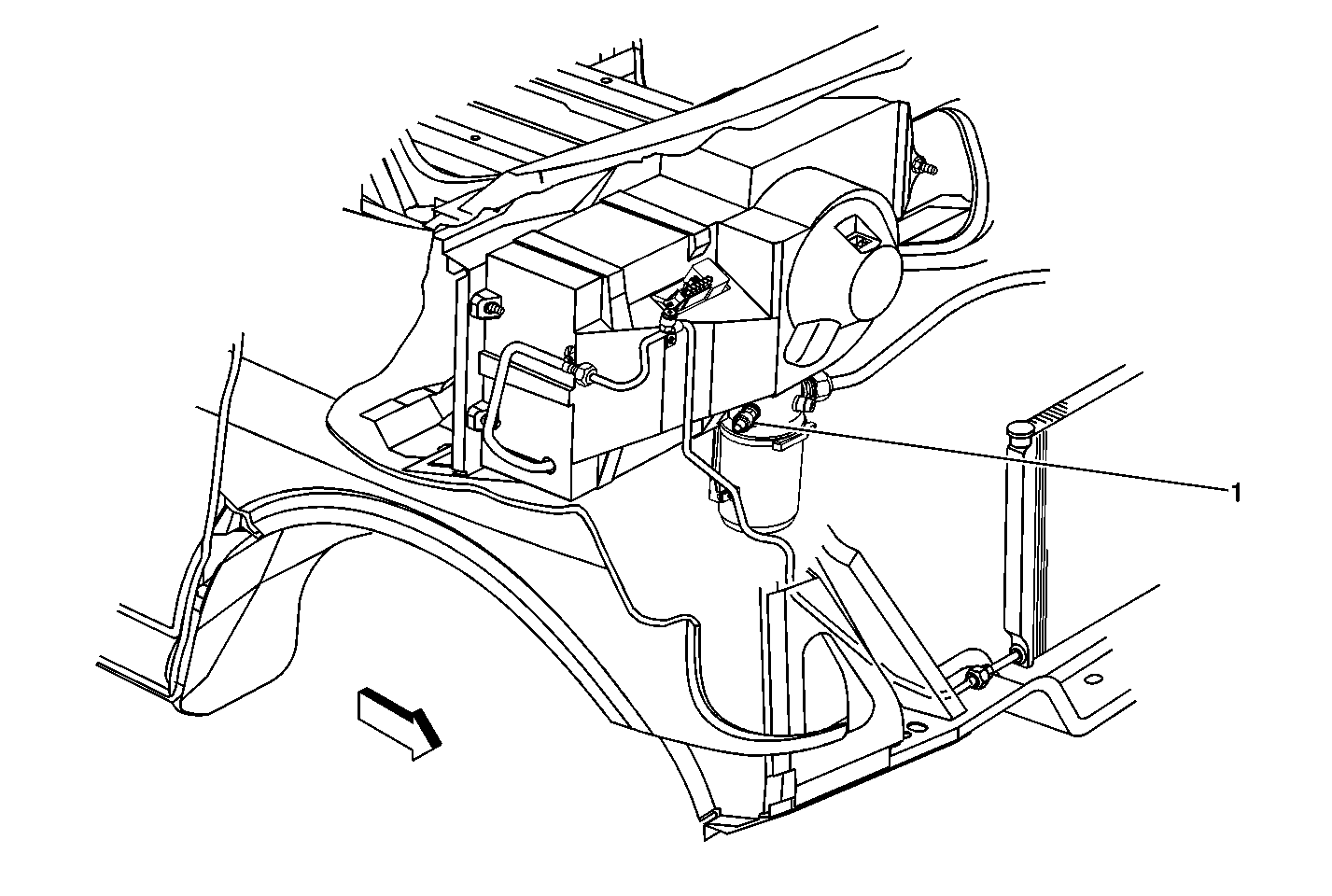

Figure 2:

A/C Low Pressure Switch
Object Number: 375615 Size: MF
(1)A/C Low Pressure Switch
Figure 3:

Auxiliary Heater and A/C Wiring
Object Number: 375651 Size: MF
(1)C407
(2)Auxiliary Blower Motor High Speed Relay
(3)Auxiliary Blower Motor Medium Speed Relay
(4)Auxiliary Blower Motor Low Speed Relay
(5)Auxiliary Blower Motor
(6)Rear Auxiliary Mode Valve and Seal Assembly (Mode Door Motor)
(7)Rear Auxiliary Temperature Valve Assembly (Temperature Door Motor)
(8)Auxiliary Blower Motor Resistor
(9)C408

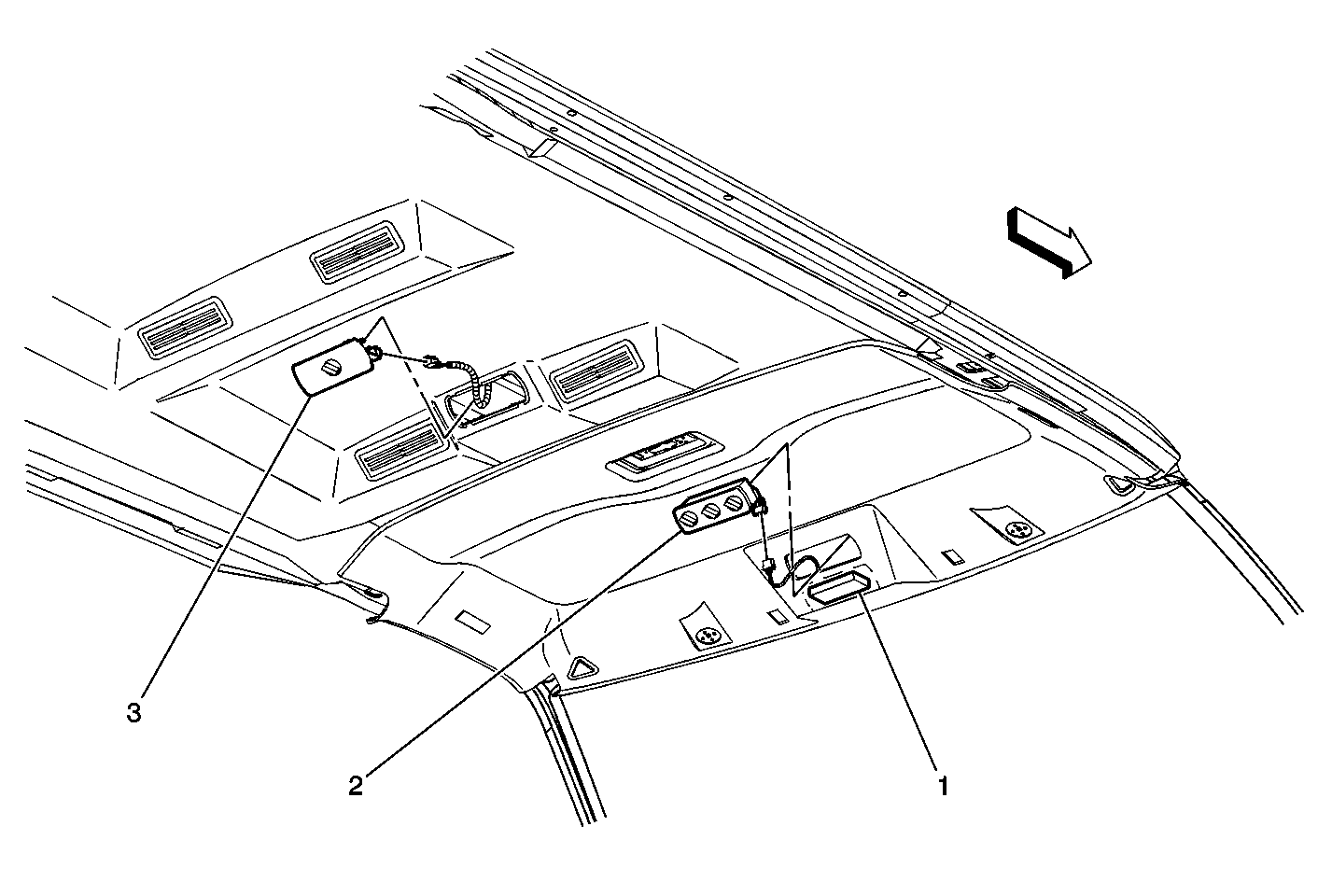

Figure 4:

Auxiliary Heater and A/C Wiring Controls
Object Number: 375647 Size: MF
(1)HVAC Control Processor - Auxiliary
(2)HVAC Control Assembly - Front Auxiliary
(3)HVAC Control Assembly - Rear Auxiliary

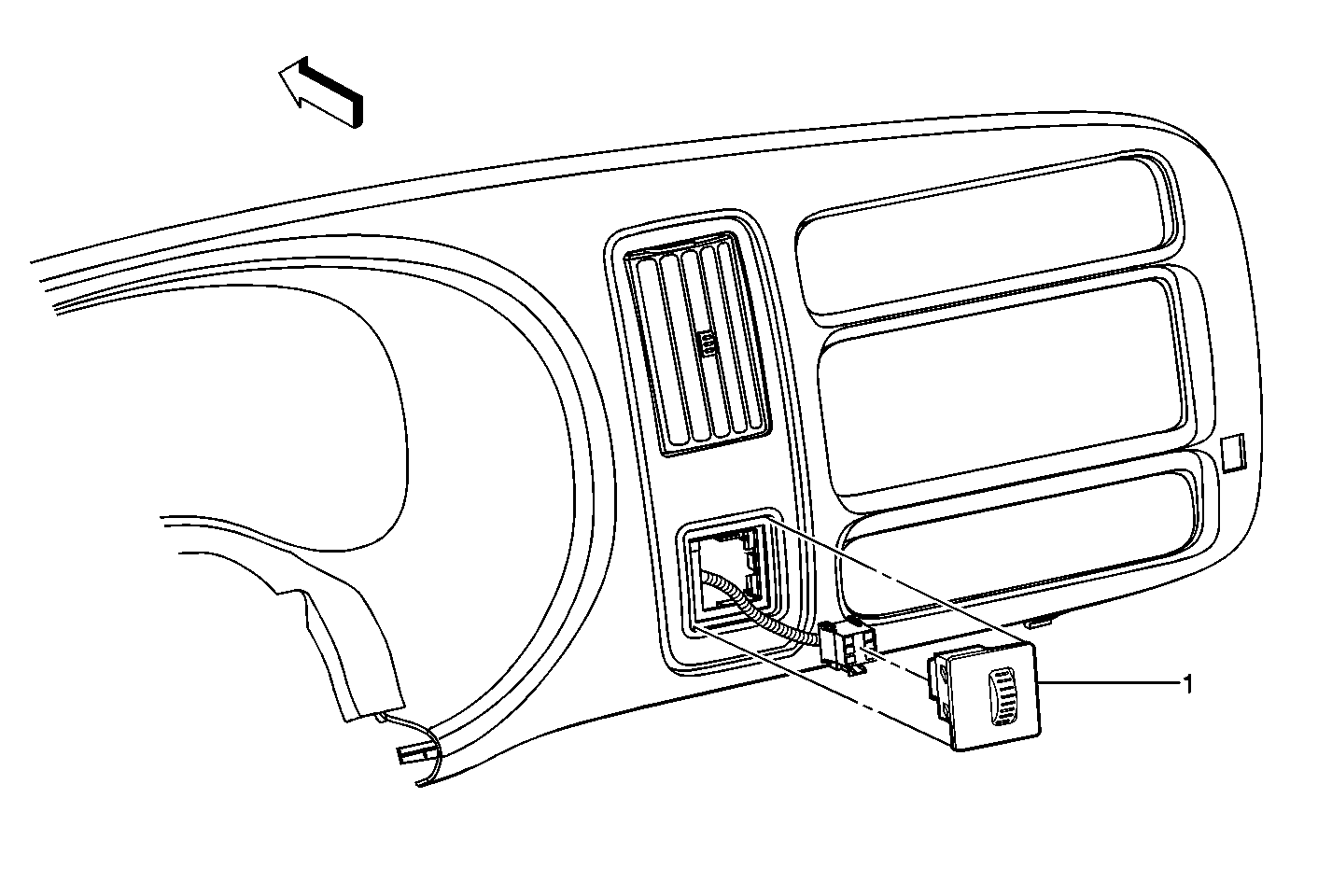

Figure 5:

Auxiliary Blower Motor Switch
Object Number: 375620 Size: MF
(1)Auxiliary Blower Motor Switch

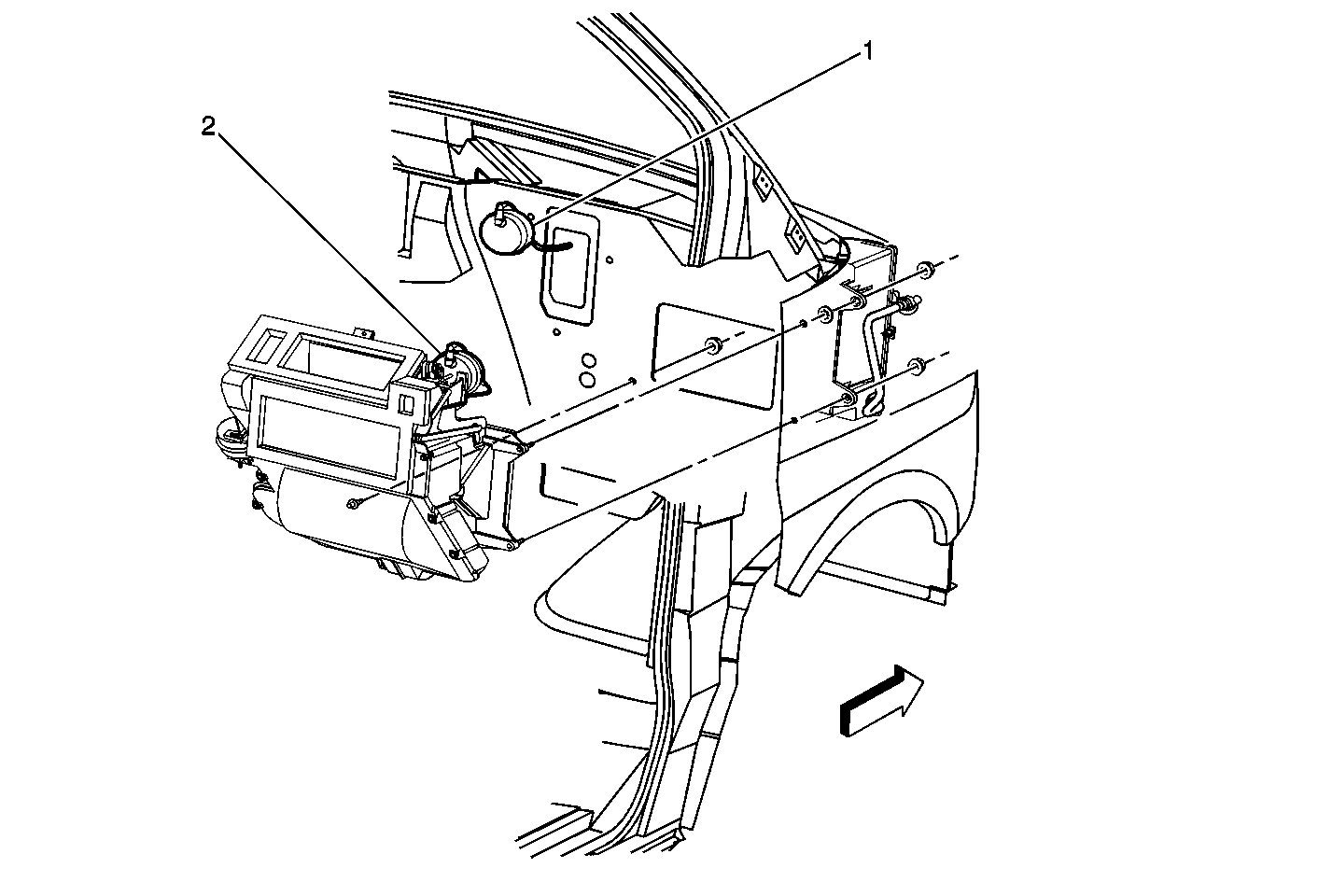

Figure 6:

Defroster Actuator
Object Number: 375646 Size: MF
(1)Air Inlet Valve Actuator
(2)Defroster Actuator

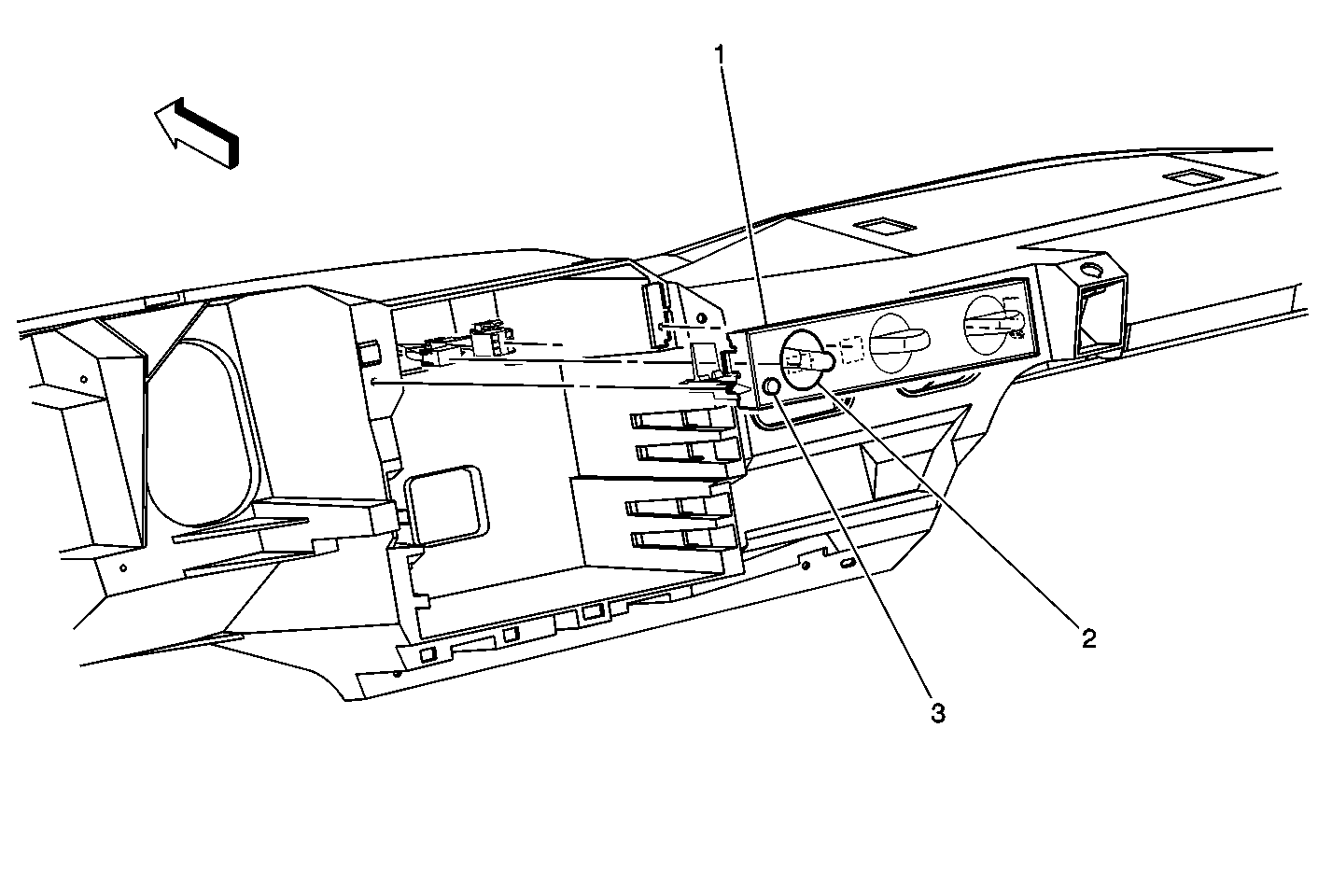

Figure 7:

Heater and A/C Controller
Object Number: 375623 Size: MF
(1)Heater and A/C Controller (Heater Controller - Base)
(2)Blower Motor Switch (Part of Heater and A/C Controller)
(3)Heated Mirror Switch (Part of Heater and A/C Controller)

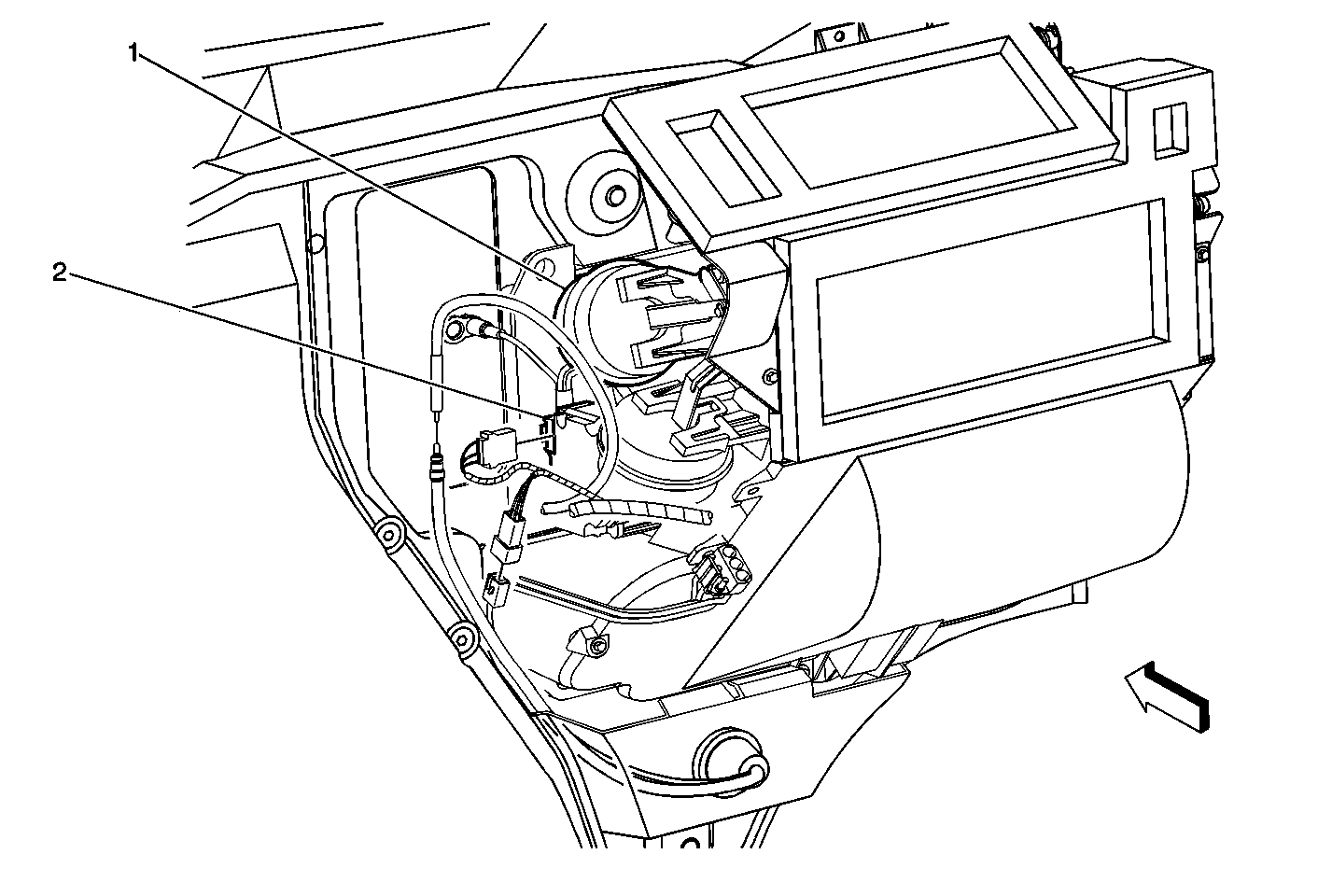

Figure 8:

Instrument Panel Wiring, HVAC
Object Number: 375645 Size: MF
(1)Recirculation Solenoid Valve
(2)Air Temperature Actuator

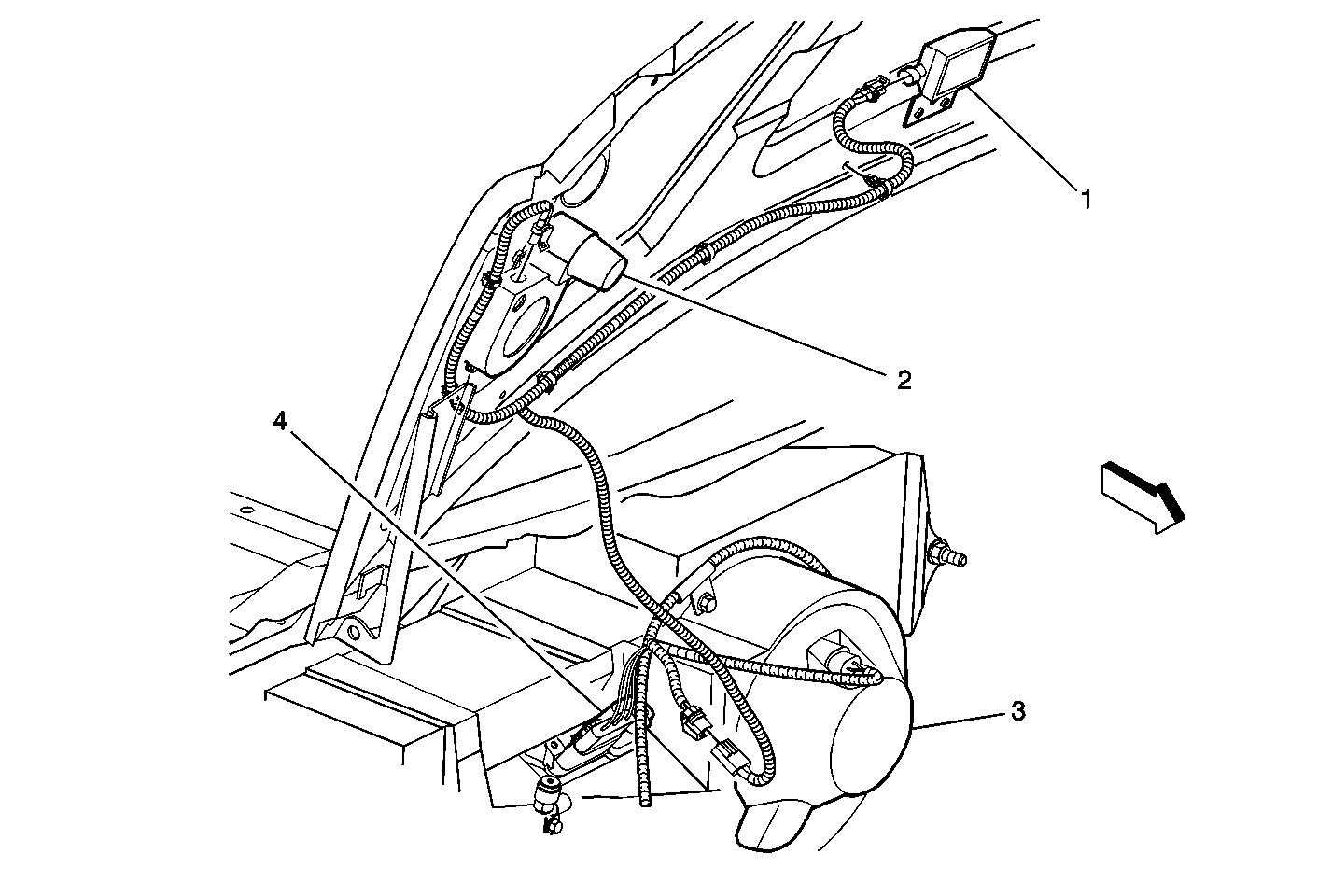

Figure 9:

Underhood Lamp, Underhood Reel Lamp, Blower Motor, Blower Motor Resistor/Relay
Object Number: 314697 Size: MF
(1)Underhood Lamp
(2)Underhood Reel Lamp (TR9)
(3)Blower Motor
(4)Blower Motor Resistor/Relay
