Removal Procedure
  1. Open the hood
  2. Remove the air cleaner assembly. For the 4.3L engine, refer to Air Cleaner Assembly Replacement . For the 5.0/ 5.7L engine, refer to Air Cleaner Assembly Replacement . For the 6.5L engine, refer to Air Cleaner Assembly Replacement . For the 7.4L engine, refer to Air Cleaner Assembly Replacement .

    3. Object Number: 567860 Size: SH

    Important: Do not remove the C clip from the cruise control cable end connector.

  3. The C clip was not designed for removal. Damage may occur.

    4. Object Number: 567851 Size: SH

    Important: Do not remove the adjuster screw from the end of the cruise control cable.

  4. Cable adjustment will be needed for proper operation.

    5. Object Number: 580222 Size: SH
  5. Remove the cruise control cable end (2) from the throttle linkage (1).

    6. Use a suitable tool to lightly pry off the end of the cruise control cable end (3) from the throttle linkage.


    Object Number: 580239 Size: SH
  6. Disconnect the cruise control cable from the cable bracket by squeezing the retaining tabs on the cable.
  7. Disconnect the cruise cable from the retaining clip on the fan shroud.
  8. Squeeze the retaining tabs on the cruise control cable fitting to expose the cable bead (3) and the buckle (1) of the ribbon.

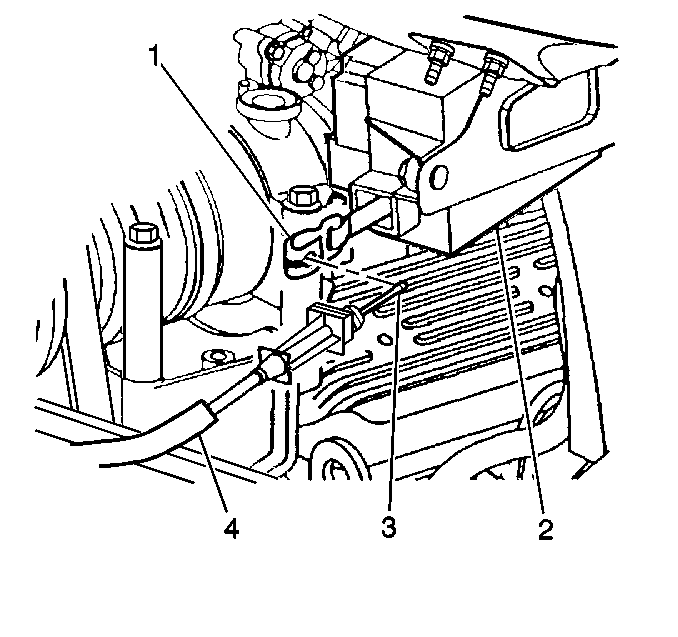

    9. Object Number: 332348 Size: SH

    Important: Do not allow the cruise control ribbon to retract into the module assembly.

  9. Disconnect the cruise control cable from the cruise control module.
  10. Disconnect the cruise control cable bead (3) from the buckle (1) on the end of the ribbon.
  11. Remove the cruise control cable from the vehicle.

Installation Procedure

    Object Number: 587245 Size: SH
  1. Route the cruise control cable (4) from the cruise control module (3) to the throttle body.

    2. Object Number: 7386 Size: SH

    Important: Do not twist the cruise control module ribbon.

  2. Remove all bends and twists from the cruise control module ribbon and cable, by rotating the ribbon.
  3. Pull the cruise control cable from the throttle linkage end until the cable is taut.

    4. Object Number: 332348 Size: SH
  4. Install the cable bead (3) to the buckle (1) on the end of the ribbon on the cruise control module.

    5. Object Number: 293695 Size: SH
  5. Check the orientation of the cruise control ribbon buckle to the cable end fitting.
  6. Snap the cruise control cable fitting into the cruise control module.

    7. Object Number: 580230 Size: SH

    Important: Verify that the cable fitting locking tabs are expanded, and that the tabs are locked in the bracket hole.

  7. Install the cruise control cable fitting into the round hole in the cable bracket.

    8. Object Number: 580222 Size: SH
  8. Connect the cruise control cable end (2) to the throttle linkage (1).
  9. Adjust the cruise control cable.
  10. Install the air cleaner assembly. For the 4.3L engine, refer to Air Cleaner Assembly Replacement . For the 5.0/ 5.7L engine, refer to Air Cleaner Assembly Replacement . For the 6.5L engine, refer to Air Cleaner Assembly Replacement . For the 7.4L engine, refer to Air Cleaner Assembly Replacement .
  11. Close the hood.
