Engine Controls Component Views. Chevrolet Express 2002

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2002 🢒 Express 🢒 Engine 🢒 Engine Controls - 8.1L 🢒 Engine Controls Component Views

Figure 1:


(1)	Data Link Connector (DLC)

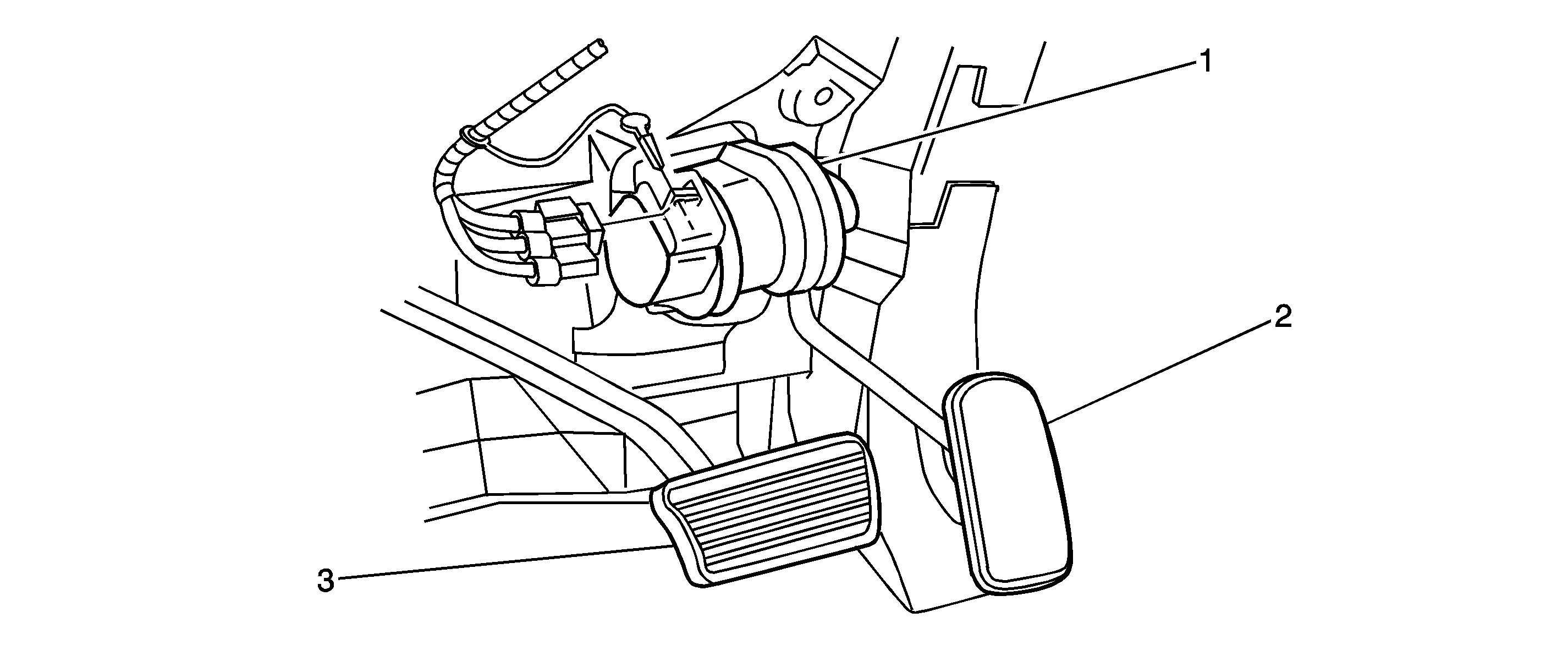

Figure 2:


(1)	Accelerator Pedal Position (APP) Sensor
(2)	Accelerator Pedal
(3)	Brake Pedal

Figure 3:


(1)	Mass Air Flow (MAF) Sensor
(2)	Air Cleaner Assembly
(3)	Intake Air Temperature (IAT) Sensor

Figure 4:


(1)	Powertrain Control Module (PCM)
(2)	Underhood Fuse Relay Center

Figure 5:

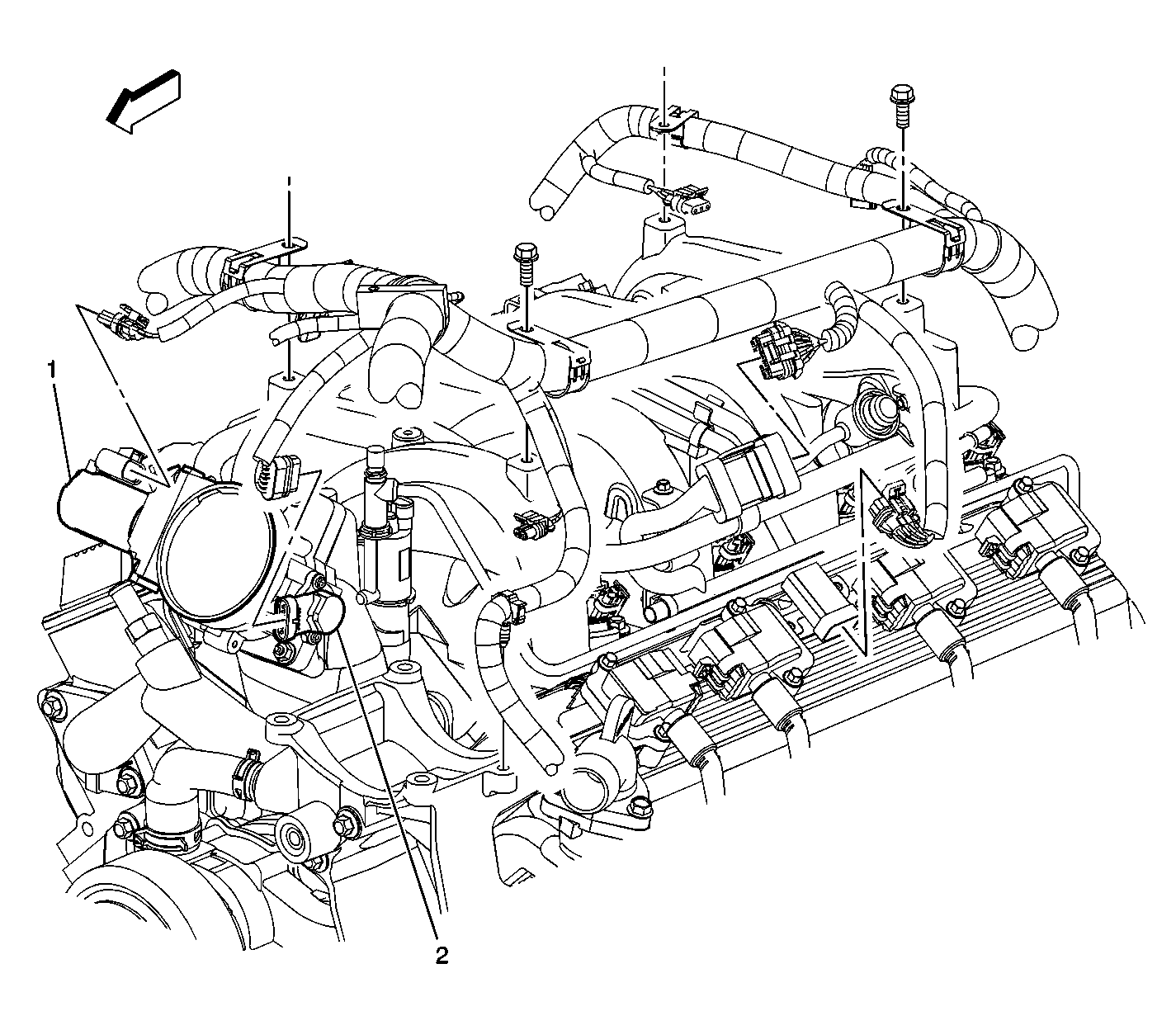

(1)	Electronic Throttle Control (ETC) Motor
(2)	Throttle Position (TP) Sensor

Figure 6:

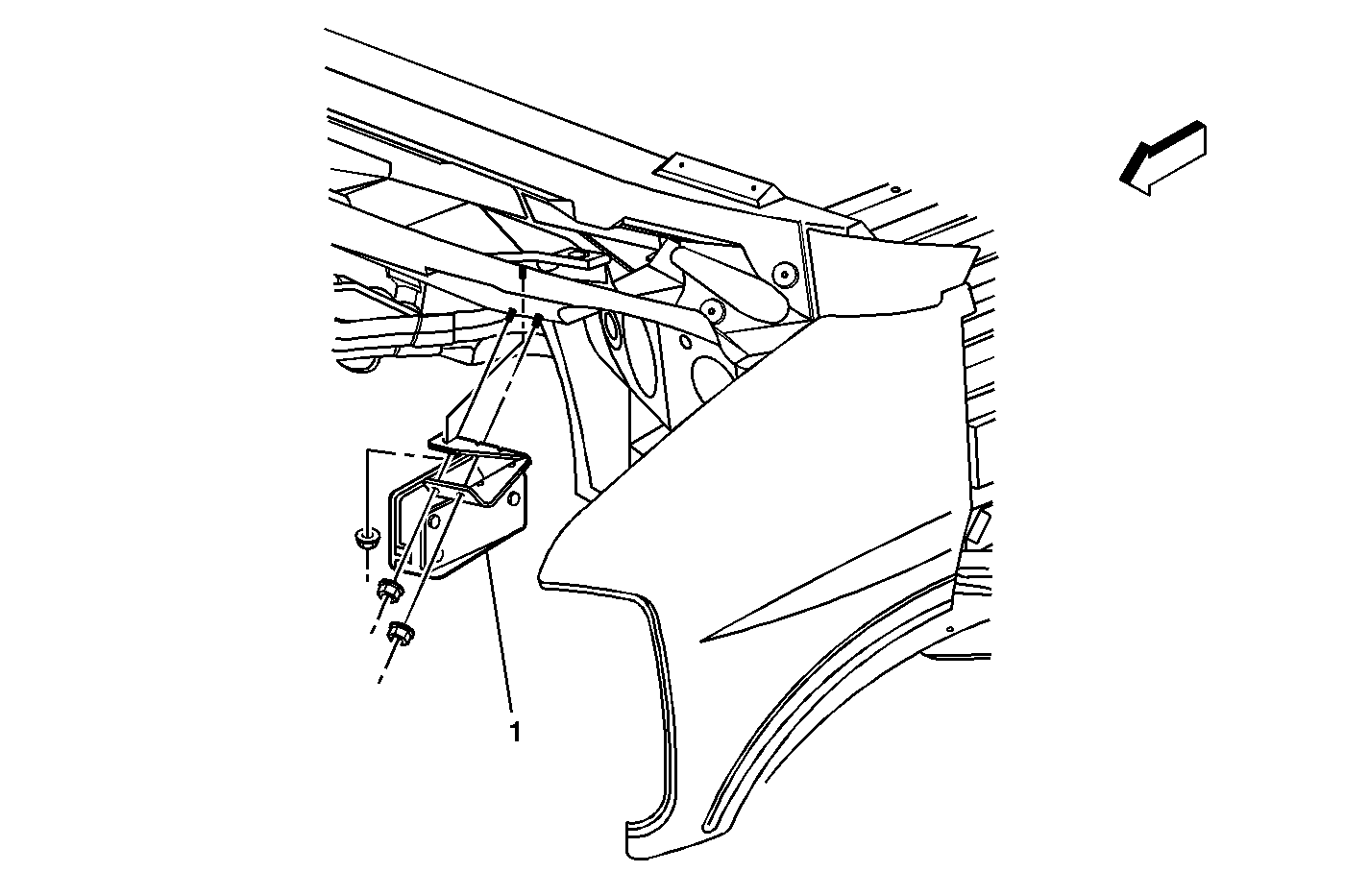

(1)	Throttle Actuator Control (TAC) Module

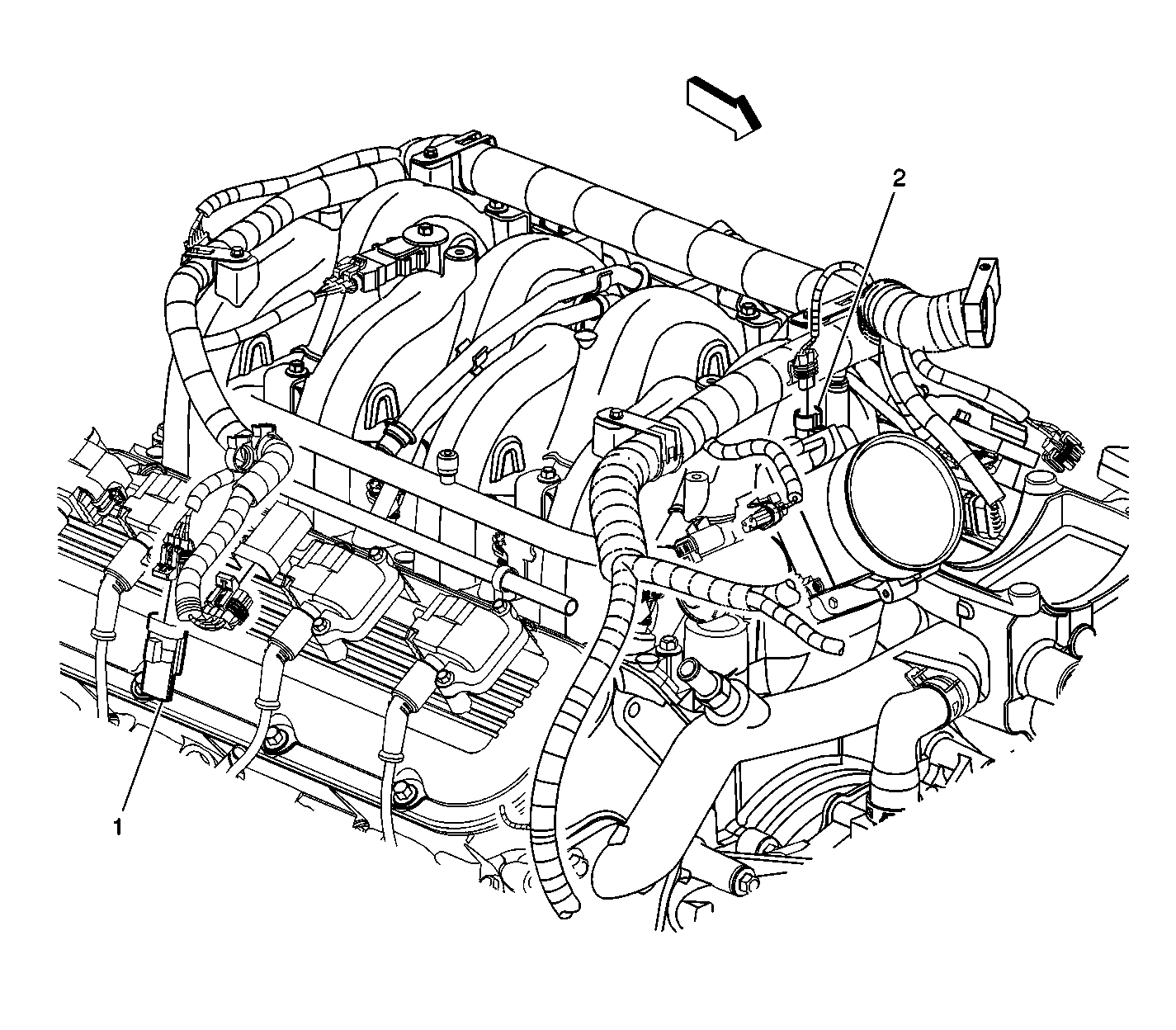

Figure 7:


(1)	Engine Coolant Temperature Sensor (ECT)
(2)	Purge Valve

Figure 8:

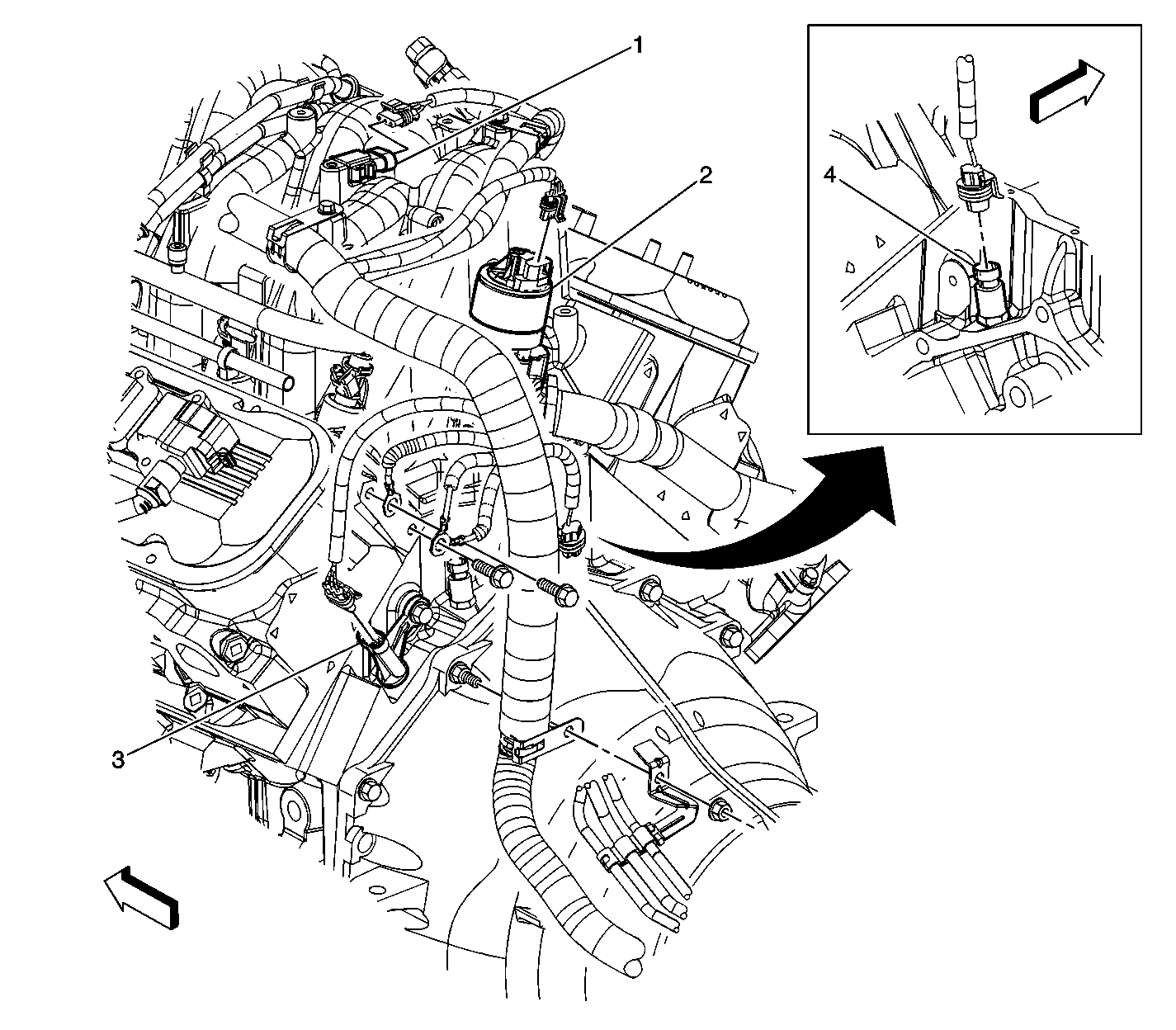

(1)	Manifold Absolute Pressure (MAP) Sensor
(2)	Exhaust Gas Recirculation (EGR) Valve

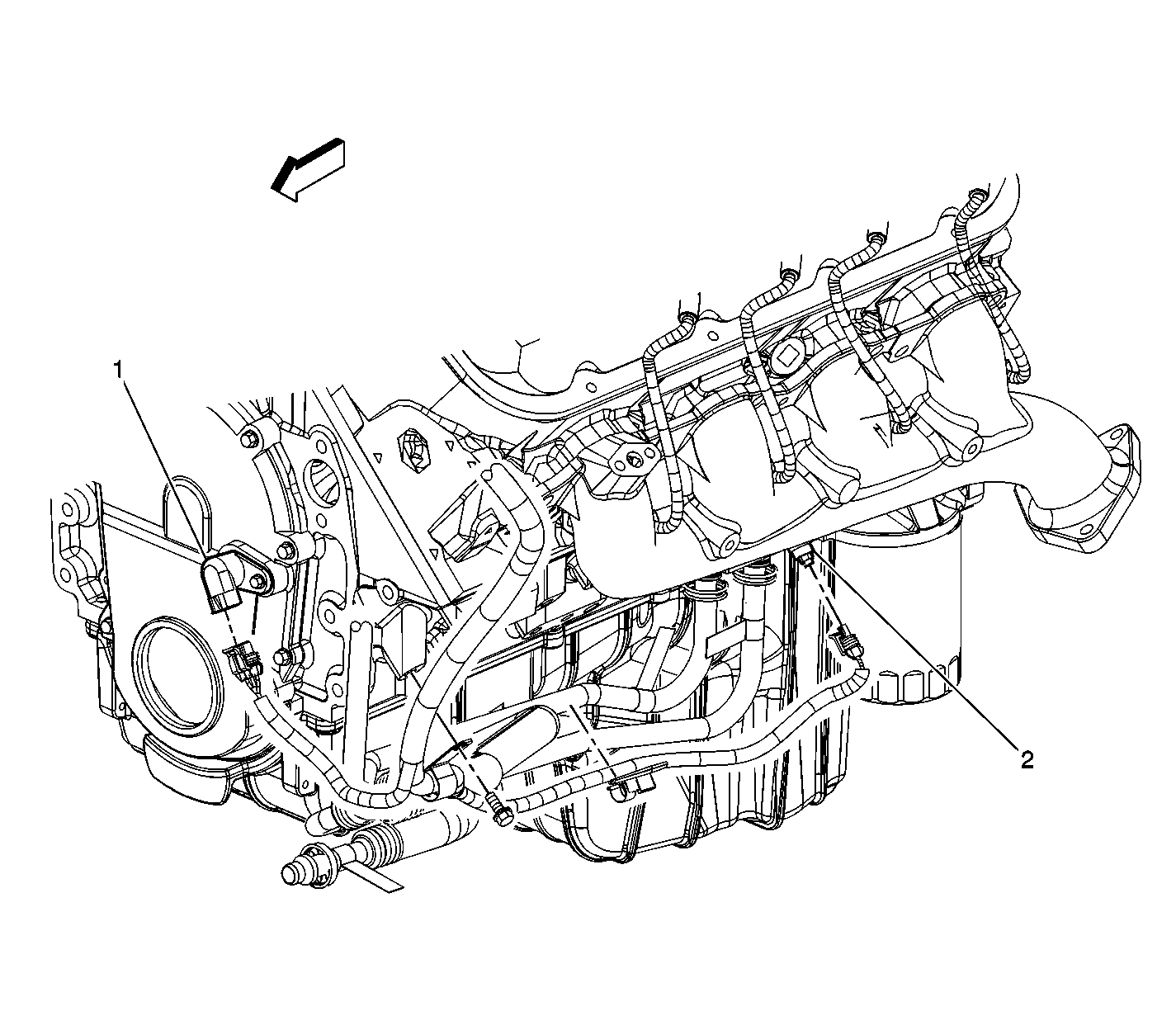

(3)	Crankshaft Position (CKP) Sensor
(4)	Oil Pressure (EOP) Sensor

Figure 9:


(1)	Camshaft Position Sensor
(2)	Knock Sensor (KS) Bank 1

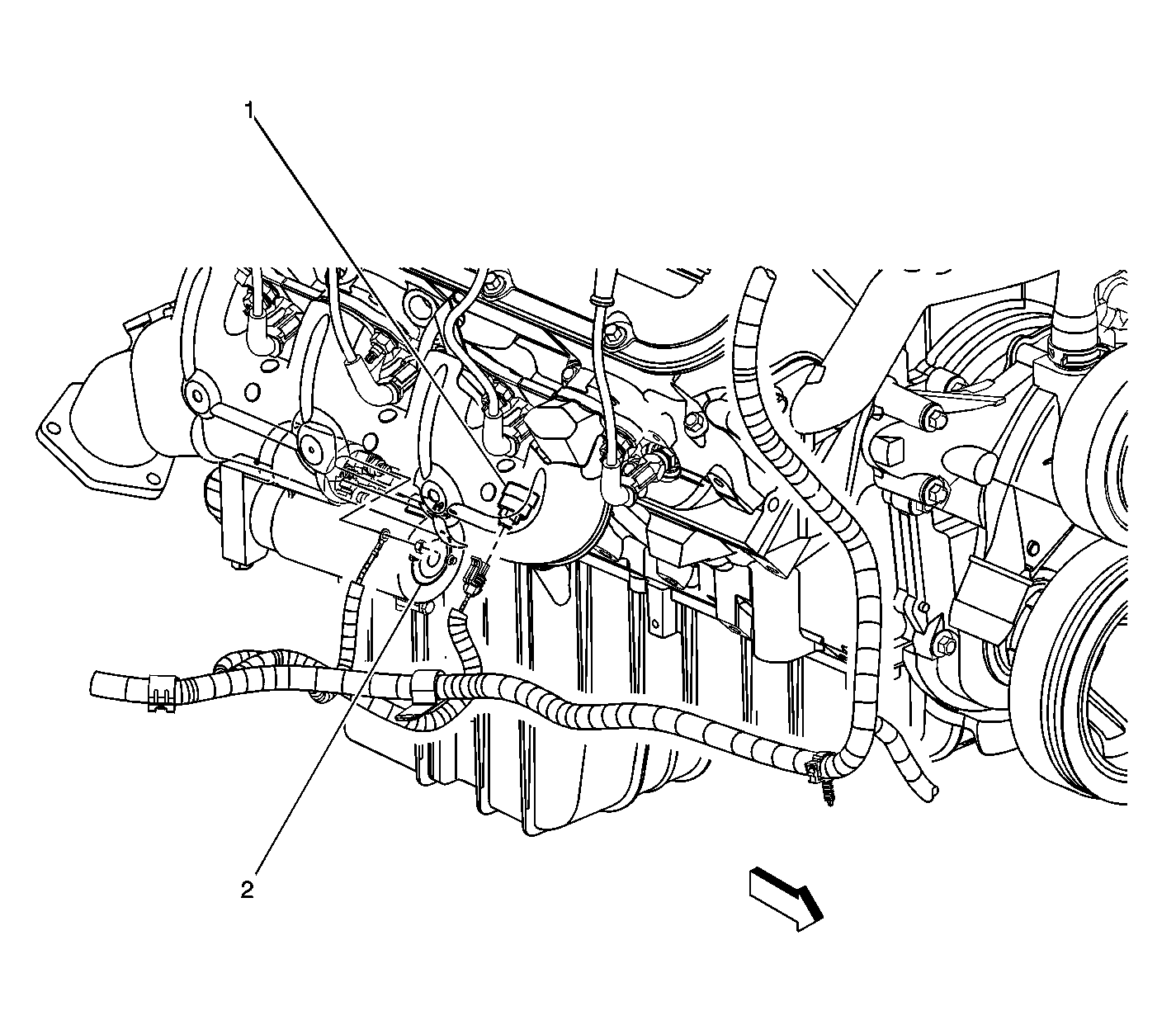

Figure 10:


(1)	Knock Sensor (KS) Bank 2
(2)	Starter Motor

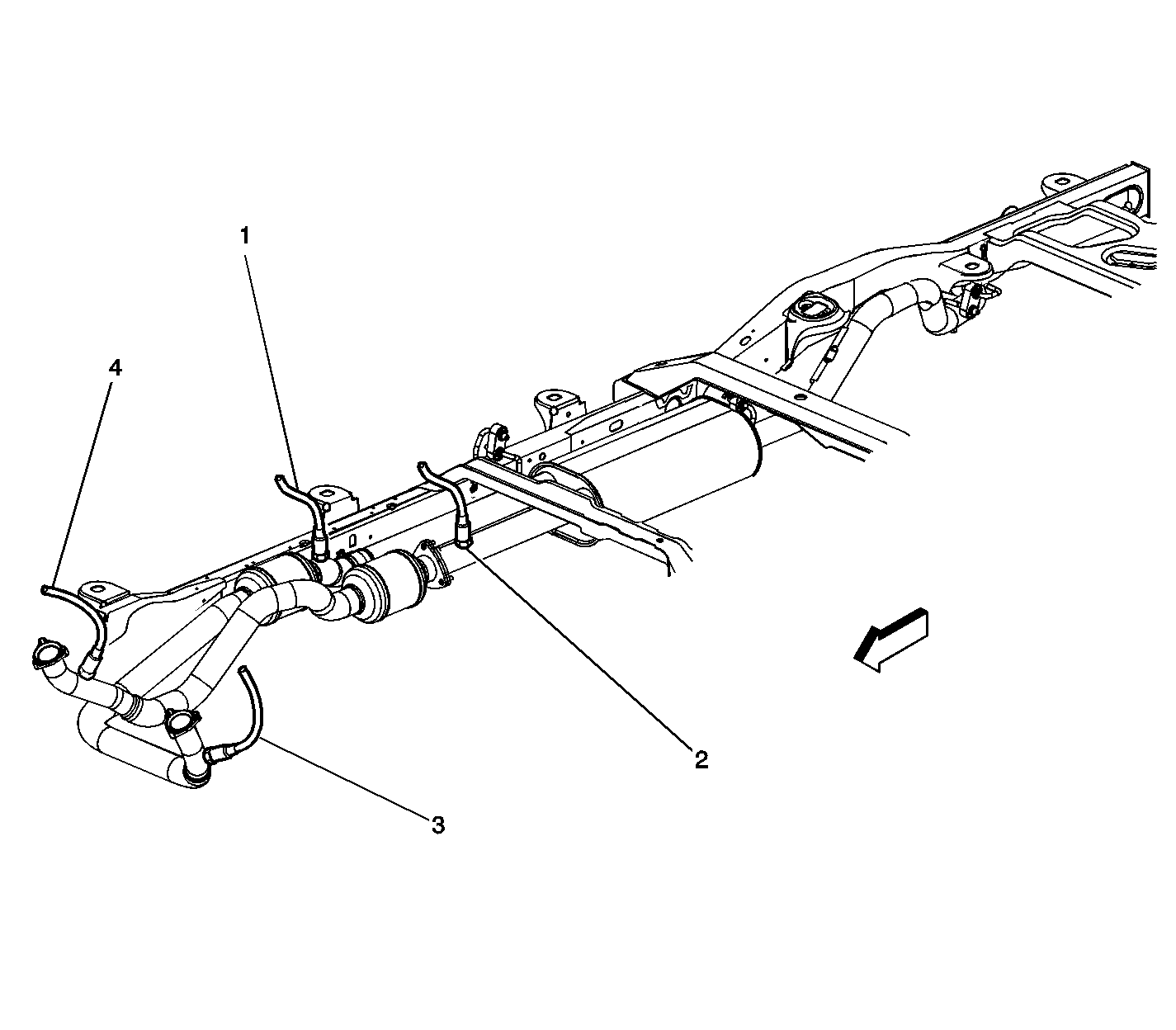

Figure 11:

Figure 12:

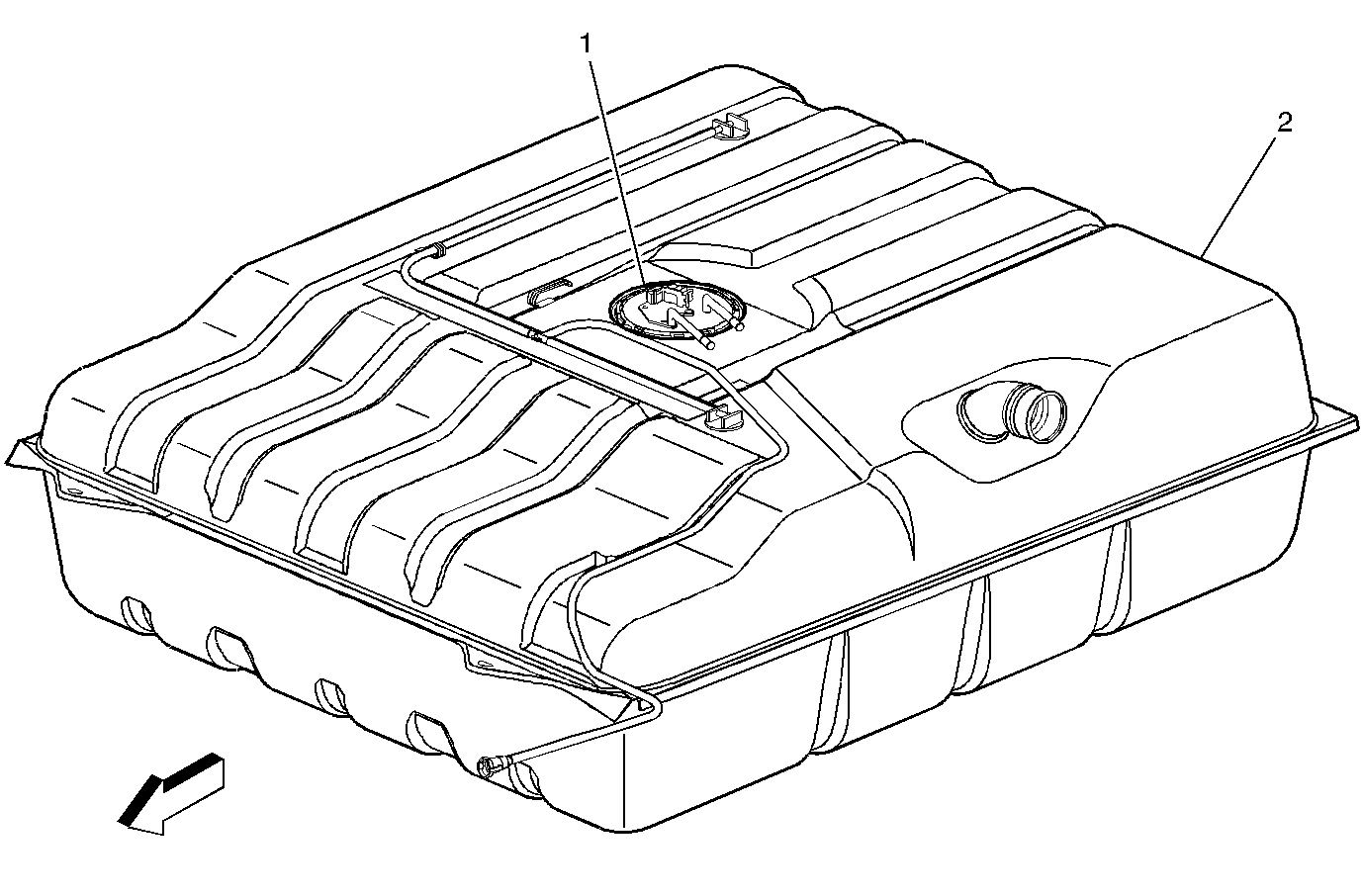

(1)	Fuel Pump/Sender Assembly
(2)	Fuel Tank

Figure 13:


(1)	Evaporative Emission (EVAP) Vent Valve
(2)	Evaporative Emission (EVAP) Canister
(3)	Fuel Tank
(4)	Fuel Pump/Sender Assembly

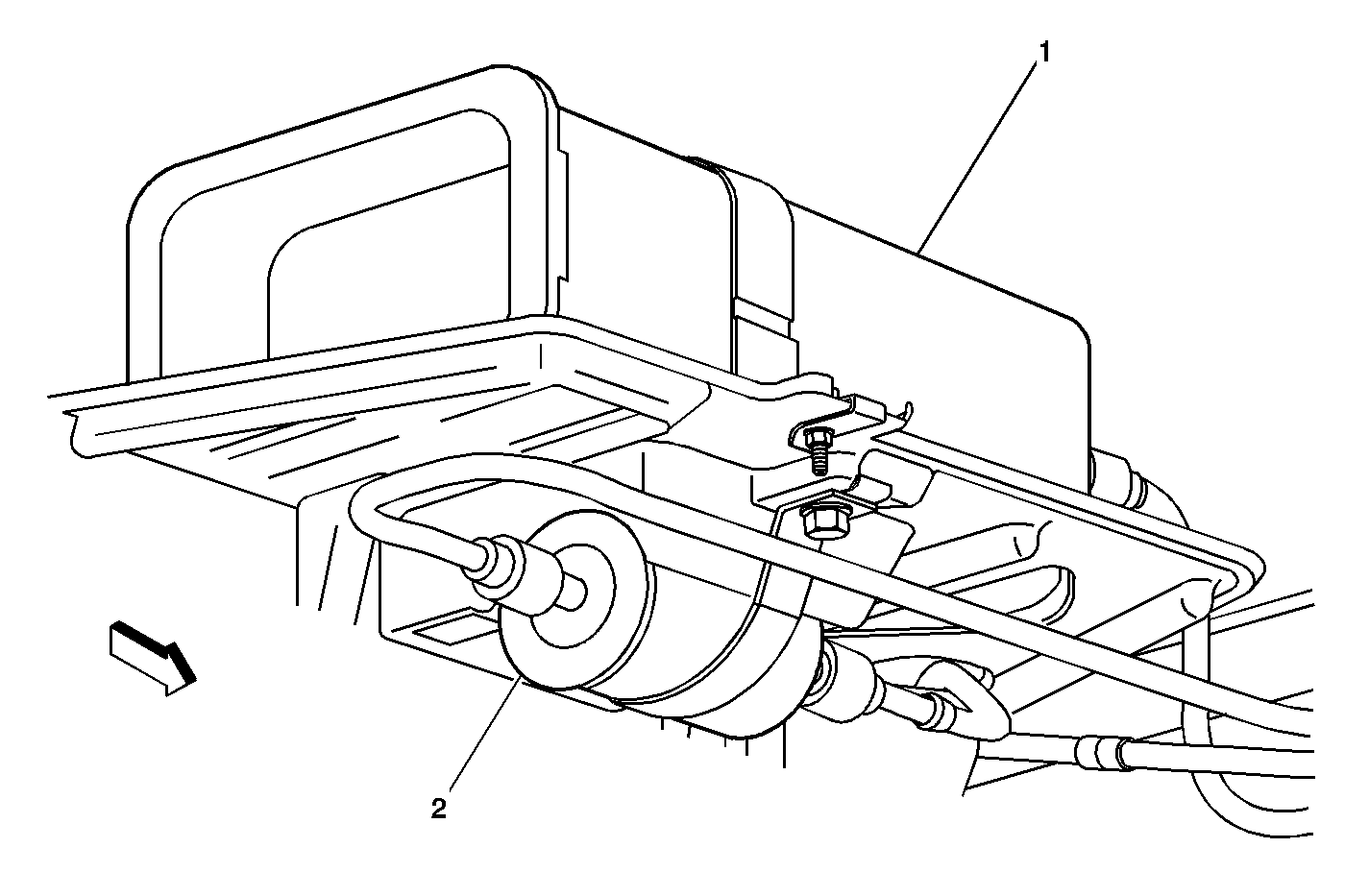

Figure 14:


(1)	Evaporative Emission (EVAP) Canister
(2)	Fuel Filter

Figure 15:


(1)	Fuel Tank
(2)	Fuel Tank Pressure Sensor Connector
(3)	Fuel Level Sender Connector
(4)	Fuel Tank Sender Assembly
