Entertainment Component Views. Chevrolet Express 2002

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2002 🢒 Express 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E 🢒 Entertainment Component Views

Figure 1:

Antenna


(1)	Antenna
(2)	P104

Figure 2:

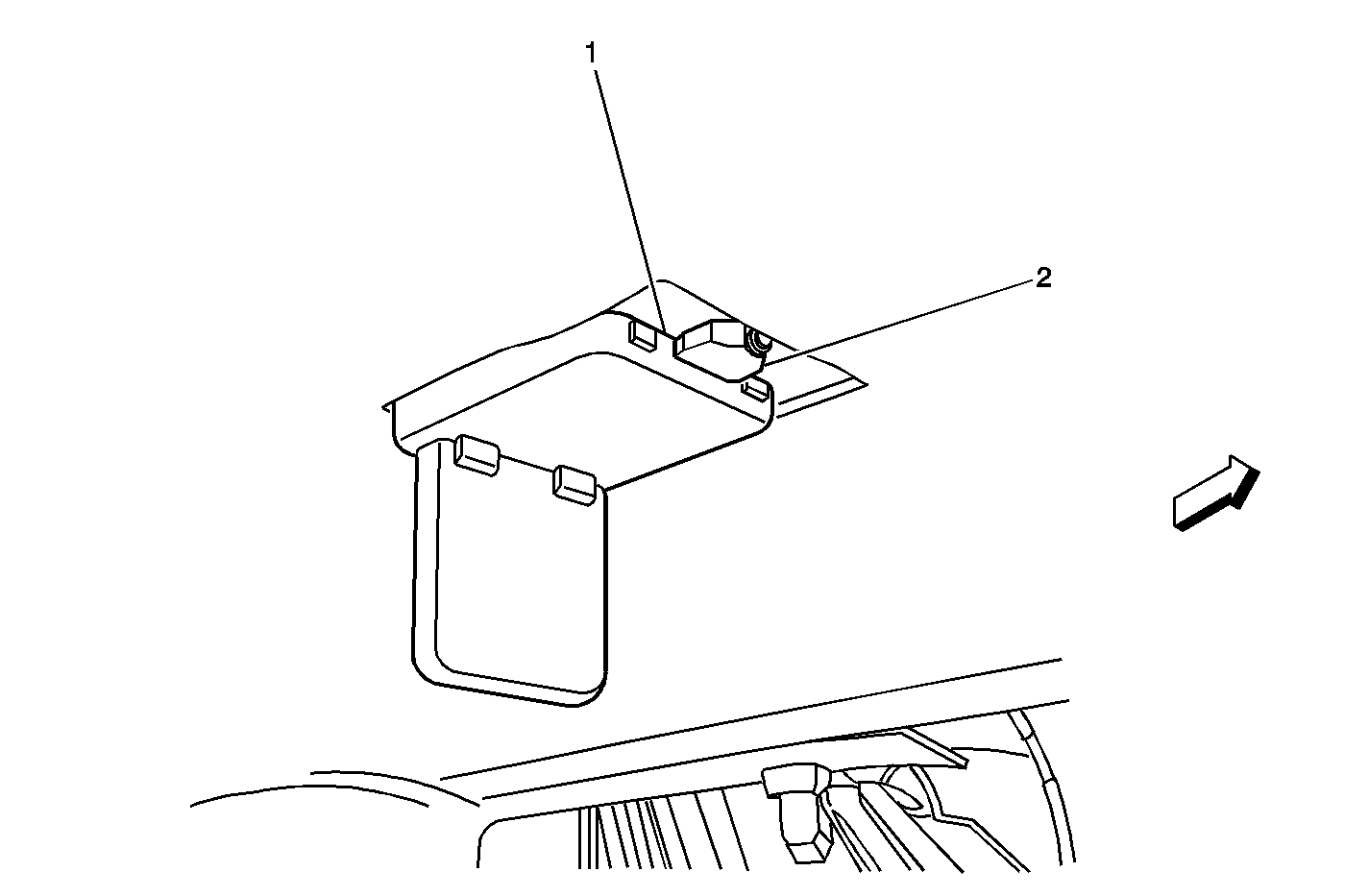

Connectors at Front Video Display


(1)	Front Overhead Console
(2)	Front Video Display - C2
(3)	Front Video Display - C1
(4)	Front Video Display - C3

Figure 3:

Entertainment Harness


(1)	Rear Video Screen
(2)	Front Video Screen Connector
(3)	RSA Controller Connector
(4)	Mirror, Homelink and Reading Lights Connectors
(5)	Accessory Power Outlet Connector
(6)	Gamebox
(7)	100-Watt Amplifier Connector
(8)	Base Box Connector
(9)	VCP Connector
(10)	C302
(11)	RSA-T Box
(12)	Entertainment Harness
(13)	Fuse Block - Rear

Figure 4:

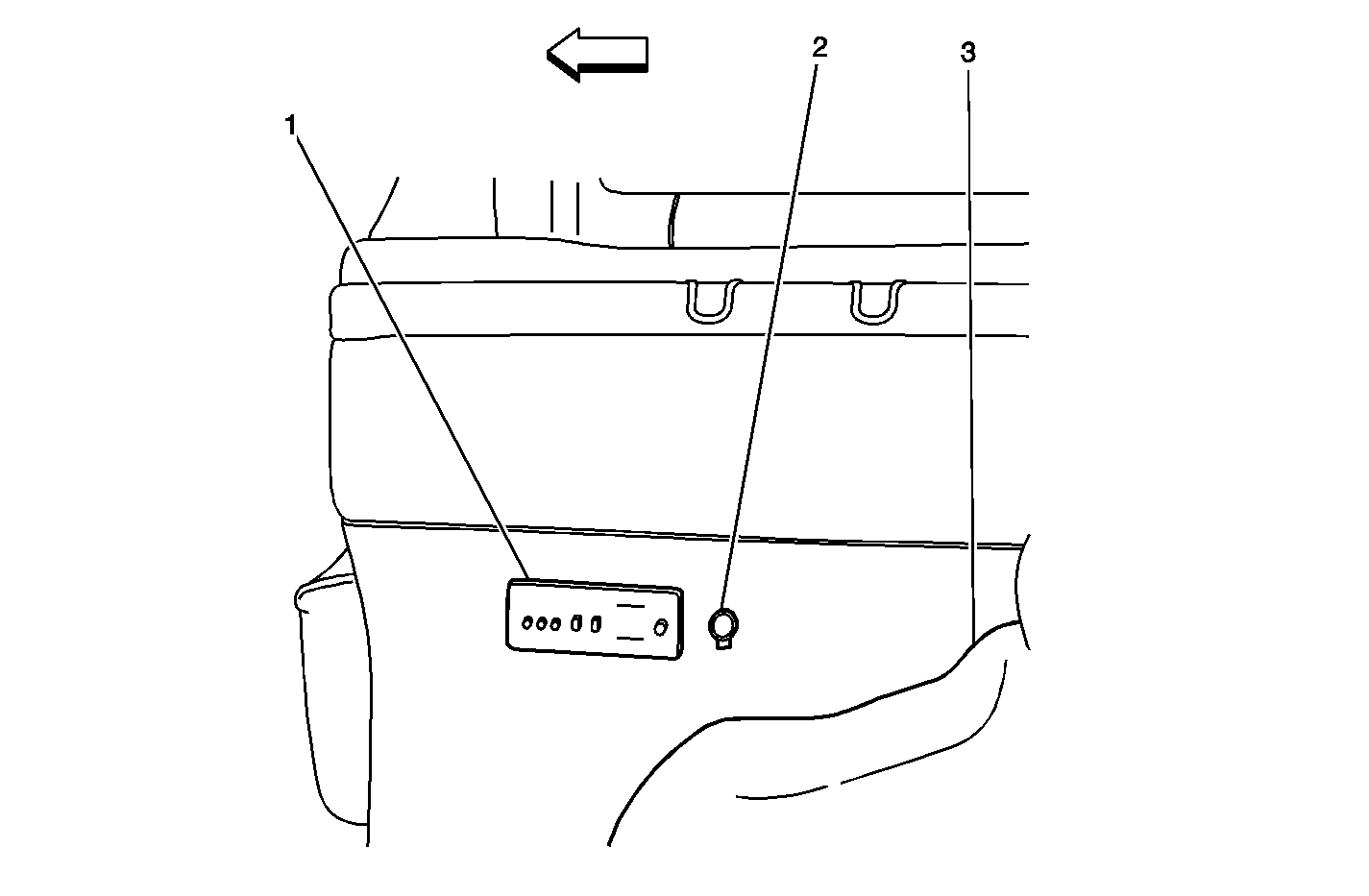

Front Fog Lamp Switch and Center Console Components


(1)	Fog Lamp Switch
(2)	Cigar Lighter
(3)	Video Cassette Player (VCP)
(4)	Front Accessory Power Outlet

Figure 5:

Front Side Door Wiring, Left


(1)	Door Window Switch, Left Front - Right Front Opposite
(2)	Door Lock Switch, Left Front - Right Front Opposite
(3)	Speaker Tweeter, Left Front Door - Right Front Opposite
(4)	Outside Rearview Mirror Switch

Figure 6:

Front Side Door Wiring, Left


(1)	Outside Rearview Mirror, Interface Cable
(2)	P500, P600 - Right
(3)	C211, C212 - Right
(4)	Speaker, Left Door - Right Opposite

Figure 7:

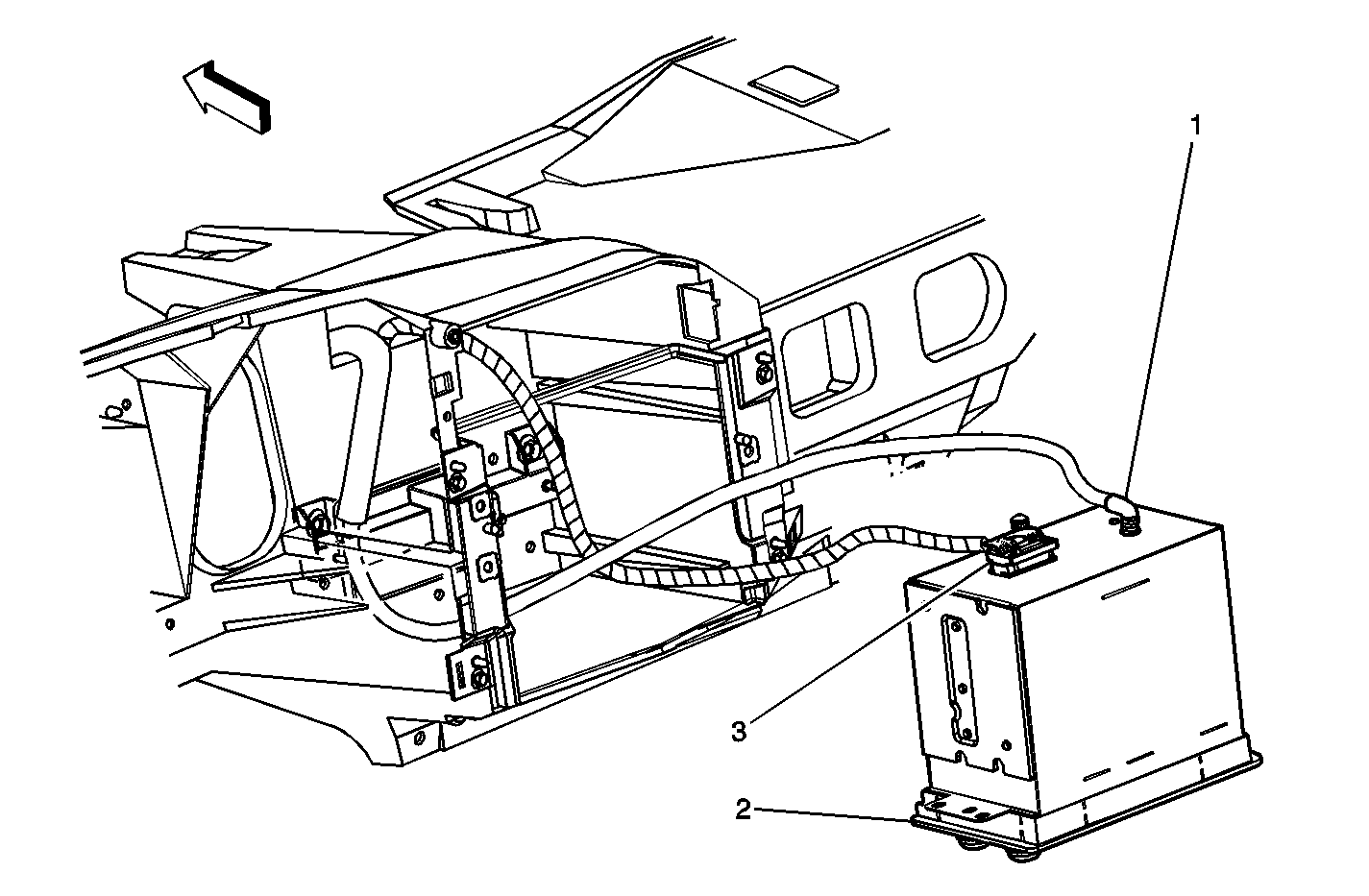

Front Subwoofer and 100 Watt Amplifier


(1)	Front Subwoofer Housing
(2)	Front Passenger Seat Riser
(3)	Front Subwoofer 100 Watt Amplifier

Figure 8:

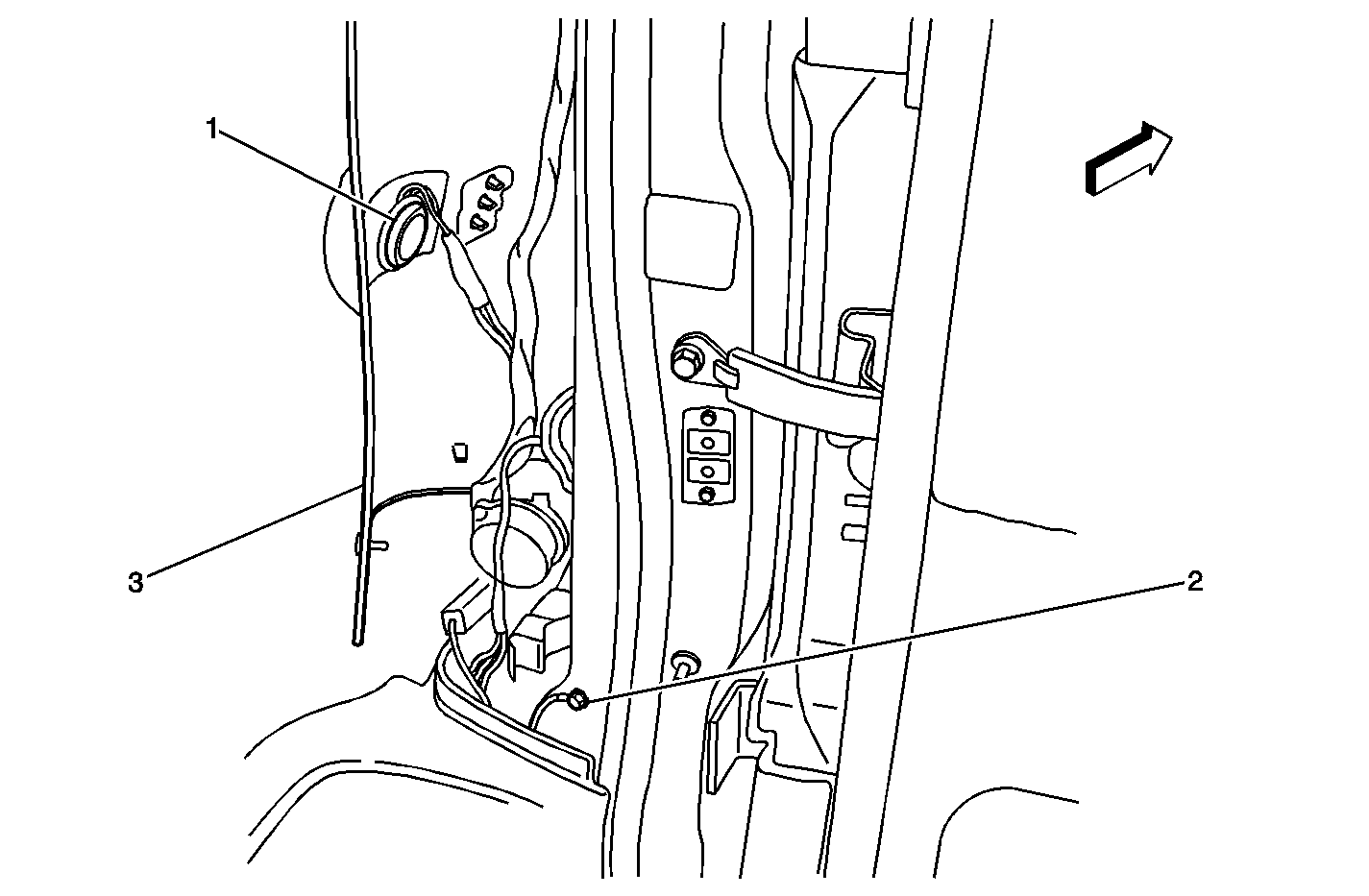

G302 and Right B-Pillar Speaker


(1)	Right B-Pillar Speaker (left side similar)
(2)	G302
(3)	Central Pillar Lower Trim Panel - Right

Figure 9:

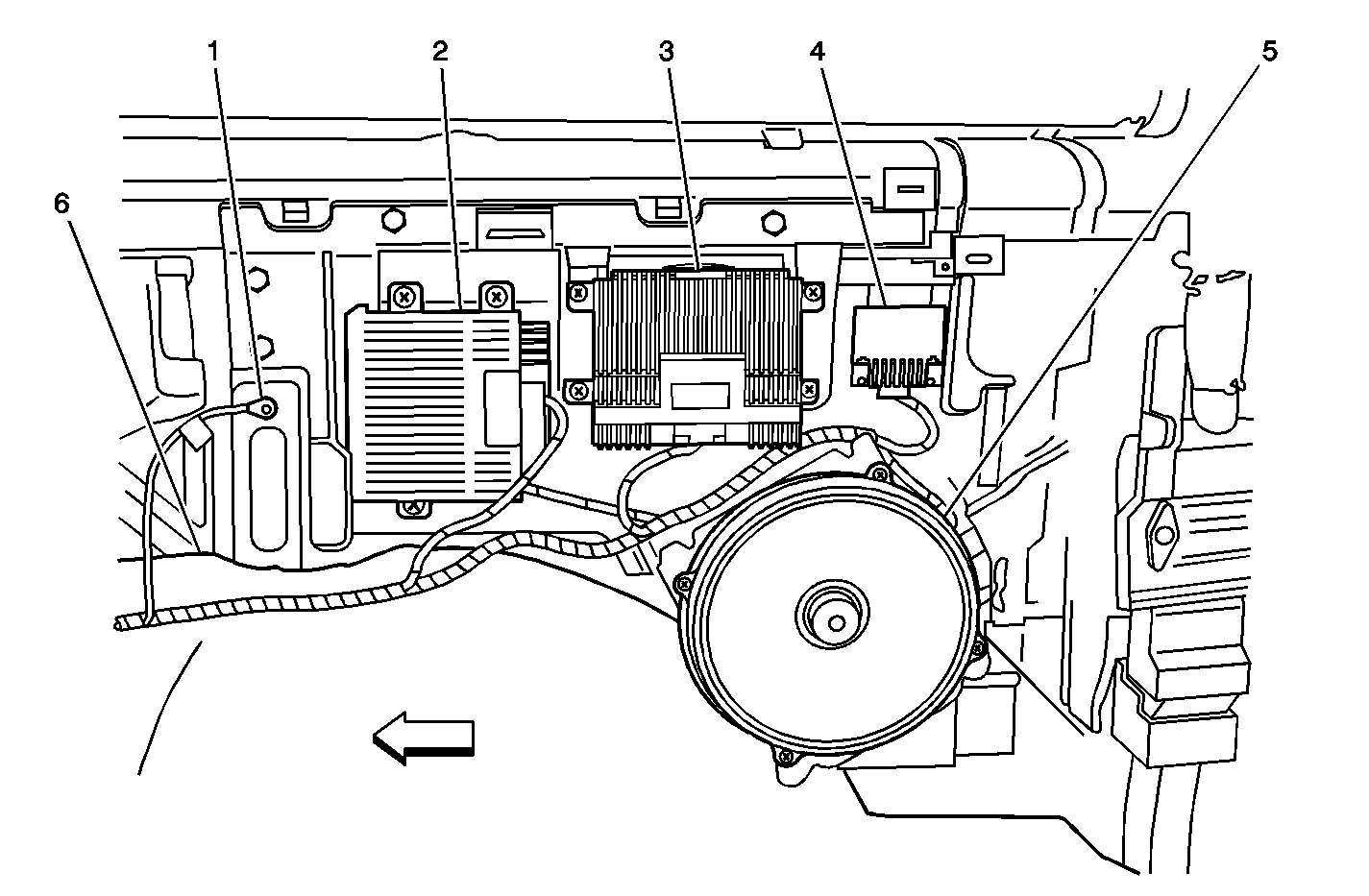

G304, Amplifiers, and Rear Woofer


(1)	Ground G304
(2)	Bose 2000AMP 1
(3)	Bose 2000AMP 2
(4)	Rear 100 Watt Amplifier
(5)	Rear Woofer
(6)	Right Rear Wheel House

Figure 10:

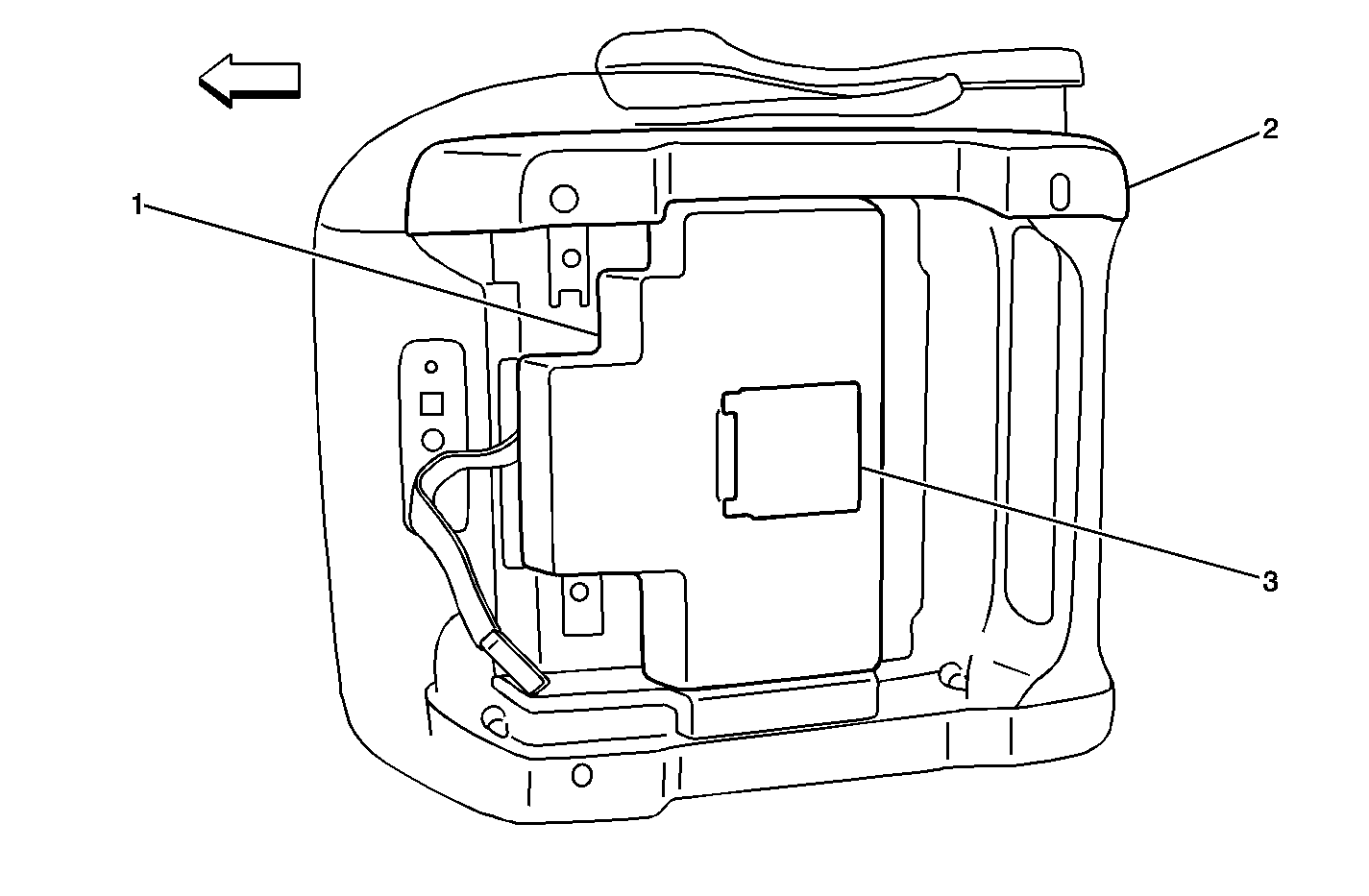

Game Box and Rear Accessory Power Outlet


(1)	Game Box
(2)	Rear Accessory Power Outlet
(3)	Right Rear Wheel House

Figure 11:

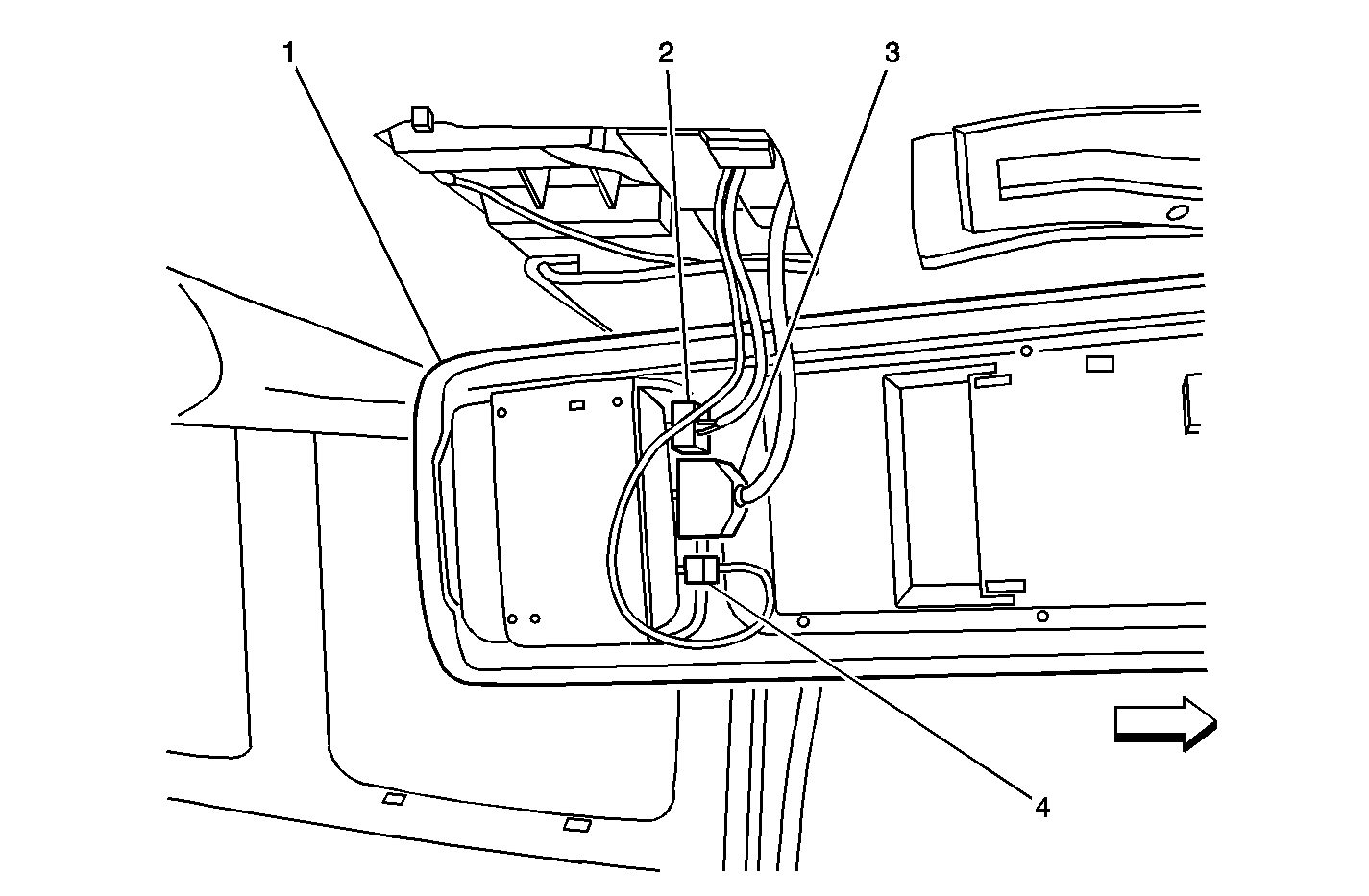

Game Box, C310, C311, and Rear Accessory Power Outlet


(1)	Connectors C310 (BLU) and C311 (ORN)
(2)	Rear Accessory Power Outlet
(3)	Game Box Jumper Cable
(4)	Game Box

Figure 12:

Instrument Panel, Radio


(1)	Radio Antenna Lead
(2)	Radio
(3)	Radio Connector

Figure 13:

Mid Dome/Reading Lamps, RSA, and Rear HVAC Control Connectors


(1)	Mid Reading Lamps
(2)	Auxiliary HVAC Control - Rear
(3)	RSA Connector
(4)	Mid Dome Lamp
(5)	Mid Dome/Reading Lamp Connector

Figure 14:

Radio Rear Speaker Wiring


(1)	Right Body Harness
(2)	C415
(3)	Left Body Harness
(4)	Radio Speaker, Right Overhead
(5)	Radio Speaker, Left Overhead
(6)	C403

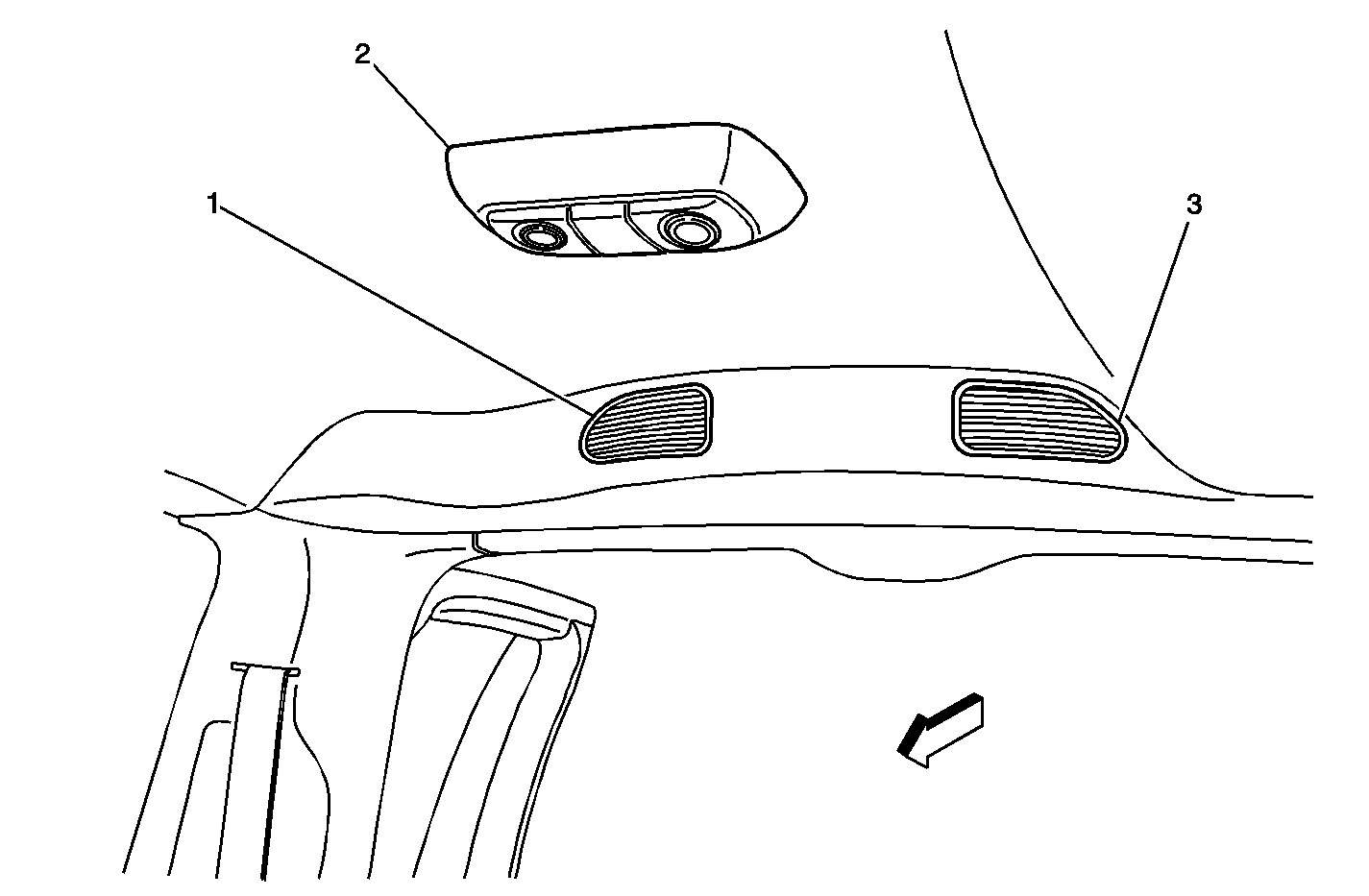

Figure 15:

Rear Headliner Speakers, Rear Dome/Reading Lamps


(1)	Right Rear Headliner Speaker
(2)	Rear Dome and Reading Lamp Assembly
(3)	Left Rear Headliner Speaker

Figure 16:

Right Rear Door Wiring, Radio Speaker


(1)	C412
(2)	License Lamp
(3)	Door Jamb Switch, Right Rear
(4)	Door lock Actuator Motor, Rear
(5)	Speaker, Right Rear Door - Left Rear Opposite
(6)	P901, P902
(7)	402
(8)	C400

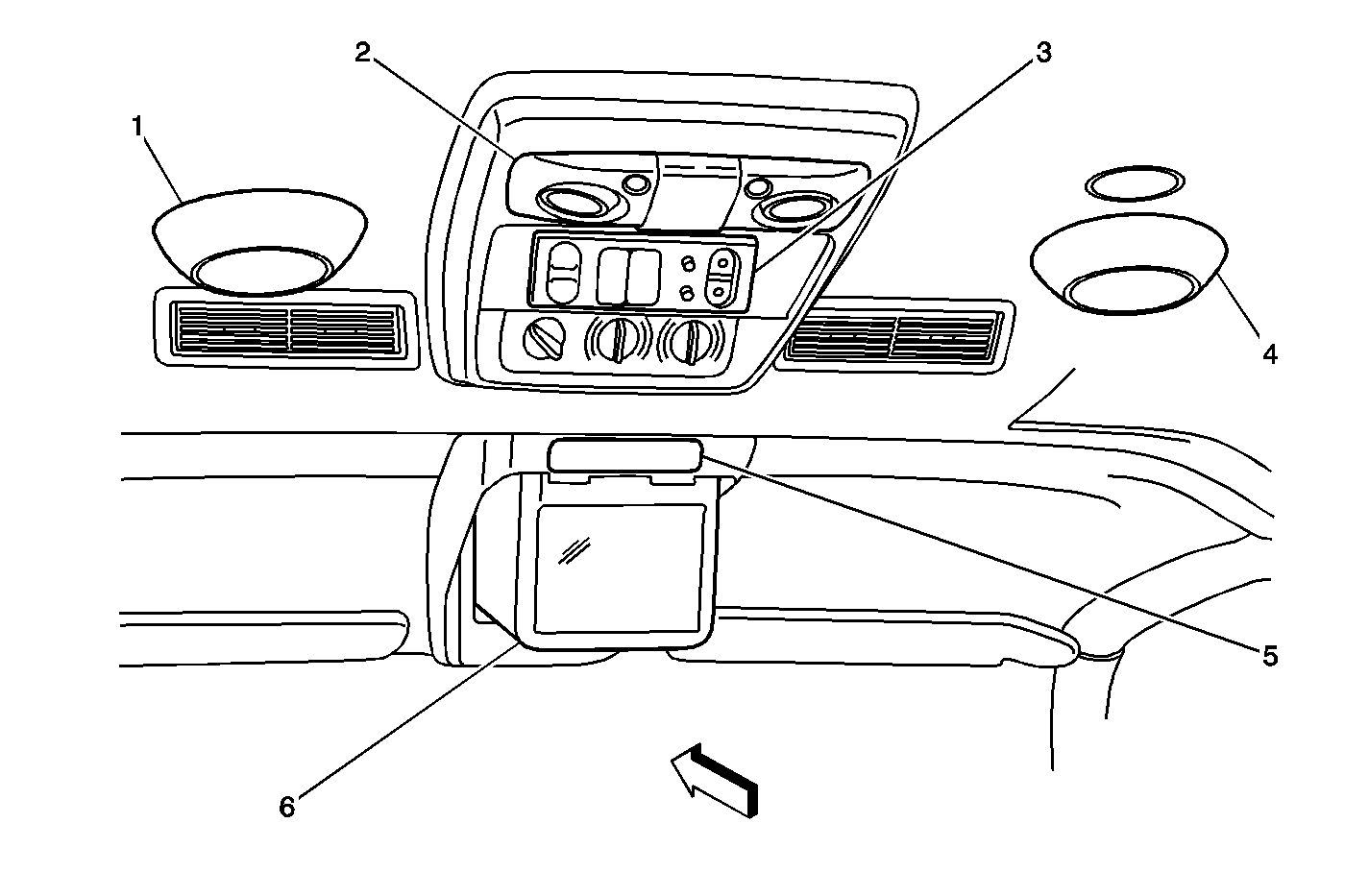

Figure 17:

RSA, Front Video Display, Mid Headliner Speakers, and Mid Dome/Reading Lamps


(1)	Left Mid Headliner Speaker
(2)	Mid Dome and Reading Light Assembly
(3)	Rear Seat Audio (RSA) Control
(4)	Right Mid Headliner Speaker
(5)	Wireless Headphone Transmitter and Remote Receiver
(6)	Front Video Display

Figure 18:

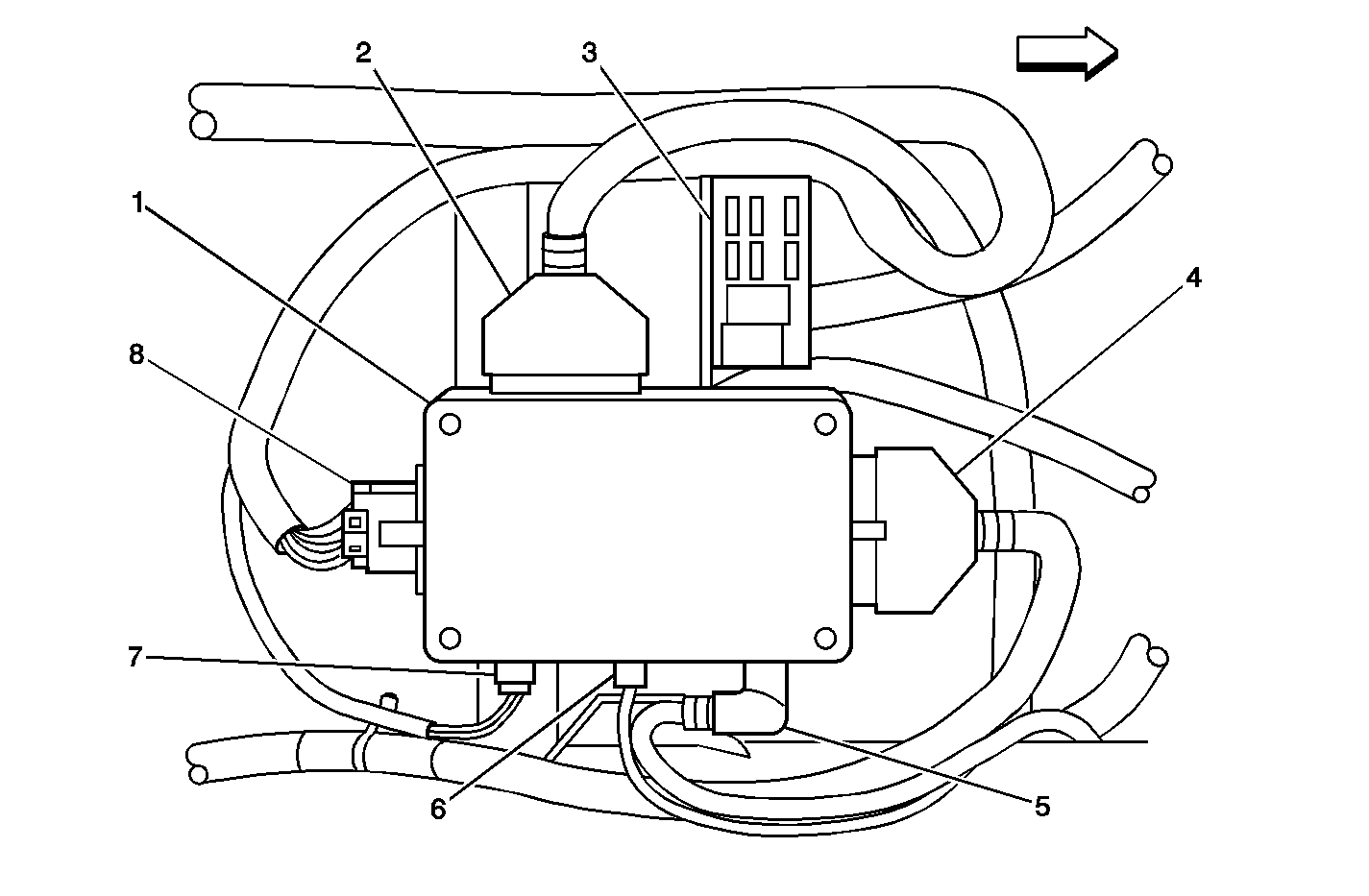

RSA-T Module and Connectors, Rear Fuse Block


(1)	RSA-T Module
(2)	RSA-T C2
(3)	Rear Fuse Block
(4)	RSA-T C1
(5)	RSA-T C4
(6)	RSA-T C6
(7)	RSA-T C5
(8)	RSA-T C3

Figure 19:

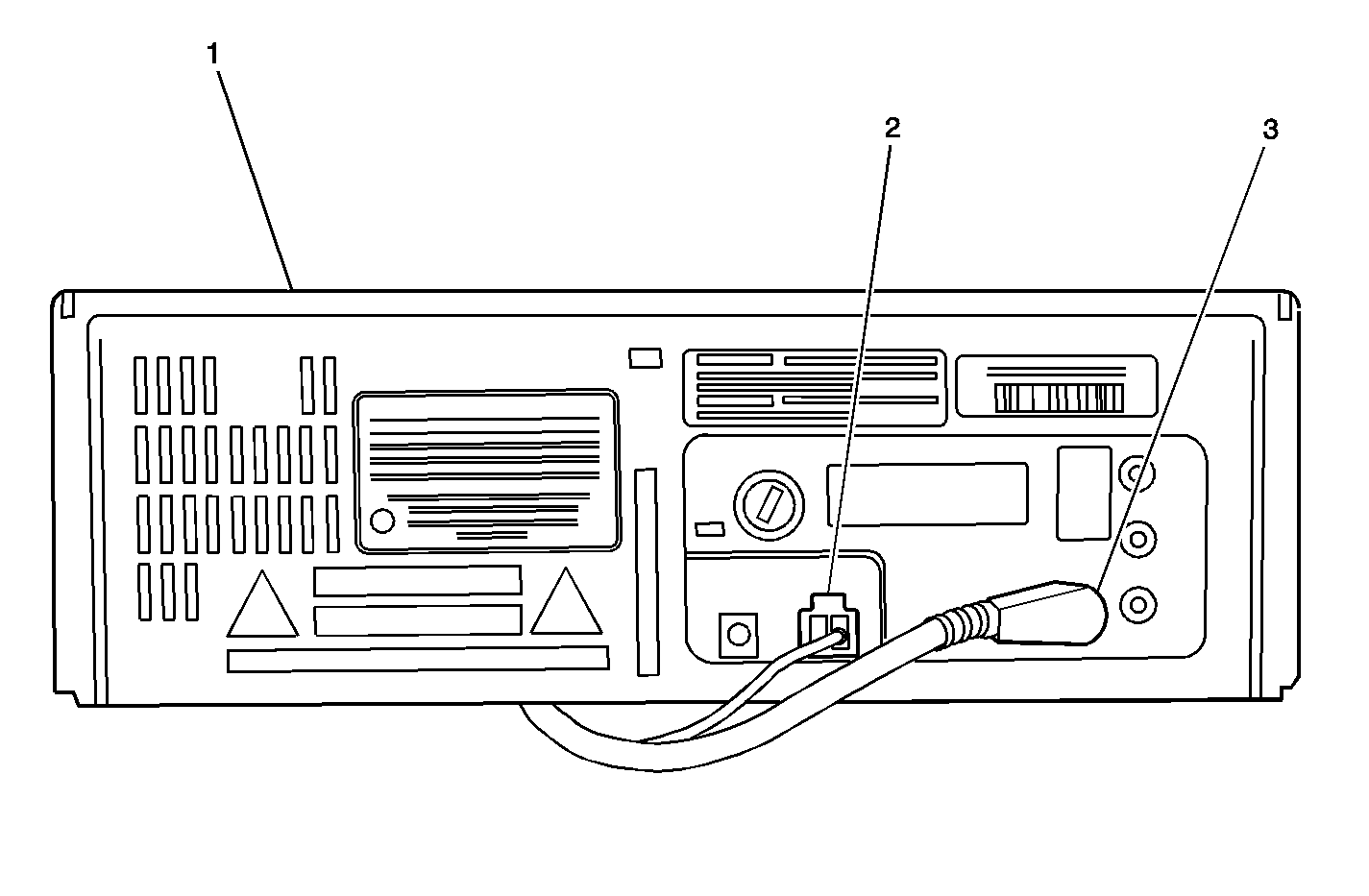

VCP Rear Panel and Connectors


(1)	Video Cassette Player - Rear view
(2)	VCP - C1
(3)	VCP - C2

Figure 20:

Wiring to Rear Video Display


(1)	Rear Video Display
(2)	Rear Video Display Connector
