HVAC Component Views. Chevrolet Express 2002

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2002 🢒 Express 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E 🢒 HVAC Component Views

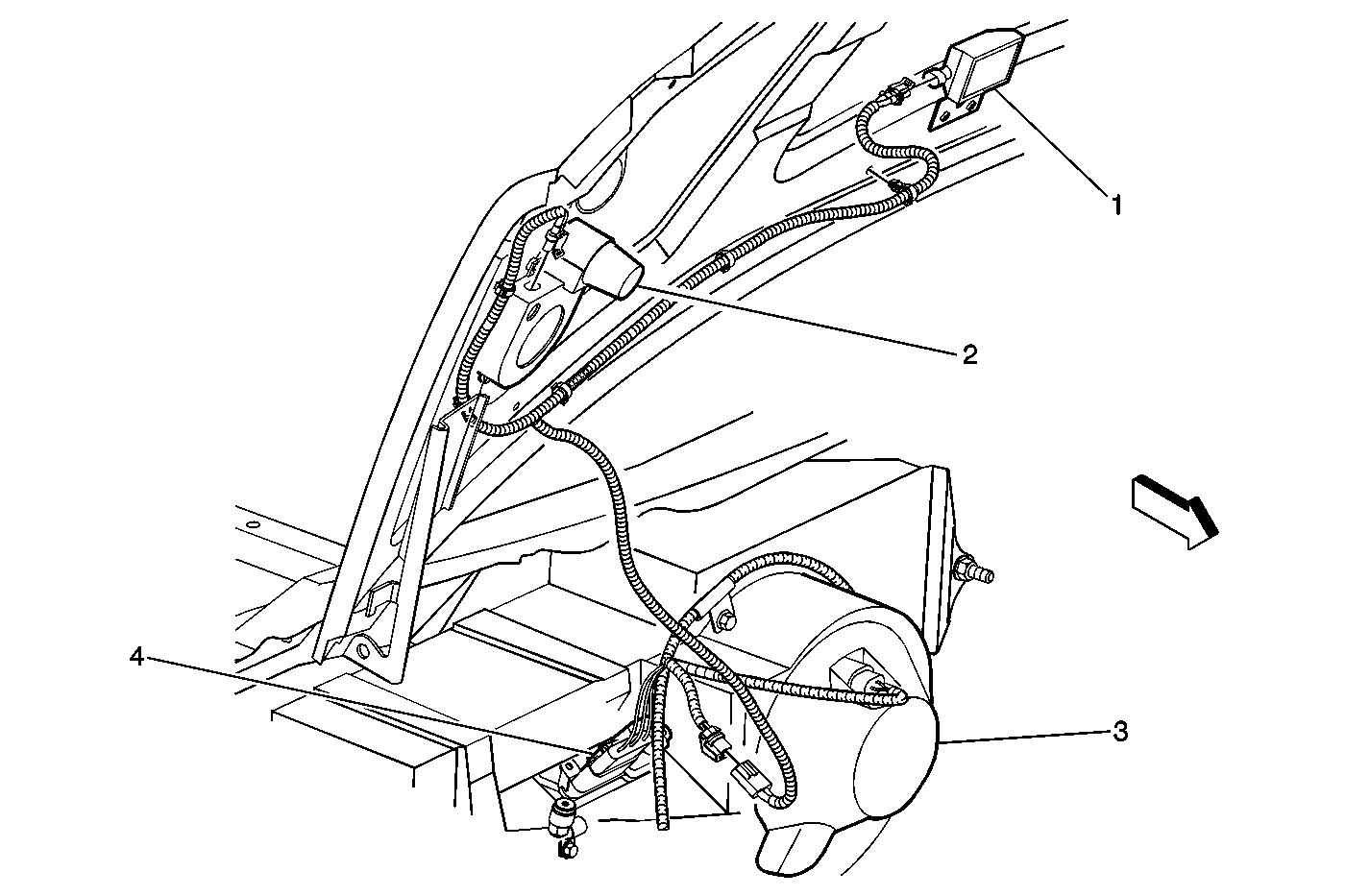

Figure 1:


(1)	A/C Compressor Clutch Connector
(2)	A/C Compressor
(3)	Exhaust Gas Recirculation (EGR) Valve Connector - 4.3L
(4)	A/C High Pressure Switch Connector

Figure 2:


(1)	A/C Low Pressure Switch

Figure 3:


(1)	C407
(2)	Blower Motor High Speed Relay - Auxiliary
(3)	Blower Motor Medium Speed Relay - Auxiliary
(4)	Blower Motor Low Speed Relay - Auxiliary
(5)	Blower Motor - Auxiliary
(6)	Mode Actuator - Auxiliary
(7)	Air Temperature Actuator - Auxiliary
(8)	Blower Motor Resistor - Auxiliary
(9)	C408

Figure 4:


(1)	HVAC Control Processor - Auxiliary
(2)	HVAC Control Assembly - Front Auxiliary
(3)	HVAC Control Assembly - Rear Auxiliary

Figure 5:


(1)	Auxiliary Blower Motor Switch

Figure 6:


(1)	Air Inlet Valve Actuator
(2)	Defroster Actuator

Figure 7:


(1)	Heater and A/C Controller - Base
(2)	Blower Motor Switch - Part of Heater and A/C Controller
(3)	Heated Mirror Switch - Part of Heater and A/C Controller

Figure 8:


(1)	Recirculation Solenoid Valve
(2)	Air Temperature Actuator
