Engine Front Cover Removal W Car, B Van, U Van


    Object Number: 660219 Size: SH
  1. Remove the crankshaft position sensor wiring bracket bolt.
  2. Remove the crankshaft position sensor wiring bracket.

    3. Object Number: 95865 Size: SH
  3. Remove the engine front cover bolts (1), (2), and (3).
  4. Remove the engine front cover.
  5. Remove the engine front cover gasket.

Engine Front Cover Removal N Car


    Object Number: 660219 Size: SH
  1. Remove the crankshaft position sensor wiring bracket bolt.
  2. Remove the crankshaft position sensor wiring bracket.

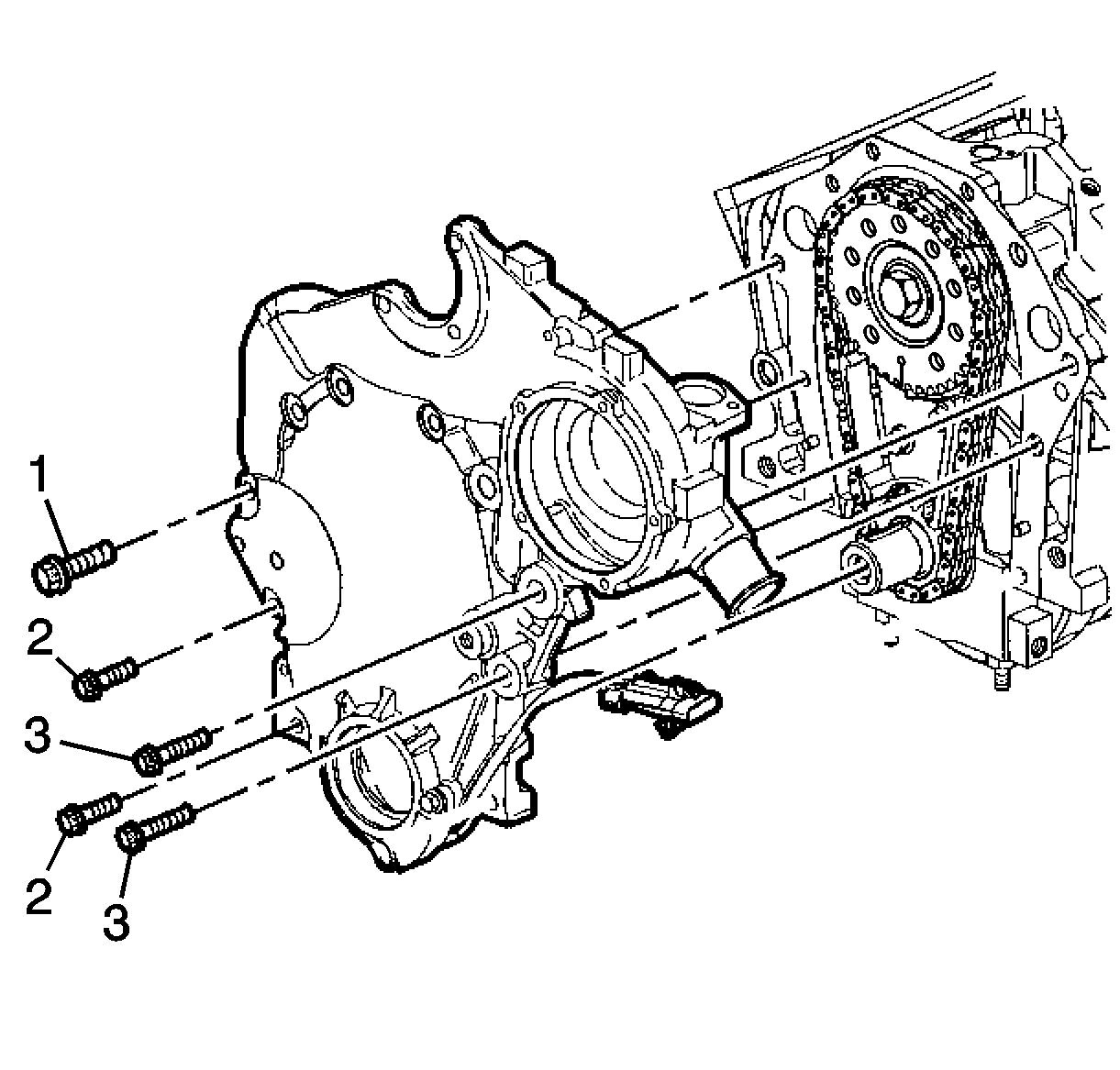

    3. Object Number: 660217 Size: SH
  3. Remove the engine front cover bolts (1, 2, 3).
  4. Remove the engine front cover.
  5. Remove the engine front cover gasket.
