Exterior Lights Schematics. Chevrolet Express 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Express 🢒 Body 🢒 Lighting Systems 🢒 Exterior Lights Schematics

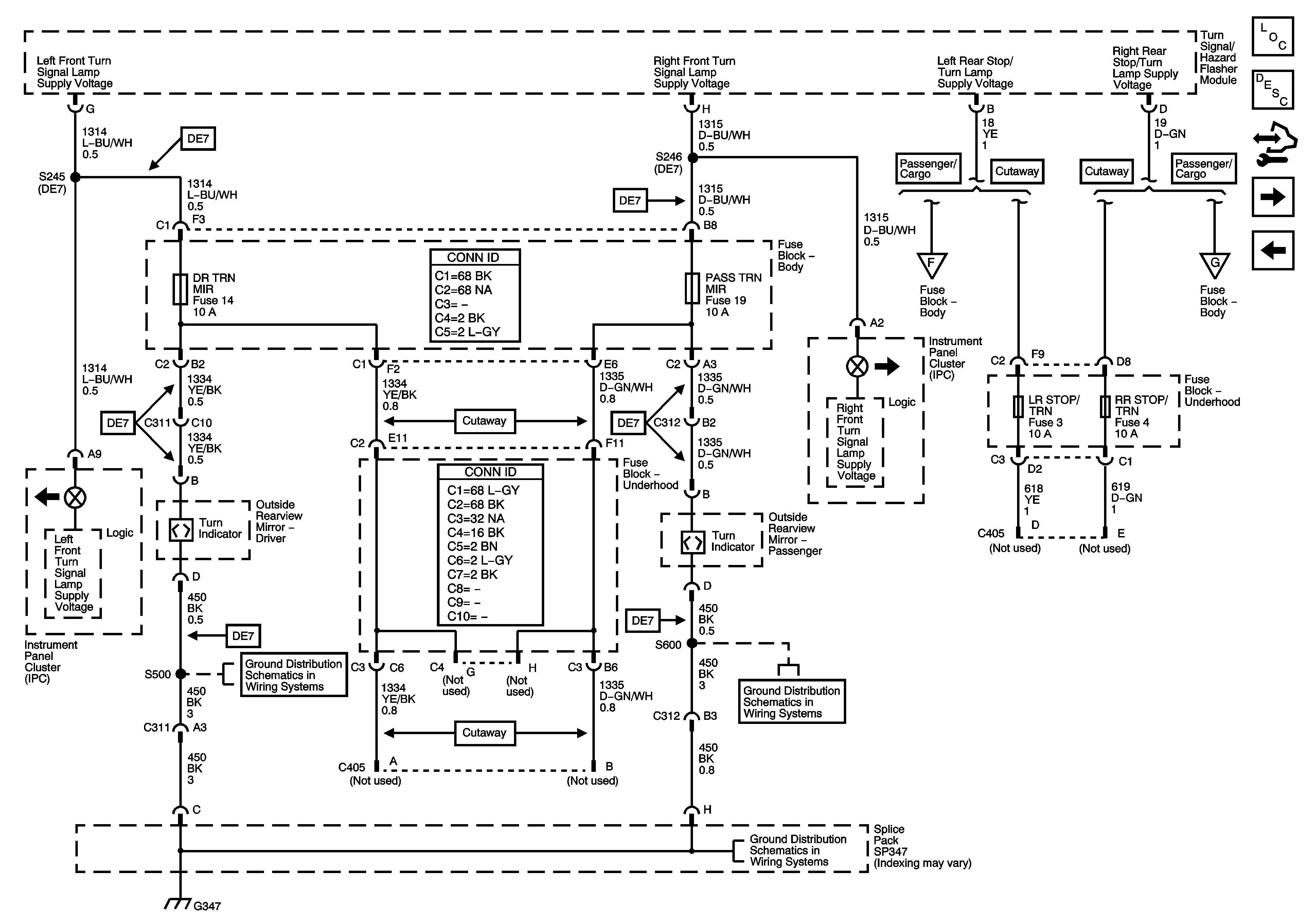

Figure 1:	Hazard, Turn and Stop Lamp Signals Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Headlamp and Panel Dimmer Switch Signals and Park Lamp Relay Control B+ Bus - Underhood Fuse Block Ignition Switch - ACCY/RUN, RUN/START Bus Bars and IGN B Fuse IGN E, ISRV, SIR, SPARE andTBC IGN 1 Fuses B+ Bus - Underhood Fuse Block IGN E, ISRV, SIR, SPARE andTBC IGN 1 Fuses Wiper/Washer System Schematics Headlights Schematics G302 w/o JL4 w/o JL4 G302 G400 Backup (Cutaway) and Trailer Wiring G402 - Passenger/Cargo and G403 - PRP

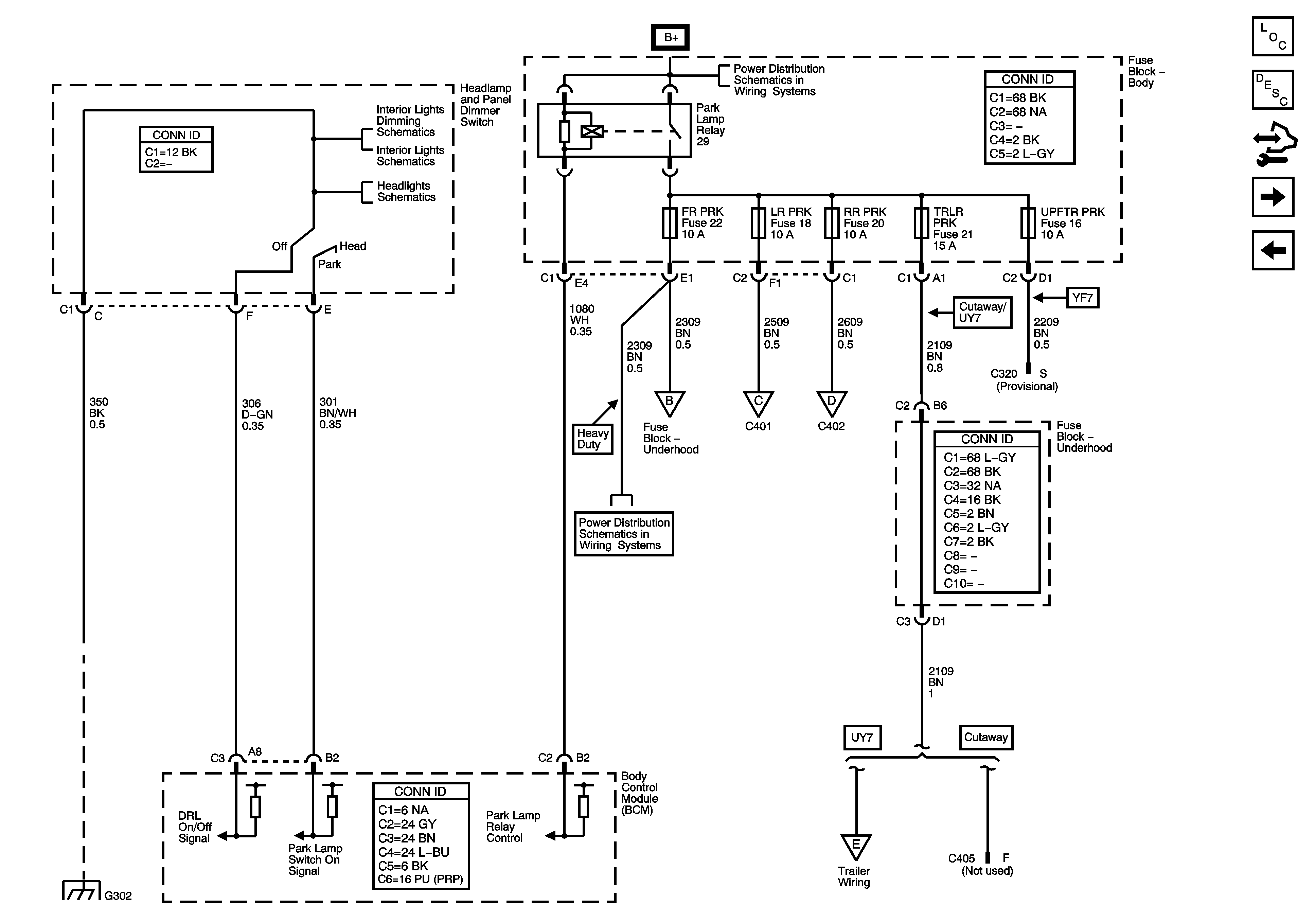

Figure 2:	Headlamp and Panel Dimmer Switch Signals and Park Lamp Relay Control Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Turn Signals Hazard, Turn and Stop Lamp Signals I/P Dimming Supply Voltage - 1 of 3 and LED Dimming Supply Voltage Dome and Courtesy Lamp Switch Signals and Door Latch Assemblies Headlights Schematics B+ Bus - Body Fuse Block Backup (Except Cutaway), Park/Turn, and Marker Lamps Tail/Stop and License Lamps Tail/Stop and License Lamps FR PRK, LR PRK, RR PRK, TRLR PRK, UPFTR PRK Fuses and PWR WND Circuit Breaker Backup (Cutaway) and Trailer Wiring G302
Figure 3:	Turn Signals Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Tail/Stop and License Lamps Headlamp and Panel Dimmer Switch Signals and Park Lamp Relay Control Tail/Stop and License Lamps Tail/Stop and License Lamps G347 - 1 of 3 G347 - 2 of 3 G347 - 2 of 3

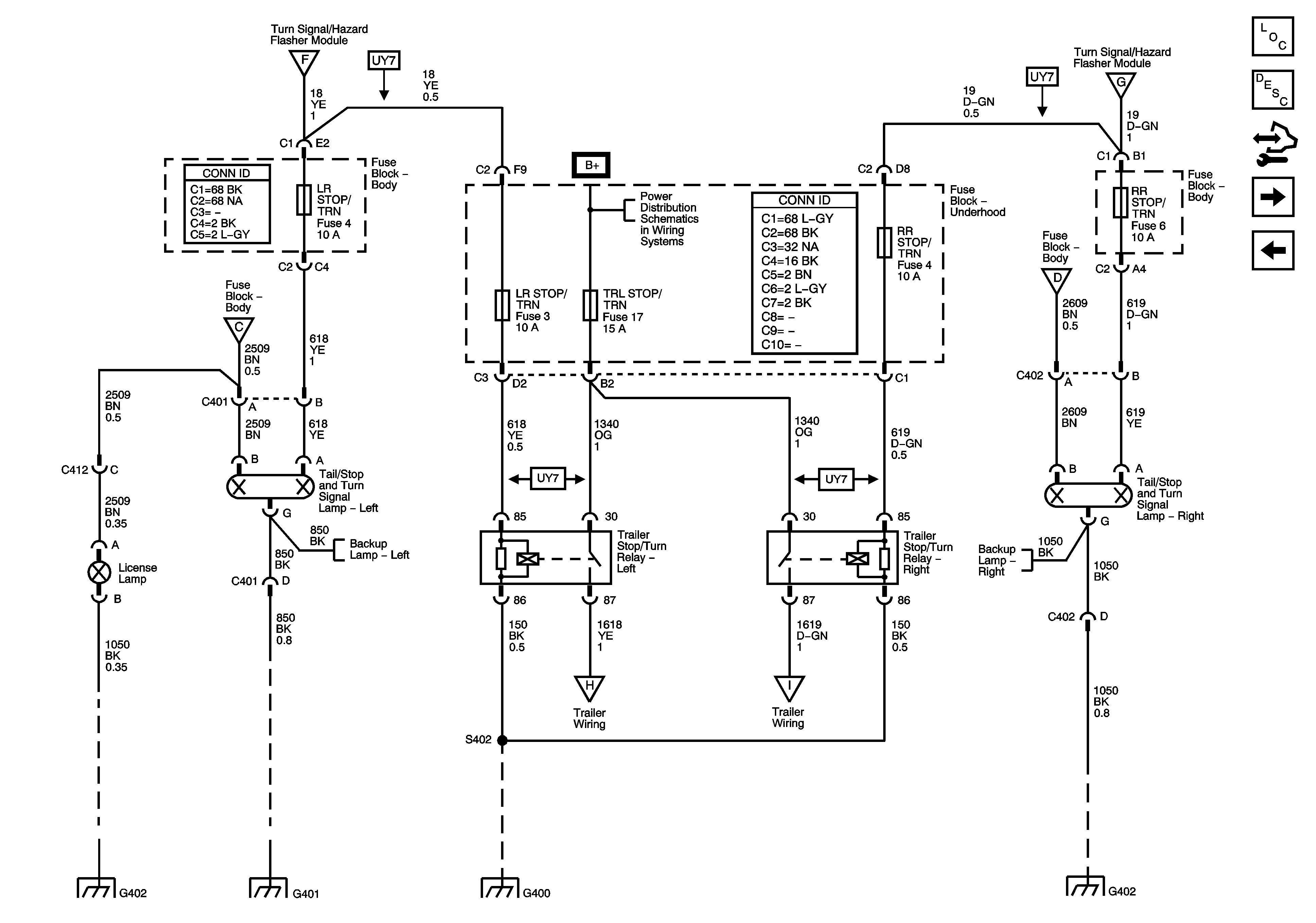

Figure 4:	Tail/Stop and License Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Backup (Except Cutaway), Park/Turn, and Marker Lamps Turn Signals Turn Signals Turn Signals Headlamp and Panel Dimmer Switch Signals and Park Lamp Relay Control B+ Bus - Underhood Fuse Block Headlamp and Panel Dimmer Switch Signals and Park Lamp Relay Control Backup (Except Cutaway), Park/Turn, and Marker Lamps Backup (Except Cutaway), Park/Turn, and Marker Lamps Backup (Cutaway) and Trailer Wiring Backup (Cutaway) and Trailer Wiring G402 - Passenger/Cargo and G403 - PRP G401 - Passenger/Cargo G400 G402 - Passenger/Cargo and G403 - PRP

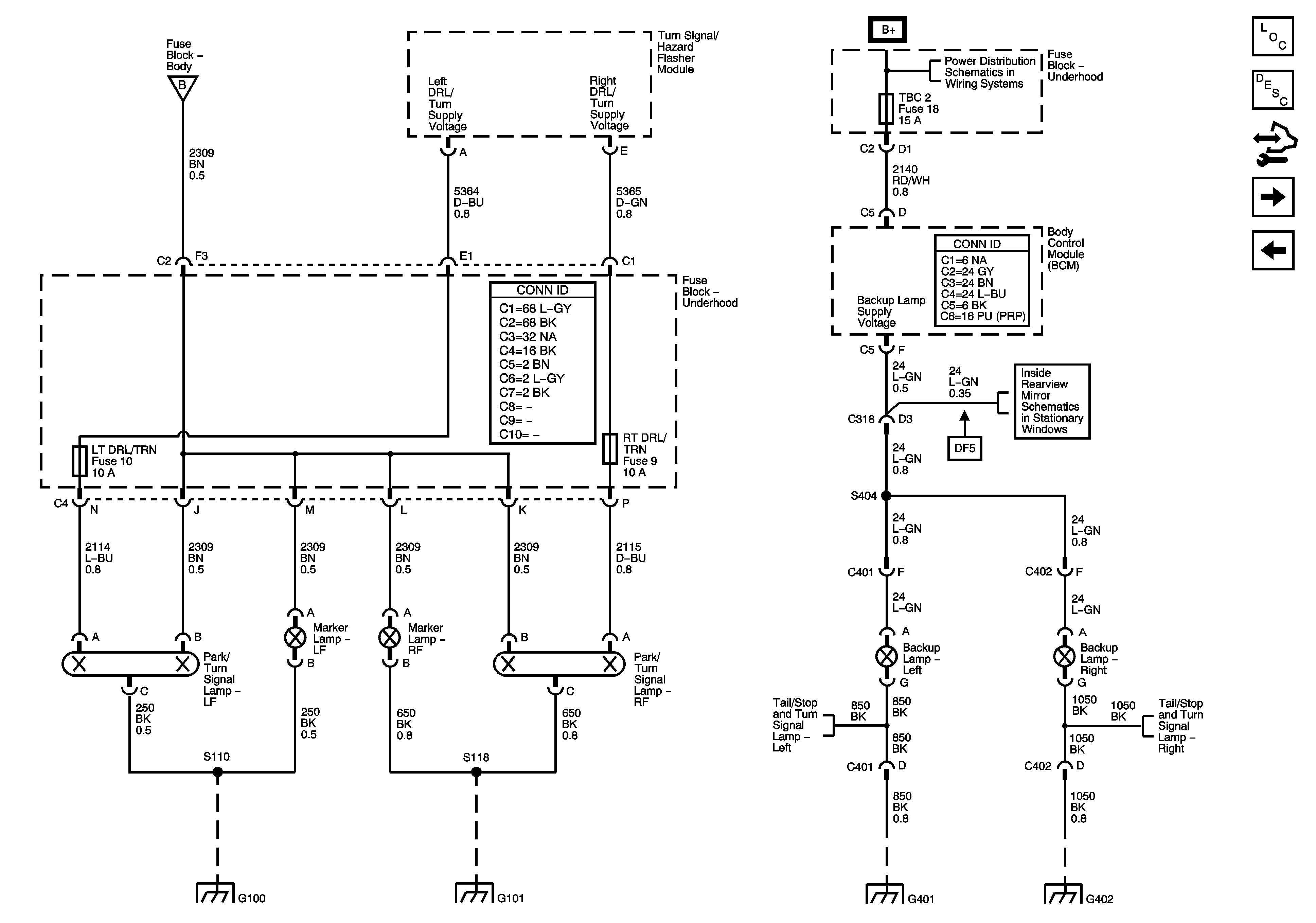

Figure 5:	Backup (Except Cutaway), Park/Turn, and Marker Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Backup (Cutaway) and Trailer Wiring Tail/Stop and License Lamps Headlamp and Panel Dimmer Switch Signals and Park Lamp Relay Control B+ Bus - Underhood Fuse Block Inside Rearview Mirror Schematics Tail/Stop and License Lamps Tail/Stop and License Lamps G100 and G101 G100 and G101 G401 - Passenger/Cargo G402 - Passenger/Cargo and G403 - PRP

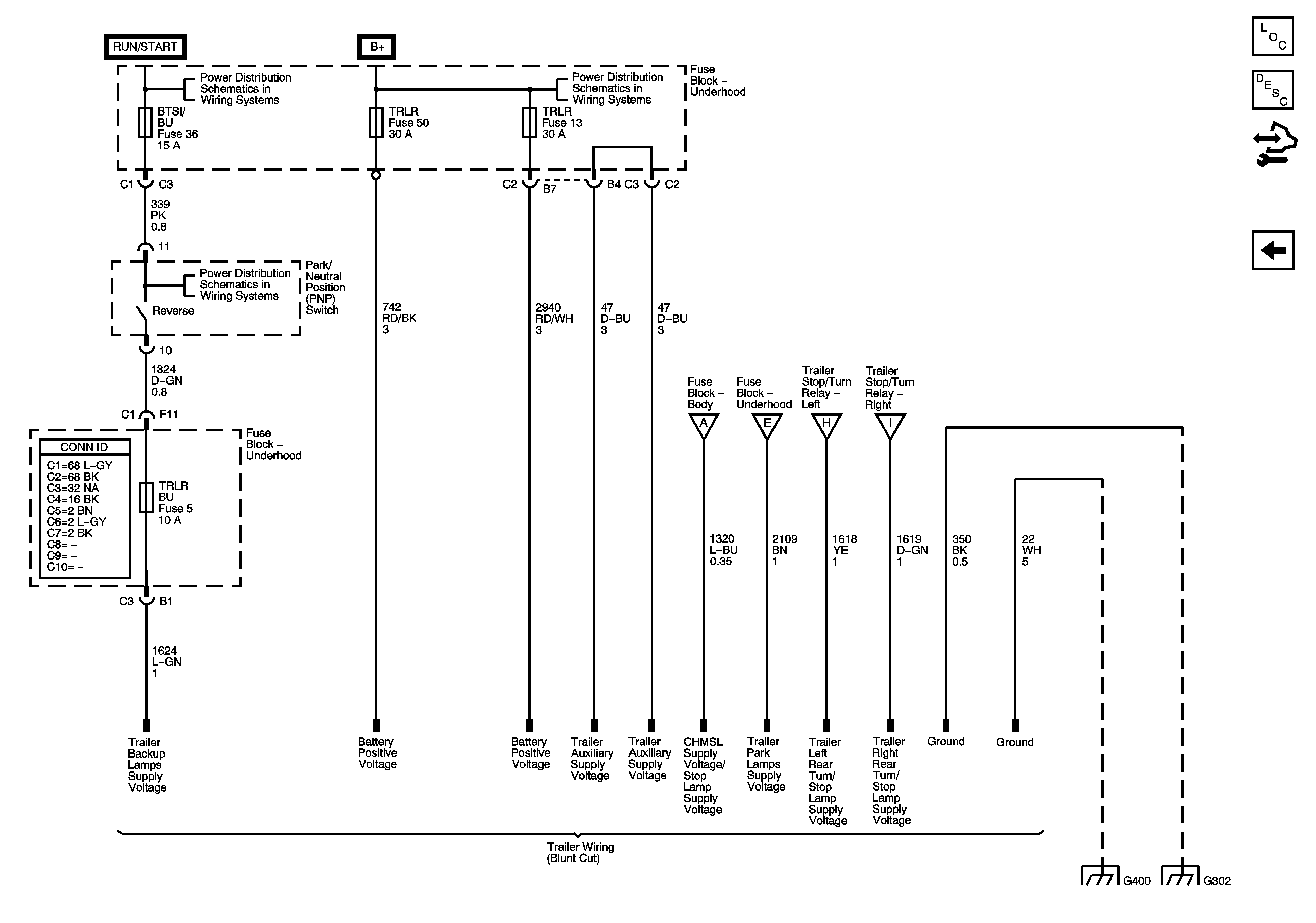

Figure 6:	Backup (Cutaway) and Trailer Wiring Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Backup (Except Cutaway), Park/Turn, and Marker Lamps Ignition Switch - ACCY/RUN, RUN/START Bus Bars and IGN B Fuse B+ Bus - Underhood Fuse Block BTSI, BTSI/BU, O2A, O2B, PCM IGN 1, SPARE and TRLR BU Fuses Hazard, Turn and Stop Lamp Signals Headlamp and Panel Dimmer Switch Signals and Park Lamp Relay Control Tail/Stop and License Lamps Tail/Stop and License Lamps G400 G302
