Removal Procedure
  1. Remove the radiator grille from the vehicle. Refer to Grille Replacement .

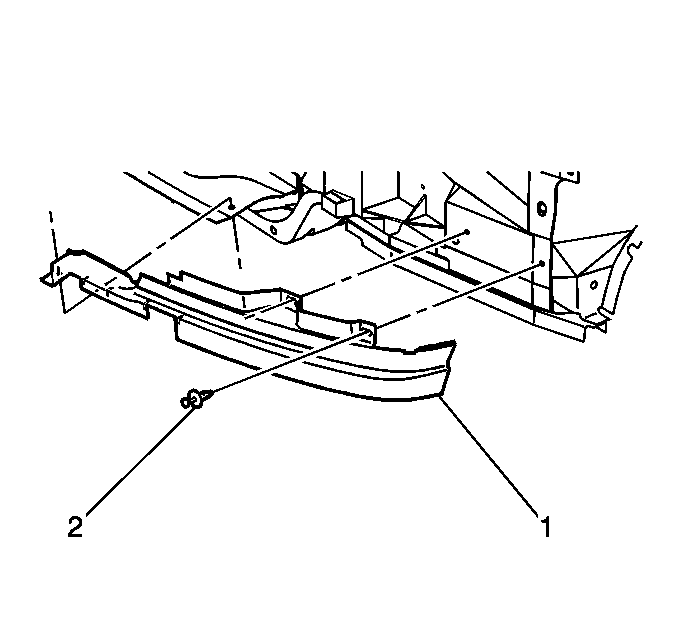

    2. Object Number: 314967 Size: SH
  2. Remove the push pin retainers (2) retaining the front bumper filler (1) to the radiator support.
  3. Remove the front bumper filler (1) from the vehicle.

Installation Procedure

    Object Number: 314967 Size: SH
  1. Install the front bumper filler (1) to the vehicle.
  2. Install the push pin retainers (2) in order to retain the front bumper filler (1) to the radiator support.
  3. Install the radiator grille to the vehicle. Refer to Grille Replacement .
