Makes 🢒 Chevrolet 🢒 2005 🢒 Express - AWD 🢒 Body 🢒 Seats 🢒 Power Seat Connector End Views
Table 1: Seat Adjuster Switch - Driver
Table 2: Seat Adjuster Switch - Front Passenger (AG2)
Table 3: Seat Motors - Driver
Table 4: Seat Motors - Front Passenger (AG2)

Seat Adjuster Switch - Driver

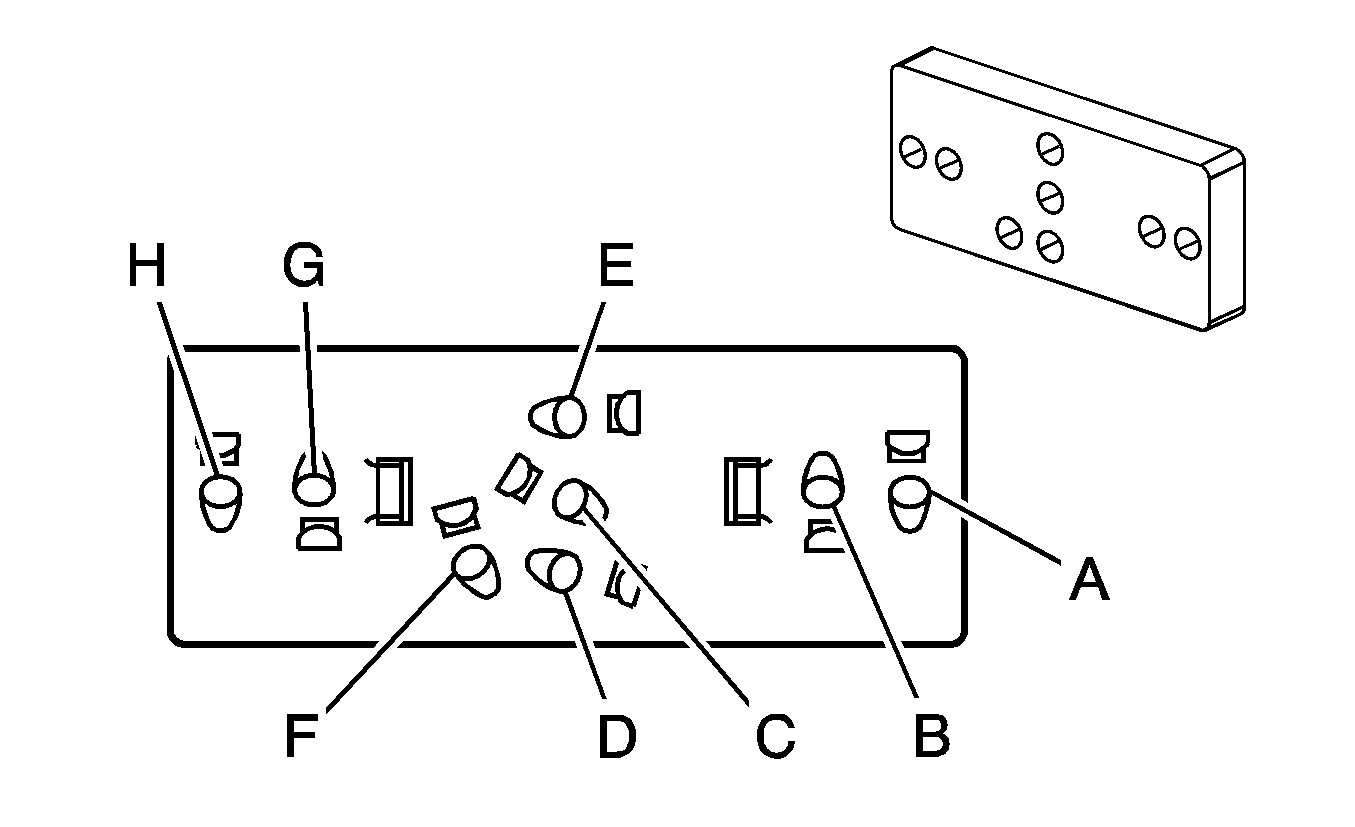

Object Number: 387555 Size: CH

Connector Part Information
    • 12066386
    • 8-Way F Pin Grip Connectors (GY)

Pin

Wire Color

Circuit No.

Function

A

D-GN/BK

921

Driver Seat Rear Vertical Motor Down Control

B

D-GN

920

Driver Seat Rear Vertical Motor Up Control

C

BK

450

Ground

D

D-BU

918

Driver Seat Horizontal Motor Forward Control

E

D-BU/BK

919

Driver Seat Horizontal Motor Rearward Control

F

RD/WH

3540

Battery Positive Voltage

G

BN/BK

923

Driver Seat Front Vertical Motor Down Control

H

BN

922

Driver Seat Front Vertical Motor Up Control

Seat Adjuster Switch - Front Passenger (AG2)


Object Number: 387555 Size: CH

Connector Part Information
    • 12066386
    • 8-Way F Pin Grip Connectors (GY)

Pin

Wire Color

Circuit No.

Function

A

D-GN/BK

927

Passenger Seat Rear Vertical Motor Down Control

B

D-GN

926

Passenger Seat Rear Vertical Motor Up Control

C

BK

450

Ground

D

D-BU

924

Passenger Seat Horizontal Motor Forward Control

E

D-BU/BK

925

Passenger Seat Horizontal Motor Rearward Control

F

RD/WH

3540

Battery Positive Voltage

G

BN/BK

929

Passenger Seat Front Vertical Motor Down Control

H

BN

928

Passenger Seat Front Vertical Motor Up Control

Seat Motors - Driver

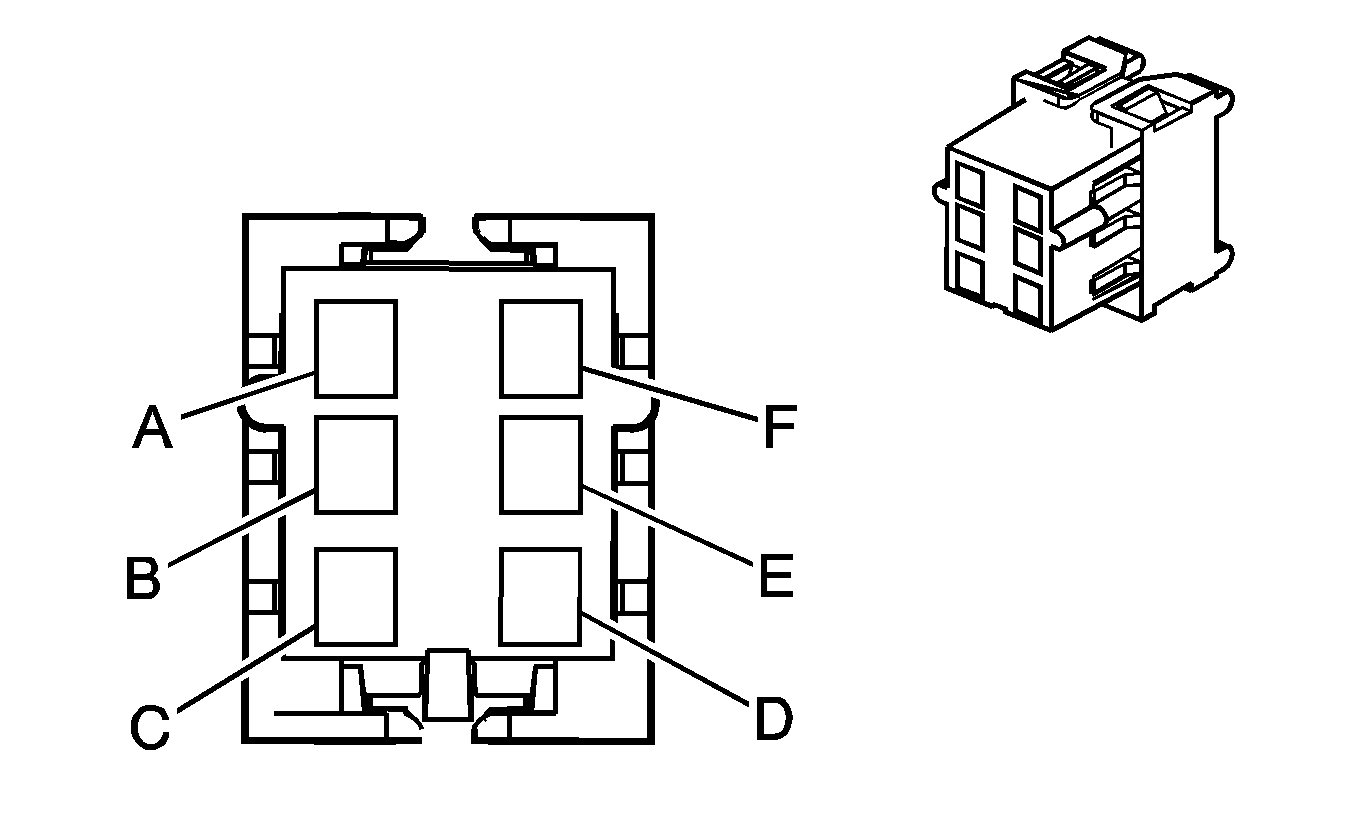

Object Number: 288397 Size: CH

Connector Part Information
    • 12015344
    • 6-Way F Metri-Pack 280 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

D-GN

920

Driver Seat Rear Vertical Motor Up Control

B

D-GN/BK

921

Driver Seat Rear Vertical Motor Down Control

C

D-BU

918

Driver Seat Horizontal Motor Forward Control

D

D-BU/BK

919

Driver Seat Horizontal Motor Rearward Control

E

BN

922

Driver Seat Front Vertical Motor Up Control

F

BN/BK

923

Driver Seat Front Vertical Motor Down Control

Seat Motors - Front Passenger (AG2)


Object Number: 288397 Size: CH

Connector Part Information
    • 12015344
    • 6-Way F Metri-Pack 280 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

D-GN

926

Passenger Seat Rear Vertical Motor Up Control

B

D-GN/BK

927

Passenger Seat Rear Vertical Motor Down Control

C

D-BU

924

Passenger Seat Horizontal Motor Forward Control

D

D-BU/BK

925

Passenger Seat Horizontal Motor Rearward Control

E

BN

928

Passenger Seat Front Vertical Motor Up Control

F

BN/BK

929

Passenger Seat Front Vertical Motor Down Control
