Entertainment Component Views. Chevrolet Express

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Express - AWD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E/4L65-E 🢒 Entertainment Component Views

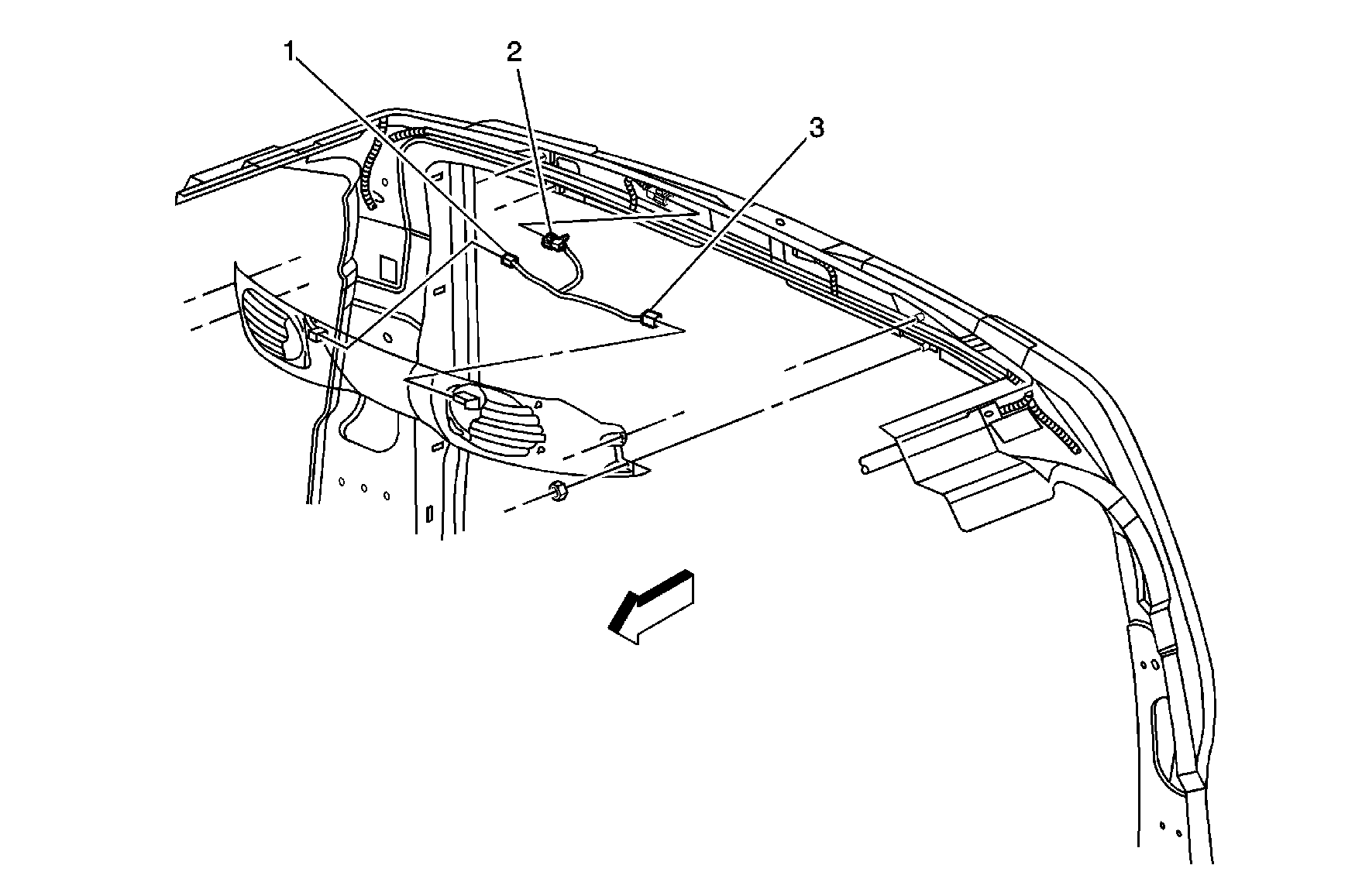

Figure 1:


(1)	Antenna
(2)	Lower Cowl

Figure 2:


(1)	Turn Signal/Multifunction Switch
(2)	Instrument Panel Cluster (IPC)
(3)	HVAC Control Assembly
(4)	Radio
(5)	Auxiliary Power Outlet 2
(6)	Traction Control Switch (JL4)
(7)	Inflatable Restraint I/P Disable Switch (Heavy Duty)
(8)	Cigar Lighter (DT4)/Auxiliary Power Outlet 1 (w/o DT4)
(9)	Blower Motor Switch - Auxiliary (C36)
(10)	Tow/Haul Switch
(11)	Headlamp and Panel Dimmer Switch

Figure 3:


(1)	Outside Rearview Mirror Connector - Driver (DE5/DE7)
(2)	Window Switch Connector - Driver (A31)
(3)	Outside Rearview Mirror Switch Connector (DE5/DE7)
(4)	Window Motor Connector - Driver (A31)
(5)	Door Lock Switch Connector - Driver (AU3)
(6)	C311
(7)	Speaker Connector - LF Door
(8)	S500 (AU3)
(9)	S502 (DE5/DE7)

Figure 4:


(1)	Window Motor Connector - Front Passenger (A31)
(2)	Window Switch Connector - Front Passenger (A31)
(3)	Outside Rearview Mirror Connector - Passenger (DE5/DE7)
(4)	S600 (AU3)
(5)	Speaker Connector - RF Door
(6)	C312
(7)	Door Lock Switch Connector - Front Passenger (AU3)

Figure 5:


(1)	Rear Window Defogger Grid Connector - Left (C49)
(2)	C411
(3)	Speaker Connector - LR Door (UB1/UC6)

Figure 6:


(1)	Rear Window Defogger Grid Connector - Right (C49)
(2)	Door Latch Assembly - Cargo
(3)	Door Lock Switch Connector - Rear Cargo (AU3)
(4)	License Lamp Connector
(5)	S902
(6)	Speaker Connector - RR Door (UB1/UC6)
(7)	C412
(8)	C400

Figure 7:
