Ground Distribution Schematics. Chevrolet Express - AWD 2007

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2007 🢒 Express - AWD 🢒 Brakes 🢒 Hydraulic Brakes 🢒 Ground Distribution Schematics

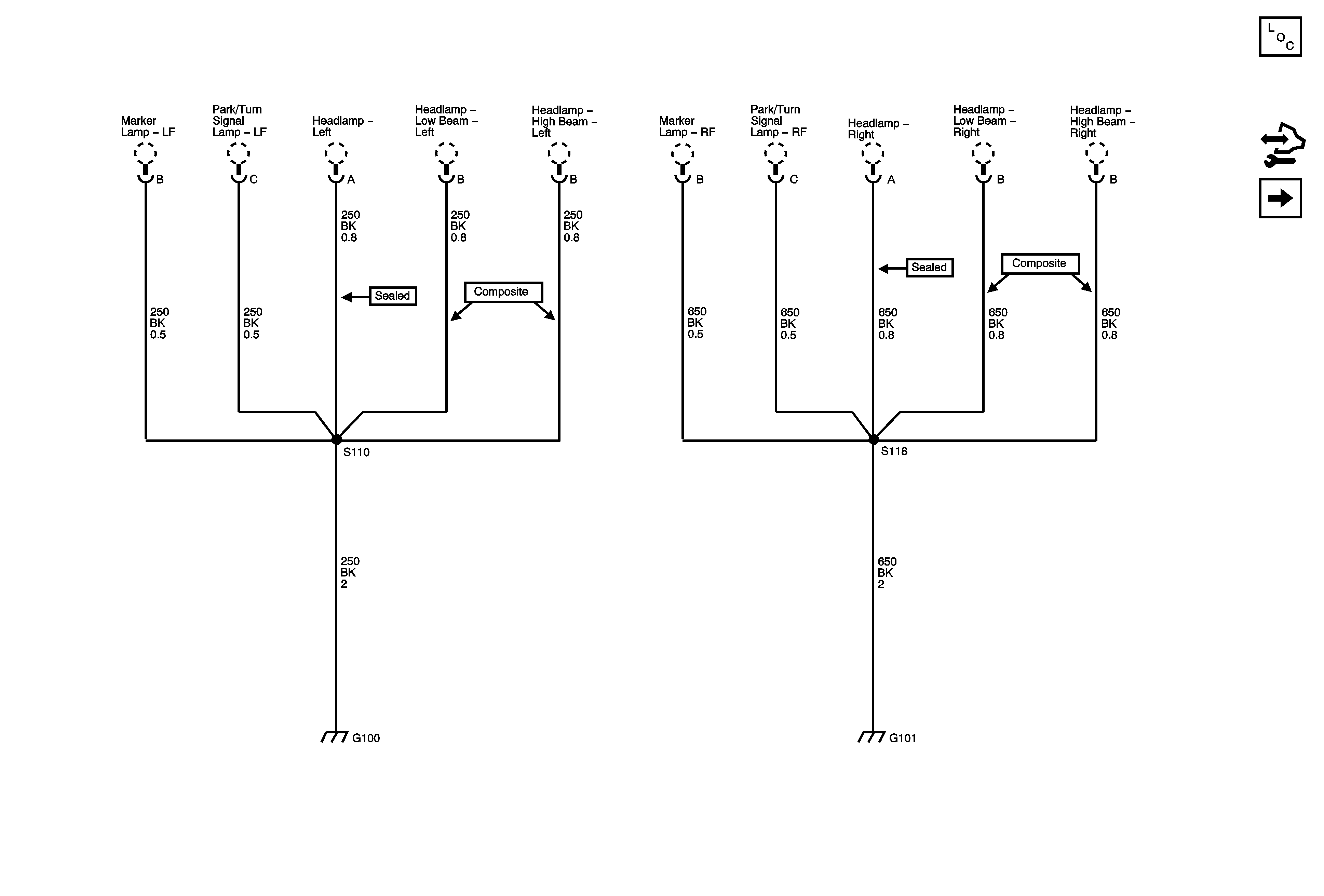

Figure 1:	G100 and G101 Master Electrical Component List Control Module References G102

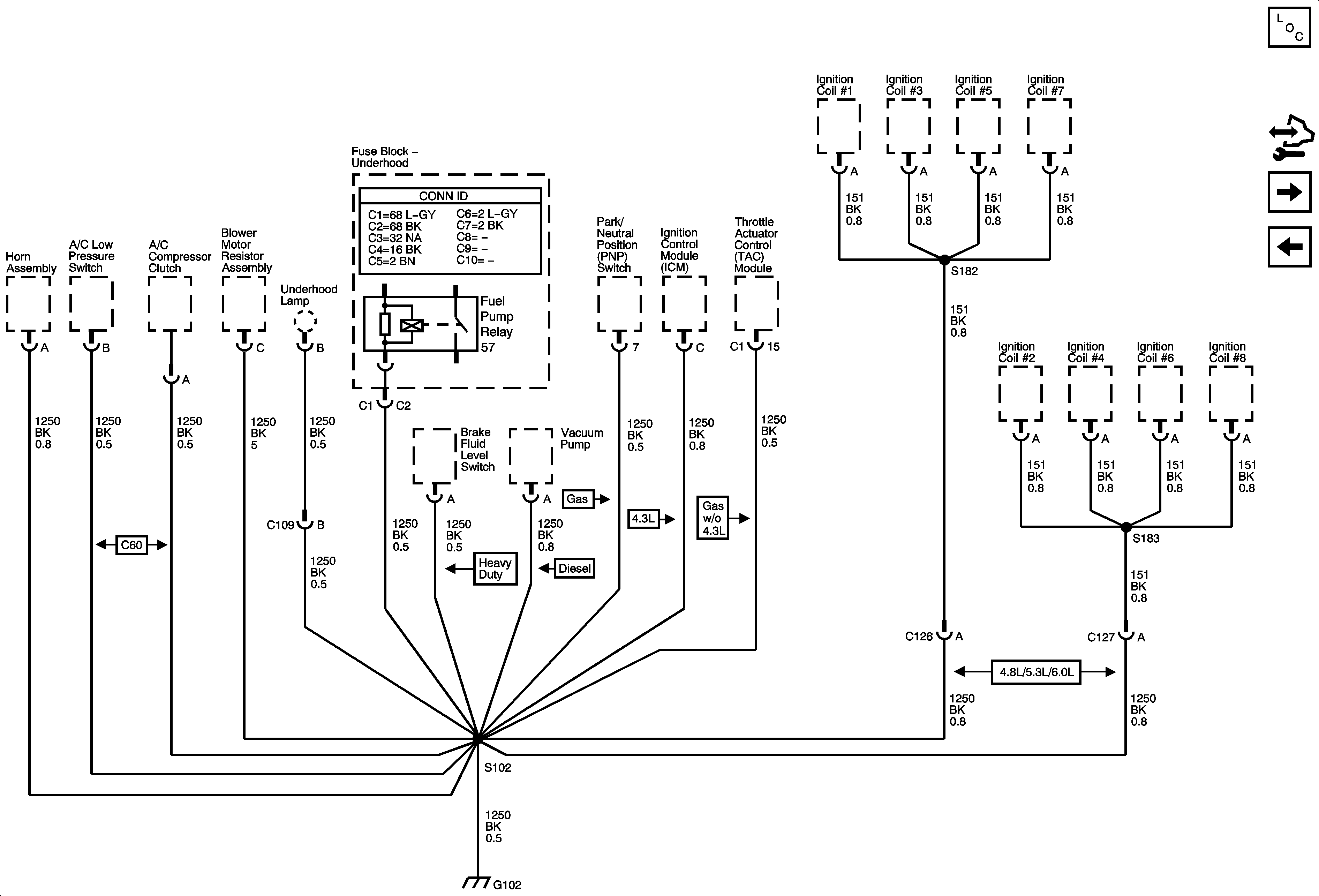

Figure 2:	G102 Master Electrical Component List Control Module References G103, G104, G105, G106, G107, G108, G300, G301 and G305 G100 and G101
Figure 3:	G103, G104, G105, G106, G107, G108, G300, G301, and G305 Master Electrical Component List Control Module References G302 G102 SIR Caution for Zoning SIR Caution for Zoning
Figure 4:	G302 Master Electrical Component List Control Module References G303 G103, G104, G105, G106, G107, G108, G300, G301 and G305
Figure 5:	G303 Master Electrical Component List Control Module References G304 G302
Figure 6:	G304 Master Electrical Component List Control Module References G347 - 1 of 3 G303

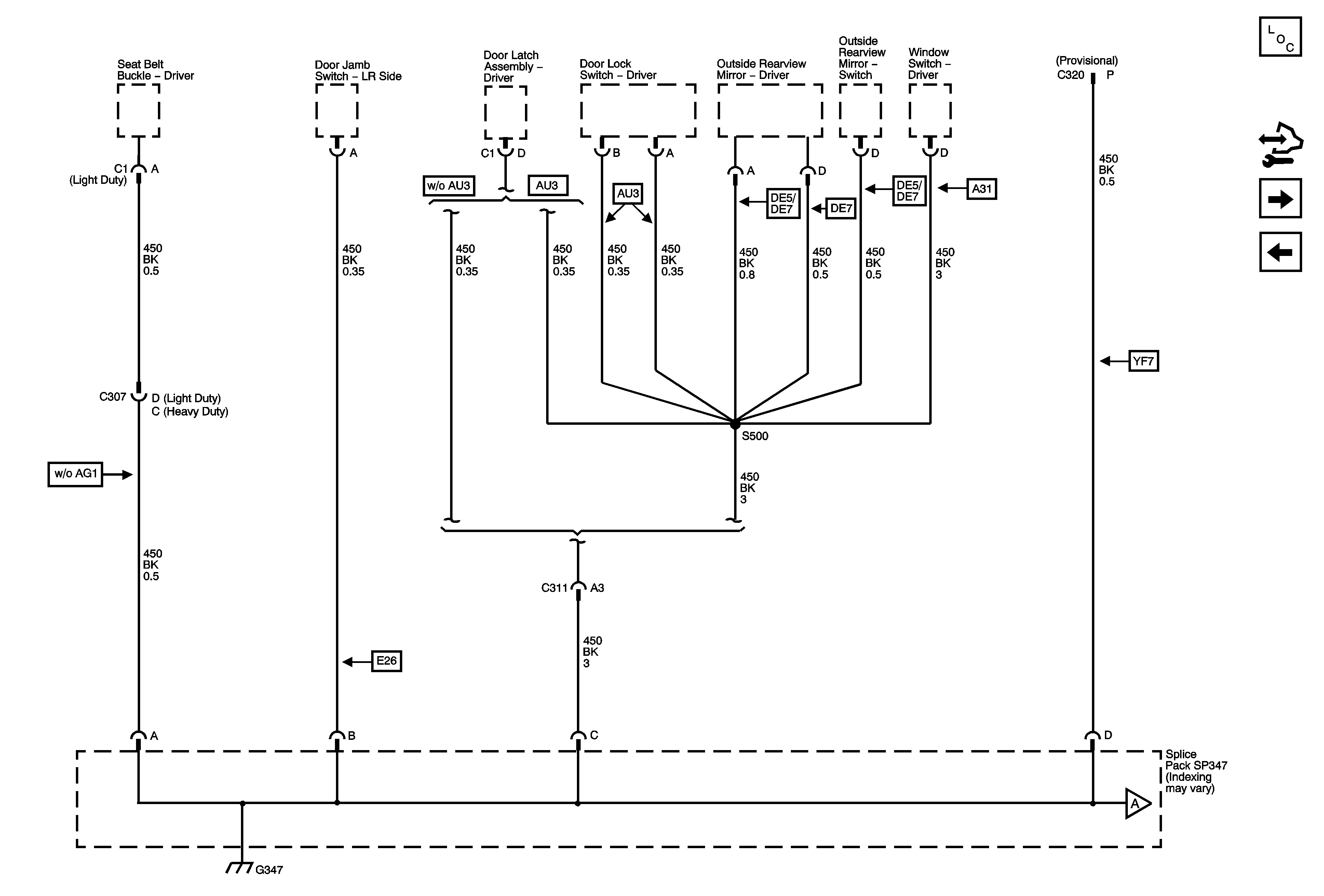

Figure 7:	G347 - 1 of 3 Master Electrical Component List Control Module References G347 - 2 of 3 G304 G347 - 2 of 3

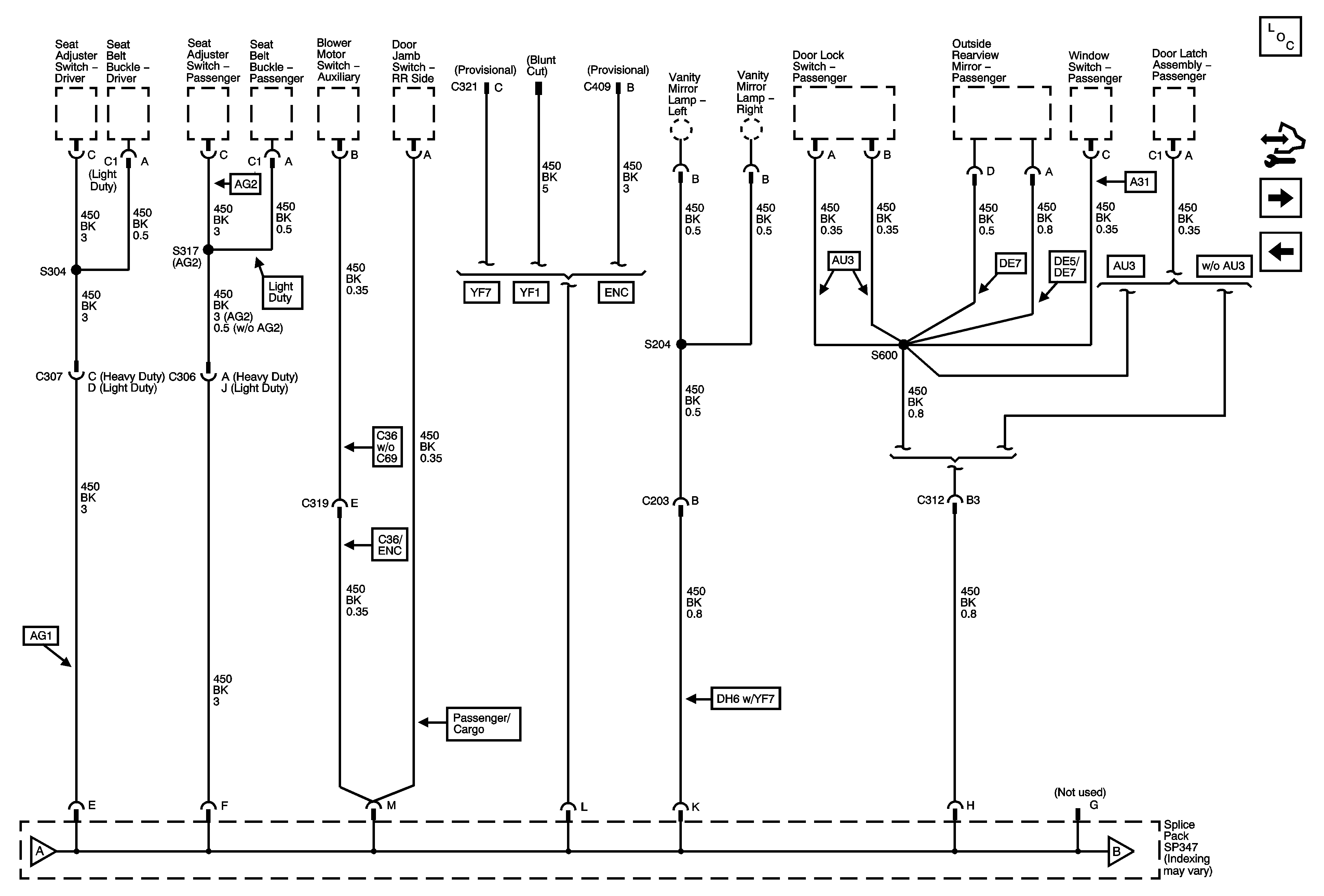

Figure 8:	G347 - 2 of 3 Master Electrical Component List Control Module References G347 - 3 of 3 G347 - 1 of 3 G347 - 1 of 3 G347 - 3 of 3

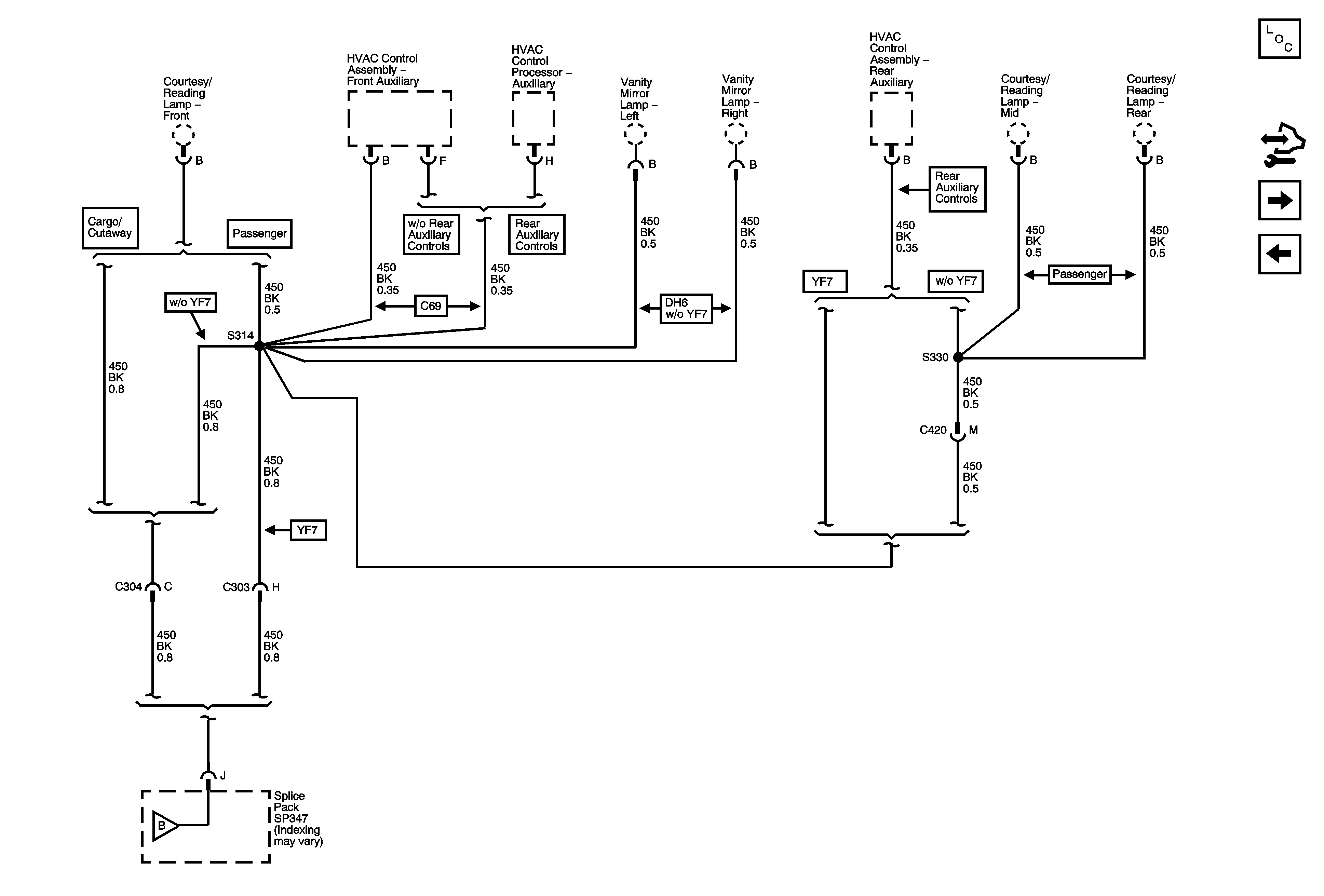

Figure 9:	G347 - 3 of 3 Master Electrical Component List Control Module References G400 G347 - 2 of 3 G347 - 2 of 3
Figure 10:	G400 Master Electrical Component List Control Module References G401 - Passenger/Cargo G347 - 3 of 3
Figure 11:	G401 - Passenger/Cargo Master Electrical Component List Control Module References G401 - Passenger/Cargo and G403 - PRP G400
Figure 12:	G402 - Passenger/Cargo and G403 - PRP Master Electrical Component List Control Module References G401 - Passenger/Cargo
