Makes 🢒 Chevrolet 🢒 2006 🢒 HHR 🢒 Brakes 🢒 Hydraulic Brakes 🢒 Hydraulic Brake Component Views

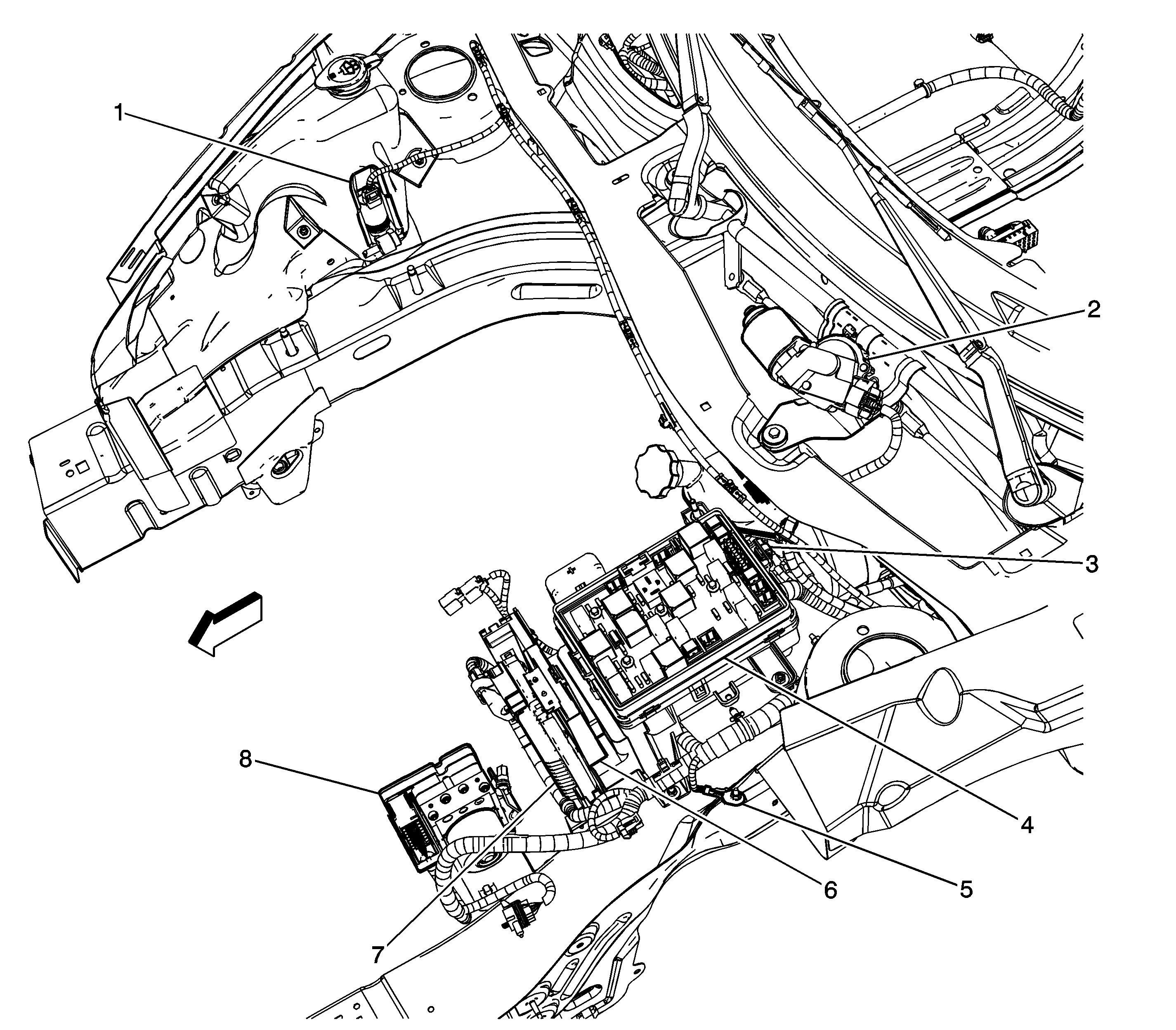

Figure 1:

Left Front of the Engine Compartment
Object Number: 1651924 Size: LF
(1)Windshield Washer Fluid Pump
(2)Windshield Wiper Motor Assembly
(3)Brake Fluid Level Switch
(4)Fuse Block - Underhood
(5)G111
(6)Transmission Control Module (TCM) (MN5)
(7)Engine Control Module (ECM)
(8)Electronic Brake Control Module (EBCM)

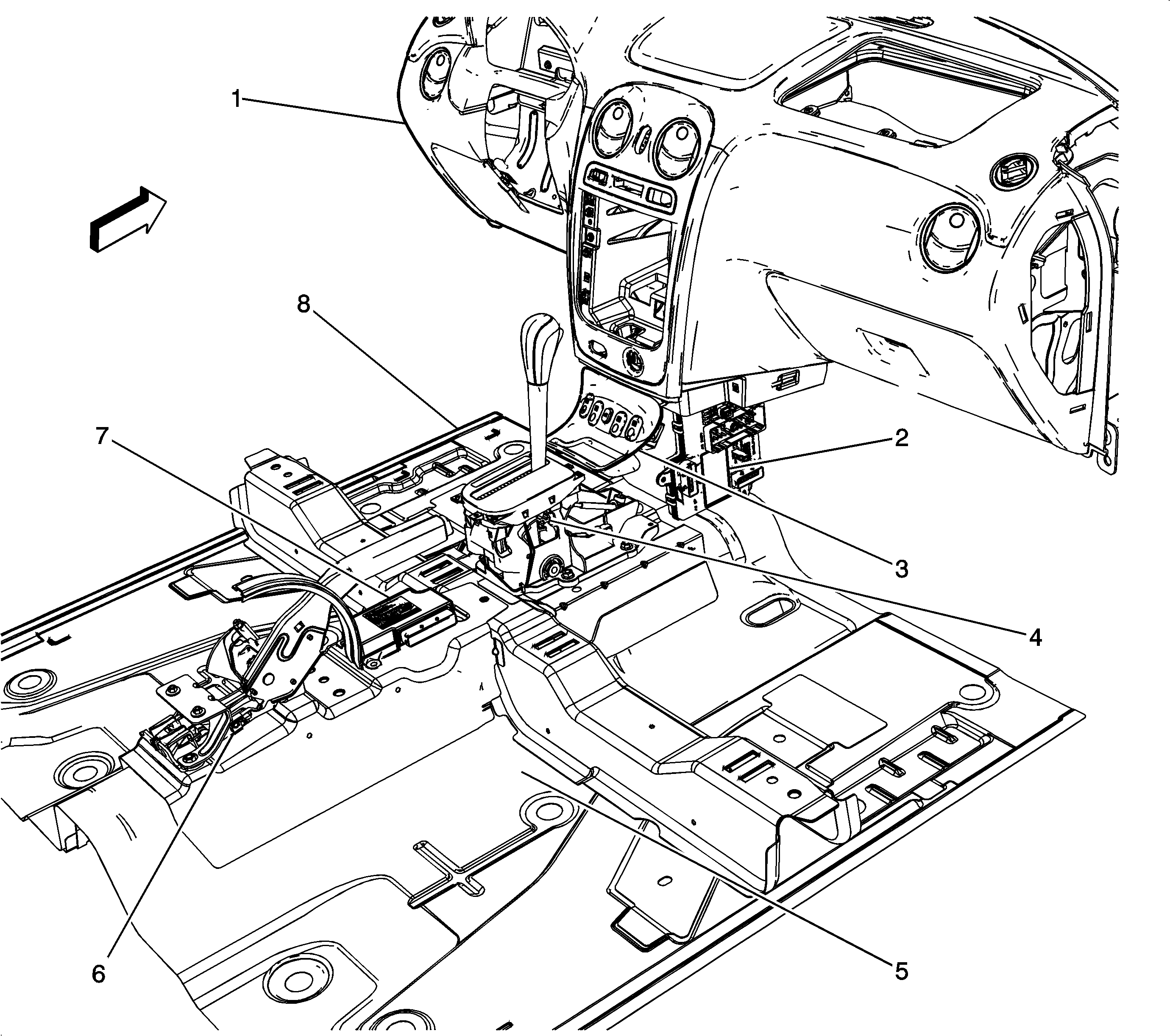

Figure 2:

Center Console Components
Object Number: 1652150 Size: LF
(1)I/P Trim
(2)Body Control Module (BCM)
(3)Master Window Switch
(4)A/T Shift Control (MN5)
(5)Floor Panel
(6)Park Brake Switch
(7)Inflatable Restraint Sensing and Diagnostic Module (SDM)
(8)Floor Panel
