Makes 🢒 Chevrolet 🢒 2006 🢒 HHR 🢒 Restraints 🢒 Seat Belts 🢒 Seat Belt Component Views

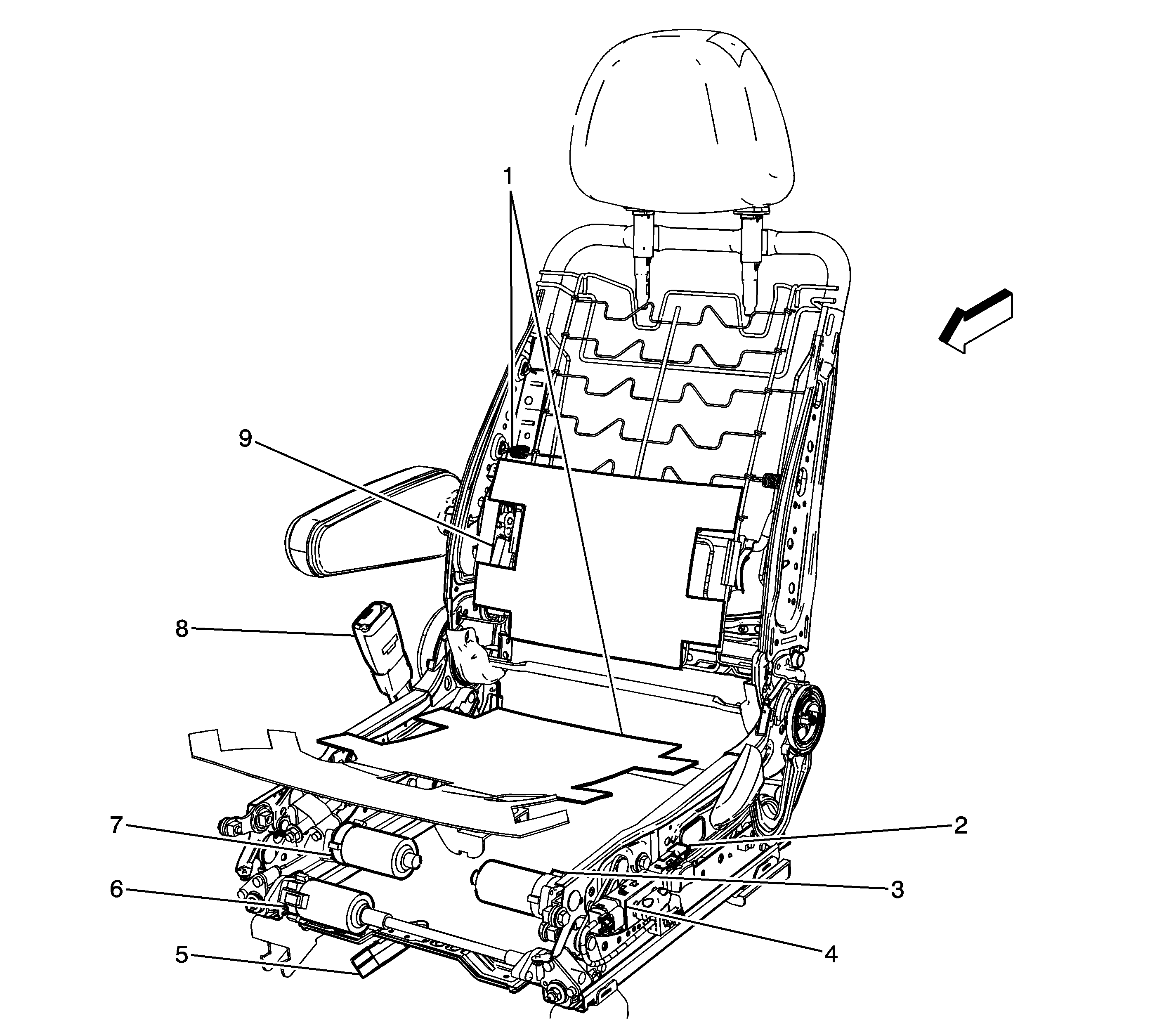

Figure 1:

Driver Seat Components
Object Number: 1652098 Size: LF
(1)Heated Seat Element - Driver (KA1)
(2)Lumbar Adjuster Switch - Driver (AJ6)
(3)Seat Front Vertical Motor - Driver (AJ6)
(4)Seat Adjuster Switch - Driver (AJ6)
(5)Heated Seat Control Module Driver (KA1)
(6)Seat Horizontal Motor - Driver (AJ6) (KA1)
(7)Seat Rear Vertical Motor - Driver (AJ6)
(8)Seat Belt Switch - Left
(9)Seat Lumbar Motor - Driver (AJ6)

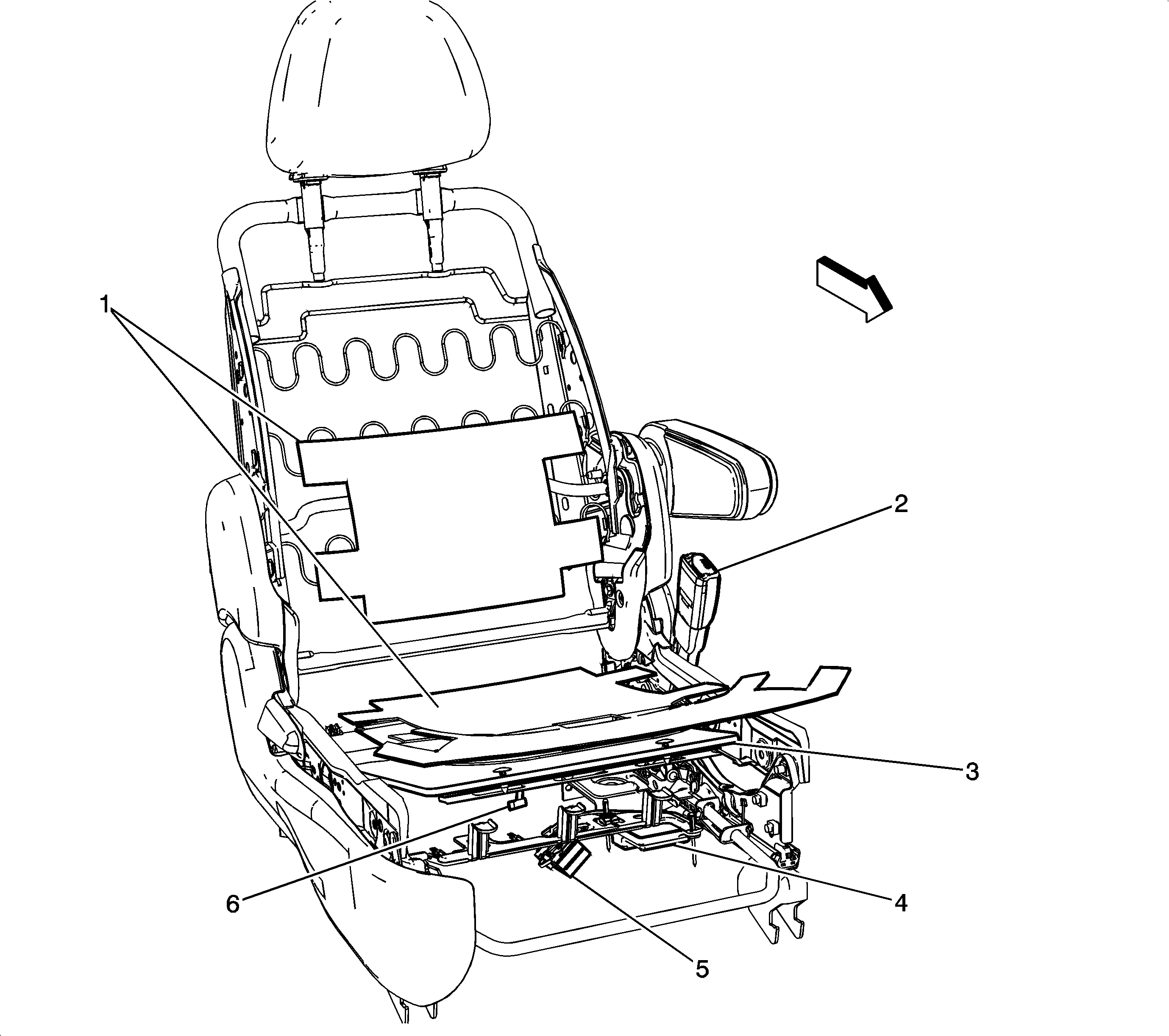

Figure 2:

Passenger Seat Components
Object Number: 1652096 Size: LF
(1)Heated Seat Element - Passenger (KA1)
(2)Seat Belt Switch - Right
(3)Inflatable Restraint Front Passenger Presence System (PPS) Sensor Pad
(4)Inflatable Restraint Front Passenger Presence System (PPS) Module
(5)Heated Seat Control Module Passenger (KA1)
(6)Inflatable Restraint Front Passenger Presence System (PPS) Sensor
