Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement for the 2.2L engine or Air Cleaner Assembly Replacement for the 2.4L engine.

Important: Drain only the fluid from the radiator coolant recovery expansion tank.

2. Drain the cooling system. Refer to Cooling System Draining and Filling .
3. Disconnect the generator electrical connectors from the generator. Refer to Generator Replacement .

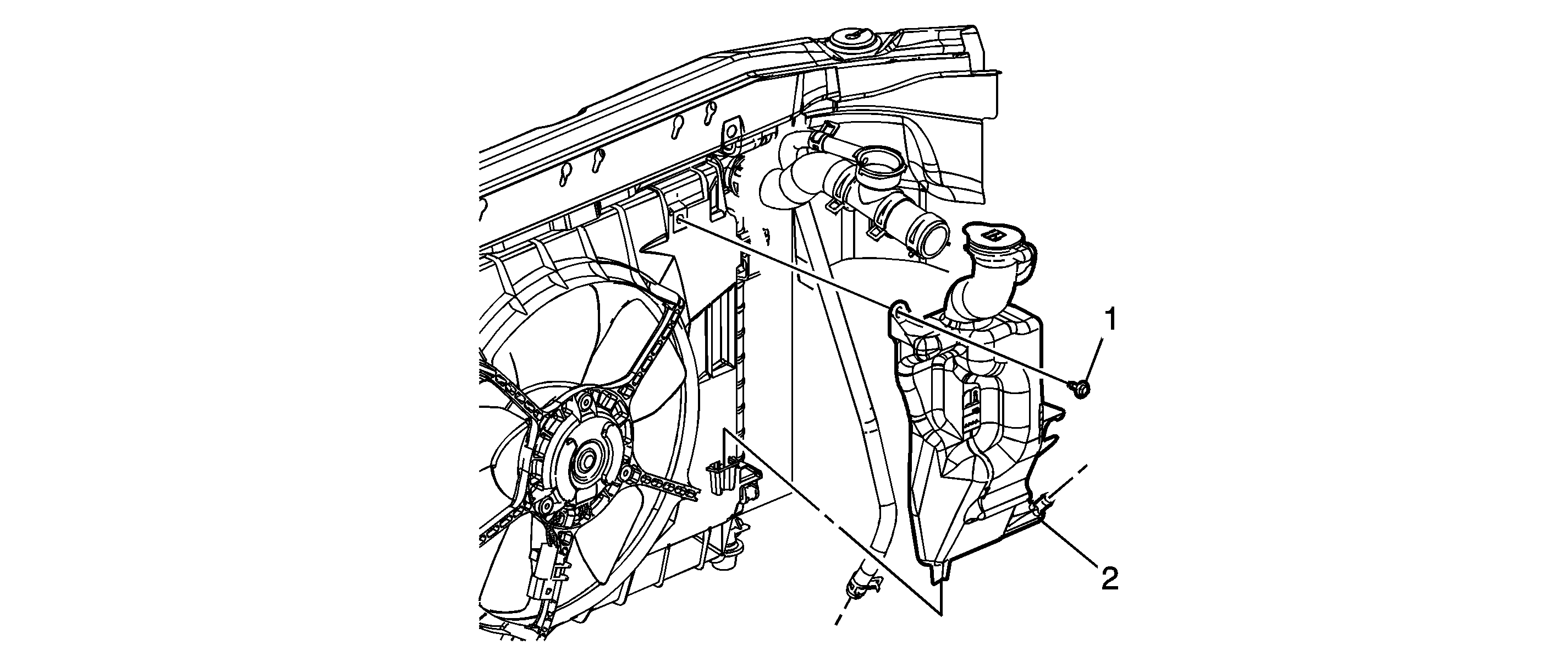

1

Coolant Recovery Reservoir Bolt

Tighten
9 N·m (80 lb in)

2

Coolant Recovery Expansion Tank Assembly

Tip
Use J 38185 to remove the coolant recovery hose from the coolant recovery reservoir.
