Removal Procedure

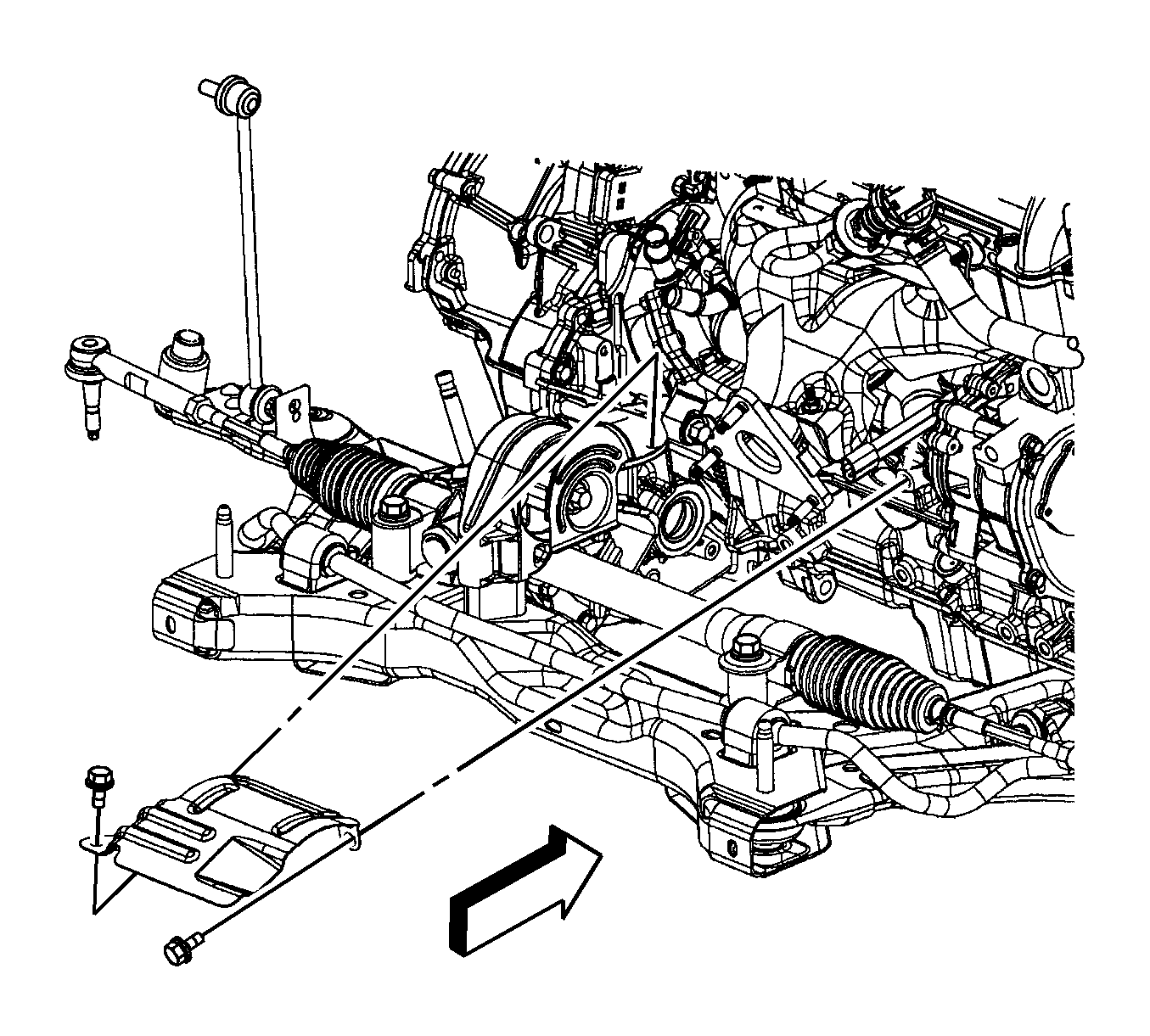

    Object Number: 1631770 Size: SH
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the wheel drive shaft heat shield-to-transaxle mount bracket bolt.
  3. Remove the drive shaft heat shield-to-engine block bolt.
  4. Remove the wheel drive shaft heat shield.

Installation Procedure

    Object Number: 1631770 Size: SH
  1. Position the wheel drive shaft heat shield onto the engine.

    2. Notice: Refer to Fastener Notice in the Preface section.

  2. Install the wheel drive shaft heat shield-to-engine block bolt.

    3. Tighten
    Tighten the bolt to 30 N·m (22 lb ft).

  3. Install the wheel drive shaft heat shield-to-transaxle mount bracket bolt.

    4. Tighten
    Tighten the bolt to 10 N·m (89 lb in).

  4. Lower the vehicle.
