Component Connector End Views. Chevrolet HHR 2008

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2008 🢒 HHR 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Component Connector End Views

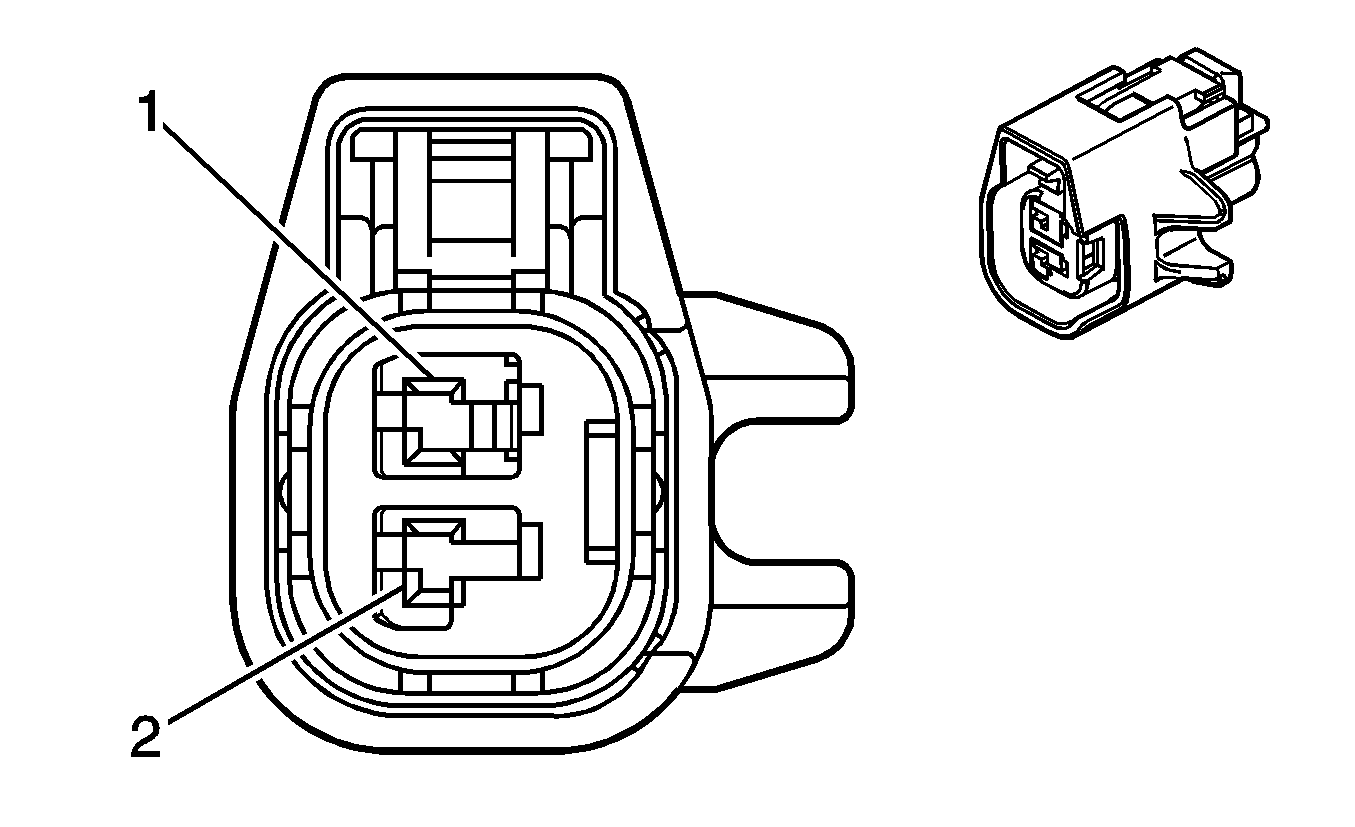

Connector 1:	1-2 Shift Solenoid (SS) Valve (MN5)

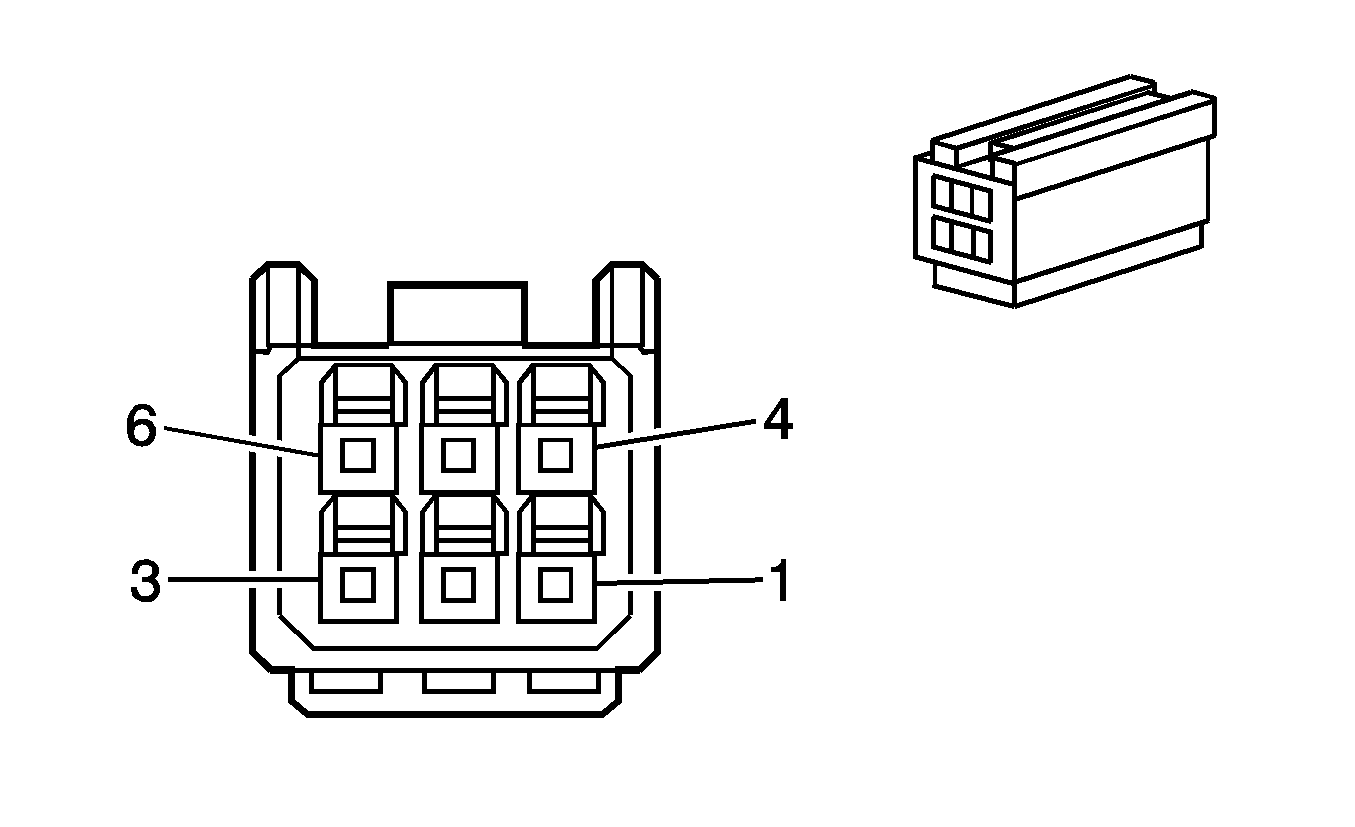

Connector 2:	2-3 Shift Solenoid (SS) Valve (MN5)

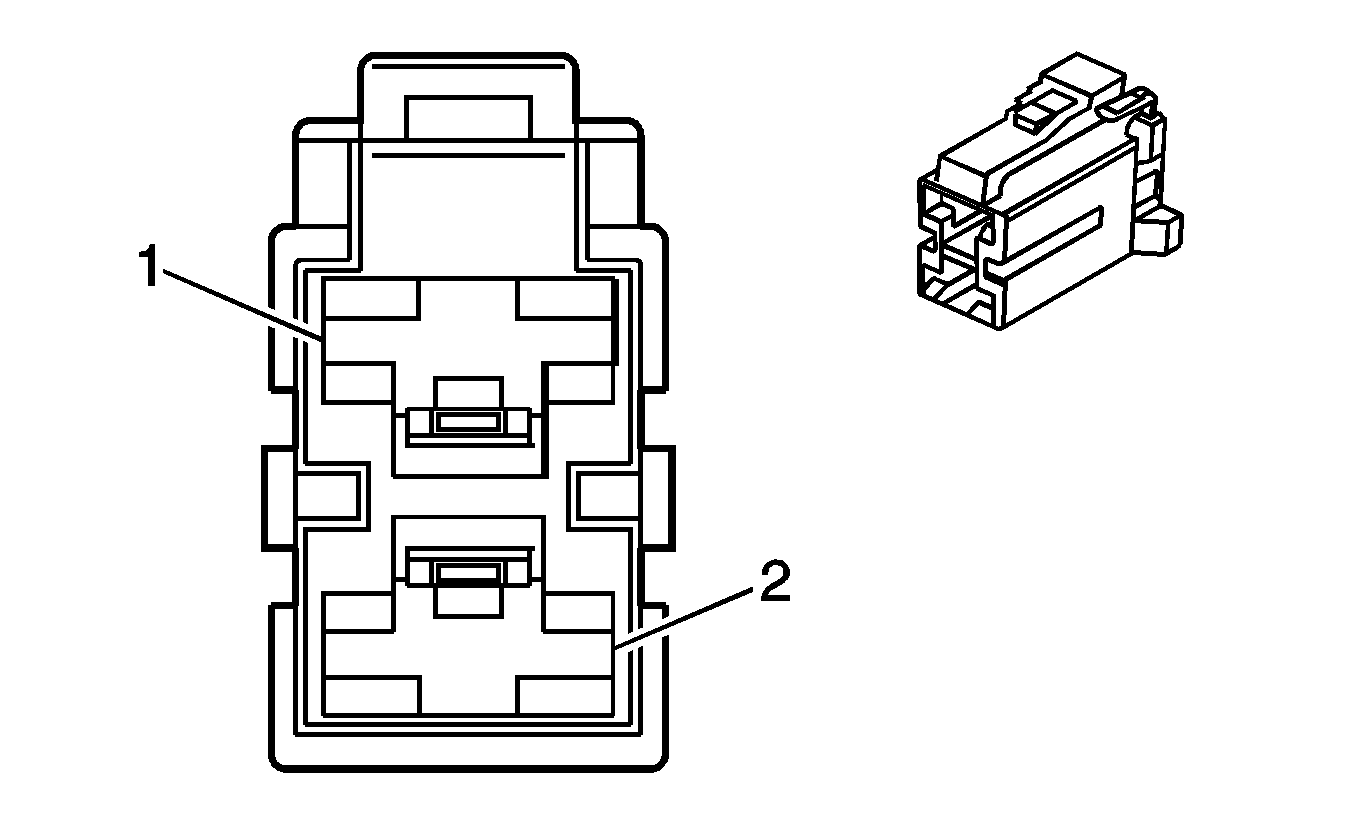

Connector 3:	A/C Compressor Clutch
Connector 4:	A/C Refrigerant Pressure Sensor
Connector 5:	Accelerator Pedal Position (APP) Sensor
Connector 6:	Air Temperature Actuator
Connector 7:	Ambient Air Temperature Sensor
Connector 8:	Ambient Light Sensor
Connector 9:	Audio Amplifier X1 (UQ3)
Connector 10:	Audio Amplifier X2 (UQ3)
Connector 11:	Audio Amplifier X3 (UQ3)
Connector 12:	Automatic Transmission Fluid Pressure Manual Valve Position Switch (MN5)
Connector 13:	Automatic Transmission Input Shaft (ISS) Speed Sensor
Connector 14:	Automatic Transmission Shift Lever Indicator
Connector 15:	Automatic Transmission Shift Lock Control Solenoid (MN5)
Connector 16:	Auxiliary Power Outlet - Console
Connector 17:	Auxiliary Power Outlet - Rear (Panel Van)
Connector 18:	Backup Lamp - Left
Connector 19:	Backup Lamp - Right
Connector 20:	Backup Lamp Switch (MU3)
Connector 21:	Battery (-)
Connector 22:	Battery (+)
Connector 23:	Battery Current Sensor (without LNF)
Connector 24:	BCM Fuse Holder - 50 AMP
Connector 25:	Blower Motor
Connector 26:	Blower Motor Resistor Assembly
Connector 27:	Body Control Module (BCM) X1
Connector 28:	Body Control Module (BCM) X2
Connector 29:	Body Control Module (BCM) X3
Connector 30:	Body Control Module (BCM) X4
Connector 31:	Brake Booster Vacuum Sensor (LNF)
Connector 32:	Brake Fluid Level Switch
Connector 33:	Brake Pedal Position (BPP) Sensor
Connector 34:	Camshaft Position (CMP) Actuator Solenoid - Exhaust
Connector 35:	Camshaft Position (CMP) Actuator Solenoid - Intake
Connector 36:	Camshaft Position (CMP) Sensor - Exhaust
Connector 37:	Camshaft Position (CMP) Sensor - Intake
Connector 38:	Cellular Microphone (UE1)
Connector 39:	Center High Mounted Stop Lamps (CHMSL) -- X1
Connector 40:	Center High Mounted Stop Lamps (CHMSL) -- X2
Connector 41:	Center High Mounted Stop Lamps (CHMSL) -- X3
Connector 42:	Center High Mounted Stop Lamps (CHMSL) -- X4
Connector 43:	Cigar Lighter (DT4)/Auxillary Power Outlet (without DT4)
Connector 44:	Clutch Pedal Position (CPP) Sensor (MU3)
Connector 45:	Console Flood Lamp
Connector 46:	Crankshaft Position (CKP) Sensor
Connector 47:	Data Link Connector (DLC)
Connector 48:	Digital Radio Receiver (U2K)
Connector 49:	Dome Lamp
Connector 50:	Door Jamb Switch - Left Front
Connector 51:	Door Jamb Switch - Left Rear (without Panel Van)
Connector 52:	Door Jamb Switch - Right Front
Connector 53:	Door Jamb Switch - Right Rear (without Panel Van)
Connector 54:	Door Latch - Driver
Connector 55:	Door Latch - Left Rear (without Panel Van)
Connector 56:	Door Latch - Liftgate
Connector 57:	Door Latch - Passenger
Connector 58:	Door Latch - Right Rear (without Panel Van)
Connector 59:	Door Lock Switch - Driver
Connector 60:	Door Lock Switch - Passenger
Connector 61:	Driver Rear Access Panel Switch - Left Rear Panel (Panel Van)
Connector 62:	Driver Rear Access Panel Switch - Right Rear Panel (Panel Van)
Connector 63:	Electronic Brake Control Module (EBCM) (JM4)
Connector 64:	Electronic Brake Control Module (EBCM) (JL4/JL9)
Connector 65:	Engine Control Module (ECM) X1 (L61/LE5)
Connector 66:	Engine Control Module (ECM) X1 (LNF)
Connector 67:	Engine Control Module (ECM) X2 (L61/LE5)
Connector 68:	Engine Control Module (ECM) X2 (LNF)
Connector 69:	Engine Coolant Temperature (ECT) Sensor
Connector 70:	Engine Cooling Fan (L61/LE5)
Connector 71:	Engine Cooling Fan Module X1 (LNF)
Connector 72:	Engine Cooling Fan Module X2 (LNF)
Connector 73:	Engine Oil Pressure (EOP) Switch
Connector 74:	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
Connector 75:	Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
Connector 76:	Fog Lamp - Left Front (T37)
Connector 77:	Fog Lamp - Right Front (T37)
Connector 78:	Fog Lamp Switch (T37)
Connector 79:	Fuel Injector 1 (L61/LE5)
Connector 80:	Fuel Injector 1 (LNF)
Connector 81:	Fuel Injector 2 (L61/LE5)
Connector 82:	Fuel Injector 2 (LNF)
Connector 83:	Fuel Injector 3 (L61/LE5)
Connector 84:	Fuel Injector 3 (LNF)
Connector 85:	Fuel Injector 4 (L61/LE5)
Connector 86:	Fuel Injector 4 (LNF)
Connector 87:	Fuel Pump and Sender Assembly
Connector 88:	Fuel Rail Pressure Sensor (FPS) (LNF)
Connector 89:	Fuel Tank Pressure (FTP) Sensor
Connector 90:	Generator X1
Connector 91:	Generator X2
Connector 92:	Hazard Switch
Connector 93:	Headlamp - Left
Connector 94:	Headlamp - Right
Connector 95:	Heated Oxygen Sensor (HO2S) 1 (L61/LE5)
Connector 96:	Heated Oxygen Sensor (HO2S) 1 (LNF)
Connector 97:	Heated Oxygen Sensor (HO2S) 2
Connector 98:	Heated Seat Control Module - Driver (KA1)
Connector 99:	Heated Seat Control Module - Passenger (KA1)
Connector 100:	Heated Seat Element - Driver Back (KA1)
Connector 101:	Heated Seat Element - Driver Cushion (KA1)
Connector 102:	Heated Seat Element - Passenger Back (KA1)
Connector 103:	Heated Seat Element - Passenger Cushion (KA1)
Connector 104:	High Pressure Fuel Pump (LNF)
Connector 105:	Hood Ajar Switch (AP3)
Connector 106:	Horn
Connector 107:	Horn Switch
Connector 108:	HVAC Control Assembly X1
Connector 109:	HVAC Control Assembly X2
Connector 110:	HVAC Control Assembly X3
Connector 111:	Ignition Coil Module 1
Connector 112:	Ignition Coil Module 2
Connector 113:	Ignition Coil Module 3
Connector 114:	Ignition Coil Module 4
Connector 115:	Ignition Lock Cylinder Control Actuator (MN5)
Connector 116:	Ignition Switch
Connector 117:	Inflatable Restraint Front End Sensor
Connector 118:	Inflatable Restraint Front Passenger Presence System (PPS) Module
Connector 119:	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
Connector 120:	Inflatable Restraint I/P Module X1
Connector 121:	Inflatable Restraint I/P Module X2
Connector 122:	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
Connector 123:	Inflatable Restraint Passenger Seat Belt Tension Sensor
Connector 124:	Inflatable Restraint Roof Rail Module - Left (ASF)
Connector 125:	Inflatable Restraint Roof Rail Module - Right (ASF)
Connector 126:	Inflatable Restraint Sensing and Diagnostic Module (SDM)
Connector 127:	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
Connector 128:	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
Connector 129:	Inflatable Restraint Steering Wheel Module X1
Connector 130:	Inflatable Restraint Steering Wheel Module X2
Connector 131:	Inflatable Restraint Steering Wheel Module Coil X1
Connector 132:	Inflatable Restraint Steering Wheel Module Coil X2
Connector 133:	Inflatable Restraint Steering Wheel Module Coil X3
Connector 134:	Inflatable Restraint Vehicle Rollover Sensor
Connector 135:	Inside Rearview Mirror (DD8)
Connector 136:	Inside Rearview Mirror (without UE1/DD8)
Connector 137:	Instrument Panel (I/P) Dimmer Switch
Connector 138:	Instrument Panel Cluster (IPC)
Connector 139:	Intake Air Pressure and Temperature Sensor (LNF)
Connector 140:	Knock Sensor (KS) (L61/LE5)
Connector 141:	Knock Sensor (KS) 1 (LNF)
Connector 142:	Knock Sensor (KS) 2 (LNF)
Connector 143:	License Lamp - Left
Connector 144:	License Lamp - Right
Connector 145:	Liftgate Release Switch
Connector 146:	Lumbar Adjuster Switch - Driver (AJ6)
Connector 147:	Manifold Absolute Pressure (MAP) Sensor
Connector 148:	Marker Lamp - Left Front
Connector 149:	Marker Lamp - Left Rear
Connector 150:	Marker Lamp - Right Front
Connector 151:	Marker Lamp - Right Rear
Connector 152:	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
Connector 153:	Mode Actuator
Connector 154:	Output Speed Sensor (OSS)
Connector 155:	Outside Rearview Mirror Motor - Driver
Connector 156:	Outside Rearview Mirror Motor - Passenger
Connector 157:	Outside Rearview Mirror Switch
Connector 158:	Park Brake Switch
Connector 159:	Park/Neutral Position (PNP) Switch (MN5)
Connector 160:	Park/Turn Signal/DRL Lamp - Left Front
Connector 161:	Park/Turn Signal/DRL Lamp - Right Front
Connector 162:	Passenger Rear Access Panel Switch - Right Rear (Panel Van)
Connector 163:	Power Steering Control Module (PSCM) X1 (L61/LE5)
Connector 164:	Power Steering Control Module (PSCM) X1 (LNF)
Connector 165:	Power Steering Control Module (PSCM) X2 (L61/LE5)
Connector 166:	Power Steering Control Module (PSCM) X2 (LNF)
Connector 167:	Power Steering Control Module (PSCM) X3 (L61/LE5)
Connector 168:	Power Steering Control Module (PSCM) X3 (LNF)
Connector 169:	Power Steering Control Module (PSCM) X4 (LNF)
Connector 170:	Power Steering Control Module (PSCM) X5 (LNF)
Connector 171:	Pressure Control Solenoid Valve (MN5)
Connector 172:	Radio X1 (UQ3)
Connector 173:	Radio X1 (UW5)
Connector 174:	Radio X2 (UQ3)
Connector 175:	Radio X2 (UW5)
Connector 176:	Rear Access Panel Latch - Left Rear (Panel Van)
Connector 177:	Rear Access Panel Latch - Right Rear (Panel Van)
Connector 178:	Rear Window Defogger Grid X1
Connector 179:	Rear Window Defogger Grid X2
Connector 180:	Rear Window Wiper Motor
Connector 181:	Rear Wiper/Washer Switch
Connector 182:	Recirculation Actuator
Connector 183:	Remote Control Door Lock Receiver (RCDLR)
Connector 184:	Seat Adjuster Switch - Driver (AJ6)
Connector 185:	Seat Belt Pretensioner - Left
Connector 186:	Seat Belt Pretensioner - Right
Connector 187:	Seat Belt Switch - Left
Connector 188:	Seat Belt Switch - Right
Connector 189:	Seat Front Vertical Motor - Driver (AJ6)
Connector 190:	Seat Horizontal Motor - Driver (AJ6)
Connector 191:	Seat Lumbar Motor - Driver (AJ6)
Connector 192:	Seat Rear Vertical Motor - Driver (AJ6)
Connector 193:	Speaker - Left Front Door (UQ3)
Connector 194:	Speaker - Left Front Door (UW5)
Connector 195:	Speaker - Left Front Tweeter
Connector 196:	Speaker - Left Rear Door (UQ3)
Connector 197:	Speaker - Left Rear Door (UW5)
Connector 198:	Speaker - Right Front Door (UQ3)
Connector 199:	Speaker - Right Front Door (UW5)
Connector 200:	Speaker - Right Front Tweeter
Connector 201:	Speaker - Right Rear Door (UQ3)
Connector 202:	Speaker - Right Rear Door (UW5)
Connector 203:	Speaker - Subwoofer (UQ3)
Connector 204:	Starter X1
Connector 205:	Starter X2 (To Battery)
Connector 206:	Starter X2 (To Generator)
Connector 207:	Steering Angle Sensor (without JL9)
Connector 208:	Steering Wheel Controls - Left
Connector 209:	Steering Wheel Controls - Right (UK3)
Connector 210:	Stop Lamp Switch
Connector 211:	Stop Lamp/TCC/Cruise Release Switch
Connector 212:	Sunroof Control Module (CF5)
Connector 213:	Sunroof Switch (CF5)
Connector 214:	Tail/Stop and Turn Signal Lamp - Left
Connector 215:	Tail/Stop and Turn Signal Lamp - Right
Connector 216:	Theft Deterrent Control Module
Connector 217:	Throttle Actuator Control (TAC) Module (L61/LE5)
Connector 218:	Throttle Body (LNF)
Connector 219:	Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve (MN5)
Connector 220:	Traction Control Switch (JL4/JL9)
Connector 221:	Transmission Control Module (TCM) (MN5)
Connector 222:	Turbo Bypass Valve Solenoid (LNF)
Connector 223:	Turbocharger Wastegate Solenoid (LNF)
Connector 224:	Turn Signal/Multifunction Switch X1
Connector 225:	Turn Signal/Multifunction Switch X2
Connector 226:	VCIM Fuse Holder - 10 AMP (UE1)
Connector 227:	Vehicle Communication Interface Module (VCIM) X1 (UE1)
Connector 228:	Vehicle Communication Interface Module (VCIM) X2 (UE1)
Connector 229:	Vehicle Communication Interface Module (VCIM) X3 (UE1)
Connector 230:	Vehicle Speed Sensor (VSS)
Connector 231:	Wheel Speed Sensor (WSS) - Left Front
Connector 232:	Wheel Speed Sensor (WSS) - Left Rear
Connector 233:	Wheel Speed Sensor (WSS) - Right Front
Connector 234:	Wheel Speed Sensor (WSS) - Right Rear
Connector 235:	Window Motor - Driver
Connector 236:	Window Motor - Left Rear (without Panel Van)
Connector 237:	Window Motor - Passenger
Connector 238:	Window Motor - Right Rear (without Panel Van)
Connector 239:	Window Switch -- Master (without Sport)
Connector 240:	Window Switch - Driver X1 (Sport)
Connector 241:	Window Switch - Driver X2 (Sport)
Connector 242:	Window Switch - Passenger (Sport)
Connector 243:	Window Switch - Left Rear (without Panel Van or Sport)
Connector 244:	Window Switch - Left Rear (Sport)
Connector 245:	Window Switch - Right Rear (without Panel Van or Sport)
Connector 246:	Window Switch - Right Rear (Sport)
Connector 247:	Windshield Washer Fluid Pump
Connector 248:	Windshield Wiper Motor Assembly
Connector 249:	Windshield Wiper/Washer Switch
Connector 250:	Yaw and Lateral Acceleration Sensor (JL4)

1-2 Shift Solenoid (SS) Valve (MN5)

Connector Part Information

OEM: 12162201
Terminal/Tray: Service by Harness -- See Part Catalog
Description: 2-Way F Metri-Pack 150.2 Series P2S (NA)

Terminal Part Information

Terminal/Tray: Service by Harness -- See Part Catalog
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

1-2 Shift Solenoid (SS) Valve (MN5)

Pin	Wire	Circuit	Function
A	0.35 RD	839	Ignition 1 Voltage
B	0.35 L-GN	1222	1-2 Shift Solenoid Valve Control

2-3 Shift Solenoid (SS) Valve (MN5)

Connector Part Information

OEM: 12162201
Terminal/Tray: Service by Harness -- See Part Catalog
Description: 2-Way F Metri-Pack 150.2 Series P2S (NA)

Terminal Part Information

Terminal/Tray: Service by Harness -- See Part Catalog
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

2-3 Shift Solenoid (SS) Valve (MN5)

Pin	Wire	Circuit	Function
A	0.35 RD	839	Ignition 1 Voltage
B	0.35 YE	1223	2-3 Shift Solenoid Valve Control

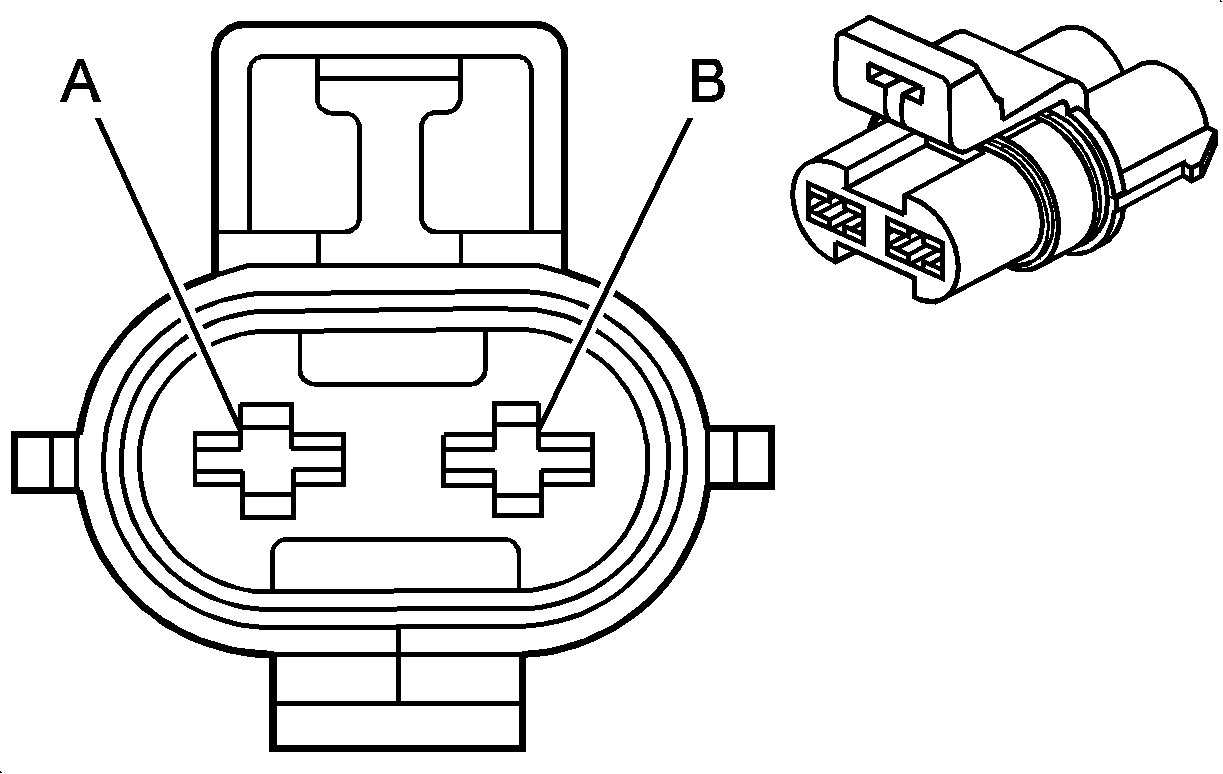

A/C Compressor Clutch

Connector Part Information

OEM: 12162017
Service: 12101937
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

A/C Compressor Clutch

Pin	Wire	Circuit	Function
A	0.5 D-GN	59	A/C Compressor Clutch Supply Voltage
B	0.5 BK	150	Ground

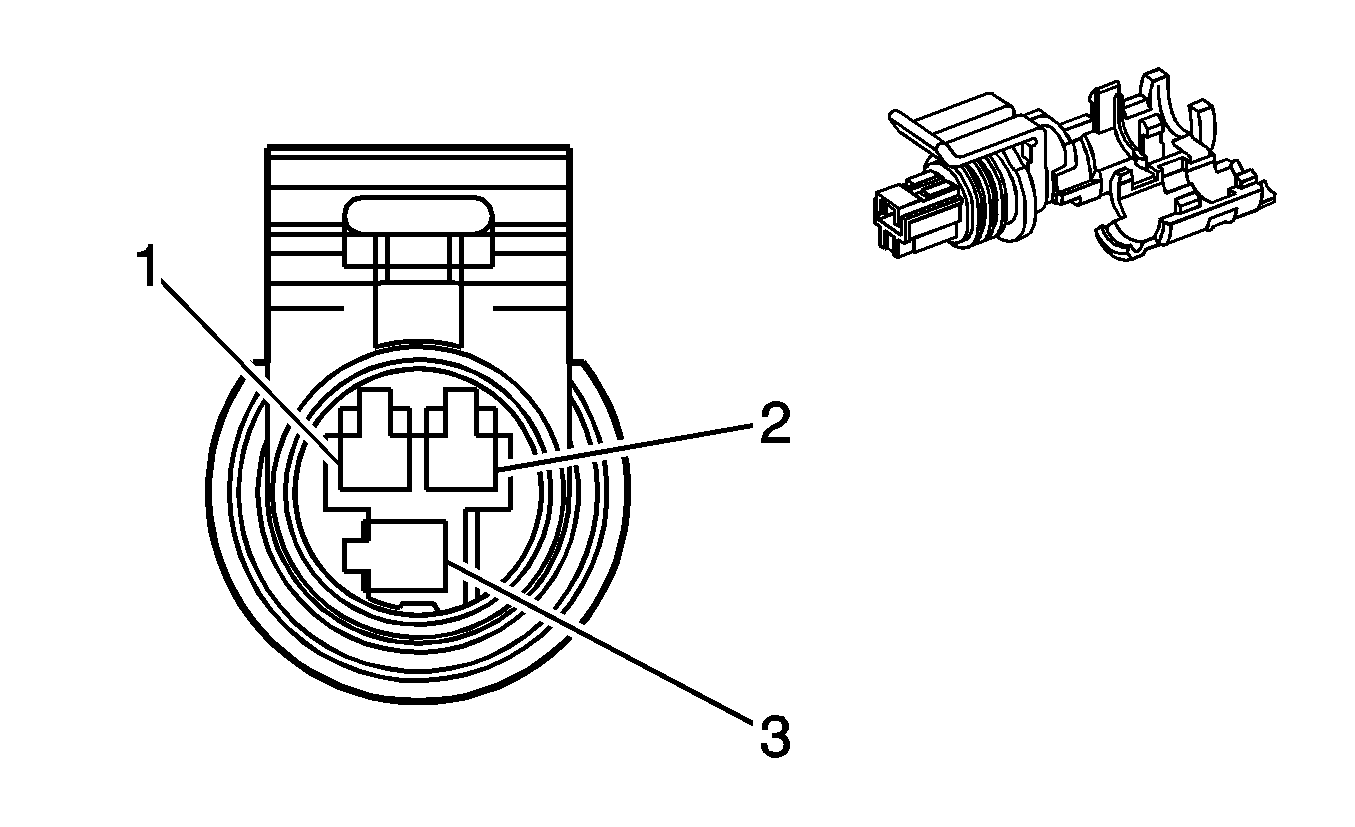

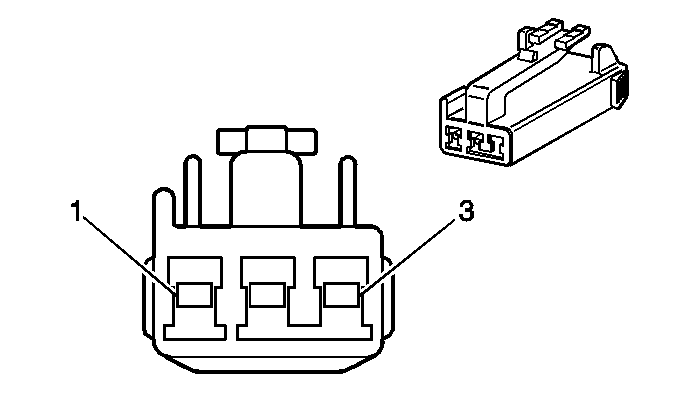

A/C Refrigerant Pressure Sensor

Connector Part Information

OEM: 15397149
Service: 88988301
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

A/C Refrigerant Pressure Sensor

Pin	Wire	Circuit	Function
1	0.5 TN	5514	Low Reference (LNF)
1	0.5 PU/WH	6256	Low Reference (L61/LE5)
2	0.5 GY	2700	5-Volt Reference (LNF)
2	0.5 GY	6255	5-Volt Reference (L61/LE5)
3	0.35 OG/BK	380	A/C Refrigerant Pressure Sensor Signal

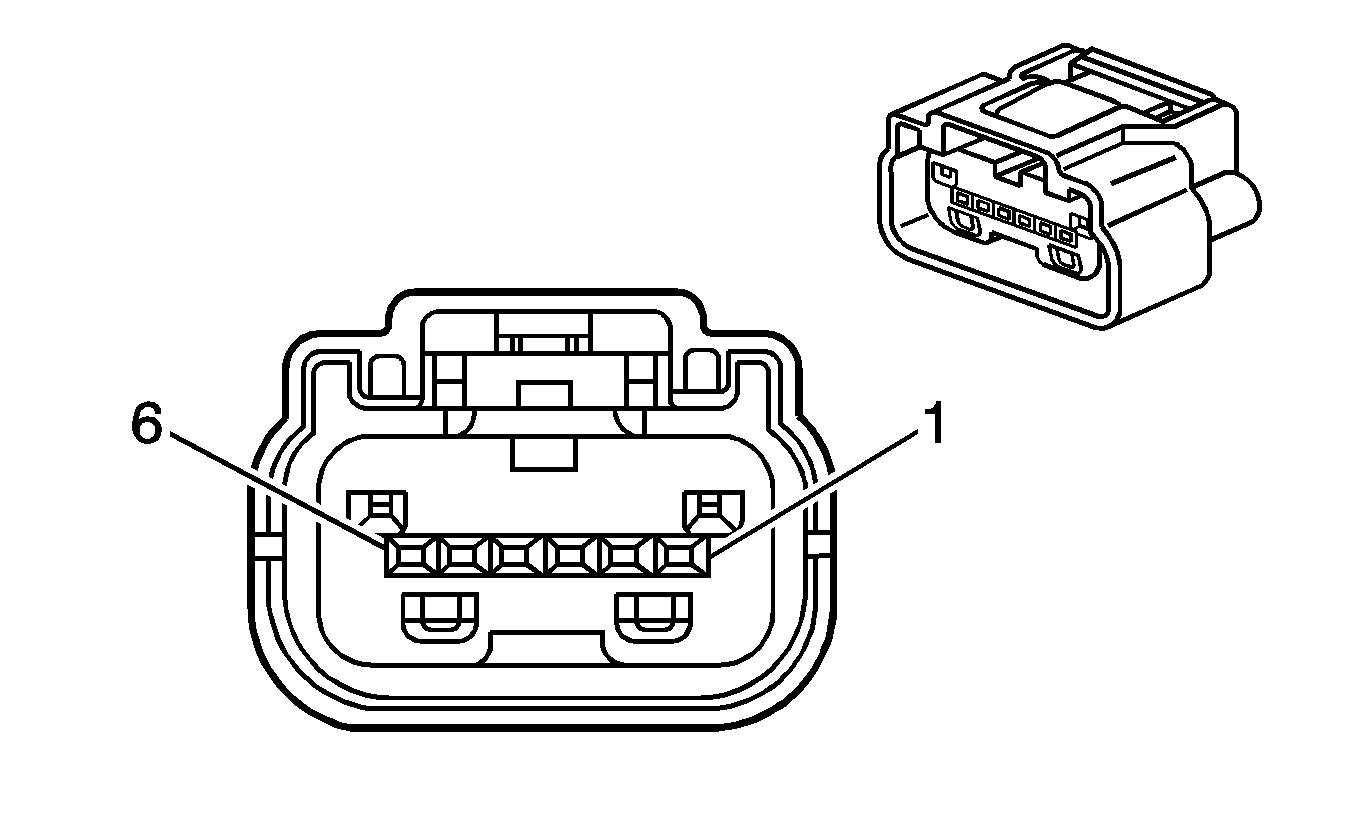

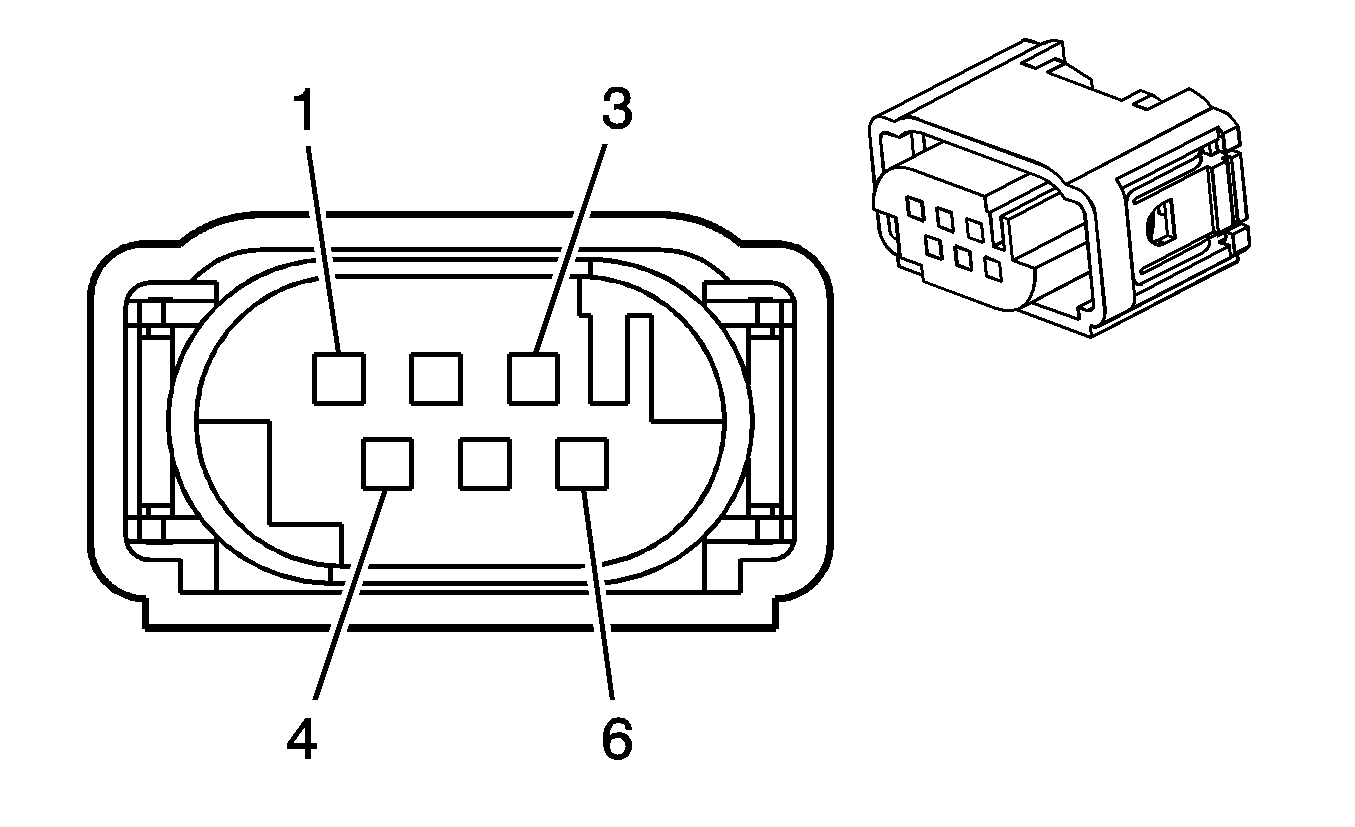

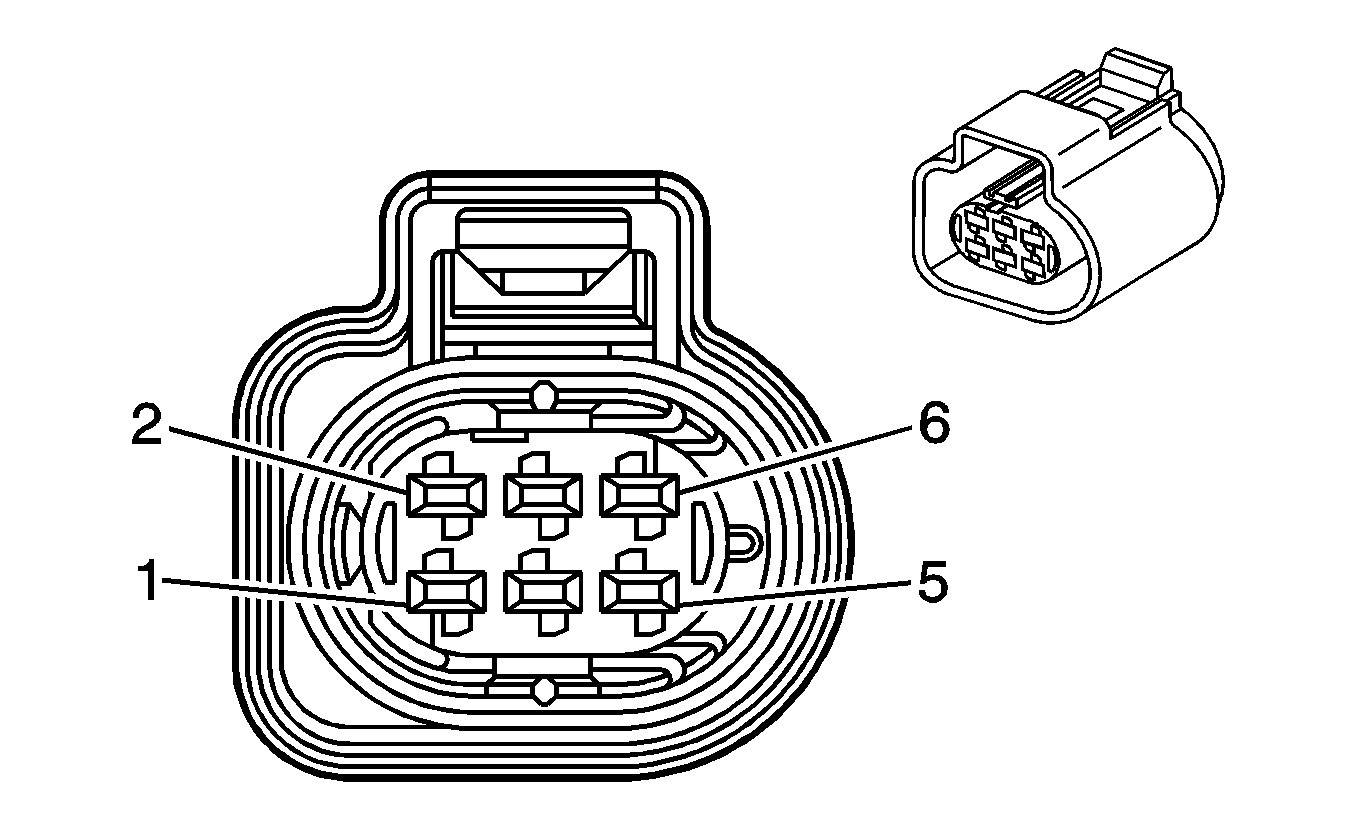

Accelerator Pedal Position (APP) Sensor

Connector Part Information

OEM: 6-929264-1
Service: 89046653
Description: 6-Way F MT2 Housing (BK)

Terminal Part Information

Terminal/Tray: 4-969005-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Accelerator Pedal Position (APP) Sensor

Pin	Wire	Circuit	Function
1	0.35 TN	1274	5-Volt Reference
2	0.35 WH/BK	1164	5-Volt Reference
3	0.35 D-BU	1161	APP Sensor (1) Signal
4	0.35 BN	1271	Low Reference
5	0.35 PU	1272	Low Reference
6	0.35 L-BU	1162	APP Sensor (2) Signal

Air Temperature Actuator

Connector Part Information

OEM: 12064993
Service: 12102485
Description: 6-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Air Temperature Actuator

Pin	Wire	Circuit	Function
5	0.35 PK	339	Ignition 1 Voltage
6	0.35 WH/BK	1236	Auxiliary Air Temperature Door Control
7	0.35 BK/WH	550	Ground
8	--	--	Not Used
9	0.35 D-BU	1646	Auxiliary Air Temperature Door Position Signal
10	0.35 L-BU/BK	1688	5-Volt Reference

Ambient Air Temperature Sensor

Connector Part Information

OEM: 12052641
Service: 12102747
Description: 2-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Ambient Air Temperature Sensor

Pin	Wire	Circuit	Function
A	0.35 D-GN/WH	636	Ambient Air Temperature Sensor Signal
B	0.35 YE	61	Low Reference

Ambient Light Sensor

Connector Part Information

OEM: 12059249
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Ambient Light Sensor

Pin	Wire	Circuit	Function
A	0.35 L-GN/BK	1137	DRL Ambient Light Sensor Signal
B	0.35 YE/BK	1138	DRL Ambient Light Sensor Low Reference

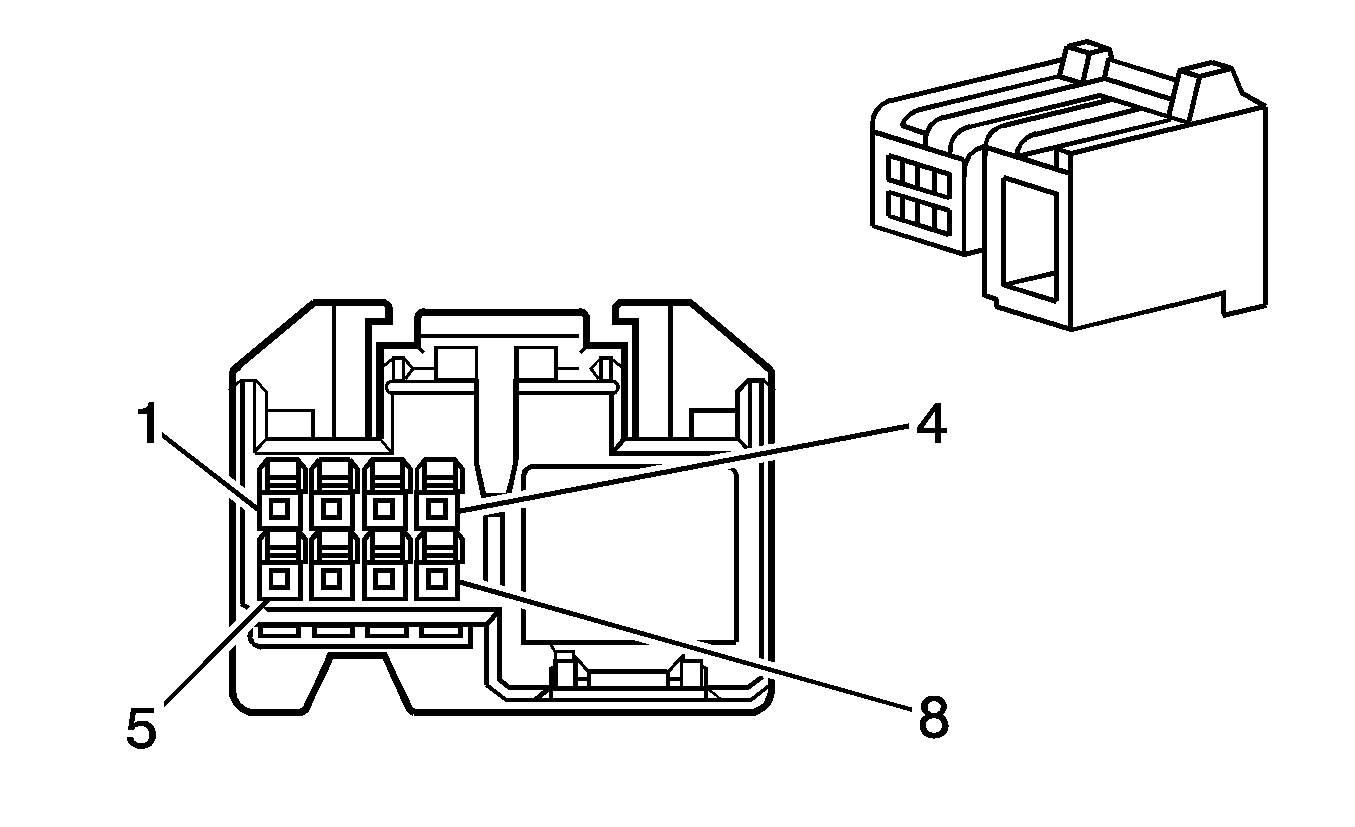

Audio Amplifier X1 (UQ3)

Connector Part Information

OEM: 6098-4713
Service: 88988659
Description: 8-Way F (BK)

Terminal Part Information

Pins: 1-4
Terminal/Tray: 8100-4443/22
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-35 (VT)

Pins: 5, 8
Terminal/Tray: 8100-4445/22
Core/Insulation Crimp: 4/4
Release Tool/Test Probe: 15315247/J-35616-35 (VT)

Audio Amplifier X1 (UQ3)

Pin	Wire	Circuit	Function
1	0.35 D-BU/WH	346	Rear Subwoofer Speaker Output (+)
2	0.35 L-GN/BK	1794	Rear Subwoofer Speaker Output (-)
3	0.35 D-GN	1795	Rear Subwoofer Speaker Output (+)
4	0.35 L-BU/BK	315	Rear Subwoofer Speaker Output (-)
5	2.0 BK/WH	751	Ground
6-7	--	--	Not Used
8	2.0 RD/WH	640	Battery Positive Voltage

Audio Amplifier X2 (UQ3)

Connector Part Information

OEM: 7283-5534-60
Service: 88952777
Description: 16-Way M 1.5 Series Sealed (GN)

Terminal Part Information

Pins: 2
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 1, 3, 4, 9-12
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: Pins 1, 3, 4, 11, 12 - E/A
Core/Insulation Crimp: Pins 9, 10 - C/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Audio Amplifier X2 (UQ3)

Pin	Wire	Circuit	Function
1	0.35 YE	116	Left Rear Speaker Output (-)
2	0.35 BN	199	Left Rear Speaker Output (+)
3	0.35 D-BU	46	Right Rear Speaker Output (+)
4	0.35 L-BU	115	Right Rear Speaker Output (-)
5-8	--	--	Not Used
9	0.35 D-GN	117	Right Front Speaker Output (-)
10	0.35 L-GN	200	Right Front Speaker Output (+)
11	0.35 TN	201	Left Front Speaker Output (+)
12	0.35 GY	118	Left Front Speaker Output (-)
13-16	--	--	Not Used

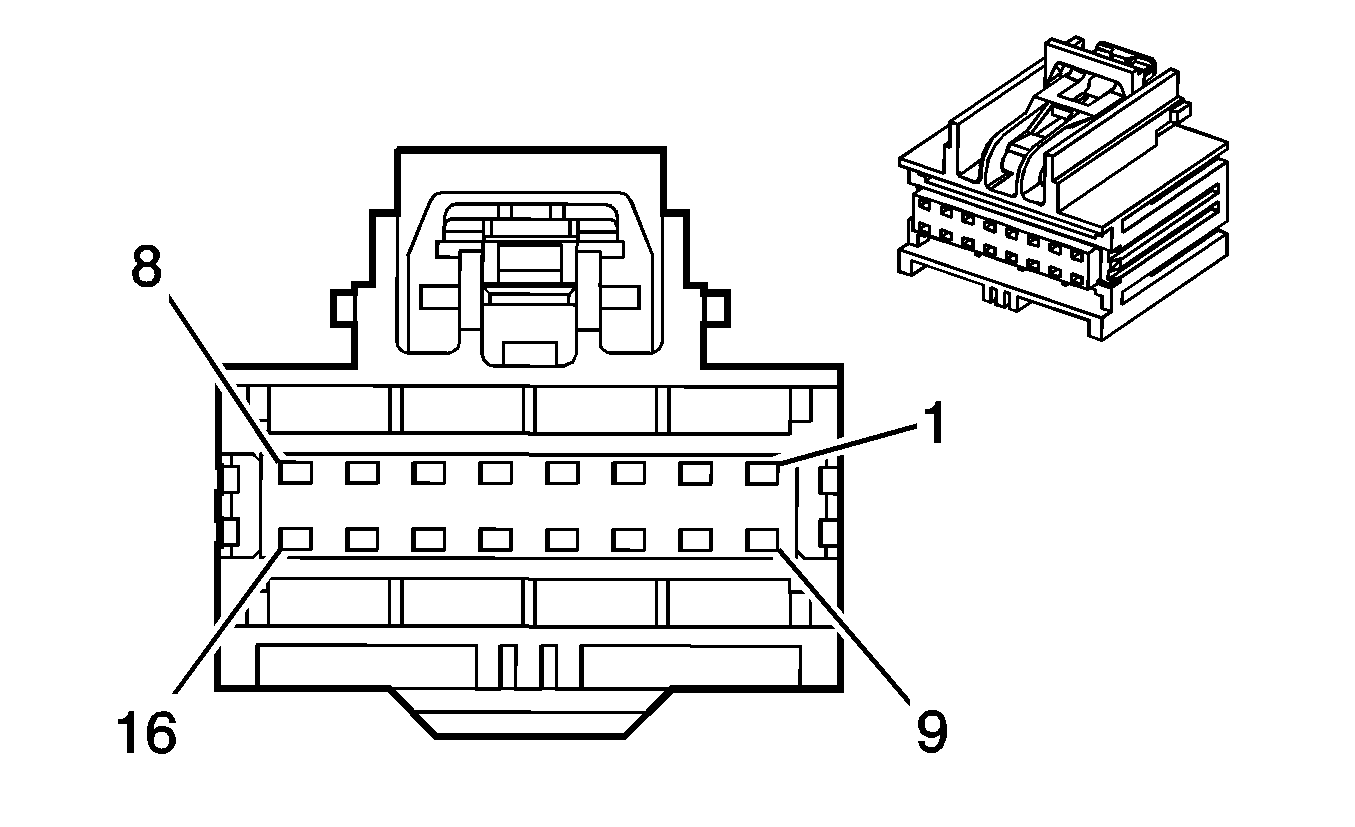

Audio Amplifier X3 (UQ3)

Connector Part Information

OEM: 7283-9076-30
Service: 15136073
Description: 16-Way F Micro-Pack 64 Unsealed (BK)

Terminal Part Information

Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Audio Amplifier X3 (UQ3)

Pin	Wire	Circuit	Function
1	0.35 BN	1999	Left Rear Low Level Audio Signal (-)
2	0.35 TN	1946	Right Rear Low Level Audio Signal (-)
3	0.35 BN/WH	599	Left Rear Low Level Audio Signal (+)
4	0.35 D-BU	546	Right Rear Low Level Audio Signal (+)
5-7	--	--	Not Used
8	0.35 PK	314	Radio On Signal
9	0.35 L-GN/WH	512	Right Front Low Level Audio Signal (+)
10	0.35 D-GN	1947	Left Front Low Level Audio Signal (-)
11	0.35 L-GN	1948	Right Front Low Level Audio Signal (-)
12	0.35 TN	511	Left Front Low Level Audio Signal (+)
13-15	--	--	Not Used
16	0.35 L-GN	1011	Remote Radio Control Signal

Automatic Transmission Fluid Pressure Manual Valve Position Switch (MN5)

Connector Part Information

OEM: 12146095
Service: Non-Serviceable
Description: 6-Way F Metri-Pack 150.2 Series P2S (NA)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

Automatic Transmission Fluid Pressure Manual Valve Position Switch (MN5)

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 D-BU	1225	TFP Switch Signal B
C	0.35 OG	1226	TFP Switch Signal C
D	0.35 WH	1804	Torque Converter Clutch Release Switch Signal
E	0.35 BN	1227	Transmission Fluid Temperature (TFT) Sensor Signal
F	0.35 GY	452	Low Reference

Automatic Transmission Input Shaft (ISS) Speed Sensor

Connector Part Information

OEM: 12162201
Service: Non-Serviceable
Description: 2-Way F Metri-Pack 150.2 Series P2S (NA)

Input Speed Sensor

Pin	Wire	Circuit	Function
A	0.35 BK	1230	Input Speed Sensor (ISS) High Signal
B	0.35 D-GN	1231	ISS Low Signal

Automatic Transmission Shift Lever Indicator

Connector Part Information

OEM: 12162083
Service: 8901283
Description: 2-Way F Lamp Socket Bulb Base Type W2 Axial (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Automatic Transmission Shift Lever Indicator

Pin	Wire	Circuit	Function
A	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
B	0.35 BK	1250	Ground

Automatic Transmission Shift Lock Control Solenoid (MN5)

Connector Part Information

OEM: 12059249
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (NA)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Automatic Transmission Shift Lock Control Solenoid (MN5)

Pin	Wire	Circuit	Function
A	0.35 D-GN	1250	Ground
B	0.35 YE	1135	Automatic Transmission Shift Interlock Solenoid Supply Voltage

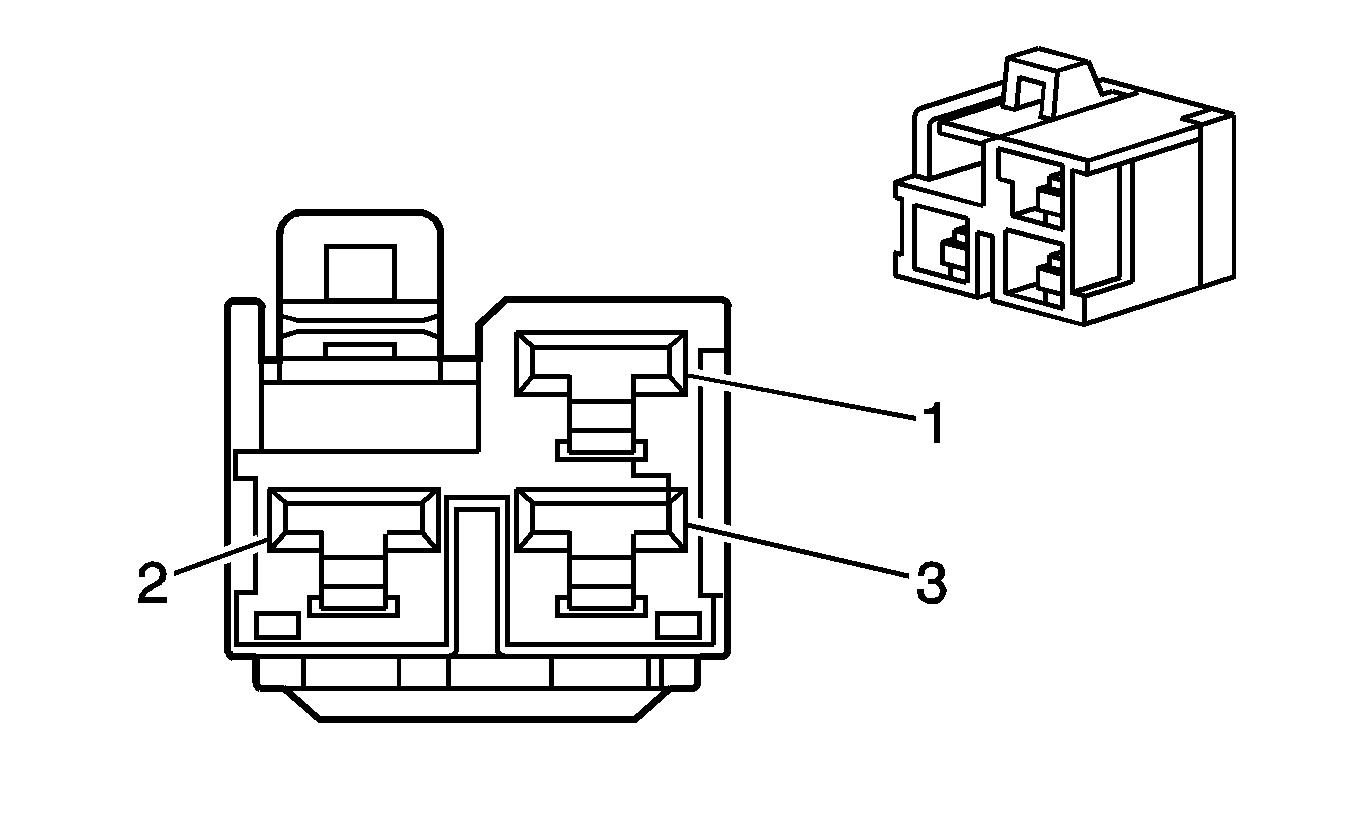

Auxiliary Power Outlet - Console

Connector Part Information

OEM: 12176446
Service: 15305923
Description: 3-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Pins: A, C
Terminal/Tray: 12110844/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: B
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Auxiliary Power Outlet - Console

Pin	Wire	Circuit	Function
A	0.35 RD/WH	240	Battery Positive Voltage
B	--	--	Not Used
C	0.35 BK	1250	Ground

Auxiliary Power Outlet - Rear (Panel Van)

Connector Part Information

OEM: 12176446
Service: 15305923
Description: 3-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: 12110844/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Auxiliary Power Outlet - Rear (Panel Van)

Pin	Wire	Circuit	Function
A	0.35 RD/WH	240	Battery Positive Voltage
B	--	--	Not Used
C	0.35 BK	1250	Ground

Backup Lamp - Left

Connector Part Information

OEM: 15300027
Service: 12101855
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Backup Lamp - Left

Pin	Wire	Circuit	Function
A	0.35 L-GN	24	Backup Lamp Supply Voltage
B	0.35 BK	750	Ground

Backup Lamp - Right

Connector Part Information

OEM: 15300027
Service: 12101855
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Backup Lamp - Right

Pin	Wire	Circuit	Function
A	0.35 L-GN	24	Backup Lamp Supply Voltage
B	0.35 BK	850	Ground

Backup Lamp Switch (MU3)

Connector Part Information

OEM: 12052641
Service: 12102747
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Backup Lamp Switch (MU3)

Pin	Wire	Circuit	Function
A	0.35 PK	1639	Ignition 1 Voltage
B	0.35 L-GN	24	Backup Lamp Supply Voltage

Battery (-)

Terminal Part Information

Terminal: R61014-002
Core/Insulation Crimp: N/A
Description: Battery Terminal

Battery (-)

Pin	Wire	Circuit	Function
-	32 BK	50	Ground

Battery (+)

Terminal Part Information

Terminal: R3311-033
Core/Insulation Crimp: N/A
Description: Battery Terminal

Battery (+)

Pin	Wire	Circuit	Function
+	50 RD	1	Battery Positive Voltage
+	5 RD	1	Battery Positive Voltage

Battery Current Sensor (without LNF)

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Battery Current Sensor (without LNF)

Pin	Wire	Circuit	Function
A	0.35 GY	596	5-Volt Reference
B	0.35 BK/WH	851	Ground
C	0.35 WH	5075	Current Sensor Signal

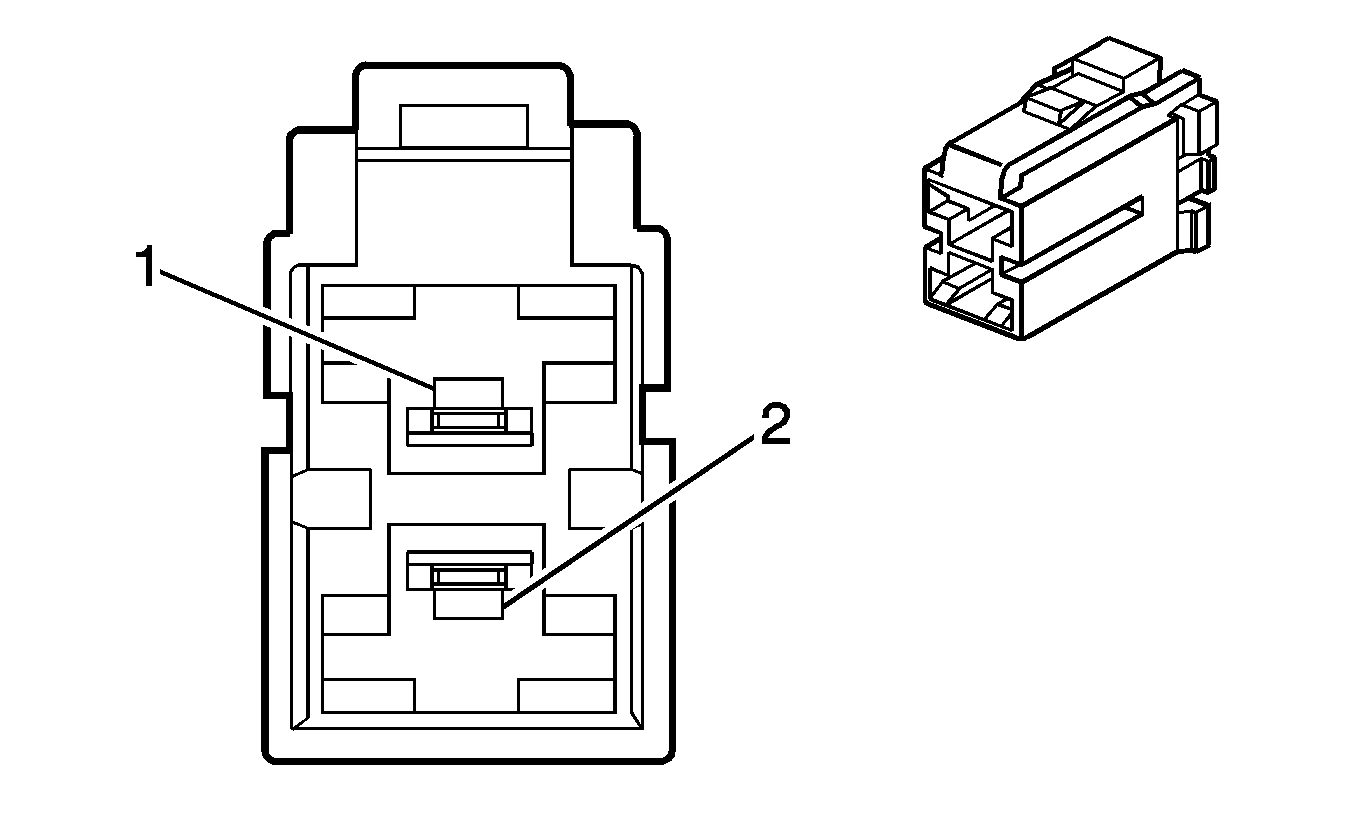

BCM Fuse Holder - 50 AMP

Connector Part Information

OEM: E-4326
Service: 88988347
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

BCM Fuse Holder - 50 AMP

Pin	Wire	Circuit	Function
1	0.35 RD/BK	142	Battery Positive Voltage
2	0.35 RD	1	Battery Positive Voltage

Blower Motor

Connector Part Information

OEM: 12064749
Service: 12101888
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Blower Motor

Pin	Wire	Circuit	Function
A	0.35 OG	52	High Blower Motor Control
B	3 BN	141	Run Ignition 3 Voltage

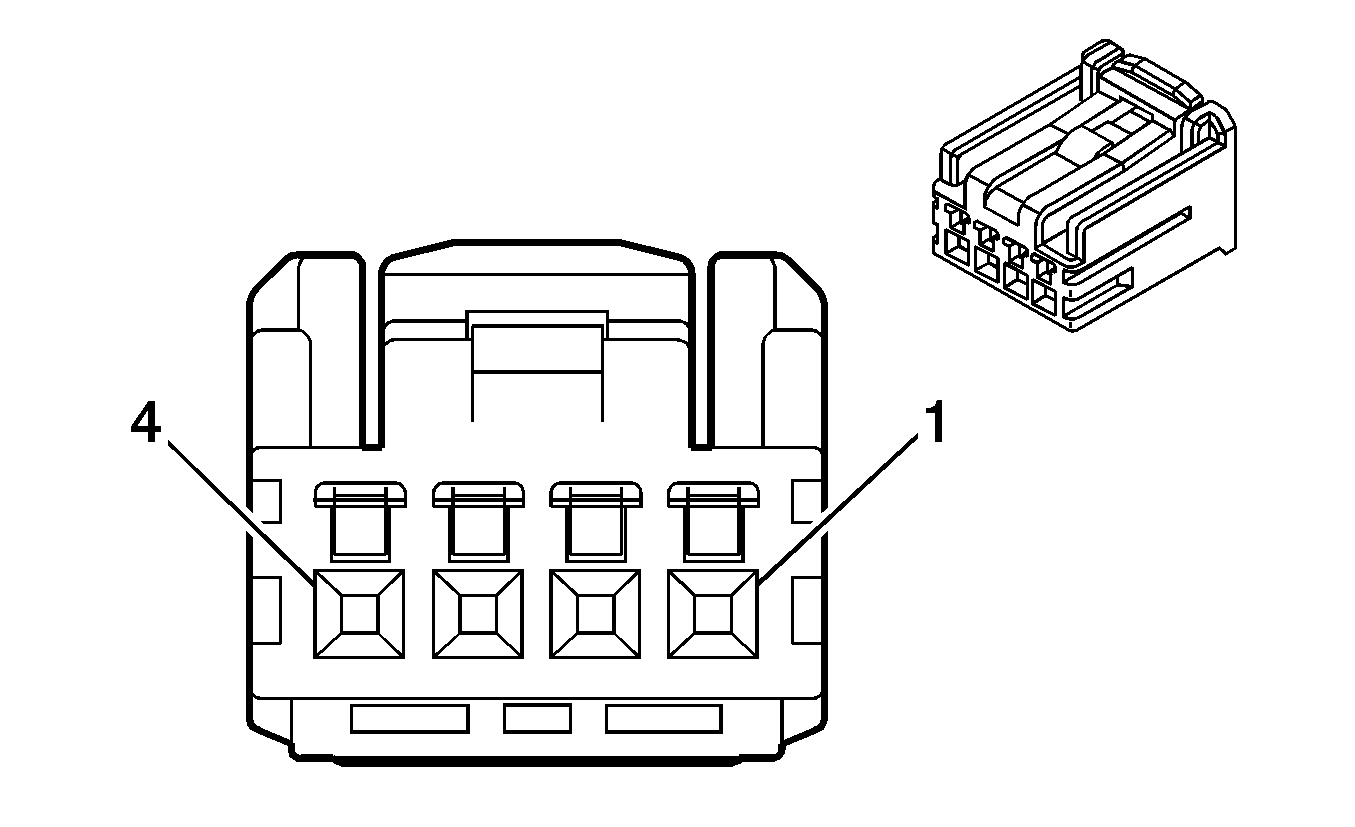

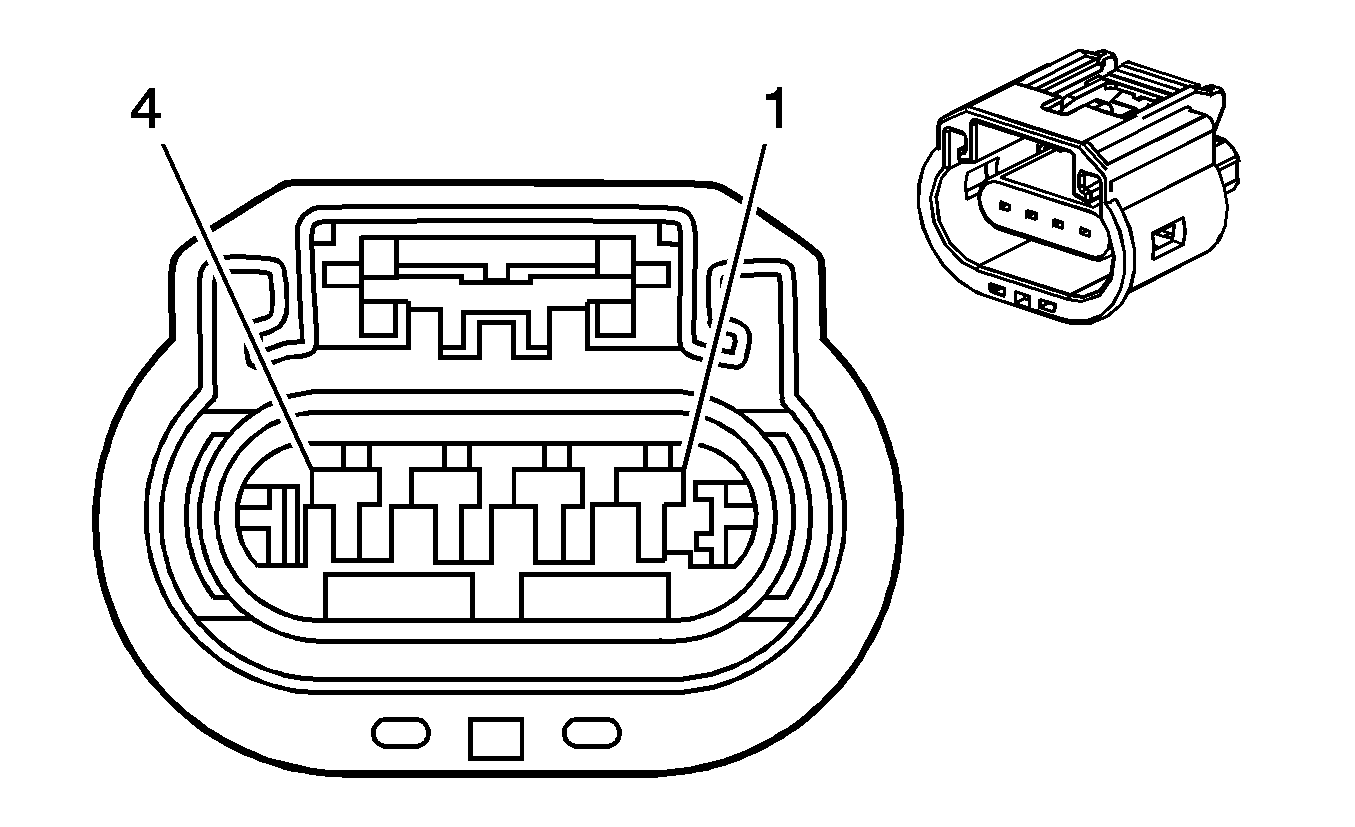

Blower Motor Resistor Assembly

Connector Part Information

OEM: 12129566
Service: 15306069
Description: 4-Way F Metri-Pack 280 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Blower Motor Resistor Assembly

Pin	Wire	Circuit	Function
A	2 TN	63	Medium Blower Motor Control (1)
B	2 L-BU	72	Medium 2 Blower Motor Control
C	3 OG	52	High Blower Motor Control
D	2 YE	60	Low Blower Motor Control

Body Control Module (BCM) X1

Connector Part Information

OEM: 15393122
Service: 88987847
Description: 72-Way F Micro-64 Unsealed (GY)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Body Control Module (BCM) X1

Pin	Wire	Circuit	Function
1	0.35 L-BU/BK	747	Left Rear Door Ajar Switch Signal
2	--	--	Not Used
3	0.35 PU	5531	Hood Closed Switch Signal (AP3)
4	0.35 PK/BK	109	Hood Ajar Switch Signal (AP3)
5	0.35 TN	755	Sunroof Enable Signal (CF5)
6	0.35 WH	682	Door Lock Lock/Unlock Signal
7	0.35 WH/BK	682	Door Lock Lock/Unlock Signal
8	0.35 WH/RD	1080	Park Lamp Relay Control
9	0.35 YE	5456	Rear Wiper Park Signal
10-12	--	--	Not Used
13	0.35 PK	849	Brake Fluid Level Sensor Signal
14	0.35 L-BU	1134	Park Brake Switch Signal
15	0.35 YE	5199	Run/Crank Relay Coil Control
16	0.35 WH	193	Rear Defog Relay Control
17	0.35 D-BU	15	Right Turn Signal Lamp Supply Voltage
18	0.35 D-GN	5060	Low Speed GMLAN Serial Data (U2K)
19	0.35 TN/WH	746	Right Front Door Ajar Switch Signal
20	0.35 L-GN/BK	748	Right Rear Door Ajar Switch Signal
21	--	--	Not Used
22	0.35 GY/BK	745	Left Front Door Ajar Switch Signal
23-30	--	--	Not Used
31	0.35 WH	5065	CHMSL Relay Control
32	--	--	Not Used
33	0.35 D-GN/WH	1135	A/T Shift Interlock Solenoid Supply Voltage (MN5)
34	--	--	Not Used
35	0.35 L-BU	14	Left Turn Signal Lamp Supply Voltage
36	0.35 D-GN	5060	Low Speed GMLAN Serial Data (UE1)
37-39	--	--	Not Used
40	0.35 L-BU	1788	Traction Control Switch Signal (JL4/JL9)
41-43	--	--	Not Used
44	0.35 TN/WH	1969	Headlamp High Beam Relay Control
45-46	--	--	Not Used
47	0.35 YE	196	Windshield Wiper Motor Park Switch Signal
48-50	--	--	Not Used
51	0.35 D-GN	113	Windshield Wiper Switch Signal 2
52-53	--	--	Not Used
54	0.35 YE	317	Fog Lamp Relay Control (T37)
55	0.35 PK/BK	1303	Liftgate Ajar Switch Signal
56	L-BU	1344	Liftgate Release Relay Control
57	--	--	Not Used
58	0.35 L-GN	2270	Rear Window Washer Relay Control
59	0.35 GY	391	Rear Window Wiper Switch Signal
60	0.35 TN	28	Horn Relay Control
61	0.35 BK/WH	1251	Signal Ground
62	0.35 RD/WH	1340	Battery Positive Voltage (without LNF)
63	0.35 GY	596	5-Volt Reference (without LNF)
64	0.35 BK/WH	851	Signal Ground (without LNF)
65	0.35 TN/WH	1704	Sensor Low Reference (without LNF)
66	--	--	Not Used
67	0.35 YE	61	Low Reference
68	0.35 WH	5075	Current Sensor Signal (without LNF)
69	0.35 WH/BK	1221	Liftgate Release Switch Signal (-Panel Van)
69	0.35 L-GN	5926	Release Switch Signal (Panel Van)
70	0.35 D-GN/WH	636	Ambient Air Temperature Sensor Signal
71	0.35 L-GN/BK	592	DRL Relay Control
72	--	--	Not Used

Body Control Module (BCM) X2

Connector Part Information

OEM: 15393121
Service: 88987848
Description: 72-Way F Micro-64 Unsealed (GY)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Body Control Module (BCM) X2

Pin	Wire	Circuit	Function
1	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
2	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
3	0.35 YE	10	Headlamp Switch Signal
4	0.35 PU	524	Headlamp Dimmer Switch High Beam Signal
5	0.35 BN/WH	301	Park Lamp Switch On Signal
6-8	--	--	Not Used
9	0.35 WH	111	Hazard Switch Signal
10	--	--	Not Used
11	0.35 D-GN	264	Security Indicator Supply Voltage
12-13	--	--	Not Used
14	0.35 TN	28	Horn Relay Control
15	0.35 WH	103	Headlamp Switch On Signal
16	0.35 OG	192	Front Fog Lamp Switch Signal (T37)
17	0.35 PU/WH	549	Headlamp Switch Headlamps Off Signal
18		5359	Brake Pedal Position (BPP) Sensor Positive Reference
19	0.35 TN	2501	High Speed GMLAN Serial Data (-)
20	0.35 TN	2501	High Speed GMLAN Serial Data (-)
21-25	--	--	Not Used
26	0.35 D-GN	44	Instrument Panel Lamp Dimmer Switch Signal
27-30	--	--	Not Used
31	0.35 YE	5361	Brake Pedal Position (BPP) Sensor Signal
32-37	--	--	Not Used
38	0.35 L-GN/BK	5060	Low Speed GMLAN Serial Data
39-43	--	--	Not Used
44	0.35 L-GN/BK	1137	DRL Ambient Light Sensor Signal
45-46	--	--	Not Used
47	0.35 YE/BK	1138	DRL Ambient Light Sensor Low Reference
48-50	--	--	Not Used
51	0.35 BN	1356	Flash To Pass Switch Signal
52-54	--	--	Not Used
55	--	--	Not Used
56	0.35 WH	1390	Off/Run/Crank Voltage
57	0.35 GY	112	Windshield Wiper Switch Signal 1
58	0.35 PU	719	Low Reference
59	0.35 BN	5360	Brake Pedal Position (BPP) Sensor Low Reference
60	--	--	Not Used
61	0.35 GY	1884	Cruise Control Switch Signal
62	0.35 WH/BK	1073	Ignition Key Resistor Signal
63	--	--	Not Used
64	0.35 WH	2283	Rear Wiper/Washer Switch Supply Voltage
65	--	--	Not Used
66	0.35 YE/BK	1418	Left Rear Turn Signal Switch Signal
67	0.35 D-GN/WH	1419	Right Rear Turn Signal Switch Signal
68	0.35 L-BU	292	Rear Defog Switch Signal
69	0.35 L-GN	66	A/C Request Signal
70	--	--	Not Used
71	0.35 PU	5234	Passenger Seat Belt Indicator
72	0.35 WH	193	Rear Defog Relay Control

Body Control Module (BCM) X3

Connector Part Information

OEM: 15492675
Service: 15404825
Description: 41-Way F Micro-64 Unsealed (RD)

Terminal Part Information

Pins: A1-A5, A7-A10, A12, B1, D4, B3, B5, B12, C12, D7
Pins: C3 (Panel Van)
Terminal/Tray: 12110844/4
Core/Insulation Crimp: Pins A1-A5, A7-A10, A12, B1, D4 - E/A
Core/Insulation Crimp: Pins B3, B5, B12, C12, D7 - E/C
Core/Insulation Crimp: Pins C3 - C/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: C5, D1, D6, D10-D12
Terminal/Tray: 12110842/4
Core/Insulation Crimp: Pins C5, D11 - A/B
Core/Insulation Crimp: Pins D1, D6, D10, D12 - F/G
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Body Control Module (BCM) X3

Pin	Wire	Circuit	Function
A1	0.35 TN	294	Door Lock Actuator Unlock Control (-Panel Van)
A1	0.35 TN	294	Door Lock Actuator Unlock Control
A2	0.35 TN	294	Door Lock Actuator Unlock Control (-Panel Van)
A3	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage
A4	0.35 GY	295	Door Lock Actuator Lock Control (-Panel Van)
A4	0.35 GY	295	Door Lock Actuator Lock Control (-Panel Van)
A5	0.35 GY	295	Door Lock Actuator Lock Control
A5	0.35 GY	295	Door Lock Actuator Lock Control
A6	--	--	Not Used
A7	0.35 BN	9	Park Lamp Supply Voltage
A8	0.5 PK	339	Power Mirror (DD8) Supply Voltage
A8	0.5 PK	339	Boost Gage Supply Voltage (LNF)
A9	0.35 YE	18	Left Rear Stop/Turn Lamp Supply Voltage
A10	0.35 GY	157	Courtesy Lamp Control
A11	--	--	Not Used
A12	0.35 D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage
B1	0.5 TN/BK	694	Driver Door Lock Actuator Unlock Control
B2	--	--	Not Used
B3	0.5 RD/WH	1340	OnStar Battery Positive Voltage (UE1)
B3	0.5 RD/WH	1340	BCM Battery Positive Voltage (L61/LE5)
B4	--	--	Not Used
B5	0.35 BN	4	Accessory Voltage
B5	0.35 BN	4	Accessory Voltage (MN5)
B6-B7	--	--	Not Available
B8-B11	--	--	Not Used
B12	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
B12	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
C1-C2	--	--	Not Available
C3	0.35 D-GN	1301	RAP Fuse Supply Voltage (Panel Van)
C4	--	--	Not Used
C5	2.0 D-GN	801	Power Window Supply Voltage (without Sport)
C6-C7	--	--	Not Available
C8-C11	--	--	Not Used
C12	0.35 OG	228	Windshield Washer Pump Control
D1	0.35 RD/BK	142	Battery Positive Voltage
D2	--	--	Not Available
D3	--	--	Not Used
D4	0.35 RD/WH	840	Battery Positive Voltage
D5	--	--	Not Used
D6	0.35 PK	739	Ignition 1 Voltage
D6	0.35 PK	739	Ignition 1 Voltage (Panel Van)
D7	0.35 PK	1339	SDM Ignition 1 Supply Voltage
D7	0.35 PK	1339	PPS Ignition 1 Supply Voltage (without ASF)
D8-D9	--	--	Not Used
D10	3.0 RD/BK	442	Battery Positive Voltage
D11	2.0 RD/WH	640	Battery Positive Voltage (UQ3)
D12	3.0 RD/BK	242	Battery Positive Voltage

Body Control Module (BCM) X4

Connector Part Information

OEM: 15492668
Service: 88988776
Description: 68-Way F Micro-64 Unsealed (L-GY)

Terminal Part Information

Pins: E12
Terminal/Tray: 12110842/4
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: D4, D10
Terminal/Tray: 12110842/4
Core/Insulation Crimp: Pins D4 - F/G
Core/Insulation Crimp: Pins D10 - See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: B1, B2, C2, C8, C11, C12, D1, D3, E6, F1, F3, F9, F9, C1, E1, F4-F6
Terminal/Tray: 12110844/4
Core/Insulation Crimp: Pins B1, B2, C2 C8, C11, C12, D1, D3, E6, F1, F3, F9 - E/C
Core/Insulation Crimp: Pins A2, C1, E1, F4-F6 - E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Body Control Module (BCM) X4

Pin	Wire	Circuit	Function
A1	--	--	Not Used
A2	0.35 GY	157	Courtesy Lamp Control
A3-A12	--	--	Not Used
B1	0.35 OG	228	Windshield Washer Pump Control
B2	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
B2	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
B3-B12	--	--	Not Used
C1	0.35 RD/WH	1440	Battery Positive Voltage
C2	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
C3-C5	--	--	Not Used
C6-C7	--	--	Not Available
C8	0.35 BN	4	Accessory Voltage (MN5)
	0.35 BN	4	Accessory Voltage (-MN5)
	0.35 BN	4	Accessory Voltage (-MN5)
C9-C10	--	--	Not Used
C11	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
C11	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
C12	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
D1	0.35 RD/WH	1040	Battery Positive Voltage
D2	--	--	Not Used
D3	0.35 YE	5199	Run/Crank Relay Coil Control
D4	0.35 BN	141	Run Ignition 3 Voltage
D5	--	--	Not Used
D6-D7	--	--	Not Available
D8-D9	--	--	Not Used
D10	0.35 RD/WH	1140	Battery Positive Voltage
D10	0.35 RD/WH	1140	Battery Positive Voltage
D11-D12	--	--	Not Used
E1	0.35 RD/WH	140	Battery Positive Voltage
E2-E5	--	--	Not Used
E6	0.35 PK	439	Ignition 1 Voltage
E7-E11	--	--	Not Used
E12	0.35 BK	550	Ground
F1	0.35 RD/WH	1540	Battery Positive Voltage
F1	0.35 RD/WH	1540	Battery Positive Voltage
F2	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal (JL4/JL9)
F3	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
F3	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal (T37)
F4	0.5 PK	339	HVAC Ignition 1 Voltage
F5	0.35 PK	339	Ignition 1 Voltage
F6	0.35 PK	339	Ignition 1 Voltage
F6	0.35 PK	339	Ignition 1 Voltage (MU3)
F7-F8	--	--	Not Used
F9	0.35 PK	1539	Ignition 1 Voltage
F9	0.35 PK	1539	Ignition 1 Voltage
F10-F12	--	--	Not Used

Brake Booster Vacuum Sensor (LNF)

Connector Part Information

OEM: 1928403966
Service: 88988583
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Brake Booster Vacuum Sensor (LNF)

Pin	Wire	Circuit	Function
1	0.5 L-GN	6257	5-Volt Reference
2	0.5 L-GN/BK	6258	Low Reference
3	0.5 D-BU	1809	Brake Booster Vacuum Signal

Brake Fluid Level Switch

Connector Part Information

OEM: 15449028
Service: 88987978
Description: 2-Way F 150 GT Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Brake Fluid Level Switch

Pin	Wire	Circuit	Function
A	0.35 PK	849	Brake Fluid Level Sensor Signal
B	0.35 BK/WH	1251	Ground

Brake Pedal Position (BPP) Sensor

Connector Part Information

OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Brake Pedal Position (BPP) Sensor

Pin	Wire	Circuit	Function
A	0.35 BN	5360	Low Reference
B	0.35 YE	5361	BPP Sensor Signal
C	0.35 WH	5359	Reference Voltage

Camshaft Position (CMP) Actuator Solenoid - Exhaust

Connector Part Information

OEM: 15336004
Service: 15306187
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Actuator Solenoid - Exhaust

Pin	Wire	Circuit	Function
A	0.35 WH/BK	6396	CMP Actuator Solenoid Control Exhaust (L61/LE5)
A	0.35 PK/BK	5293	Powertrain Main Relay Fused Supply (LNF)
B	0.35 L-GN	5282	Low Reference

Camshaft Position (CMP) Actuator Solenoid - Intake

Connector Part Information

OEM: 15335987
Service: 15306430
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Actuator Solenoid - Intake

Pin	Wire	Circuit	Function
A	0.5 PK/BK	6395	CMP Actuator Solenoid Control Intake (L61/LE5)
A	0.5 PK/BK	5293	Powertrain Main Relay Fused Supply (LNF)
B	0.5 PU	5284	Low Reference

Camshaft Position (CMP) Sensor - Exhaust

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Sensor - Exhaust

Pin	Wire	Circuit	Function
A	0.35 YE/BK	5297	5-Volt Reference (L61/LE5)
A	0.35 GY	705	5-Volt Reference 2 (LNF)
B	0.35 GY	5296	Low Reference (L61/LE5)
B	0.35 TN	552	Low Reference (LNF)
C	0.35 D-GN	5273	CMP Sensor Signal

Camshaft Position (CMP) Sensor - Intake

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Sensor - Intake

Pin	Wire	Circuit	Function
A	0.5 D-BU	5300	5-Volt Reference (L61/LE5)
A	0.5 GY	705	5-Volt Reference 2 (LNF)
B	0.5 TN	5301	Low Reference (L61/LE5)
B	0.5 TN	552	Low Reference (LNF)
C	0.5 OG	5275	CMP Sensor Signal

Cellular Microphone (UE1)

Connector Part Information

OEM: 12047663
Service: 12085481
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Cellular Microphone (UE1)

Pin	Wire	Circuit	Function
A	0.35 BN	1489	Drain Wire
B	0.35 GY	655	Cellular Microphone Signal

Center High Mounted Stop Lamps (CHMSL) -- X1

Connector Part Information

OEM: 15332129
Service: 15306425
Description: 2-Way Socket Sealed (GY)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Center High Mounted Stop Lamps (CHMSL) -- X1

Pin	Wire	Circuit	Function
A	0.35 RD	20	Stop Lamp Supply Voltage
A	0.35 RD	20	Stop Lamp Supply Voltage
B	0.35 BK/WH	850	Ground
B	0.35 BK/WH	850	Ground

Center High Mounted Stop Lamps (CHMSL) -- X2

Connector Part Information

OEM: 15332129
Service: 15306425
Description: 2-Way Socket Sealed (GY)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Center High Mounted Stop Lamps (CHMSL) -- X2

Pin	Wire	Circuit	Function
A	0.35 RD	20	Stop Lamp Supply Voltage
A	0.35 RD	20	Stop Lamp Supply Voltage
B	0.35 BK/WH	850	Ground
B	0.35 BK/WH	850	Ground

Center High Mounted Stop Lamps (CHMSL) -- X3

Connector Part Information

OEM: 15332129
Service: 15306425
Description: 2-Way Socket Sealed (GY)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Center High Mounted Stop Lamps (CHMSL) -- X3

Pin	Wire	Circuit	Function
A	0.35 RD	20	Stop Lamp Supply Voltage
A	0.35 RD	20	Stop Lamp Supply Voltage
B	0.35 BK/WH	850	Ground
B	0.35 BK/WH	850	Ground

Center High Mounted Stop Lamps (CHMSL) -- X4

Connector Part Information

OEM: 15332129
Service: 15306425
Description: 2-Way Socket Sealed (GY)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Center High Mounted Stop Lamps (CHMSL) -- X4

Pin	Wire	Circuit	Function
A	0.35 RD	20	Stop Lamp Supply Voltage
B	0.35 BK/WH	850	Ground

Cigar Lighter (DT4)/Auxillary Power Outlet (without DT4)

Connector Part Information

OEM: 12176836
Service: 15305923
Description: 3-Way F Metri-Pack 280 Series (GY)

Terminal Part Information

Terminal/Tray: 12110844/4
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Cigar Lighter (DT4)/Power Outlet (without DT4)

Pin	Wire	Circuit	Function
A	0.35 RD/WH	40	Battery Positive Voltage
B	--	--	Not Used
C	0.35 BK	550	Ground

Clutch Pedal Position (CPP) Sensor (MU3)

Connector Part Information

OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Clutch Pedal Position (CPP) Sensor (MU3)

Pin	Wire	Circuit	Function
A	0.5 OG/D-GN	7360	Low Reference
B	0.5 L-GN	6338	Clutch Position Sensor Signal
C	0.5 D-BU/WH	7361	5-Volt Reference

Console Flood Lamp

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Console Flood Lamp

Pin	Wire	Circuit	Function
A	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
B	0.35 BK	750	Ground

Crankshaft Position (CKP) Sensor

Connector Part Information

OEM: 31403-3710
Service: 88988337
Description: 3-Way F Mixed 64 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Crankshaft Position (CKP) Sensor

Pin	Wire	Circuit	Function
1	0.5 L-GN	2867	5-Volt Reference
2	0.5 PU	574	Low Reference
3	0.5 YE	573	Crankshaft Position Sensor Signal

Data Link Connector (DLC)

Connector Part Information

OEM: 12110250
Service: See Catalog
Description: 16-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12129484/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Data Link Connector (DLC)

Pin	Wire	Circuit	Function
1	0.35 D-GN/YE	5060	Low Speed GMLAN Serial Data
2-3	--	--	Not Used
4	0.35 BK	550	Ground
5	0.35 BK/WH	651	Signal Ground
6	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
7-13	--	--	Not Used
14	0.35 TN	2501	High Speed GMLAN Serial Data Bus (-)
15	--	--	Not Used
16	0.35 RD/WH	40	Battery Positive Voltage

Digital Radio Receiver (U2K)

Connector Part Information

OEM: 15394150
Service: 15394150
Description: 16-Way F Micro-Pack 64 Unsealed (BK)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Digital Radio Receiver (U2K)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 BN/WH	367	Left Audio Signal (+)
3	0.35 D-GN/WH	368	Radio Right Audio Signal (+)
4	--	--	Not Used
5	0.35 D-GN	5060	Low Speed GMLAN Serial Data
6	0.35 RD/WH	1340	Battery Positive Voltage
7-8	--	--	Not Used
9	0.35 BK/WH	851	Ground
10	0.35 TN/WH	372	Audio Common
11	0.35 BN	814	Drain Wire
12-15	--	--	Not Used
16	0.35 RD/WH	1340	Battery Positive Voltage

Dome Lamp

Connector Part Information

OEM: 12045813
Service: 12101889
Description: 4-Way F Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Dome Lamp

Pin	Wire	Circuit	Function
A	0.35 BK	750	Ground
B	0.35 GY	157	Interior Lamp Control
C	--	--	Not Used
D	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage

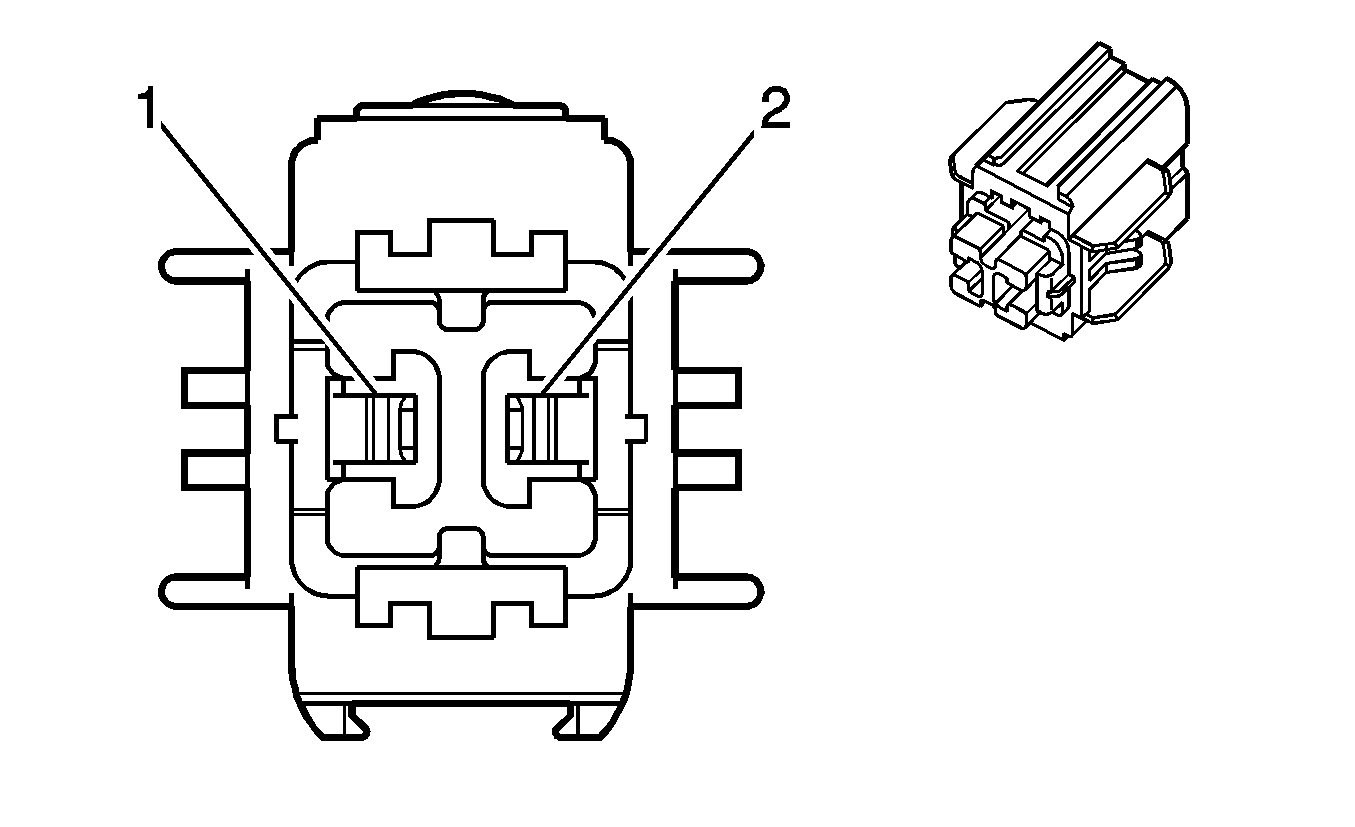

Door Jamb Switch - Left Front

Connector Part Information

OEM: 15449028
Service: 88987978
Description: 2-Way F 150 GT Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Door Jamb Switch - Left Front

Pin	Wire	Circuit	Function
A	0.35 GY/BK	745	Left Front Door Ajar Switch Signal
B	0.35 BK/WH	1251	Ground

Door Jamb Switch - Left Rear (without Panel Van)

Connector Part Information

OEM: 15449028
Service: 88987978
Description: 2-Way F 150 GT Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Door Jamb Switch - Left Rear (without Panel Van)

Pin	Wire	Circuit	Function
A	0.35 L-BU/BK	747	Left Rear Door Ajar Switch Signal
B	0.35 BK/WH	1251	Ground

Door Jamb Switch - Right Front

Connector Part Information

OEM: 15449028
Service: 88987978
Description: 2-Way F 150 GT Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Door Jamb Switch - Right Front

Pin	Wire	Circuit	Function
A	0.35 TN/WH	746	Right Front Door Ajar Switch Signal
B	0.35 BK/WH	1551	Ground

Door Jamb Switch - Right Rear (without Panel Van)

Connector Part Information

OEM: 15449028
Service: 88987978
Description: 2-Way F 150 GT Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Door Jamb Switch - Right Rear (without Panel Van)

Pin	Wire	Circuit	Function
A	0.35 L-GN/BK	748	Right Rear Door Ajar Switch Signal
B	0.35 BK/WH	1551	Ground

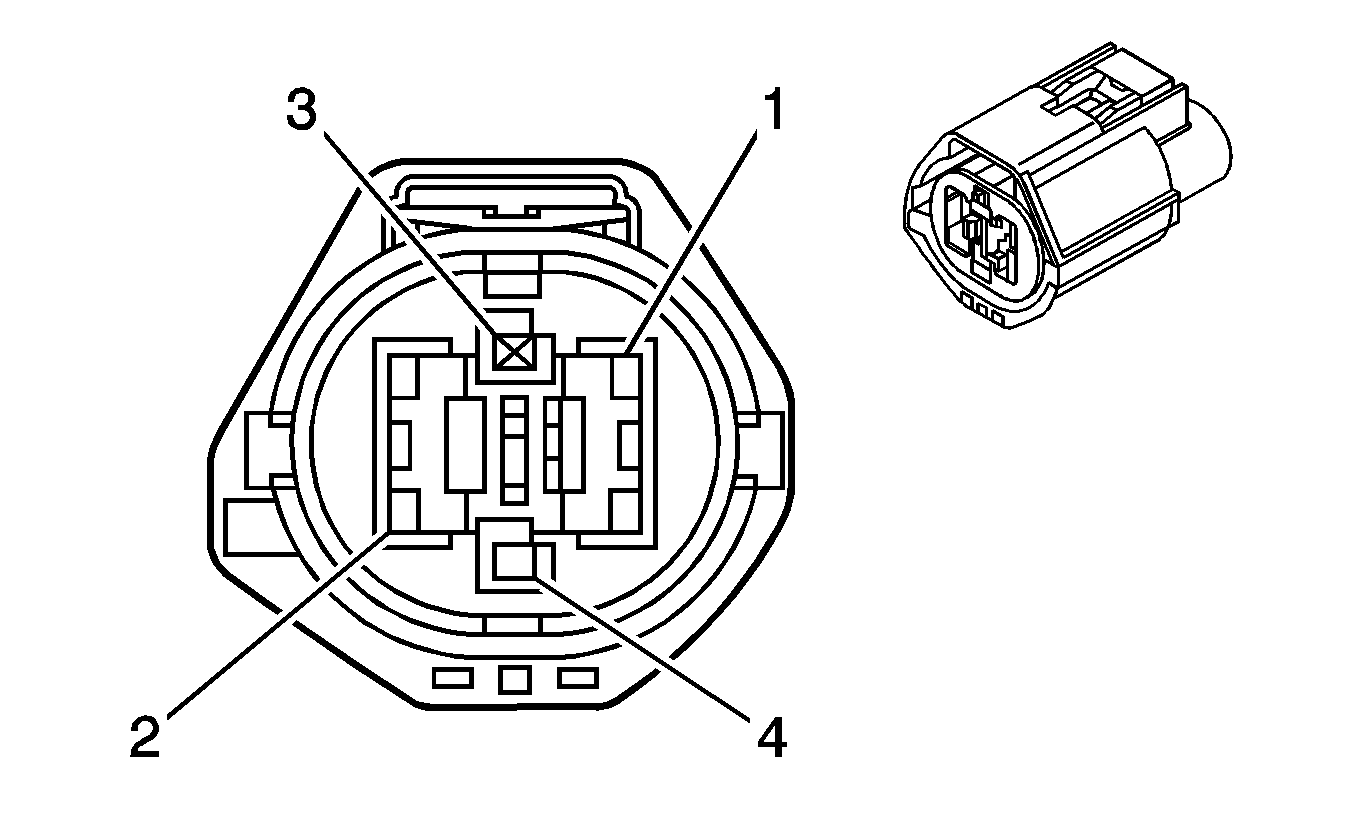

Door Latch - Driver

Connector Part Information

OEM: 15398831
Service: 89046629
Description: 4-Way F Timer Micro 3 Sealed (BK)

Terminal Part Information

Terminal/Tray: 964274-2/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Door Latch - Driver

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 TN	694	Driver Door Lock Actuator Unlock Control
3	0.35 GY	295	Door Lock Actuator Lock Control
4	--	--	Not Used

Door Latch - Left Rear (without Panel Van)

Connector Part Information

OEM: 15398831
Service: 89046629
Description: 4-Way F Timer Micro 3 Sealed (BK)

Terminal Part Information

Terminal/Tray: 964274-2/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Door Latch - Left Rear (without Panel Van)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 TN	294	Door Lock Actuator Unlock Control
3	0.35 GY	295	Door Lock Actuator Lock Control
4	--	--	Not Used

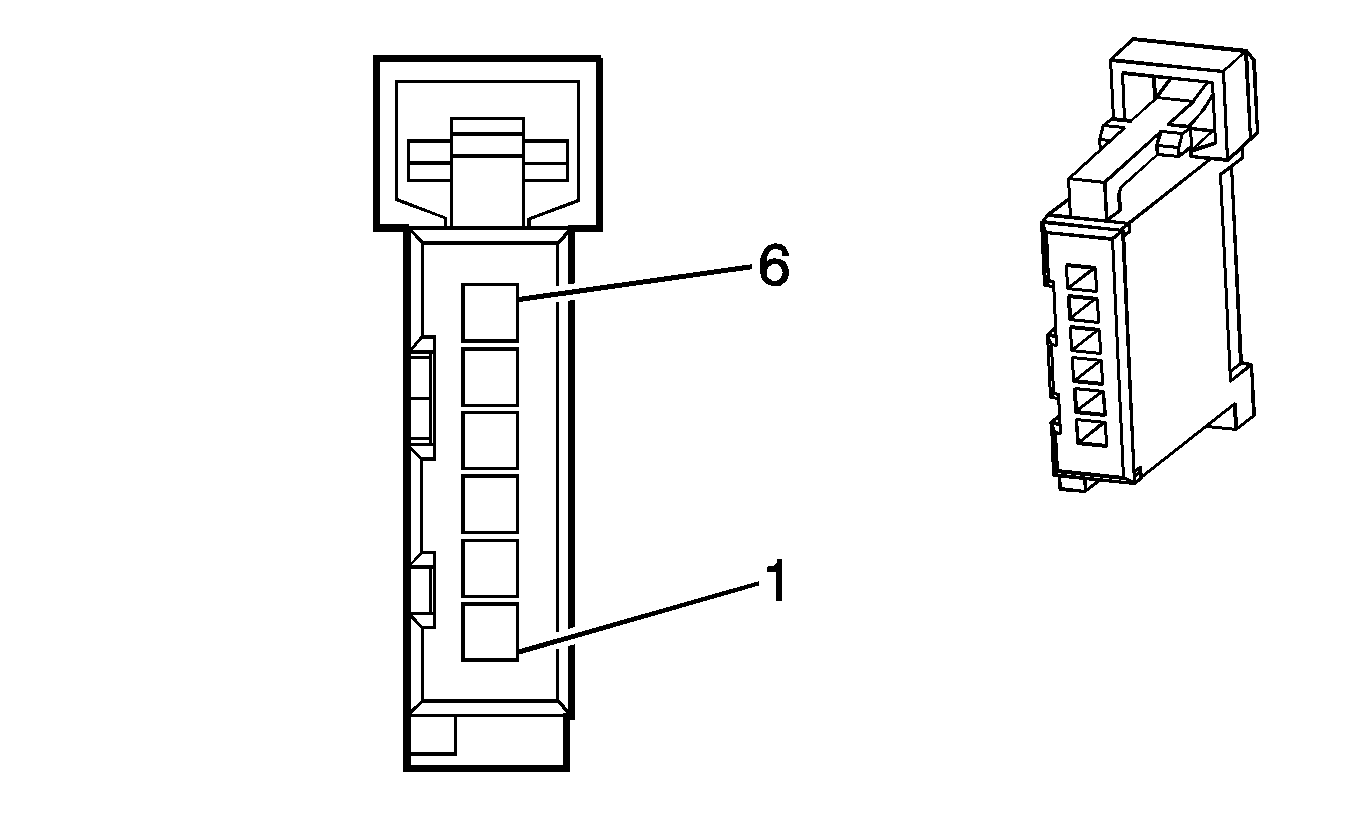

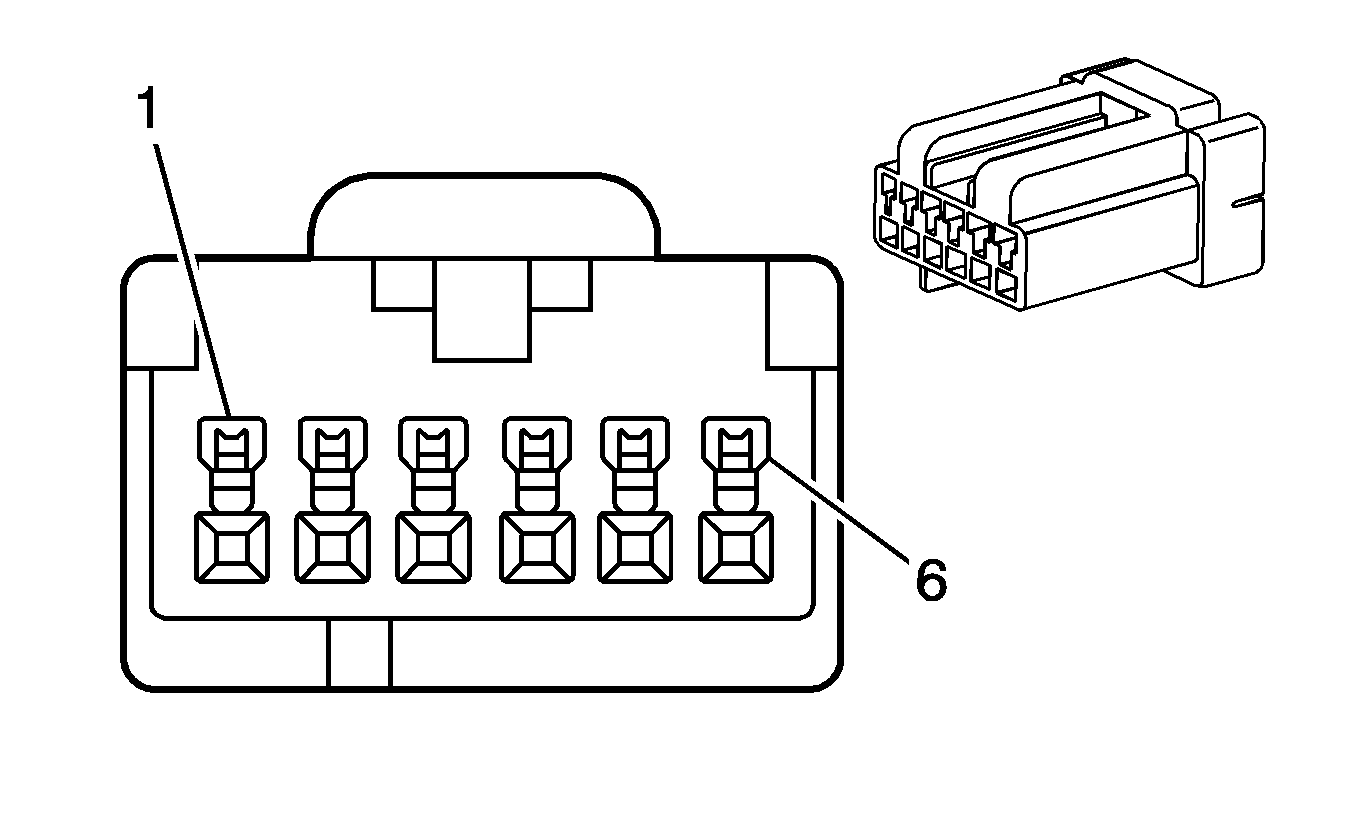

Door Latch - Liftgate

Connector Part Information

OEM: 15476199
Service: 88988358
Description: 6-Way F GT 150 Series Sealed (GN)

Terminal Part Information

Terminal/Tray: 15304719/19
Core/Insulation Crimp: Pins 1 - 2/5
Core/Insulation Crimp: Pins 3, 5, 6 - E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Door Latch - Liftgate

Pin	Wire	Circuit	Function
1	0.35 TN/WH	56	Rear Compartment Lid Release Actuator
2	--	--	Not Used
3	0.35 BK	850	Ground
4	--	--	Not Used
5	0.35 BK	850	Ground
6	0.35 PK/BK	1303	Liftgate Ajar Switch Signal (1)

Door Latch - Passenger

Connector Part Information

OEM: 15398831
Service: 89046629
Description: 4-Way F Timer Micro 3 Sealed (BK)

Terminal Part Information

Terminal/Tray: 964274-2/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Door Latch - Passenger

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 TN	294	Door Lock Actuator Unlock Control
3	0.35 GY	295	Door Lock Actuator Lock Control
4	--	--	Not Used

Door Latch - Right Rear (without Panel Van)

Connector Part Information

OEM: 15398831
Service: 89046629
Description: 4-Way F Timer Micro 3 Sealed (BK)

Terminal Part Information

Terminal/Tray: 964274-2/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Door Latch - Right Rear (without Panel Van)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 TN	294	Door Lock Actuator Unlock Control
3	0.35 GY	295	Door Lock Actuator Lock Control
4	--	--	Not Used

Door Lock Switch - Driver

Connector Part Information

OEM: 12064998
Service: 15306189
Description: 8-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: 12034046/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Door Lock Switch - Driver

Pin	Wire	Circuit	Function
A	0.35 WH	682	Door Lock Lock/Unlock Signal
B-D	--	--	Not Used
E	0.35 BK/WH	1251	Ground
F	0.35 BK/WH	1251	Ground
G	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
H	--	--	Not Used

Door Lock Switch - Passenger

Connector Part Information

OEM: 12064998
Service: 15306189
Description: 8-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: 12034046/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Door Lock Switch - Passenger

Pin	Wire	Circuit	Function
A	0.35 WH	682	Door Lock Lock/Unlock Signal
B-D	--	--	Not Used
E	0.35 BK/WH	1551	Ground
F	0.35 BK/WH	1551	Ground
G	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
H	--	--	Not Used

Driver Rear Access Panel Switch - Left Rear Panel (Panel Van)

Connector Part Information

OEM: 12047785
Service: 12102900
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Driver Rear Access Panel Switch - Left Rear Panel (Panel Van)

Pin	Wire	Circuit	Function
A	0.35 BK/WH	1251	Ground
B	--	--	Not Used
C	0.35 L-BU/BK	6656	Rear Access Panel Release Switch Signal - Left Rear
D	0.35 BK/WH	8	Instrument Panel Lamps Dimmer Switch Signal

Driver Rear Access Panel Switch - Right Rear Panel (Panel Van)

Connector Part Information

OEM: 15419483
Service: 89046742
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Driver Rear Access Panel Switch - Right Rear Panel (Panel Van)

Pin	Wire	Circuit	Function
A	0.35 BK/WH	1251	Ground
B	--	--	Not Used
C	0.35 TN/BK	6658	Rear Access Panel Release Switch Signal - Right Rear
D	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal

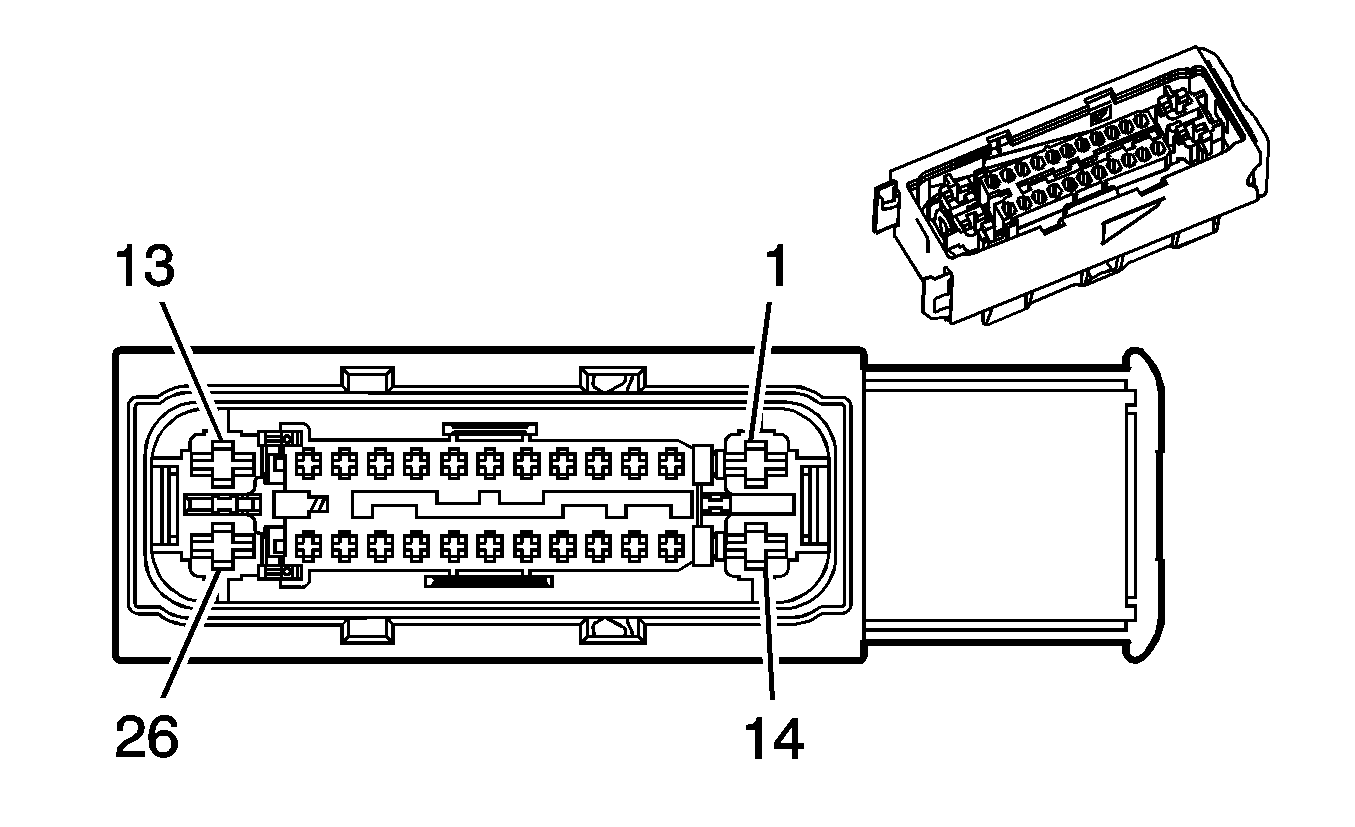

Electronic Brake Control Module (EBCM) (JM4)

Connector Part Information

OEM: C-1452643
Service: 88988362
Description: 26-Way F Sealed (BK)

Terminal Part Information

Pins: 1
Terminal/Tray: 2-927835-2/7
Core/Insulation Crimp: A/3
Release Tool/Test Probe: 12093647/J-35616-40 (BU)

Pins: 2-6, 8, 9, 11, 12, 20-24
Terminal/Tray: 4-969005-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Pins: 14, 26
Terminal/Tray: 2-968037-4/7
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12093647/J-35616-40 (BU)

Electronic Brake Control Module (EBCM) (JM4)

Pin	Wire	Circuit	Function
1	2 RD/WH	740	Battery Positive Voltage
2	0.8 OG	885	Left Rear Wheel Speed Sensor Low Reference
3	0.8 TN	884	Left Rear Wheel Speed Sensor Signal
4	0.35 L-BU	20	Stop Lamp Supply Voltage
5	0.8 D-GN	872	Right Front Wheel Speed Sensor Signal
6	0.8 TN	833	Right Front Wheel Speed Sensor Low Reference
7	--	--	Not Used
8	0.5 YE	873	Left Front Wheel Speed Sensor Low Reference
9	0.5 L-BU	830	Left Front Wheel Speed Sensor Signal
10	--	--	Not Used
11	0.5 BN	882	Right Rear Wheel Speed Sensor Signal
12	0.5 WH	883	Right Rear Wheel Speed Sensor Low Reference
13	--	--	Not Used
14	3 RD/BK	542	Battery Positive Voltage
15-19	--	--	Not Used
20	0.5 PK	1439	Ignition 1 Voltage
21	0.35 TN	2501	High Speed GMLAN Serial Data (-)
22	0.35 TN	2501	High Speed GMLAN Serial Data (-)
23	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+)
24	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+)
25	--	--	Not Used
26	3.0 BK	350	Ground

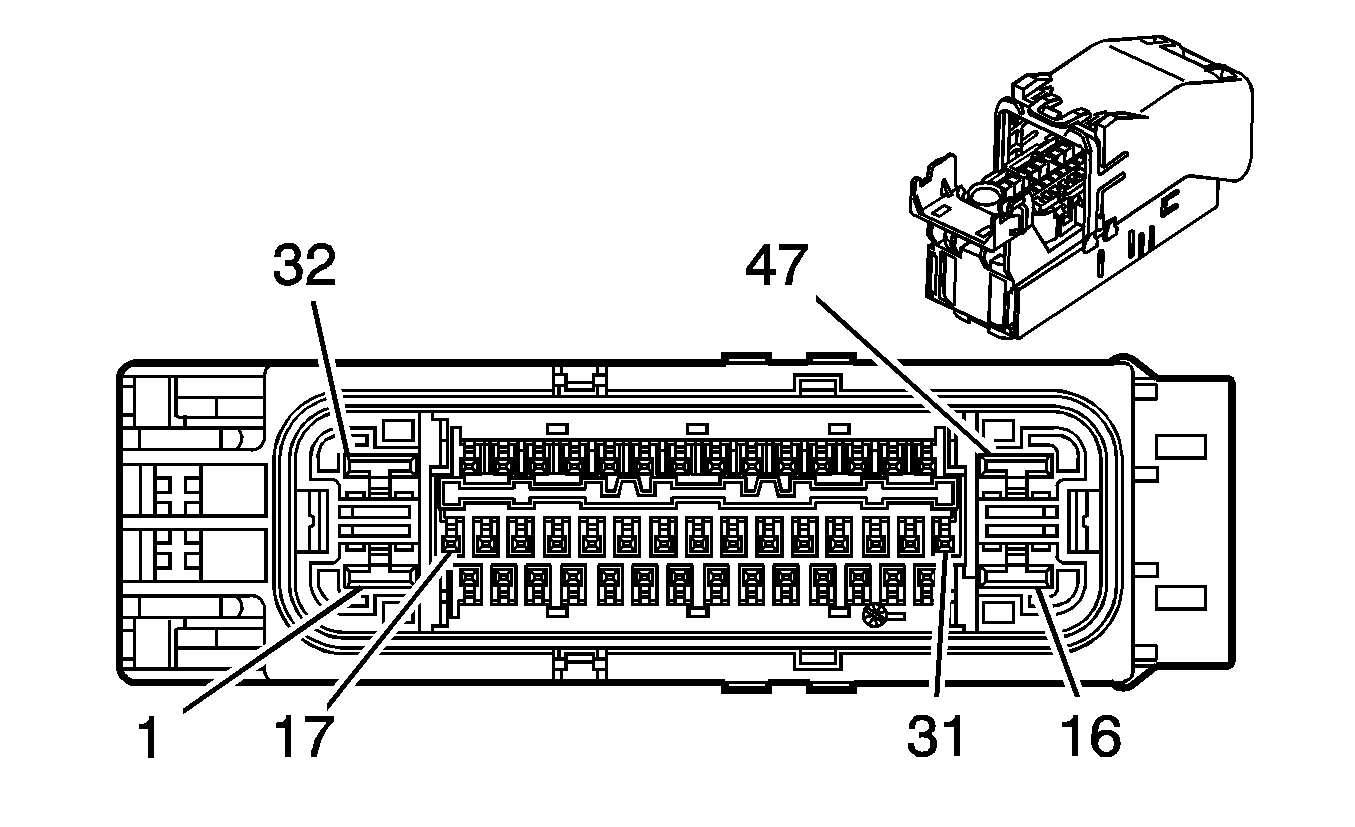

Electronic Brake Control Module (EBCM) (JL4/JL9)

Connector Part Information

OEM: 1355628-2
Service: See Catalog
Description: 47-Way F MK25/60 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Electronic Brake Control Module (EBCM) (JL4/JL9)

Pin	Wire	Circuit	Function
1	3 RD/BK	542	Battery Positive Voltage
2-4	--	--	Not Used
5	0.35 GY	1056	Steering Wheel Position Sensor 5-Volt Reference Voltage (JL4)
6-7	--	--	Not Used
8	0.5 PK	1439	Ignition 1 Voltage
9-10	--	--	Not Used
11	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus+
12	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus+
13	0.35 TN	2501	High Speed GMLAN Serial Data Bus-
14	0.35 TN	2501	High Speed GMLAN Serial Data Bus-
15	--	--	Not Used
16	3.0 BK	350	Ground
17	--	--	Not Used
18	0.5 PK/BK	6434	CAN Bus High 2 Serial Data
19	0.5 GY/BK	6435	CAN Bus Low 2 Serial Data
20-21	--	--	Not Used
22	0.5 D-GN	2087	Steering Wheel Position Sensor 5-Volt Reference
23-25	--	--	Not Used
26	0.5 L-GN	6257	Brake Booster Vacuum Sensor Reference Voltage
27	0.5 L-GN/BK	6258	Brake Booster Vacuum Sensor Low Reference
28	--	--	Not used
29	0.5 L-BU	2088	Steering Wheel Position Sensor Low Reference
30-31	--	--	Not Used
32	3.0 RD/WH	740	Battery Positive Voltage
33	0.5 TN	833	Right Front Wheel Speed Sensor Low Reference
34	0.5 D-GN	872	Right Front Wheel Speed Sensor Signal
35	--	--	Not Used
36	0.5 TN	884	Left Rear Wheel Speed Sensor Signal
37	0.5 OG	885	Left Rear Wheel Speed Sensor Low Reference
38-39	--	--	Not Used
40	0.35 OG/BK	556	Steering Wheel Position Sensor Low Reference (JL4 without JL9)
41	0.5 D-BU	1809	Brake Booster Vacuum Sensor Signal
42	0.5 WH	883	Right Rear Wheel Speed Sensor Low Reference
43	0.5 BN	882	Right Rear Wheel Speed Sensor Signal
44	--	--	Not Used
45	0.5 L-BU	830	Left Front Wheel Speed Sensor Signal
46	0.5 YE	873	Left Front Wheel Speed Sensor Low Reference
47	--	--	Not Used

Engine Control Module (ECM) X1 (L61/LE5)

Connector Part Information

OEM: 34566-1319
Service: 88988639
Description: 73-Way F MX 123 Series (BK)

Terminal Part Information

Pins 1-72
Terminal/Tray: 33467-0003/ 23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pins 73
Terminal/Tray: 7116-4151-02/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Engine Control Module (ECM) X1 (L61/LE5)

Pin	Wire	Circuit	Function
1	0.35 D-BU	1161	APP Sensor 1 Signal
2	--	--	Not Used
3	0.35 BN	4	Accessory Voltage
4	--	--	Not Used
5	0.35 D-GN	335	Low Speed Cooling Fan Relay Control
6	0.35 L-GN/WH	465	Fuel Pump Relay Control (-Primary)
7-10	--	--	Not Used
11	0.35 OG/D-GN	7360	Manual Transmission Clutch Position Sensor Return
12	--	--	Not Used
13	0.35 BN	5991	Powertrain Relay Control
14-17	--	--	Not Used
18	0.35 L-BU	1162	APP Sensor 2 Signal
19	0.5 PK/BK	1039	Ignition 1 Voltage
20	0.5 RD/WH	840	Battery Positive Voltage
21	0.35 PU	1272	Low Reference
22-23	--	--	Not Used
24	0.5 TN	2759	Low Reference
25	0.35 OG/BK	380	A/C Refrigerant Pressure Sensor Signal
26	--	--	Not Used
27	0.35 BN/WH	419	MIL Control
28-29	--	--	Not Used
30	0.35 D-GN/WH	459	A/C Compressor Clutch Relay Control
31	--	--	Not Used
32	0.35 PU/WH	6386	Starter Enable Relay Control
33	--	--	Not Used
34	0.35 PU/WH	6356	VSS Signal Low
35-36	--	--	Not Used
37	0.35 YE	492	Mass Air Flow Sensor Signal
38	--	--	Not Used
39	0.35 PU	1589	Fuel Level Sensor Signal (+Primary)
40	--	--	Not Used
41	0.35 BN	1271	Low Reference
42	0.35 D-GN	890	Fuel Tank Pressure Sensor Signal
43	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+)
44	0.35 TN	2501	High Speed GMLAN Serial Data (-)
45	0.5 D-BU/WH	7361	Manual Transmission Clutch Position Sensor Supply
46	--	--	Not Used
47	0.35 WH/BK	1164	5-Volt Reference -1 to APP Sensor
48-53	--	--	Not Used
54	0.35 BN/WH	6354	VSS Signal High
55	0.35 L-BU	20	Stop Lamp Supply Voltage
56	--	--	Not Used
57	0.35 D-GN	6307	Clutch Start Neutral Start Signal
58	0.35 L-BU	6289	Intake Air Temperature Sensor Signal
59-60	--	--	Not Used
61	0.35 L-GN	6338	Manual Transmission Clutch Position Sensor Signal Position
62-65	--	--	Not Used
66	0.5 GY	2709	5-Volt Reference -1 to FTP Sensor
67	0.35 TN	1274	5-Volt Reference -1 to APP Sensor
68-69	--	--	Not Used
70	0.5 WH	1310	EVAP Canister Vent Solenoid Control
71-72	--	--	Not Used
73	0.8 PK/BK	6341	Powertrain Relay Contact Signal

Engine Control Module (ECM) X1 (LNF)

Connector Part Information

OEM: 1 928 401 713
Service: 88988373
Description: 96-Way Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Engine Control Module (ECM) X1 (LNF)

Pin	Wire	Circuit	Function
1	1.0 L-GN	5282	Camshaft Phaser Exhaust Solenoid Control
2	0.5 PU	5284	Camshaft Phaser Intake Solenoid Control
3-4	--	--	Not Used
5	1.0 YE	7301	High Pressure Fuel Pump Actuator High Control
6	0.5 D-GN/WH	428	EVAP Canister Purge Solenoid Control
7	0.5 OG	5275	Camshaft Position Intake Sensor Signal
8-9	--	--	Not Used
10	0.35 OG	225	Generator Turn On Signal
11-12	--	--	Not Used
13	0.35 BN/WH	2130	Low Reference
14	--	--	Not Used
15	0.35 GY	705	5-Volt Reference 2
16	0.5 D-GN	6391	Turbo Bypass Valve Control
17	0.5 TN/BK	231	Oil Pressure Switch Signal
18	0.5 YE	258	Wastegate Solenoid Control
19-23	--	--	Not Used
24	0.8 YE	581	TAC Motor Control - 1
25	--	--	Not Used
26	1.0 L-BU	4804	Direct Fuel Injector (DFI) High Voltage Control Cylinder 4
27	1.0 L-BU/WH	4904	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4
28	1.0 D-BU	4802	Direct Fuel Injector (DFI) High Voltage Control Cylinder 2
29	1.0 D-BU/WH	4902	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2
30	0.35 GY	23	Generator Field Duty Cycle Signal
31-33	--	--	Not Used
34	0.35 D-GN	5273	Camshaft Position Exhaust Sensor Signal
35	0.5 YE	573	CKP Sensor Signal
36	0.35 YE	2918	FRP Sensor Signal
37	0.5 L-GN	432	MAP Sensor Signal
38	0.35 GY	598	5-Volt Reference 1
39	0.35 GY	2701	5-Volt Reference 3
40	0.5 TN	407	Intake Air Pressure and Temperature Sensor 5V Reference
41	0.35 TN	552	Low Reference
42	0.35 TN	808	Low Reference
43	0.5 GY	597	Low Reference
44	0.5 TN	2761	Low Reference
45	0.5 L-GN	2867	5-Volt Reference 3
46	0.5 PU	574	Low Reference
47	--	--	Not Used
48	0.8 BN	582	TAC Motor Control 2
49-50	--	--	Not Used
51	1.0 BN	4801	Direct Fuel Injector (DFI) High Voltage Control Cylinder 1
52	1.0 D-GN	4803	Direct Fuel Injector (DFI) High Voltage Control Cylinder 3
53	1.0 D-GN/WH	4903	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3
54	0.35 BN/WH	419	MIL Control
55	0.35 PU	2121	IC 1 Control
56	0.35 D-GN/WH	2124	IC 4 Control
57-58	--	--	Not Used
59	0.5 D-BU	496	KS 1 Signal
60	0.5 GY	2303	KS 2 Signal
61-63	--	--	Not Used
64	0.5 OG/BK	469	Low Reference
65	--	--	Not Used
66	0.35 PU	7330	Pre-Throttle Air Temp and Press (TMAP) Air Pressure Signal
67	0.5 TN/WH	3111	Heated Oxygen Sensor Low Signal Sensor 1
68	0.5 WH	5279	Heated Oxygen Sensor Pump Current Sensor 1
69-72	--	--	Not Used
73	1.0 PU	7300	High Pressure Fuel Pump Actuator Low Control
74	--	--	Not Used
75	1.0 BN/WH	4901	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1
76-77	--	--	Not Used
78	0.35 BN	2129	Low Reference
79	0.35 L-BU	2123	IC 3 Control
80	0.35 OG/WH	2122	IC 2 Control
81	--	--	Not Used
82	0.5 YE	410	ECT Sensor Signal
83	0.5 GY	1716	KS 1 Signal
84	0.5 L-BU	1876	KS 2 Signal
85	--	--	Not Used
86	0.35 L-BU	7329	Pre-Throttle Air Temp and Press (TMAP) Temperature Signal
87	--	--	Not Used
88	0.35 TN	2752	Low Reference
89	0.35 PU	486	TP Sensor 2 Signal
90	0.35 D-GN	485	TP Sensor 1 Signal
91	0.5 L-GN	5278	Heated Oxygen Sensor Input Pump Current Sensor 1
92	0.5 PU/WH	3110	Heated Oxygen Sensor High Signal Sensor 1
93-94	--	--	Not Used
95	0.5 GY	597	5-Volt Reference 1
96	0.5 GY	2704	5 Volt Reference 1

Engine Control Module (ECM) X2 (L61/LE5)

Connector Part Information

OEM: 34566-0203
Service: 88988372
Description: 73-Way F 64 2.8 Series, Sealed (BK)

Terminal Part Information

Pins 9, 13 22-24, 26, 31, 39, 40, 42, 43, 49-51, 53, 57, 59 (.035)
Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pins 4-8, 10, 14-16, 20, 21, 30, 32-38, 41, 45-48, 54, 58, 60-68 (0.5)
Terminal/Tray: 33467-0005/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pin 73
Terminal/Tray: 7116-4152-02/9
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Engine Control Module (ECM) X2 (L61/LE5)

Pin	Wire	Circuit	Function
1-3	--	--	Not Used
4	0.5 TN	2761	Low Reference
5	0.5 PU	574	Low Reference
6	0.5 TN	1744	Fuel Injector 1 Control
7	0.5 PK/BK	1746	Fuel Injector 3 Control
8	0.5 L-BU/BK	844	Fuel Injector 4 Control
9	0.35 BN	2129	Low Reference
10	0.5 L-GN/BK	1745	Fuel Injector 2 Control
11-12	--	--	Not Used
13	0.35 GY/WH	2704	5-Volt Reference -1
14	0.5 L-GN	5282	Exhaust Cam Solenoid Control (LE5)
15	0.5 PU	5284	Intake Cam Solenoid Control (LE5)
16	0.5 YE	581	TAC Motor Control - 1
17-19	--	--	Not Used
20	0.5 TN	5301	Camshaft Position Intake Sensor Low Reference
21	0.5 GY	5296	Camshaft Position Exhaust Sensor Low Reference (LE5)
22	0.35 PU	2121	IC 1 Control
23	0.35 L-BU	2123	IC 3 Control
24	0.35 D-GN/WH	2124	IC 4 Control
25	--	--	Not Used
26	0.35 OG/WH	2122	IC 2 Control
27-29	--	--	Not Used
30	0.5 D-GN/WH	428	EVAP Canister Purge Solenoid Control
31	0.35 OG	225	Generator Turn On Signal
32	0.5 BN	582	TAC Motor Control - 2
33	0.5 D-BU	5300	Camshaft Position Intake Sensor Reference Voltage - 1
34	0.5 YE/BK	5297	Camshaft Position Exhaust Sensor Reference Voltage -1 (LE5)
35	0.5 GY	6255	5-Volt Reference - 1
36	--	--	Not Used
37	0.5 PU/WH	3110	HO2S Reference Voltage (Bank 1 Sensor 1)
38	0.5 PU	3120	HO2S High Signal (Bank 1 Sensor 2)
39	0.35 L-GN	432	MAP Sensor Signal
40	0.35 TN	2752	Low Reference
41	0.5 PU/WH	6256	Low Reference
42	0.35 TN	2760	Low Reference
43	0.35 GY/WH	23	Generator Field Duty Cycle Signal
44	--	--	Not Used
45	0.5 YE	573	CKP Sensor 1 Signal
46	0.5 OG	5275	Camshaft Position Intake Sensor
47	0.5 D-GN	5273	Camshaft Position Exhaust Sensor (LE5)
48	0.5 TN/WH	3111	HO2S Low Reference (Bank 1 Sensor 1)
49	0.35 OG/BK	469	Low Reference
50	0.5 GY	1716	Knock Sensor Signal Return
51	0.5 D-BU	496	Knock Sensor Signal
52	--	--	Not Used
53	0.35 GY	2701	5-Volt Reference -2
54	0.5 L-GN	2867	5-Volt Reference -2
55-56	--	--	Not Used
57	0.35 D-GN	485	TP Sensor 1 Signal
58	0.5 YE	410	ECT Sensor Signal
59	0.35 PU	486	TP Sensor 2 Signal
60	0.5 BN	6753	Intake Cam Solenoid Return (LE5)
61	0.5 BN/WH	6754	Exhaust Cam Solenoid Return (LE5)
62-64	--	--	Not Used
65	0.5 GY/WH	3113	HO2S Heater Low Control - Bank 1 Sensor 1
66	0.5 GY/WH	3122	HO2S Heater Low Control - Bank 1 Sensor 2
67	0.5 TN/BK	231	Oil Pressure Switch Signal
68	0.5 TN/WH	3121	HO2S Heater Low Control - Bank 1 Sensor 1
69-72	--	--	Not Used
73	2.0 BK/WH	451	Signal Ground

Engine Control Module (ECM) X2 (LNF)

Connector Part Information

OEM: 1 928 404 916
Service: See Catalog
Description: 58-Way (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: Terminal Repair Kit
Release Tool/Test Probe: Terminal Repair Kit

Engine Control Module (ECM) X2 (LNF)

Pin	Wire	Circuit	Function
1	0.35 BK/WH	451	Ground
2	0.35 BK/WH	451	Ground
3	0.35 PK/BK	5290	Ignition 1 Voltage
4	0.35 BK/WH	451	Ground
5	0.35 PK/BK	5290	Ignition 1 Voltage
6	0.35 PK/BK	5290	Ignition 1 Voltage
7	0.5 GY/WH	3122	Heated Oxygen Sensor Heater Low Control Sensor 2
8	--	--	Not Used
9	0.5 TN	2759	Low Reference
10	0.35 D-GN/WH	465	Fuel Pump Relay Control
11	0.35 TN	5514	A/C Refrigerant Pressure Sensor Low Reference (C60)
12	0.35 YE	447	Starter Relay Coil Control
13	0.35 YE	492	MAF Sensor Signal
14	0.5 GY	2709	5-Volt Reference 1
15	0.35 D-BU	1161	APP Sensor 1 Signal
16	0.35 BN/WH	379	CPP Switch Signal (MA5)
17	0.35 OG/BK	1786	Transmission Park/Neutral Signal (M82)
18	0.35 L-GN	24	Backup Lamp Supply Voltage (M82)
19	0.35 WH	1310	EVAP Canister Vent Solenoid Control
20	0.35 BN	7448	Vacuum Assist Pump Relay Coil Control
21	--	--	Not Used
22	0.35 TN	2760	Low Reference
23	0.5 TN/WH	3121	Heated Oxygen Sensor Low Signal Sensor 2
24	--	--	Not Used
25	0.35 L-BU	1162	APP Sensor 2 Signal
26	--	--	Not Used
27	0.35 D-GN	890	Fuel Tank Pressure Sensor Signal
28	--	--	Not Used
29	0.35 D-BU	1809	Brake Booster Vacuum Sensor Signal
30	--	--	Not Used
31	0.35 D-BU	6306	Clutch Start Neutral Start Signal (MA5)
32-33	--	--	Not Used
34	0.35 BN	1271	Low Reference
35	0.35 GY	2700	5-Volt Reference 3 (C60)
36	0.35 PU	1589	Fuel Level Sensor Signal
37	--	--	Not Used
38	0.35 PU	3120	Heated Oxygen Sensor High Signal Sensor 2
39	0.35 OG/BK	380	A/C Refrigerant Pressure Sensor Signal (C60)
40	0.35 PU	401	OSS Low Signal (MA5)
41	0.35 BN	4	Accessory Voltage
42	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
43	--	--	Not Used
44	0.35 D-GN/WH	459	A/C Compressor Clutch Relay Control (C60)
45	--	--	Not Used
46	0.35 WH	2368	Cooling Fan Speed Control
47	0.35 PU	1272	Low Reference
48	0.35 TN	1274	5-Volt Reference 3
49	0.35 WH/BK	1164	5-Volt Reference 2
50	0.35 L-BU	6289	Induction Air Temperature Sensor Signal
51	--	--	Not Used
52	0.35 L-BU	20	Stop Lamp Supply Voltage (M82)
53	0.35 YE	400	OSS High Signal (MA5)
54	0.35 PK	1039	Ignition 1 Voltage
55	0.35 TN	2501	High Speed GMLAN Serial Data BUS (-)
56	0.5 RD/WH	840	Battery Positive Voltage
57	--	--	Not Used
58	0.35 YE	5991	Powertrain Relay Coil Control

Engine Coolant Temperature (ECT) Sensor

Connector Part Information

OEM: 15449028
Service: 88987978
Description: 2-Way F 150 GT Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Engine Coolant Temperature (ECT) Sensor

Pin	Wire	Circuit	Function
A	0.5 TN	2761	Low Reference
B	0.5 YE	410	Engine Coolant Temperature Sensor Signal

Engine Cooling Fan (L61/LE5)

Connector Part Information

OEM: 12033769
Service: 12101917
Description: 2-Way F Metri-Pack 630 Series, Sealed, Pull To Seat (BK)

Terminal Part Information

Terminal/Tray: 12033997/8
Core/Insulation Crimp: D/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Engine Cooling Fan (L61/LE5)

Pin	Wire	Circuit	Function
A	3 BK	1050	Ground
B	3 L-BU	409	Cooling Fan Motor Supply Voltage

Engine Cooling Fan Module X1 (LNF)

Connector Part Information

OEM: 12147067
Service: 89046640
Description: 4-Way F Mixed Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: Service as Assembly
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Engine Cooling Fan Module X1 (LNF)

Pin	Wire	Circuit	Function
A	BK	--	Ground
B	RD	--	Cooling Fan Motor Supply Voltage

Engine Cooling Fan Module X2 (LNF)

Connector Part Information

OEM: 7283-8496-30
Service: See Catalog
Description: 4-Way F Mixed Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Engine Cooling Fan Module X2 (LNF)

Pin	Wire	Circuit	Function
1	5 L-BU	409	Cooling Fan Motor Supply Voltage
2	3 BK	1050	Ground
3	--	--	Not Used
4	0.35 D-GN	335	Low Speed Cooling Fan Relay Control

Engine Oil Pressure (EOP) Switch

Connector Part Information

OEM: 12065299
Service: 12085500
Description: 1-Way F Metri-Pack 150 Series Sealed (L-GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Engine Oil Pressure (EOP) Switch

Pin	Wire	Circuit	Function
A	0.35 TN/BK	231	Oil Pressure Switch Signal

Evaporative Emission (EVAP) Canister Purge Solenoid Valve

Connector Part Information

OEM: 12052643
Service: 12101858
Description: 2-Way F Metri-Pack 150 Series Sealed (RD)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Evaporative Emission (EVAP) Canister Purge Solenoid Valve

Pin	Wire	Circuit	Function
A	0.5 PK/BK	5291	Ignition 1 Voltage
B	0.5 D-GN/WH	428	EVAP Canister Purge Solenoid Control

Evaporative Emissions (EVAP) Canister Vent Solenoid Valve

Connector Part Information

OEM: 12052643
Service: 12101858
Description: 2-Way F Metri-Pack 150 Series Sealed (RD)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Evaporative Emissions (EVAP) Canister Vent Solenoid Valve

Pin	Wire	Circuit	Function
A	0.5 RD/WH	1640	Battery Positive Voltage
B	0.5 WH	1310	EVAP Canister Vent Solenoid Control

Fog Lamp - Left Front (T37)

Connector Part Information

OEM: 12059183
Service: 12101898
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Fog Lamp - Left Front (T37)

Pin	Wire	Circuit	Function
A	0.35 PU	2234	Front Fog Lamp Supply Voltage
B	0.35 BK	150	Ground

Fog Lamp - Right Front (T37)

Connector Part Information

OEM: 12059183
Service: 12101898
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Fog Lamp - Right Front (T37)

Pin	Wire	Circuit	Function
A	0.35 PU	2234	Front Fog Lamp Supply Voltage
B	0.35 BK	250	Ground

Fog Lamp Switch (T37)

Connector Part Information

OEM: 12047785
Service: 12102900
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Fog Lamp Switch (T37)

Pin	Wire	Circuit	Function
A	0.35 BK/WH	651	Ground
B	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
C	--	--	Not Used
D	0.35 OG	192	Front Fog Lamp Switch Signal

Fuel Injector 1 (L61/LE5)

Connector Part Information

OEM: 7283-8596-30
Service: See Catalog
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 1 (L61/LE5)

Pin	Wire	Circuit	Function
1	0.5 PK	139	Ignition 1 Voltage
2	0.5 TN	1744	Fuel Injector 1 Control

Fuel Injector 1 (LNF)

Connector Part Information

OEM: 1 928 403 874
Service: See Catalog
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 1 (LNF)

Pin	Wire	Circuit	Function
1	0.5 BN	4801	Direct Fuel Injector (DFI) High Voltage Control Cylinder 1
2	0.5 BN/WH	4901	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1

Fuel Injector 2 (L61/LE5)

Connector Part Information

OEM: 7283-8596-30
Service: See Catalog
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 2 (L61/LE5)

Pin	Wire	Circuit	Function
1	0.5 PK	139	Ignition 1 Voltage
2	0.5 L-GN/BK	1745	Fuel Injector 2 Control

Fuel Injector 2 (LNF)

Connector Part Information

OEM: 1 928 403 874
Service: See Catalog
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 2 (LNF)

Pin	Wire	Circuit	Function
1	0.5 D-BU	4802	Direct Fuel Injector (DFI) High Voltage Control Cylinder 2
2	0.5 D-BU/WH	4902	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2

Fuel Injector 3 (L61/LE5)

Connector Part Information

OEM: 7283-8596-30
Service: See Catalog
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 3 (L61/LE5)

Pin	Wire	Circuit	Function
1	0.5 PK	139	Ignition 1 Voltage
2	0.5 PK/BK	1746	Fuel Injector 3 Control

Fuel Injector 3 (LNF)

Connector Part Information

OEM: 1 928 403 874
Service: See Catalog
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 3 (LNF)

Pin	Wire	Circuit	Function
1	0.5 D-GN	4803	Direct Fuel Injector (DFI) High Voltage Control Cylinder 3
2	0.5 D-GN/WH	4903	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3

Fuel Injector 4 (L61/LE5)

Connector Part Information

OEM: 7283-8596-30
Service: See Catalog
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 4 (L61/LE5)

Pin	Wire	Circuit	Function
1	0.5 PK	139	Ignition 1 Voltage
2	0.5 L-BU/BK	844	Fuel Injector 4 Control

Fuel Injector 4 (LNF)

Connector Part Information

OEM: 1 928 403 874
Service: See Catalog
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 4 (LNF)

Pin	Wire	Circuit	Function
1	0.5 L-BU	4804	Direct Fuel Injector (DFI) High Voltage Control Cylinder 4
2	0.5 L-BU/WH	4904	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4

Fuel Pump and Sender Assembly

Connector Part Information

OEM: 15326631
Service: 15306360
Description: 4-Way F GT 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15304719/19
Core/Insulation Crimp: Pins A, D - 2/5
Core/Insulation Crimp: Pins B, C - E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Fuel Pump and Sender Assembly

Pin	Wire	Circuit	Function
A	1 BK	850	Ground
B	0.35 PU	1589	Fuel Level Sensor Signal (-Primary)
C	0.35 OG/BK	510	Low Reference
D	1 GY	120	Fuel Pump Supply Voltage

Fuel Rail Pressure Sensor (FPS) (LNF)

Connector Part Information

OEM: 1 928 403 966
Service: See Catalog
Description: 3-Way F 2.8 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Rail Pressure Sensor (FPS) (LNF)

Pin	Wire	Circuit	Function
1	0.35 TN	808	Sensor Low Reference
2	0.35 YE	2918	Fuel Rail Pressure Sensor Signal
3	0.35 GY	598	5-Volt Reference 1

Fuel Tank Pressure (FTP) Sensor

Connector Part Information

OEM: 12059595
Service: 88986451
Description: 3-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Fuel Tank Pressure (FTP) Sensor

Pin	Wire	Circuit	Function
A	0.5 TN	2759	Low Reference
B	0.5 D-GN	890	Fuel Tank Pressure Sensor Signal
C	0.5 GY	2709	5-Volt Reference

Generator X1

Connector Part Information

OEM: 12186308
Service: 89046837
Description: 2-Way F JPT, Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Generator X1

Pin	Wire	Circuit	Function
1	0.35 OG	225	Generator Turn On Signal
2	0.35 GY	23	Generator Field Duty Cycle Signal

Generator X2

Terminal Part Information

Terminal: 12146365
Core/Insulation Crimp: N/A
Description: Ring Terminal

Generator X2

Pin	Wire	Circuit	Function
--	13 RD/BK	1	Battery Positive Voltage

Hazard Switch

Connector Part Information

OEM: 12089248
Service: 12102900
Description: 4-Way F Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Hazard Switch

Pin	Wire	Circuit	Function
A	0.35 BK/WH	651	Ground
B	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
C	--	--	Not Used
D	0.35 WH	111	Hazard Switch Signal

Headlamp - Left

Connector Part Information

OEM: 15422250
Service: 88987995
Description: 3-Way F GT 150 Series (D-GY)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Headlamp - Left

Pin	Wire	Circuit	Function
A	0.35 YE	712	Left Headlamp Low Beam Supply Voltage
B	0.35 BK	150	Ground
C	0.35 D-GN/WH	711	Left Headlamp High Beam Supply Voltage

Headlamp - Right

Connector Part Information

OEM: 15422250
Service: 88987995
Description: 3-Way F GT 150 Series (D-GY)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Headlamp - Right

Pin	Wire	Circuit	Function
A	0.35 TN/WH	312	Right Headlamp Low Beam Supply Voltage
B	0.35 BK	250	Ground
C	0.35 L-GN/BK	311	Right Headlamp High Beam Supply Voltage

Heated Oxygen Sensor (HO2S) 1 (L61/LE5)

Connector Part Information

OEM: 12176897
Service: 15305960
Description: 4-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Heated Oxygen Sensor (HO2S) 1 (L61/LE5)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3111	Heated Oxygen Sensor Low Signal Sensor 1
B	0.5 PU/WH	3110	Heated Oxygen Sensor High Signal Sensor 1
C	0.5 GY/WH	3113	Heated Oxygen Sensor Heater Low Control Sensor 1
D	0.5 PK/BK	5291	Ignition 1 Voltage

Heated Oxygen Sensor (HO2S) 1 (LNF)

Connector Part Information

OEM: 1 928 404 900
Service: See Catalog
Description: 6-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Oxygen Sensor (HO2S) 1 (LNF)

Pin	Wire	Circuit	Function
1	0.5 WH	5279	Heated Oxygen Sensor Pump Current - Sensor 1
2	0.5 TN/WH	3111	Heated Oxygen Sensor Low Signal - Sensor 1
3	0.5 GY/WH	3113	Heated Oxygen Sensor Heater Low Control - Sensor 1
4	0.5 PK/BK	5291	Ignition 1 Voltage
5	0.5 L-GN	5278	Heated Oxygen Sensor Input Pump Current - Sensor 1
6	0.5 PU/WH	3110	Heated Oxygen Sensor High Signal - Sensor 1

Heated Oxygen Sensor (HO2S) 2

Connector Part Information

OEM: 12160825
Service: 15305801
Description: 4-Way M Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12045773/2
Core/Insulation Crimp: Pins A, B, D - E/1
Core/Insulation Crimp: Pins C - See Terminal Repair Kit
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Heated Oxygen Sensor (HO2S) 2

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3121	Heated Oxygen Sensor Low Signal Sensor 2
B	0.5 PU	3120	Heated Oxygen Sensor High Signal Sensor 2
C	0.5 GY/WH	3122	Heated Oxygen Sensor Heater Low Control Sensor 2
D	0.5 PK/BK	5291	Ignition 1 Voltage

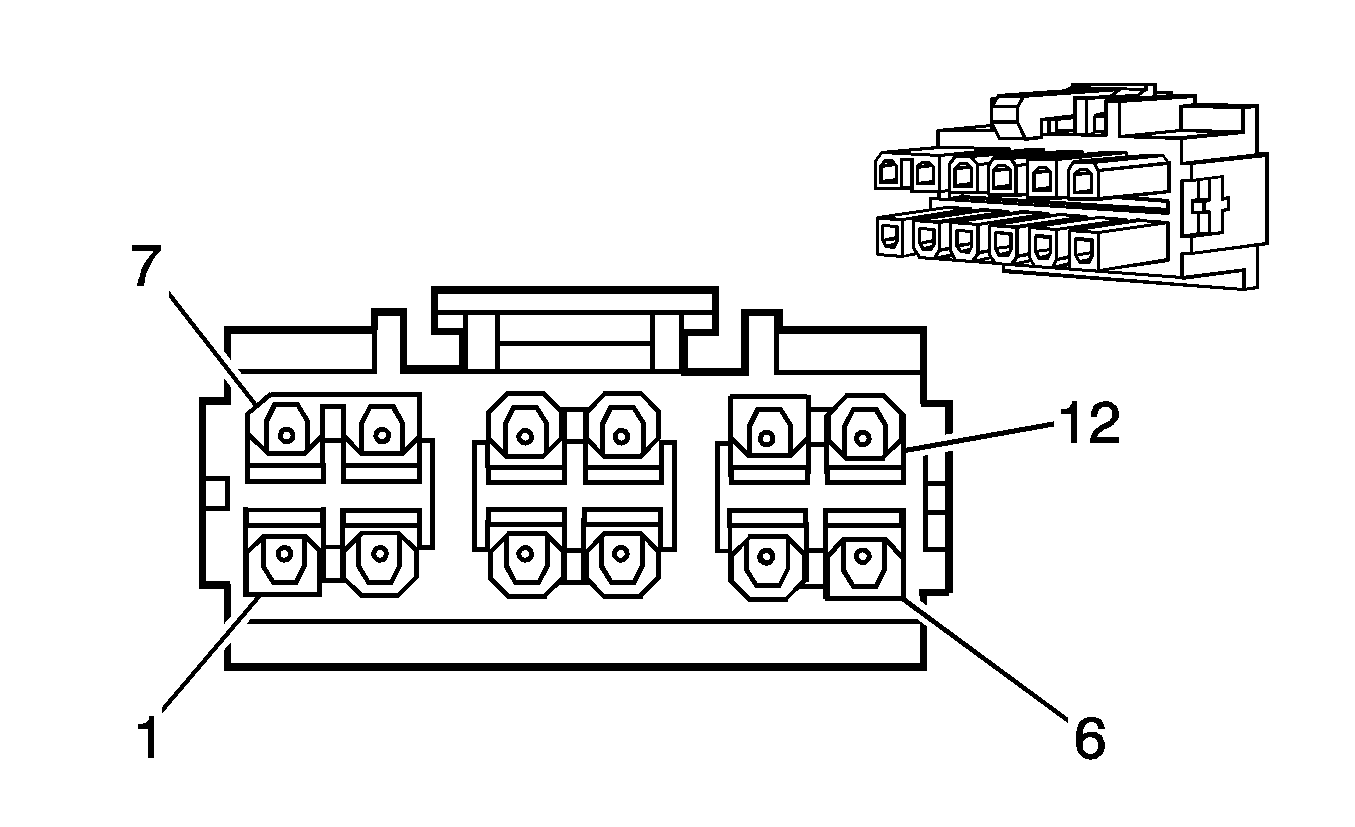

Heated Seat Control Module - Driver (KA1)

Connector Part Information

OEM: 15-97-5121
Service: Serviced by Complete Seat Harness
Description: 12-Way F Mini Fit TPA (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Control Module - Driver (KA1)

Pin	Wire	Circuit	Function
1	0.35 L-BU	1662	Driver Heated Seat Low Indicator Control
2	0.35 BK	1250	Ground
3	0.35 PK	1639	Ignition 1 Voltage
4	0.35 D-GN	1661	Driver Heated Seat High Indicator Control
5-7	--	--	Not Used
8	0.35 PK	2077	Driver Heated Seat Element Supply Voltage
9	0.35 PK	1501	Driver Heated Seat High/Low Signal
10	0.35 RD/WH	340	Battery Positive Voltage
11	0.35 BK	1250	Ground
12	0.35 YE/BK	2079	Temperature Sensor Signal

Heated Seat Control Module - Passenger (KA1)

Connector Part Information

OEM: 15-97-5121
Service: Serviced by Complete Seat Harness
Description: 12-Way F Mini Fit TPA (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Control Module - Passenger (KA1)

Pin	Wire	Circuit	Function
1	0.35 D-BU/WH	1686	Passenger Heated Seat Low Indicator Control
2	0.35 BK	1550	Ground
3	0.35 PK	1639	Ignition 1 Voltage
4	0.35 BN/WH	1685	Passenger Heated Seat High Indicator Control
5-7	--	--	Not Used
8	0.35 PK	2479	Passenger Heated Seat Element Supply Voltage
9	0.35 PK/BK	1503	Passenger Heated Seat High/Low Signal
10	0.35 RD/WH	340	Battery Positive Voltage
11	0.35 BK	1550	Ground
12	0.35 D-BU	5475	Passenger Heated Seat Temperature Sensor Signal

Heated Seat Element - Driver Back (KA1)

Connector Part Information

OEM: 12064778
Service: 12126020
Description: 2-Way M Metri-Pack 150 Series (GN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Driver Back (KA1)

Pin	Wire	Circuit	Function
A	0.35 YE	2077	Heated Seat Element Supply
B	0.35 BK	1250	Ground

Heated Seat Element - Driver Cushion (KA1)

Connector Part Information

OEM: 12047786
Service: 12085536
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Driver Cushion (KA1)

Pin	Wire	Circuit	Function
A	0.35 PK	2077	Heated Seat Element Supply
B	0.35 YE	2077	Heated Seat Element Supply
C	0.35 YE/BK	2079	Heated Seat Temperature Sensor Signal
D	0.35 BK	1250	Ground

Heated Seat Element - Passenger Back (KA1)

Connector Part Information

OEM: 12064778
Service: 12126020
Description: 2-Way M Metri-Pack 150 Series (GN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Passenger Back (KA1)

Pin	Wire	Circuit	Function
A	0.35 YE	2479	Heated Seat Element Supply
B	0.35 BK	1550	Ground

Heated Seat Element - Passenger Cushion (KA1)

Connector Part Information

OEM: 12047786
Service: 12085536
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Passenger Cushion (KA1)

Pin	Wire	Circuit	Function
A	0.35 PK	2479	Passenger Heated Seat Element Supply Voltage
B	0.35 YE	2479	Passenger Heated Seat Element Supply Voltage
C	0.35 D-BU	5475	Passenger Heated Seat Temperature Sensor Signal
D	0.35 BK	1550	Ground

High Pressure Fuel Pump (LNF)

Connector Part Information

OEM: 1 928 403 874
Service: See Catalog
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

High Pressure Fuel Pump (LNF)

Wire

Circuit

Function

0.35 PU

7300

High Pressure Fuel Pump Actuator Low Control

0.35 YE

7301

High Pressure Fuel Pump Actuator High Control

Hood Ajar Switch (AP3)

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Hood Ajar Switch (AP3)

Pin	Wire	Circuit	Function
A	0.35 PK/BK	109	Hood Ajar Switch Signal
B	0.35 PU	5531	Hood Ajar Switch Signal
C	0.35 BK	150	Ground

Horn

Connector Part Information

OEM: E-2157-000
Service: See Catalog
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 120944307/J-35616-2A (GY)

Horn

Pin	Wire	Circuit	Function
1	0.35 BK	150	Ground
2	0.35 D-GN	29	Horn Control

Horn Switch

Connector Part Information

OEM: 50-57-9402
Service: 88988709
Description: 2-Way F C Grid/SL 70066G Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Horn Switch

Pin	Wire	Circuit	Function
1	0.35 TN	28	Horn Relay Control
2	0.35 BK	151	Signal Ground

HVAC Control Assembly X1

Connector Part Information

OEM: 15416970
Service: 22715969
Description: 16-Way F Micro 64 Modular (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

HVAC Control Assembly X1

Pin	Wire	Circuit	Function
1	0.35 L-GN	2275	Mode Door Position Signal
2-3	--	--	Not Used
4	0.35 L-BU/BK	1688	5-Volt Reference
5	0.35 L-GN/BK	1647	Recirculation Door Control A
6	0.35 PK/WH	1648	Recirculation Door Control B
7	0.35 PK	339	Ignition 1 Voltage
8	0.35 PK	339	Ignition 1 Voltage
9	0.35 D-BU	1646	Auxiliary Air Temperature Door Position Signal
10	--	--	Not Used
11	0.35 D-GN	71	Vehicle Wake Up Voltage OFF
12	0.35 L-BU/BK	1688	5-Volt Reference
13	0.35 WH/BK	1236	Auxiliary Air Temperature Door Control
14	0.35 TN	2273	Door Control
15	0.35 BK/WH	550	Ground
16	0.35 BK/WH	550	Ground

HVAC Control Assembly X2

Connector Part Information

OEM: 7283-9077-40
Service: See Catalog
Description: 16-Way F Kaizen 0.64 (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

HVAC Control Assembly X2

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 L-BU	1662	Driver Heated Seat Low Temperature Indicator Control (KA1)
3	0.35 L-BU	292	Rear Defog Switch Signal
4	0.35 PK	1501	Driver Heated Seat High/Low Signal (KA1)
5	--	--	Not Used
6	0.35 TN	1686	Passenger Heated Seat Low Temperature Control (KA1)
7	--	--	Not Used
8	0.5 PK	339	Run/Crank Ignition 1 Voltage
9	0.35 BK	550	Ground
10	0.35 RD/WH	1540	Battery Positive Voltage
11	0.35 D-GN	1661	Driver Heated Seat High Temperature Indicator Control (KA1)
12	--	--	Not Used
13	0.35 WH	193	Rear Defog Relay Control
14	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
15	0.35 YE	1685	Passenger Heated Seat High Temperature Control (KA1)
16	0.35 PK/BK	1503	Passenger Heated Seat High/Low Signal (KA1)

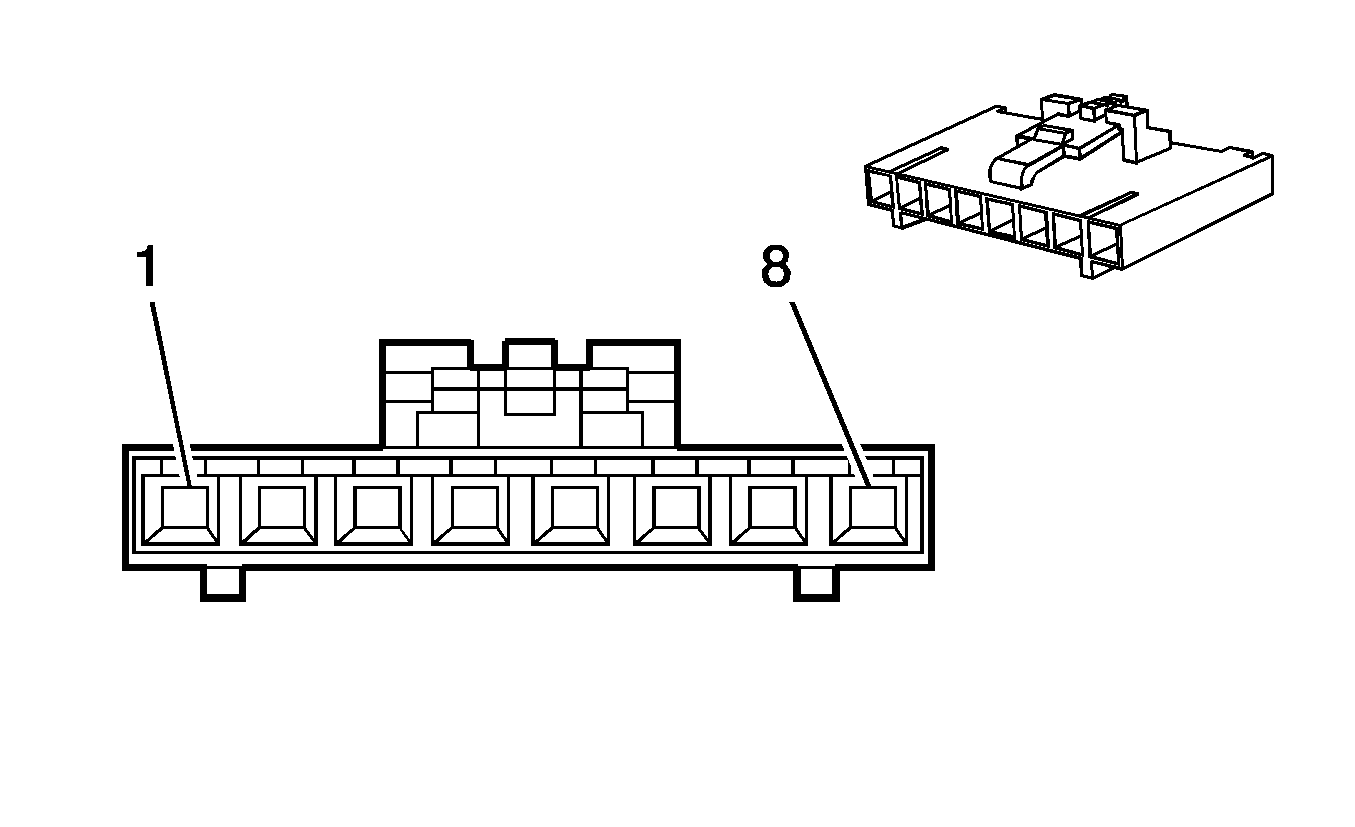

HVAC Control Assembly X3

Connector Part Information

OEM: 12064998
Service: 15306189
Description: 8-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

HVAC Control Assembly X3

Pin	Wire	Circuit	Function
A	0.35 D-GN	71	Off Blower Motor Control
B	3 BK	550	Ground
C-D	--	--	Not Used
E	3 OG	52	High Blower Motor Control
F	2 L-BU	72	Medium 2 Blower Motor Control
G	2 TN	63	Medium Blower Motor Control (1)
H	2 YE	60	Low Blower Motor Control

Ignition Coil Module 1

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil Module 1

Pin	Wire	Circuit	Function
1	0.8 BK	1350	Ground
2	0.35 BN	2129	Low Reference
3	0.35 PU	2121	Ignition Control (1)
4	0.5 PK/BK	5292	Ignition 1 Voltage

Ignition Coil Module 2

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil Module 2

Pin	Wire	Circuit	Function
1	0.8 BK	1350	Ground
2	0.35 BN	2129	Low Reference (L61/LE5)
2	0.35 BN/WH	2130	Low Reference (LNF)
3	0.35 OG/WH	2122	Ignition Control (2)
4	0.5 PK/BK	5292	Ignition 1 Voltage

Ignition Coil Module 3

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil Module 3

Pin	Wire	Circuit	Function
1	0.8 BK	1350	Ground
2	0.35 BN	2129	Low Reference
3	0.35 L-BU	2123	Ignition Control (3)
4	0.5 PK/BK	5292	Ignition 1 Voltage

Ignition Coil Module 4

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil Module 4

Pin	Wire	Circuit	Function
1	0.8 BK	1350	Ground
2	0.35 BN	2129	Low Reference (LE5/L61)
2	0.35 BN/WH	2130	Low Reference (LNF)
3	0.35 D-GN/WH	2124	Ignition Control (4)
4	0.5 PK/BK	5292	Ignition 1 Voltage

Ignition Lock Cylinder Control Actuator (MN5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Ignition Lock Cylinder Control Actuator (MN5)

Pin	Wire	Circuit	Function
A	0.35 D-GN/WH	1932	Transmission Shift Select Switch Park Signal
B	0.35 BN	4	Accessory Voltage

Ignition Switch

Connector Part Information

OEM: IL-AG5-65-S3C1
Service: 88987854
Description: 6-Way F IL-AG5 Series (GN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Switch

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 RD/WH	1040	Battery Positive Voltage
3	0.35 YE	5199	Run/Crank Relay Coil Control
4	0.35 BN	4	Accessory Voltage
5	0.35 WH	1390	Off/Run/Crank Voltage
6	0.35 WH/BK	1073	Ignition Key Resistor Signal

Inflatable Restraint Front End Sensor

Connector Part Information

OEM: 15356722
Service: 15306405
Description: 2-Way F GT 150 Series Sealed 4.0 (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Inflatable Restraint Front End Sensor

Pin	Wire	Circuit	Function
A	0.35 TN/OG	5045	Discriminating Sensor - Low Reference
B	0.35 YE	1834	Forward Discriminating Sensor Signal

Inflatable Restraint Front Passenger Presence System (PPS) Module

Connector Part Information

OEM: 15431682
Service: Service by Complete Seat Harness
Description: 18-Way F Micro-Pack 100W Series Sealed (BK)

Terminal Part Information

Terminal/Tray: Service with Terminated Lead
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Front Passenger Presence System (PPS) Module

Pin	Wire	Circuit	Function
1	0.35 TN/BK	723	Passenger Air Bag On Indicator Control
2	0.35 PK	353	Passenger Air Bag Off Indicator Control
3	--	--	Not Used
4	0.35 D-BU	913	Passenger Seat Belt Tension Sensor Signal
5	0.35 BK/WH	1551	Ground
6	0.35 PK/WH	916	Passenger Presence Sensor Signal
7	0.35 D-BU/WH	918	14-Volt Reference
8	--	--	Not Used
9	0.35 PK	1339	Ignition 1 Voltage
10-13	--	--	Not Used
14	0.35 YE	914	Low Reference
15	0.35 YE/WH	917	Low Reference
16	0.35 PK	915	14-Volt Reference
17	--	--	Not Used
18	0.35 PK	5018	Occupant Sensor Serial Data

Inflatable Restraint Front Passenger Presence System (PPS) Sensor

Connector Part Information

OEM: 15422250
Service: Service by Complete Seat Harness
Description: 3-Way F GT 150 Series (D-GY)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Front Passenger Presence System (PPS) Sensor

Pin	Wire	Circuit	Function
A	0.35 D-BU/WH	918	14-Volt Reference
B	0.35 PK/WH	916	Passenger Presence Sensor Signal
C	0.35 YE/WH	917	Low Reference

Inflatable Restraint I/P Module X1

Connector Part Information

OEM: 15359118
Service: Service By Complete Passenger Air Bag Jumper Harness
Description: 2-Way F Micro-Pack 100 Series (GY) With (YE) Case

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint I/P Module X1

Pin	Wire	Circuit	Function
A	0.35 YE	3025	I/P Module - Stage 1 - High Control
B	0.35 OG	3024	I/P Module - Stage 1 - Low Control

Inflatable Restraint I/P Module X2

Connector Part Information

OEM: 15359119
Service: Service By Complete Passenger Air Bag Jumper Harness
Description: 2-Way F Micro-Pack 100 Series (PU) With (YE) Case

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint I/P Module X2

Pin	Wire	Circuit	Function
A	0.35 PU	3026	I/P Module - Stage 2 - Low Control
B	0.35 GY	3027	I/P Module - Stage 2 - High Control

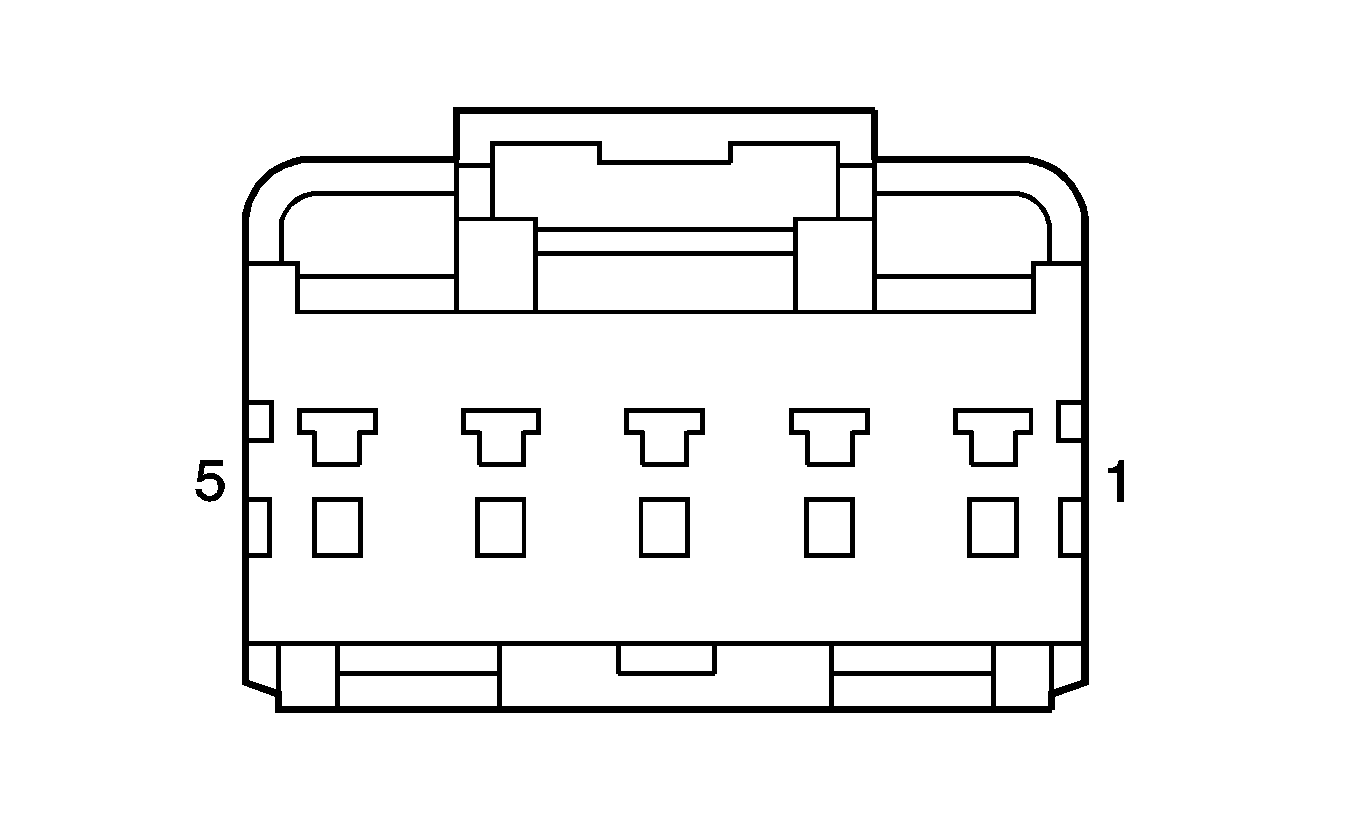

Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator

Connector Part Information

OEM: HCMPB-05-S
Service: 88953369
Description: 5-Way F (WH)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator

Pin	Wire	Circuit	Function
1	0.35 TN/BK	723	Passenger Air Bag On Indicator Control
2	0.35 BK/WH	651	Ground
3	0.35 PK	353	Passenger Air Bag Off Indicator Control
4	0.35 PK	339	Ignition 1 Voltage
5	0.35 PU	5234	Passenger Seat Belt Indicator

Inflatable Restraint Passenger Seat Belt Tension Sensor

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Inflatable Restraint Passenger Seat Belt Tension Sensor

Pin	Wire	Circuit	Function
A	0.35 PK	915	14-Volt Reference
B	0.35 YE	914	Low Reference
C	0.35 D-BU	913	Passenger Seat Belt Tension Sensor Signal

Inflatable Restraint Roof Rail Module - Left (ASF)

Connector Part Information

OEM: 12186799
Service: 15306012
Description: 2-Way M Metri-Pack 280 Series (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 12094429/J-35616-5 (PU)

Inflatable Restraint Roof Rail Module - Left (ASF)

Pin	Wire	Circuit	Function
A	0.35 PU/WH	5019	Roof Rail Module - Left - High Control
B	0.35 PK	5020	Roof Rail Module - Left - Low Control

Inflatable Restraint Roof Rail Module - Right (ASF)

Connector Part Information

OEM: 12186799
Service: 15306012
Description: 2-Way M Metri-Pack 280 Series (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 12094429/J-35616-5 (PU)

Inflatable Restraint Roof Rail Module - Right (ASF)

Pin	Wire	Circuit	Function
A	0.35 YE/BK	5021	Roof Rail Module - Right - High Control
B	0.35 WH/BK	5022	Roof Rail Module - Right - Low Control

Inflatable Restraint Sensing and Diagnostic Module (SDM)

Connector Part Information

OEM: 3-638595-3
Service: 88988368
Description: 60-Way F (YE)

Terminal Part Information

Terminal/Tray: Service with Terminated Lead
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Sensing and Diagnostic Module (SDM)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	1240	Battery Positive Voltage
2	0.35 D-GN	5060	Low Speed GMLAN Serial Data
3	0.35 PK	5057	Seat Position Sensor - Low Reference
4	0.35 TN/WH	238	Seat Belt Switch - Left
5	--	--	Not Used
6	0.35 OG	1362	Seat Belt Switch - Right
7	--	--	Not Used
8	0.35 PK	5020	Roof Rail Module - Left - Low Control (ASF)
9	0.35 PU/WH	5019	Roof Rail Module - Right - High Control (ASF)
10	0.35 YE/BK	5021	Roof Rail Module - Right - High Control (ASF)
11	0.35 WH/BK	5022	Roof Rail Module - Right - Low Control (ASF)
12	0.35 PU	3026	I/P Module - Stage 2 - Low Control
13	0.35 GY	3027	I/P Module - Stage 2 - High Control
14	0.35 TN	3021	Steering Wheel Module Stage 1 High Control
15	0.35 BN	3020	Steering Wheel Module Stage 1 Low Control
16	0.35 PK	3022	Steering Wheel Module Stage 2 Low Control
17	0.35 WH	3023	Steering Wheel Module Stage 2 High Control
18	0.35 YE	3025	I/P Module Stage 1 High Control
19	0.35 OG	3024	I/P Module Stage 1 Low Control
20-30	--	--	Not Used
31	0.35 BK/WH	351	Ground
32	--	--	Not Used
33	0.35 PK	1339	Ignition 1 Voltage
34-37	--	--	Not Used
38	0.35 YE	1834	Forward Discriminating Sensor Signal
39	0.35 TN/OG	5045	Discriminating Sensor - Low Reference
40-45	--	--	Not Used
46	0.35 WH	2132	Side Impact Sensing Module Left Signal (ASF)
47	0.35 YE	2131	Side Impact Sensing Module Left Voltage (ASF)
48	0.35 TN	2133	Side Impact Sensing Module Right Voltage (ASF)
49	0.35 D-GN	2134	Side Impact Sensing Module Right Signal (ASF)
50-51	--	--	Not Used
52	0.35 GY/OG	2116	Seat Belt Pretensioner - Right - High Control
53	0.35 L-BU/OG	2117	Seat Belt Pretensioner - Right - Low Control
54-55	--	--	Not Used
56	0.35 GY/WH	2118	Seat Belt Pretensioner - Left - High Control
57	0.35 YE/WH	2119	Seat Belt Pretensioner - Left - Low Control
58-59	--	--	Not Used
60	0.35 PK	5018	Occupant Sensor Serial Data

Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

Connector Part Information

OEM: 15356724
Service: 15306418
Description: 2-Way F GT 150 Series (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

Pin	Wire	Circuit	Function
A	0.35 YE	2131	Side Impact Sensing Module Left Voltage
B	0.35 WH	2132	Side Impact Sensing Module Left Signal

Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)

Connector Part Information

OEM: 15356724
Service: 15306418
Description: 2-Way F GT 150 Series (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)

Pin	Wire	Circuit	Function
A	0.35 TN	2133	Front Side Impact Sensing Module Right Voltage
B	0.35 D-GN	2134	Side Impact Sensing Module Right Signal

Inflatable Restraint Steering Wheel Module X1

Connector Part Information

OEM: CA-252-92-4 R
Service: See Catalog
Description: 2-Way F AMP (GY) With (YE) Case

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Steering Wheel Module X1

Pin	Wire	Circuit	Function
1	0.35 TN	3021	Steering Wheel Module - Stage 1 - High Control
2	0.35 BN	3020	Steering Wheel Module - Stage 1 - Low Control

Inflatable Restraint Steering Wheel Module X2

Connector Part Information

OEM: CA-252-92-4 R
Service: See Catalog
Description: 2-Way F AMP (PU) With (YE) Case

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Steering Wheel Module X2

Pin	Wire	Circuit	Function
1	0.35 WH	3023	Steering Wheel Module - Stage 2 - High Control
2	0.35 PK	3022	Steering Wheel Module - Stage 2 - Low Control

Inflatable Restraint Steering Wheel Module Coil X1

Connector Part Information

OEM: 15393433
Service: 22710638
Description: 10-Way F Micro-Pack 64 Series (BK)

Terminal Part Information

Terminal/Tray: Service with Terminated Lead
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Steering Wheel Module Coil X1

Pin	Wire	Circuit	Function
A-B	--	--	Not Used
C	0.35 PK	339	Ignition 1 Voltage
D	0.35 GY/BK	1884	Cruise Control Switch Signal
E	0.35 D-BU	1796	Steering Wheel Controls Signal (UK3)
F	0.35 WH/BK	644	10-Volt Reference (UK3)
G	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
H	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
J	0.35 TN	28	Horn Relay Control
K	0.35 BK/WH	151	Signal Ground

Inflatable Restraint Steering Wheel Module Coil X2

Connector Part Information

OEM: 15393433
Service: 22710638
Description: 10-Way F Micro-Pack 64 Series (BK)

Terminal Part Information

Terminal/Tray: Service with Terminated Lead
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)

Inflatable Restraint Steering Wheel Module Coil X2

Pin	Wire	Circuit	Function
A-B	--	--	Not Used
C	0.35 PK	1539	Ignition 1 Voltage
D	0.35 GY	1884	Cruise Control Switch Signal
E	0.35 D-BU	1796	Steering Wheel Controls Signal (UK3)
F	0.35 WH/BK	644	10-Volt Reference (UK3)
G	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
H	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
J	0.35 TN	28	Horn Relay Control
K	0.35 BK/WH	651	Ground

Inflatable Restraint Steering Wheel Module Coil X3

Connector Part Information

OEM: 15393421
Service: 88987853
Description: 4-Way F Micro-Pack 064 (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Steering Wheel Module Coil X3

Pin	Wire	Circuit	Function
1	0.35 BN	3020	Steering Wheel Module - Stage 1 - Low Control
2	0.35 TN	3021	Steering Wheel Module - Stage 1 - High Control
3	0.35 PK	3022	Steering Wheel Module - Stage 2 - Low Control
4	0.35 WH	3023	Steering Wheel Module - Stage 2 - High Control

Inflatable Restraint Vehicle Rollover Sensor

Connector Part Information

OEM: 6189-1024
Service: See Catalog
Description: 6-Way F 64 Series (YE)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Vehicle Rollover Sensor

Pin	Wire	Circuit	Function
1	0.35 PK	1339	Ignition 2 and 3 Voltage
2	--	--	Not Used
3	--	--	Not Used
4	--	--	Not Used
5	0.35 PK	5018	Serial Data
6	0.35 BK/WH	1551	Ground

Inside Rearview Mirror (DD8)

Connector Part Information

OEM: 15441350
Service: 15306351
Description: 16-Way F (BK)

Terminal Part Information

Terminal/Tray: 15355438/20
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-12 (BU)

Inside Rearview Mirror (DD8)

Pin	Wire	Circuit	Function
1	0.35 GY	157	Interior Lamp Control
2-5	--	--	Not Used
6	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage
7	--	--	Not Used
8	0.35 BK	750	Ground
9	0.35 L-GN	24	Backup Lamp Supply Voltage
10	--	--	Not Used
11	0.35 D-GN/WH	2514	Keypad Signal (UE1)
11	--	--	Not Used (DD8)
12	0.35 L-GN/BK	2515	Keypad Supply Voltage (UE1)
12	--	--	Not Used (DD8)
13	0.35 PK	339	Ignition 1 Voltage
14	0.35 YE/BK	2516	Keypad Green LED Signal (UE1)
14	--	--	Not Used (DD8)
15	0.35 BN/WH	2517	Keypad Red LED Signal (UE1)
15	--	--	Not Used (DD8)
16	--	--	Not Used

Inside Rearview Mirror (without UE1/DD8)

Connector Part Information

OEM: 12124782
Service: 15306078
Description: 7-Way F MISC (BK)

Terminal Part Information

Terminal/Tray: SVH-21T-P1.1/20
Core/Insulation Crimp: E/2
Release Tool/Test Probe: 12094429/J-35616-18 (BK)

Inside Rearview Mirror (without UE1/DD8)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 BK	750	Ground
3-5	--	--	Not Used
6	0.35 GY	157	Interior Lamp Control
7	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage

Instrument Panel (I/P) Dimmer Switch

Connector Part Information

OEM: 12020299
Service: 12102566
Description: 5-Way F P/C EDGBD STD (WH)

Terminal Part Information

Terminal/Tray: 12040511/3
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-4A (PU)

Instrument Panel (I/P) Dimmer Switch

Pin	Wire	Circuit	Function
A	0.35 GY	157	Courtesy Lamp Control
B	0.35 PU	719	Low Reference
C	0.35 D-GN	44	Instrument Panel Lamp Dimmer Switch Signal
D	--	--	Not Used
E	0.35 BK	550	Ground

Instrument Panel Cluster (IPC)

Connector Part Information

OEM: 1326132-9
Service: 88988783
Description: 18-Way F 0.64 MM Lever Assist (BK)

Terminal Part Information

Pins: 6, 13, 14
Terminal/Tray: 638551-1/16
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Pins: 8-11
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Instrument Panel Cluster (IPC)

Pin	Wire	Circuit	Function
1-5	--	--	Not Used
6	0.35 BK/WH	651	Signal Ground
7	--	--	Not Used
8	0.35 D-GN/BK	5060	Low Speed GMLAN Serial Data
9	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
10	0.35 D-GN	264	Security Indicator Supply Voltage
11	0.35 BN/WH	419	MIL Control
12	--	--	Not Used
13	0.35 PK	339	Ignition 1 Voltage
14	0.35 RD/WH	1440	Battery Positive Voltage
15-18	--	--	Not Used

Intake Air Pressure and Temperature Sensor (LNF)

Connector Part Information

OEM: 12162187
Service: See Catalog
Description: 4-Way F Metri-Pack 150.2 Series, Sealed, Pull to Seat (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Intake Air Pressure and Temperature Sensor (LNF)

Pin	Wire	Circuit	Function
A	0.35 GY	597	5-Volt Reference
B	0.35 L-BU	7329	Pre-Throttle Air Temp and Press (TMAP) Temperature Signal
C	0.35 TN	407	Low Reference
D	0.35 PU	7330	Pre-Throttle Air Temp and Press (TMAP) Air Pressure Signal

Knock Sensor (KS) (L61/LE5)

Connector Part Information

OEM: 12077900
Service: 12116247
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Knock Sensor (KS) (L61/LE5)

Pin	Wire	Circuit	Function
A	0.5 D-BU	496	Knock Sensor Signal
B	0.5 GY	1716	Knock Sensor Signal

Knock Sensor (KS) 1 (LNF)

Connector Part Information

OEM: 12077900
Service: See Catalog
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Knock Sensor (KS) 1 (LNF)

Pin	Wire	Circuit	Function
A	0.5 D-BU	496	KS 1 Signal
B	0.5 GY	1716	KS 1 Signal

Knock Sensor (KS) 2 (LNF)

Connector Part Information

OEM: 12077900
Service: See Catalog
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Knock Sensor (KS) 2 (LNF)

Pin	Wire	Circuit	Function
A	0.35 L-BU	1876	KS 2 Signal
B	0.35 GY	2303	KS 2 Signal

License Lamp - Left

Connector Part Information

OEM: 12110053
Service: See Catalog
Description: 2-Way F Lamp Socket Wedge Base W2 (L-GY)

Terminal Part Information

Terminal/Tray: 12124471/5
Core/Insulation Crimp: 2/3
Release Tool/Test Probe: 12094430/N/A

License Lamp - Left

Pin	Wire	Circuit	Function
A	0.35 BN	9	License Lamp Supply Voltage
B	0.35 BK	850	Ground

License Lamp - Right

Connector Part Information

OEM: 12110053
Service: See Catalog
Description: 2-Way F Lamp Socket Wedge Base W2 (L-GY)

Terminal Part Information

Terminal/Tray: 12124471/5
Core/Insulation Crimp: 2/3
Release Tool/Test Probe: 12094430/N/A

License Lamp - Right

Pin	Wire	Circuit	Function
A	0.35 BN	9	License Lamp Supply Voltage
B	0.35 BK	850	Ground

Liftgate Release Switch

Connector Part Information

OEM: 15410728
Service: 88986450
Description: 4-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Liftgate Release Switch

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 WH/BK	1221	Liftgate Release Switch Signal
C	--	--	Not Used
D	0.35 BK	850	Ground

Lumbar Adjuster Switch - Driver (AJ6)

Connector Part Information

OEM: 12041429
Service: 12167129
Description: 5-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Lumbar Adjuster Switch - Driver (AJ6)

Pin	Wire	Circuit	Function
A	0.35 BK	1250	Ground
B	0.35 PU	767	Driver Seat Lumbar Motor Down Control
C	0.35 BK	1250	Ground
D	0.35 RD/BK	342	Battery Positive Voltage
E	0.35 TN	768	Driver Seat Lumbar Motor Up Control

Manifold Absolute Pressure (MAP) Sensor

Connector Part Information

OEM: 1928403966
Service: 88988583
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Manifold Absolute Pressure (MAP) Sensor

Pin	Wire	Circuit	Function
1	0.5 GY	2704	5-Volt Reference
2	0.5 OG/BK	469	Manifold Absolute Pressure Sensor Signal
3	0.5 L-GN	432	Low Reference

Marker Lamp - Left Front

Connector Part Information

OEM: 15300027
Service: 12101855
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Marker Lamp - Left Front

Pin	Wire	Circuit	Function
A	0.35 BN	9	Park Lamp Supply Voltage
B	0.35 BK	150	Ground

Marker Lamp - Left Rear

Connector Part Information

OEM: 12052641
Service: 12101855
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Marker Lamp - Left Rear

Pin	Wire	Circuit	Function
A	0.35 BN	9	Park Lamp Supply Voltage
B	0.35 BK	750	Ground

Marker Lamp - Right Front

Connector Part Information

OEM: 15300027
Service: 12101855
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Marker Lamp - Right Front

Pin	Wire	Circuit	Function
A	0.35 BN	9	Park Lamp Supply Voltage
B	0.35 BK	250	Ground

Marker Lamp - Right Rear

Connector Part Information

OEM: 12052641
Service: 12101855
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Marker Lamp - Right Rear

Pin	Wire	Circuit	Function
A	0.35 BN	9	Park Lamp Supply Voltage
B	0.35 BK	850	Ground

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Connector Part Information

OEM: 15326822
Service: 88987186
Description: 5-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Pin	Wire	Circuit	Function
A	0.35 YE/BK	492	Mass Air Flow Sensor Signal
B	0.5 BK/WH	451	Signal Ground
C	0.5 PK/BK	5291	Ignition 1 Voltage
D	0.35 TN	2760	Low Reference
E	0.35 L-BU	6289	Intake Air Temperature Sensor Signal

Mode Actuator

Connector Part Information

OEM: 12064993
Service: 12102485
Description: 6-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Mode Actuator

Pin	Wire	Circuit	Function
5	0.35 PK	339	Ignition 1 Voltage
6	0.35 TN	2273	Door Control
7	0.35 BK/WH	550	Ground
8	--	--	Not Used
9	0.35 L-GN	2275	Mode Door Position Signal
10	0.35 L-BU/BK	1688	5-Volt Reference

Output Speed Sensor (OSS)

Connector Part Information

OEM: 12162195
Service: Non-Serviceable
Description: 2-Way F Metri-Pack 150.2 Series P2S (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Output Speed Sensor (OSS)

Pin	Wire	Circuit	Function
A	0.35 PU	401	OSS Low Signal
B	0.35 YE	400	OSS High Signal

Outside Rearview Mirror Motor - Driver

Connector Part Information

OEM: 12047782
Service: 12117371
Description: 3-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Outside Rearview Mirror Motor - Driver

Pin	Wire	Circuit	Function
A	0.35 WH	81	Driver Mirror Motor Right Control
B	0.35 YE	329	Driver Mirror Motor Supply Voltage
C	0.35 L-GN	89	Driver Mirror Motor Down Control

Outside Rearview Mirror Motor - Passenger

Connector Part Information

OEM: 12047782
Service: 12117371
Description: 3-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Outside Rearview Mirror Motor - Passenger

Pin	Wire	Circuit	Function
A	0.35 OG/WH	881	Passenger Mirror Motor Right Control
B	0.35 WH	330	Passenger Mirror Motor Supply Voltage
C	0.35 PU/WH	889	Passenger Mirror Motor Down Control

Outside Rearview Mirror Switch

Connector Part Information

OEM: 12064769
Service: 12101762
Description: 10-Way F Metri-Pack 150 Series (NA)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Outside Rearview Mirror Switch

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 BK/WH	1251	Ground
C	0.35 WH	330	Passenger Mirror Motor Supply Voltage
D	0.35 WH	81	Driver Mirror Motor Right Control
E	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
F	0.35 L-GN	89	Driver Mirror Motor Down Control
G	0.35 RD/WH	440	Battery Positive Voltage
H	0.35 YE	329	Driver Mirror Motor Supply Voltage
J	0.35 OG/WH	881	Passenger Mirror Motor Right Control
K	0.35 PU/WH	889	Passenger Mirror Motor Down Control

Park Brake Switch

Connector Part Information

OEM: 12047682
Service: 12101850
Description: 1-Way F M/P 150 (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Park Brake Switch

Pin	Wire	Circuit	Function
A	0.35 L-BU	1134	Park Brake Switch Signal

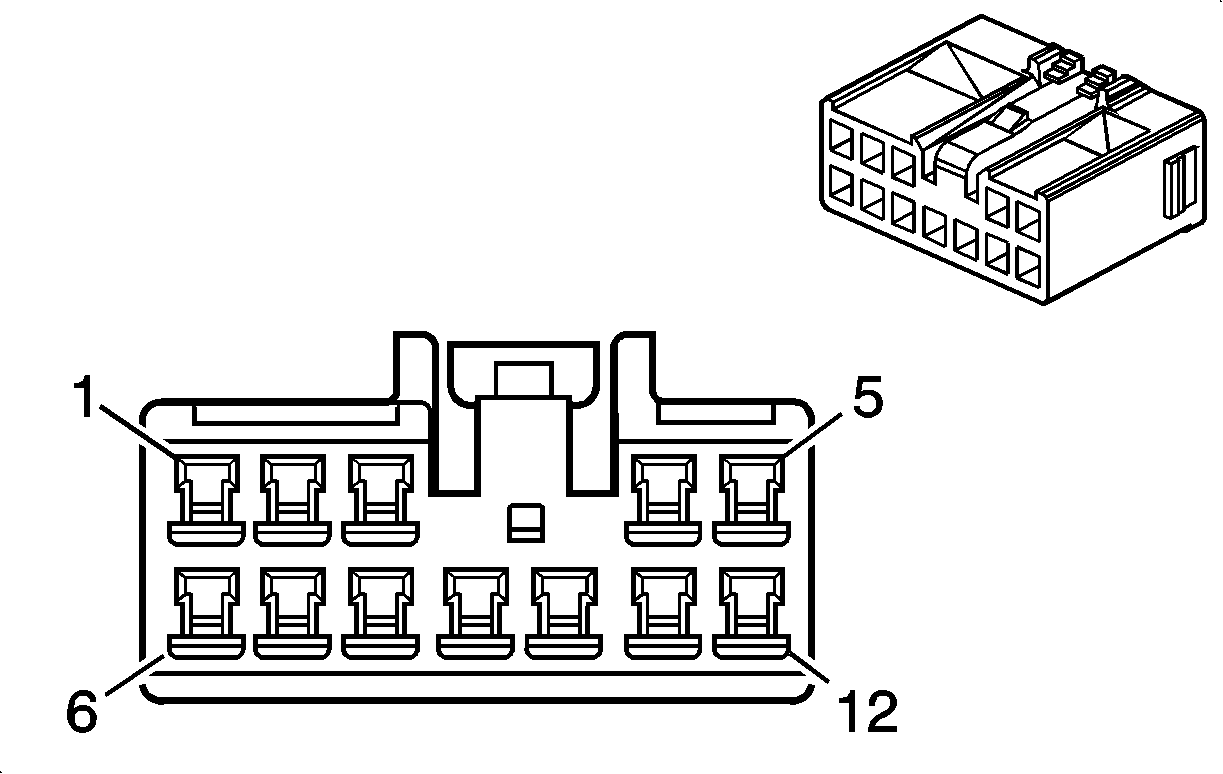

Park/Neutral Position (PNP) Switch (MN5)

Connector Part Information

OEM: 15416724
Service: Non-Serviceable
Description: 12-Way F Sealed (L-GY)

Park/Neutral Position (PNP) Switch (MN5)

Pin	Wire	Circuit	Function
1	0.5 YE	575	Starter Control
2	0.35 WH	776	Transmission Range Switch Signal P
3	--	--	Not Used
4	0.35 L-GN	24	Backup Lamp Supply Voltage
5	0.35 PK	539	Ignition 1 Voltage
6-7	--	--	Not Used
8	0.35 YE	772	Transmission Range Signal B
9	0.35 TN/WH	771	Transmission Range Signal A
10	0.35 GY	773	Transmission Range Signal C
11	0.35 BK/WH	451	Ground
12	0.35 PK	539	Ignition 1 Voltage

Park/Turn Signal/DRL Lamp - Left Front

Connector Part Information

OEM: 7900-1486-016
Service: 88986266
Description: 3-Way MISC (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Park/Turn Signal/DRL Lamp - Left Front

Pin	Wire	Circuit	Function
1	0.35 BK	250	Ground
2	0.35 BN	9	Park Lamp Supply Voltage
3	0.35 L-BU	14	Left Turn Signal Lamp Supply Voltage

Park/Turn Signal/DRL Lamp - Right Front

Connector Part Information

OEM: 7900-1486-016
Service: 88986266
Description: 3-Way MISC (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Park/Turn Signal/DRL Lamp - Right Front

Pin	Wire	Circuit	Function
1	0.35 BK	150	Ground
2	0.35 BN	9	Park Lamp Supply Voltage
3	0.35 D-BU	15	Right Turn Signal Lamp Supply Voltage

Passenger Rear Access Panel Switch - Right Rear (Panel Van)

Connector Part Information

OEM: 15419483
Service: 89046742
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Passenger Rear Access Panel Switch - Right Rear (Panel Van)

Pin	Wire	Circuit	Function
A	0.35 BK/WH	1551	Ground
B	--	--	Not Used
C	0.35 TN/BK	6658	Rear Access Panel Release Switch Signal - Right Rear
D	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal

Power Steering Control Module (PSCM) X1 (L61/LE5)

Connector Part Information

OEM: 7123-4123-30
Service: 88953301
Description: 2-Way F L Type (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Power Steering Control Module (PSCM) X1 (L61/LE5)

Pin	Wire	Circuit	Function
1	5 RD/BK	642	Battery Positive Voltage
2	5 BK	1150	Ground

Power Steering Control Module (PSCM) X1 (LNF)

Connector Part Information

OEM: 6098-0601
Service: Service as Assembly
Description: 3-Way F TS 187 Series (L-GY)

Terminal Part Information

Terminal/Tray: N/A
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Power Steering Control Module (PSCM) X1 (LNF)

Pin	Wire	Circuit	Function
1	RD	--	Motor W Phase
2	WH	--	Motor V Phase
3	BK	--	Motor U Phase

Power Steering Control Module (PSCM) X2 (L61/LE5)

Connector Part Information

OEM: 776195-6
Service: 88988409
Description: 6-Way F040 (GY)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Power Steering Control Module (PSCM) X2 (L61/LE5)

Pin	Wire	Circuit	Function
1	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+)
2	0.35 TN	2501	High Speed GMLAN Serial Data (-)
3	--	--	Not Used
4	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+)
5	0.35 TN	2501	High Speed GMLAN Serial Data (-)
6	0.35 PK	1539	Ignition 1 Voltage

Power Steering Control Module (PSCM) X2 (LNF)

Connector Part Information

OEM: 1747085-1
Service: See Catalog
Description: 6-Way F 0.64 Series (NA)

Terminal Part Information

Terminal/Tray: See Catalog
Core/Insulation Crimp: See Catalog
Release Tool/Test Probe: See Catalog

Power Steering Control Module (PSCM) X2 (LNF)

Pin	Wire	Circuit	Function
1	RD	--	Rotational Sensor Exciting
2	--	--	Not Used
3	BK	--	Rotational Sensor Exciting GND
4	--	--	Not Used
5	D-BU	--	Rotational Sensor COS
6	YE	--	Rotational Sensor SN

Power Steering Control Module (PSCM) X3 (L61/LE5)

Connector Part Information

OEM: 7123-4123-30
Service: 88953301
Description: 2-Way F L Type (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Power Steering Control Module (PSCM) X3 (L61/LE5)

Pin	Wire	Circuit	Function
1	0.5 RD	5	Left Assist Motor Control
2	0.5 BK	5	Right Assist Motor Control

Power Steering Control Module (PSCM) X3 (LNF)

Connector Part Information

OEM: 1747088-1
Service: See Catalog
Description: 8-Way F 0.64 Series (NA)

Terminal Part Information

Terminal/Tray: See Catalog
Core/Insulation Crimp: See Catalog
Release Tool/Test Probe: See Catalog

Power Steering Control Module (PSCM) X3 (LNF)

Pin	Wire	Circuit	Function
1	GY	--	Torque Sensor GND
2	WH	--	Torque Sensor Exciting GND
3	--	--	Not Used
4	D-GN	--	Torque Sensor Exciting
5	L-BU	--	Torque Sensor Output Shaft Side COS
6	YE	--	Torque Sensor Output Shaft Side SN
7	BK	--	Torque Sensor Input Shaft Side COS
8	PK	--	Torque Sensor Input Shaft Side SN

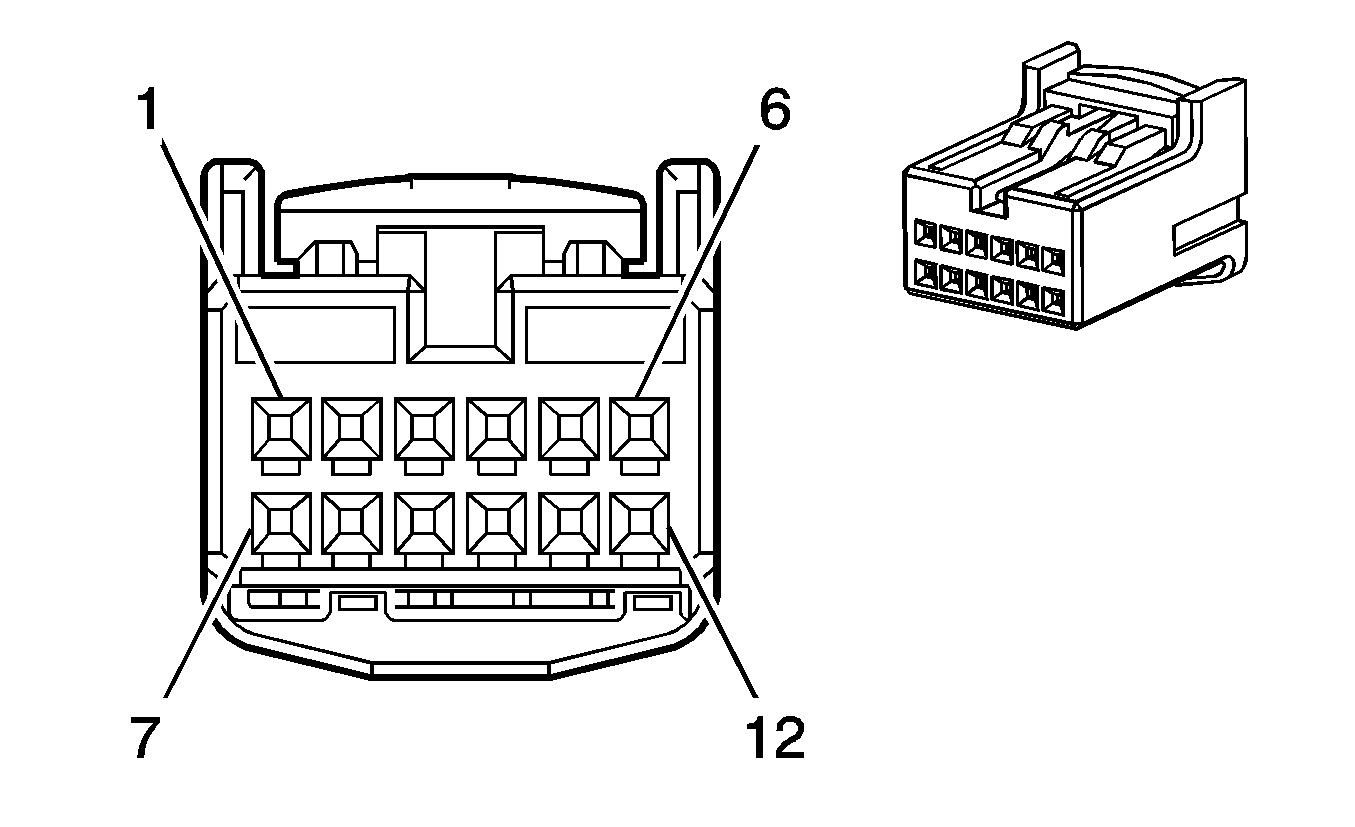

Power Steering Control Module (PSCM) X4 (LNF)

Connector Part Information

OEM: 1565287-1
Service: See Catalog
Description: 12-Way F 64 SeriesUnsealed (NA)

Terminal Part Information

Terminal/Tray: 1123343-2/7
Core/Insulation Crimp: Pins 1-2, 6-8 - J/J
Core/Insulation Crimp: Pins 2, 8 - K/K
Release Tool/Test Probe: J-38125-24/J-35616-64B (L-BU)

Power Steering Control Module (PSCM) X4 (LNF)

Pin	Wire	Circuit	Function
1	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus+
2	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus+
3-5	--	--	Not Used
6	0.35 PK	1539	Battery Positive Voltage
7	0.35 TN	2501	High Speed GMLAN Serial Data Bus-
8	0.35 TN	2501	High Speed GMLAN Serial Data Bus-
9-12	--	--	Not Used

Power Steering Control Module (PSCM) X5 (LNF)

Connector Part Information

OEM: 7283-3521-40
Service: 19153195
Description: 2-Way F (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Power Steering Control Module (PSCM) X5 (LNF)

Pin	Wire	Circuit	Function
1	8.0 RD/BK	642	Battery Positive Voltage
2	8.0 BK	2050	Ground

Pressure Control Solenoid Valve (MN5)

Connector Part Information

OEM: 12146094
Service: Non-Serviceable
Description: 2-Way F Metri-Pack 150.2 Series P2S (GY)

Pressure Control Solenoid Valve (MN5)

Pin	Wire	Circuit	Function
A	0.35 PU	1228	Pressure Control (PC) Solenoid Valve High Control
B	0.35 L-BU	1229	PC Solenoid Valve Low Control

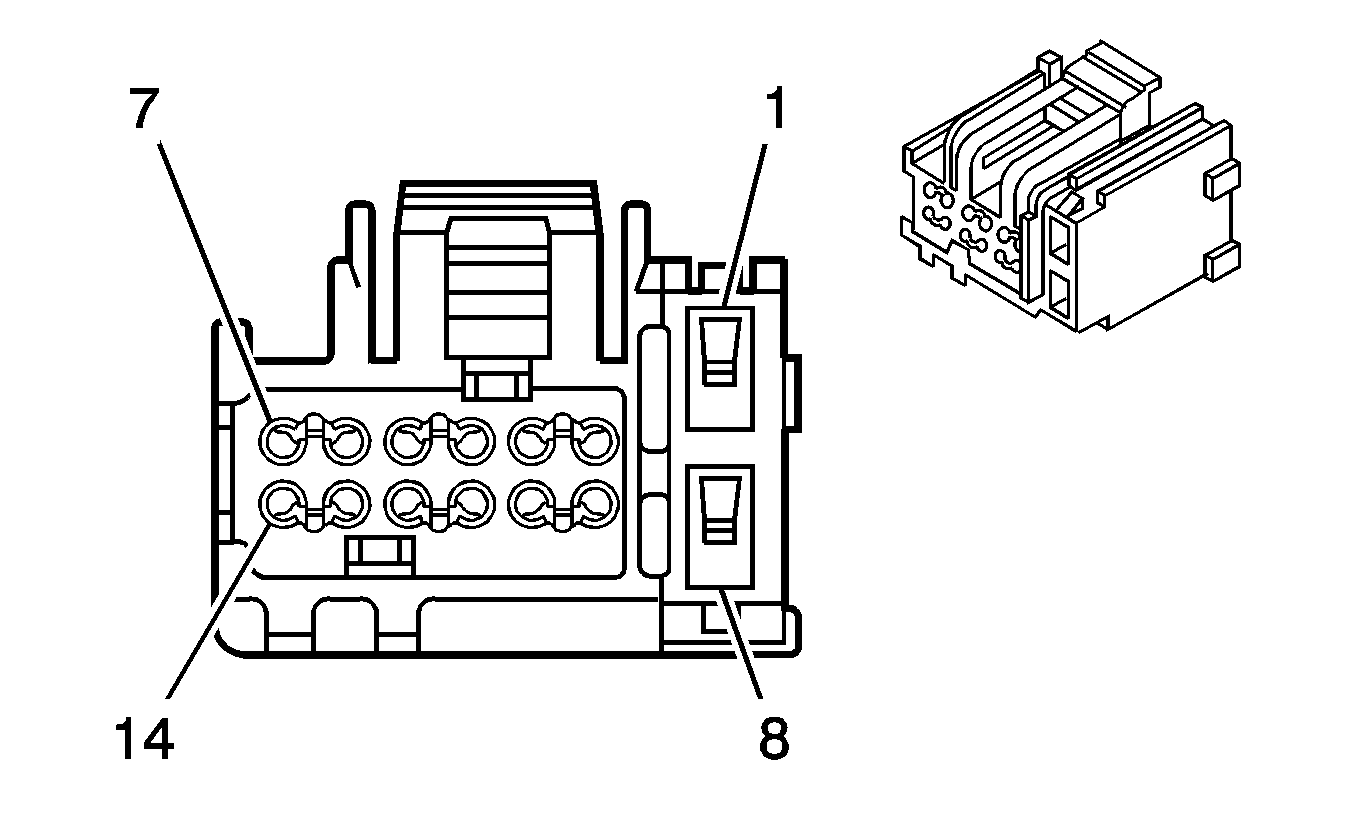

Radio X1 (UQ3)

Connector Part Information

OEM: 15488568
Service: 88988743
Description: 14-Way F GT 150 Series/Micro-Pack 64 Modular (BK)

Terminal Part Information

Pins: 1, 8
Terminal/Tray: 12191812/19
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: 2, 4-7, 9, 11
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio X1 (UQ3)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	1140	Battery Positive Voltage
2	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
3	--	--	Not Used
4	0.35 L-GN	1948	Right Front Low Level Audio Signal (-)
5	0.35 L-GN/WH	512	Right Front Low Level Audio Signal (+)
6	0.35 D-GN	1947	Left Front Low Level Audio (-)
7	0.35 TN	511	Left Front Low Level Audio Signal (+)
8	0.35 BK/WH	651	Ground
9	0.35 D-GN/WH	5060	Low Speed GMLAN Serial Data
10	--	--	Not Used
11	0.35 D-BU	1796	Steering Wheel Control Signal (UK3)
12-14	--	--	Not Used

Radio X1 (UW5)

Connector Part Information

OEM: 15488568
Service: 88988743
Description: 14-Way F GT 150 Series/Micro-Pack 64 Modular (BK)

Terminal Part Information

Pins: 1, 8
Terminal/Tray: 12191812/19
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: 2, 4-7, 9, 11
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio X1 (UW5)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	1140	Battery Positive Voltage
2	0.35 GY	8	Instrument Panel Lamp Dimmer Switch Signal
3	--	--	Not Used
4	0.35 D-GN	117	Right Front Speaker Output (-)
5	0.35 L-GN	200	Right Front Speaker Output (+)
6	0.35 GY	118	Left Front Speaker Output (-)
7	0.35 TN	201	Left Front Speaker Output (+)
8	0.35 BK/WH	651	Ground
9	0.35 D-GN/WH	5060	Low Speed GMLAN Serial Data
10	--	--	Not Used
11	0.35 D-BU	1796	Steering Wheel Control Signal (UK3)
12-14	--	--	Not Used

Radio X2 (UQ3)

Connector Part Information

OEM: 15416970
Service: 15394150
Description: 16-Way F Micro-Pack 64 Modular (BK)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio X2 (UQ3)

Pin	Wire	Circuit	Function
1	0.35 BN/WH	367	Left Audio Signal (+) (U2K)
2	0.35 D-GN/WH	368	Right Audio Signal (+) (U2K)
3	0.35 PK	314	Radio On Signal
4	0.35 D-BU	546	Right Rear Low Level Audio Signal (+)
5	0.35 TN	1946	Right Rear Low Level Audio Signal (-)
6	0.35 BN/WH	599	Left Rear Low Level Audio Signal (+)
7	0.35 BN	1999	Left Rear Low Level Audio Signal (-)
8	0.35 PK/BK	2062	Cellular Telephone Voice Signal (UE1)
9	0.35 TN/WH	372	Audio Common (U2K)
10-13	--	--	Not Used
14	0.35 WH/BK	644	10-Volt Reference (UK3)
15	0.35 L-GN	1011	Remote Radio Control Signal
16	0.35 OG/BK	2061	Cellular Telephone Voice Low Reference (UE1)

Radio X2 (UW5)

Connector Part Information

OEM: 7283-9076-30
Service: 15394150
Description: 16-Way F Micro-Pack 64 Modular (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Radio X2 (UW5)

Pin	Wire	Circuit	Function
1	0.35 BN/WH	367	Remote Radio Left Audio Signal (+) (U2K)
2	0.35 D-GN/WH	368	Remote Radio Right Audio Signal (+) (U2K)
3	0.35 PK	314	Radio On Signal
4	0.35 D-BU	46	Right Rear Speaker Output (+)
5	0.35 L-BU	115	Right Rear Speaker Output (-)
6	0.35 BN	199	Left Rear Speaker Output (+)
7	0.35 YE	116	Left Rear Speaker Output (-)
8	0.35 PK/BK	2062	Cellular Telephone Voice Signal (UE1)
9	0.35 TN/WH	372	Audio Common (U2K)
10-13	--	--	Not Used
14	0.35 WH/BK	644	10-Volt Reference (UK3)
15	--	--	Not Used
16	0.35 OG/BK	2061	Cellular Telephone Voice Low Reference (UE1)

Rear Access Panel Latch - Left Rear (Panel Van)

Connector Part Information

OEM: 10768367
Service: 88952463
Description: 10-Way F Sealed Series

Terminal Part Information

Pins: 3, 4
Terminal/Tray: 964274-2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Pins: 6, 8
Terminal/Tray: 4-969005-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Rear Access Panel Latch - Left Rear (Panel Van)

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.35 L-GN/BK	933	Liftgate Relay B+
4	0.35 BN	6156	Rear Access Panel Relay Control - Left Rear
5	--	--	Not Used
6	0.35 L-BU/BK	747	Left Rear Door Ajar Switch Signal
7	--	--	Not Used
8	0.35 BK/WH	1251	Ground
9-10	--	--	Not Used

Rear Access Panel Latch - Right Rear (Panel Van)

Connector Part Information

OEM: 10768367
Service: 88952463
Description: 10-Way F Sealed Series

Terminal Part Information

Pins: 1, 3
Terminal/Tray: 4-969005-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Pins: 8, 9
Terminal/Tray: 96274-2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Rear Access Panel Latch - Right Rear (Panel Van)

Pin	Wire	Circuit	Function
1	0.35 L-GN/BK	748	Right Rear Door Ajar Switch Signal
2	--	--	Not Used
3	0.35 BK/WH	1551	Ground
4-7	--	--	Not Used
8	0.35 L-GN/BK	933	Liftgate Relay B+
9	0.35 BN	6156	Rear Access Panel Relay Control - Right Rear
10	--	--	Not Used

Rear Window Defogger Grid X1

Connector Part Information

OEM: 12092133
Service: 12167133
Description: 1-Way F Metri-Pack 630 Series (BK)

Terminal Part Information

Terminal/Tray: 12103325/3
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Rear Window Defogger Grid X1

Pin	Wire	Circuit	Function
A	3 PU	293	Rear Defog Element Supply Voltage

Rear Window Defogger Grid X2

Connector Part Information

OEM: 12092133
Service: 12167133
Description: 1-Way F Metri-Pack 630 Series (BK)

Terminal Part Information

Terminal/Tray: 12103325/3
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Rear Window Defogger Grid X2

Pin	Wire	Circuit	Function
A	3 BK	1450	Ground

Rear Window Wiper Motor

Connector Part Information

OEM: 7283-7433
Service: 88988339
Description: 3-Way F GT 150 Series (NA)

Terminal Part Information

Pins: 1, 3
Terminal/Tray: 7116-4021/11
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Pins: 2
Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Rear Window Wiper Motor

Pin	Wire	Circuit	Function
1	0.35 BK	850	Ground
2	0.35 YE	5456	Rear Wiper Motor Park Signal
3	0.35 WH	393	Rear Window Wiper Motor Control

Rear Wiper/Washer Switch

Connector Part Information

OEM: 50-57-9405
Service: 89046734
Description: 5-Way (BK)

Terminal Part Information

Terminal/Tray: 16-02-1110/20
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Rear Wiper/Washer Switch

Pin	Wire	Circuit	Function
1	0.35 BK/WH	651	Ground
2	--	--	Not Used
3	0.35 BK/WH	651	Ground
4	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
5	0.35 WH	2283	Rear Wiper/Washer Switch Supply Voltage

Recirculation Actuator

Connector Part Information

OEM: 12059110
Service: 88953271
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Recirculation Actuator

Pin	Wire	Circuit	Function
A	0.35 L-GN/BK	1647	Recirculation Control A
B	0.35 PK/WH	1648	Recirculation Control B

Remote Control Door Lock Receiver (RCDLR)

Connector Part Information

OEM: HCMPB-04-K
Service: 88988403
Description: 4-Way F HCM Series (BK)

Terminal Part Information

Terminal/Tray: SHCM-A03T-P025/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Remote Control Door Lock Receiver (RCDLR)

Pin	Wire	Circuit	Function
1	0.35 BK	750	Ground
2	0.35 D-GN	5060	Low Speed GMLAN Serial Data
3	--	--	Not Used
4	0.35 RD/WH	1140	Battery Positive Voltage

Seat Adjuster Switch - Driver (AJ6)

Connector Part Information

OEM: 15326924
Service: 15306174
Description: 8-Way F GT 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Adjuster Switch - Driver (AJ6)

Pin	Wire	Circuit	Function
A	0.35 D-GN	286	Driver Seat Front Vertical Motor Down Control
B	0.35 BK	1250	Ground
C	0.35 BN	285	Driver Seat Horizontal Motor Forward Control
D	0.35 RD/BK	342	Battery Positive Voltage
E	0.35 L-BU	283	Driver Seat Rear Vertical Motor Down Control
F	0.35 L-GN	284	Driver Seat Horizontal Motor Rearward Control
G	0.35 YE	282	Driver Seat Rear Vertical Motor Up Control
H	0.35 D-BU	287	Driver Seat Front Vertical Motor Up Control

Seat Belt Pretensioner - Left

Connector Part Information

OEM: 1642628-1
Service: 88988308
Description: 2-Way F (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Pretensioner - Left

Pin	Wire	Circuit	Function
1	0.35 YE/WH	2119	Seat Belt Pretensioner - Left - Low Control
2	0.35 GY/WH	2118	Seat Belt Pretensioner - Left - High Control

Seat Belt Pretensioner - Right

Connector Part Information

OEM: 1642627-1
Service: 88988308
Description: 2-Way F (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Pretensioner - Right

Pin	Wire	Circuit	Function
1	0.35 L-BU/OG	2117	Seat Belt Pretensioner - Right - Low Control
2	0.35 GY/OG	2116	Seat Belt Pretensioner - Right - High Control

Seat Belt Switch - Left

Connector Part Information

OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Seat Belt Switch - Left

Pin	Wire	Circuit	Function
A	0.35 TN/WH	238	Seat Belt Switch - Left
B	--	--	Not Used
C	0.35 PK	5057	Low Reference

Seat Belt Switch - Right

Connector Part Information

OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Seat Belt Switch - Right

Pin	Wire	Circuit	Function
A	0.35 OG	1362	Seat Belt Switch - Right
B	--	--	Not Used
C	0.35 PK	5057	Low Reference

Seat Front Vertical Motor - Driver (AJ6)

Connector Part Information

OEM: 7283-1020
Service: 88952826
Description: 2-Way F 2.3 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Front Vertical Motor - Driver (AJ6)

Pin	Wire	Circuit	Function
1	0.35 D-GN	286	Driver Seat Front Vertical Motor Down Control
2	0.35 D-BU	287	Driver Seat Front Vertical Motor Up Control

Seat Horizontal Motor - Driver (AJ6)

Connector Part Information

OEM: 7283-1020
Service: 88952826
Description: 2-Way F 2.3 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Horizontal Motor - Driver (AJ6)

Pin	Wire	Circuit	Function
1	0.35 TN	285	Driver Seat Horizontal Motor Forward Control
2	0.35 L-GN	284	Driver Seat Horizontal Motor Rearward Control

Seat Lumbar Motor - Driver (AJ6)

Connector Part Information

OEM: 7283-1020
Service: 88952826
Description: 2-Way F 2.3 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Lumbar Motor - Driver (AJ6)

Pin	Wire	Circuit	Function
1	0.35 TN	768	Driver Power Seat Lumbar Motor Up Control
2	0.35 PU	767	Driver Power Seat Lumbar Motor Down Control

Seat Rear Vertical Motor - Driver (AJ6)

Connector Part Information

OEM: 7283-1020
Service: 88952826
Description: 2-Way F 2.3 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Rear Vertical Motor - Driver (AJ6)

Pin	Wire	Circuit	Function
1	0.35 YE	282	Driver Seat Rear Vertical Motor Up Control
2	0.35 L-BU	283	Driver Seat Rear Vertical Motor Down Control

Speaker - Left Front Door (UQ3)

Connector Part Information

OEM: 12064869
Service: 12117323
Description: 2-Way F Metri-Pack 150 Series (BU)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Front Door (UQ3)

Pin	Wire	Circuit	Function
A	0.35 GY	118	Left Front Speaker Output (-)
B	0.35 TN	201	Left Front Speaker Output (+)

Speaker - Left Front Door (UW5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Front Door (UW5)

Pin	Wire	Circuit	Function
A	0.35 GY	118	Left Front Speaker Output (-)
B	0.35 TN	201	Left Front Speaker Output (+)

Speaker - Left Front Tweeter

Connector Part Information

OEM: 12103021
Service: 12106048
Description: 2-Way M Metri-Pack 150 Series (BU)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Speaker - Left Front Tweeter

Pin	Wire	Circuit	Function
A	0.35 GY	118	Left Front Speaker Output (-)
B	0.35 TN	201	Left Front Speaker Output (+)

Speaker - Left Rear Door (UQ3)

Connector Part Information

OEM: 12064867
Service: 88987981
Description: 2-Way F Metri-Pack 150 Series (NA)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Rear Door (UQ3)

Pin	Wire	Circuit	Function
A	0.35 YE	116	Left Rear Speaker Output (-)
B	0.35 BN	199	Left Rear Speaker Output (+)

Speaker - Left Rear Door (UW5)

Connector Part Information

OEM: 15433787
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (GY)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Rear Door (UW5)

Pin	Wire	Circuit	Function
A	0.35 YE	116	Left Rear Speaker Output (-)
B	0.35 BN	199	Left Rear Speaker Output (+)

Speaker - Right Front Door (UQ3)

Connector Part Information

OEM: 12064869
Service: 12117323
Description: 2-Way F Metri-Pack 150 Series (BU)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Front Door (UQ3)

Pin	Wire	Circuit	Function
A	0.35 GY	118	Left Front Speaker Output (-)
B	0.35 TN	201	Left Front Speaker Output (+)

Speaker - Right Front Door (UW5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (GY)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Front Door (UW5)

Pin	Wire	Circuit	Function
A	0.35 D-GN	117	Right Front Speaker Output (-)
B	0.35 L-GN	200	Right Front Speaker Output (+)

Speaker - Right Front Tweeter

Connector Part Information

OEM: 12103021
Service: 12106048
Description: 2-Way M Metri-Pack 150 Series (BU)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Speaker - Right Front Tweeter

Pin	Wire	Circuit	Function
A	0.35 D-GN	117	Right Front Speaker Output (-)
B	0.35 L-GN	200	Right Front Speaker Output (+)

Speaker - Right Rear Door (UQ3)

Connector Part Information

OEM: 12064867
Service: 88987981
Description: 2-Way F Metri-Pack 150 Series (NA)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Rear Door (UQ3)

Pin	Wire	Circuit	Function
A	0.35 YE	116	Left Rear Speaker Output (-)
B	0.35 BN	199	Left Rear Speaker Output (+)

Speaker - Right Rear Door (UW5)

Connector Part Information

OEM: 15433787
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (GY)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Rear Door (UW5)

Pin	Wire	Circuit	Function
A	0.35 YE	116	Left Rear Speaker Output (-)
B	0.35 BN	199	Left Rear Speaker Output (+)

Speaker - Subwoofer (UQ3)

Connector Part Information

OEM: 12064760
Service: 12085208
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Subwoofer (UQ3)

Pin	Wire	Circuit	Function
A	0.35 L-BU/BK	315	Rear Subwoofer Speaker (-)
B	0.35 D-GN	1795	Rear Subwoofer Speaker (+)
C	0.35 D-BU/WH	346	Rear Subwoofer Speaker (-)
D	0.35 L-GN/BK	1794	Rear Subwoofer Speaker (-)

Starter X1

Connector Part Information

OEM: 12089916
Service: See Catalog
Description: 1-Way F Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Starter X1

Pin	Wire	Circuit	Function
A	2 PU	6	Starter Solenoid Crank Voltage

Starter X2 (To Battery)

Terminal Part Information

Terminal: 12161134
Core/Insulation Crimp: N/A
Description: Ring Terminal

Starter X2 (To Battery)

Pin	Wire	Circuit	Function
+	32 RD	1	Battery Positive Voltage

Starter X2 (To Generator)

Terminal Part Information

Terminal: 12103501
Core/Insulation Crimp: N/A
Description: Ring Terminal

Starter X2 (To Generator)

Pin	Wire	Circuit	Function
+	8 BK	2	Battery Positive Voltage

Steering Angle Sensor (without JL9)

Connector Part Information

OEM: 1488752-1
Service: 88988374
Description: 6-Way F 64 GET Series (BK)

Terminal Part Information

Terminal/Tray: 1393366-1/16
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Steering Angle Sensor (without JL9)

Pin	Wire	Circuit	Function
1	0.35 GY	1056	12V Supply Voltage
2	--	--	Not used
3	0.5 PK/BK	6434	CAN Bus High Serial Data
4	0.5 GY/BK	6435	CAN Bus Low Serial Data
5	--	--	Not used
6	0.35 OG/BK	556	Ground

Steering Wheel Controls - Left

Connector Part Information

OEM: 50-57-9407
Service: Serviced by Complete Steering Wheel Harness
Description: 7-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Wheel Controls - Left

Pin	Wire	Circuit	Function
1	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
2	--	--	Not Used
3	0.35 GY	8	Instrument Panel Lamp Dimmer Switch Signal (K34)
4	0.35 PK	339	Ignition 1 Voltage
5	0.35 GY/BK	1884	Cruise Control Switch Signal
6	--	--	Not Used
7	0.35 BK	151	Ground (K34)

Steering Wheel Controls - Right (UK3)

Connector Part Information

OEM: 50-57-9404
Service: Serviced by Complete Steering Wheel Harness
Description: 4-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Wheel Controls - Right (UK3)

Pin	Wire	Circuit	Function
1	0.35 BK	151	Ground
2	0.35 WH/BK	644	10-Volt Reference
3	0.35 GY	8	Instrument Panel Lamp Dimmer Switch Signal
4	0.35 D-BU	1796	Steering Wheel Controls Signal

Stop Lamp Switch

Connector Part Information

OEM: 12033701
Service: 12117346
Description: 2-Way F Metri-Pack 480 Series (GY)

Terminal Part Information

Pins: A
Terminal/Tray: 12015860/4
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Pins: B
Terminal/Tray: 12124304/2
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Stop Lamp Switch

Pin	Wire	Circuit	Function
A	0.35 RD/WH	140	Battery Positive Voltage
B	0.35 L-BU	20	Stop Lamp Supply Voltage
B	0.35 L-BU	20	Stop Lamp Supply Voltage

Stop Lamp/TCC/Cruise Release Switch

Connector Part Information

OEM: 12041433
Service: 12126463
Description: 2-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: 12034046/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Stop Lamp/TCC/Cruise Release Switch

Pin	Wire	Circuit	Function
A	0.35 PK	339	Ignition 1 Voltage
B	0.35 PU	420	TCC Brake Switch/Cruise Control Release Signal

Sunroof Control Module (CF5)

Connector Part Information

OEM: 7283-8398-40
Service: Serviced by Complete Sunroof Harness
Description: 14-Way F (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Sunroof Control Module (CF5)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	540	Battery Positive Voltage
2	0.35 TN	755	Sunroof Enable Signal
3	--	--	Not Used
4	0.35 BK	750	Ground
5	0.35 OG	5029	Sunroof Switch Open Signal
6	0.35 L-BU	5027	Sunroof Switch Close Signal
7	0.35 BN	5028	Sunroof Switch Express Signal
8	0.35 PU	5032	Sunroof Switch Open Vent Signal
9	0.35 L-GN	5030	Sunroof Switch Close Vent Signal
10	0.35 PK	5031	Sunroof Switch Express Vent Signal
11	--	--	Not Used
12	0.35 WH/RD	943	Config 1
13	0.35 WH/BU	944	Config 2
14	0.35 WH/GN	945	Config 3

Sunroof Switch (CF5)

Connector Part Information

OEM: 5057-9408
Service: 89046705
Description: 8-Way F GT 280 Series (BK)

Terminal Part Information

Terminal/Tray: 16-02-1110/20
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Sunroof Switch (CF5)

Pin	Wire	Circuit	Function
1	0.35 PK	5031	Sunroof Switch Express Vent Signal
2	0.35 L-BU	5027	Sunroof Switch Close Signal
3	--	--	Not Used
4	0.35 PU	5032	Sunroof Switch Open Vent Signal
5	0.35 BK	750	Ground
6	0.35 L-GN	5030	Sunroof Switch Close Vent Signal
7	0.35 BN	5028	Sunroof Switch Express Signal
8	0.35 OG	5029	Sunroof Switch Open Signal

Tail/Stop and Turn Signal Lamp - Left

Connector Part Information

OEM: 12040977
Service: 12085492
Description: 3-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Tail/Stop and Turn Signal Lamp - Left

Pin	Wire	Circuit	Function
A	0.35 YE	18	Left Rear Stop/Turn Lamp Supply Voltage
B	0.35 BN	9	Park Lamp Supply Voltage
C	0.35 BK	750	Ground

Tail/Stop and Turn Signal Lamp - Right

Connector Part Information

OEM: 12040977
Service: 12085492
Description: 3-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Tail/Stop and Turn Signal Lamp - Right

Pin	Wire	Circuit	Function
A	0.35 D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage
B	0.35 BN	9	Park Lamp Supply Voltage
C	0.35 BK	850	Ground

Theft Deterrent Control Module

Connector Part Information

OEM: 50-57-9405
Service: 88988353
Description: 5-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Theft Deterrent Control Module

Pin	Wire	Circuit	Function
1	0.35 RD/WH	1540	Battery Positive Voltage
2	0.35 BN	4	Accessory Voltage
3	0.35 BK/WH	651	Ground
4	0.35 L-GN	5060	Low Speed GMLAN Serial Data
5	--	--	Not Used

Throttle Actuator Control (TAC) Module (L61/LE5)

Connector Part Information

OEM: 15355297
Service: 88988106
Description: 6-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Throttle Actuator Control (TAC) Module (L61/LE5)

Pin	Wire	Circuit	Function
A	0.5 BN	582	Throttle Actuator Motor Control (2)
B	0.5 YE	581	Throttle Actuator Motor Control (1)
C	0.35 TN	2752	Low Reference
D	0.35 D-GN	485	Throttle Position Sensor (1) Signal
E	0.35 GY	2701	5-Volt Reference
F	0.35 PU	486	Throttle Position Sensor (2) Signal

Throttle Body (LNF)

Connector Part Information

OEM: 15355297
Service: See Catalog
Description: 6-Way F GT 150 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Throttle Body (LNF)

Pin	Wire	Circuit	Function
A	0.5 BN	582	TAC Motor Control - 2
B	0.5 YE	581	TAC Motor Control - 1
C	0.5 TN	2752	Low Reference
D	0.5 D-GN	485	TP Sensor 1 Signal
E	0.5 GY	2701	5-Volt Reference 3
F	0.5 PU	486	TP Sensor 2 Signal

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve (MN5)

Connector Part Information

OEM: 12162202
Service: Non-Serviceable
Description: 2-Way F Metri-Pack 150.2 Series P2S (BU)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve (MN5)

Pin	Wire	Circuit	Function
A	0.35 RD	839	Ignition 1 Voltage
B	0.35 TN	418	Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Control

Traction Control Switch (JL4/JL9)

Connector Part Information

OEM: 12047785
Service: See Catalog
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Traction Control Switch (JL4/JL9)

Pin	Wire	Circuit	Function
A	0.35 BK/WH	651	Ground
B	--	--	Not Used
C	0.35 L-BU	1788	Traction Control Switch Signal
D	0.35 GY	8	Instrument Panel Lamps Dimming

Transmission Control Module (TCM) (MN5)

Connector Part Information

OEM: 15463921
Service: Non-Serviceable
Description: 49-Way F Micro-64 GT 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Transmission Control Module (TCM) (MN5)

Pin	Wire	Circuit	Function
1	0.35 TN/BK	422	Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Control
2	0.35 L-GN	1222	1-2 Shift Solenoid (SS) Valve Control
3	0.35 OG/BK	1230	Input Speed Sensor (ISS) High Signal
4-5	--	--	Not Used
6	0.35 TN	2501	High Speed GMLAN Serial Data Bus - (CAN)
7	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus + (CAN)
8	--	--	Not Used
9	0.35 YE	657	TCC Release Switch Signal
10	--	--	Not Used
11	0.35 BN	4	Accessory Voltage
12-15	--	--	Not Used
16	0.35 PU	401	Output Speed Sensor (OSS) Low Signal
17	0.35 L-BU/WH	1229	Pressure Control (PC) Solenoid Valve Low Control
18-19	--	--	Not Used
20	0.35 YE/BK	1223	2-3 SS Valve Control
21-22	--	--	Not Used
23	0.35 GY	773	Transmission Range Switch Signal C
24-25	--	--	Not Used
26	0.35 D-BU/WH	1231	ISS Low Signal
27-28	--	--	Not Used
29	0.35 TN/WH	771	Transmission Range Switch Signal A
30	0.35 TN	2762	Transmission Fluid Temperature (TFT) Sensor Low Reference
31	0.35 PK	1039	Ignition 1 Voltage
32	0.5 RD/WH	840	Battery Positive Voltage
33	0.35 OG	1226	Transmission Fluid Pressure (TFP) Switch Signal C
34	--	--	Not Used
35	0.35 YE/BK	1227	TFT Sensor Signal
36	--	--	Not Used
37	0.35 TN	2501	High Speed GMLAN Serial Data Bus - (CAN)
38	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus + (CAN)
39	0.35 WH	776	Transmission Range Switch Signal P
40	0.35 OG/BK	1228	PC Solenoid Valve High Control
41	0.35 YE	400	OSS High Signal
42	0.35 L-BU	20	Stop Lamp Switch Signal
43	--	--	Not Used
44	0.35 D-BU	1225	TFP Switch Signal B
45	--	--	Not Used
46	0.35 YE	772	Transmission Range Switch Signal B
47-48	--	--	Not Used
49	0.35 BK/WH	451	Ground

Turbo Bypass Valve Solenoid (LNF)

Connector Part Information

OEM: 1 928 402 571
Service: See Catalog
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turbo Bypass Valve Solenoid (LNF)

Pin	Wire	Circuit	Function
1	D-GN	6391	Turbo Bypass Valve Control
2	PK/BK	5293	Powertrain Main Relay Fused Supply (4)

Turbocharger Wastegate Solenoid (LNF)

Connector Part Information

OEM: 1 928 402 571
Service: See Catalog
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turbocharger Wastegate Solenoid (LNF)

Pin	Wire	Circuit	Function
1	0.5 YE	258	Wastegate Solenoid Control
2	0.5 PK/BK	5293	Powertrain Main Relay Fused Supply (4)

Turn Signal/Multifunction Switch X1

Connector Part Information

OEM: NACP-08-S
Service: 88987843
Description: 8-Way F JST NAC-I Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch X1

Pin	Wire	Circuit	Function
1	0.35 BK/WH	651	Ground
2	0.35 WH	103	Headlamp Switch On Signal
3	0.35 BN/WH	301	Park Lamp Switch On Signal
4	0.35 PU/WH	549	Headlamp Switch Headlamps Off Signal
5-8	--	--	Not Used

Turn Signal/Multifunction Switch X2

Connector Part Information

OEM: 15393435
Service: 88986438
Description: 10-Way F Micro 64 (GY)

Terminal Part Information

Terminal/Tray: 12177007/19
Core/Insulation Crimp: E/2
Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)

Turn Signal/Multifunction Switch X2

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 BK/WH	651	Ground
C	0.35 BN	1356	Flash To Pass Switch Signal
D	0.35 PU	524	Headlamp Dimmer Switch High Beam Signal
E	0.35 PK/WH	1970	Headlamp Low Beam Relay Control
F	0.35 YE	10	Headlamp Switch Signal
G	0.35 YE/BK	1418	Left Rear Turn Signal Switch Signal
H	0.35 D-GN/WH	1419	Right Rear Turn Signal Switch Signal
J-K	--	--	Not Used

VCIM Fuse Holder - 10 AMP (UE1)

Connector Part Information

OEM: E-5972-001
Service: 19115609
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

VCIM Fuse Holder - 10 AMP (UE1)

Pin	Wire	Circuit	Function
1	0.35 RD/BK	142	Battery Positive Voltage
2	0.35 RD/WH	1740	Battery Positive Voltage

Vehicle Communication Interface Module (VCIM) X1 (UE1)

Connector Part Information

OEM: 15431362
Service: 15306351
Description: 16-Way F Micro 100A (NA)

Terminal Part Information

Terminal/Tray: 15355438/20
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-12 (BU)

Vehicle Communication Interface Module (VCIM) X1 (UE1)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 BN/WH	2517	Keypad Red LED Signal
3	0.35 YE/BK	2516	Keypad Green LED Signal
4-5	--	--	Not Used
6	0.35 L-GN/BK	2515	Keypad Supply Voltage
7	--	--	Not Used
8	0.35 BK/WH	851	Ground
9-10	--	--	Not Used
11	0.35 D-GN/WH	2514	Keypad Signal
12-14	--	--	Not Used
15	0.35 RD/WH	1340	Battery Positive Voltage
16	--	--	Not Used

Vehicle Communication Interface Module (VCIM) X2 (UE1)

Connector Part Information

OEM: 15431365
Service: 88952886
Description: 12-Way F Micro 100A (WH)

Terminal Part Information

Terminal/Tray: 15355438/20
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-12 (BU)

Vehicle Communication Interface Module (VCIM) X2 (UE1)

Pin	Wire	Circuit	Function
1	0.35 PK/BK	2062	Cellular Telephone Voice Signal
2	0.35 OG/BK	2061	Cellular Telephone Voice Signal Low Reference
3-7	--	--	Not Used
8	0.35 BN	813	Drain Wire
9	0.35 GY	655	Cellular Microphone Signal
10	0.35 BN	1489	Drain Wire
11-12	--	--	Not Used

Vehicle Communication Interface Module (VCIM) X3 (UE1)

Connector Part Information

OEM: 15431368
Service: 88988545
Description: 12-Way F Micro 100A (BK)

Terminal Part Information

Terminal/Tray: 15355438/20
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-12 (BU)

Vehicle Communication Interface Module (VCIM) X3 (UE1)

Pin	Wire	Circuit	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus (+) (- JM4)
3	0.35 TN	2501	High Speed GMLAN Serial Data Bus (-) (- JM4)
4-7	--	--	Not Used
8	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus (+) (JM4)
9	0.35 TN	2501	High Speed GMLAN Serial Data Bus (-) (JM4)
10-12	--	--	Not Used

Vehicle Speed Sensor (VSS)

Connector Part Information

OEM: 15336024
Service: See Catalog
Description: 2-Way F GT 150 Series Sealed Delphi Packard (BK)

Vehicle Speed Sensor (VSS)

Pin	Wire	Circuit	Function
A	0.35 PU/WH	6356	VSS Low Signal (MU3)
A	0.35 PU	401	VSS Low Signal (MU3)
B	0.35 BN/WH	6354	VSS High Signal (MU3)
B	0.35 YE	400	VSS High Signal (MU3)

Wheel Speed Sensor (WSS) - Left Front

Connector Part Information

OEM: 12052644
Service: 22710405
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Wheel Speed Sensor (WSS) - Left Front

Pin	Wire	Circuit	Function
A	0.5 YE	873	Left Front Wheel Speed Sensor Signal
B	0.5 L-BU	830	Left Front Wheel Speed Sensor Low Reference

Wheel Speed Sensor (WSS) - Left Rear

Connector Part Information

OEM: 15305168
Service: 12167117
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Wheel Speed Sensor (WSS) - Left Rear

Pin	Wire	Circuit	Function
A	0.5 TN	884	Left Rear Wheel Speed Sensor Signal
B	0.5 OG	885	Left Rear Wheel Speed Sensor Low Reference

Wheel Speed Sensor (WSS) - Right Front

Connector Part Information

OEM: 12052644
Service: 22710405
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Wheel Speed Sensor (WSS) - Right Front

Pin	Wire	Circuit	Function
A	0.5 D-GN	872	Right Front Wheel Speed Sensor Signal
B	0.5 TN	833	Right Front Wheel Speed Sensor Low Reference

Wheel Speed Sensor (WSS) - Right Rear

Connector Part Information

OEM: 15305168
Service: 12167117
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Wheel Speed Sensor (WSS) - Right Rear

Pin	Wire	Circuit	Function
A	0.5 BN	882	Right Rear Wheel Speed Sensor Signal
B	0.5 WH	883	Right Rear Wheel Speed Sensor Low Reference

Window Motor - Driver

Connector Part Information

OEM: 12129487
Service: 88988609
Description: 2-Way F Metri-Pack 280 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12110845/4
Core/Insulation Crimp: A/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Window Motor - Driver

Pin	Wire	Circuit	Function
A	0.35 BN	165	Power Window Motor Left Front Down Control
B	0.35 D-BU	164	Power Window Motor Left Front Up Control

Window Motor - Left Rear (without Panel Van)

Connector Part Information

OEM: 12129487
Service: 88988609
Description: 2-Way F Metri-Pack 280 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12110845/4
Core/Insulation Crimp: F/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Window Motor - Left Rear (without Panel Van)

Pin	Wire	Circuit	Function
A	0.35 BN	669	Power Window Motor Left Rear Down Control
B	0.35 D-BU	668	Power Window Motor Left Rear Up Control

Window Motor - Passenger

Connector Part Information

OEM: 12129487
Service: 88988609
Description: 2-Way F Metri-Pack 280 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12110845/4
Core/Insulation Crimp: A/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Window Motor - Passenger

Pin	Wire	Circuit	Function
A	0.35 BN	667	Power Window Motor Right Front Down Control
B	0.35 D-BU	666	Power Window Motor Right Front Up Control

Window Motor - Right Rear (without Panel Van)

Connector Part Information

OEM: 12129487
Service: 88988609
Description: 2-Way F Metri-Pack 280 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12110845/4
Core/Insulation Crimp: F/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Window Motor - Right Rear (without Panel Van)

Pin	Wire	Circuit	Function
A	0.35 BN	671	Power Window Motor Right Rear Down Control
B	0.35 D-BU	670	Power Window Motor Right Rear Up Control

Window Switch -- Master (without Sport)

Connector Part Information

OEM: 72831120
Service: See Catalog
Description: 12-Way F (WH)

Terminal Part Information

Terminal/Tray: 7116-4022/11
Core/Insulation Crimp: 4/A
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Window Switch - Master (without Sport)

Pin	Wire	Circuit	Function
1	0.35 D-GN	801	Retained Accessory Power Fuse Supply Voltage
2	0.35 L-GN	170	Power Window Master Switch Right Rear Up Signal (- Panel Van)
3	0.35 PU	171	Power Window Master Switch Right Rear Down Signal (- Panel Van)
4	0.35 D-GN/WH	168	Power Window Master Switch Left Rear Up Signal (- Panel Van)
5	0.35 PU/WH	169	Power Window Master Switch Left Rear Down Signal (- Panel Van)
6	0.35 BN	667	Power Window Motor Right Front Down Control
7	0.35 D-BU/BK	666	Power Window Motor Right Front Up Control
8	0.35 BK	1250	Ground
9	0.35 D-BU	1307	Power Window Master Switch Lockout Signal (- Panel Van)
10	0.35 D-BU/BK	1307	Power Window Master Switch Lockout Signal (- Panel Van)
11	0.35 TN	165	Power Window Motor Left Front Down Control
12	0.35 L-BU	164	Power Window Motor Left Front Up Control

Window Switch - Driver X1 (Sport)

Connector Part Information

OEM: 7283-9028-30
Service: See Catalog
Description: 8-Way F YESC Kaizen Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Window Switch - Driver X1 (Sport)

Pin	Wire	Circuit	Function
1	0.35 GY	8	Instrument Panel lamps Dimmer Switch Signal
2	0.35 D-BU	1307	Left Rear Window Switch Lockout Signal
3	0.35 PU	169	Left Rear Window Down Signal
4	0.35 D-GN	168	Left Rear Window Up Signal
5	0.35 TN	167	Passenger Window Down Signal
6	0.35 L-BU	166	Passenger Window Up Signal
7	0.35 PU	171	Right Rear Window Down Signal
8	0.35 L-GN	170	Right Rear Window Up Signal

Window Switch - Driver X2 (Sport)

Connector Part Information

OEM: 15326924
Service: 15306174
Description: 8-Way F GT 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Window Switch - Driver X2 (Sport)

Pin	Wire	Circuit	Function
A	3.0 BK	1250	Ground
B	--	--	Not Used
C	--	--	Not Used
D	3.0 BN	165	Driver Window Motor Down Control
E	3.0 D-BU	164	Driver Window Motor Up Control
F	0.35 L-BU/WH	280	Right Rear Window Switch Lockout Signal
G	0.35 YE	43	Retained Accessory Power Fuse Supply Voltage
H	3.0 D-GN	801	PWR WINDOW/DOOR Fuse Supply Voltage

Window Switch - Passenger (Sport)

Connector Part Information

OEM: 15326924
Service: 15306174
Description: 8-Way F GT 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Window Switch - Passenger (Sport)

Pin	Wire	Circuit	Function
A	0.35 L-BU	166	Master Switch Window Up Signal
B	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
C	0.35 TN	167	Master Switch Window Down Signal
D	0.35 YE	43	Retained Accessory Power Fuse Supply Voltage
E	2.0 D-BU	666	Passenger Window Motor Up Control
F	2.0 BK/WH	1551	Ground
G	2.0 D-GN	801	PWR WINDOW/DOOR Fuse Supply Voltage
H	2.0 GN	667	Passenger Window Motor Down Control

Window Switch - Left Rear (without Panel Van or Sport)

Connector Part Information

OEM: 12064998
Service: 15306189
Description: 8-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: 12015858/4
Core/Insulation Crimp: F/G
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Window Switch - Left Rear (without Panel Van or Sport)

Pin	Wire	Circuit	Function
A	0.35 BN	669	Power Window Motor Left Rear Down Control
B	--	--	Not Used
C	0.35 D-GN	168	Power Window Master Switch Left Rear Up Signal
D	0.35 D-BU	668	Power Window Motor Left Rear Up Control
E	0.35 D-BU	1307	Power Window Master Switch Lockout Signal
F-G	--	--	Not Used
H	0.35 PU	169	Power Window Master Switch Left Rear Down Signal

Window Switch - Left Rear (Sport)

Connector Part Information

OEM: 15326924
Service: 15306174
Description: 8-Way F GT 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Window Switch - Left Rear (Sport)

Pin	Wire	Circuit	Function
A	0.35 D-GN	168	Master Switch Window Up Signal
B	--	--	Not Used
C	0.35 PU	169	Master Switch Window Down Signal
D	0.35 D-BU	1307	Master Switch Lockout/Enable Signal
E	3.0 D-BU	668	Left Rear Window Motor Up Control
F	2.0 BK	1250	Ground
G	2.0 D-GN	801	PWR WINDOW/DOOR Fuse Supply Voltage
H	3.0 BN	669	Left Rear Window Motor Down Control

Window Switch - Right Rear (without Panel Van or Sport)

Connector Part Information

OEM: 12064998
Service: 15306189
Description: 8-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: 12015858/4
Core/Insulation Crimp: F/G
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Window Switch - Right Rear (without Panel Van or Sport)

Pin	Wire	Circuit	Function
A	0.35 BN	671	Power Window Motor Right Rear Down Control
B	--	--	Not Used
C	0.35 L-GN	170	Power Window Master Switch Right Rear Up Signal
D	0.35 D-BU	670	Power Window Motor Right Rear Up Control
E	0.35 D-BU	1307	Power Window Master Switch Lockout Signal
F-G	--	--	Not Used
H	0.35 PU	171	Power Window Master Switch Right Rear Down Signal

Window Switch - Right Rear (Sport)

Connector Part Information

OEM: 15326924
Service: 15306174
Description: 8-Way F GT 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Window Switch - Right Rear (Sport)

Pin	Wire	Circuit	Function
A	0.35 L-GN	170	Master Switch Window Up Signal
B	--	--	Not Used
C	0.35 PU	171	Master Switch Window Down Signal
D	0.35 L-BU/WH	280	Master Switch Lockout/Enable Signal
E	3.0 D-BU	670	Right Rear Window Motor Up Control
F	2.0 BKWH	1551	Ground
G	2.0 D-GN	801	PWR WINDOW/DOOR Fuse Supply Voltage
H	3.0 BN	671	Right Rear Window Motor Down Control

Windshield Washer Fluid Pump

Connector Part Information

OEM: 12052641
Service: 12102747
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Windshield Washer Fluid Pump

Pin	Wire	Circuit	Function
A	0.35 OG	228	Windshield Washer Pump Control
B	0.35 D-GN	392	Rear Window Washer Pump Control

Windshield Wiper Motor Assembly

Connector Part Information

OEM: 15326631
Service: 15306360
Description: 4-Way F GT 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15304719/19
Core/Insulation Crimp: Pins A, C, D - 2/5
Core/Insulation Crimp: Pins B - E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Windshield Wiper Motor Assembly

Pin	Wire	Circuit	Function
A	0.35 BK	150	Ground
B	0.35 YE	196	Windshield Wiper Motor Park Switch Signal
C	0.35 PU	92	Windshield Wiper Motor High Speed Control
D	0.35 D-GN	95	Windshield Wiper Motor Low Speed Control

Windshield Wiper/Washer Switch

Connector Part Information

OEM: 12059800
Service: 15306169
Description: 5-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Windshield Wiper/Washer Switch

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 OG	228	Windshield Washer Pump Control
C	0.35 L-GN	1715	Windshield Wiper Switch High Signal
D	0.35 PK	439	Ignition 1 Voltage
E	0.35 GY	112	Windshield Wiper Switch Signal 1

Yaw and Lateral Acceleration Sensor (JL4)

Connector Part Information

OEM: 2-967616-1
Service: See Catalog
Description: 6-Way F MQS Socket Housing, Sealed (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Yaw and Lateral Acceleration Sensor (JL4)

Pin	Wire	Circuit	Function
1	0.5 GY/BK	6435	CAN Bus Low Serial Data
2	0.5 PK/BK	6434	CAN Bus High Serial Data
3	0.5 D-GN	2087	12-Volt Reference
4	--	--	Not Used
5	0.5 L-BU	2088	Low Reference
6	--	--	Not Used
