Makes 🢒 Chevrolet 🢒 2009 🢒 HHR 🢒 Engine 🢒 Engine Electrical 🢒 Harness Routing Views
Figure 1:

Forward Lamp Harness
Object Number: 1592477 Size: LF
(1)J101
(2)Fuse Block - Underhood X3
(3)Hood Ajar Switch
(4)J102
(5)Fascia
(6)G111
(7)G109
Figure 2:

Body Harness - Engine Compartment
Object Number: 2195639 Size: LF
(1)Right Front Fender
(2)X171 (JM4)
(3)Fuse Block - Underhood X2
(4)Left Front Strut Tower
(5)Fuse Block - Underhood X4
(6)G111
(7)J113 (LNF)
(8)J112 (LNF)
(9)X121
(10)X171 (JM4/JL4)
(11)X170 (JM4JL4)
Figure 3:

Body Harness - Passenger Compartment
Object Number: 1592471 Size: LF
(1)X201
(2)X205
(3)J312
(4)J318 (U2K)
(5)J317 (U2K)
(6)J204
(7)X200
(8)X211
(9)X300
(10)J311
(11)J302
(12)G306
(13)G302
(14)X310
(15)X316
(16)J405
(17)J401
(18)J407 (UE1)
(19)J408 (UE1)
(20)X400
(21)X402
(22)Inflatable Restraint Roof Rail Module - Left (ASF)
(23)J403
(24)J400
(25)G402
(26)Inflatable Restraint Roof Rail Module - Right (ASF)
(27)X405 (-UE1)
(28)X403
(29)J303
(30)J402
(31)G401
(32)J409 (UE1)
(33)J404
(34)J307
(35)X311
(36)G301
(37)J301
(38)X315
(39)J300
(40)X301
Figure 4:

X105
Object Number: 1757198 Size: LF
(1)X105
(2)Fuse Block - Underhood Bracket
(3)Transmission Control Module (TCM)
Figure 5:

Engine - Front View (LNF)
Object Number: 2004543 Size: LF
(1)G107
(2)Transmission (MU3)
(3)G105
(4)X162
Figure 6:

Engine - Left Rear (LNF)
Object Number: 2004570 Size: LF
(1)X105
(2)X109
(3)J117
(4)J124
(5)J123
(6)J121
(7)J107
(8)G108
Figure 7:

Engine - Front (L61 + MN5)
Object Number: 2006356 Size: LF
(1)X160 (L61/LE5)
(2)X105
(3)X100 (MN5)
(4)G107
(5)G105
Figure 8:

Engine Harness - Front (L61)
Object Number: 1592505 Size: LF
(1)X160
(2)Engine Valve Cover
(3)Fuse Block - Underhood X1
(4)X101
(5)J103
(6)X100 (MN5)
(7)G107
(8)G105
Figure 9:

Engine Harness - Rear (LE5)
Object Number: 1592501 Size: LF
(1)Fuse Block - Underhood X1
(2)X101
(3)J106
(4)J105
(5)G108
(6)J107
(7)Engine Block
(8)Starter
(9)G107
(10)Engine Control Module X3
(11)Engine Control Module X2
Figure 10:

Headliner Harness
Object Number: 1592481 Size: LF
(1)Headliner
(2)J308 (CF5)
(3)J309 (CF5)
(4)J310 (UE1)
(5)J410 (UE1)
(6)X404 (UE1)
(7)X397 (CF5)
(8)J316
(9)J305 (UE1)
Figure 11:

I/P Harness
Object Number: 1592467 Size: LF
(1)Instrument Panel
(2)Ambient Light Sensor
(3)J201
(4)J200
(5)J206
(6)G203
(7)G201
(8)X201
(9)Data Link Connector (DLC)
(10)JX205
(11)Body Control Module (BCM) X2
(12)Body Control Module (BCM) X4
(13)X210
(14)X206
(15)X200 (KA1, UE1, U2K)
(16)J204
(17)J205 (UE1)
Figure 12:

I/P Extension Harness Inlines
Object Number: 1863458 Size: LF
(1)X600
(2)X222 (Panel Van)
(3)J209 (Panel Van)
(4)J210 (Panel Van)
(5)X221 (Panel Van)
(6)X203
(7)X205
(8)G201
(9)G203

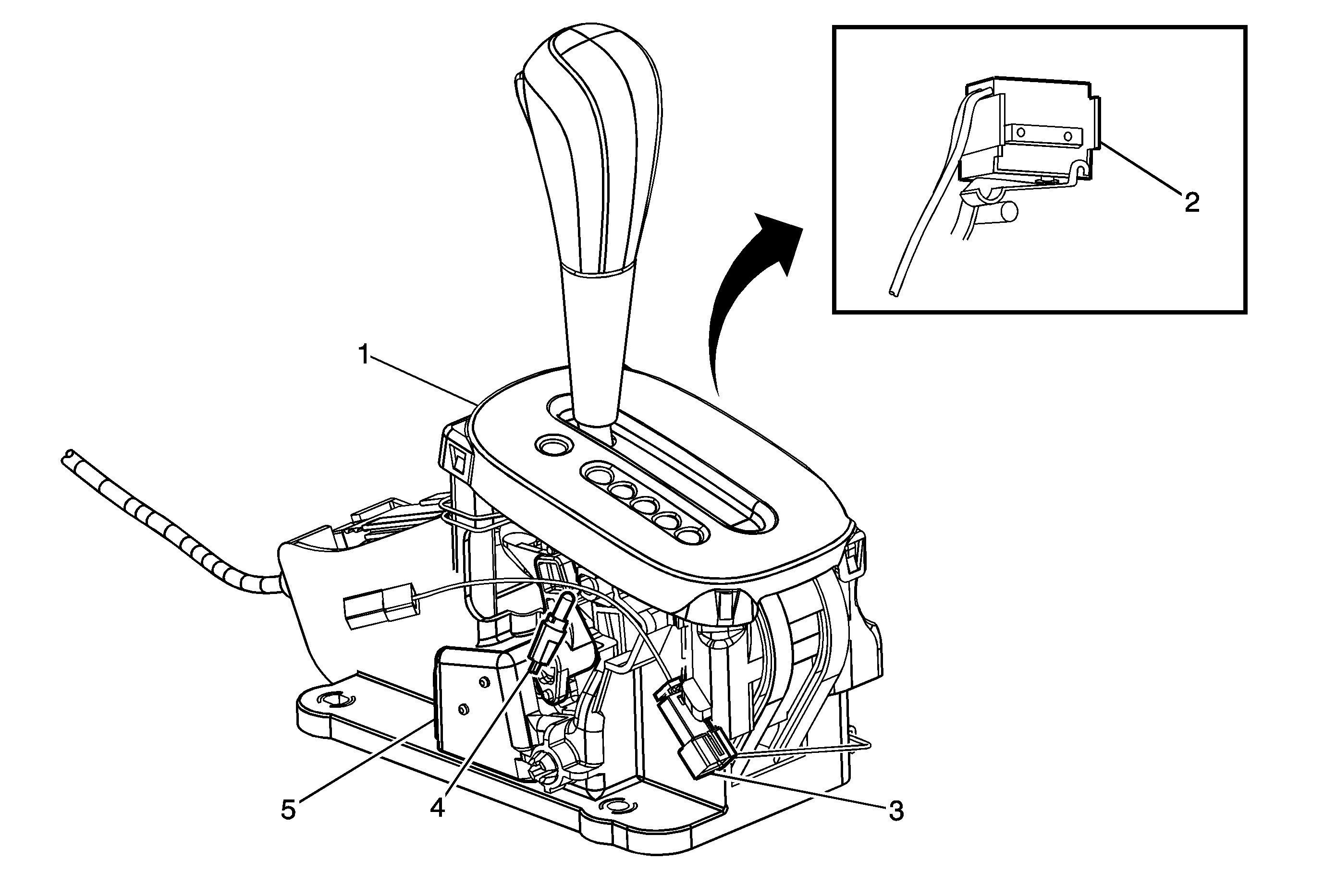

Figure 13:

Inside Center Console
Object Number: 2193371 Size: MF
(1)Automatic Transmission Shift Lever
(2)Park Position Switch
(3)X307
(4)Automatic Transmission Shift Lever Bulb and Socket
(5)Automatic Transmission Shift Lock Control Solonoid
Figure 14:

HVAC Jumper Harness
Object Number: 1592510 Size: LF
(1)HVAC Module
(2)J203
(3)X210
Figure 15:

Driver Seat Harness
Object Number: 1654398 Size: LF
(1)Seat Frame
(2)J313 (AJ6)
(3)X319 (AJ6)
(4)J314 (AJ6)
(5)X315
Figure 16:

Passenger Seat Harness
Object Number: 1654397 Size: LF
(1)J315
(2)Arm Rest
(3)X314 (KA1)
(4)X316
Figure 17:

Left Front Door Harness
Object Number: 1751381 Size: LF
(1)Door Frame
(2)Door Latch - Driver Connector
(3)X301
(4)J500
Figure 18:

Right Front Door Harness
Object Number: 1592491 Size: LF
(1)Door Frame
(2)X600
(3)Door Latch - Passenger Connector
Figure 19:

Left Rear Door / Rear Access Panel Harness
Object Number: 1592493 Size: LF
(1)Door Frame
(2)Door Latch - Left Rear (Except Panel Van), Rear Access Panel Latch - Left Rear (Panel Van) Connector
(3)X700
Figure 20:

Right Rear Door / Rear Access Panel Harness
Object Number: 1592497 Size: LF
(1)Door Frame
(2)X800
(3)Door Latch - Right Rear (Except Panel Van), Rear Access Panel Latch - Right Rear (Panel Van) Connector
Figure 21:

Rear Access Panel Components (Panel Van)
Object Number: 1863455 Size: LF
(1)Rear Access Panel - Right Rear
(2)Rear Access Panel Latch - Right Rear
(3)Speaker - Right Rear
(4)X800
(5)X700
(6)Speaker - Left Rear
(7)Rear Access Panel Latch - Left Rear
(8)Rear Access Panel - Left Rear

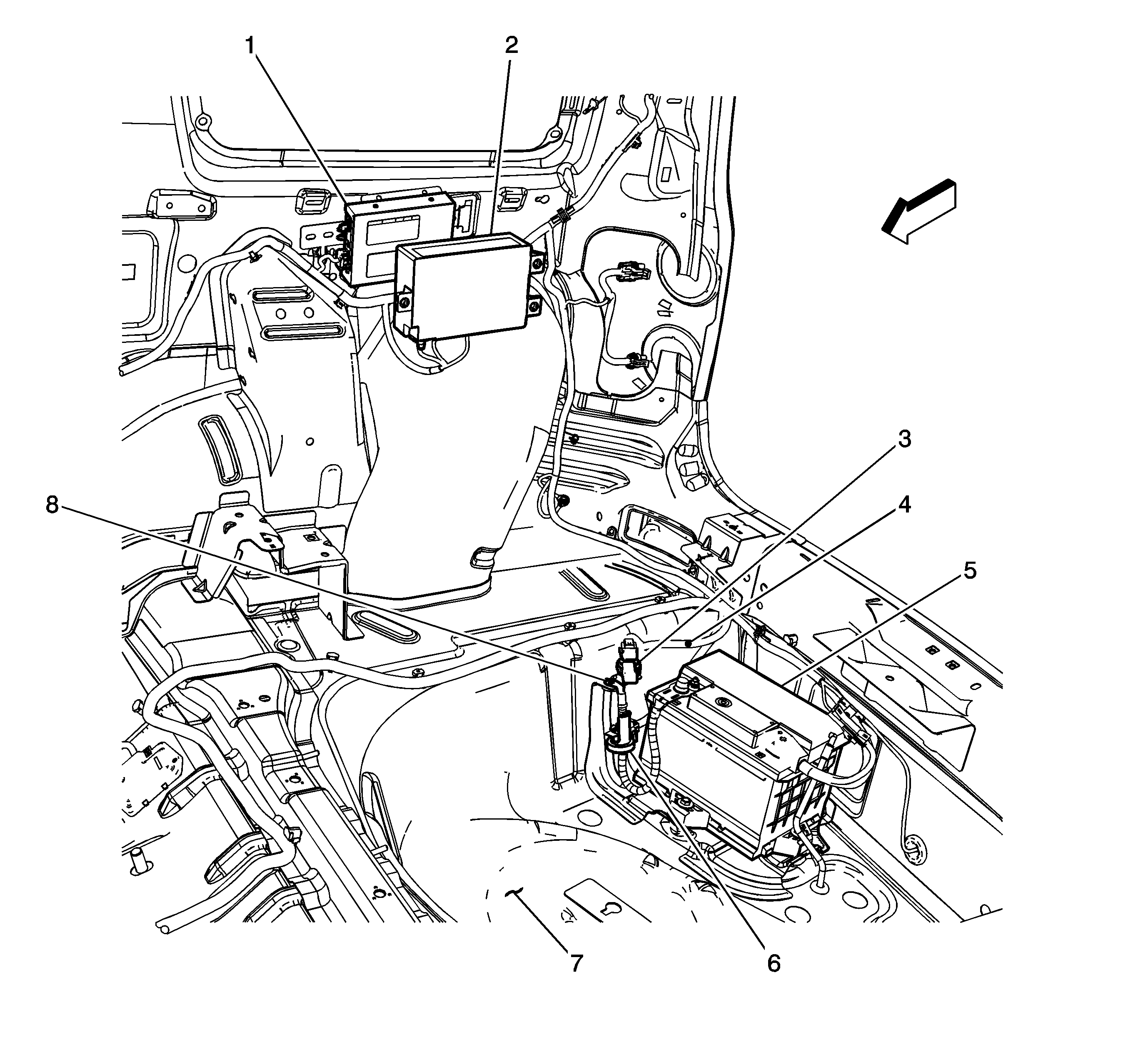

Figure 22:

Right Rear of the Passenger Compartment (1 of 2)
Object Number: 2193379 Size: LF
(1)Digital Radio Receiver (U2K)
(2)Vehicle Communication Interface Module (VCIM) (UE1)
(3)BCM Fuse holder - 50AMP
(4)J411 (UE1)
(5)Battery
(6)Battery Current Sensor (LE8/LE9)
(7)Floor Panel
(8)G403
Figure 23:

Right Rear Cargo Area (Panel Van)
Object Number: 1863471 Size: LF
(1)Wheel Well - Right Rear
(2)J319 (Panel Van)
(3)J321 (Panel Van)
(4)J320 (Panel Van)
(5)Fuse Block - Rear Access Panel (Panel Van)
(6)X406 (Commercial Accessory Power)
Figure 24:

Liftgate Harness
Object Number: 1592483 Size: LF
(1)X402
(2)X400
(3)Liftgate
(4)J900
(5)J901
Figure 25:

G402
Object Number: 1651909 Size: LF
(1)Floor Panel
(2)Tail / Stop and Turn Signal Lamp - Right
(3)G402
Figure 26:

G401
Object Number: 1651929 Size: LF
(1)Tail / Stop and Turn Signal Lamp - Left
(2)Floor Pan
(3)G401
Figure 27:

Chassis Harness
Object Number: 1592517 Size: LF
(1)X401
(2)Rear Suspension Assembly
