Ground Distribution Schematics. Chevrolet Impala 2000

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Impala 🢒 Engine 🢒 Engine Controls - 3.8L 🢒 Ground Distribution Schematics

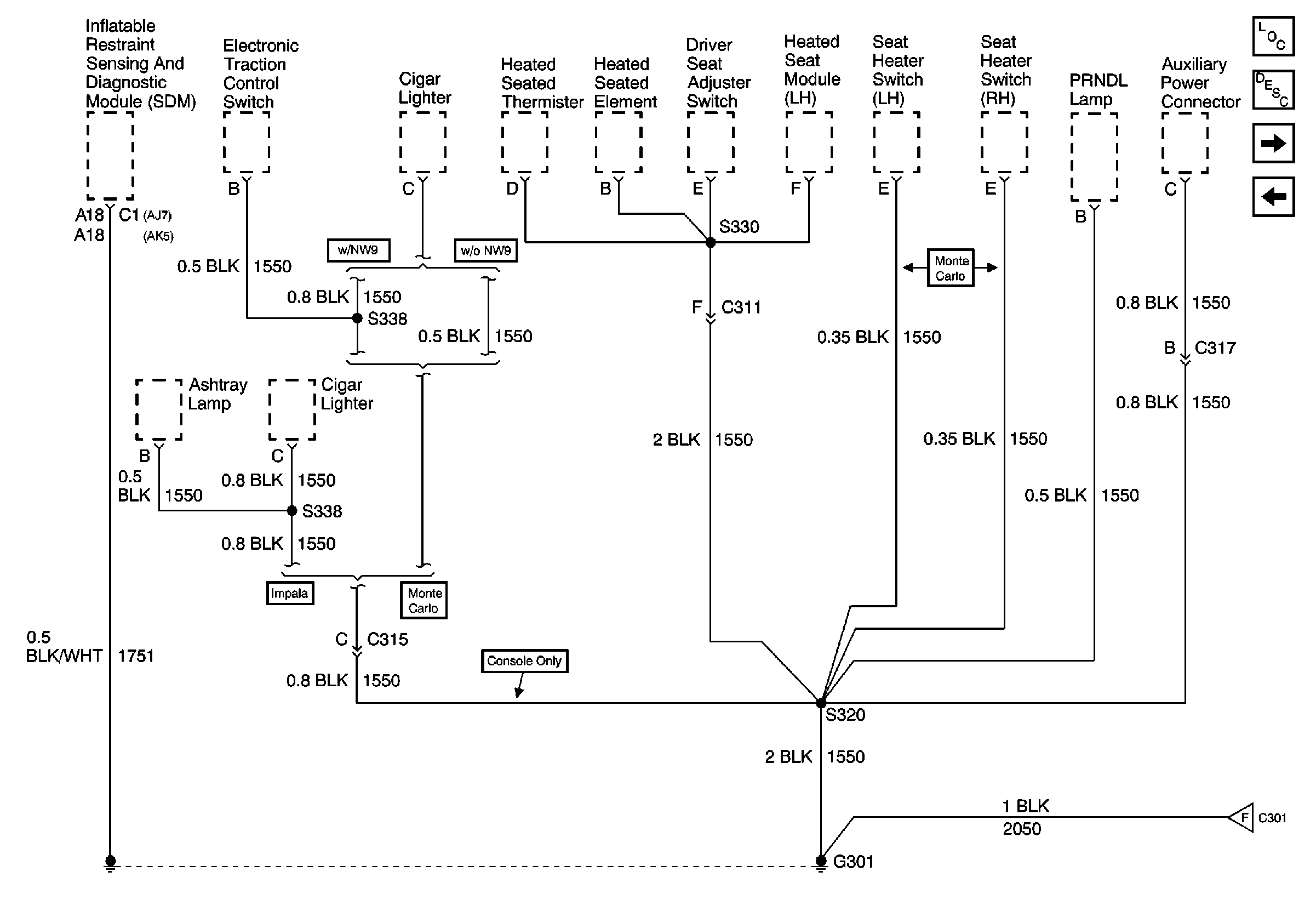

Figure 1:	G101 (1 of 2) Power and Grounding Components

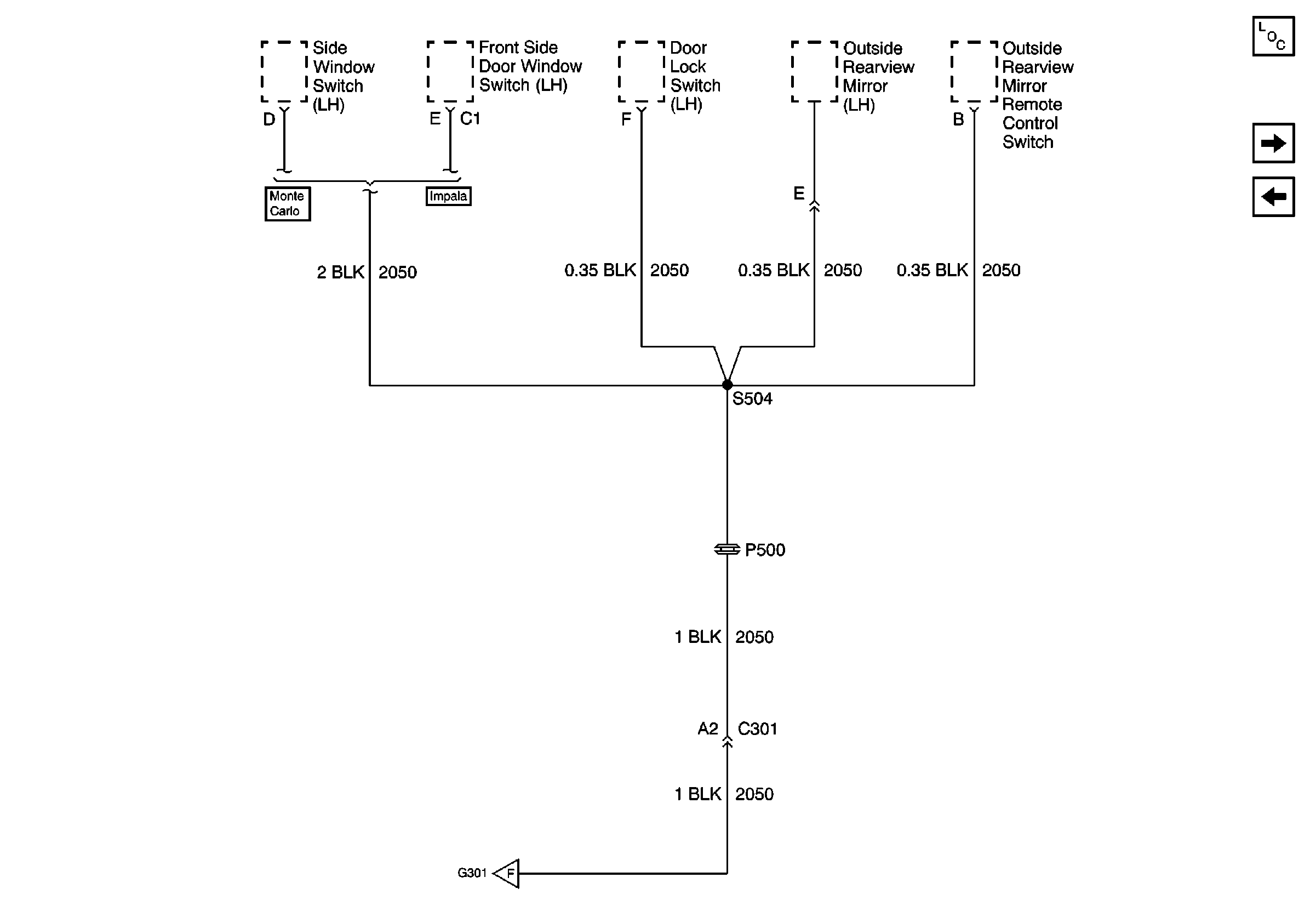

Figure 2:	G101 (2 of 2) Power and Grounding Components G100, G111, G113 and G151 G101 (1 of 2) G101 (1 of 2)

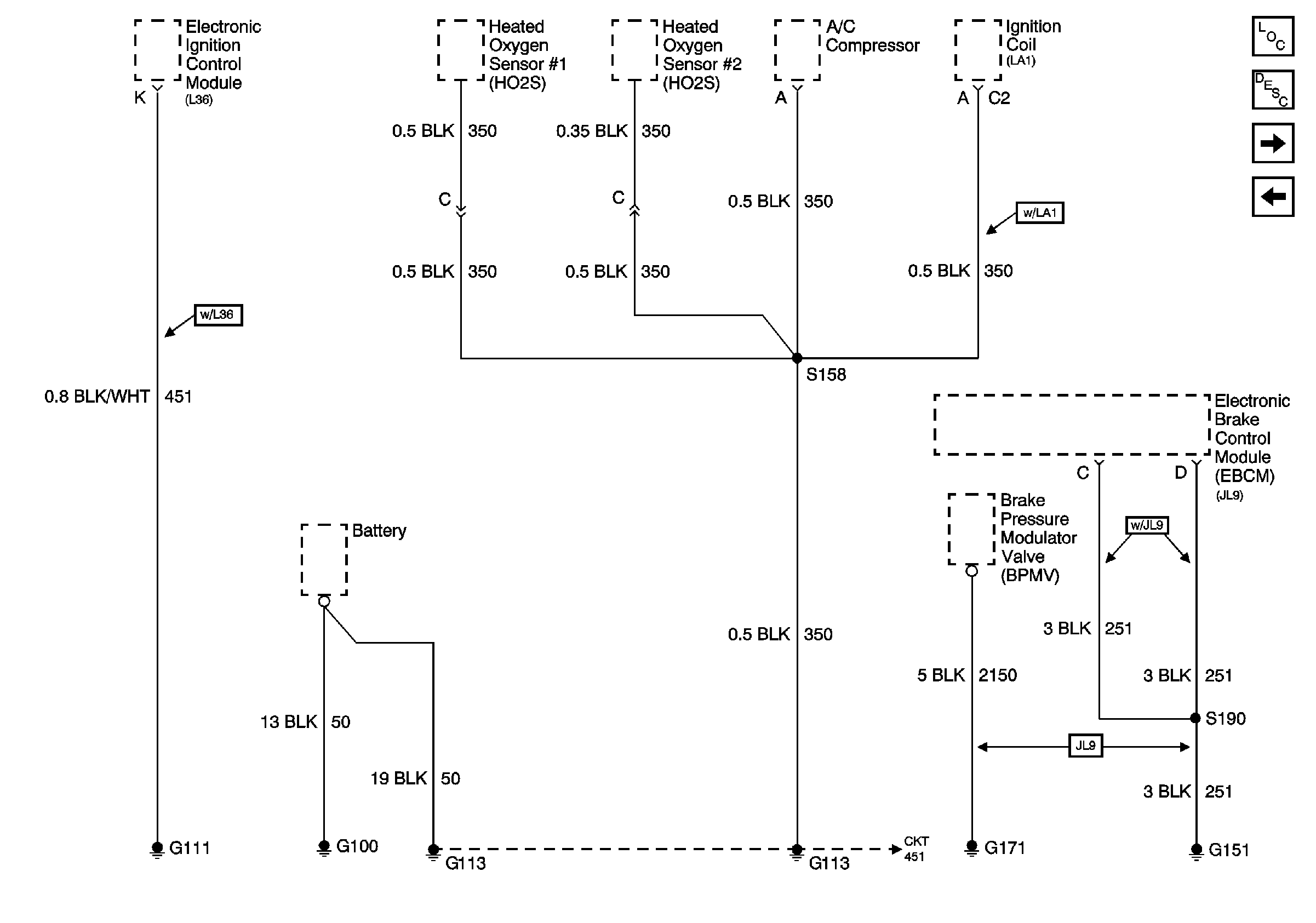

Figure 3:	G100, G111, G113, G151, and G171 Power and Grounding Components G113 - Continued G101 (2 of 2) G113 - Continued

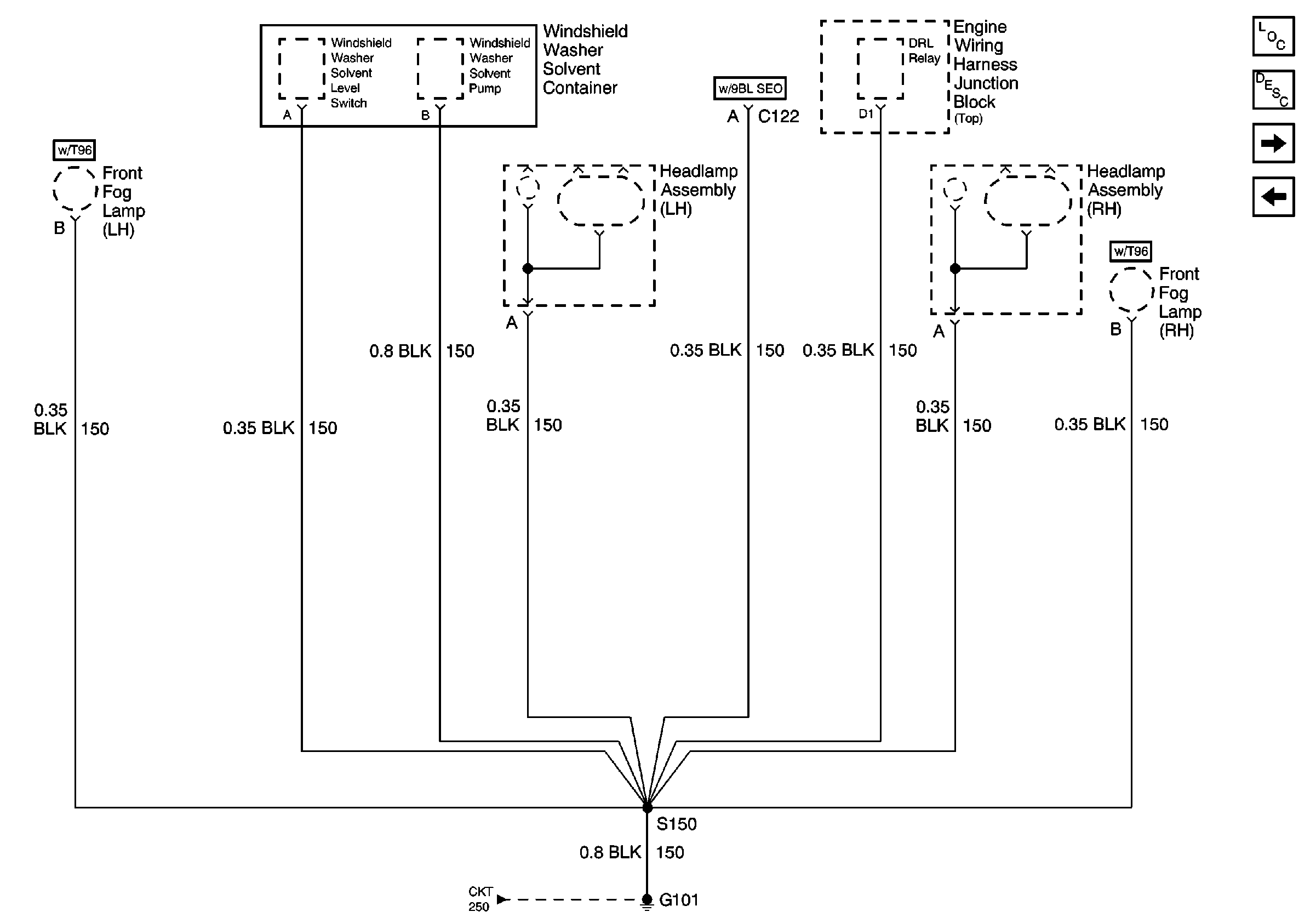

Figure 4:	G113 -- Continued Power and Grounding Components G201 (1 of 2) G100, G111, G113 and G151 G100, G111, G113 and G151

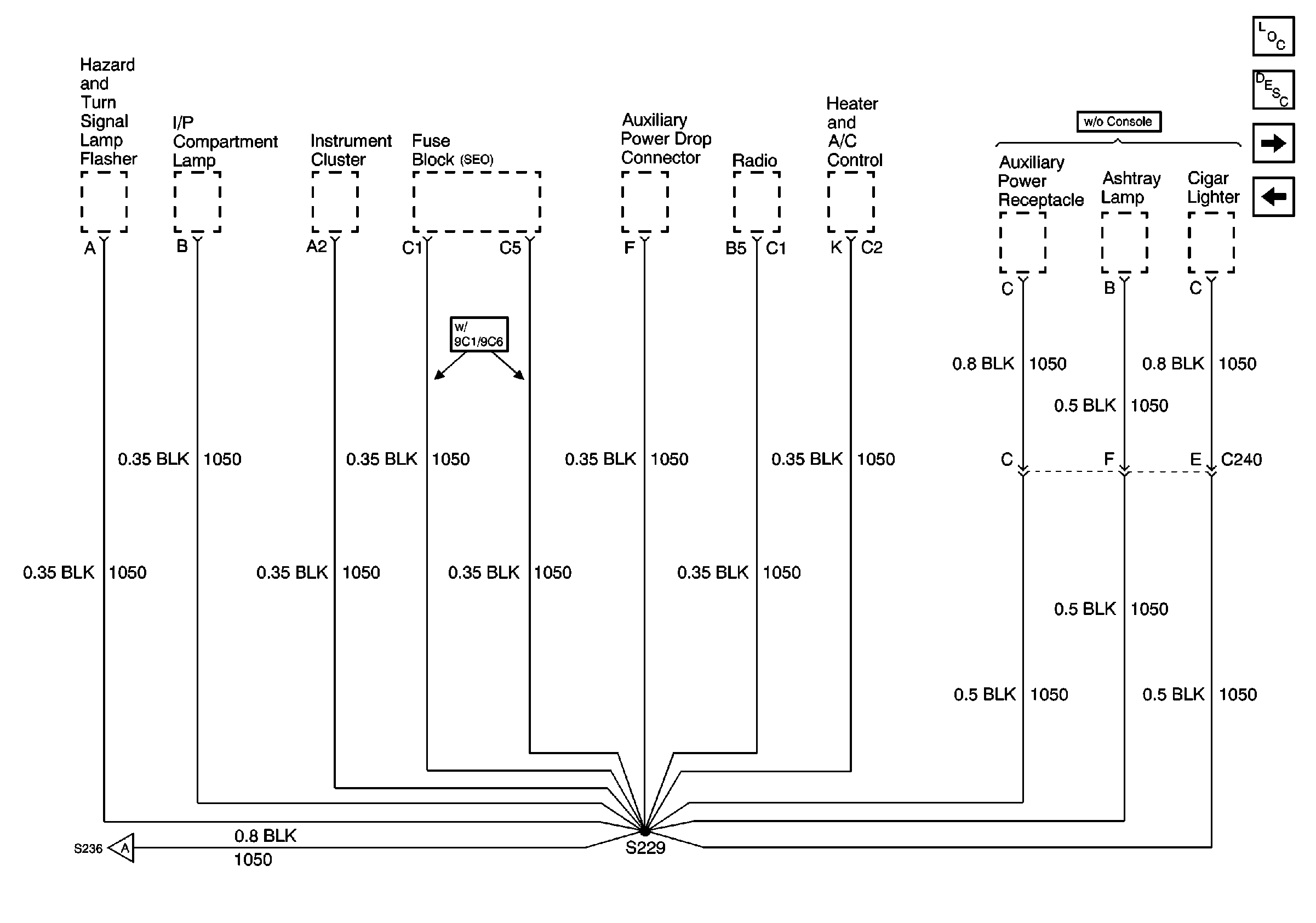

Figure 5:	G201 (1 of 2) Headlamps Control G201 (2 of 2) Power and Grounding Components G201 (2 of 2) G113 - Continued

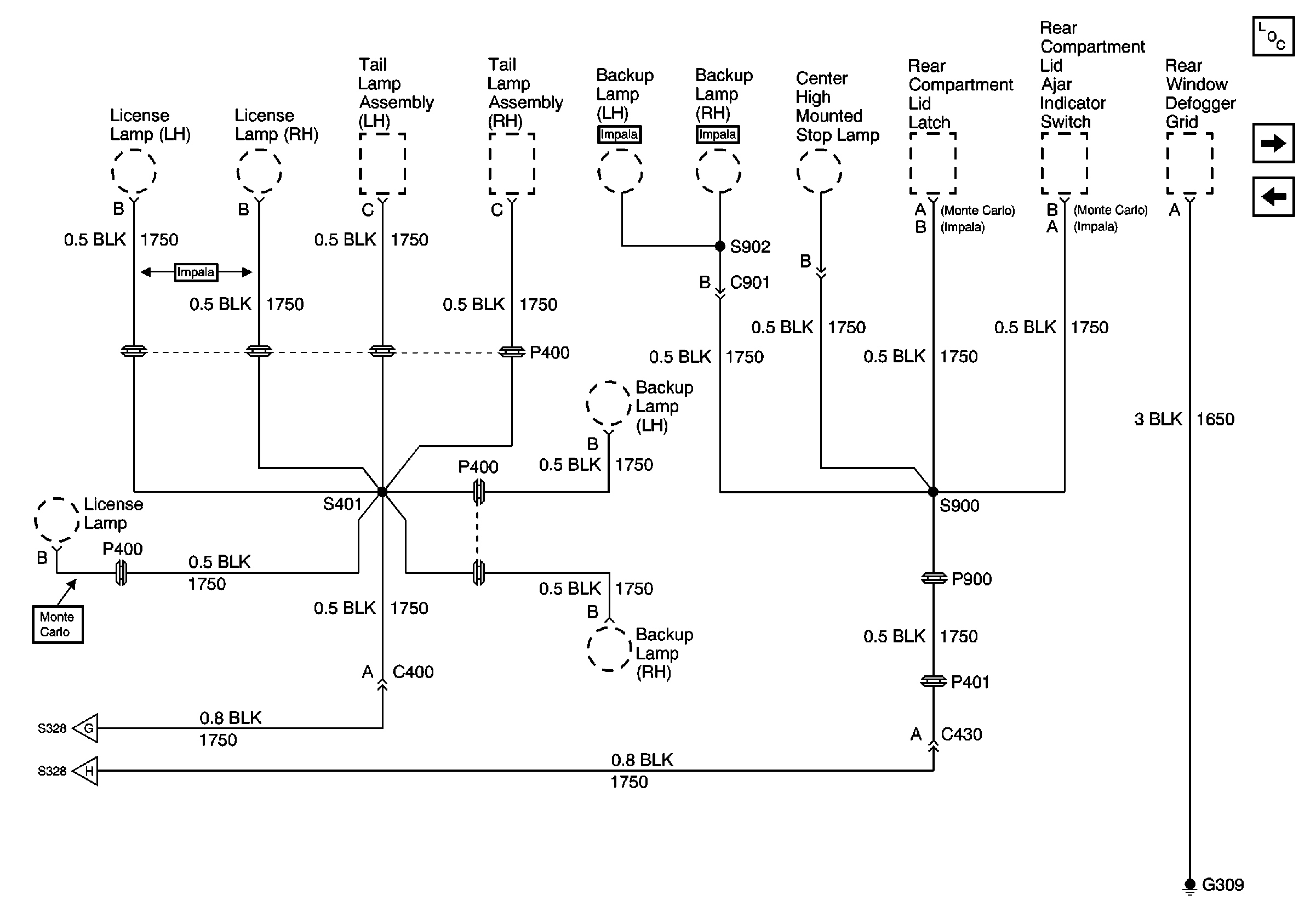

Figure 6:	G201 (2 of 2) G201 (1 of 2) Power and Grounding Components G202 G201 (1 of 2)

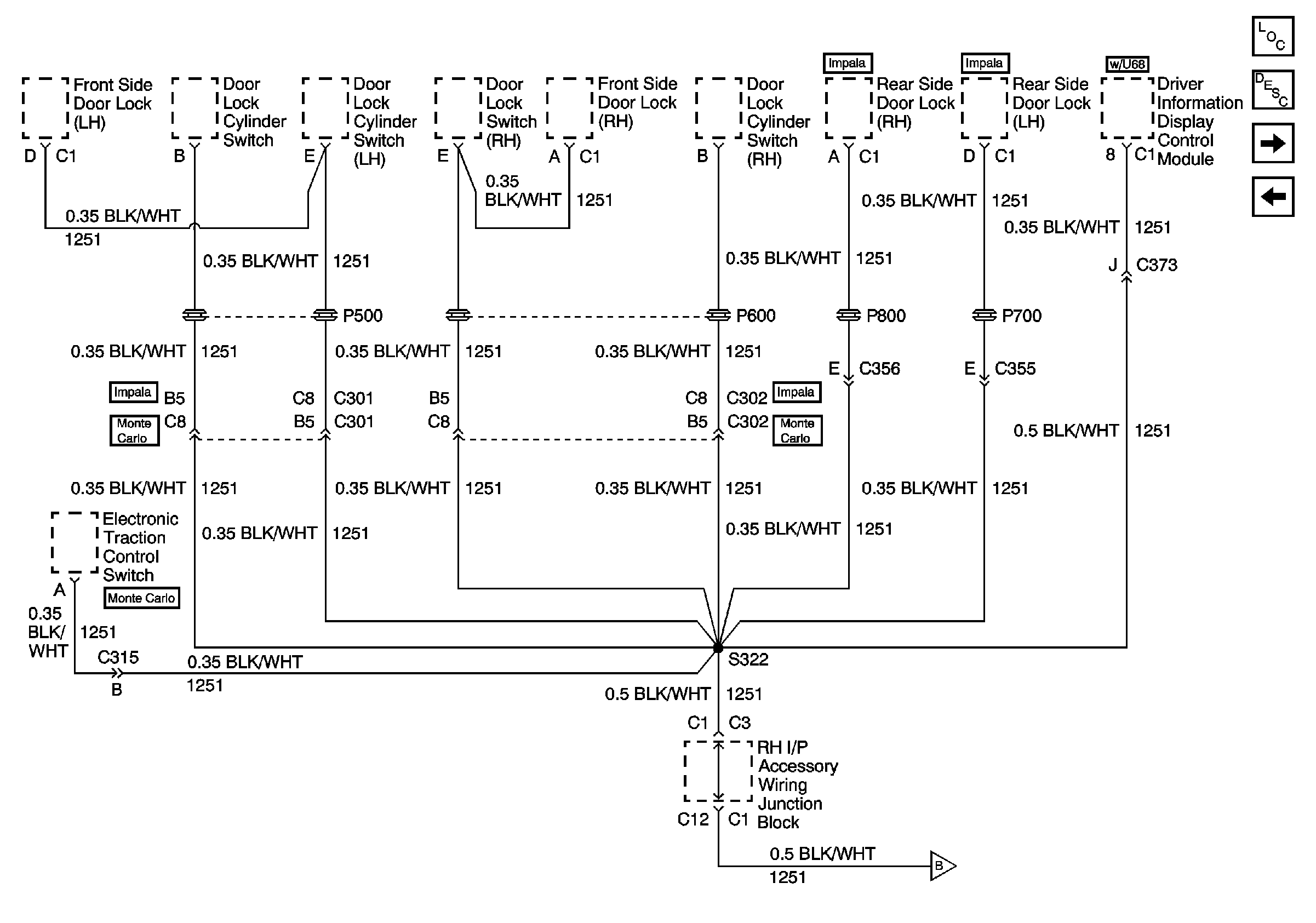

Figure 7:	G202 Power and Grounding Components G203 (1 of 3) G201 (2 of 2)

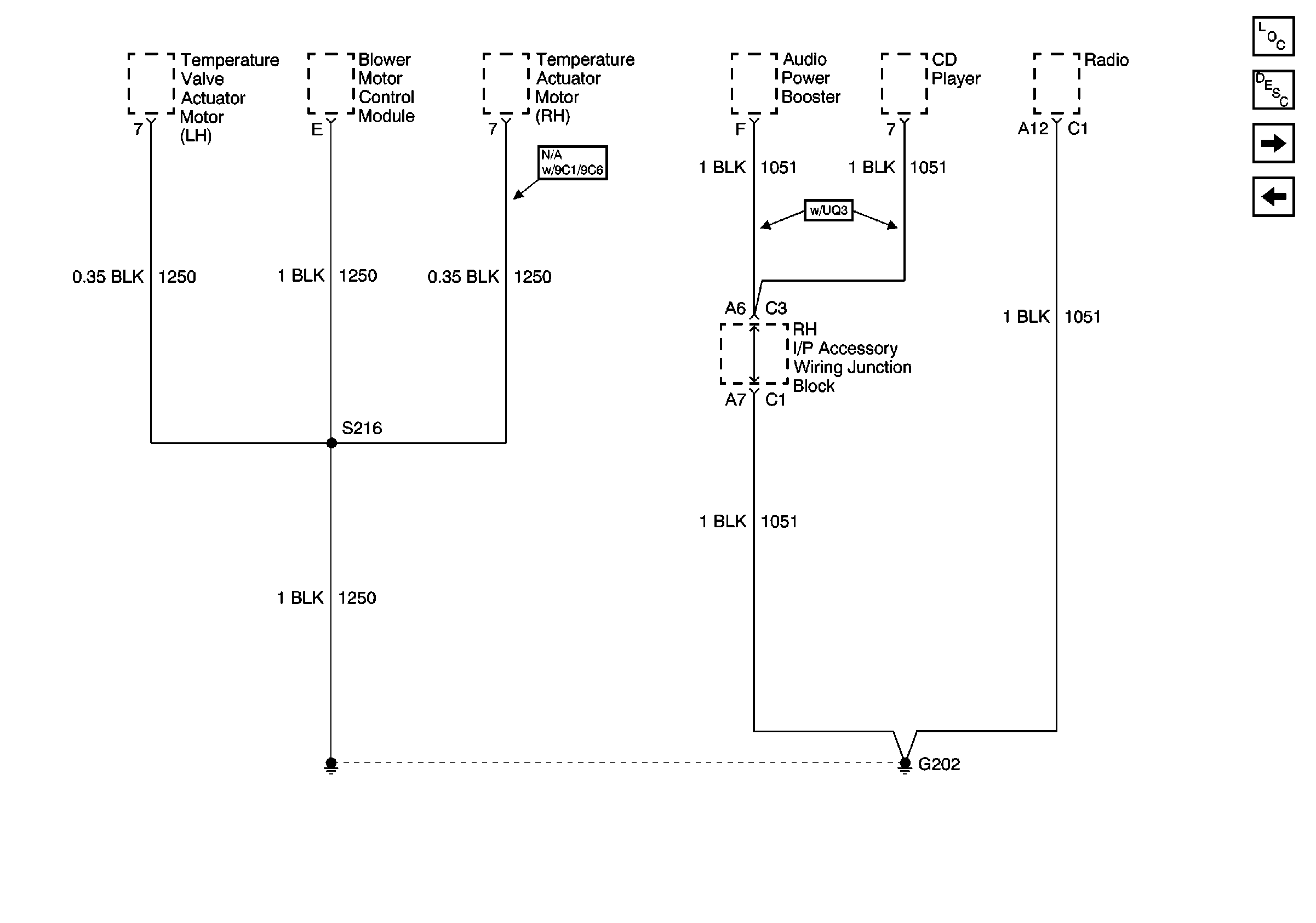

Figure 8:	G203 (1 of 3) G203 (2 of 3) Power and Grounding Components G203 (2 of 3) G202
Figure 9:	G203 (2 of 3) G203 (1 of 3) G203 (3 of 3) Power and Grounding Components G203 (3 of 3) G203 (1 of 3)
Figure 10:	G203 (3 of 3) G203 (2 of 3) Power and Grounding Components G301 (1 of 2) G203 (2 of 3)
Figure 11:	G301 (1 of 2) G301 (2 of 2) Power and Grounding Components G301 (2 of 2) G203 (3 of 3)
Figure 12:	G301 (2 of 2) G301 (1 of 2) Power and Grounding Components G302 G301 (1 of 2)
Figure 13:	G302 G302 - Continued and G309 Power and Grounding Components G302 - Continued and G309 G301 (2 of 2)
Figure 14:	G302 -- Continued and G309 G302 Power and Grounding Components G302
