Engine Electrical Component Views. Chevrolet Impala 2000

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Impala 🢒 Engine 🢒 Engine Electrical 🢒 Engine Electrical Component Views

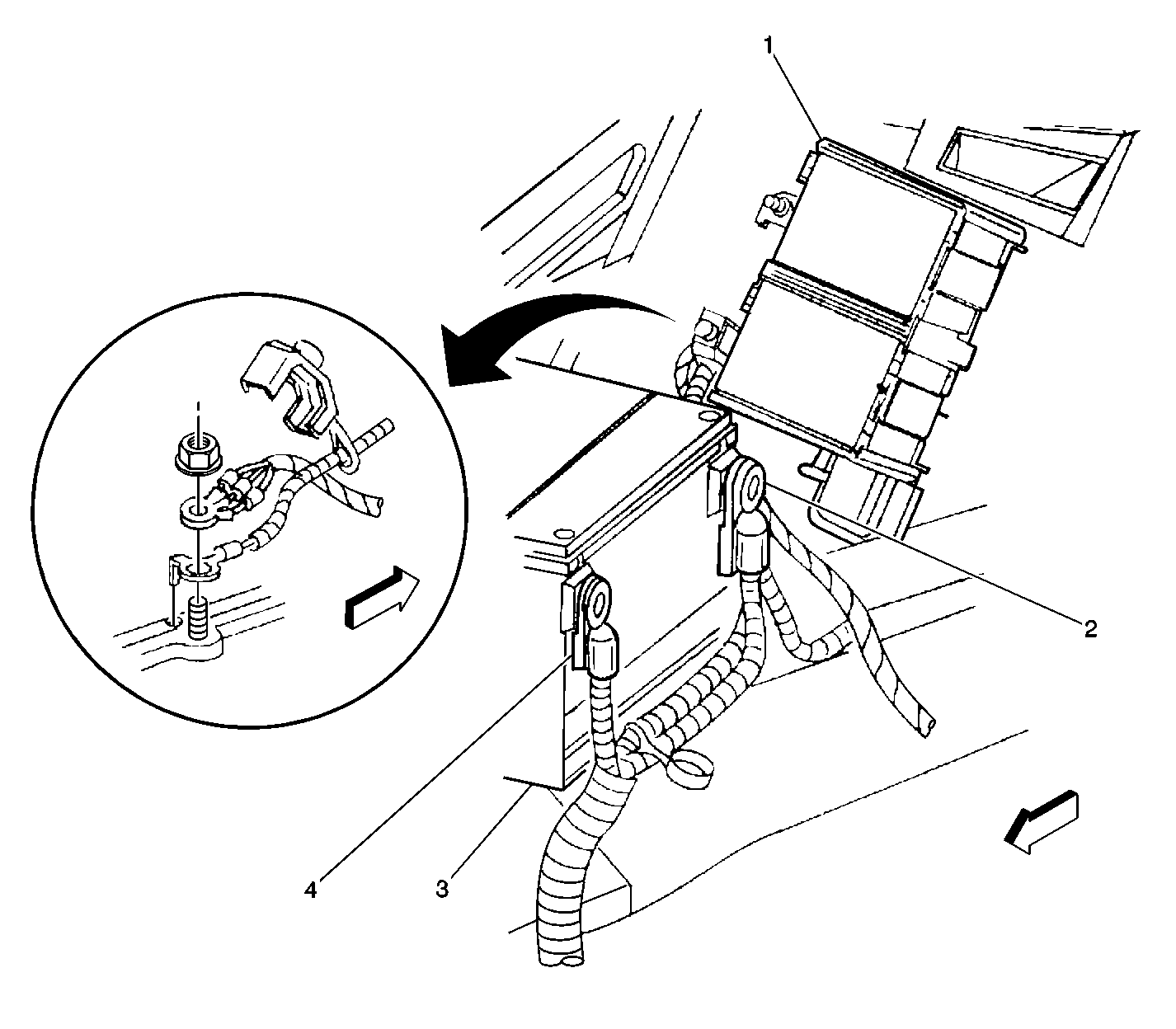

Figure 1:


(1)	Underhood Accessory Wiring Junction Block
(2)	Positive Battery Terminal
(3)	Battery
(4)	Negative Battery Terminal

Figure 2:


(1)	Underhood Accessory Wiring Junction Block
(2)	G100 (Negative Battery Ground)
(3)	Positive Battery Therminal
(4)	Battery
(5)	Negative Battery Therminal
(6)	Remote Battery Stud

Figure 3:


(1)	Generator

Figure 4:


(1)	Generator

Figure 5:


(1)	Starter

Figure 6:


(1)	Starter
