Entertainment Component Views. Chevrolet Impala 2000

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Impala 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - 4T65-E 🢒 Entertainment Component Views

Figure 1:


(1)	Multifunction Lever
(2)	C203 Inline Connector
(3)	Steering Wheel
(4)	Radio Control Switches (See Detail View)
(5)	Cruise Control Switches
(6)	Steering Wheel SIR Connector
(7)	Steering Wheel SIR Module
(8)	Horn Switch Spring Loaded Contact

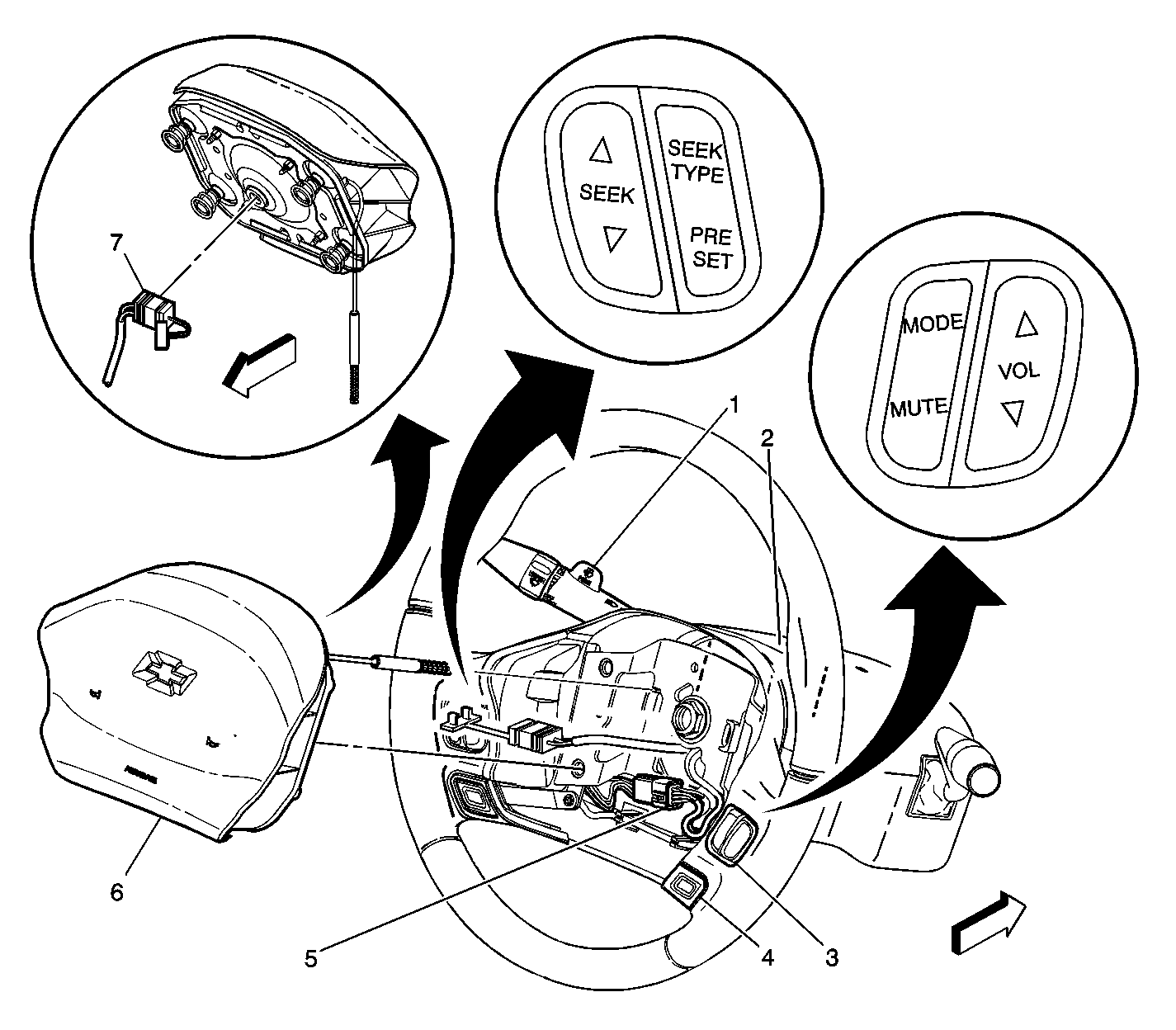

Figure 2:


(1)	Multifunction Lever
(2)	Steering Wheel
(3)	Radio Switches (See Detail View)
(4)	Cruise Control Switches
(5)	C203 Inline Connector
(6)	Steering Wheel SIR Module
(7)	Steering Wheel SIR Connector

Figure 3:

Figure 4:

Figure 5:


(1)	RR Radio Speaker Connector
(2)	RR Radio Speaker

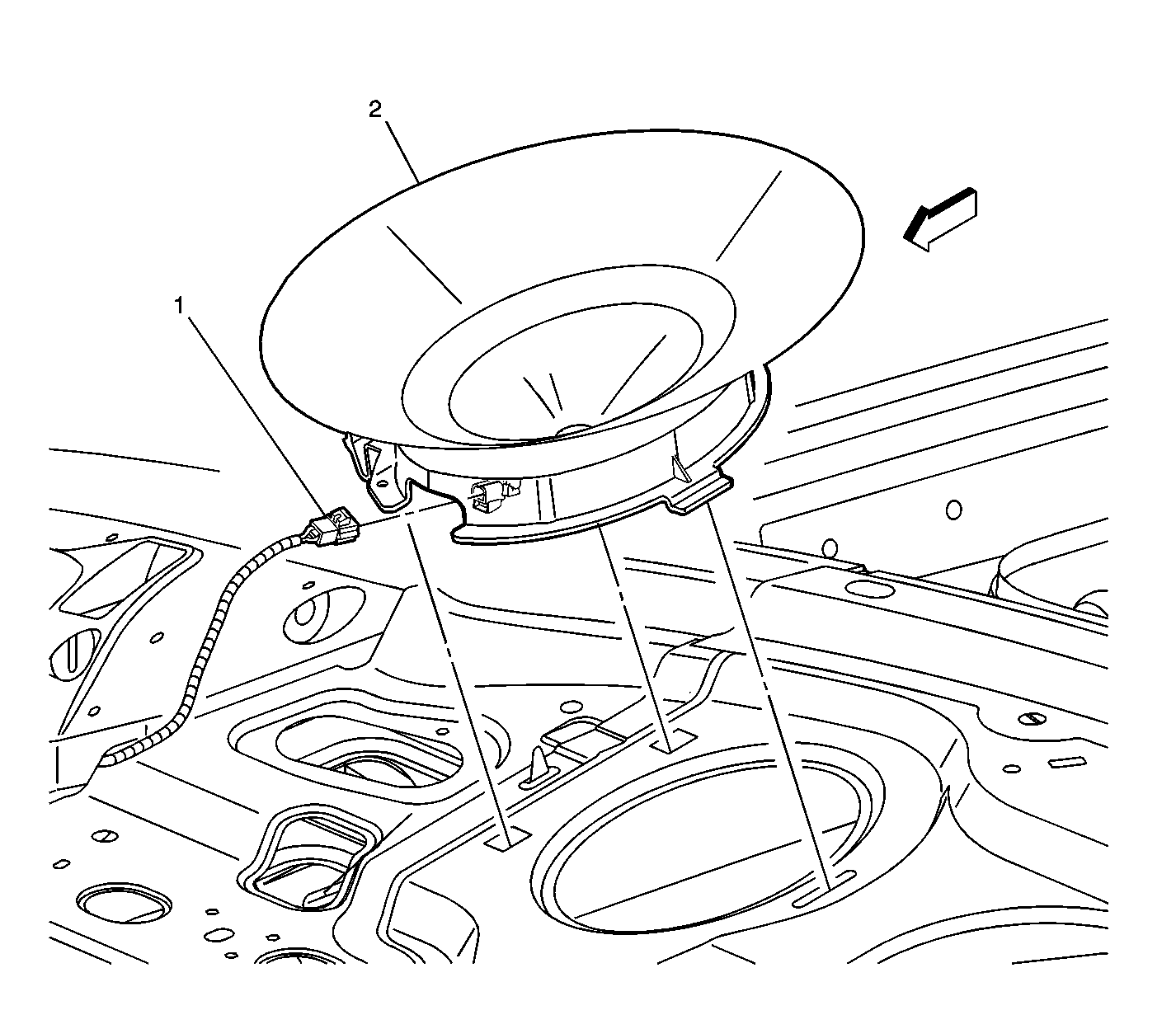

Figure 6:


(1)	Rear Speaker Connector
(2)	Rear Speaker

Figure 7:


(1)	Body Wiring Harness
(2)	Radio Antenna Module Connection to Rear Defogger
(3)	Radio Antenna Module Connector
(4)	Radio Antenna Connector
(5)	Radio Antenna Module
(6)	Rear Window Antenna Connection

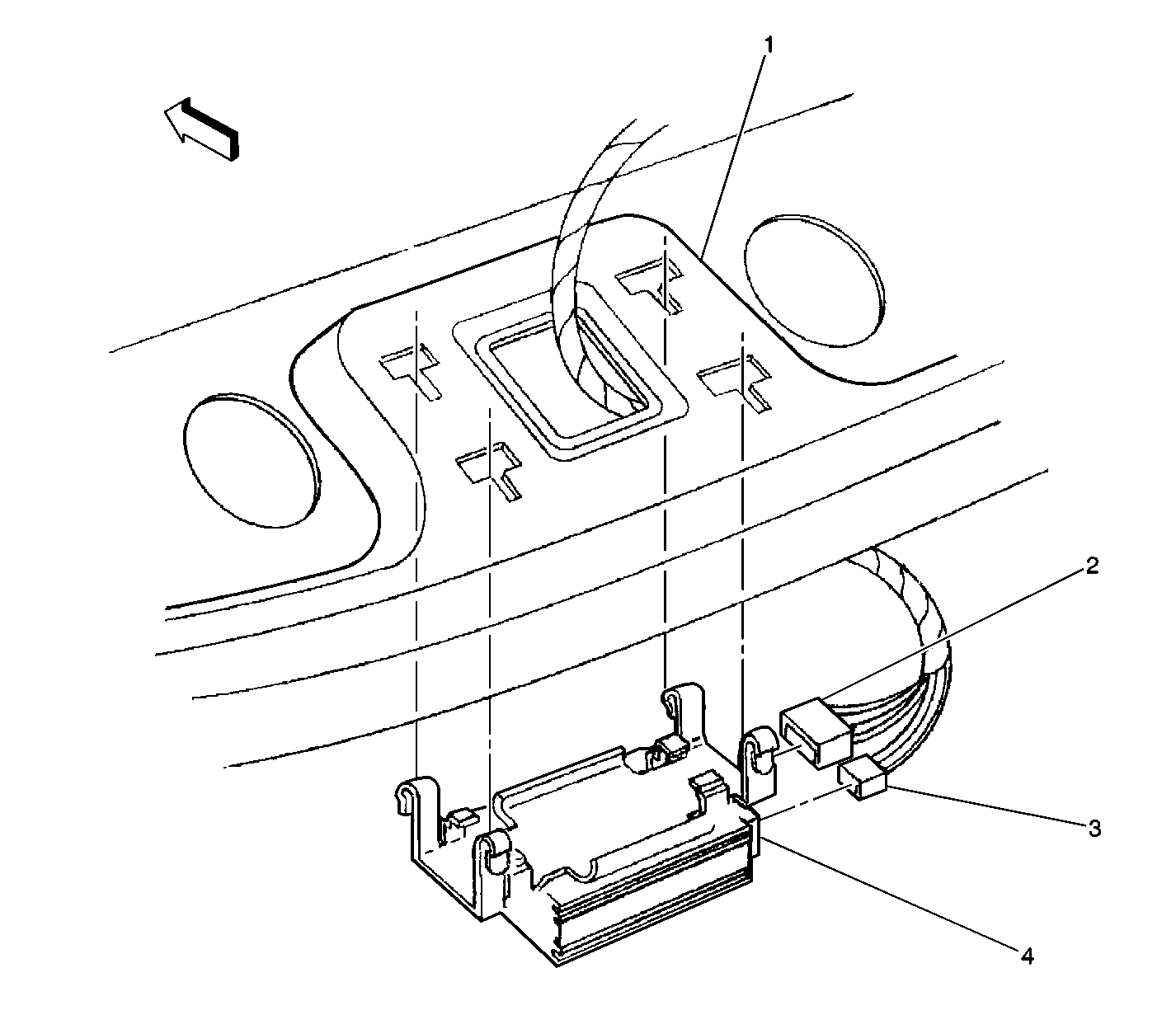

Figure 8:

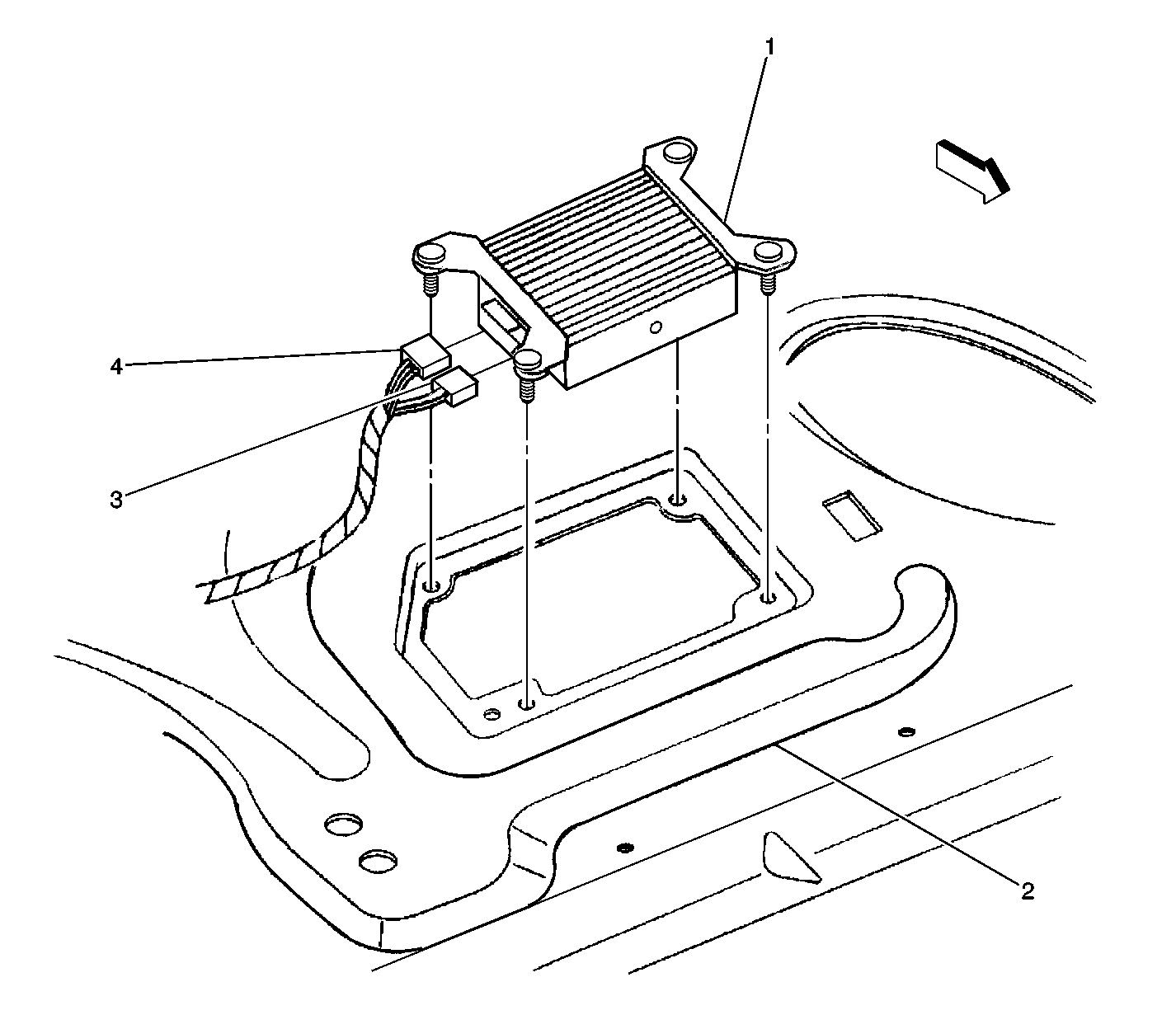

Figure 9:
