Interior Lights Dimming Schematics. Chevrolet Impala 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Impala 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Interior Lights Dimming Schematics

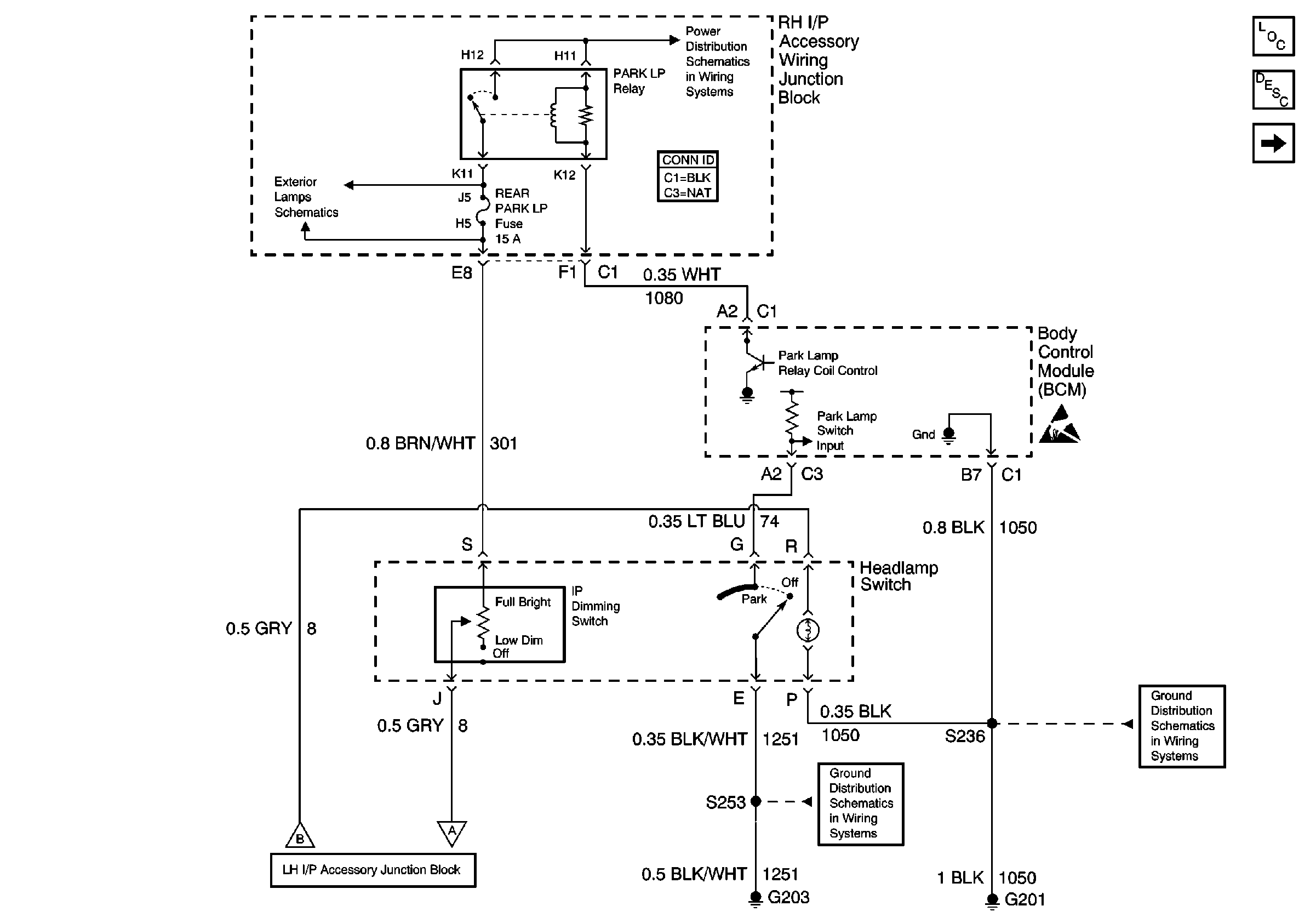

Figure 1:	BCM and Headlamp Switch Stationary Windows Components Interior Lights Circuit Description BCM, Door Lock, Door Window Switch, HVAC, Radio, and Fog Lamp Switch Lamps Park Lamps Control B/U LP, DIC/RKE and FRT PARK LP Fuses, and BACKUP LP, BATT RUN DOWN PROTECTION and PARK LP Relays BCM, Door Lock, Door Window Switch, HVAC, Radio, and Fog Lamp Switch Lamps BCM, Door Lock, Door Window Switch, HVAC, Radio, and Fog Lamp Switch Lamps G203 (2 of 3) G201 (1 of 2) Handling ESD Sensitive Parts Notice

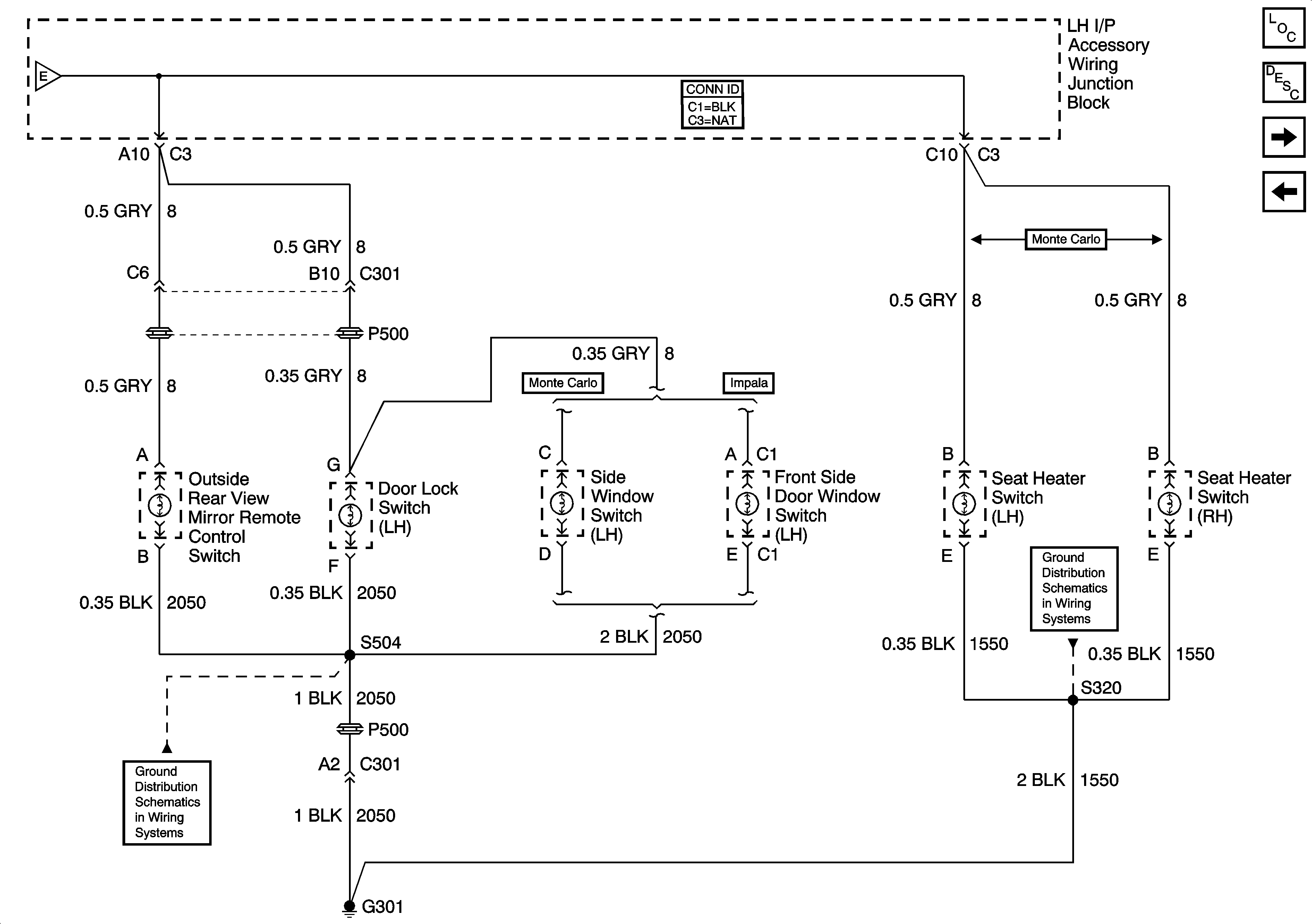

Figure 2:	BCM, Door Lock, Door Window Switch, HVAC, Radio, and Fog Lamp Switch Lamps Stationary Windows Components Interior Lights Circuit Description Steering Wheel Control Switches Lamp BCM and Headlamp Switch BCM and Headlamp Switch BCM and Headlamp Switch Steering Wheel Control Switches Lamp G201 (1 of 2) G203 (2 of 3) G203 (2 of 3) IP and Console Lamps

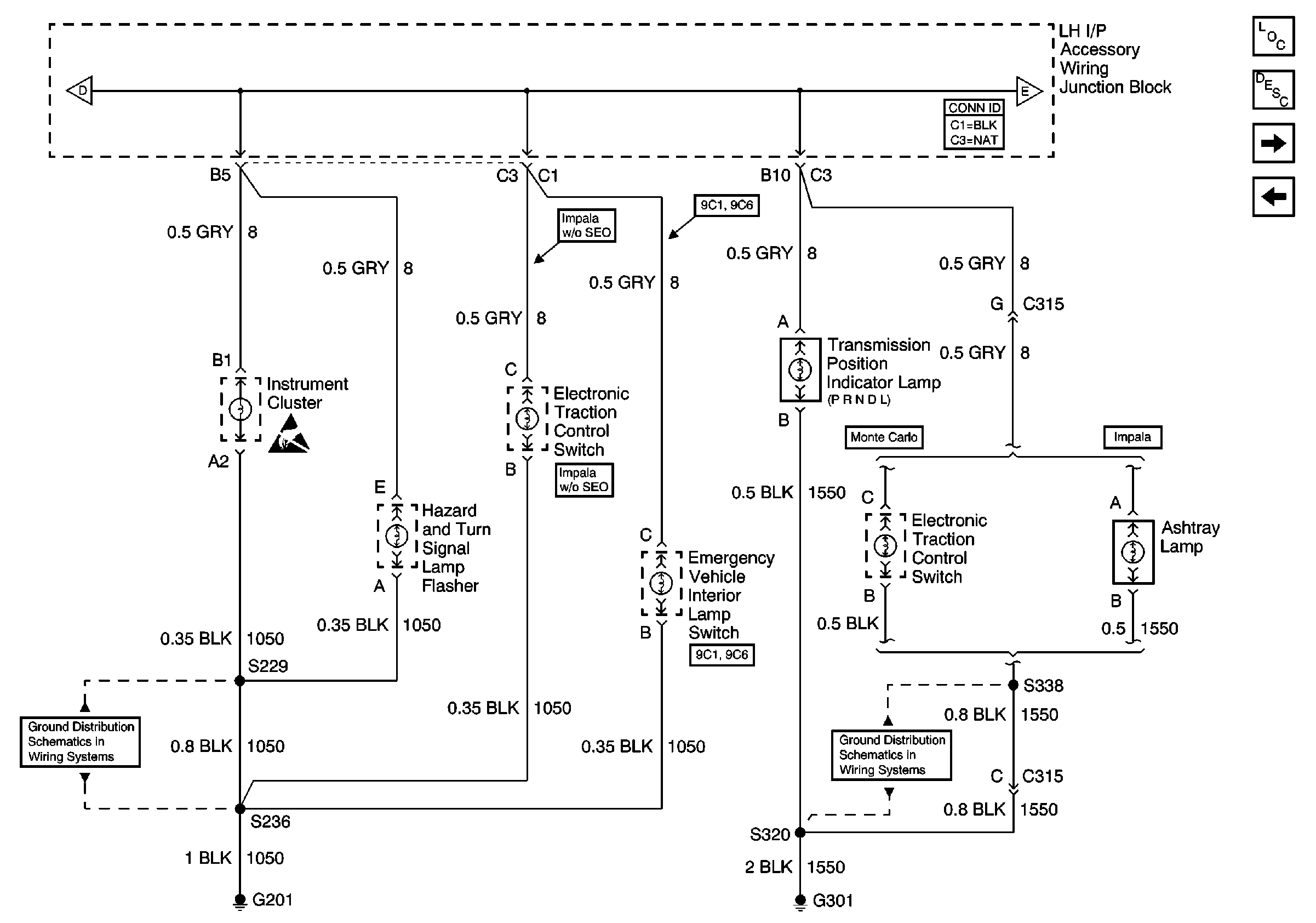

Figure 3:	Steering Wheel Control Switchs Lamp Stationary Windows Components Interior Lights Circuit Description IP and Console Lamps BCM, Door Lock, Door Window Switch, HVAC, Radio, and Fog Lamp Switch Lamps BCM, Door Lock, Door Window Switch, HVAC, Radio, and Fog Lamp Switch Lamps G201 (1 of 2) SIR Caution SIR Caution
Figure 4:	IP and Console Lamps Stationary Windows Components Interior Lights Circuit Description Doors and Console Steering Wheel Control Switches Lamp BCM, Door Lock, Door Window Switch, HVAC, Radio, and Fog Lamp Switch Lamps G201 (1 of 2) G301 (1 of 2) Doors and Console
Figure 5:	Doors and Console Stationary Windows Components Interior Lights Circuit Description Class 2 Dimming IP and Console Lamps IP and Console Lamps G301 (1 of 2) G301 (1 of 2)
Figure 6:	Class 2 Dimming Lighting Systems Components Interior Lights Dimming Circuit Description Doors and Console Data Link Communications Schematic
