Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

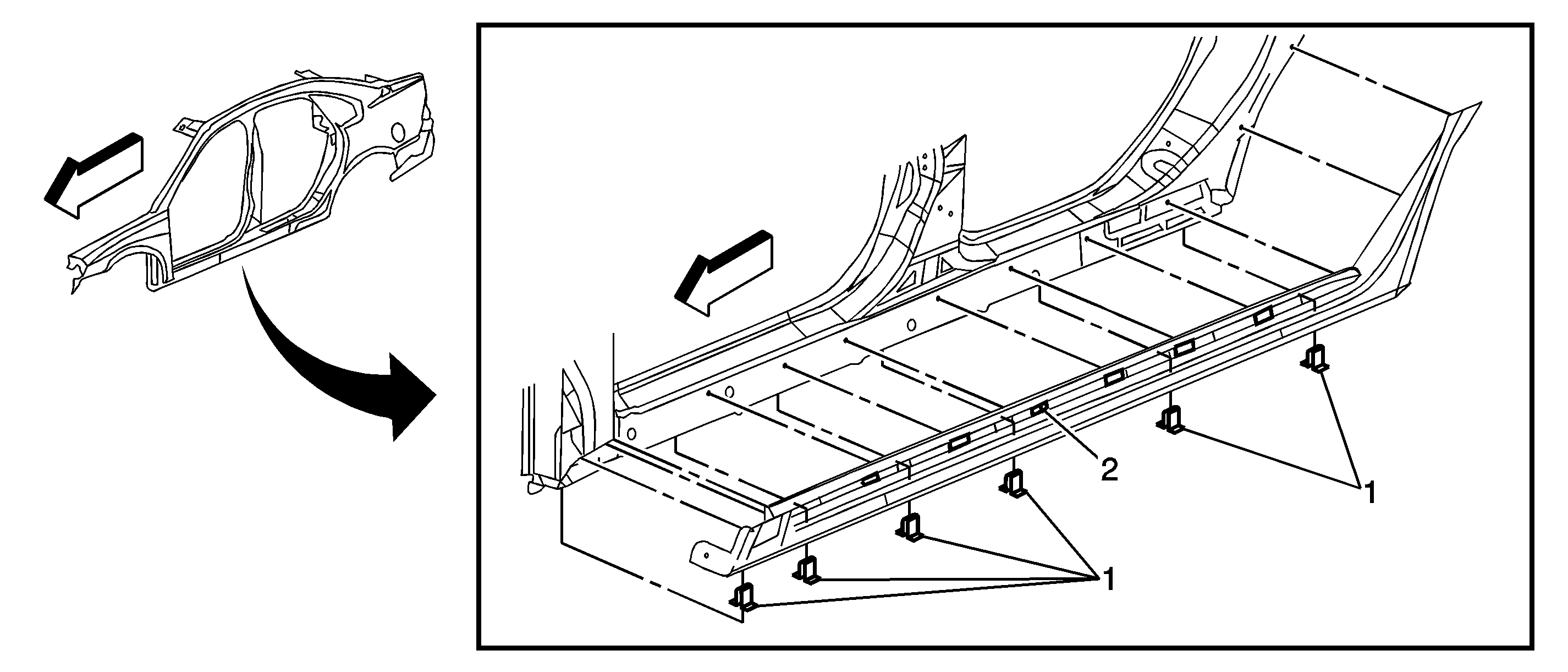

Open both doors on the side that the lower rocker panel molding is being removed from.

1

Clips, Rocker Panel Integral (Qty: 6)

Release the lower integral clips by pulling downward at each location prior to releasing the upper retainers from the lower rocker.

2

Retainers, Rocker Panel (Qty: 12)

Tip
Release the lower 12 retainers from the rocker by pulling panel outward and removing the lower rocker panel.

Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Open both doors on the side that the lower rocker panel molding is being removed.

1

Rocker Molding Screws (Qty: 2)

Tighten
2 N·m (18 lb in)

2

Rocker Panel Lower Integral Retainers (Qty: 5)

Tip
Release the lower integral retainers by pulling downward at each location prior to releasing the upper retainers from the lower rocker.

3

Rocker Panel Upper Clips (Qty: 8)

Tip
Release the upper 8 clips from the rocker by pulling panel outward.

4

Forward Rocker Panel Retainer

Tip
Disengage retainer clip prior to rocker panel removal.

5

Lower Rocker Panel

Tip
Upon installation, ensure both doors are in the open position.
