Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .

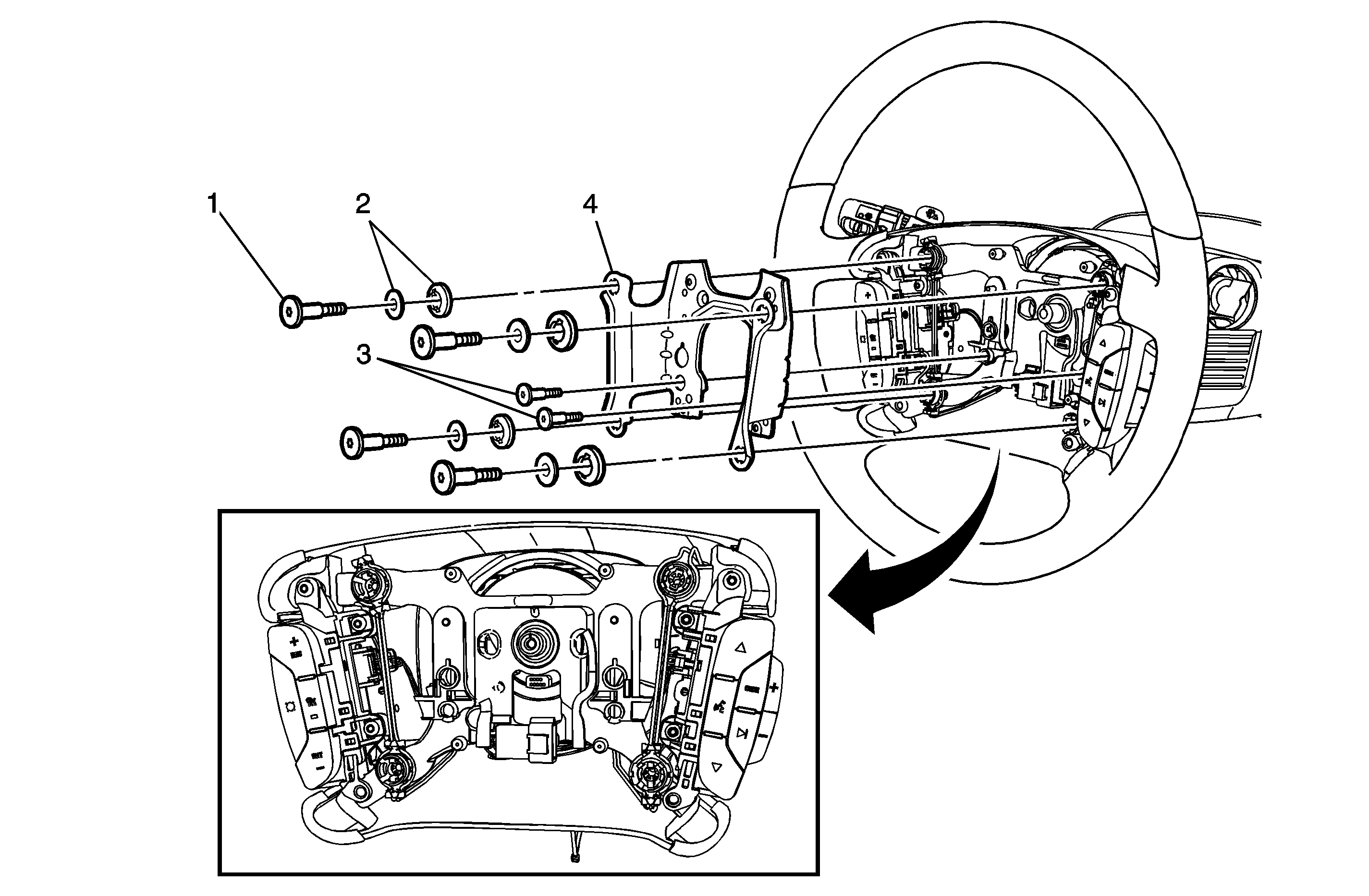

1

Steering Wheel Horn Switch Bolts (Qty: 4)

Tip
Hand start the bolts on installation to avoid cross threading.

Tighten
7 N·m (62 lb in)

2

Steering Wheel Horn Switch Washers (Qty: 4)

3

Steering Wheel Horn Switch Screws (Qty: 2)

Tip
Hand start the screws on installation to avoid cross threading.

Tighten
5 N·m (44 lb in)

4

Steering Wheel Horn Switch Assembly

Tip
Disconnect the steering wheel horn switch elecrtical connector.
