Makes 🢒 Chevrolet 🢒 2004 🢒 Kodiak C-Series (Conventional) C4/C5 🢒 Engine 🢒 Engine Controls - 6.6L (LLY) 🢒 Data Link Connector Schematics
Figure 1:

Data Link Connector, Power, and Ground - 1 of 2
Object Number: 798780 Size: FS
Master Electrical Component List
Data Link Communications Description and Operation
Data Link Connector, Power and Ground - 2 of 2 (LG4/LG5)
CHMSL, PWR POST, and RADIO/CHIME FuseS/Circuit Breakers
CHMSL, PWR POST, and RADIO/CHIME FuseS/Circuit Breakers
Data Link Connector, Power and Ground - 2 of 2 (LG4/LG5)
Diagnostic Tool Connector Power and Ground
Diagnostic Tool Connector Power and Ground
G101 - 1 of 2
G103 - 2 of 2
Data Link Connector, Power and Ground - 2 of 2 (LG4/LG5)
Figure 2:

Data Link Connector, Power and Grounds - 2 of 2 (LG4/LG5)
Object Number: 798782 Size: FS
Master Electrical Component List
Data Link Communications Description and Operation
Splice Pack SP203 (L18/LB7/LG4/LLY)
Data Link Connector, Power and Ground - 1 of 2
Data Link Connector, Power and Ground - 1 of 2
Data Link Connector, Power and Ground - 1 of 2

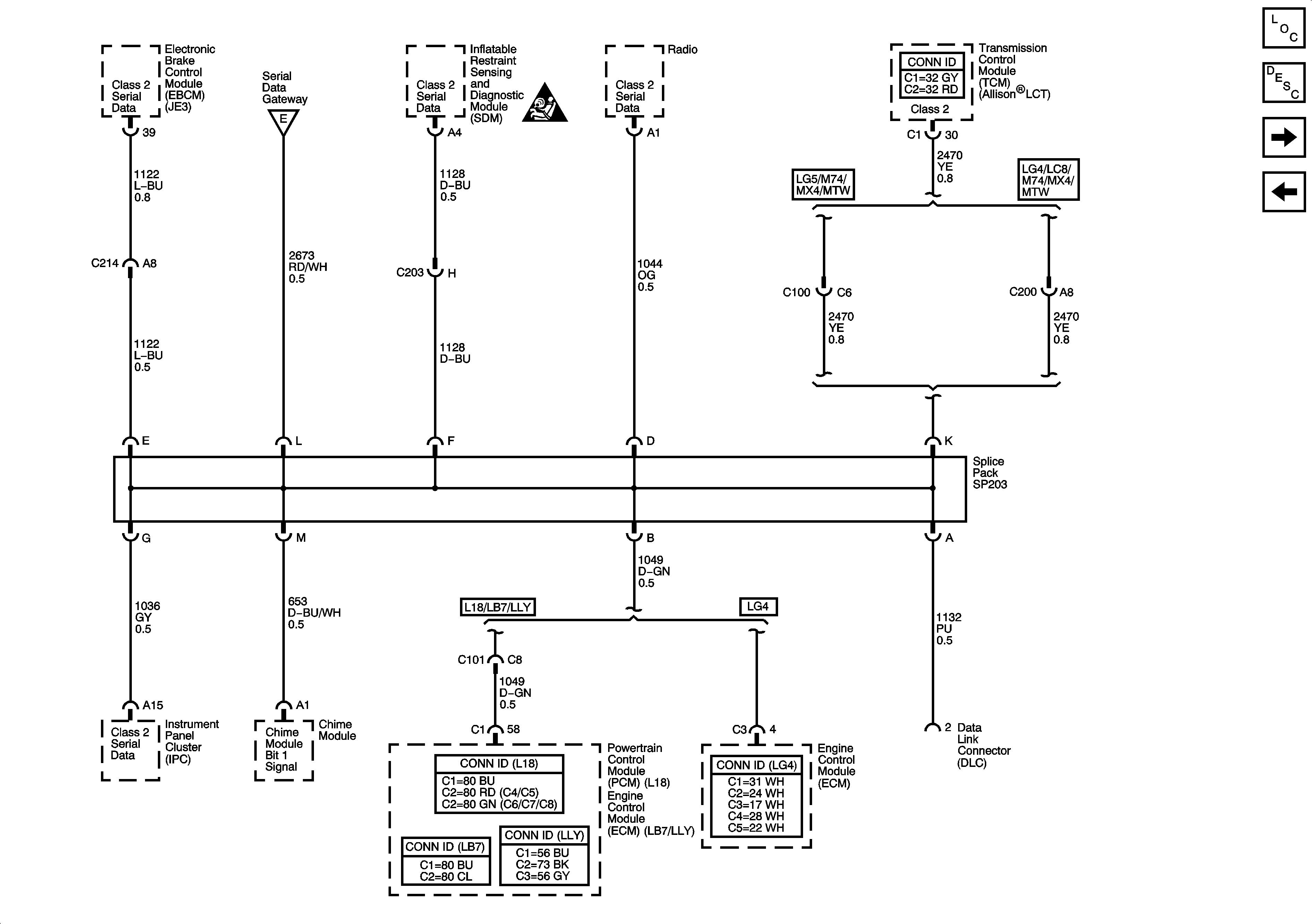

Figure 3:

Splice Pack SP203 (L18/LB7/LG4/LLY)
Object Number: 1464488 Size: FS
Master Electrical Component List
Data Link Communications Description and Operation
Diagnostic Tool Connector Power and Ground
Data Link Connector, Power and Ground - 2 of 2 (LG4/LG5)
Serial Data Gateway
Figure 4:

Diagnostic Tool Connector, Power and Ground
Object Number: 801052 Size: FS
Master Electrical Component List
Data Link Communications Description and Operation
Serial Data Gateway
Splice Pack SP203 (L18/LB7/LG4/LLY)
CHMSL, PWR POST, and RADIO/CHIME FuseS/Circuit Breakers
CHMSL, PWR POST, and RADIO/CHIME FuseS/Circuit Breakers
Data Link Connector, Power and Ground - 1 of 2
Data Link Connector, Power and Ground - 1 of 2
Module Power, Ground, Serial Data
G101 - 1 of 2
J1939 Serial Data (LB7/LLY)
J1939 Serial Data (L65/L18/LG4/LC8) - 1 of 2
J1939 Serial Data (LB7/LLY)
J1939 Serial Data (L65/L18/LG4/LC8) - 1 of 2
Figure 5:

Serial Data Gateway
Object Number: 801053 Size: FS
Master Electrical Component List
Data Link Communications Description and Operation
J1939 Serial Data (LB7/LLY)
Diagnostic Tool Connector Power and Ground
A/C COMP, HTD FUEL, PCM-B, and RR DEFOG Fuses
A/C COMP, HTD FUEL, PCM-B, and RR DEFOG Fuses
START and TRANS Fuses/Circuit Breakers
J1939 Serial Data (L65/L18/LG4/LC8) - 1 of 2
G103 - 1 of 2, G105, and G106
Splice Pack SP203 (L18/LB7/LG4/LLY)

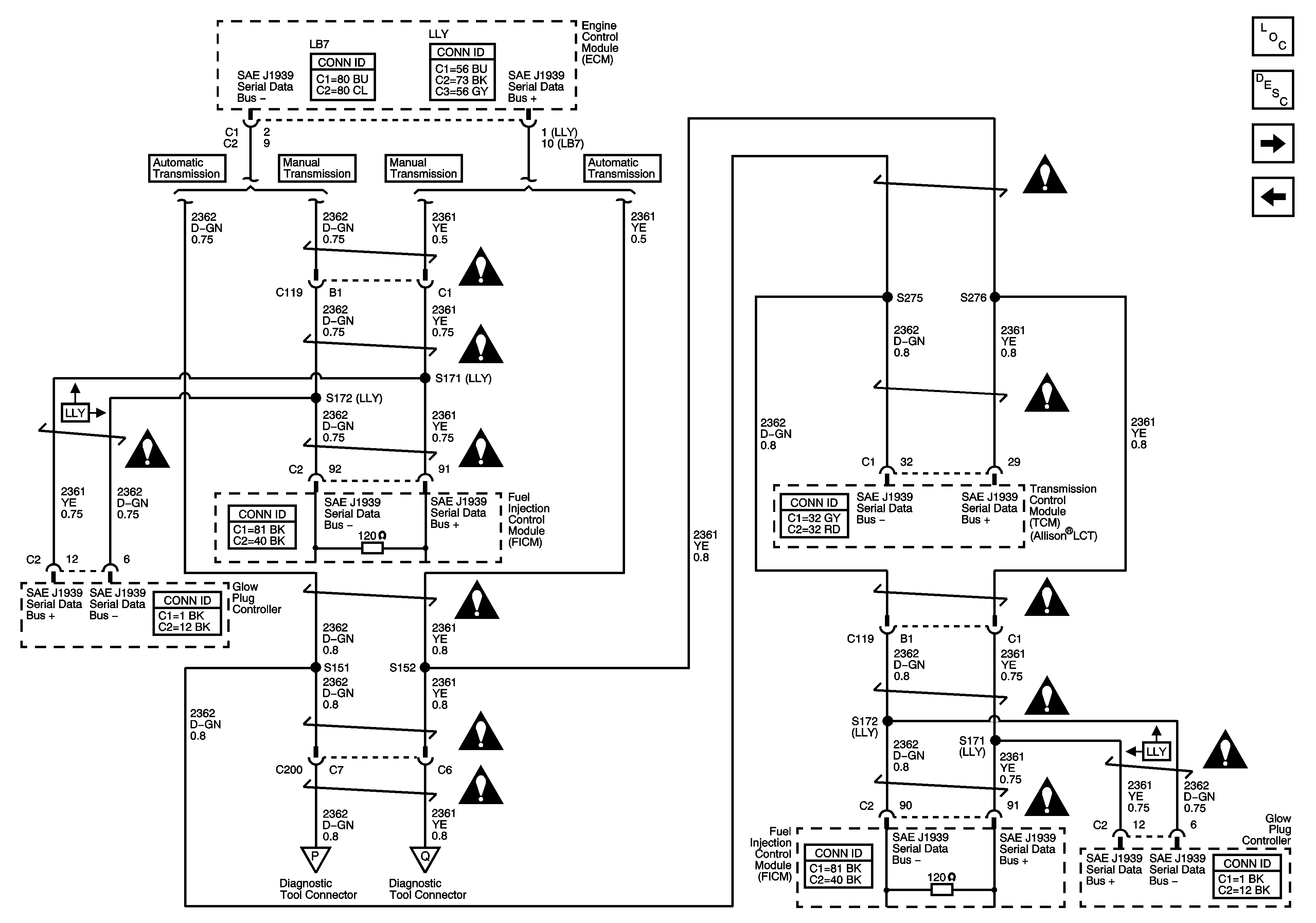

Figure 6:

J1939 Serial Data (LB7/LLY)
Object Number: 1852214 Size: FS
Master Electrical Component List
Data Link Communications Description and Operation
J1939 Serial Data (L65/L18/LG4/LC8) - 1 of 2
Serial Data Gateway
Diagnostic Tool Connector Power and Ground
Diagnostic Tool Connector Power and Ground
Figure 7:

J1939 Serial Data (L65/L18/LG4/LC8)
Object Number: 801057 Size: FS
Master Electrical Component List
Data Link Communications Description and Operation
J1939 Serial Data (L65/L18/LG4/LC8) - 2 of 2
J1939 Serial Data (LB7/LLY)
Diagnostic Tool Connector Power and Ground
Diagnostic Tool Connector Power and Ground
J1939 Serial Data (L65/L18/LG4/LC8) - 2 of 2
J1939 Serial Data (L65/L18/LG4/LC8) - 2 of 2
J1939 Serial Data (L65/L18/LG4/LC8) - 2 of 2
J1939 Serial Data (L65/L18/LG4/LC8) - 2 of 2
Serial Data Gateway
Serial Data Gateway
Serial Data Gateway
Serial Data Gateway
Figure 8:

J1939 Serial Data (LG5/L18/LG4)
Object Number: 801068 Size: FS
Master Electrical Component List
Data Link Communications Description and Operation
J1939 Serial Data (L65/L18/LG4/LC8) - 1 of 2
J1939 Serial Data (L65/L18/LG4/LC8) - 1 of 2
J1939 Serial Data (L65/L18/LG4/LC8) - 1 of 2
J1939 Serial Data (L65/L18/LG4/LC8) - 1 of 2
J1939 Serial Data (L65/L18/LG4/LC8) - 1 of 2
