| Table 1: | Clutch Start Switch |
| Table 2: | Generator-Left |
| Table 3: | Generator-Right |
| Table 4: | Park/Neutral Position (PNP) Switch |
| Table 5: | Starter Temperature Switch |
| |||||||
|---|---|---|---|---|---|---|---|

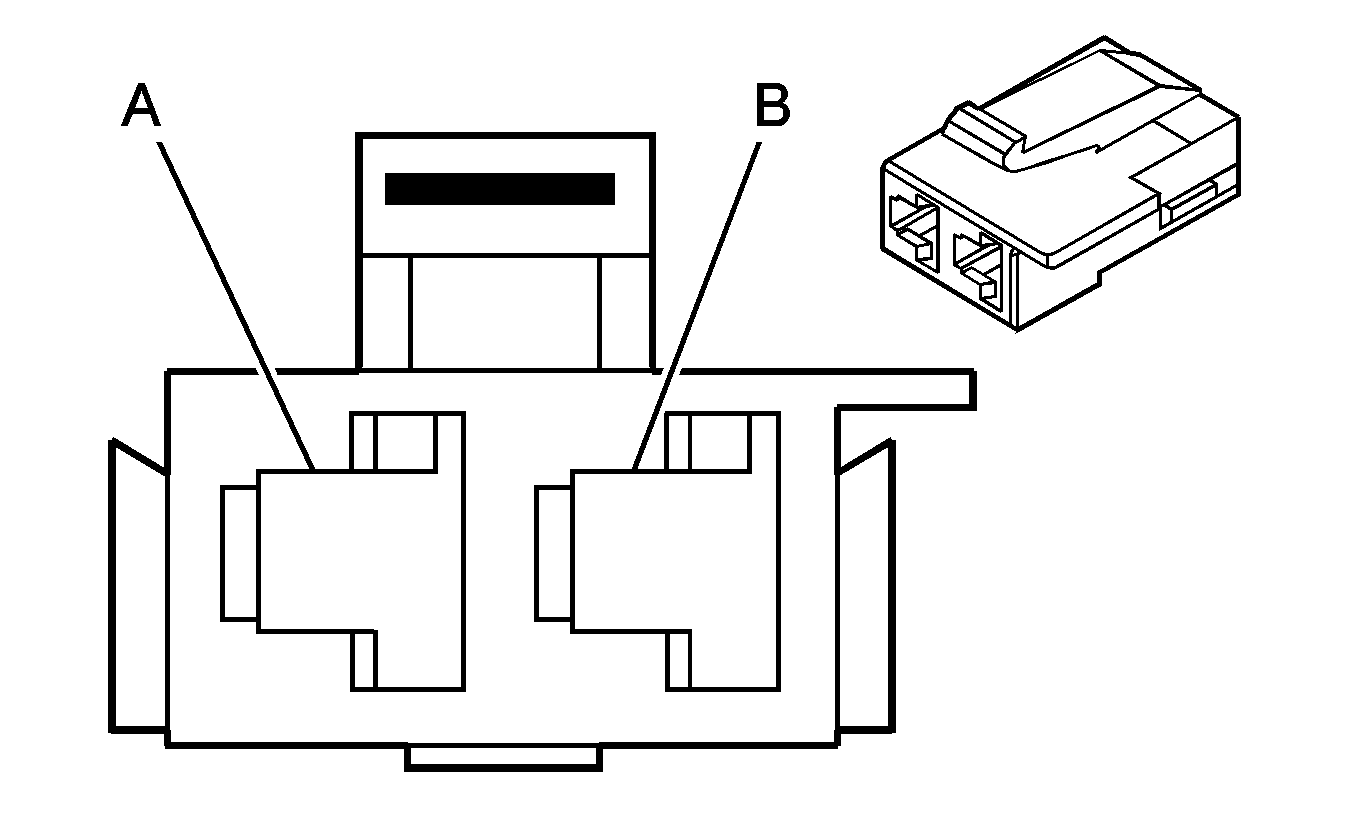

Connector Part Information |
| ||||||
Pin | Wire Color | Circuit Number | Function | ||||
A | PU | 806 | Crank Voltage | ||||
B | D-GN | 1433 | Clutch Start Switch Signal | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit Number | Function | ||||
A | -- | -- | Not Used | ||||
B | BN | 25 | Left Term Mon | ||||
C | GY | 23 | Generator Field Duty Cycle Signal | ||||
D | RD | 2 | Battery Positive Voltage | ||||
|
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit Number | Function | ||||
A | -- | -- | Not Used | ||||
B | BN | 25 | Left Term Mon | ||||
C | -- | -- | Not Used | ||||
D | RD | 2 | Battery Positive Voltage | ||||
| |||||||
|---|---|---|---|---|---|---|---|

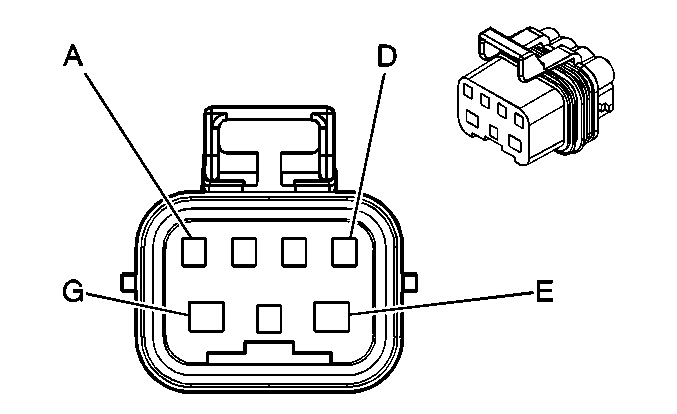

Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | OG/BK | 1786 | Park/Neutral Signal | ||||
B | -- | -- | Not Used | ||||
C | PK | 139 | Ignition 1 Voltage | ||||
D | BK/WH | 251 | Ground | ||||
E | PU | 806 | Crank Voltage | ||||
F | L-GN | 24 | Backup Lamp Supply Voltage | ||||
G | D-GN | 1433 | Clutch Start Switch Signal | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | PU/WH | 2667 | Battery Positive Voltage | ||||
B | PU | 6 | Starter Solenoid Crank Voltage | ||||
