Manifold Air Temperature Sensor Replacement Without CTF

Removal Procedure
  1. Remove the engine cover. Refer to Engine Cover Replacement in Interior Trim.

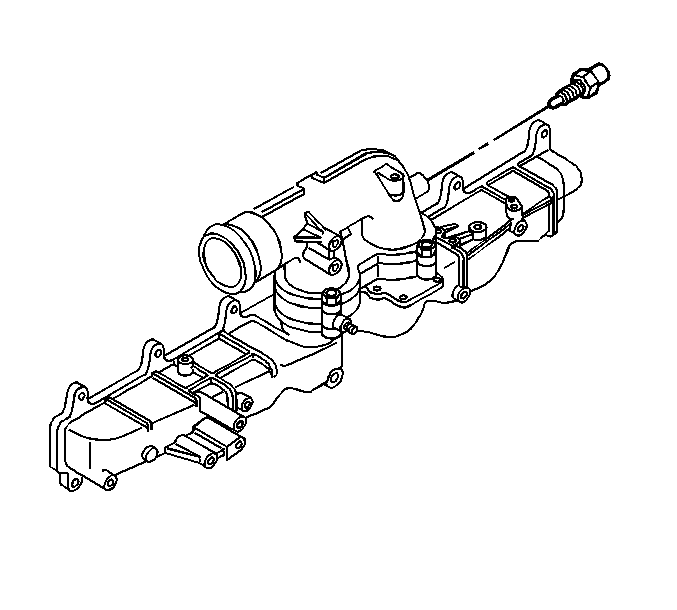

    2. Object Number: 834119 Size: SH
  2. Remove the electrical connector from the manifold air temperature sensor.
  3. Remove the manifold air temperature sensor.

Installation Procedure

    Object Number: 834119 Size: SH
  1. Install the manifold air temperature sensor to the intake pipe.
  2. Install the electrical connector to the manifold air temperature sensor.
  3. Install the engine cover. Refer to Engine Cover Replacement in Interior Trim.
