Removal Procedure

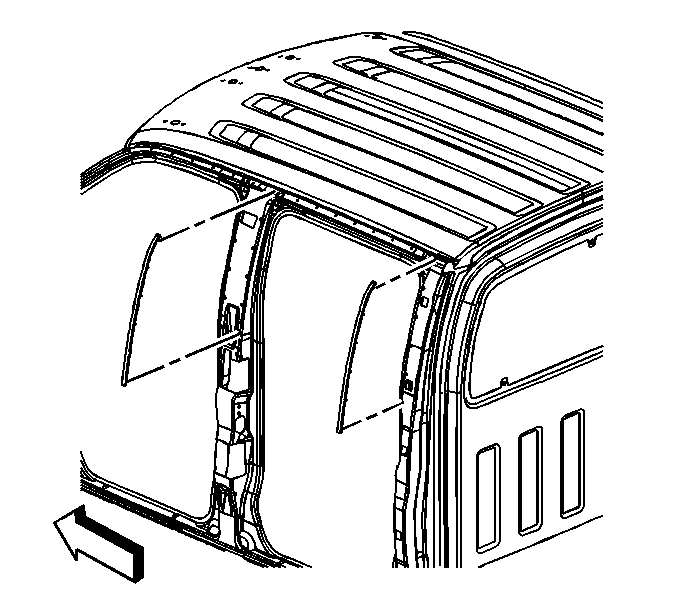

    Object Number: 828439 Size: SH
  1. Open the rear door.
  2. Remove the auxiliary weatherstrip by pulling the weatherstrip from the left to the right side of the rear door opening.
  3. Remove the auxiliary weatherstrip.

Installation Procedure

    Object Number: 828439 Size: SH
  1. Install the auxiliary weatherstrips by pressing in on the retainers, until each is fully seated.
  2. Close the rear door.
