Transfer Case Control Component Views. Chevrolet Kodiak C-Series (Crew) C6/C7/C8 2005

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Kodiak C-Series (Crew) C6/C7/C8 🢒 Driveline/Axle 🢒 Transfer Case - NVG 273 🢒 Transfer Case Control Component Views

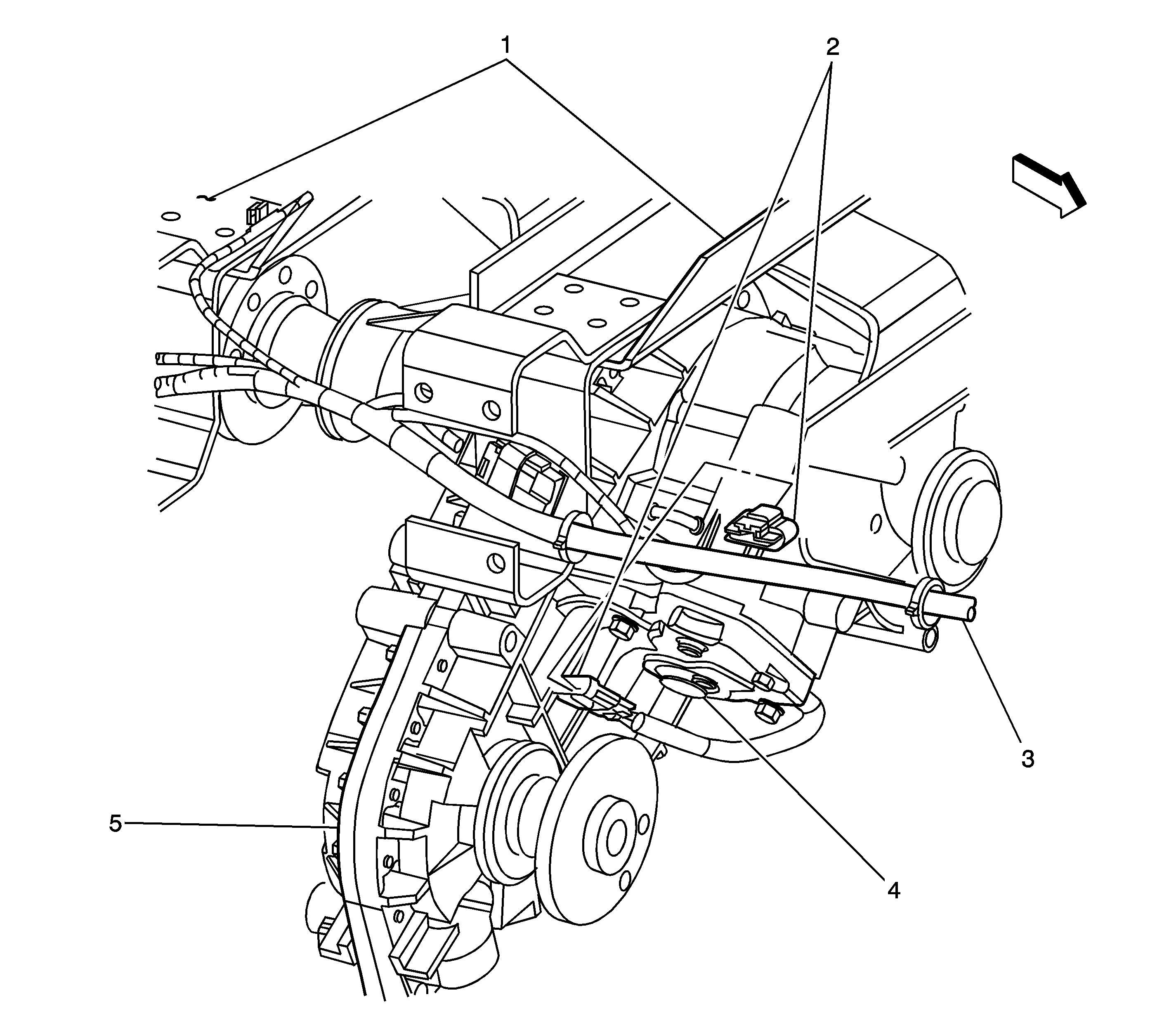

Figure 1:


(1)	Transfer Case Crossmember
(2)	Transfer Case Encoder Motor Connector
(3)	Rear Chassis Harness
(4)	Transfer Case Encoder Motor
(5)	Transfer Case

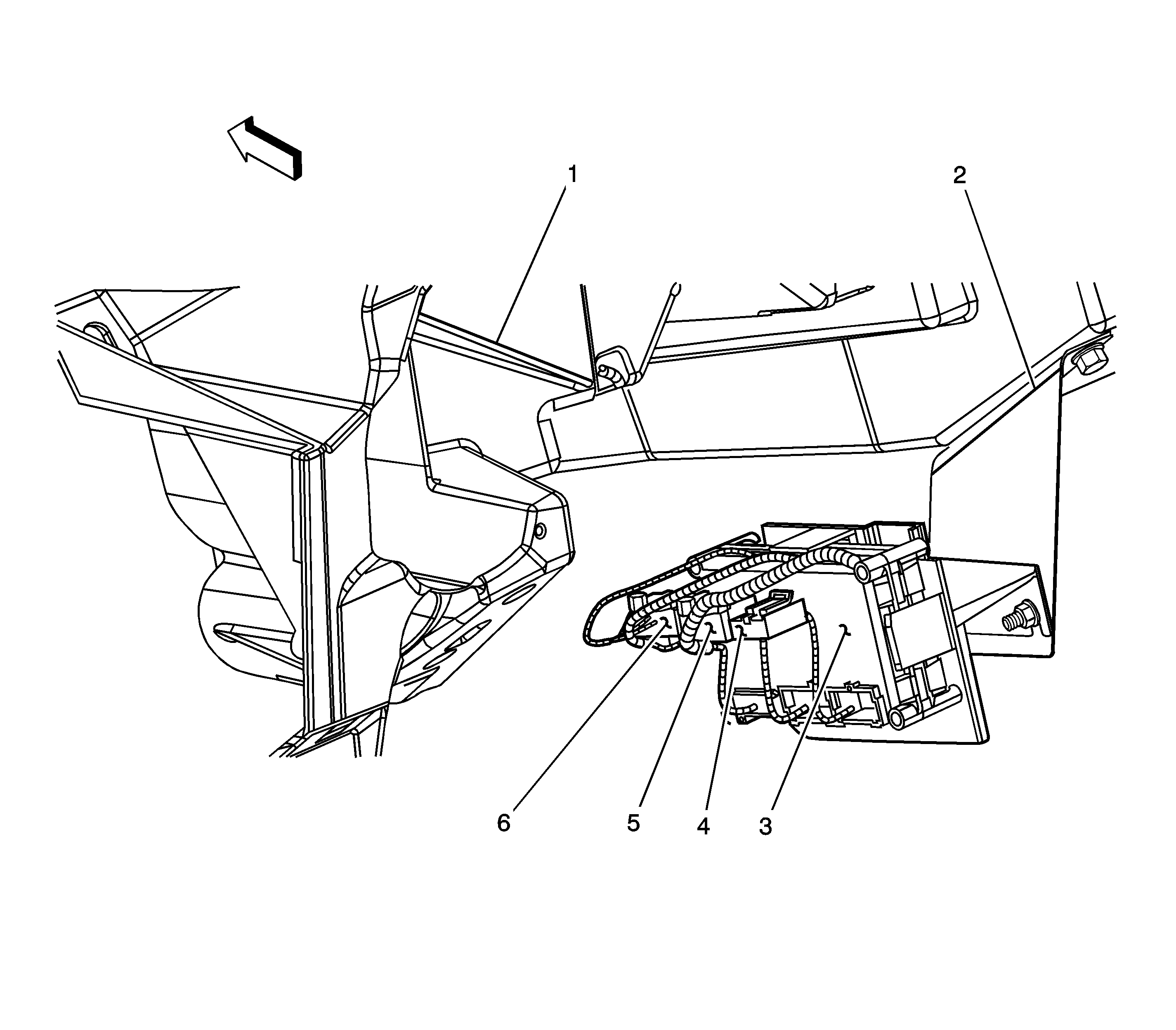

Figure 2:


(1)	I/P Carrier
(2)	Transfer Case Shift Control Module Bracket
(3)	Transfer Case Shift Control Module
(4)	Transfer Case Shift Control Module Connector C1
(5)	Transfer Case Shift Control Module Connector C2
(6)	Transfer Case Shift Control Module Connector C3

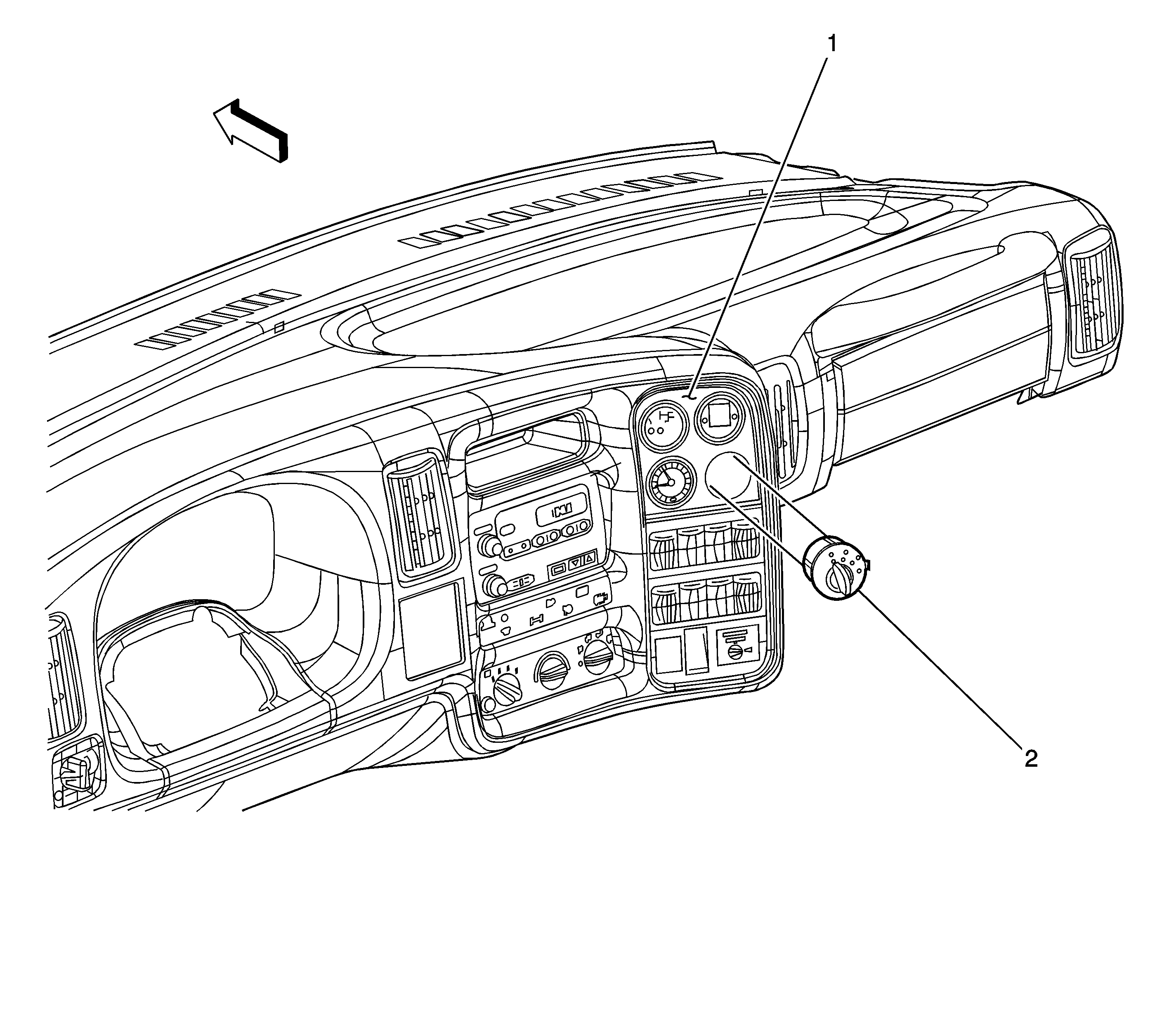

Figure 3:


(1)	Gage Center and I/P Switchbank
(2)	Transfer Case Shift Control Switch (NP1)
