Engine Controls Schematics. Chevrolet Malibu 2004

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2004 🢒 Malibu 🢒 Vehicle Control Systems 🢒 Computer/Integrating Systems 🢒 Engine Controls Schematics

Figure 1:	Power, Ground, Serial Data, and MIL Master Electrical Component List Powertrain Control Module Description 5-Volt and Low Reference Bussing Engine Controls Schematic Icons Fuse Block Underhood Bussing Fuse Block Underhood Bussing Fuse Block - Underhood - ABS, IGN, INJ, PCM IGN, TRANS Fuses and RUN/CRANK Relay Fuse Block - Underhood - EMISSION 1, ETC Fuses, and A/C Clutch, P0WERTRAIN Relays G109 G109 Power, Ground and High Speed Serial Data G103, G104, and G105

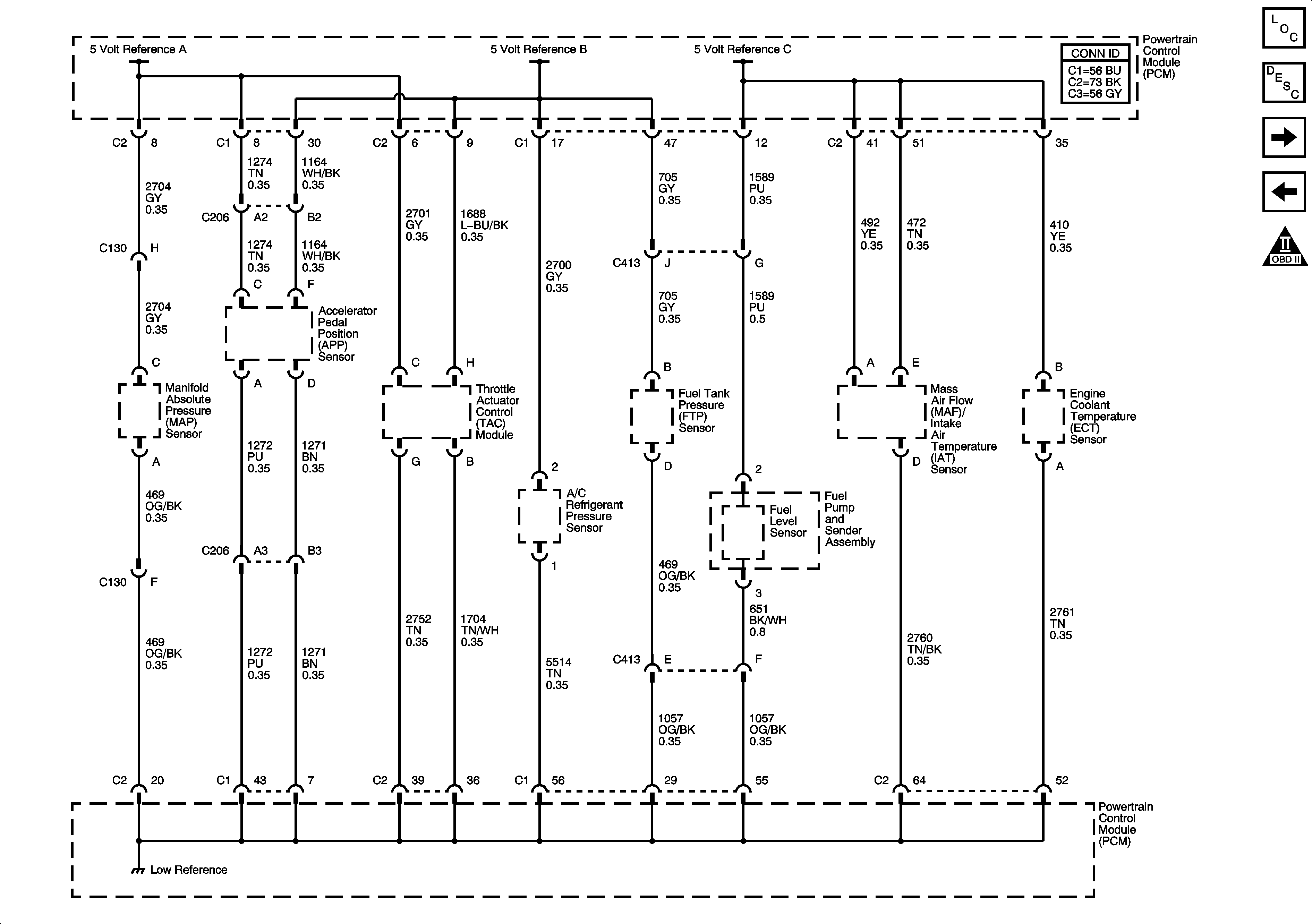

Figure 2:	5-Volt and Low Reference Bussing Master Electrical Component List Powertrain Control Module Description ECT, MAF/IAT and MAP Sensors Power, Ground, Serial Data, and MIL Engine Controls Schematic Icons

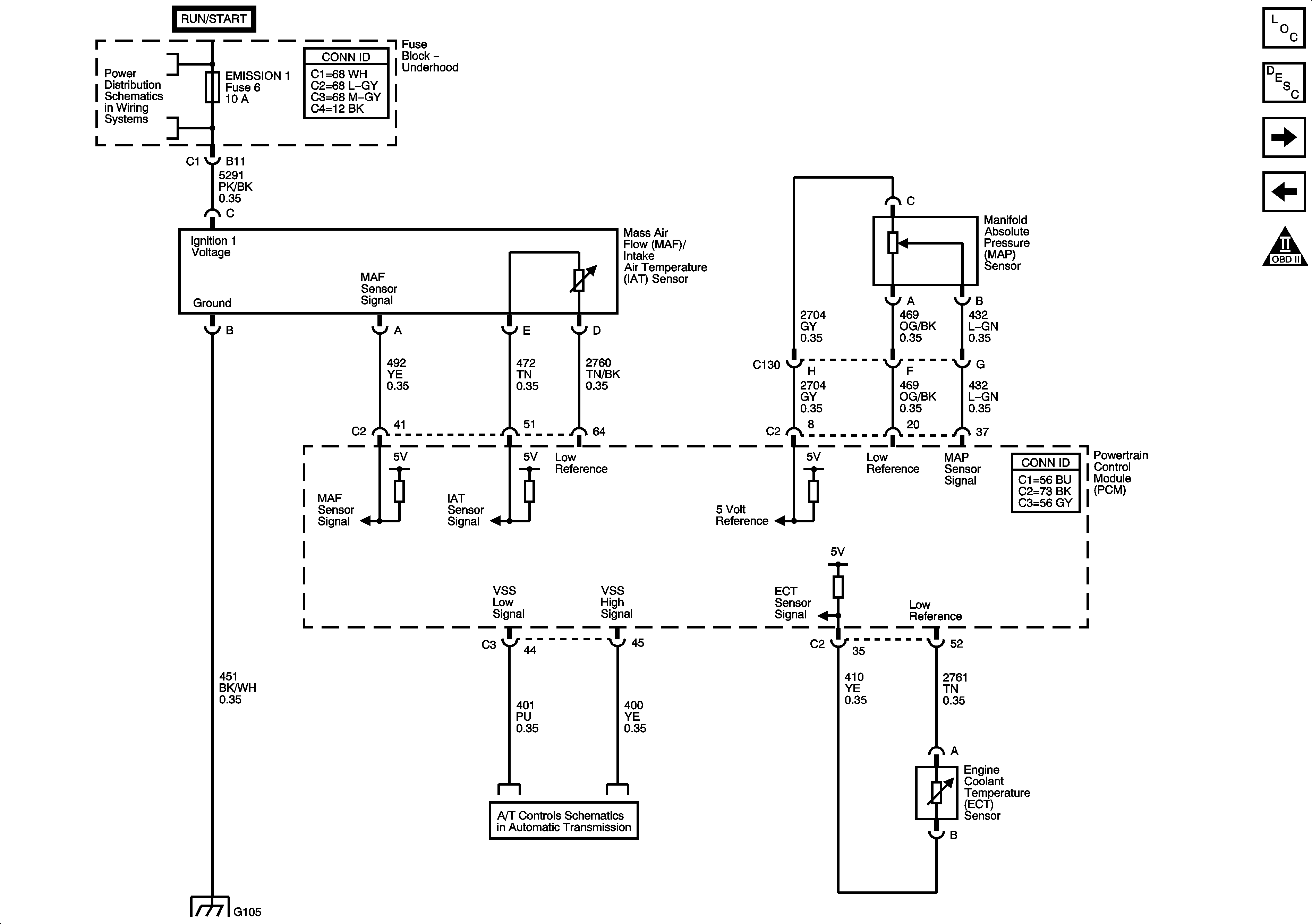

Figure 3:	ECT, MAF/IAT, and MAP Sensors Master Electrical Component List Powertrain Control Module Description Heated Oxygen Sensors 5-Volt and Low Reference Bussing Engine Controls Schematic Icons Fuse Block - Underhood - EMISSION 1, ETC Fuses, and A/C Clutch, P0WERTRAIN Relays Fuse Block - Underhood - EMISSION 1, ETC Fuses, and A/C Clutch, P0WERTRAIN Relays Transmission Solenoids and VSS G103, G104, and G105

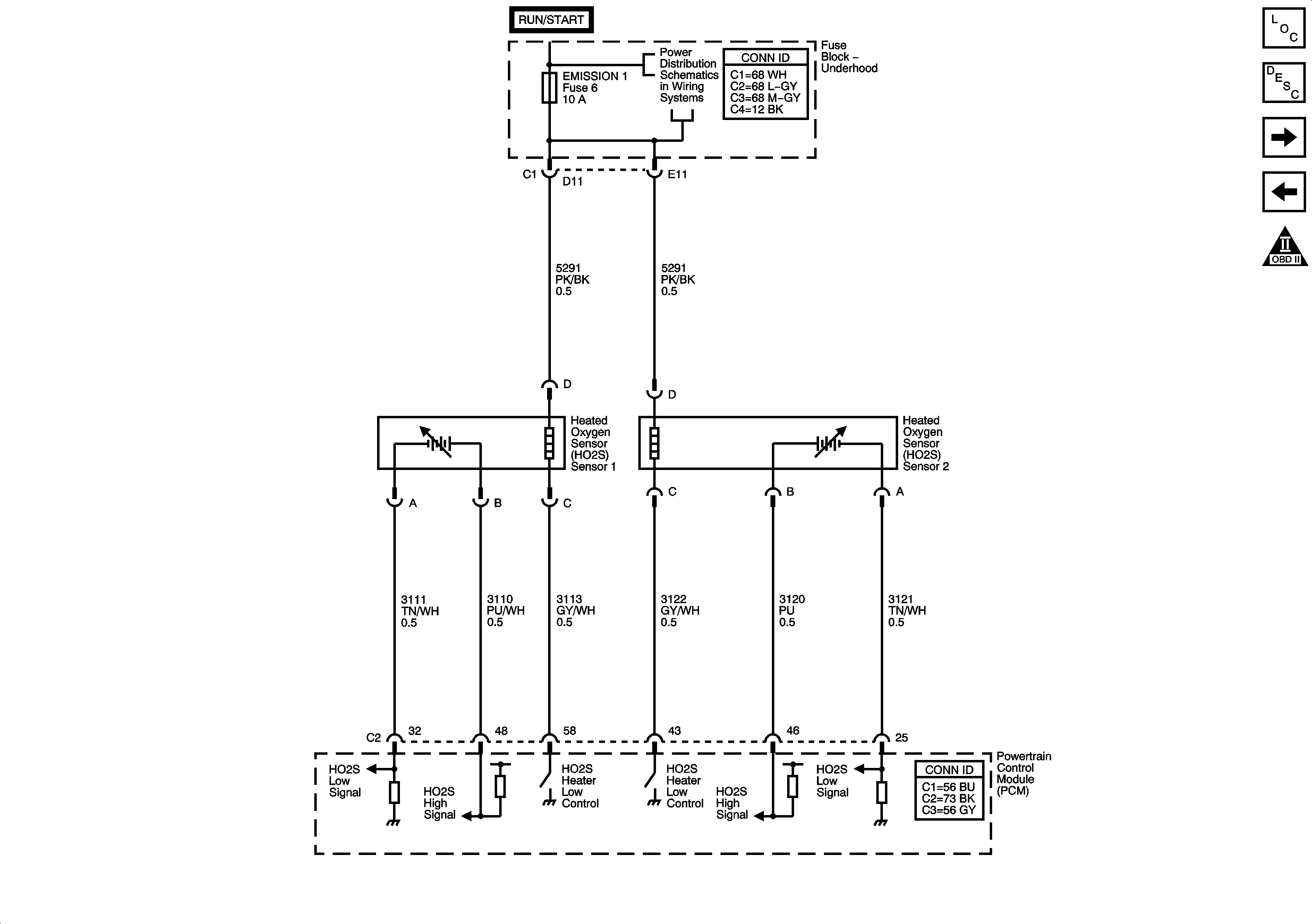

Figure 4:	Heated Oxygen Sensors Master Electrical Component List Powertrain Control Module Description Electronic Throttle Controls ECT, MAF/IAT and MAP Sensors Engine Controls Schematic Icons Fuse Block Underhood Bussing Fuse Block - Underhood - EMISSION 1, ETC Fuses, and A/C Clutch, P0WERTRAIN Relays

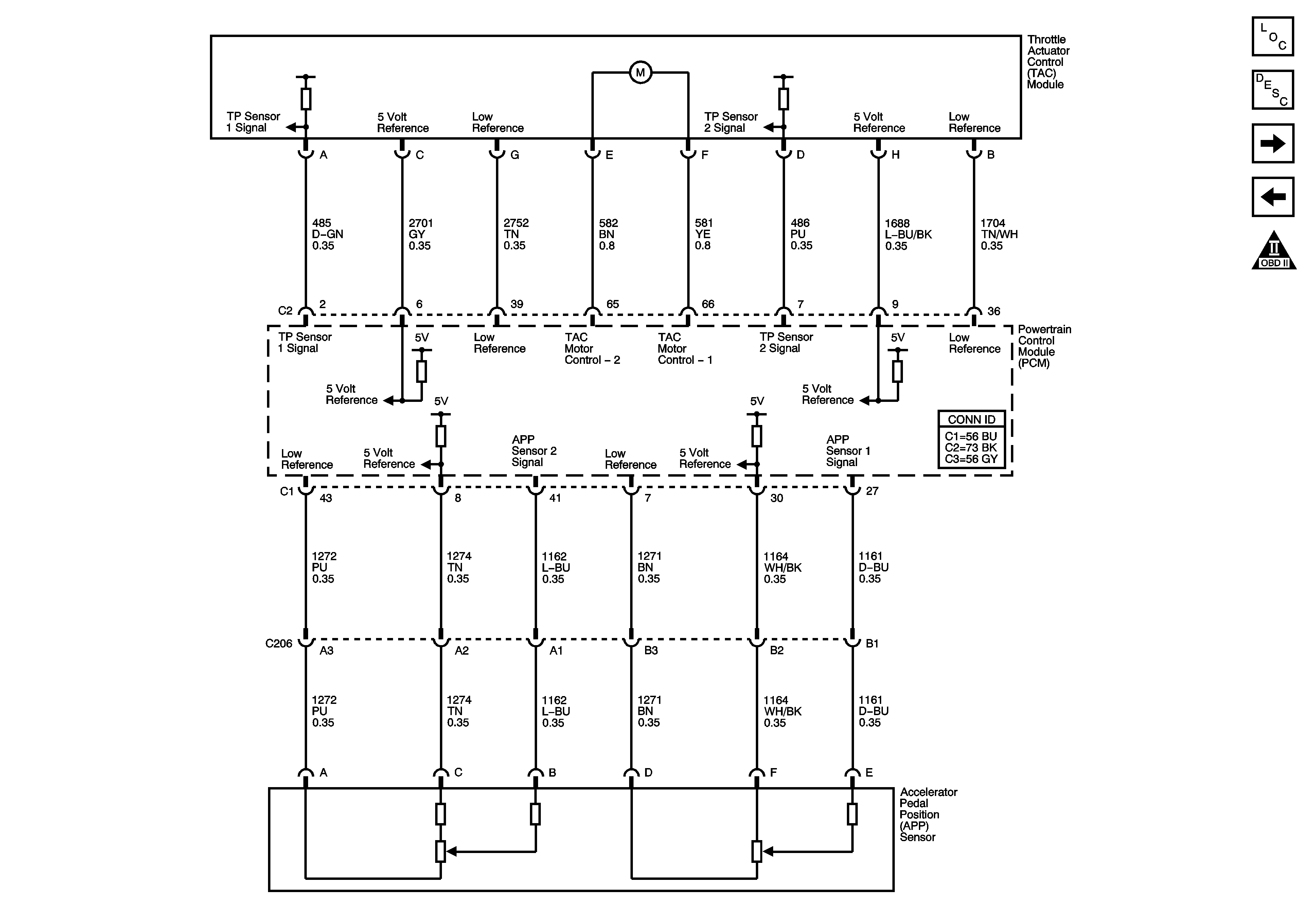

Figure 5:	Electronic Throttle Controls Master Electrical Component List Throttle Actuator Control (TAC) System Description Ignition Control Module Heated Oxygen Sensors Engine Controls Schematic Icons

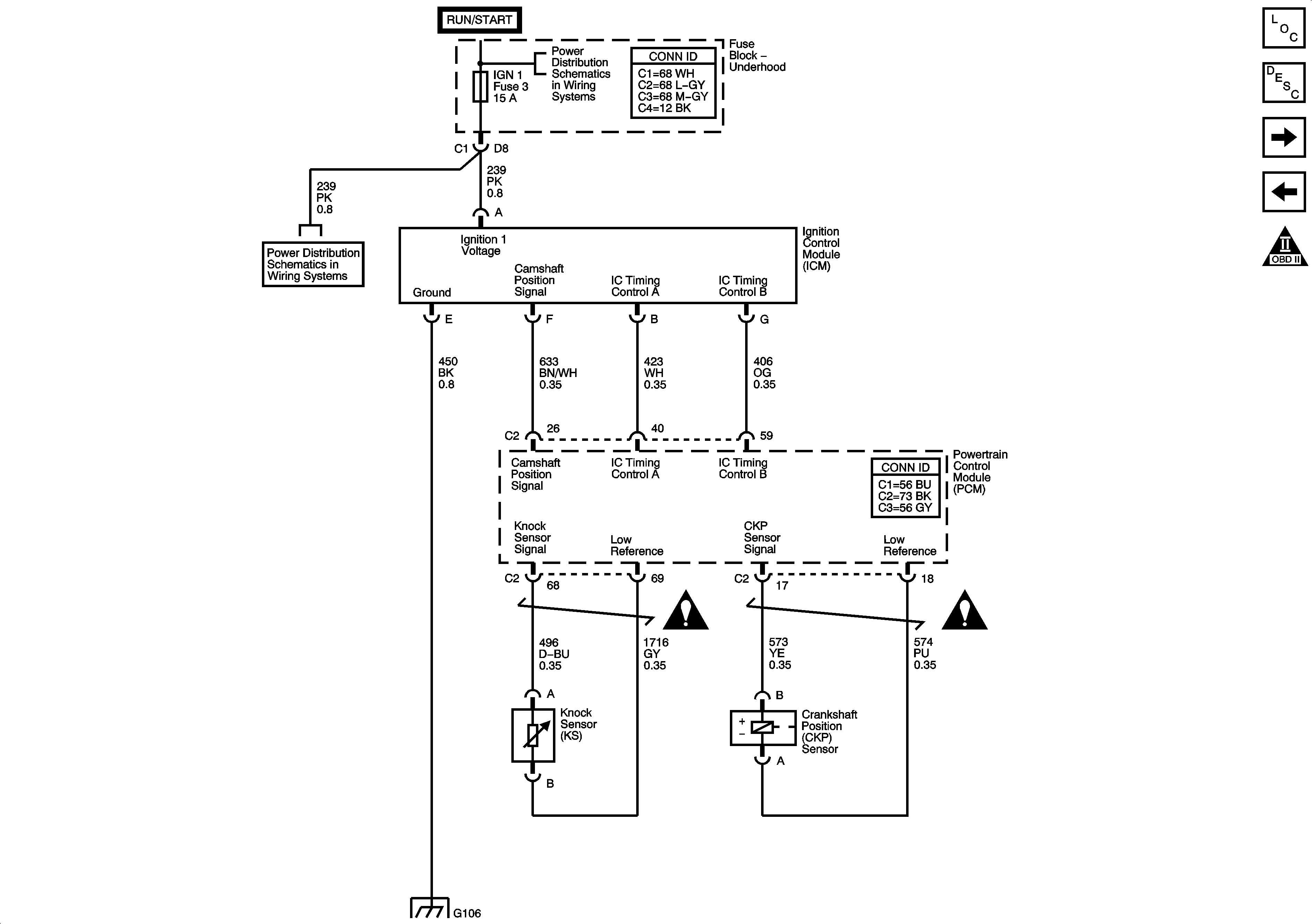

Figure 6:	Ignition Control Module Master Electrical Component List Electronic Ignition (EI) System Description Fuel Pump Controls Electronic Throttle Controls Engine Controls Schematic Icons Fuse Block Underhood Bussing Fuse Block - Underhood - ABS, IGN, INJ, PCM IGN, TRANS Fuses and RUN/CRANK Relay Fuse Block - Underhood - ABS, IGN, INJ, PCM IGN, TRANS Fuses and RUN/CRANK Relay Engine Controls Schematic Icons Engine Controls Schematic Icons G106

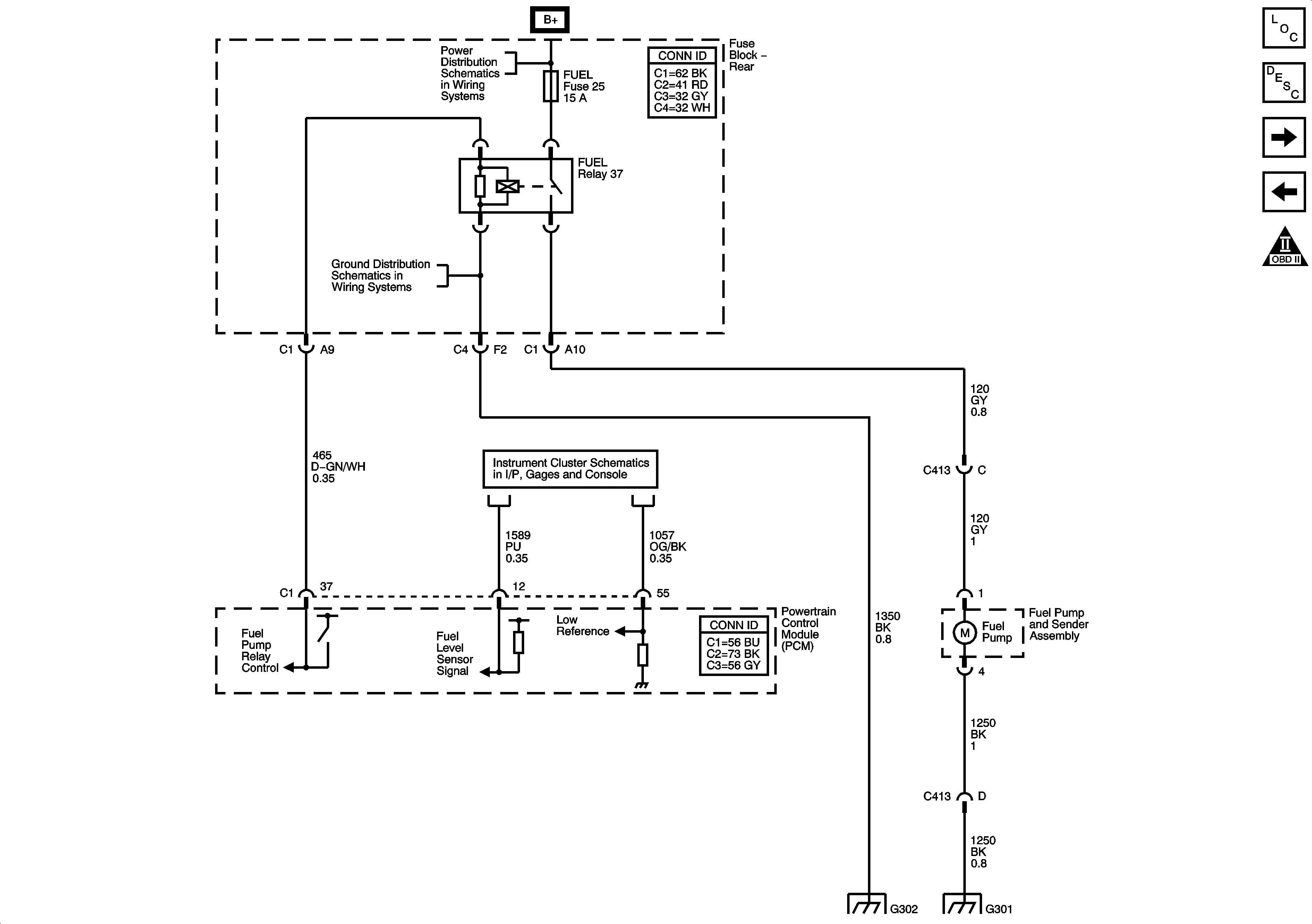

Figure 7:	Fuel Pump Controls Master Electrical Component List Fuel System Description Fuel Injectors, EVAP, and Fuel Tank Pressure Sensor Ignition Control Module Engine Controls Schematic Icons DRV ST, EMISSION 2, FUEL, PARK LPS, RBEC 2, RUN RLY, TRUNK Fuses, and FUEL, PARK LPS, TRUNK Relays, BCM - HVAC BLOWER, HVAC HEAD ECC Fuses DRV ST, EMISSION 2, FUEL, PARK LPS, RBEC 2, RUN RLY, TRUNK Fuses, and FUEL, PARK LPS, TRUNK Relays, BCM - HVAC BLOWER, HVAC HEAD ECC Fuses G302 Indicators G302 G301

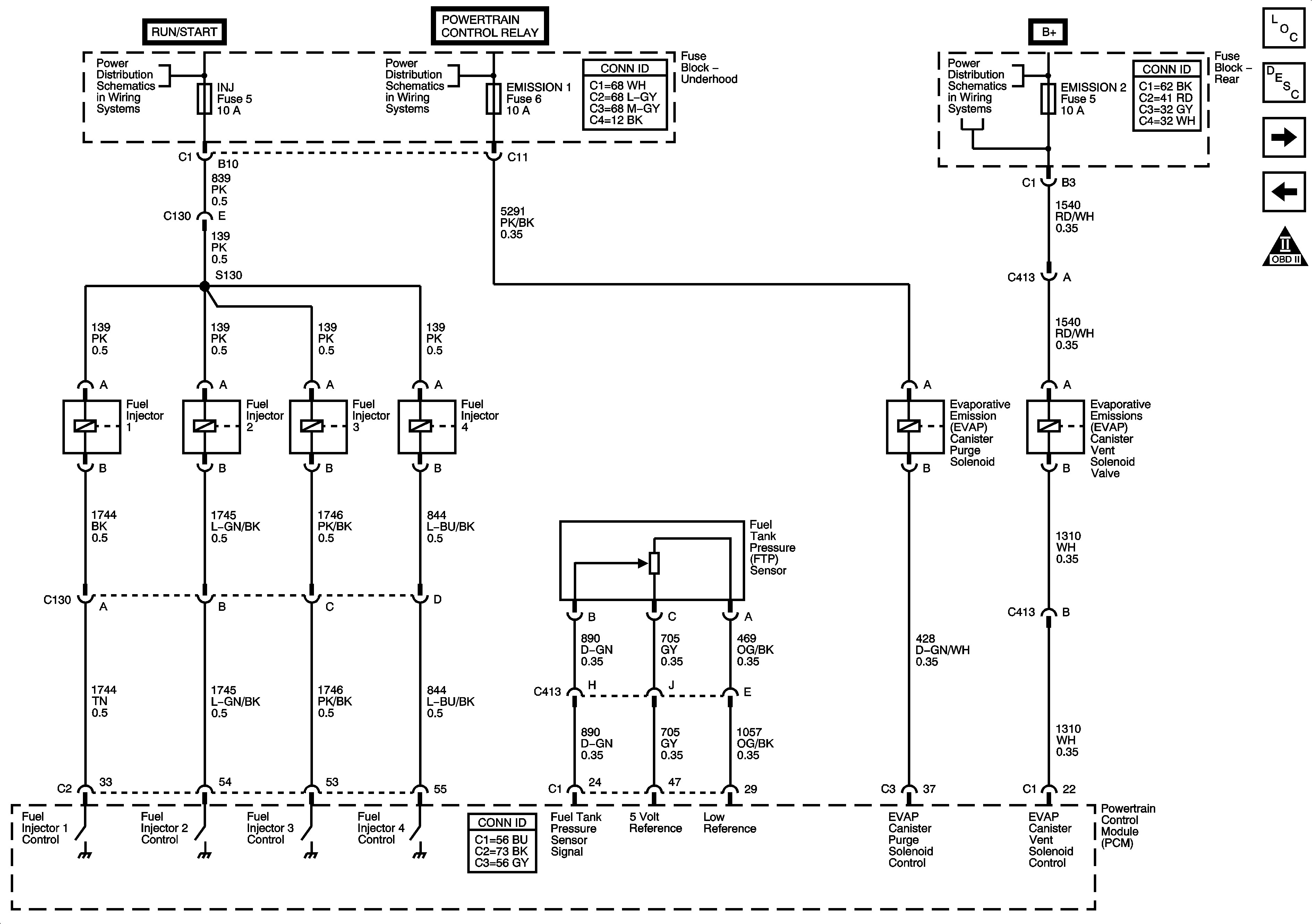

Figure 8:	Fuel Injectors, EVAP, and Fuel Tank Pressure Sensor Master Electrical Component List Evaporative Emission Control System Description Controlled/Monitored Subsystem References Fuel Pump Controls Engine Controls Schematic Icons Fuse Block Underhood Bussing Fuse Block Underhood Bussing DRV ST, EMISSION 2, FUEL, PARK LPS, RBEC 2, RUN RLY, TRUNK Fuses, and FUEL, PARK LPS, TRUNK Relays, BCM - HVAC BLOWER, HVAC HEAD ECC Fuses Fuse Block - Underhood - ABS, IGN, INJ, PCM IGN, TRANS Fuses and RUN/CRANK Relay Fuse Block - Underhood - EMISSION 1, ETC Fuses, and A/C Clutch, P0WERTRAIN Relays DRV ST, EMISSION 2, FUEL, PARK LPS, RBEC 2, RUN RLY, TRUNK Fuses, and FUEL, PARK LPS, TRUNK Relays, BCM - HVAC BLOWER, HVAC HEAD ECC Fuses

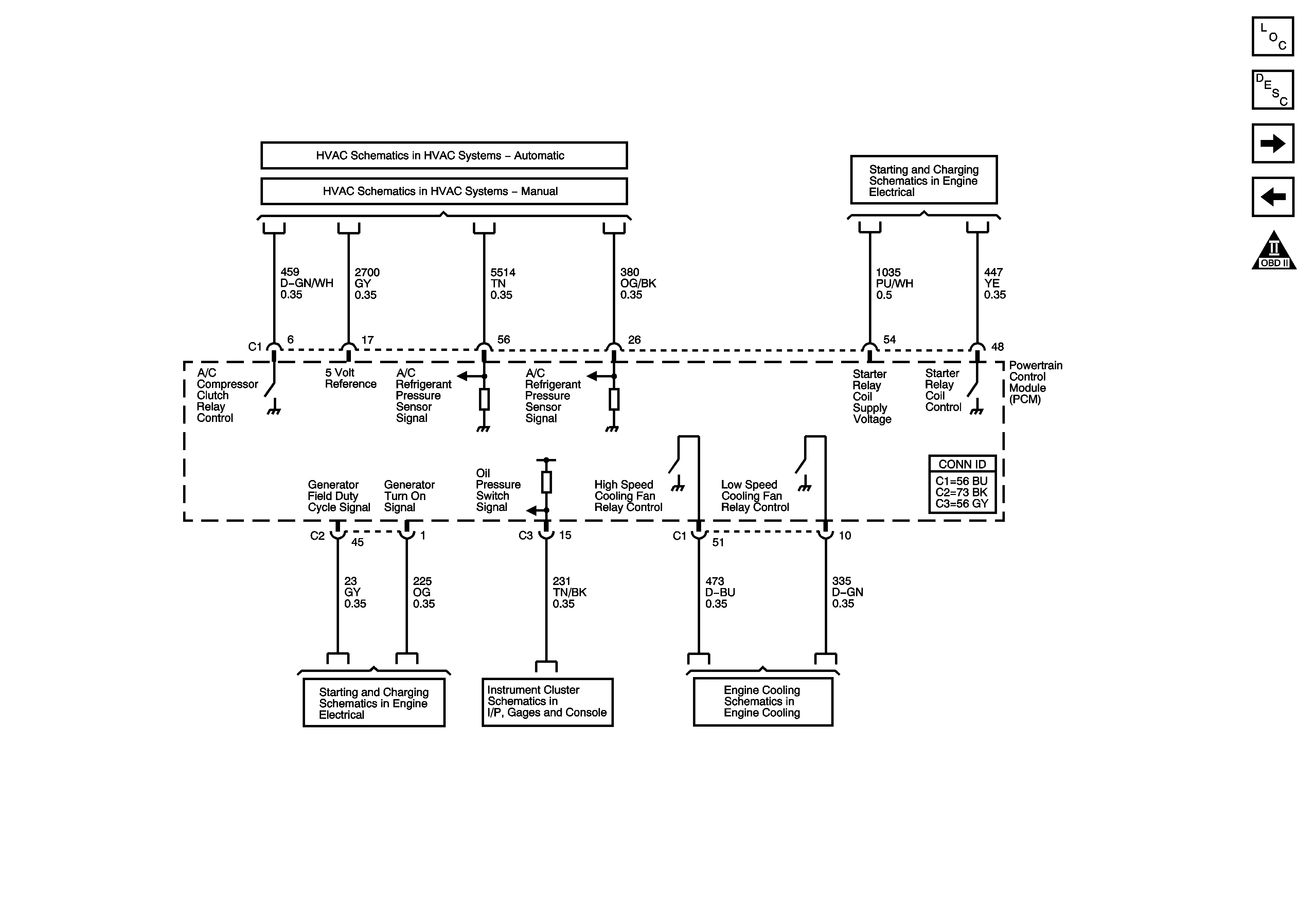

Figure 9:	Controlled/Monitored Subsystem References Master Electrical Component List Powertrain Control Module Description Automatic Transmission Control References Fuel Injectors, EVAP, and Fuel Tank Pressure Sensor Engine Controls Schematic Icons Power, Ground, A/C Compressor Clutch, and Blower Motor Controls Power, Ground, A/C Compressor, Clutch, and Blower Motor Controls Starting Charging Indicators Engine Cooling Fans

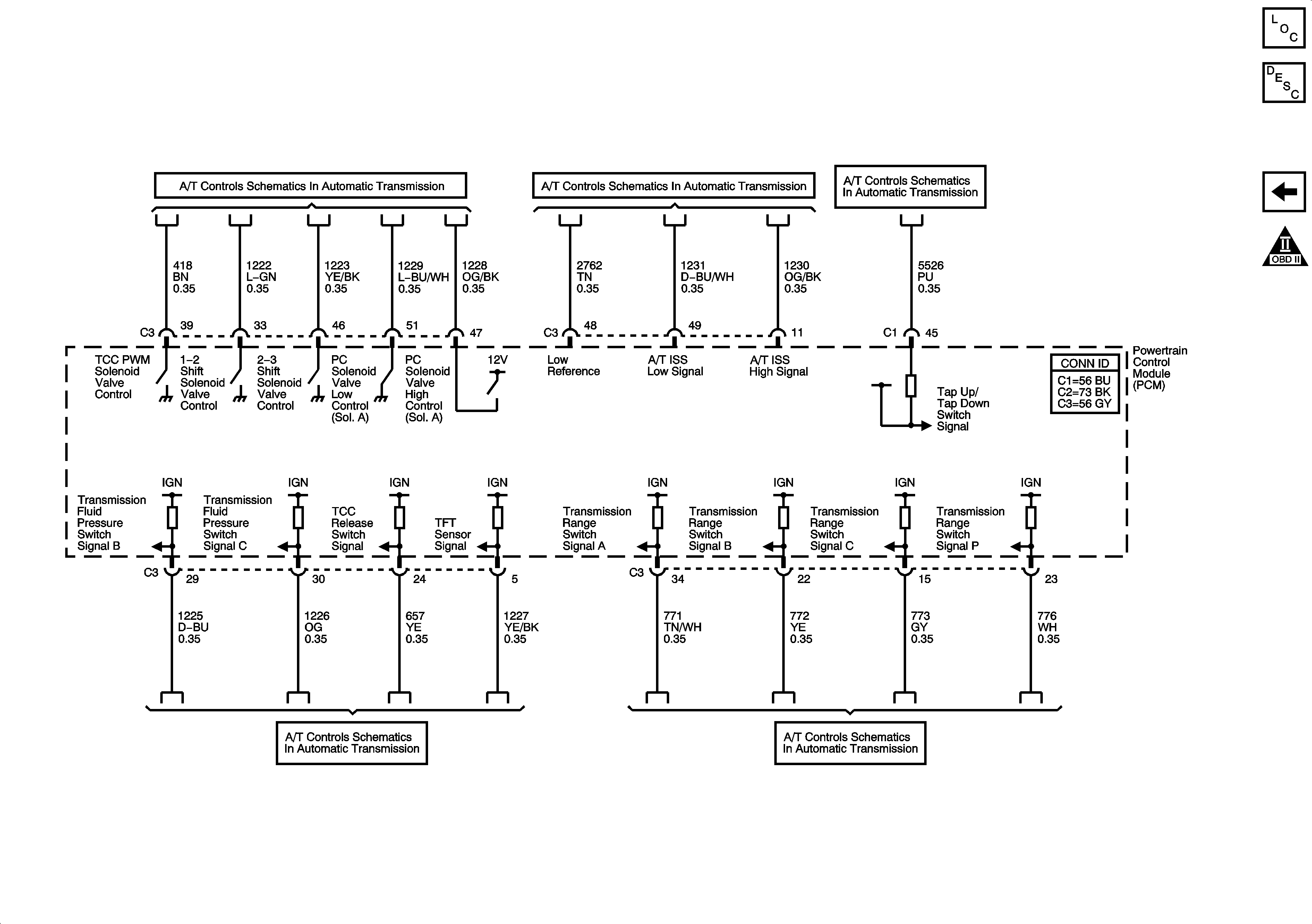

Figure 10:	Automatic Transmission Controls References Master Electrical Component List Powertrain Control Module Description Controlled/Monitored Subsystem References Engine Controls Schematic Icons Transmission Solenoids and VSS Transmission Switches, TFT and A/T ISS Sensor Tap Up/Tap Down Switch Transmission Switches, TFT and A/T ISS Sensor Park/Neutral Position Switch
