Makes 🢒 Chevrolet 🢒 2004 🢒 Malibu 🢒 Accessories 🢒 Entertainment 🢒 Entertainment Component Views

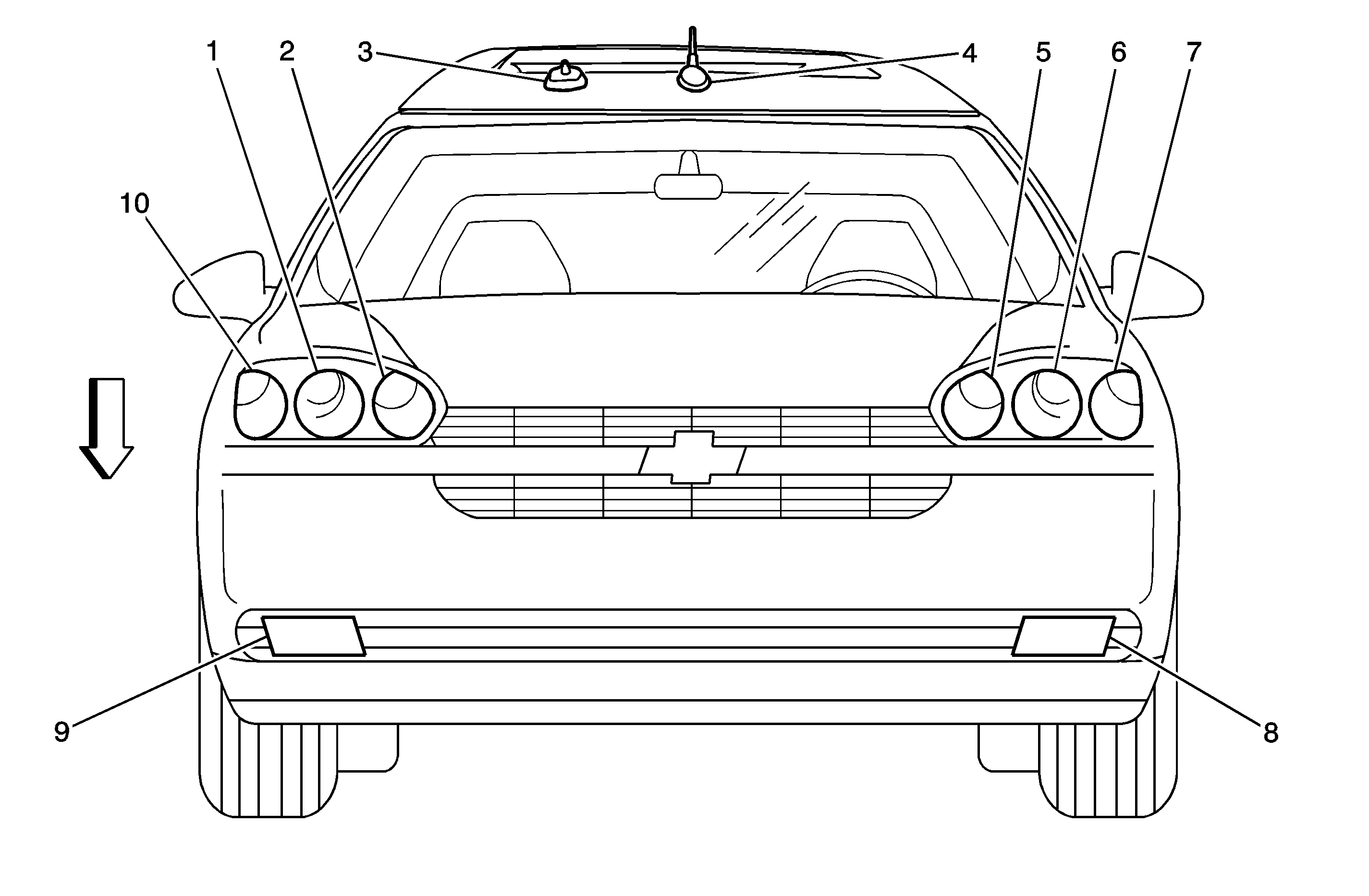

Figure 1:

Front of Vehicle
Object Number: 1394509 Size: MF
(1)Headlamp - Low Beam - Right
(2)Headlamp - High Beam - Right
(3)Digital Radio Antenna (U2K)
(4)Cellular and Navigation Antenna (UE1)
(5)Headlamp - High Beam - Left
(6)Headlamp - Low Beam - Left
(7)Park/Turn Signal/DRL Lamp - LF
(8)Fog Lamp - LF (T96)
(9)Fog Lamp - RF (T96)
(10)Park/Turn Signal/DRL Lamp - RF
Figure 2:

Instrument Panel
Object Number: 1360206 Size: MF
(1) Turn Signal/Multifunction Switch
(2)Steering Wheel Controls - Left
(3)Instrument Panel Cluster (IPC)
(4)Steering Wheel Controls - Right
(5)Windshield Wiper/Washer Switch
(6)Ignition Switch
(7)Hazard Switch
(8)Ambient Light Sensor (C60), Sunload Sensor (C68)
(9)Radio
(10)HVAC Control Module
(11)Inflatable Restraint I/P Module
(12)Traction Control Switch (NW7/NW9), Auxiliary Power Outlet - Front (w/o NW7/NW9)
(13)Transmission Shifter
(14)Cigar Lighter
(15)Horn Buttons/Inflatable Restraint Steering Wheel Module
(16)Data Link Connector (DLC)
(17)Fog Lamp Switch (T96)
(18)Dimmer Switch
(19)Adjustable Pedals Position Switch (JF4)
Figure 3:

Rear of Steering Wheel
Object Number: 1551605 Size: MF
(1)Inflatable Restraint Steering Wheel Module Coil C3
(2)Rear Shroud
Figure 4:

Left Front Door
Object Number: 1394475 Size: MF
(1)Door Lock Switch - Driver
(2)Outside Rearview Mirror - Driver
(3)Outside Rearview Mirror - Switch
(4)Speaker - LF Door Tweeter (UZ6)
(5)Window Switch - Driver
(6)Speaker - LF Door
(7)Rear Compartment/Liftgate Release Switch
(8)Window Motor - Driver
(9)Door Latch Assembly - Driver
Figure 5:

Rear of Center Console (UK6, U32)
Object Number: 1406116 Size: MF
(1)Video Screen (U32)
(2)DVD Player (U32) (Rear Seat Audio (RSA) Controller (UK6))
Figure 6:

Rear of DVD Player (U32)
Object Number: 1406117 Size: MF
(1)Video Screen
(2)Grounding Strap
(3)C315
(4)DVD Player, C3
(5)DVD Player
(6)DVD Player, C1
(7)DVD Player, C2
Figure 7:

Right Front Door
Object Number: 1394481 Size: MF
(1)Speaker - RF Door Tweeter (UZ6)
(2)Outside Rearview Mirror - Front Passenger
(3)Door Lock Switch - Passenger
(4)Window Switch - Passenger
(5)Door Latch Assembly - Passenger
(6)Window Motor - Passenger
(7)Speaker - RF Door
Figure 8:

Left Rear Door
Object Number: 1394486 Size: MF
(1)Window Switch - LR
(2)Speaker - LR Door (Extended Sedan)
(3)Window Motor - LR
(4)Door Latch Assembly - LR
Figure 9:

Right Rear Door
Object Number: 1394490 Size: MF
(1)Door Latch Assembly - RR
(2)Window Motor - RR
(3)Speaker - RR Door (Extended Sedan)
(4)Window Switch - RR
Figure 10:

Rear Roof Rail - Sedan
Object Number: 1266701 Size: MF
(1)Radio Antenna Amplifier Module
(2)Radio Rear Window Antenna
Figure 11:

Rear Speakers (Sedan)
Object Number: 1266702 Size: MF
(1)Speaker - RR
(2)Speaker - LR
Figure 12:

Rear Shelf (Sedan w/U2K)
Object Number: 1266719 Size: MF
(1)Digital Radio Receiver
Figure 13:

Right Rear of Passenger Compartment - Extended Sedan
Object Number: 1263949 Size: MF
(1)G301
(2)Inflatable Restraint Side Impact Module - Right (AY1)
(3)C701
(4)Digital Radio Receiver
Figure 14:

Rear of Vehicle - Extended Sedan
Object Number: 1394516 Size: MF
(1)Tail/Stop and Turn Signal Lamp - Left
(2)Tail Lamp - Left
(3)Center High Mounted Stop Lamp (CHMSL)
(4)Liftgate Release Switch
(5)Antenna - Radio
(6)Tail Lamp - Right
(7)Tail/Stop and Turn Signal Lamp - Right
(8)Backup Lamp - Right
(9)License Lamp
(10)Backup Lamp - Left
