Makes 🢒 Chevrolet 🢒 2007 🢒 Malibu 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Entertainment/Communication Component Views

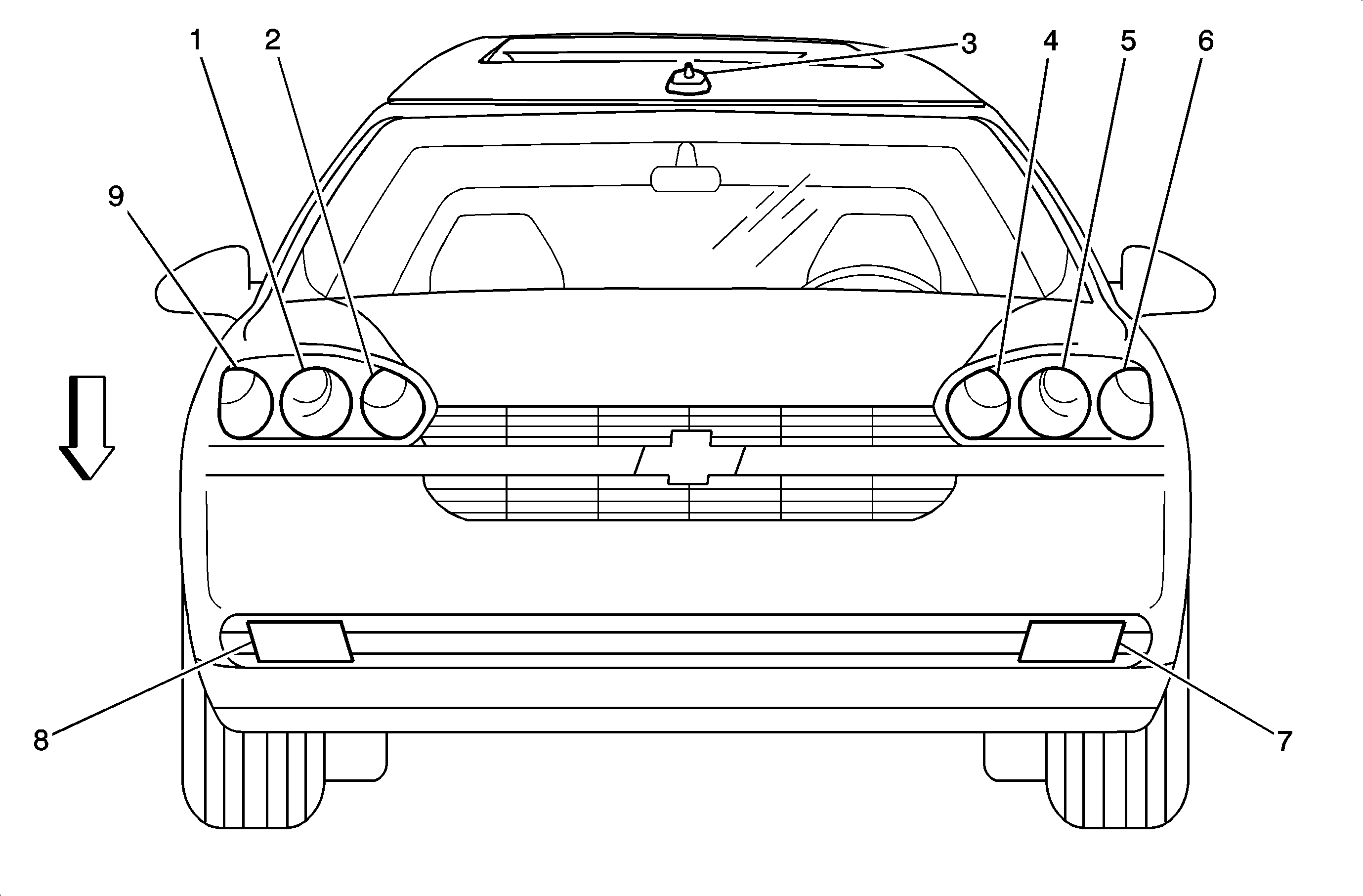

Figure 1:

Front of Vehicle
Object Number: 1719241 Size: MF
(1)Headlamp - Low Beam - Right
(2)Headlamp - High Beam - Right
(3)Cellular/Navigation and Digital Radio Antenna (UE1/U2K)
(4)Headlamp - High Beam - Left
(5)Headlamp - Low Beam - Left
(6)Park/Turn Signal Lamp - LF
(7)Fog Lamp - LF (T96)
(8)Fog Lamp - RF (T96)
(9)Park/Turn Signal Lamp - RF

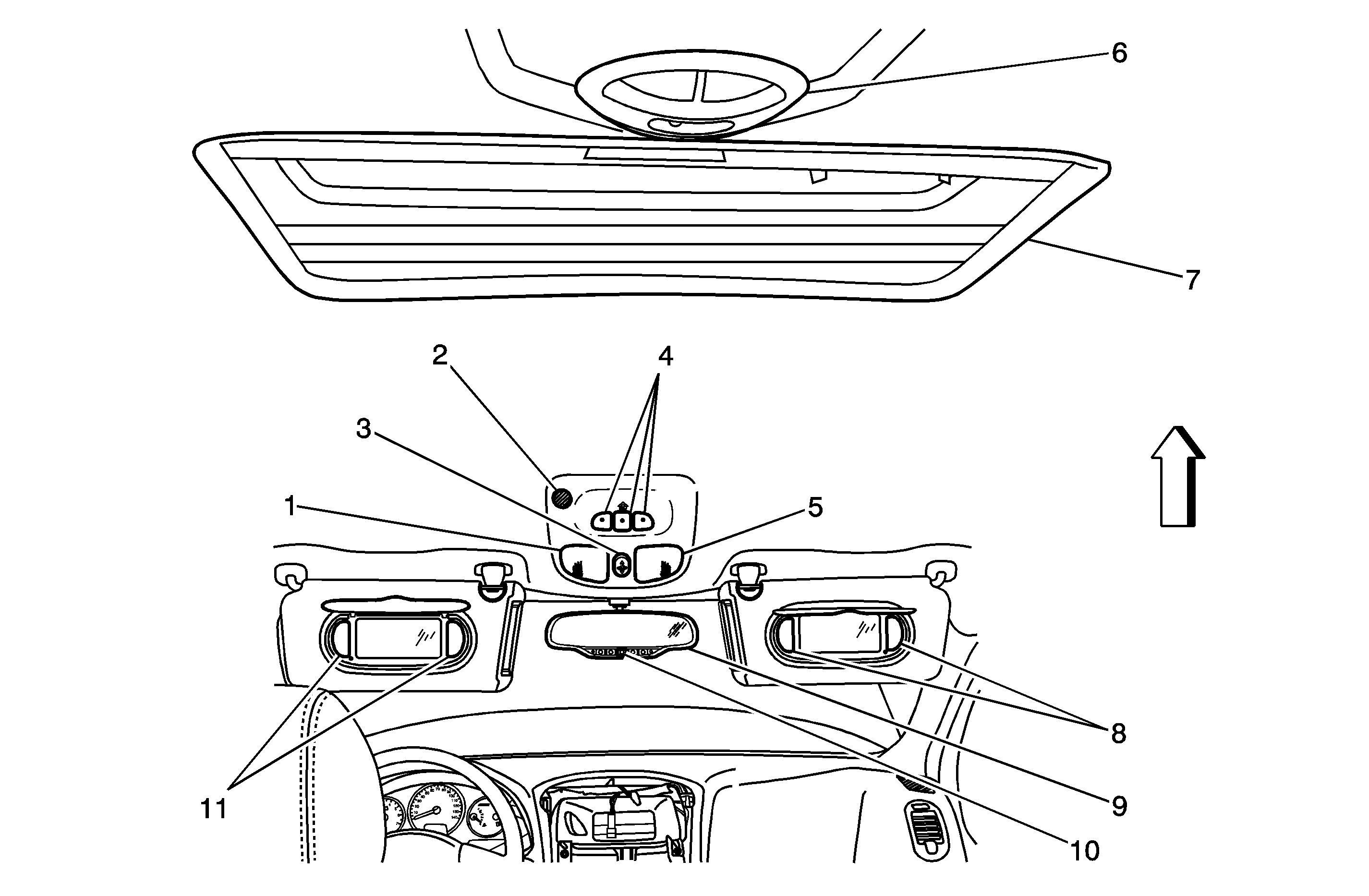

Figure 2:

Forward Overhead
Object Number: 1394517 Size: MF
(1)Courtesy/Reading Lamps - Front, Left Reading
(2)Cellular Telephone Microphone (UE1)
(3)Sunroof Switch (CF5)
(4)Garage Door Opener Transmitter (UG1)
(5)Courtesy/Reading Lamps - Front, Right Reading
(6)Dome/Reading Lamp
(7)Sunroof (CF5)
(8)Vanity Mirror Lamp - Right (DH6)
(9)Inside Rearview Mirror
(10)OnStar Keypad (UE1)
(11)Vanity Mirror Lamp - Left (DH6/D74)

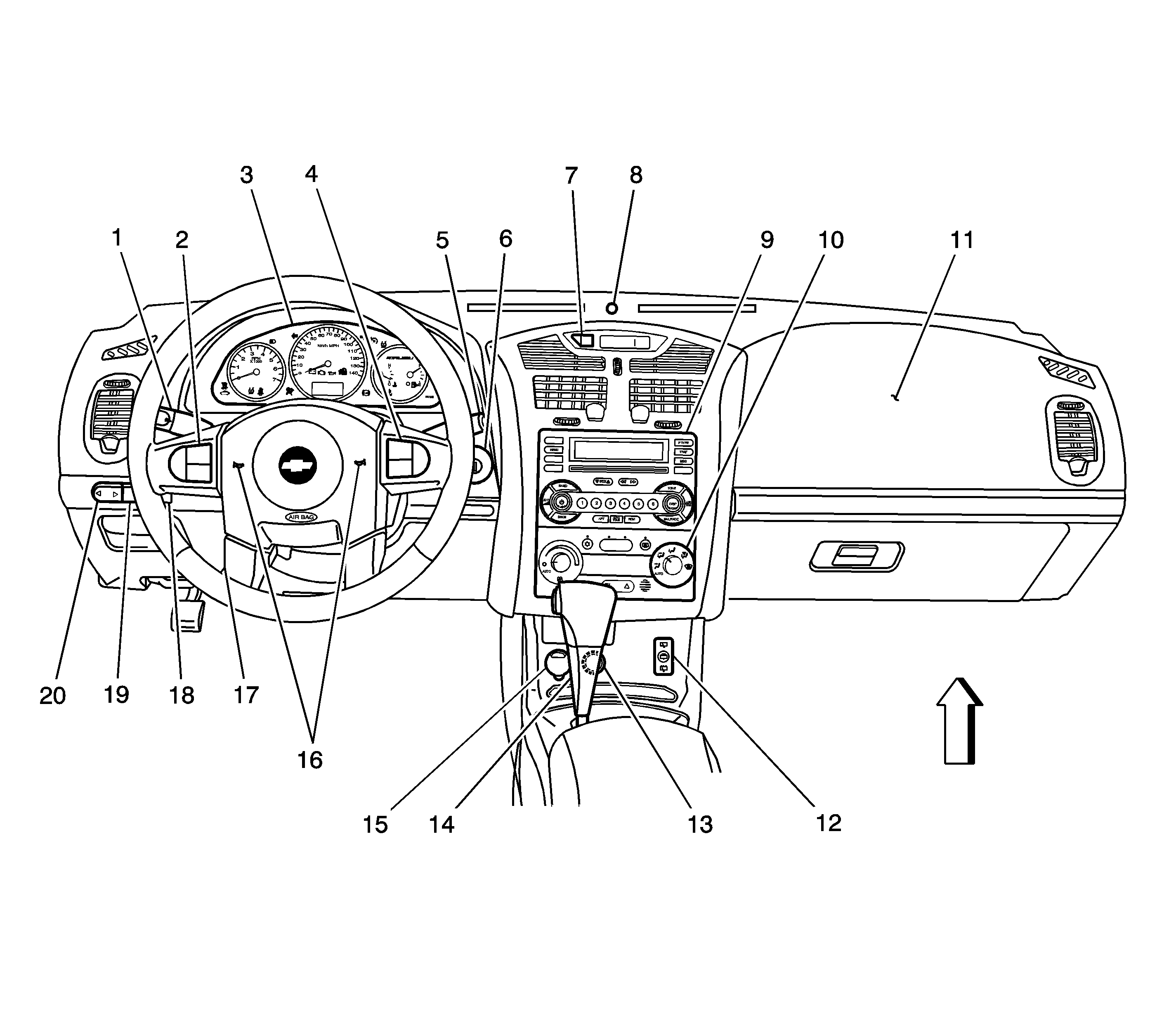

Figure 3:

Instrument Panel
Object Number: 1511329 Size: LF
(1)Turn Signal/Multifunction Switch
(2)Steering Wheel Controls - Left (K34/UK3)
(3)Instrument Panel Cluster (IPC)
(4)Steering Wheel Controls - Right (K34/UK3)
(5)Windshield Washer/Wiper Switch
(6)Ignition Switch
(7)Hazard Switch
(8)Ambient Light Sensor
(9)Radio
(10)HVAC Control Module
(11)Inflatable Restraint I/P Module
(12)Rear Wiper/Washer Switch (C25)
(13)Auxiliary Power Outlet - Front (w/o NW7, NW9)
(14)Transmission Shifter
(15)Cigar Lighter
(16)Horn Buttons/Inflatable Restraint Steering Wheel Module
(17)Data Link Connector (DLC)
(18)Fog Lamp Switch
(19)Dimmer Switch
(20)Adjustable Pedals Position Switch (JF4)

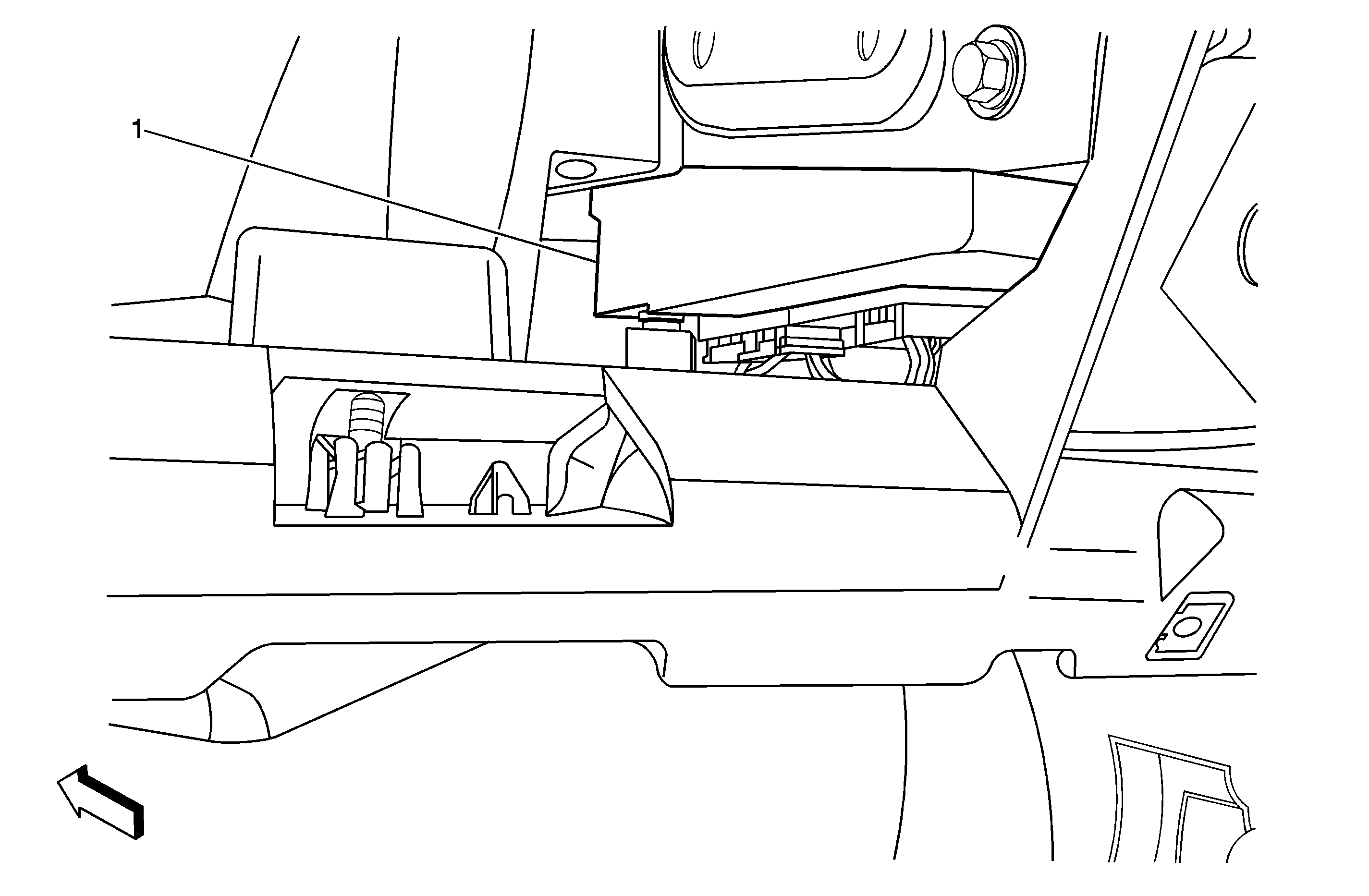

Figure 4:

Behind Right Side of Instrument Panel Compartment
Object Number: 1394532 Size: MF
(1)Vehicle Communication Interface Module (VCIM)(UE1)

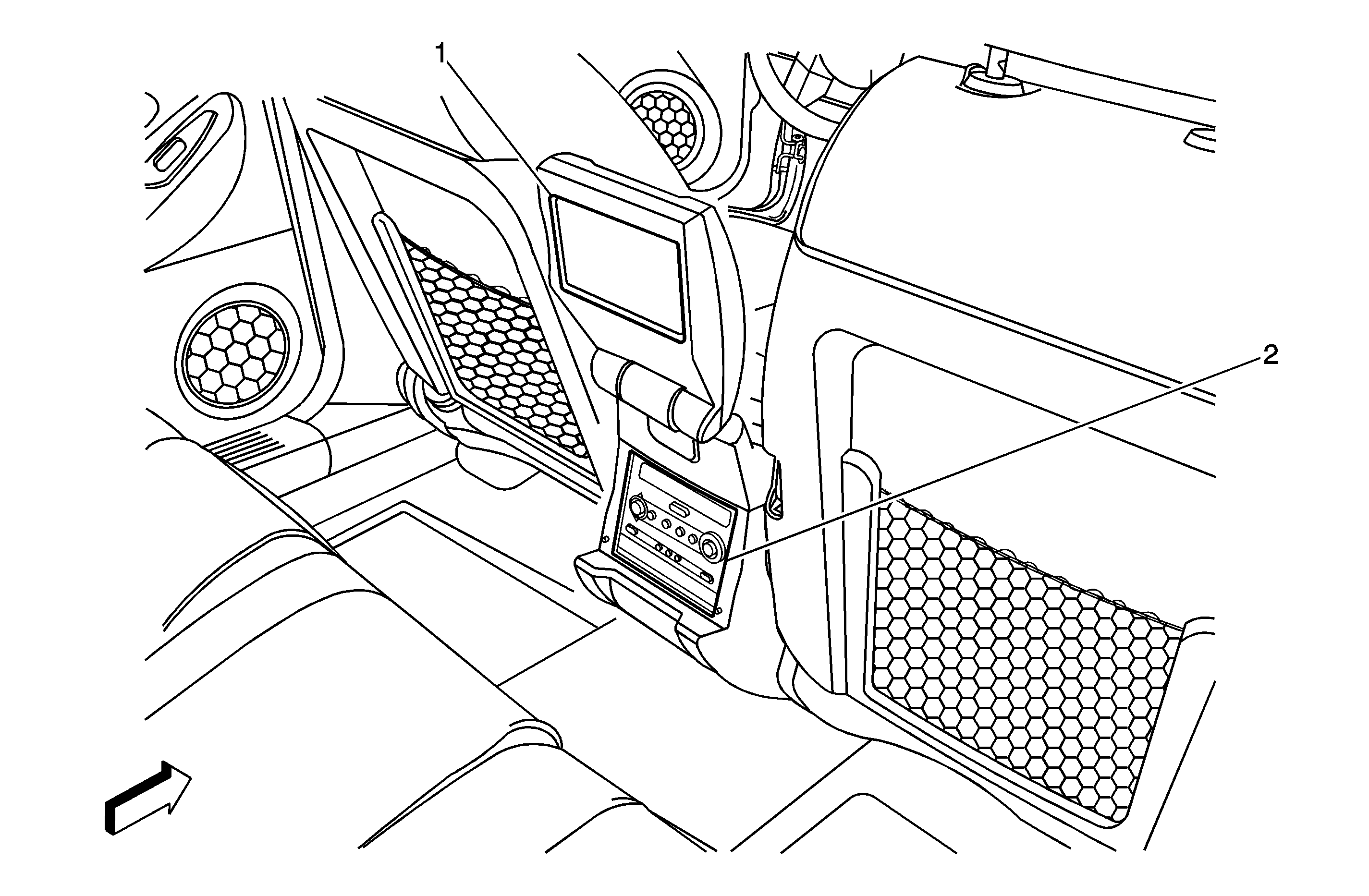

Figure 5:

Rear of Center Console (UK6, U32)
Object Number: 1406116 Size: MF
(1)Video Screen (U32)
(2)DVD Player (U32) (Rear Seat Audio (RSA) Controller (UK6))
Figure 6:

Left Front Door
Object Number: 1394475 Size: MF
(1)Door Lock Switch - Driver
(2)Outside Rearview Mirror - Driver
(3)Outside Rearview Mirror - Switch
(4)Speaker - LF Door Tweeter (UZ6)
(5)Window Switch - Driver
(6)Speaker - LF Door
(7)Rear Compartment/Liftgate Release Switch
(8)Window Motor - Driver
(9)Door Latch Assembly - Driver
Figure 7:

Right Front Door
Object Number: 1394481 Size: MF
(1)Speaker - RF Door Tweeter (UZ6)
(2)Outside Rearview Mirror - Front Passenger
(3)Door Lock Switch - Passenger
(4)Window Switch - Passenger
(5)Door Latch Assembly - Passenger
(6)Window Motor - Passenger
(7)Speaker - RF Door

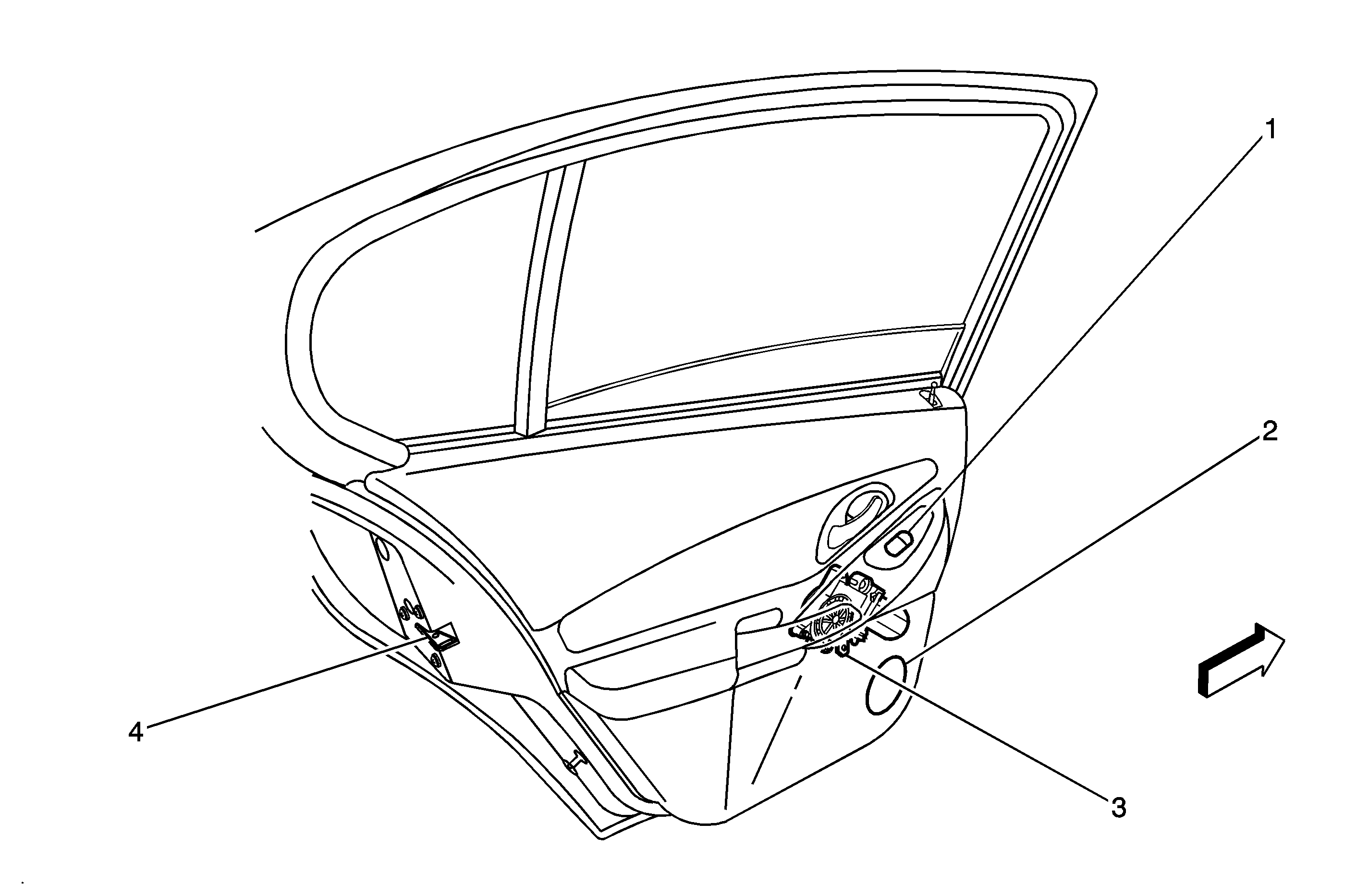

Figure 8:

Left Rear Door
Object Number: 1394486 Size: MF
(1)Window Switch - LR
(2)Speaker - LR Door (Extended Sedan)
(3)Window Motor - LR
(4)Door Latch Assembly - LR

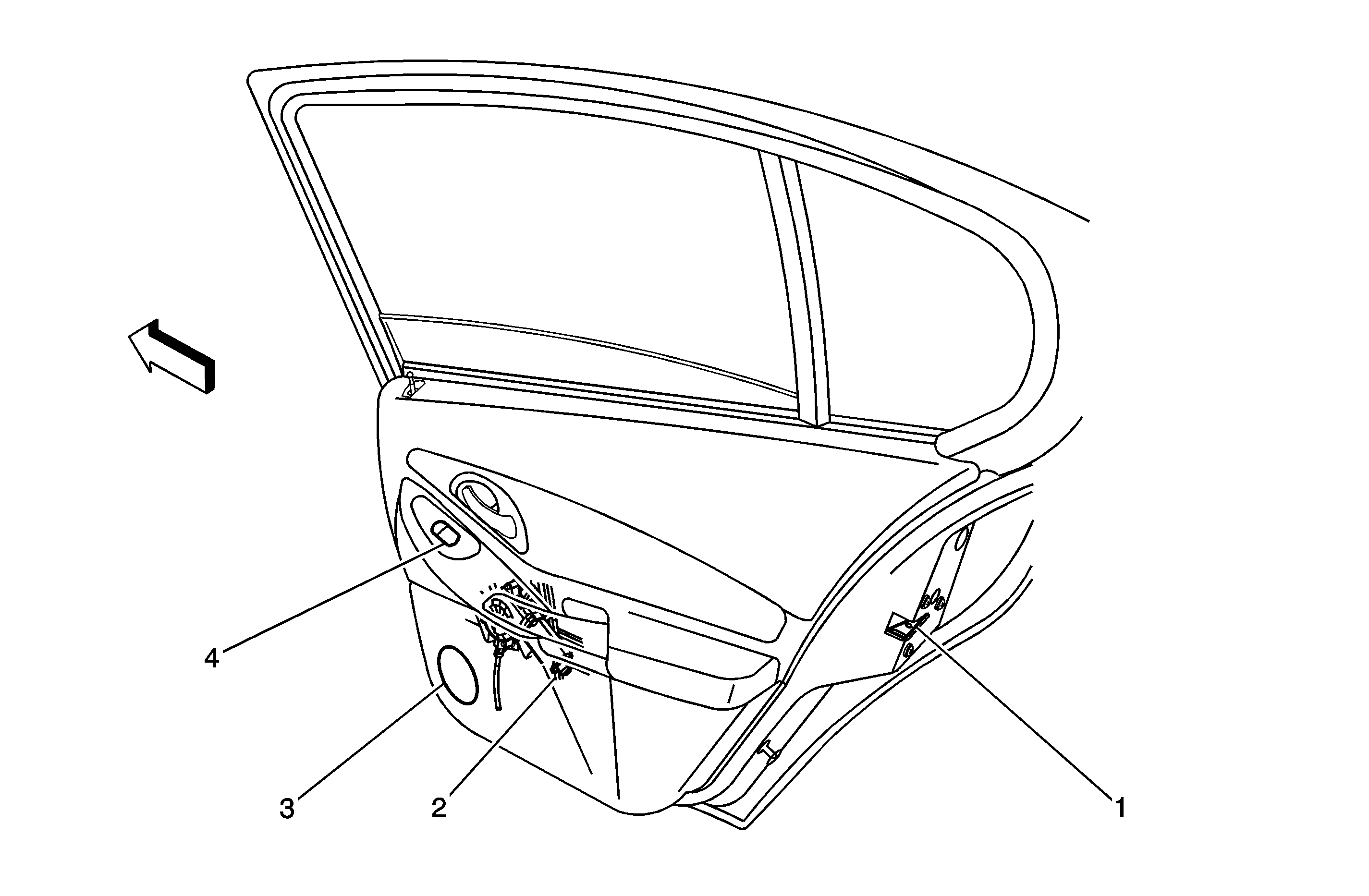

Figure 9:

Right Rear Door
Object Number: 1394490 Size: MF
(1)Door Latch Assembly - RR
(2)Window Motor - RR
(3)Speaker - RR Door (Extended Sedan)
(4)Window Switch - RR
Figure 10:

Rear Roof Rail - Sedan
Object Number: 1266701 Size: MF
(1)Radio Antenna Amplifier Module
(2)Radio Rear Window Antenna
Figure 11:

Rear Speakers (Sedan)
Object Number: 1266702 Size: MF
(1)Speaker - RR
(2)Speaker - LR

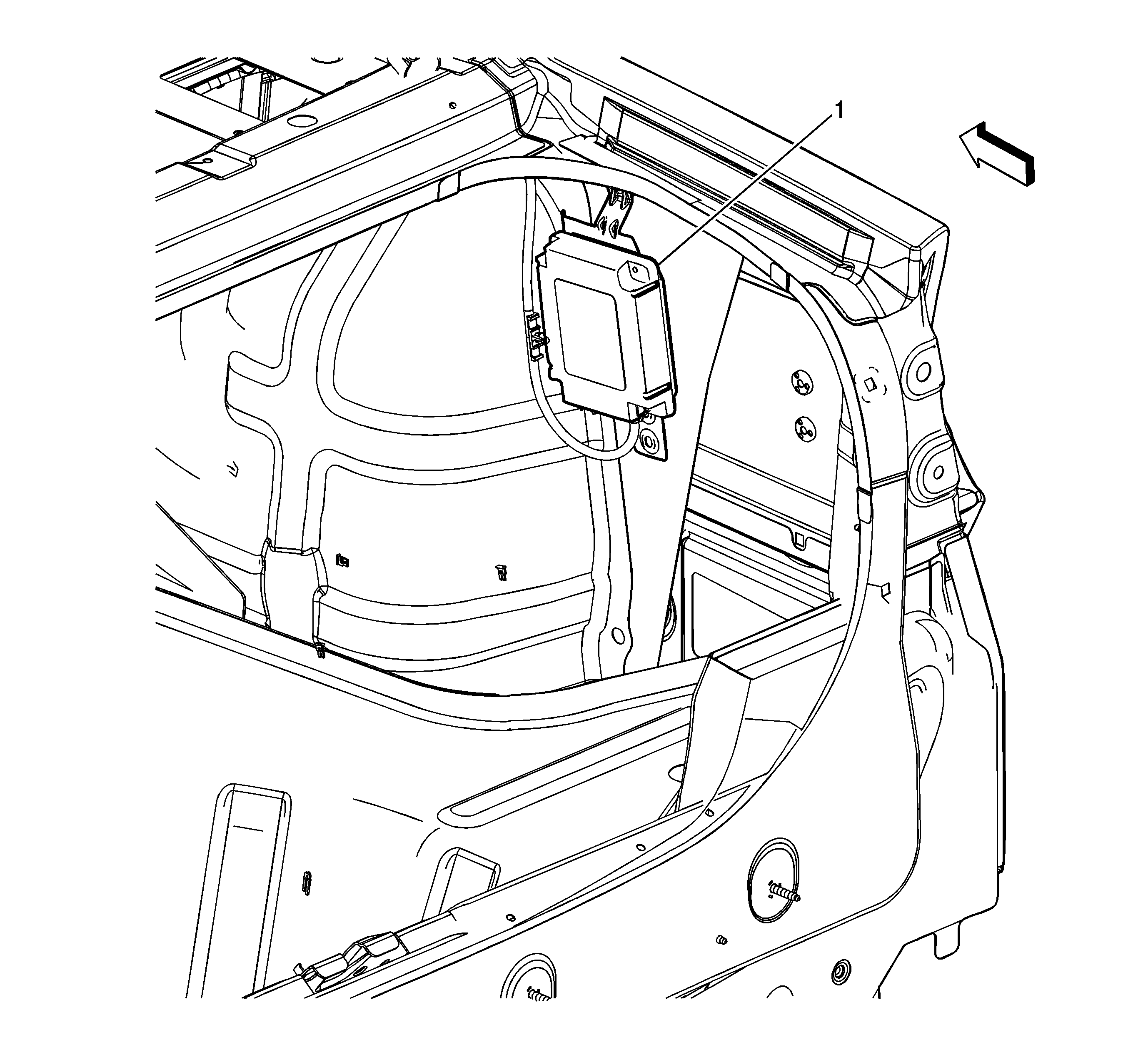

Figure 12:

Right Side of the Rear Compartment (Sedan)
Object Number: 2008317 Size: LF
(1)Digital Radio Receiver (w/U2K)

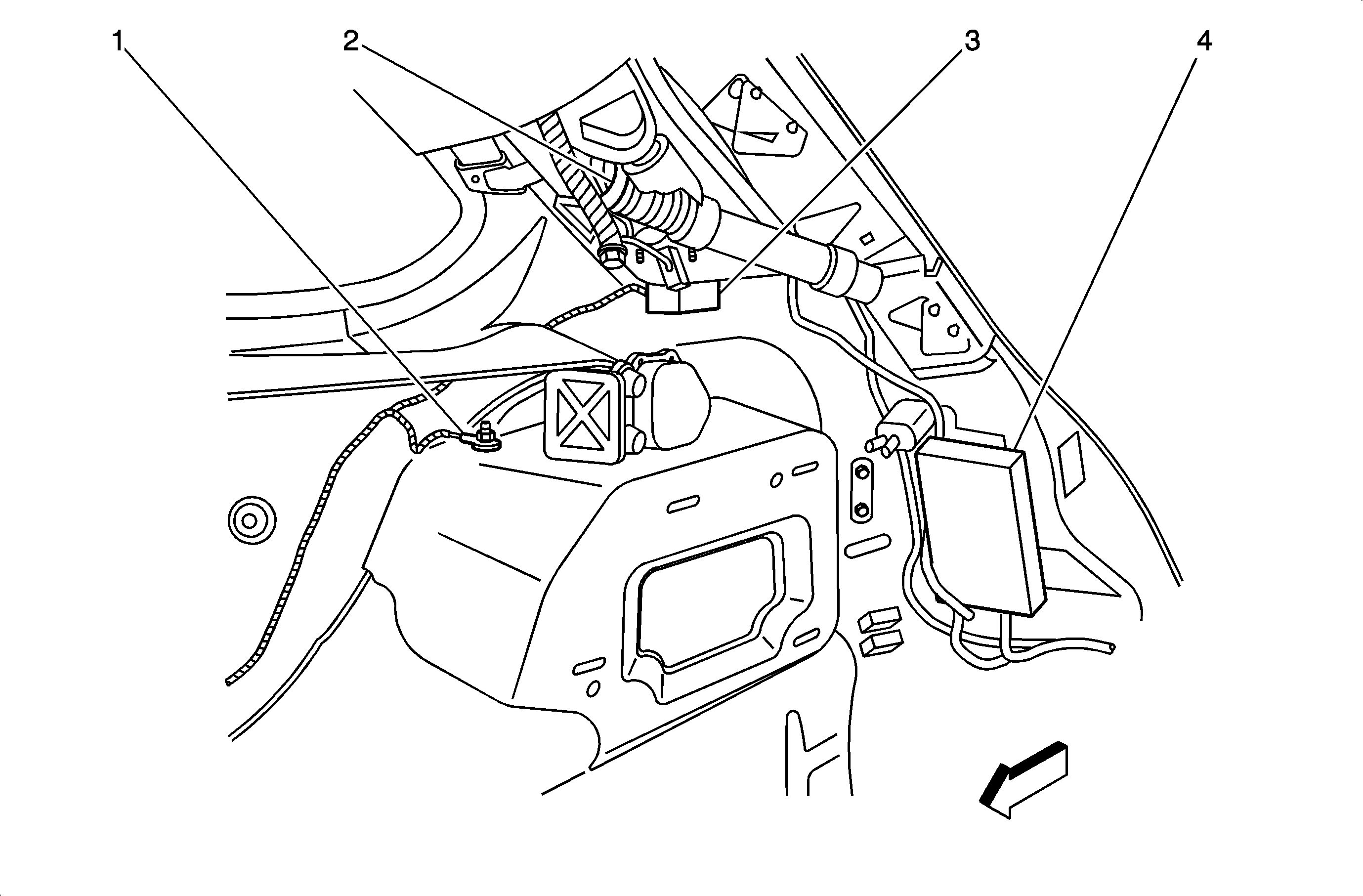

Figure 13:

Right Rear of Passenger Compartment - Extended Sedan
Object Number: 1263949 Size: MF
(1)G301
(2)Inflatable Restraint Side Impact Module - Right (AY0)
(3)C701
(4)Digital Radio Receiver (U2K)

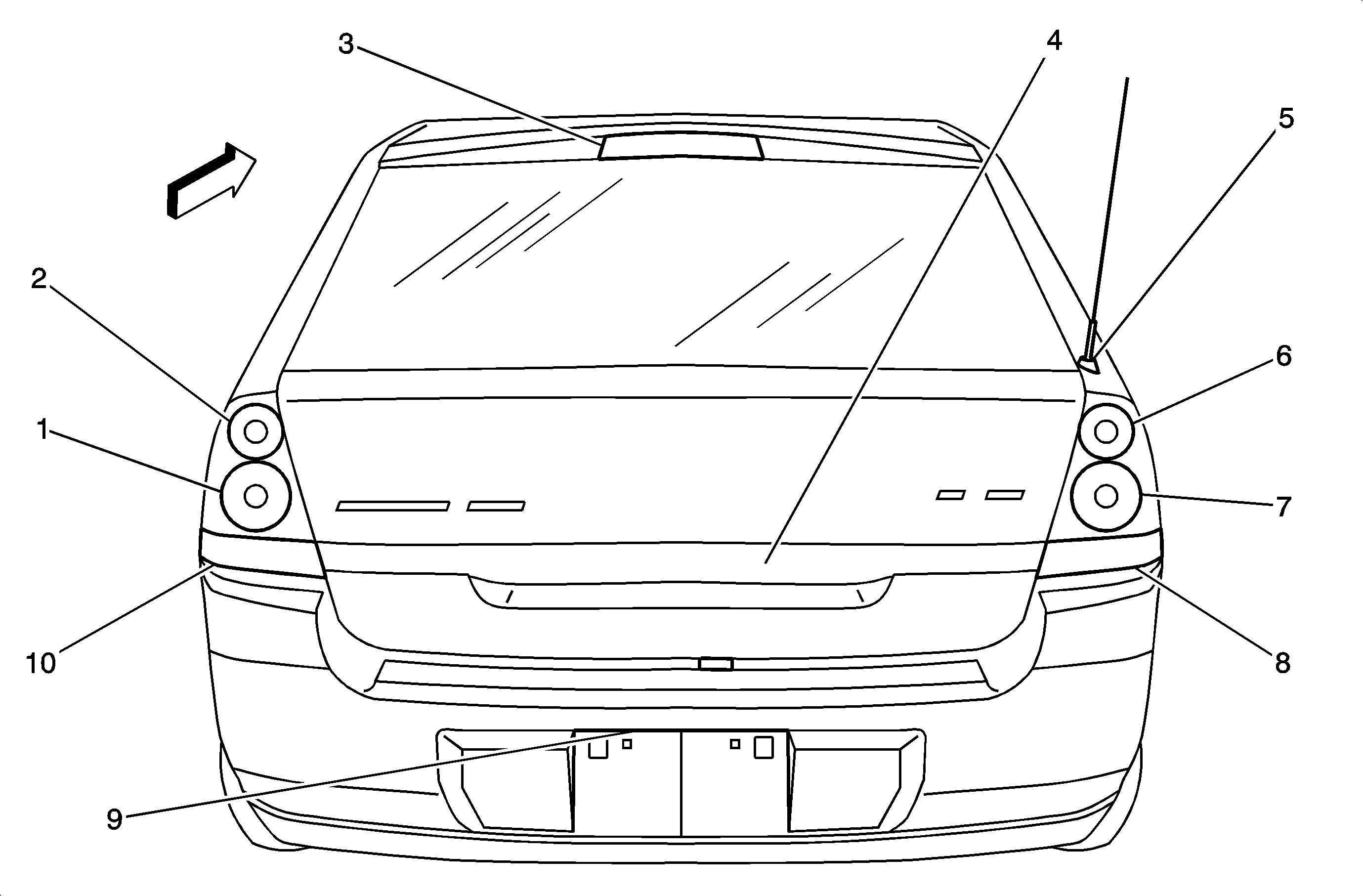

Figure 14:

Rear of Vehicle - Extended Sedan
Object Number: 1394516 Size: MF
(1)Tail/Stop and Turn Signal Lamp - Left
(2)Tail Lamp - Left
(3)Center High Mounted Stop Lamp (CHMSL)
(4)Liftgate Release Switch
(5)Antenna - Radio
(6)Tail Lamp - Right
(7)Tail/Stop and Turn Signal Lamp - Right
(8)Backup Lamp - Right
(9)License Lamp
(10)Backup Lamp - Left
