Instrument Panel/Center Console Component Views. Chevrolet Malibu 2008

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2008 🢒 Malibu 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Instrument Panel/Center Console Component Views

Figure 1:

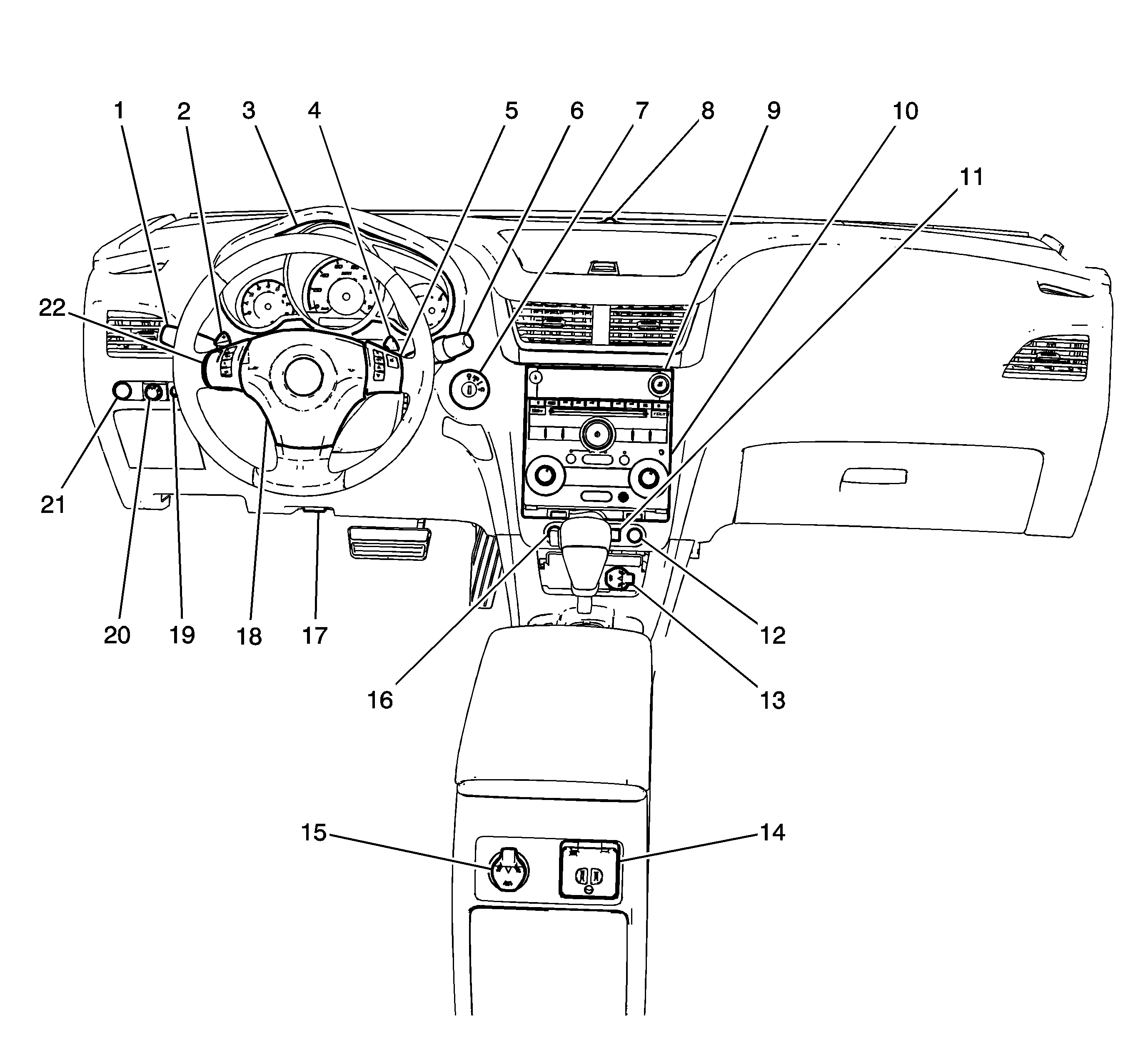

Instrument Panel Overview


(1)	Turn Signal/Multifunction Switch
(2)	Automatic Transmission Manual Shift Switch - Left (KB7)
(3)	Instrument Panel Cluster (IPC)
(4)	Automatic Transmission Manual Shift Switch - Right (KB7)
(5)	Steering Wheel Control Switch - Right (UK3)
(6)	Windshield Wiper/Washer Switch
(7)	Ignition Switch
(8)	Sunload Sensor (C68)/Ambient Light Sensor (C60)
(9)	Radio
(10)	HVAC Control Module
(11)	Inflatable Restraint I/P Module Indicator
(12)	Traction Control Switch (TCS)
(13)	Accessory Power Outlet - I/P
(14)	Accessory Power Outlet - 110V AC (KV1)
(15)	Accessory Power Outlet - Center Console
(16)	Hazard Warning Switch
(17)	Data Link Connector (DLC)
(18)	Inflatable Restraint Steering Wheel Module
(19)	Fog Lamp Switch (T96)
(20)	I/P Dimmer Switch
(21)	Adjustable Pedal Position Switch (JF4)
(22)	Steering Wheel Control Switch - Left (UK3)

Figure 2:

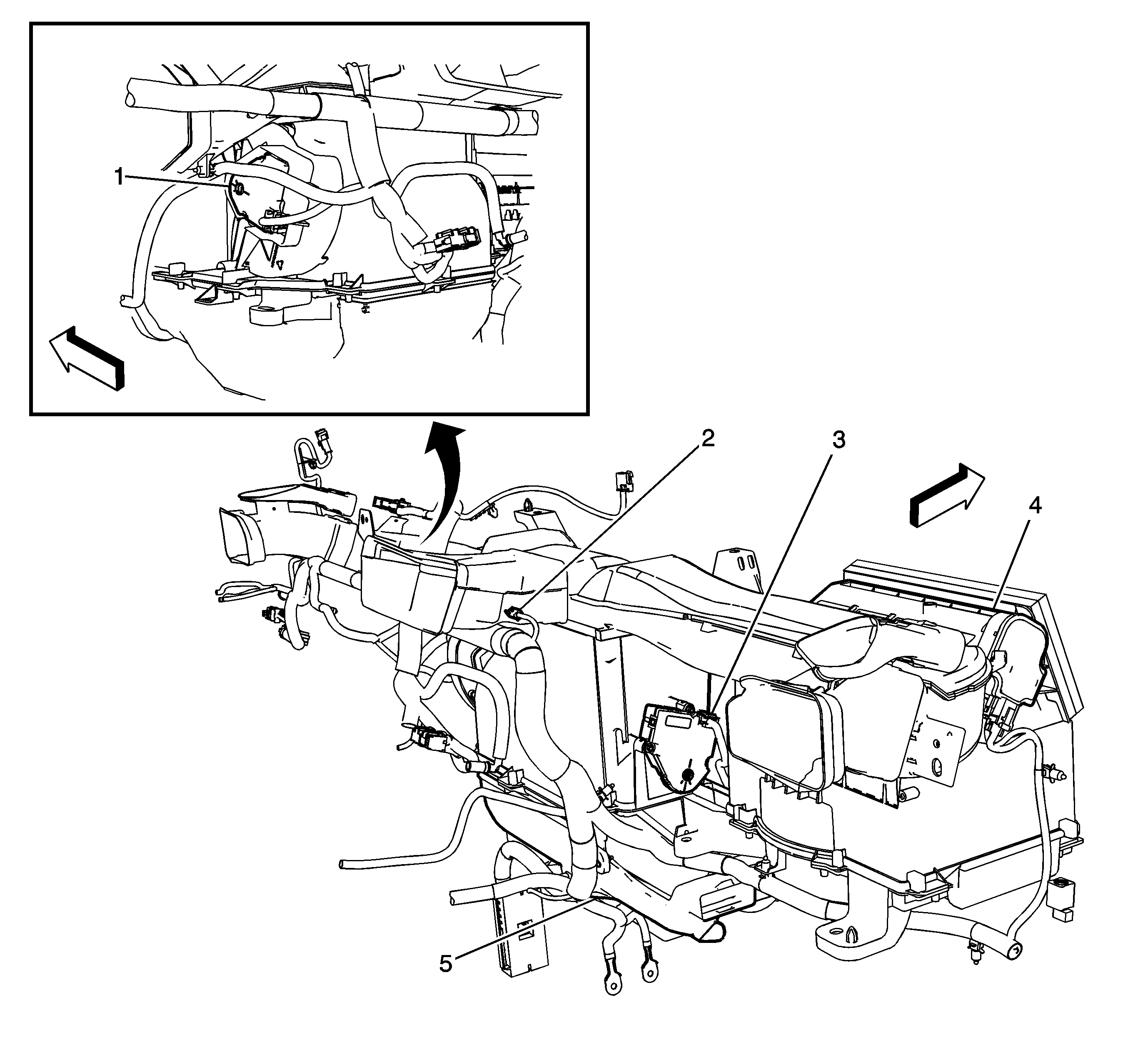

HVAC Module Components


(1)	Mode Actuator
(2)	Air Temperature Sensor - Upper (C68)
(3)	Air Temperature Actuator
(4)	Recirculation Actuator
(5)	Air Temperature Sensor - Lower (C68)

Figure 3:

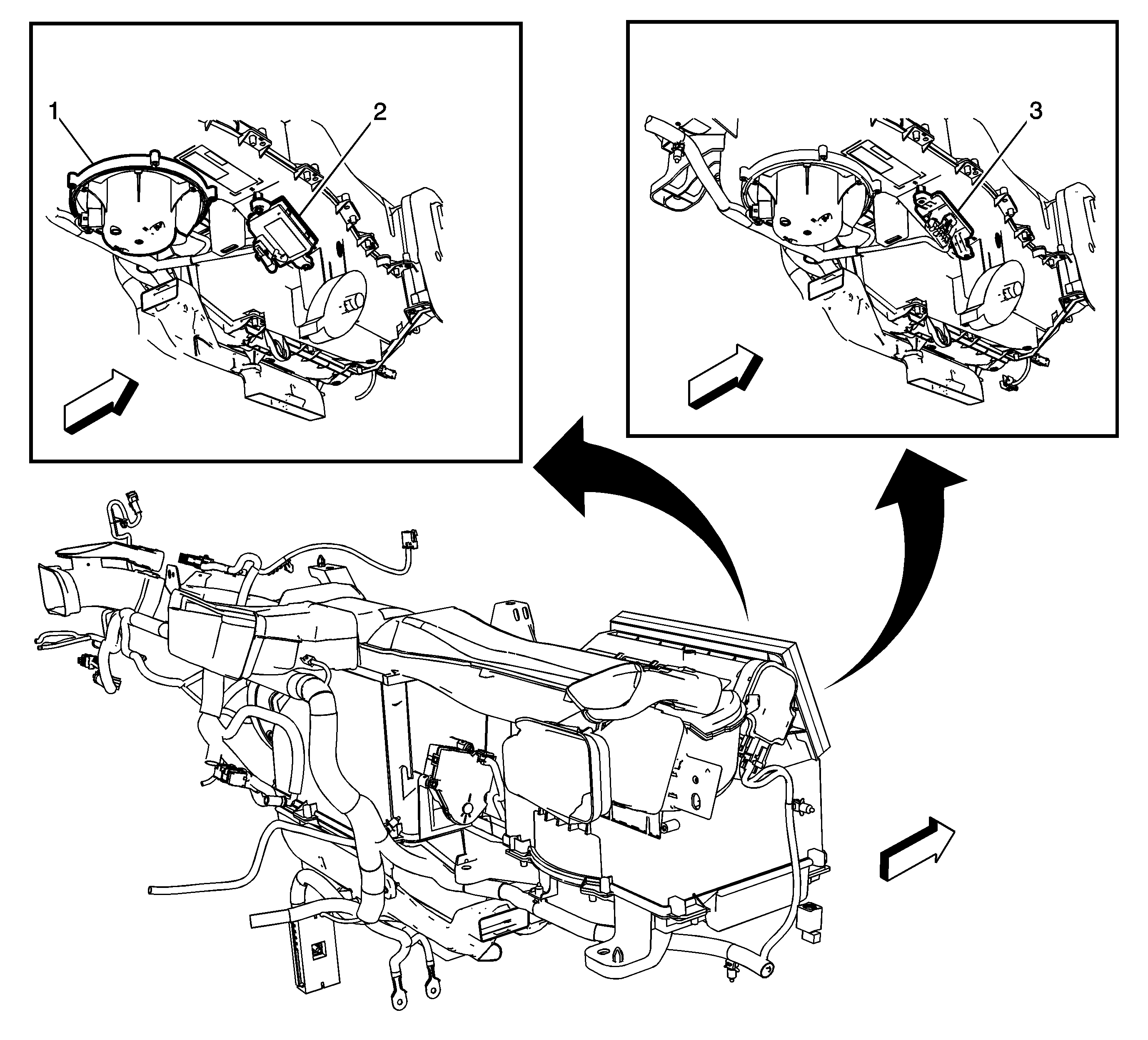

HVAC Blower Motor


(1)	Blower Motor
(2)	Blower Motor Control Module (C68)
(3)	Blower Motor Resistor (C60)

Figure 4:

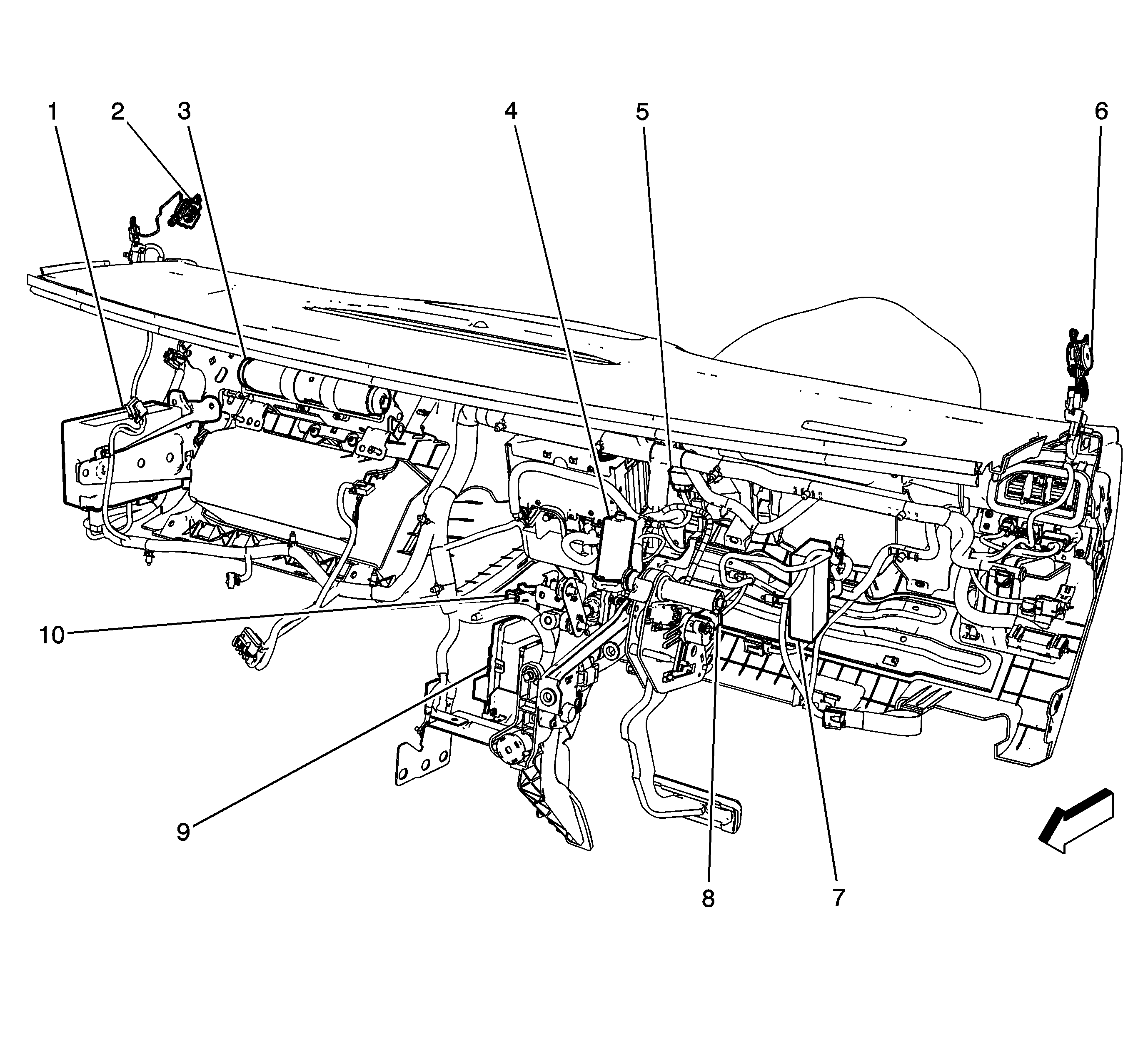

Behind the Instrument Panel


(1)	Vehicle Communications Interface Module (VCIM) (UE1)
(2)	Speaker - Right Front Tweeter
(3)	Inflatable Restraint I/P Module
(4)	Adjustable Pedal Actuator (JF4)
(5)	Theft Deterrent Module (TDM)
(6)	Speaker - Left Front Tweeter
(7)	Adjustable Pedal Module (JF4)
(8)	Brake Pedal Position (BPP) Sensor
(9)	Body Control Module (BCM)
(10)	Adjustable Pedal Position Sensor (JF4)

Figure 5:

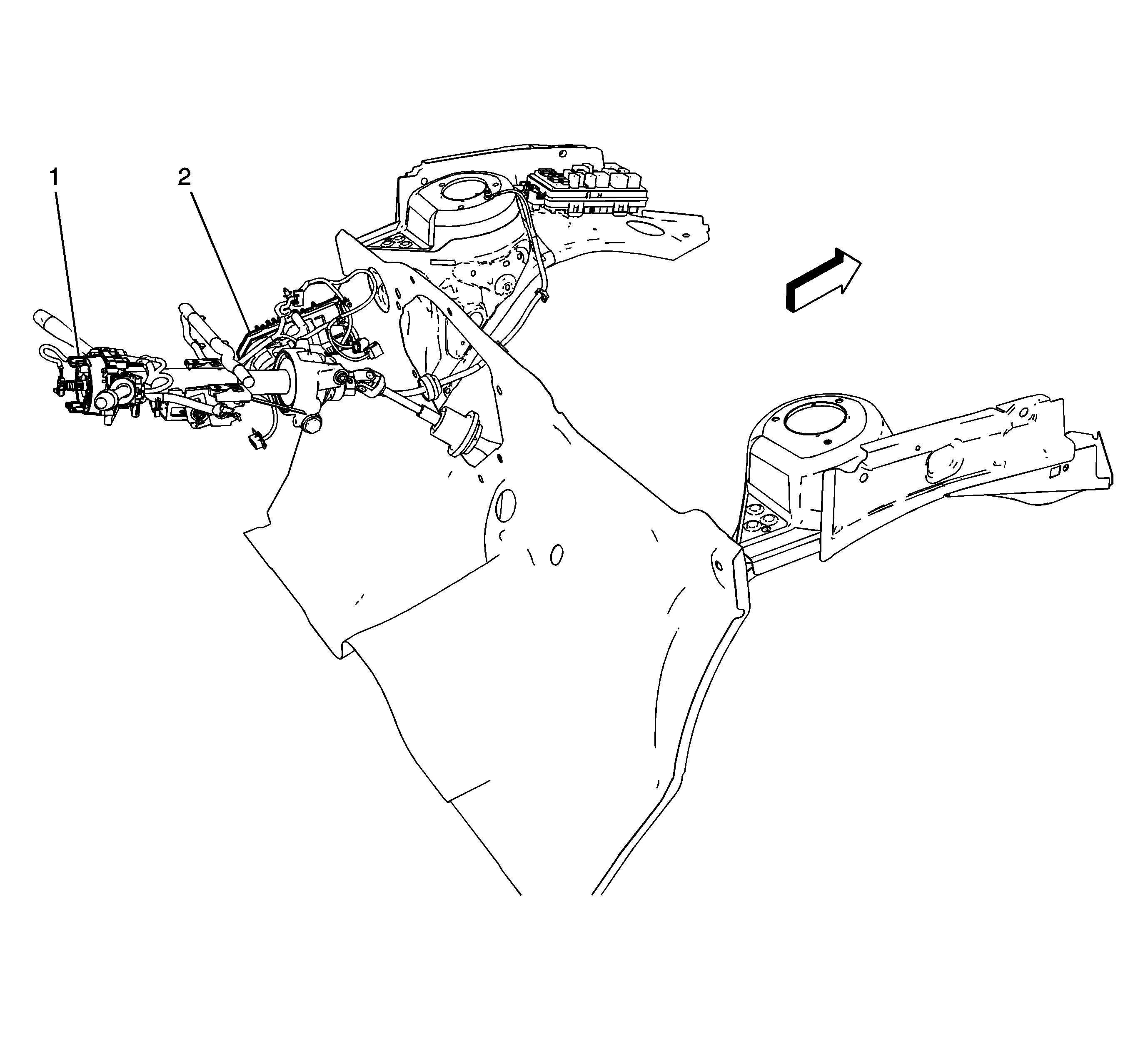

Steering Column


(1)	Inflatable Restraint Steering Wheel Module Coil
(2)	Electric Power Steering (EPS) Module (without NVH)

Figure 6:

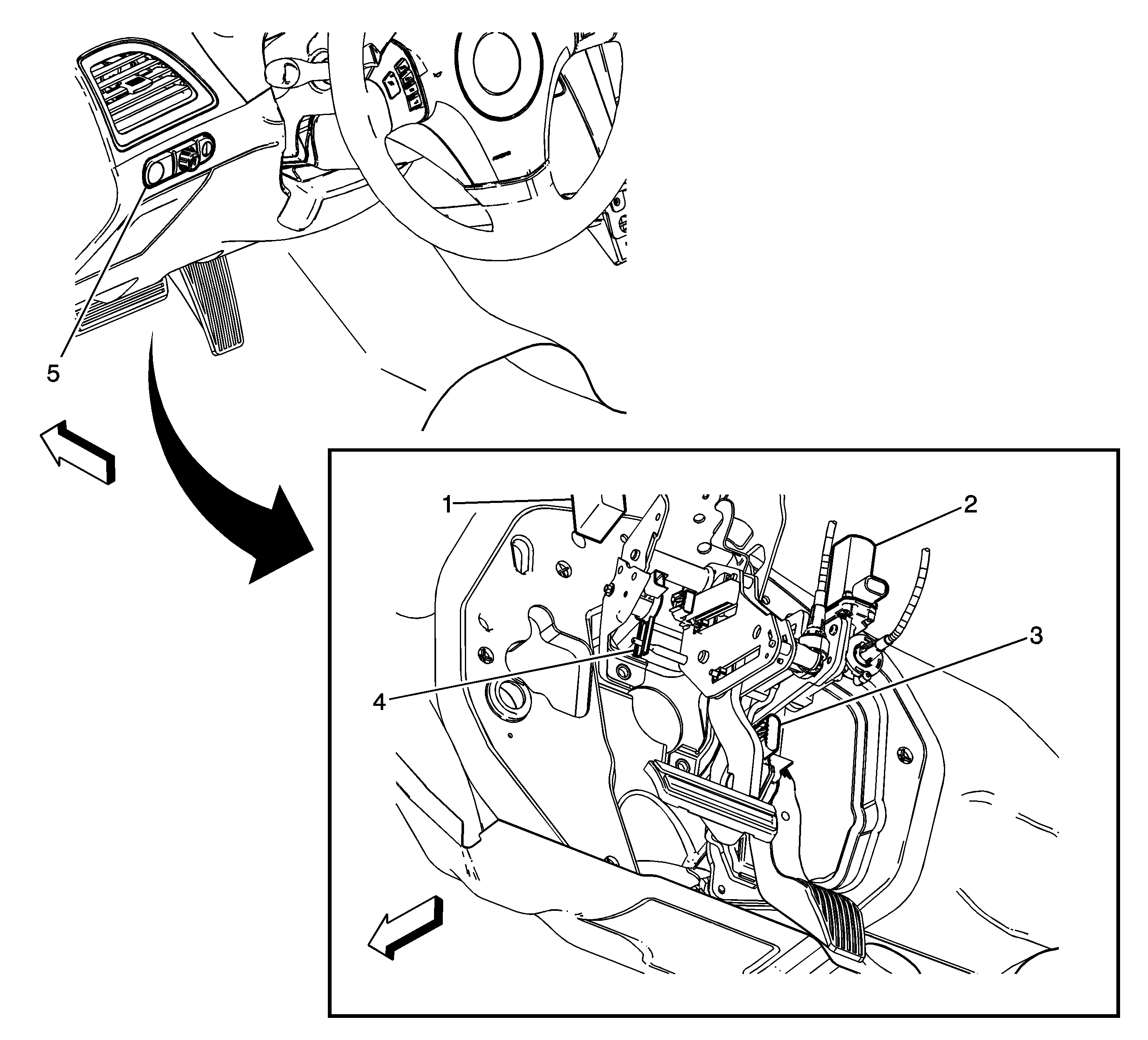

Left Side and Under the Instrument Panel


(1)	Adjustable Pedal Module (JF4)
(2)	Adjustable Pedal Actuator (JF4)
(3)	Accelerator Pedal Position (APP) Sensor
(4)	Adjustable Pedal Position Sensor (JF4)
(5)	Adjustable Pedal Position Switch (JF4)

Figure 7:

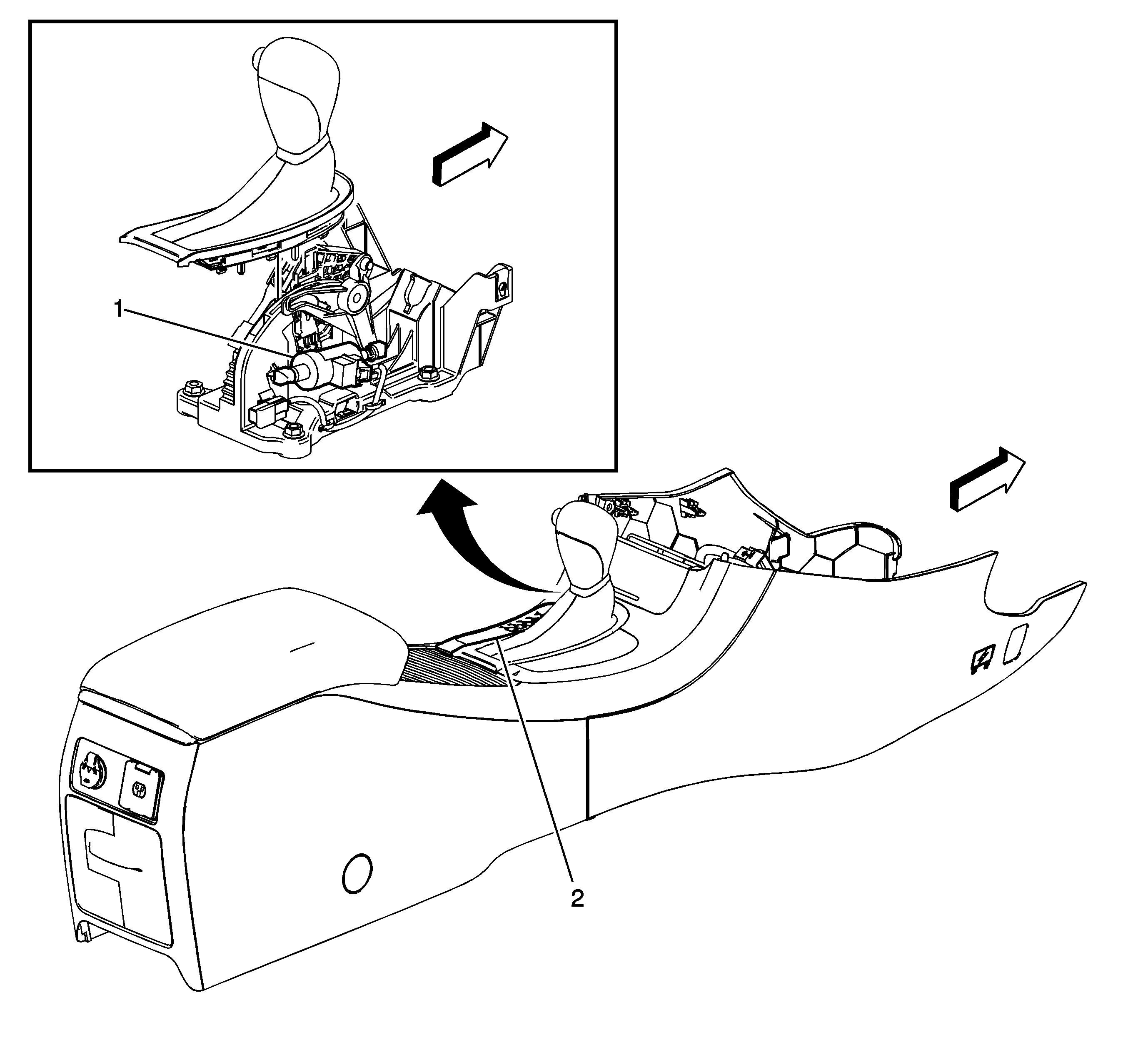

Console Shifter


(1)	Automatic Transmission Shift Lock Control Solenoid
(2)	Automatic Transmission Shift Lever Position Indicator

Figure 8:

Below the Left of the Instrument Panel Components


(1)	Park Brake Release
(2)	Park Brake Switch
(3)	Dash Panel
(4)	Park Brake Lever

Figure 9:

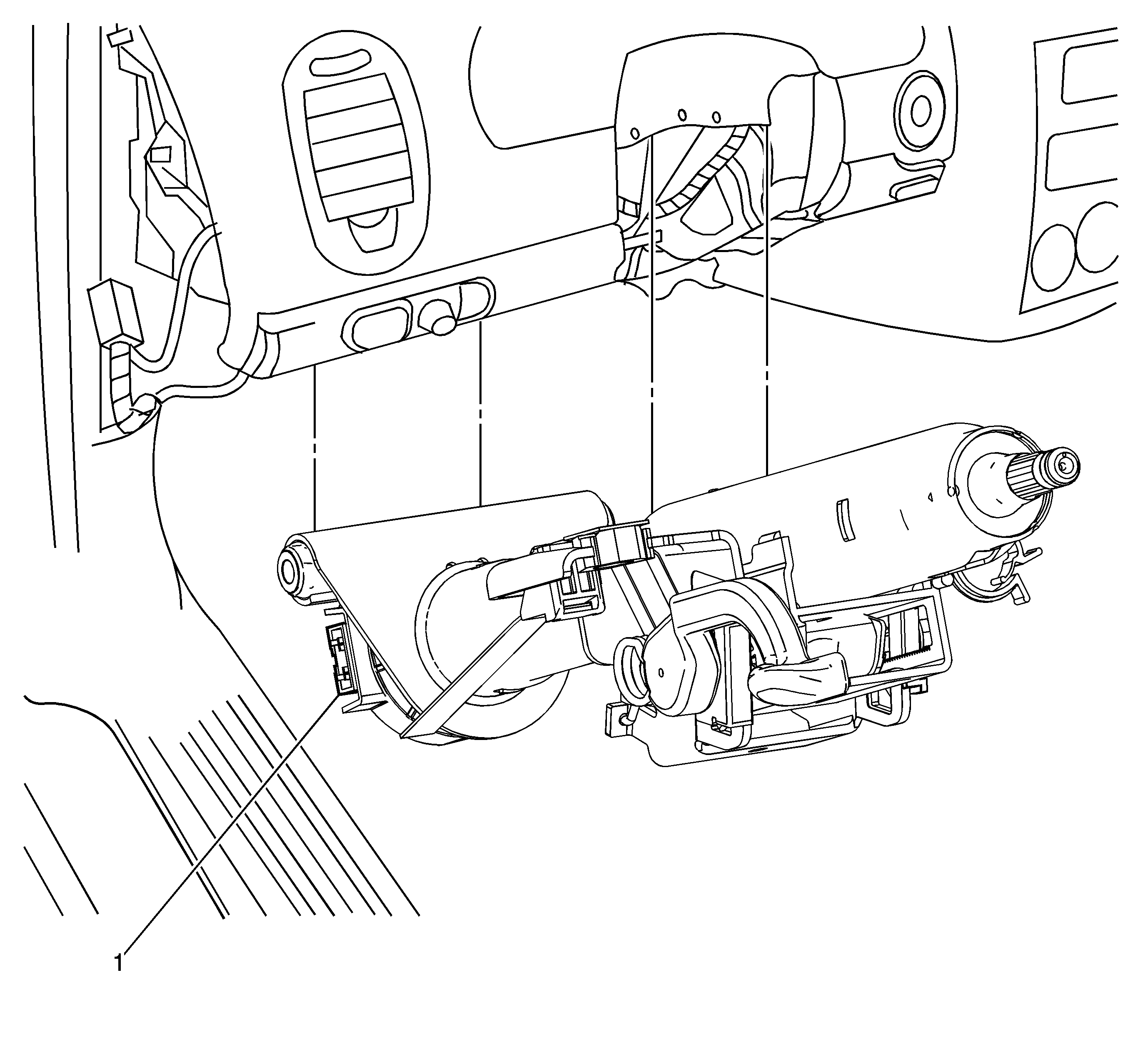

Base of the Steering Column


(1)	Steering Wheel Position Sensor (NVH)
