Figure 1:

Driver Heated Seats
Object Number: 2001811 Size: LF
(1)Seat Back Cover - Driver
(2)Heated Seat Element - Driver Back (KA1)
(3)Seat Back Cushion Pad - Driver
(4)Seat Recline Motor - Driver (1LZ)
(5)Seat Horizontal Motor - Driver (AG1 or 1LZ)
(6)Seat Rear Vertical Motor - Driver (AG1 or 1LZ)
(7)Heated Seat Control Module - Driver (KA1)
(8)Seat Front Vertical Motor - Driver (AG1 or 1LZ)
(9)Seat Recline Switch - Driver (1LZ)
(10)Seat Adjuster Switch - Driver
(11)Heated Seat Switch - Driver (KA1)
(12)Seat Belt Switch - Driver
(13)Seat Cushion - Driver
(14)Heated Seat Element - Driver Cushion (KA1)
(15)Seat Cover - Driver

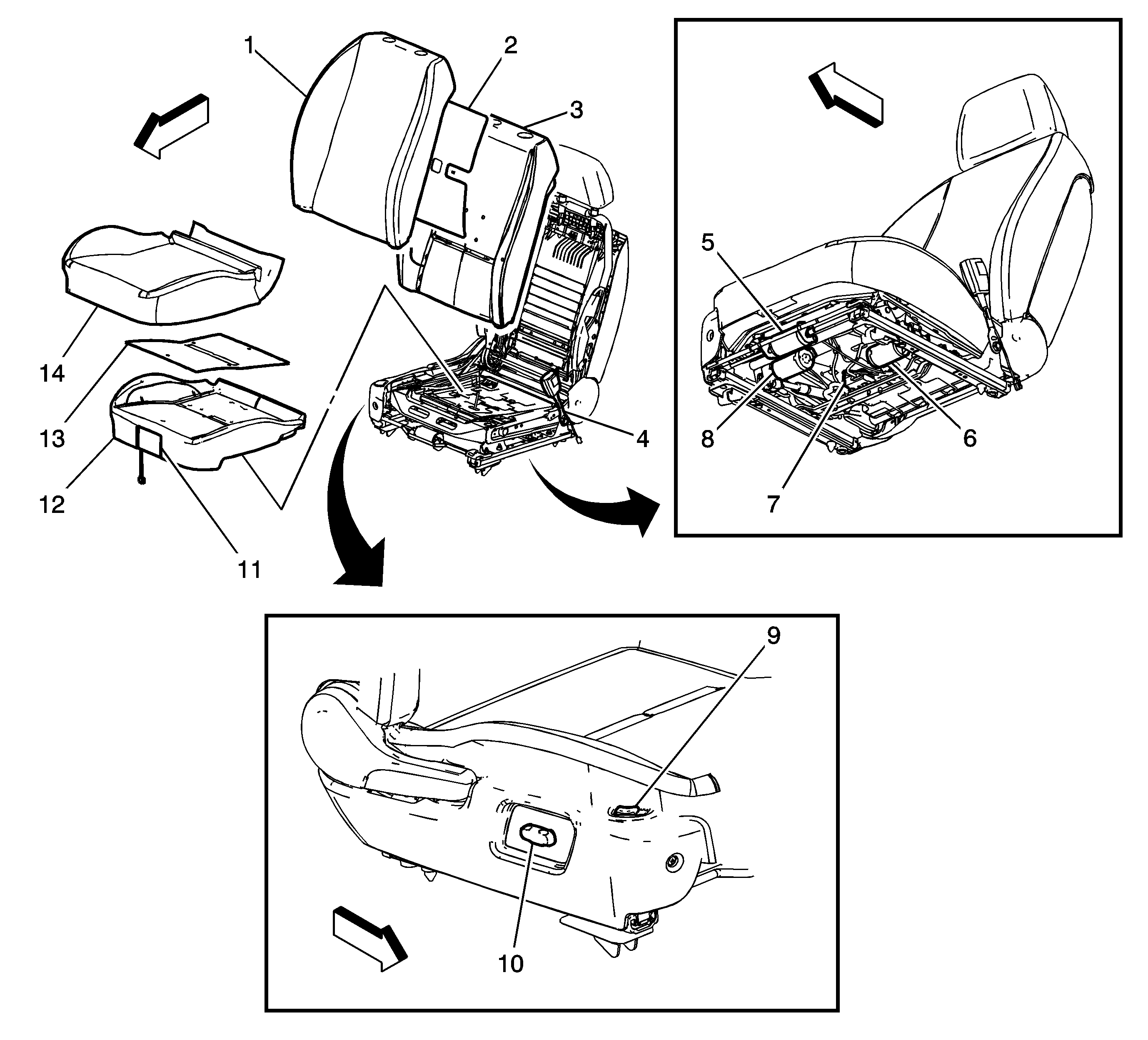

Figure 2:

Passenger Heated Seats
Object Number: 2001835 Size: LF
(1)Seat Back Cover - Passenger
(2)Heated Seat Element - Passenger Back (KA1)
(3)Seat Back Cushion Pad - Passenger
(4)Seat Belt Switch - Passenger
(5)Seat Horizontal Motor - Passenger (AG2 or 1LZ)
(6)Seat Rear Vertical Motor - Passenger (AG2 or 1LZ)
(7)Heated Seat Control Module - Passenger (KA1)
(8)Seat Front Vertical Motor - Passenger (AG2 or 1LZ)
(9)Heated Seat Switch - Passenger (KA1)
(10)Seat Adjuster Switch - Passenger (AG2 or 1LZ)
(11)Inflatable Restraint Front Passenger Presence System (PPS) Module
(12)Seat Cushion - Passenger
(13)Heated Seat Element - Passenger Cushion (KA1)
(14)Seat Cover - Passenger

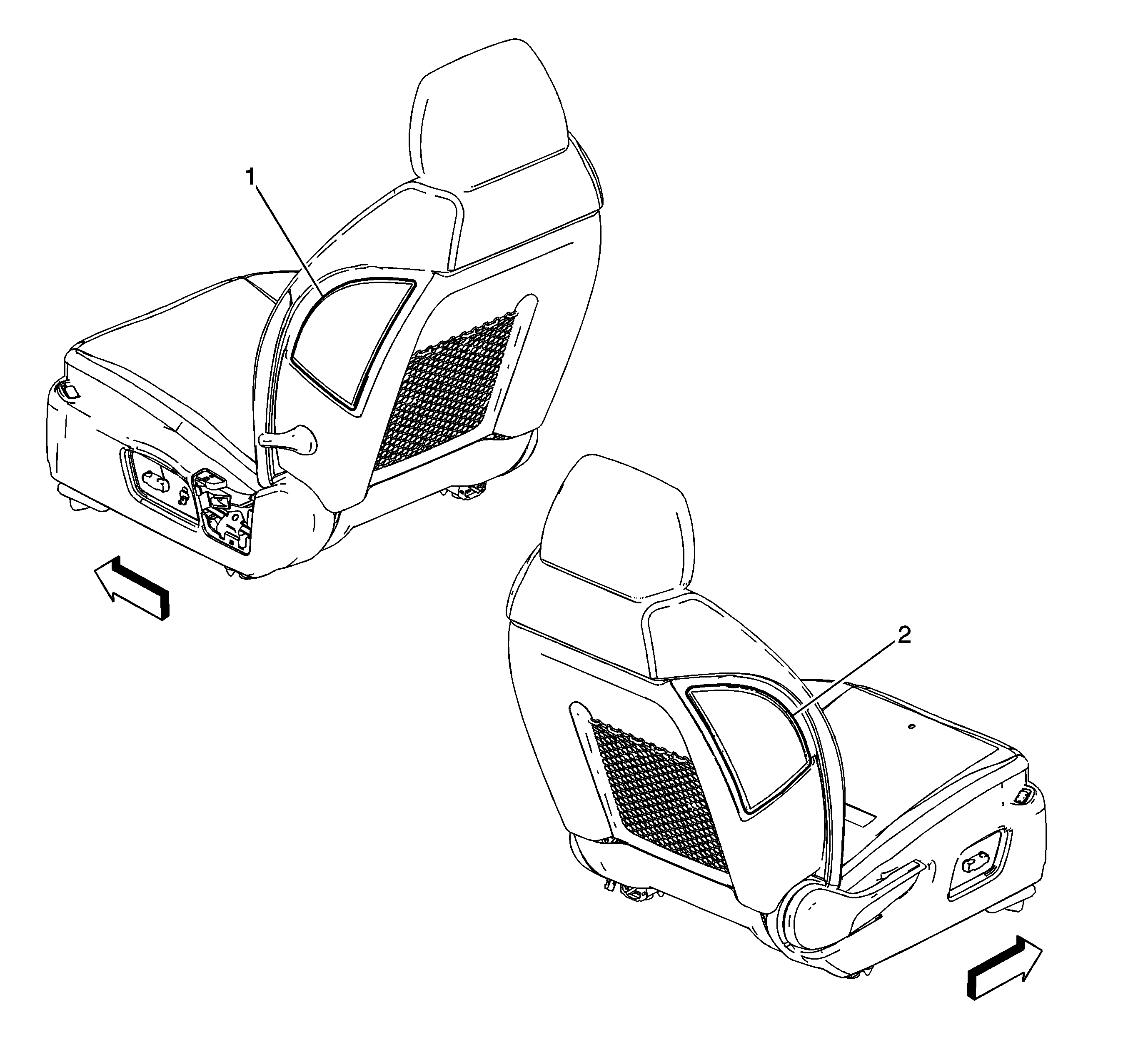

Figure 3:

Inflatable Restraints Side Impact
Object Number: 2001842 Size: LF
(1)Inflatable Restraint Side Impact Module - Left
(2)Inflatable Restraint Side Impact Module - Right

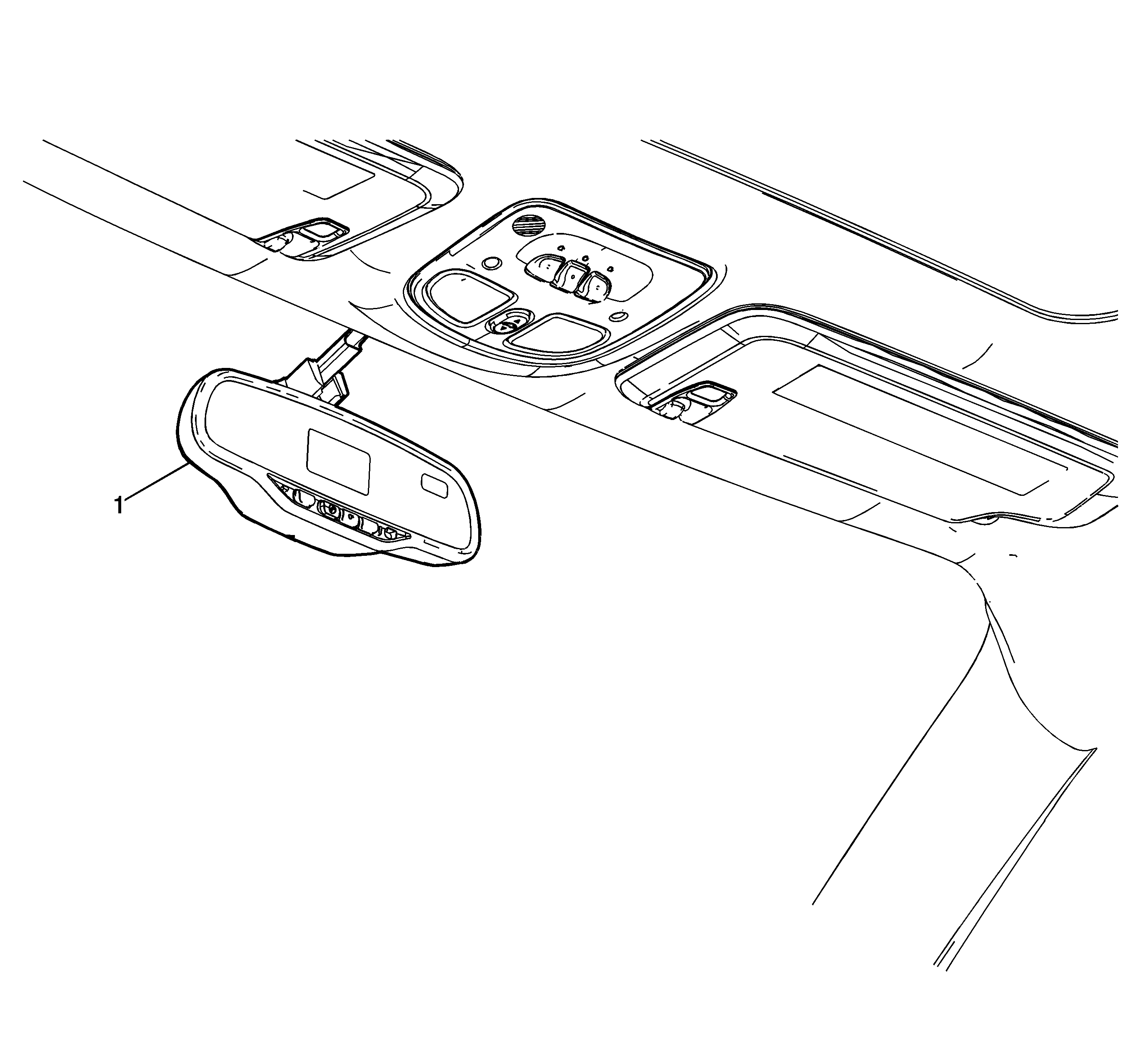

Figure 4:

Inside Rearview Mirror
Object Number: 2001846 Size: LF
(1)Inside Rearview Mirror (DD7 or UE1)

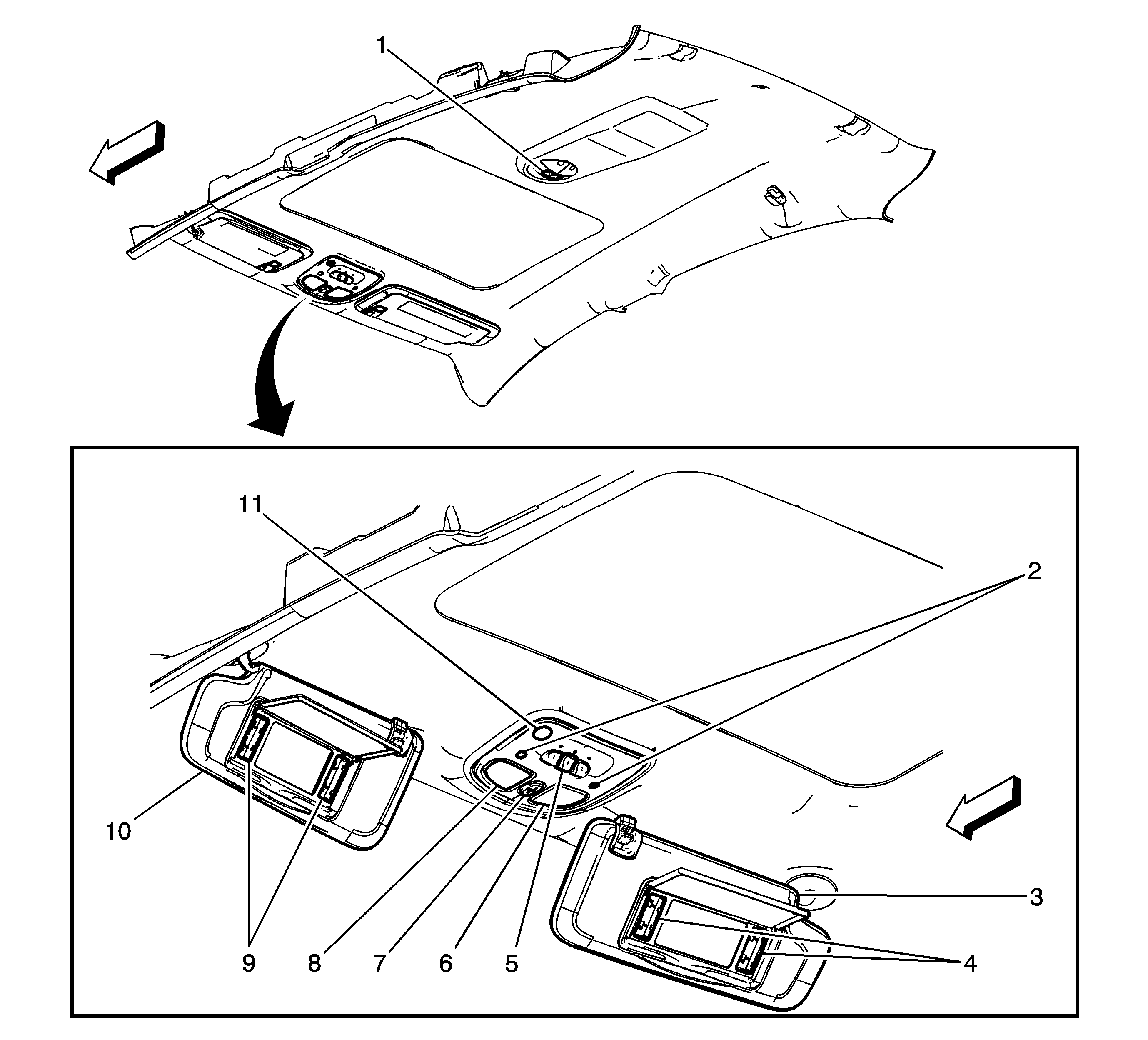

Figure 5:

Headliner
Object Number: 2001861 Size: LF
(1)Dome/Reading Lamps
(2)Center Console Flood Lamp
(3)Sunshade - Right
(4)Vanity Mirror Lamp - Right (TR0) (Part of Sunshade - Right)
(5)Garage Door Opener (GDO) (UG1)
(6)Courtesy Lamp
(7)Sunroof Switch (CF5)
(8)Courtesy Lamp
(9)Vanity Mirror Lamp - Left (TR0) (Part of Sunshade - Left)
(10)Sunshade - Left
(11)Cellular Telephone Microphone (UE1)

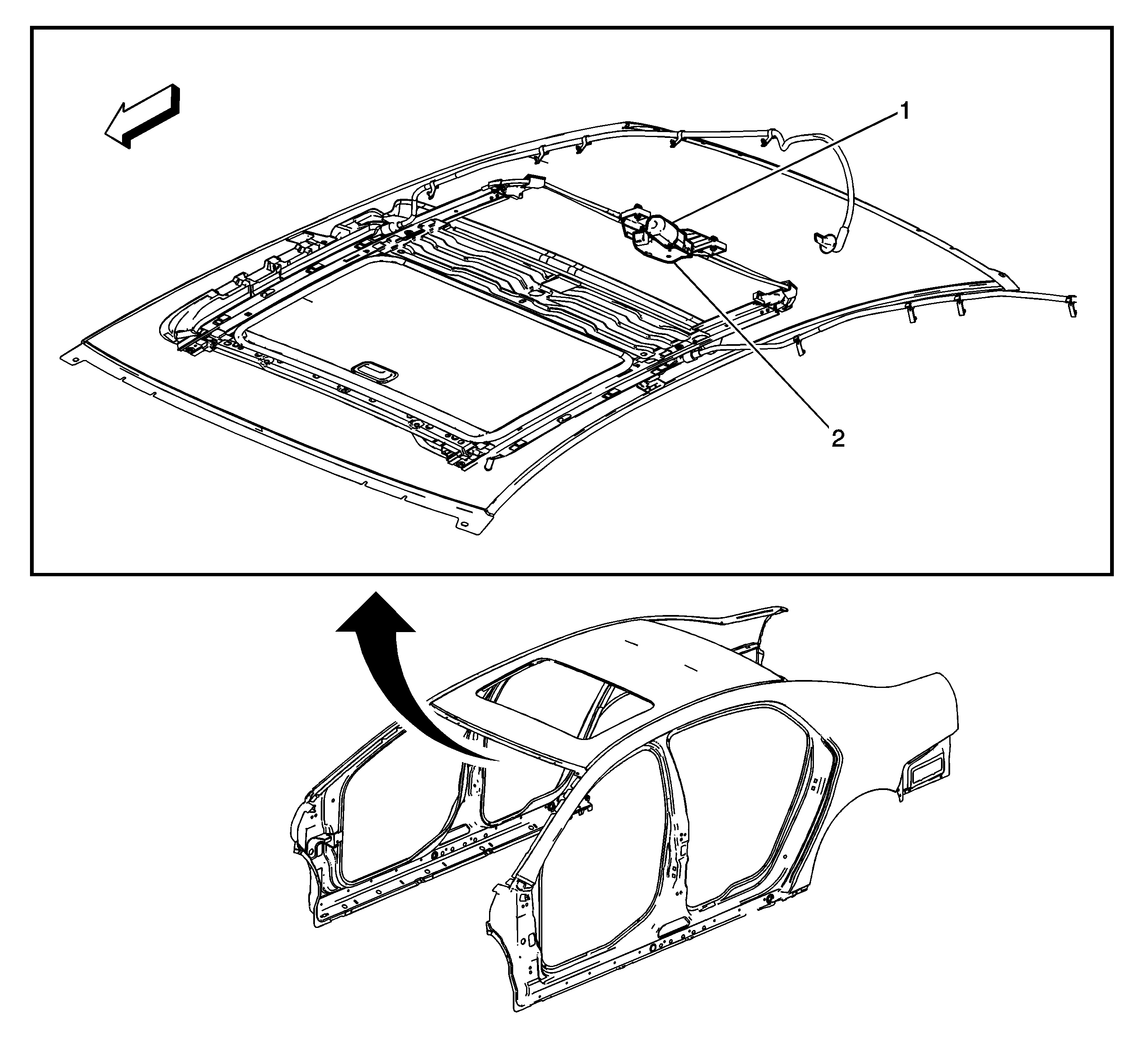

Figure 6:

Sunroof
Object Number: 2001889 Size: LF
(1)Sunroof Motor (CF5) (Part of the Sunroof Control Module)
(2)Sunroof Control Module (CF5)
Figure 7:

Generator Battery Assembly (HP7)
Object Number: 2001074 Size: LF
(1)Generator Battery 1
(2)Generator Battery Temperature Sensor 1
(3)Generator Battery Temperature Sensor 1
(4)Generator Battery 2
(5)Generator Battery Temperature Sensor 2
(6)Generator Battery Temperature Sensor 2
(7)Generator Battery 3
(8)Generator Battery Temperature Sensor 3
(9)Generator Battery Temperature Sensor 3
(10)Generator Battery Vent Fan
(11)Battery Current Sensor
(12)Main Contactor Relay
(13)Battery Disconnect Switch
(14)Generator Battery Disconnect Control Module

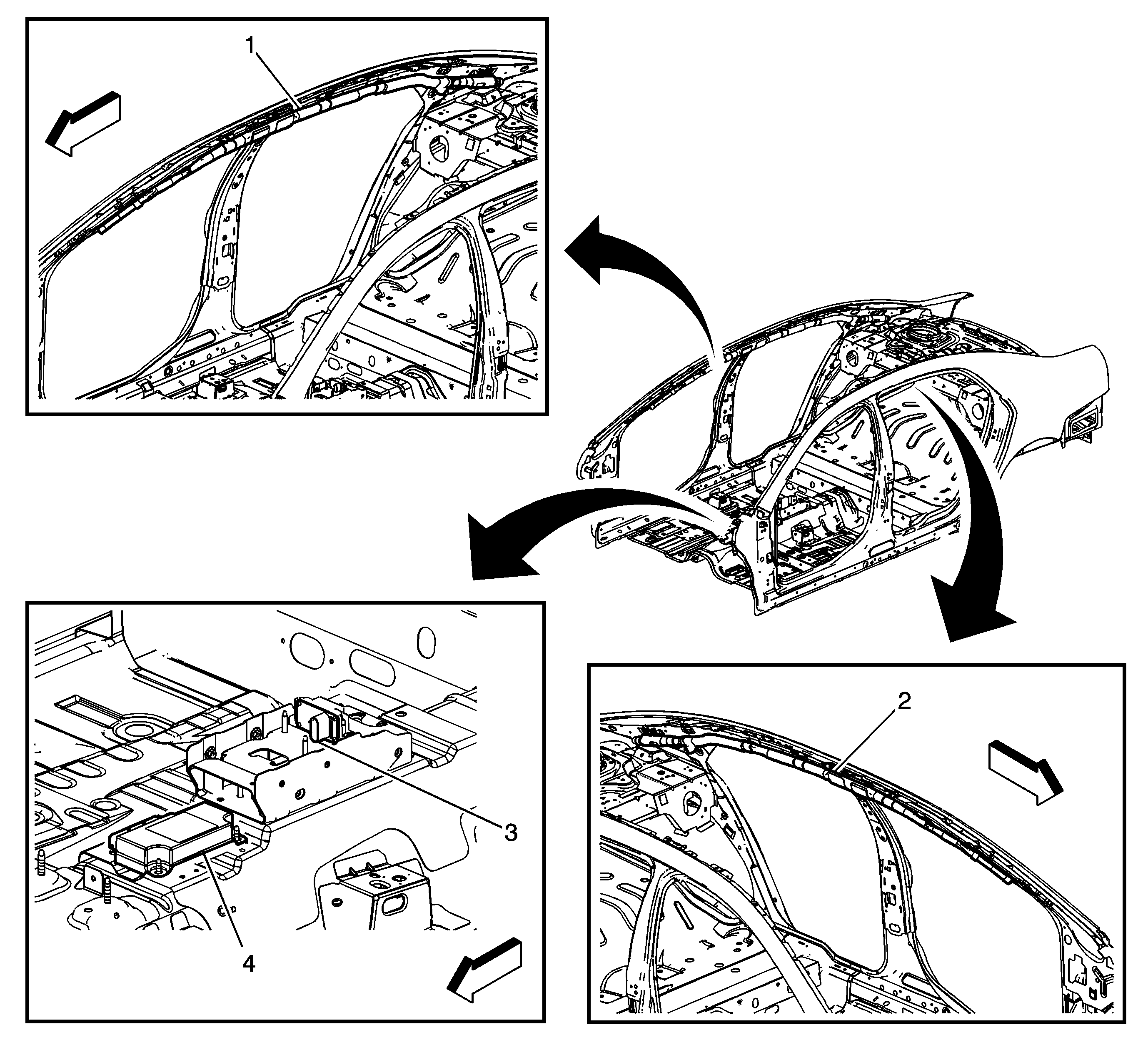

Figure 8:

Roof Rail Inflatable Restraints and Under the Center Console
Object Number: 2001932 Size: LF
(1)Inflatable Restraint Roof Rail Module - Right Front
(2)Inflatable Restraint Roof Rail Module - Left Front
(3)Yaw and Lateral Accelerometer Sensor (FX3)
(4)Inflatable Restraint Sensing and Diagnostic Module (SDM)

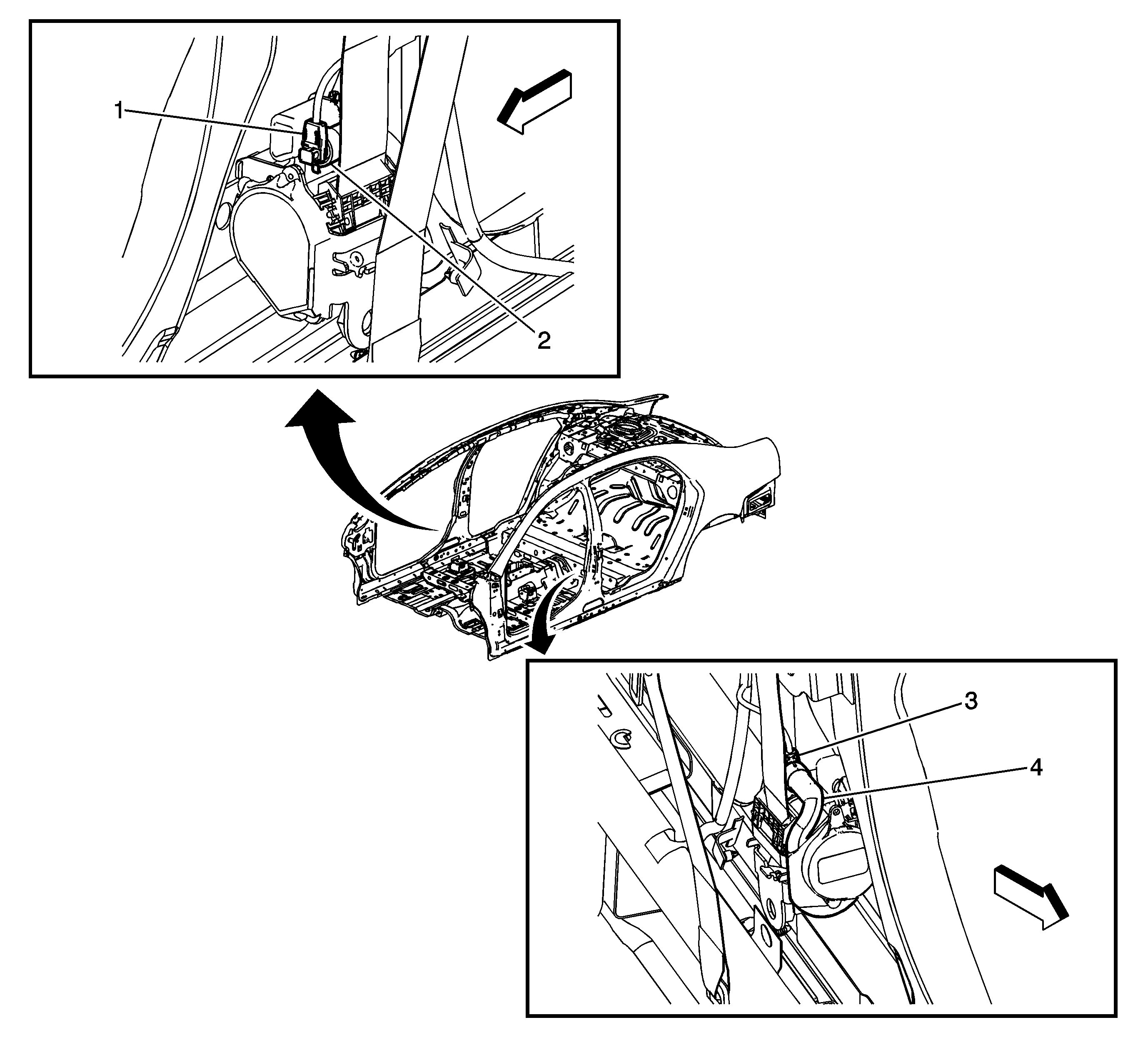

Figure 9:

Seat Belts Inflatable Restraints and the B-Pillars
Object Number: 2001941 Size: LF
(1)Seat Belt Pretensioner - Passenger
(2)Seat Belt Retractor - Passenger
(3)Seat Belt Pretensioner - Driver
(4)Seat Belt Retractor - Driver
