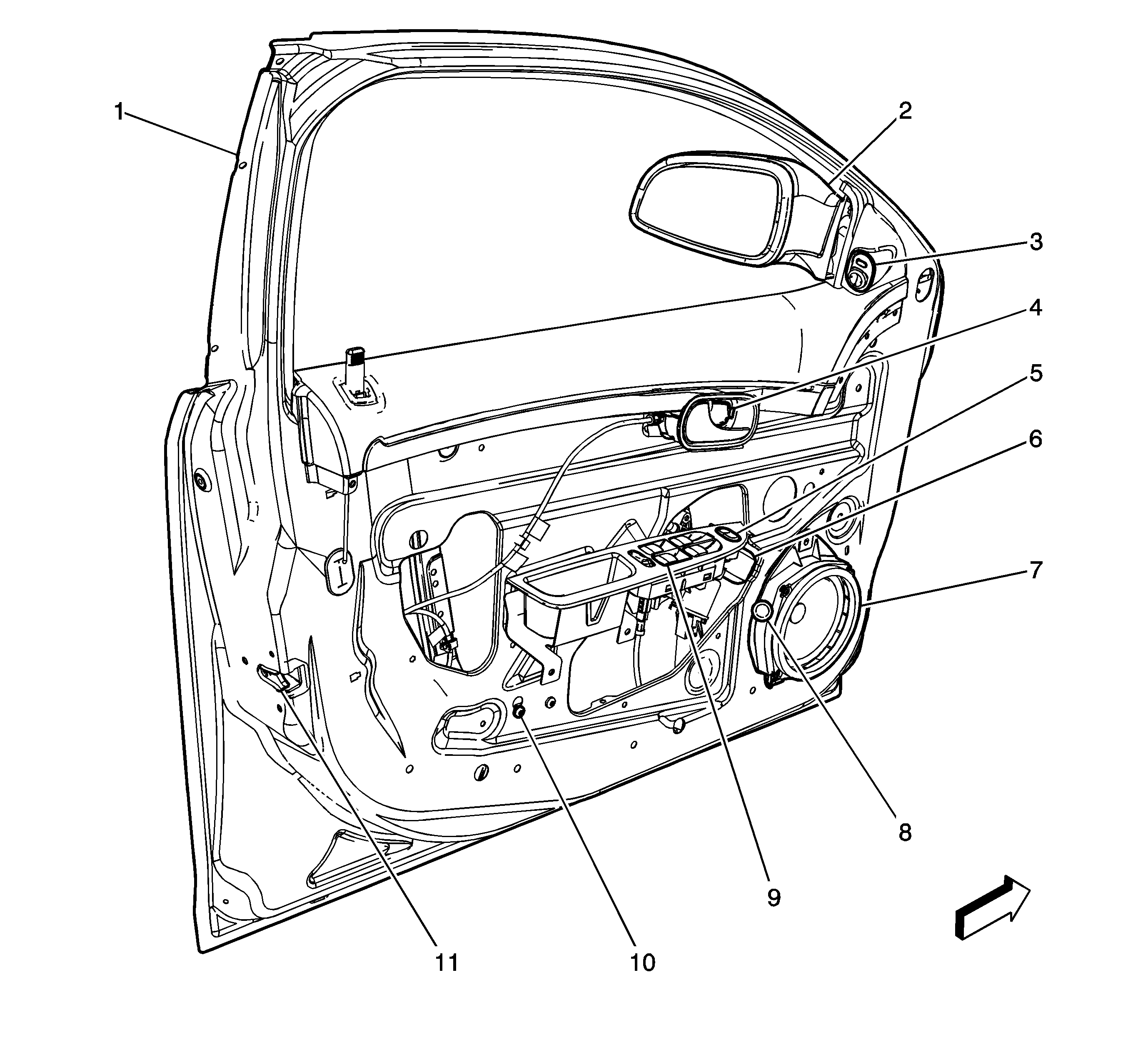

Figure 1:

Driver Door Components
Object Number: 1832313 Size: LF
(1)Door Frame
(2)Outside Rearview Mirror - Driver
(3)Outside Rearview Mirror Switch
(4)Courtesy Lamp - Left Front Door
(5)Door Lock Switch - Driver
(6)Window Motor - Driver
(7)Speaker - Left Front
(8)Rear Compartment Lid Release Switch
(9)Window Switch - Driver
(10)Inflatable Restraint Side Impact Sensor (SIS) - Left
(11)Door Latch - Driver

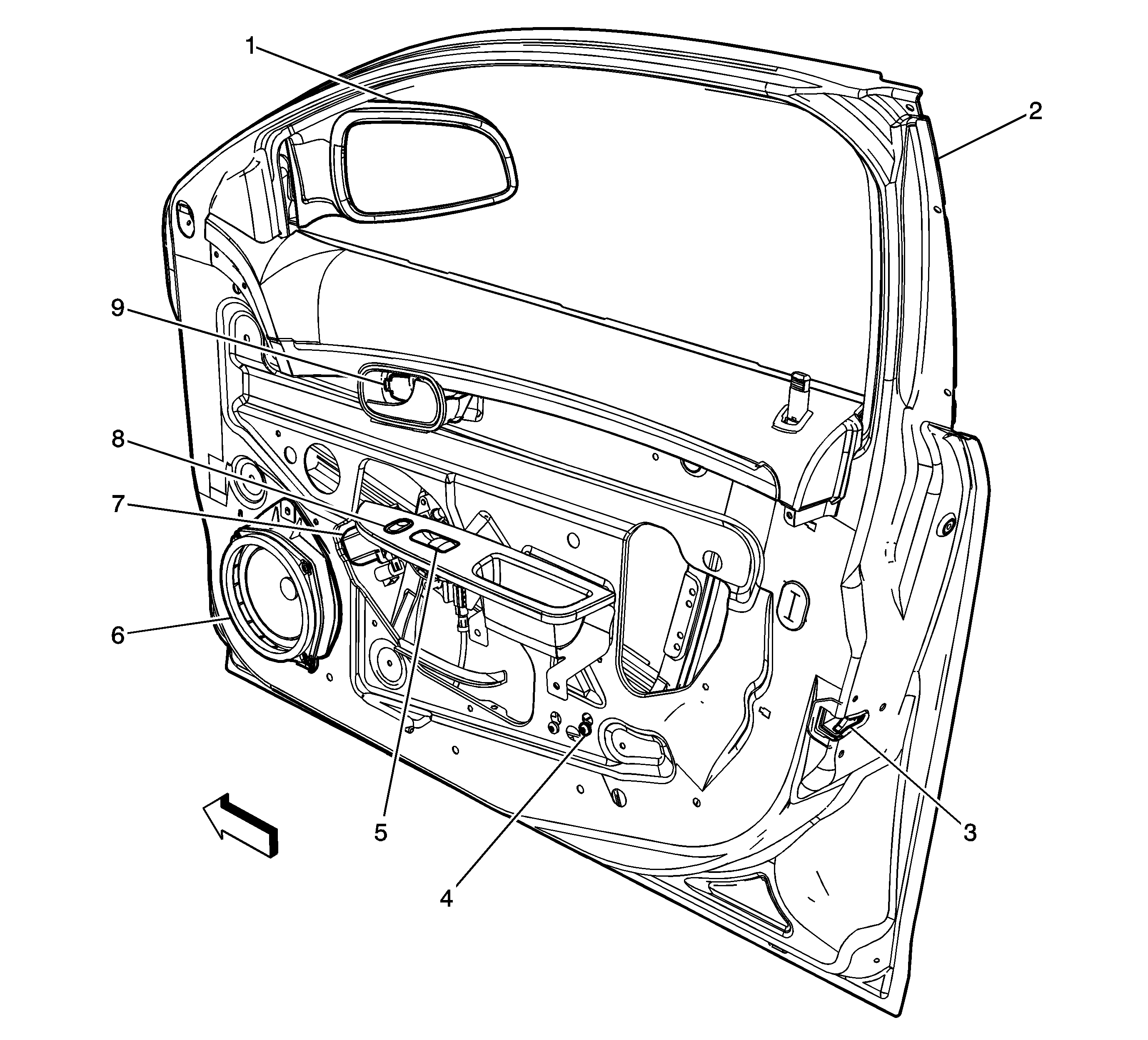

Figure 2:

Passenger Door Components
Object Number: 1832314 Size: LF
(1)Outside Rearview Mirror - Passenger
(2)Door Frame
(3)Door Latch - Passenger
(4)Inflatable Restraint Side Impact Sensor (SIS) - Right
(5)Window Switch - Passenger
(6)Speaker - Right Front
(7)Window Motor - Passenger
(8)Door Lock Switch - Passenger
(9)Courtesy Lamp - Right Front Door

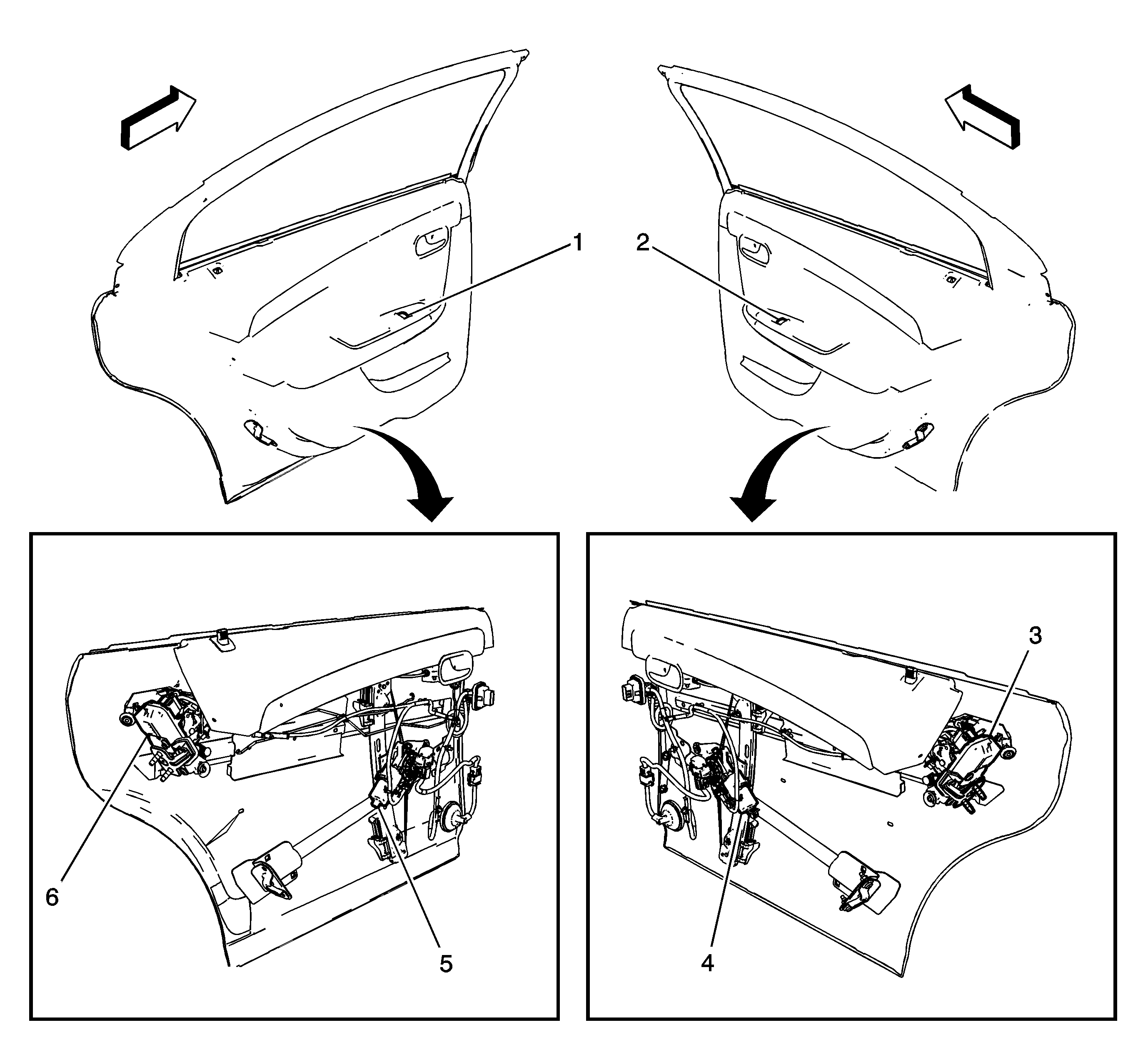

Figure 3:

Rear Doors
Object Number: 2000929 Size: LF
(1)Window Switch - Left Rear
(2)Window Switch - Right Rear
(3)Door Latch - Right Rear
(4)Window Motor - Right Rear
(5)Window Motor - Left Rear
(6)Door Latch - Left Rear
