Makes 🢒 Chevrolet 🢒 2009 🢒 Malibu 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Ground Views

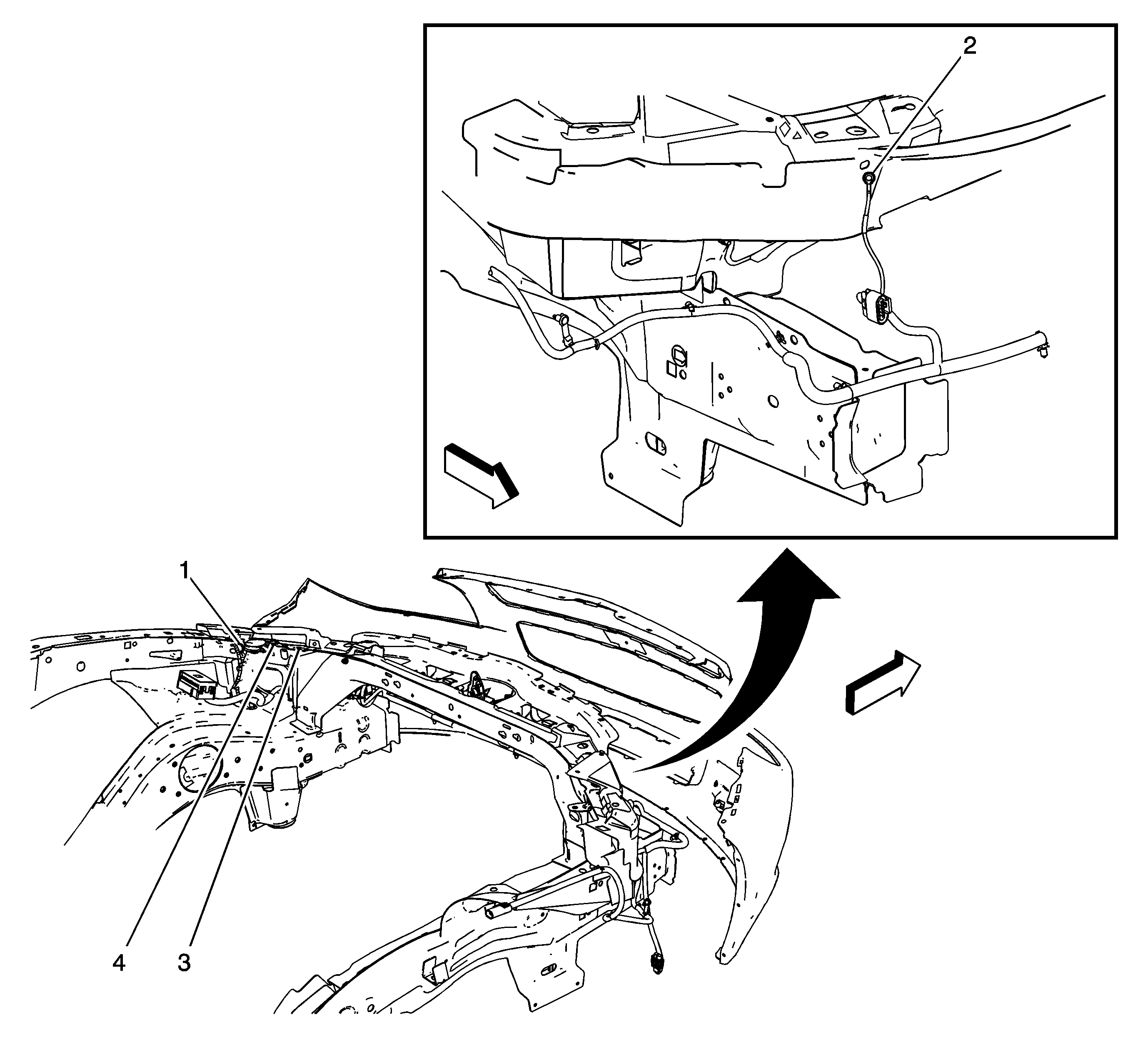

Figure 1:

G101, G102, G104 and G109
Object Number: 2148445 Size: LF
(1)G101
(2)G102
(3)G109
(4)G104
Figure 2:

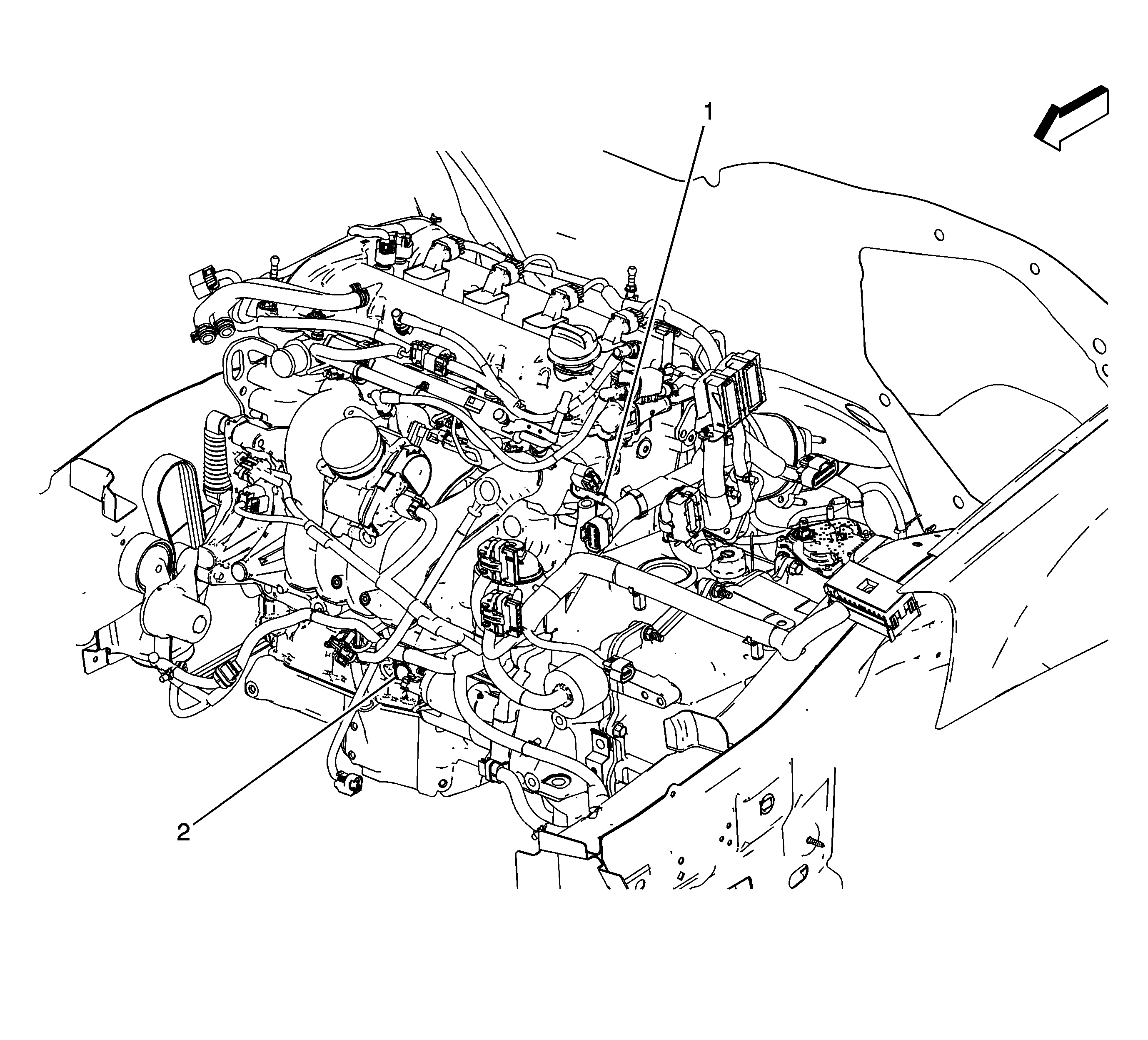

G105 and G106 (LAT)
Object Number: 2148450 Size: LF
(1)G106
(2)G105
Figure 3:

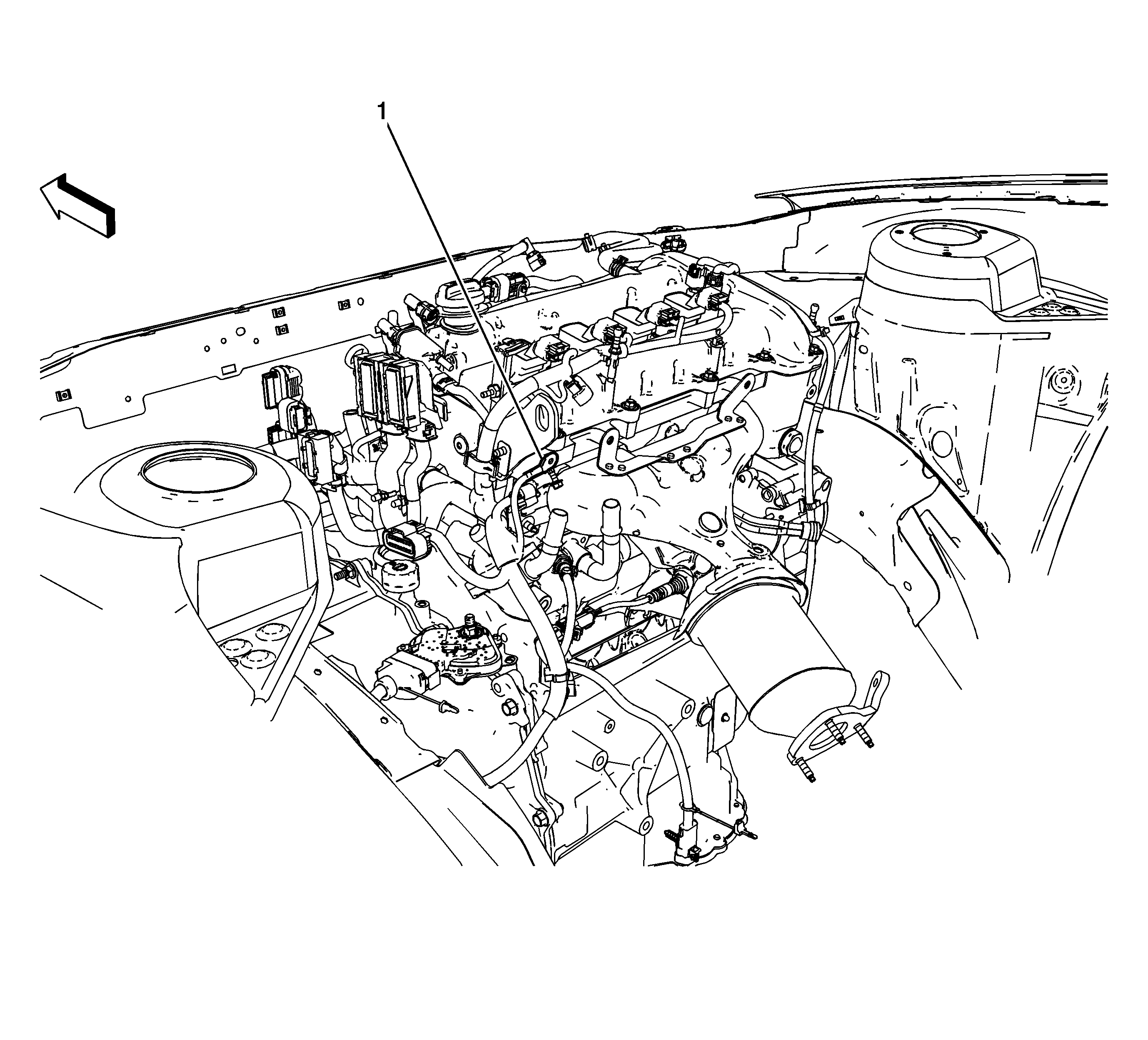

G110 (LAT)
Object Number: 2148452 Size: LF
(1)G110
Figure 4:

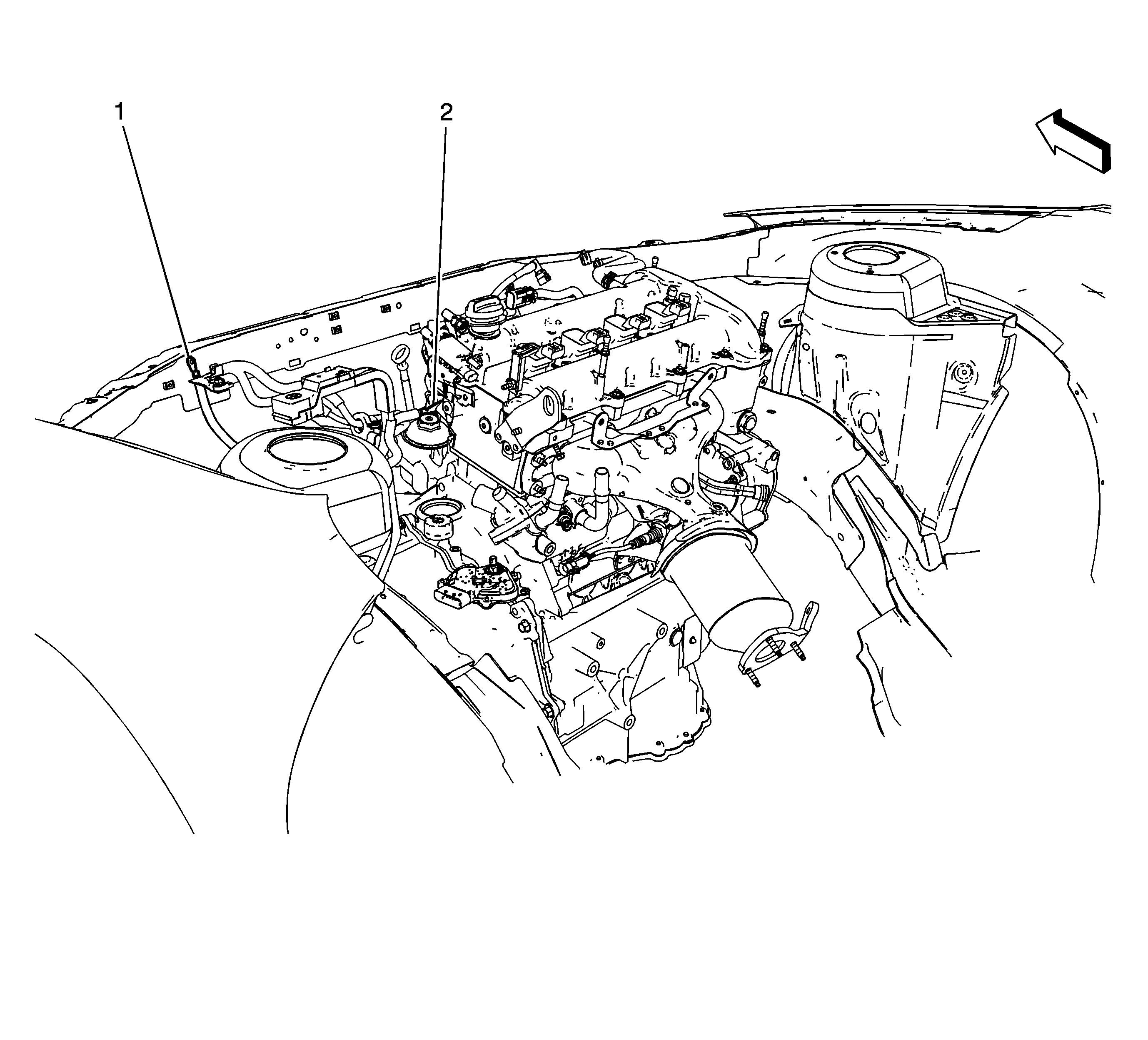

G104 and G106 (LAT)
Object Number: 2148456 Size: LF
(1)G104
(2)G106

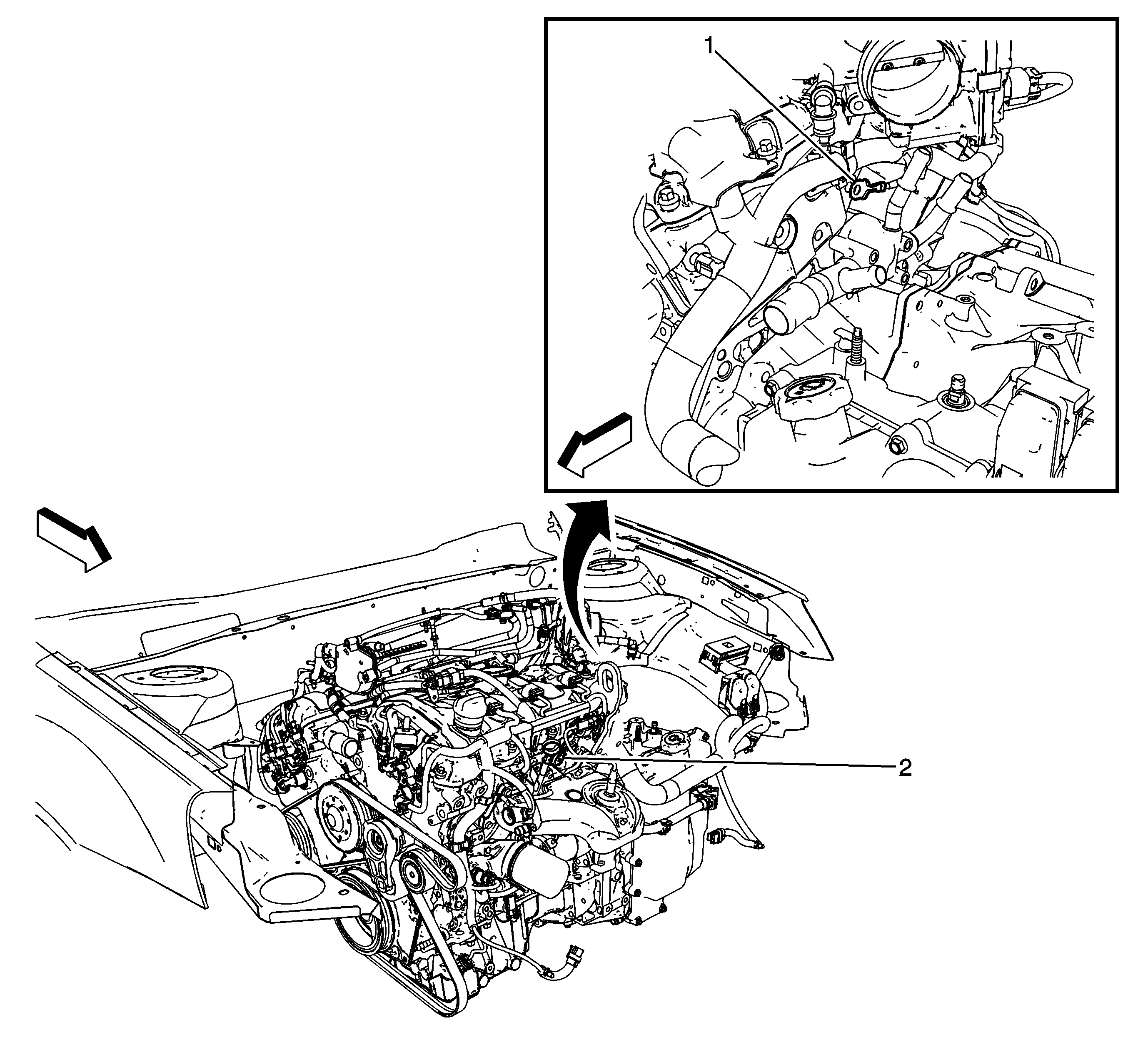

Figure 5:

G107 and G113 (LY7)
Object Number: 2148460 Size: LF
(1)G107
(2)G113

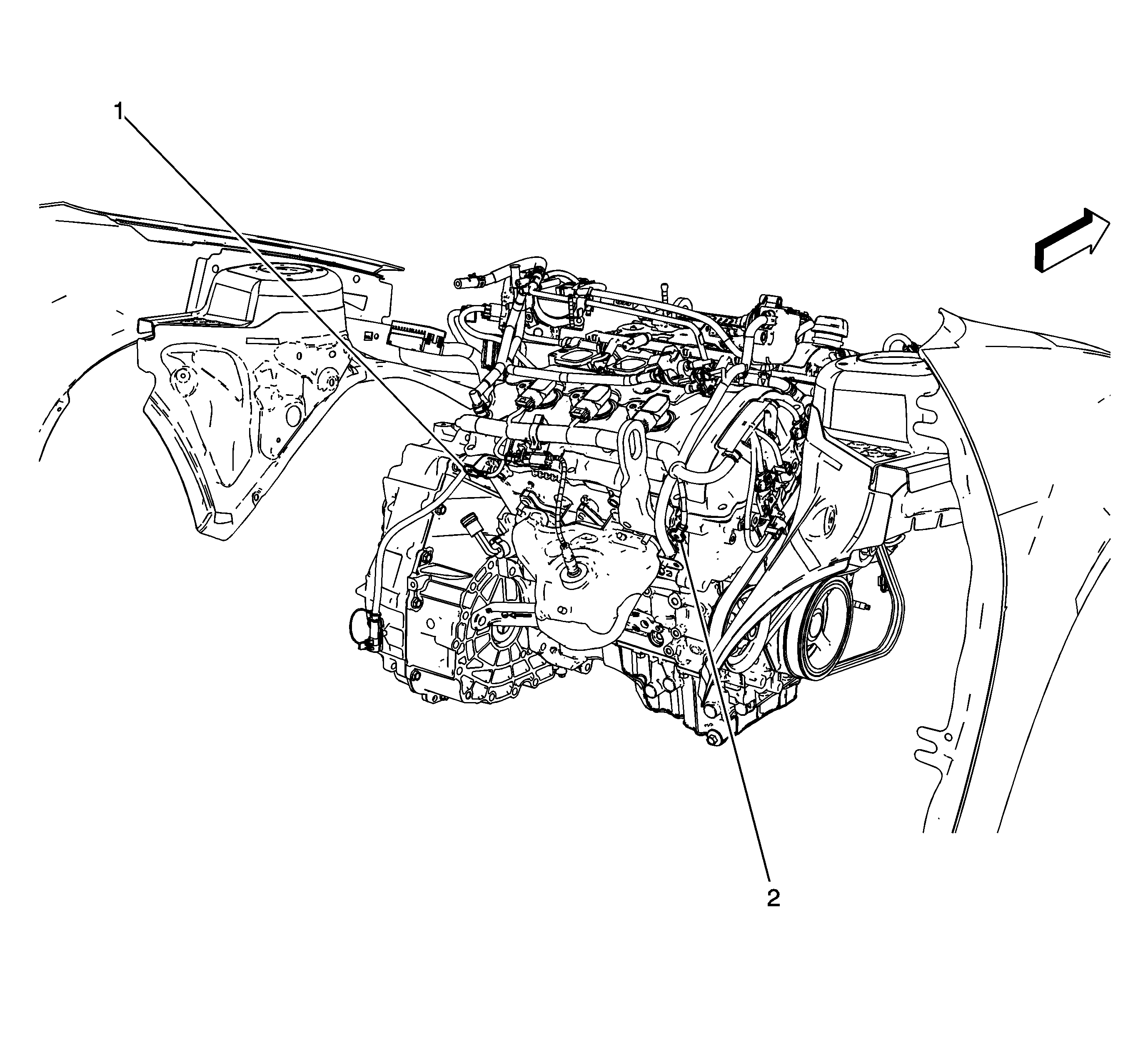

Figure 6:

G106 and G111 (LY7)
Object Number: 2148465 Size: LF
(1)G111
(2)G106
Figure 7:

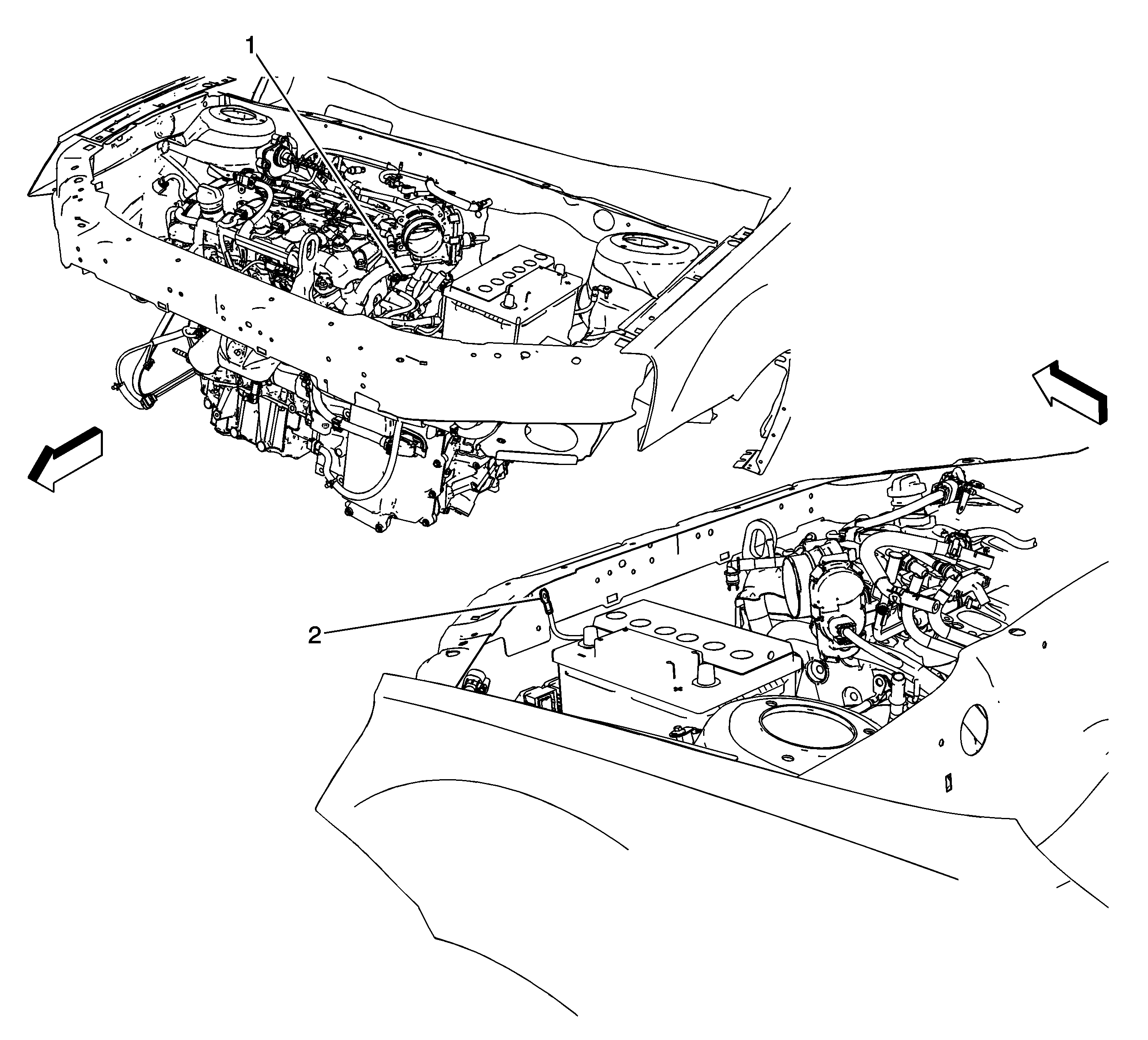

G104 and G107 (LY7)
Object Number: 2148469 Size: LF
(1)G107
(2)G104

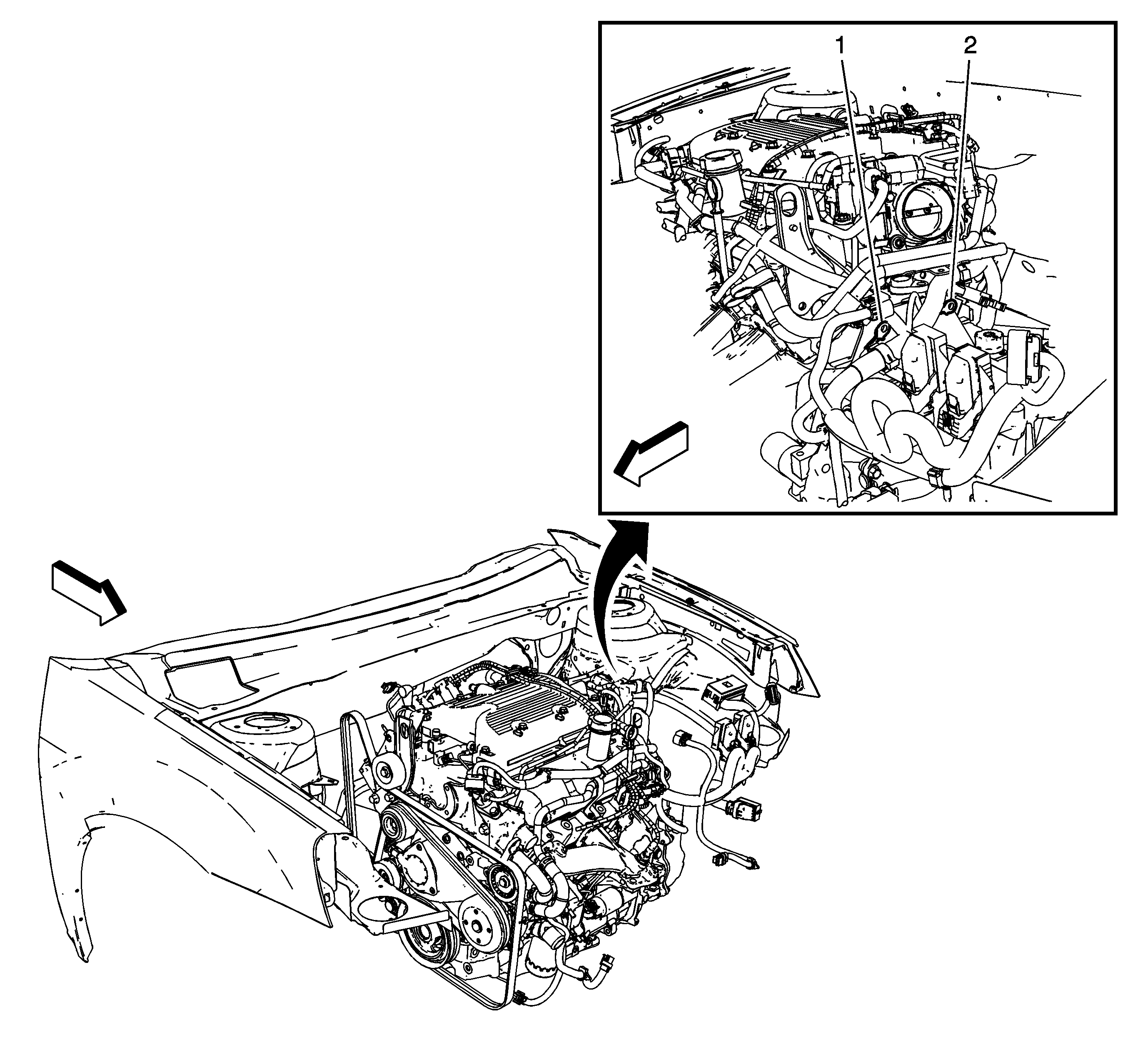

Figure 8:

G106 and G107 (LZ4)
Object Number: 2148473 Size: LF
(1)G107
(2)G106

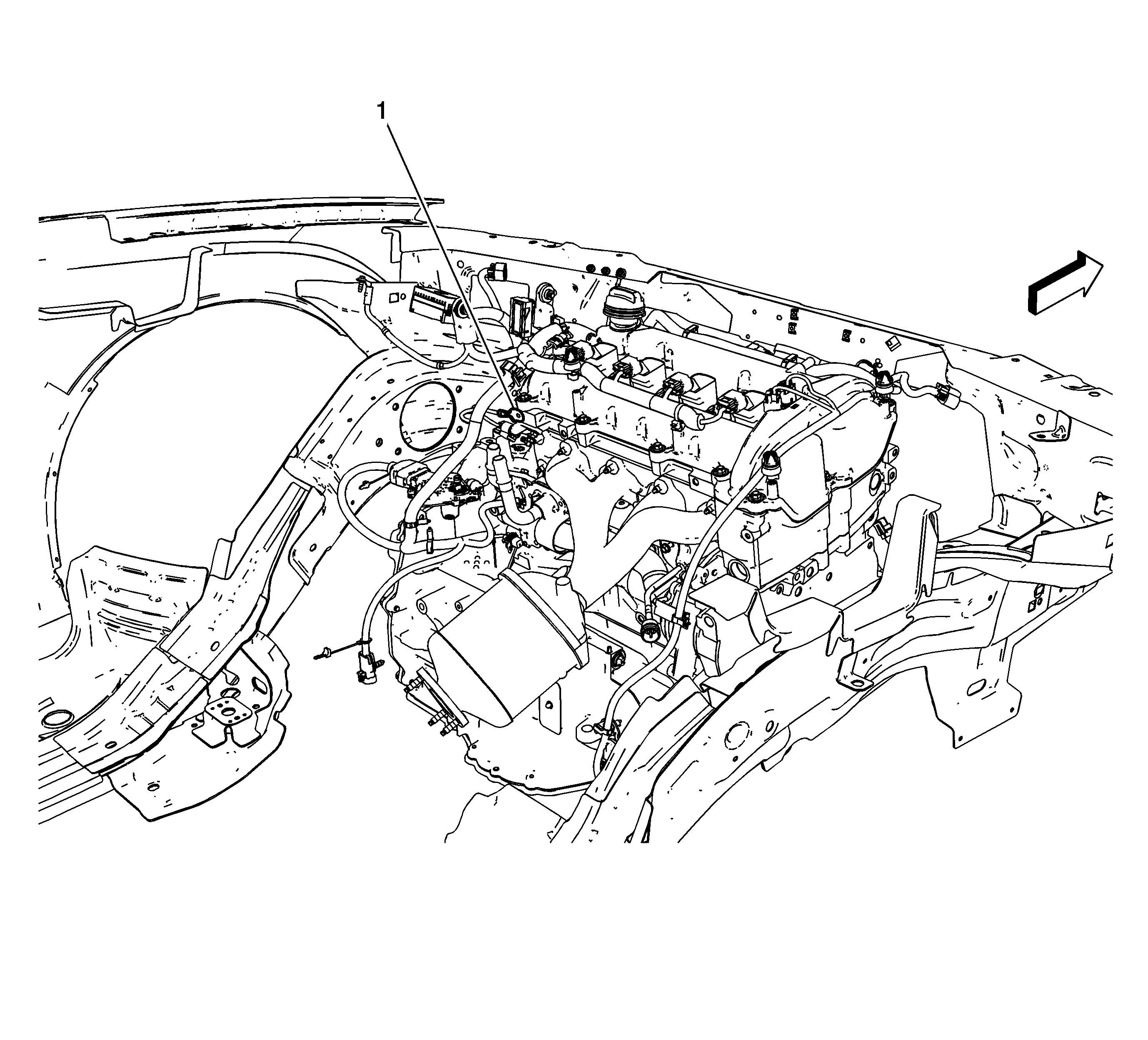

Figure 9:

G110 (LE5)
Object Number: 2148475 Size: LF
(1)G110
Figure 10:

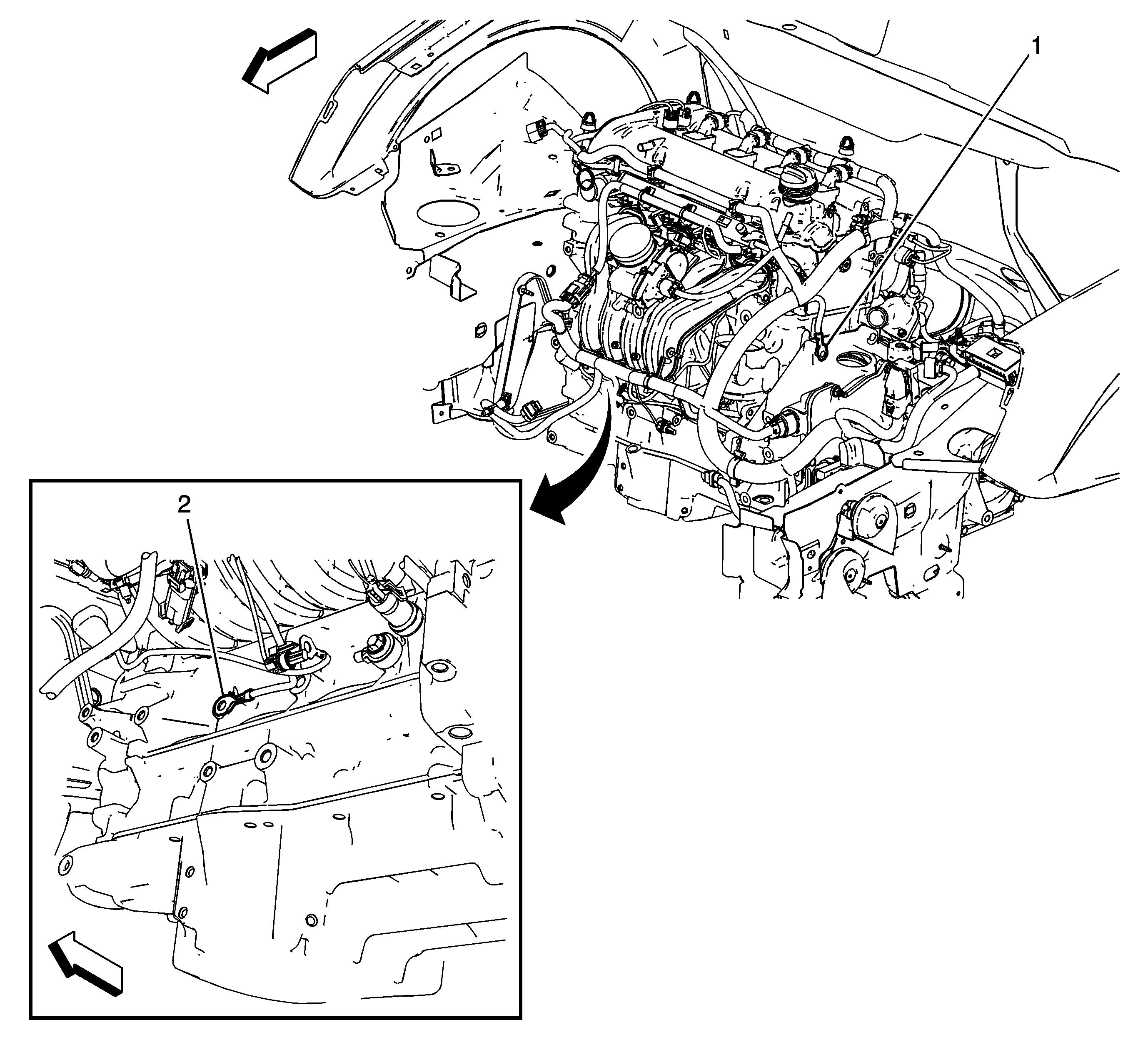

G106 and G107 (LE5)
Object Number: 2148477 Size: LF
(1)G106
(2)G107

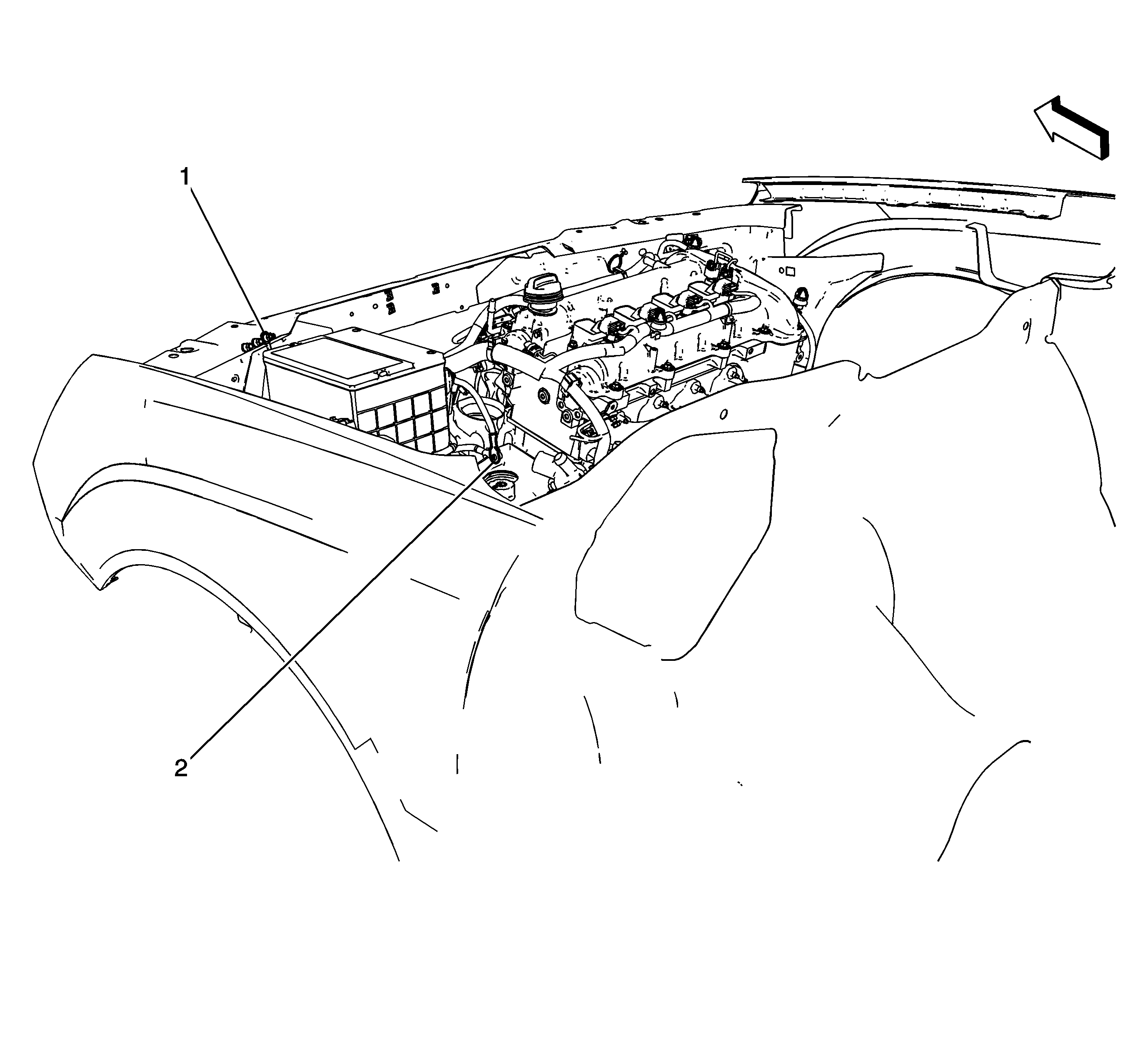

Figure 11:

G103 and G104 (LAT or LE5)
Object Number: 2148481 Size: LF
(1)G104
(2)G103

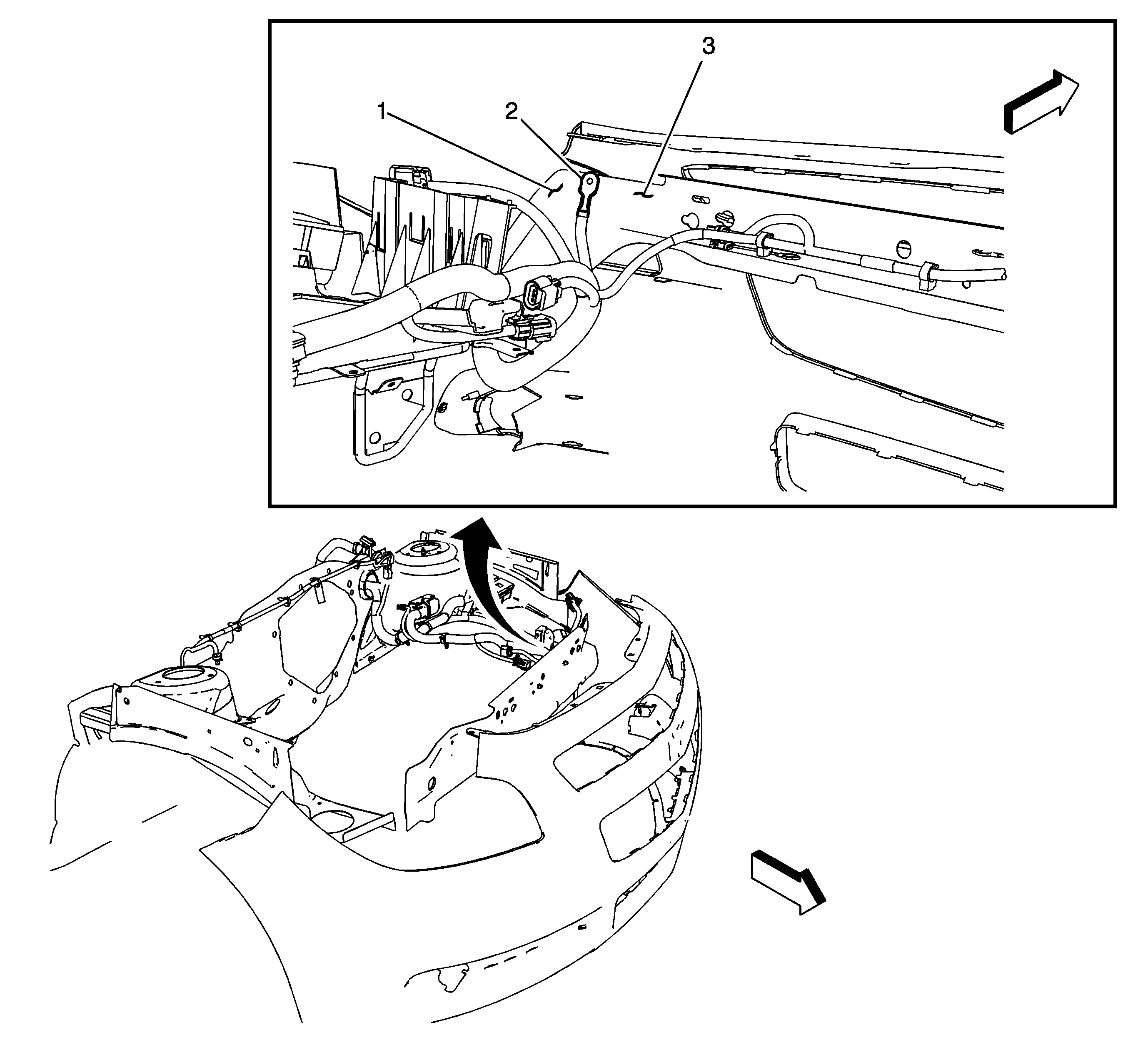

Figure 12:

G101, G104 and G109
Object Number: 2148484 Size: LF
(1)G101
(2)G109
(3)G104

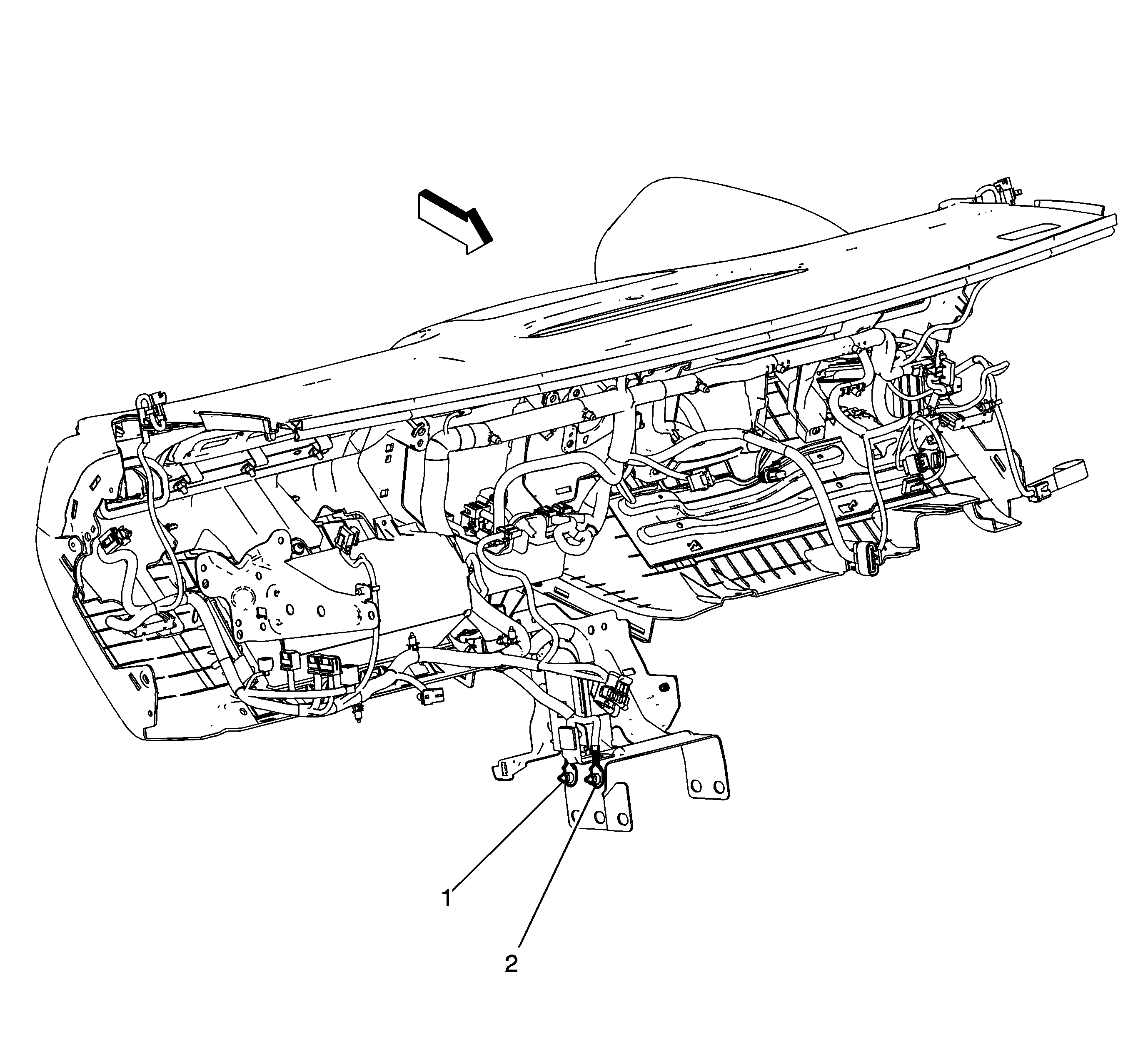

Figure 13:

G201 and G203
Object Number: 2148486 Size: LF
(1)G201
(2)G203
Figure 14:

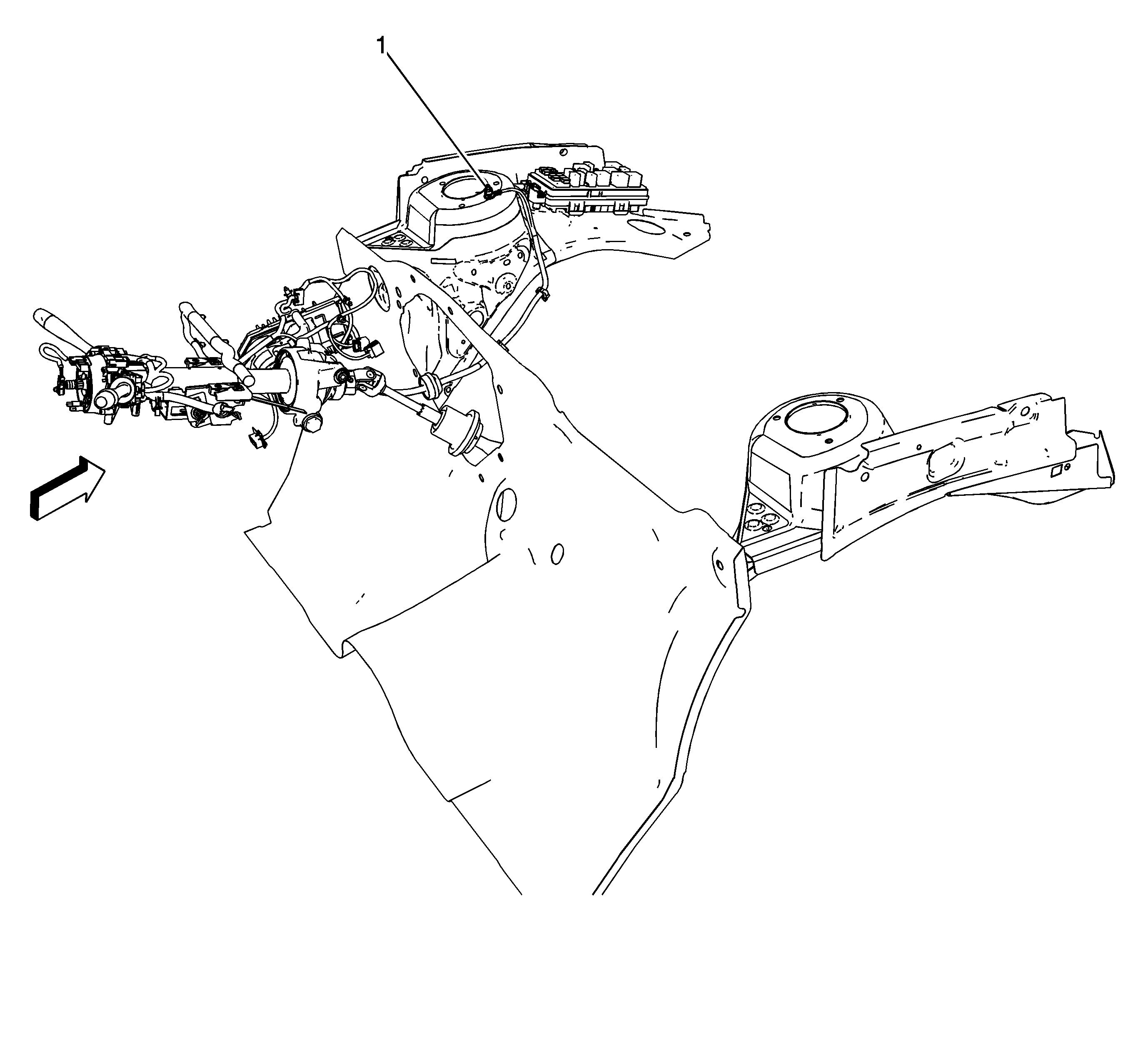

G103 (LAT or LE5)
Object Number: 2148488 Size: LF
(1)G103

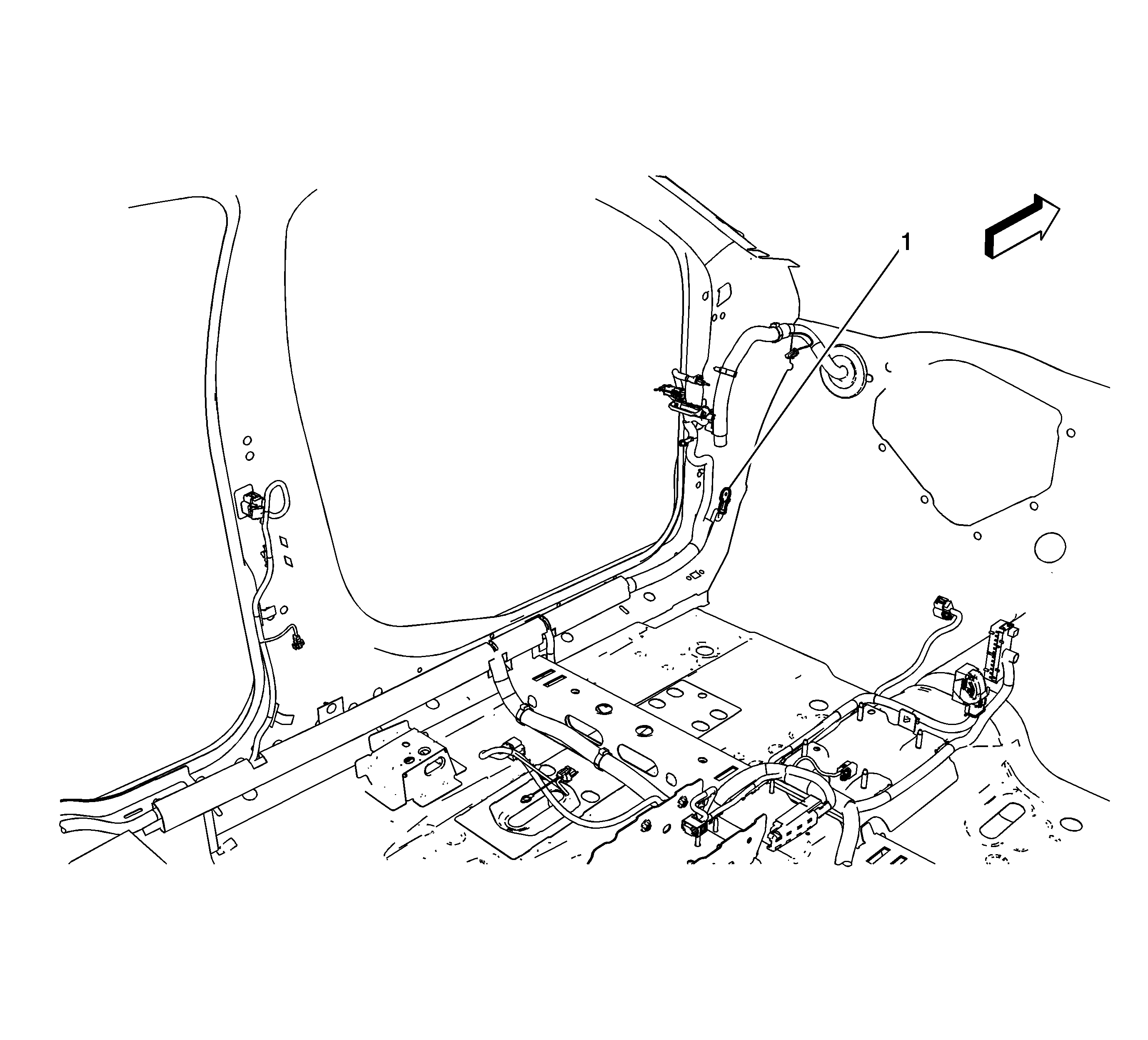

Figure 15:

G303
Object Number: 2148490 Size: LF
(1)G303
Figure 16:

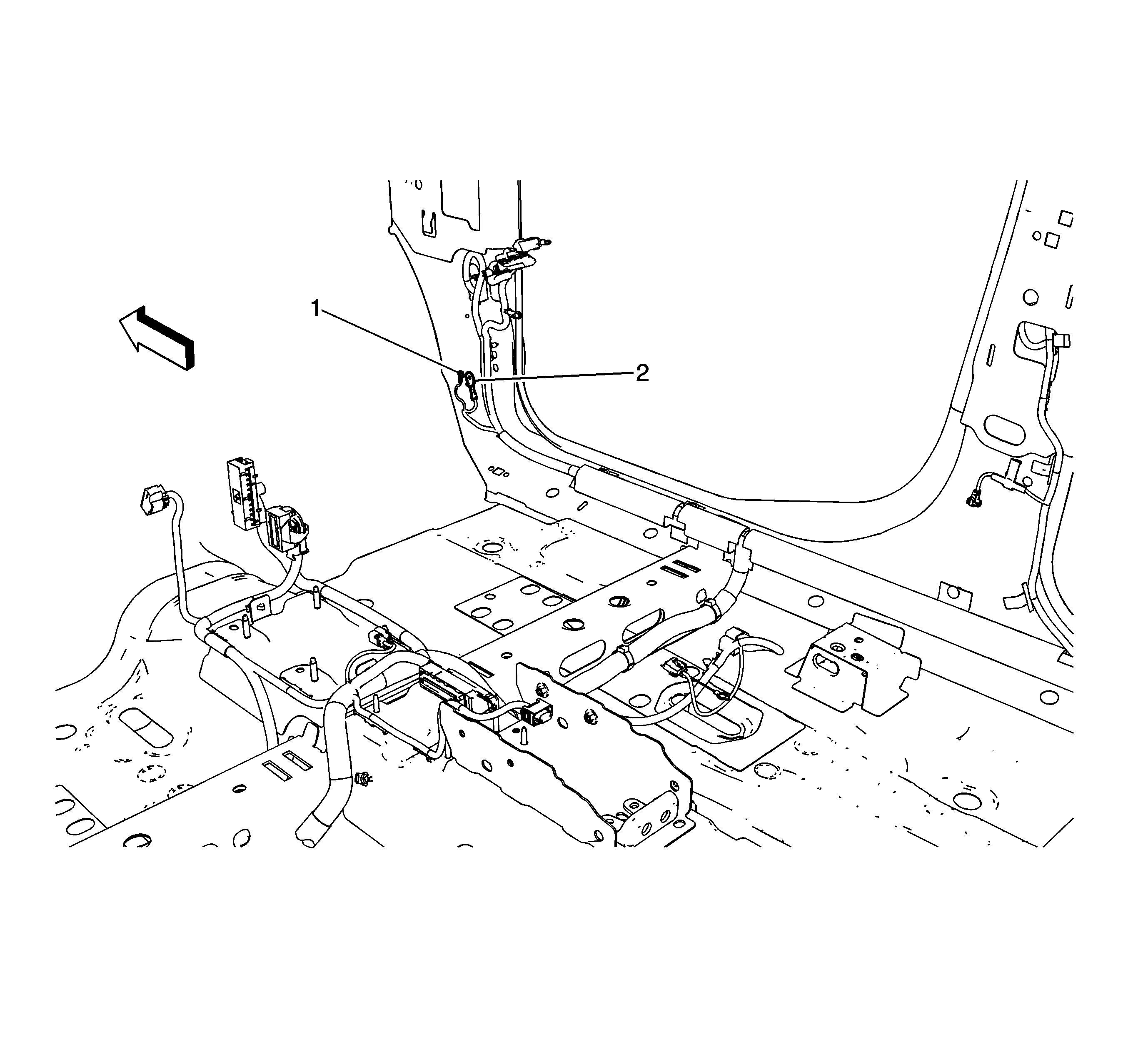

G304 and G305
Object Number: 2148492 Size: LF
(1)G305
(2)G304

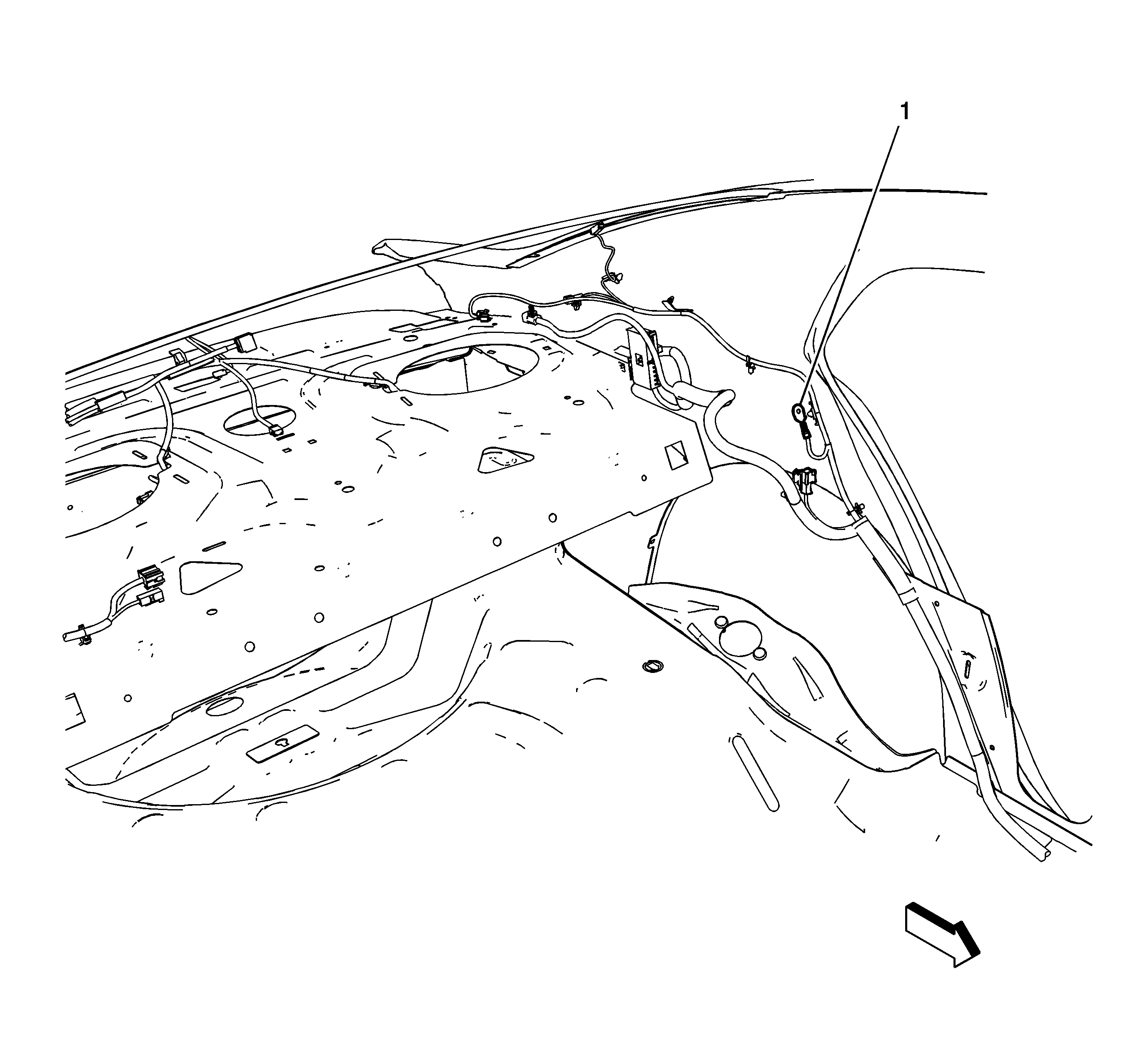

Figure 17:

G302
Object Number: 2148495 Size: LF
(1)G302

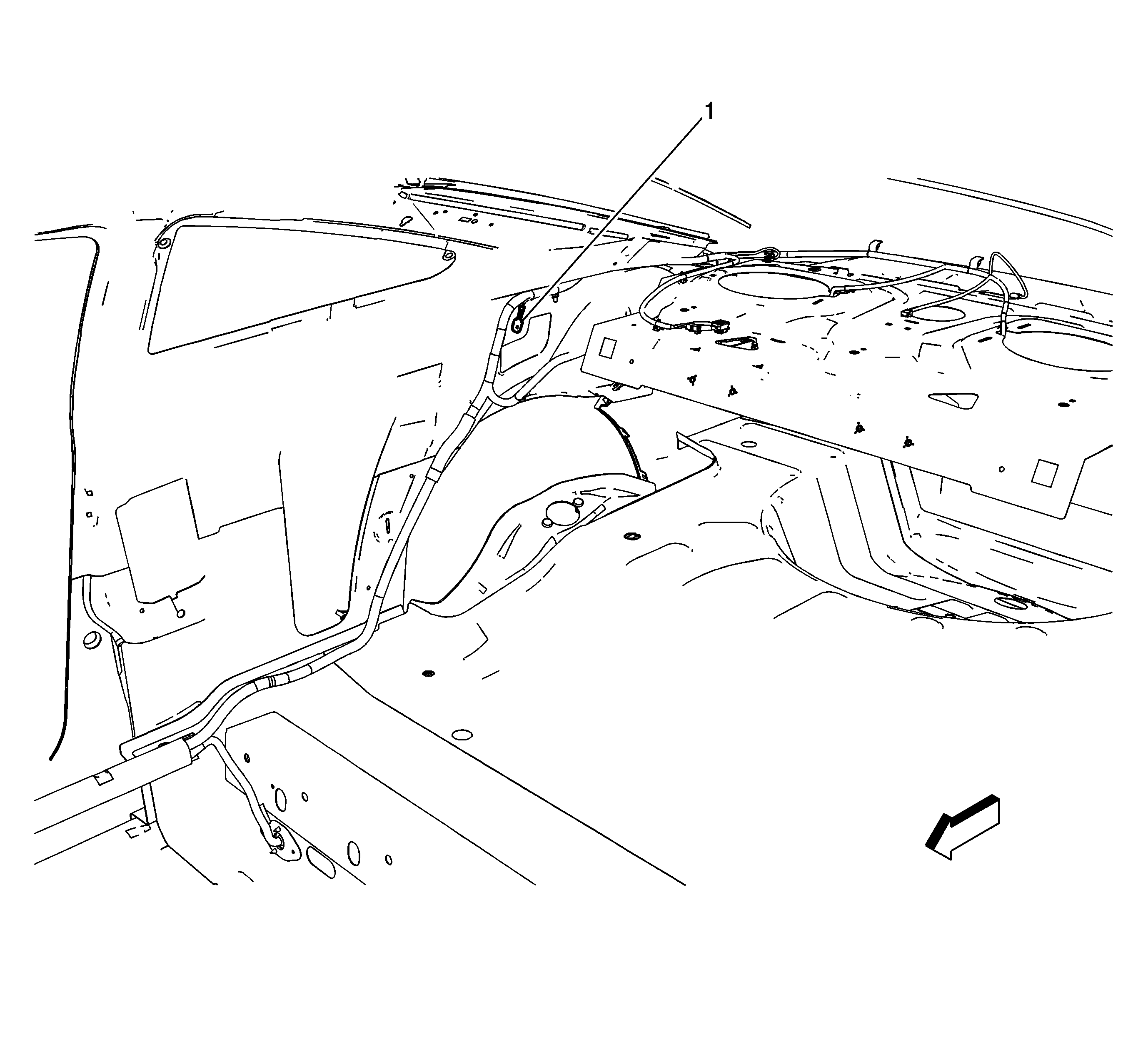

Figure 18:

G301
Object Number: 2148496 Size: LF
(1)G301
Figure 19:

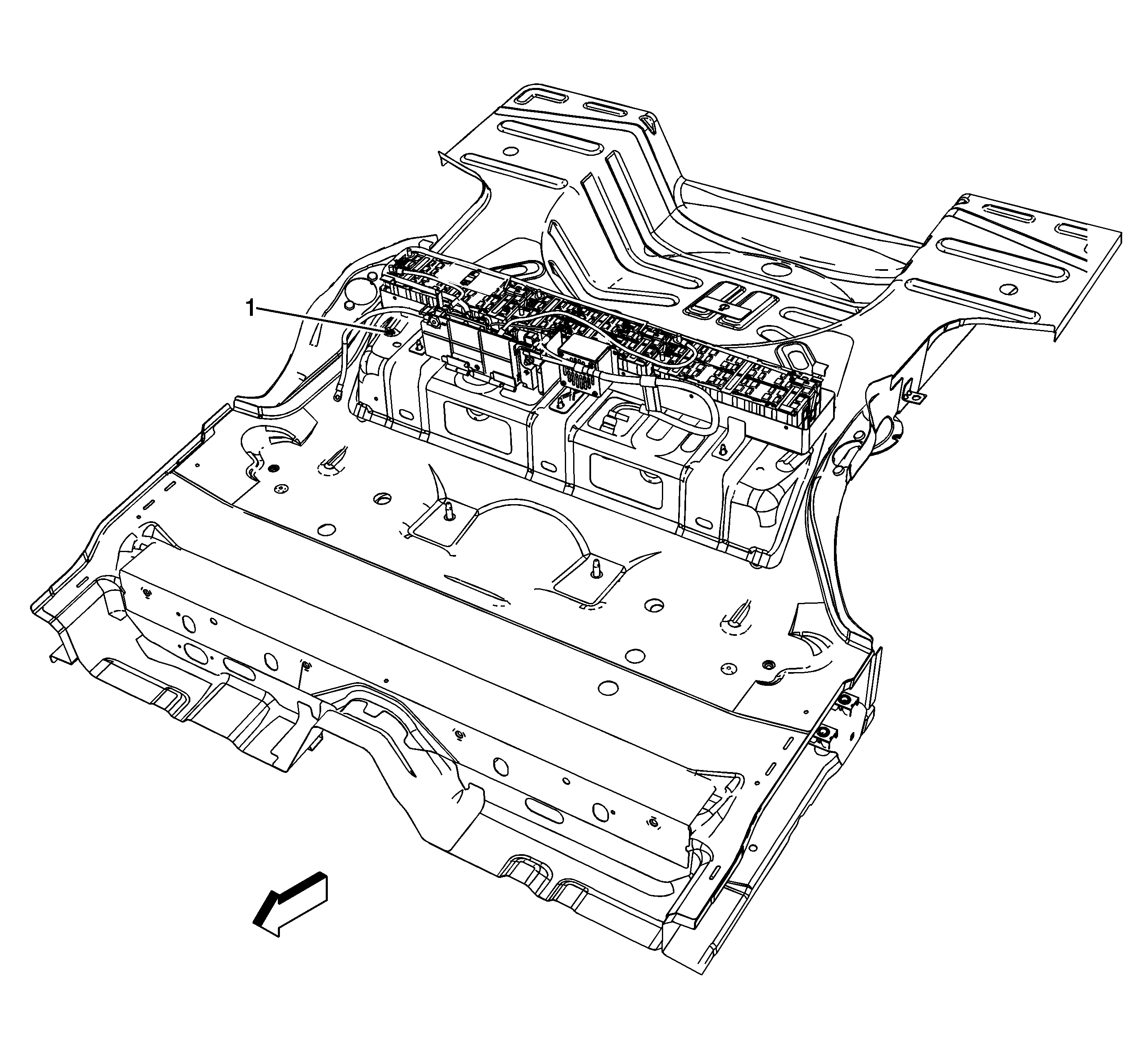

G402 (HP7)
Object Number: 2148498 Size: LF
(1)G402
Figure 20:

G401 and G403
Object Number: 2148500 Size: LF
(1)G401
(2)G403
