Makes 🢒 Chevrolet 🢒 2008 🢒 Malibu Classic 🢒 Engine 🢒 Engine Electrical 🢒 Harness Routing Views
Figure 1:

Right Front of Vehicle
Object Number: 1266776 Size: MF
(1)X110 (X109 Similar)
(2)Fog Lamp Connector - Right Hand (Left Hand Similar)
Figure 2:

Left Front of Engine Compartment
Object Number: 1264016 Size: MF
(1)X108 (LX9/LZ9)
(2)Engine Control Module (ECM) X1 (LZ9)/ Powertrain Control Module (PCM) X1 (LX9)
(3)Engine Control Module (ECM) X2 (LZ9)/ Powertrain Control Module (PCM) X2 (LX9)
(4)Engine Control Module (ECM) X3 (LZ9)/ Powertrain Control Module (PCM) X3 (LX9)
(5)Fuse Block - Underhood
Figure 3:

Right Front of Engine - L61
Object Number: 1265609 Size: MF
(1)X130

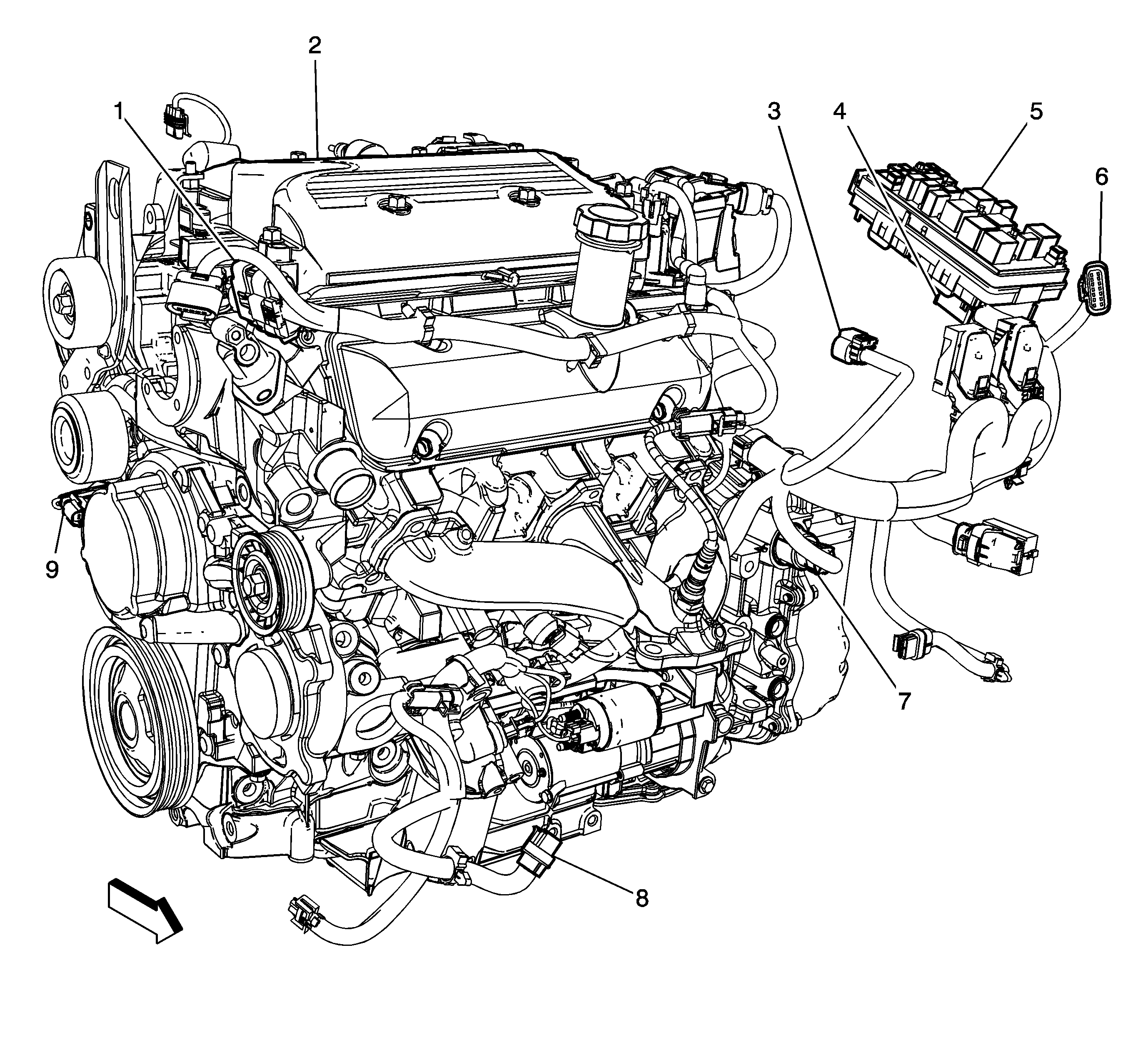

Figure 4:

Engine Harness - Front LZ4
Object Number: 1775952 Size: LF
(1)X130
(2)Upper Intake Manifold
(3)X103
(4)Fuse Block - Underhood X1
(5)Fuse Block - Underhood
(6)X108
(7)X100
(8)Cooling Fan - Right Connector
(9)Camshaft Position (CMP) Actuator Solenoid Connector
Figure 5:

Top Right Front of Engine - LZ9
Object Number: 1265705 Size: MF
(1)Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor
(2)X130
Figure 6:

Rear of Engine Compartment
Object Number: 1263963 Size: MF
(1)Brake Fluid Level Switch
(2)X101 (JL9/J67)
(3)Fuse Block - Underhood
(4)Electronic Brake Control Module (EBCM) (JL9/J67)
(5)Powertrain Control Module (PCM)
(6)G109
(7)Coolant Level Switch
(8)X102 (JL9/J67)
Figure 7:

Left Side of the Instrument Panel
Object Number: 1264007 Size: MF
(1)X290
(2)X206
(3)X208
Figure 8:

Left Front of Floor Console
Object Number: 1263995 Size: MF
(1)X214
(2)Cigar Lighter
(3)Traction Control Switch (NW7/NW9) or Auxiliary Power Outlet - Front (- NW7/NW9)
Figure 9:

Right Side of the Instrument Panel
Object Number: 1264012 Size: MF
(1)X216
(2)X291
(3)X207
Figure 10:

Passenger Compartment Floor
Object Number: 1263958 Size: MF
(1)Inflatable Restraint Sensing and Diagnostic Module (SDM)
(2)Automatic Transmission Shift Lever Position Indicator
(3)X214
(4)Body Control Module (BCM), X1
(5)Body Control Module (BCM), X3
(6)X310
Figure 11:

Under Driver Seat
Object Number: 1405603 Size: MF
(1)Seat Front Vertical Motor (AG1)
(2)Seat Horizontal Motor (AG1)
(3)Heated Seat Cushion Temperature Sensor - Driver (KA1)
(4)Seat Rear Vertical Motor (AG1)
(5)X300
(6)Heated Seat Control Module - Driver (KA1)
Figure 12:

Left Front Door Jamb
Object Number: 1264028 Size: MF
(1)X500
Figure 13:

Right Front Door Jamb
Object Number: 1264024 Size: MF
(1)X600
Figure 14:

Under Left Front Sill Plate
Object Number: 1405398 Size: MF
(1)X304
Figure 15:

Under Right Front Sill Plate
Object Number: 1405403 Size: MF
(1)X305
Figure 16:

Left Rear Door Jamb
Object Number: 1264019 Size: MF
(1)X700
Figure 17:

Right Rear Door Jamb
Object Number: 1264017 Size: MF
(1)X800
Figure 18:

Rear of DVD Player - U32
Object Number: 1406117 Size: MF
(1)Video Screen
(2)Grounding Strap
(3)X315
(4)DVD Player, X3
(5)DVD Player
(6)DVD Player, X1
(7)DVD Player, X2
Figure 19:

Inside of Left C-Pillar - Sedan
Object Number: 1265823 Size: MF
(1)Inflatable Restraint Side Impact Module - Left (AY0)
(2)X351
(3)Rear Window Defogger Grid X1
Figure 20:

Inside of Right C-Pillar- Sedan
Object Number: 1265829 Size: MF
(1)Rear Window Defogger Grid X2
(2)G301
(3)Inflatable Restraint Side Impact Module - Right (AY0)
Figure 21:

Under Vehicle, Forward of Right Rear Wheel
Object Number: 1263945 Size: MF
(1)X403
(2)X413
Figure 22:

Rear of Vehicle Under the Lamp Assemblies
Object Number: 1266774 Size: MF
(1)X402
(2)X401
