Intake Manifold Replacement Upper

Important: This engine uses a sequential multiport fuel injection system. Connect the injector wiring harness connectors to their appropriate fuel injector or exhaust emissions and engine performance may be seriously affected. For the correct injector wiring harness connector-to-fuel injector connection procedure, refer to Engine Electrical.

1. Disconnect the battery ground (negative) cable. Refer to Refer to Battery Negative Cable Disconnection and Connection in Engine Electrical.
2. Disconnect the vacuum hose connection from the throttle body air inlet duct.
3. Disconnect the wiring harness connection from the intake air temperature (IAT) sensor in the throttle body air inlet duct. Refer to Intake Air Temperature Sensor Replacement in Engine Controls - 3.1L.
4. Remove the throttle body air inlet duct.
5. Drain the engine coolant from the cooling system. Refer to Cooling System Draining and Filling in Engine Cooling.
6. Remove the accelerator control and cruise control cables with bracket from the throttle body. Remove the wiring harness from the retainer. Refer to Accelerator Control Cable Bracket Replacement in Engine Controls - 3.1L.
7. Disconnect the following wiring harness connectors from the throttle body:

•	Throttle position (TP) sensor

•	Idle air control (IAC) valve

8. Disconnect the (left) front spark plug wires. Refer to Spark Plug Wire Harness Replacement in Engine Electrical.
9. Disconnect the wiring harness attachment clips.

•	Camshaft position (CMP) sensor wiring harness

•	Left hand spark plug wire harness

•	Engine wiring harness

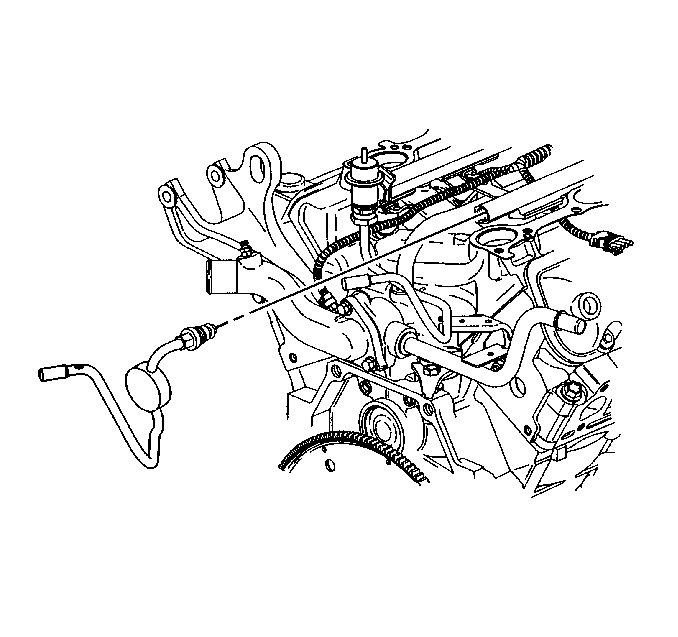

10. Remove the nut from the coolant pipe to the throttle body.

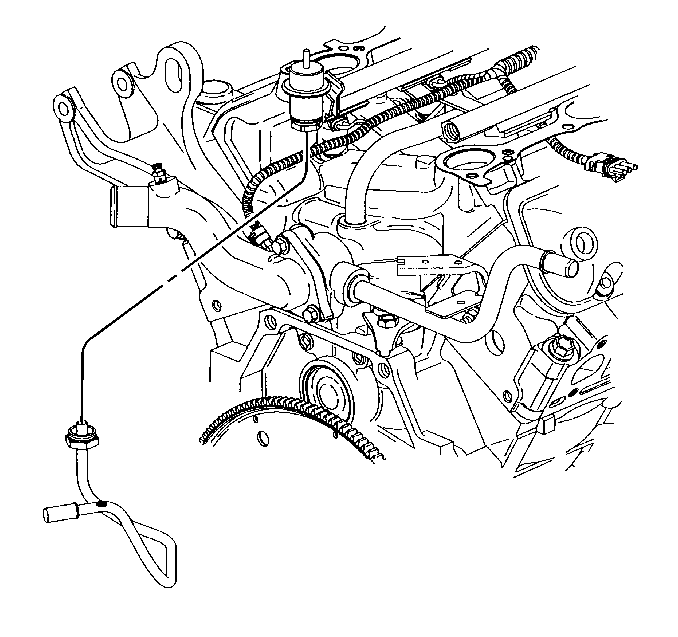

11. Disconnect the thermostat bypass pipe coolant hoses from the throttle body. Refer to HVAC.
12. Remove the engine mount struts. Refer to Engine Mount Strut Replacement .
13. Rotate the engine forward for access.
14. Disconnect the right spark plug wire retaining clips.
15. Remove the spark plug wires at the coil pack.
16. Remove the ignition coil bracket with the coils, the purge solenoid, the vacuum canister solenoid, the vacuum lines, and the electrical connections. Refer to Ignition Control Module Replacement and Evaporative Emission Canister Purge Solenoid Valve Replacement in Engine Controls - 3.1L.



17. Disconnect the vacuum hose at the manifold air pressure (MAP) sensor and upper intake manifold.
18. Remove the manifold air pressure (MAP) sensor and the bracket. Refer to Manifold Absolute Pressure Sensor Replacement in Engine Controls - 3.1L.



19. Disconnect the emission control vacuum harness.
20. Disconnect the vacuum hose connections from the upper intake manifold.

•	Vacuum booster hose

•	Automatic transaxle vacuum modulator hose

•	Heater and air conditioning vacuum source hose

•	Fuel pressure regulator

21. Remove the drive belt. Refer to Drive Belt Replacement .
22. Remove the front generator brace. Refer to Generator Brace Replacement in Engine Electrical.
23. Remove the rear generator brace. Refer to Generator Brace Replacement in Engine Electrical.

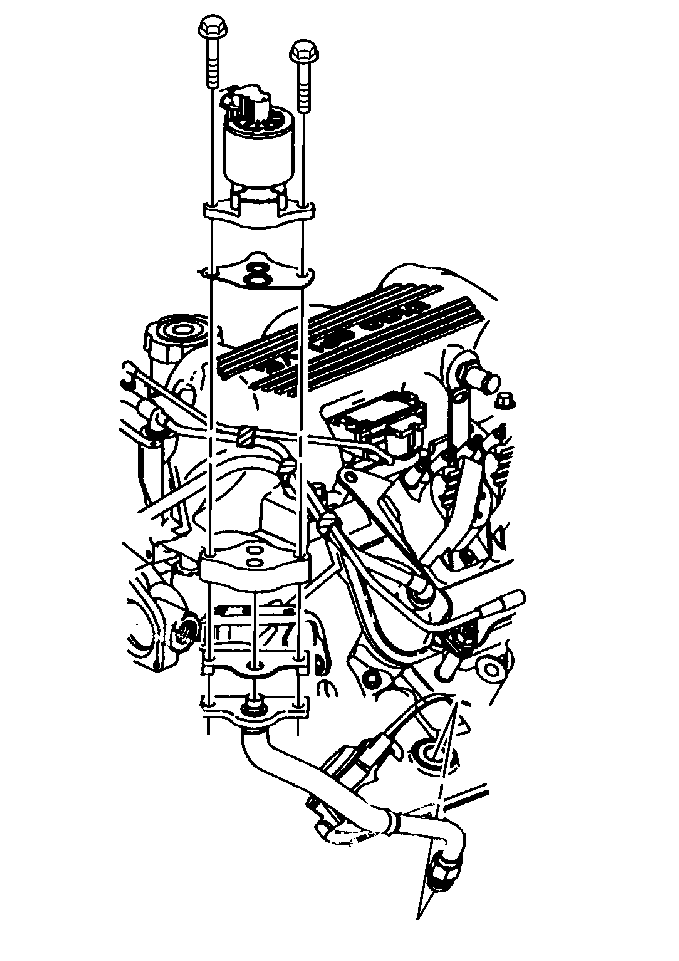

24. Remove the exhaust gas recirculation (EGR) valve. Refer to Exhaust Gas Recirculation Valve Replacement in Engine Controls - 3.1L.

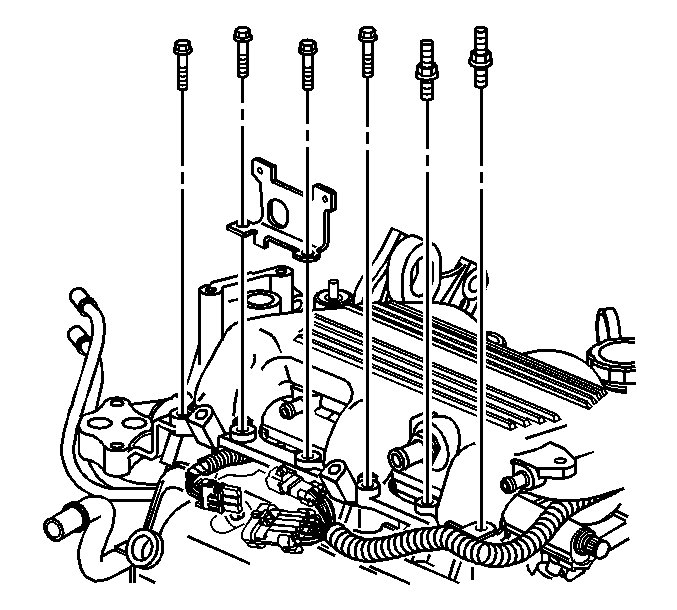

25. Remove the right hand upper intake manifold bolts and studs.

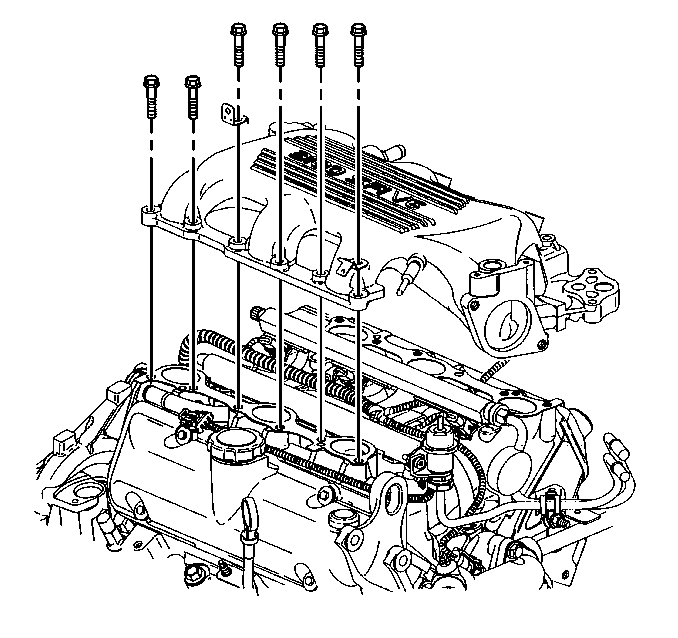

26. Remove the left hand upper intake manifold bolts.
27. Remove the upper intake manifold.

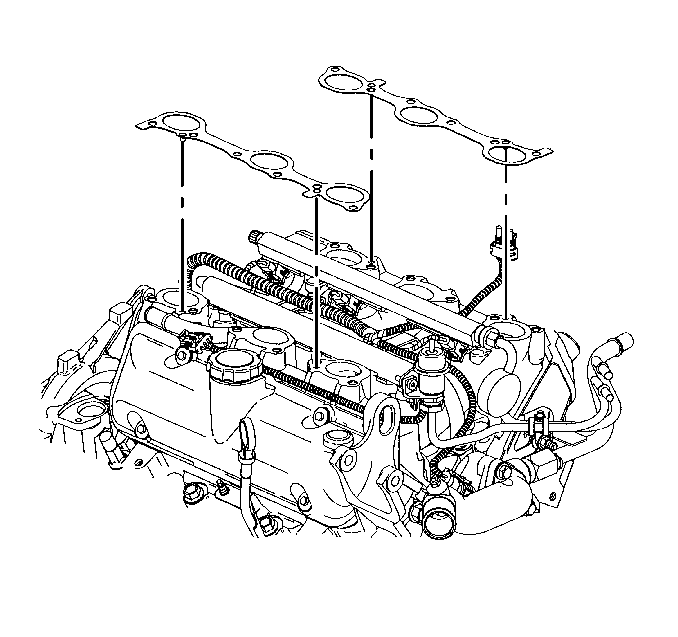

28. Remove the upper intake manifold gasket.



29. If replacing the upper intake manifold, remove the throttle body. Refer to Throttle Body Assembly Replacement in Engine Controls - 3.1L.
30. Clean the seal surfaces on the manifold with degreaser.

1. If removed, install the throttle body. Refer to Throttle Body Assembly Replacement in Engine Controls - 3.1L.



2. Install the upper intake manifold gasket.



3. Install the upper intake manifold.
4. Loosely install the left hand upper intake manifold bolts.



5. Loosely install the right hand upper intake manifold bolts and studs.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

6. Install the upper intake manifold bolts and studs.

Tighten
Tighten the upper intake manifold bolts and studs to 25 N·m (18 lb ft).




7. Install the exhaust gas recirculation (EGR) valve. Refer to Exhaust Gas Recirculation Valve Replacement in Engine Controls - 3.1L.
8. Install the rear generator brace. Refer to Generator Brace Replacement in Engine Electrical.
9. Install the front generator brace. Refer to Generator Brace Replacement in Engine Electrical.
10. Connect the vacuum hose connections to the upper intake manifold.

•	Vacuum booster hose

•	Automatic transaxle vacuum modulator hose

•	Heater and air conditioning vacuum source hose

•	Fuel pressure regulator




11. Connect the emission control vacuum harness.
12. Install the manifold air pressure (MAP) sensor and bracket. Refer to Manifold Absolute Pressure Sensor Replacement in Engine Controls - 3.1L.



13. Connect the vacuum hose at the manifold air pressure (MAP) sensor and the upper intake manifold.
14. Install the ignition coil bracket with the coils, the purge solenoid, the vacuum canister solenoid, the spark plug wire retainers, the plug wires at the ignition module, the vacuum lines, and the electrical connections. Refer to Ignition Control Module Replacement and Evaporative Emission Canister Purge Solenoid Valve Replacement in Engine Controls - 3.1L.
15. Return the engine to the proper position.
16. Install the engine mount struts. Refer to Engine Mount Strut Replacement and Engine Mount Strut Replacement .
17. Connect the thermostat bypass pipe coolant hoses to the throttle body.
18. Install coolant pipe nut to throttle body.
19. Connect the wiring harness attachment clips.

•	Camshaft position (CMP) sensor wiring harness

•	Left hand spark plug wire harness

•	Engine wiring harness

20. Connect the left hand spark plug wires. Refer to Spark Plug Wire Harness Replacement in Engine Electrical.
21. Connect the wiring harness connectors to the throttle body.

•	Throttle position (TP) sensor

•	Idle air control (IAC) valve

22. Install the accelerator control and cruise control cables with bracket to the throttle body. Install the wiring harness to the retainer. Refer to Throttle Body Assembly Replacement in Engine Controls - 3.1L.
23. Fill the cooling system with engine coolant. Refer to Cooling System Draining and Filling in Engine Cooling.
24. Install the throttle body air inlet duct.
25. Connect the wiring harness connection to the intake air temperature (IAT) sensor in the throttle body air inlet duct. Refer to Intake Air Temperature Sensor Replacement in Engine Controls - 3.1L.
26. Connect the vacuum hose connection to the throttle body air inlet duct.
27. Connect the battery ground (negative) cable. Refer to Refer to Battery Negative Cable Disconnection and Connection in Engine Electrical.

Intake Manifold Replacement Lower

Important: This engine uses a sequential multiport fuel injection system. Injector wiring harness connectors must be connected to their appropriate fuel injector or exhaust emissions and engine performance may be seriously affected.

1. Disconnect the battery ground (negative) cable. Refer to Battery Negative Cable Disconnection and Connection in Engine Electrical.
2. Remove the upper intake manifold. Refer to Intake Manifold Replacement .
3. Disconnect the radiator inlet hose from the engine. Refer to Radiator Inlet Hose Replacement in Engine Cooling.



4. Disconnect the thermostat bypass hose from the thermostat bypass pipe and lower intake manifold pipe.
5. Remove the thermostat bypass pipe.
6. Remove the left (front) valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement .
7. Remove the generator. Refer to Generator Replacement in Engine Electrical.
8. Remove the right (rear) valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement .



9. Disconnect the engine coolant temperature (ECT) wiring harness.



10. Disconnect and remove the fuel injector and manifold air pressure (MAP) wiring harness.



11. Remove the fuel pipe clip bolt.



12. Remove the fuel pipe clip.



13. Disconnect the fuel feed pipe from the fuel injector rail. Refer to Fuel Hose/Pipes Replacement - Filter to Engine in Engine Controls - 3.1L.



14. Disconnect the fuel return pipe from the fuel injector rail. Refer to Fuel Hose/Pipes Replacement - Filter to Engine in Engine Controls - 3.1L.



15. Remove the fuel injector rail. Refer to Fuel Injection Fuel Rail Assembly Replacement in Engine Controls - 3.1L.
16. Remove the power steering pump from the front engine cover and reposition. Refer to Power Steering Pump Replacement in Power Steering System.



17. Disconnect the heater inlet pipe with heater hose from the lower intake manifold and reposition. Refer to Heater Inlet Pipe Replacement in HVAC.



18. Remove the lower intake manifold bolts and DISCARD the bolts.
19. Remove the lower intake manifold.
20. Remove the valve rocker arms and the push rods. Refer to Valve Rocker Arm and Push Rod Replacement .



21. Remove the lower intake manifold gaskets and seals.
22. Clean the lower intake manifold gasket and seal surfaces on the cylinder heads and the engine block.
23. Clean the gasket and seal surfaces on the lower intake manifold with degreaser.
24. Remove all the loose RTV sealer.



25. If replacing the lower intake manifold remove the engine coolant temperature (ECT) sensor. Refer to Engine Coolant Temperature Sensor Replacement in Engine Controls - 3.1L.



26. If replacing the lower intake manifold remove the water outlet bolts.
27. Remove the water outlet.



28. If replacing the lower intake manifold remove the thermostat.

1. If removed, install the thermostat.



2. If removed, install the water outlet.

Notice: Refer to Fastener Notice in the Preface section.

3. Install the water outlet bolts.

Tighten
Tighten the water outlet bolts to 25 N·m (18 lb ft).




4. If removed, install the engine coolant temperature (ECT) sensor. Refer to Engine Coolant Temperature Sensor Replacement in Engine Controls - 3.1L.




Important: All gasket-mating surfaces need to be free of oil, and foreign material. Use GM P/N 12346139 (Canadian P/N 10953463) or equivalent to clean surfaces.

5. Install the lower intake manifold gaskets.
6. With gaskets in place supply a small drop 8-10 mm (0.31 -0.39 in) of RTV Sealer GM P/N 12346141 (Canadian P/N 89022195) or equivalent to the 4 corners of the intake manifold to block joint (1).
7. Connect the 2 small drops with a bead of RTV Sealer that is between 8-10 mm (0.30-0.39 in) wide and 3.0-5.0 mm (0.12-0.20 in) thick (2).
8. Install the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .

Notice: Refer to Fastener Notice in the Preface section.





Important: All lower intake manifold bolts need to be cleaned and free of any foreign material, only new bolts are to be used.

Important: Manufacturer recommends the center bolts be fully torqued before the diagonal bolts to assure proper seal ability.

Important: Lower intake manifold bolts in location 6 and 7 should be torqued to specification using a crows foot type tool.

9. Install the lower intake manifold.

Install NEW lower intake manifold bolts.

Tighten

1. Tighten the lower intake manifold bolts in sequence to 7 N·m (62 lb in) on the first pass.
2. Tighten the lower intake manifold bolts (1,2,3,4) in sequence to 13 N·m (115 lb in) on the final pass.
3. Tighten the lower intake manifold bolts (5,6,7,8) in sequence to 25 N·m (18 lb ft) on the final pass.



10. Install the heater inlet pipe.
11. Install the heater inlet pipe nut.

Tighten
Tighten the heater inlet pipe nut to 25 N·m (18 lb ft).

12. Install the power steering pump to the front engine cover. Refer to Power Steering Pump Replacement in Power Steering System.




Important: Do not press on the fuel pressure regulator valve when installing the fuel injector rail assembly.

13. Install the fuel injector rail assembly.

13.1.

Install the fuel injector O-rings using GM P/N 12345616 (Canadian P/N 993182).

13.2.

Install the injector nozzles into the lower intake manifold injector bores.

13.3.

Press on the injector rail using the palms of both hands until the injectors are fully seated.

14. Install the fuel injector rail bolts.

Tighten
Tighten the fuel injector rail bolts to 10 N·m (89 lb in).




15. Connect the fuel return pipe to the fuel injector rail. Refer to Fuel Hose/Pipes Replacement - Filter to Engine in Engine Controls - 3.1L.



16. Connect the fuel feed pipe to the fuel injector rail. Refer to Fuel Hose/Pipes Replacement - Filter to Engine in Engine Controls - 3.1L.



17. Install the fuel feed and return pipe retaining clip.
18. Install the fuel feed and return pipe retaining clip bolt.

Tighten
Tighten the fuel feed and return pipe retaining clip bolt to 8 N·m (71 lb in).




19. Connect the thermostat bypass hose to the thermostat bypass pipe and lower intake manifold pipe.
20. Connect the radiator inlet hose to the engine. Refer to Radiator Inlet Hose Replacement in Engine Cooling.



21. Install and connect the fuel injector and manifold air pressure (MAP) wiring harness.



22. Connect the engine coolant temperature (ECT) wiring harness.
23. Install the right (rear) valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement .
24. Install the generator. Refer to Generator Replacement in Engine Electrical.
25. Install the left (front) valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement .
26. Install the upper intake manifold. Refer to Intake Manifold Replacement .
27. Connect the battery ground (negative) cable. Refer to Battery Negative Cable Disconnection and Connection in Engine Electrical.
