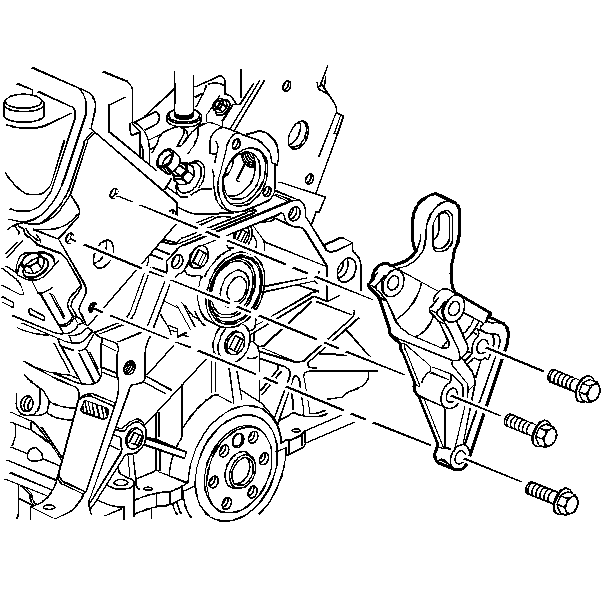

Engine Mount Strut Bracket Removal and Rear Engine Lift Bracket


    Object Number: 347337 Size: SH
  1. Remove the engine mount strut and lift bracket bolts.
  2. Remove the engine mount strut and lift bracket.

Engine Mount Strut Bracket Removal Generator Bracket


    Object Number: 347328 Size: SH
  1. Remove the generator bracket bolts (1-4).
  2. Remove the generator bracket.
  3. Remove the front engine lift bracket.
