Makes 🢒 Chevrolet 🢒 1999 🢒 Monte Carlo 🢒 Engine 🢒 Engine Controls - 3.8L 🢒 Ground Distribution Schematics

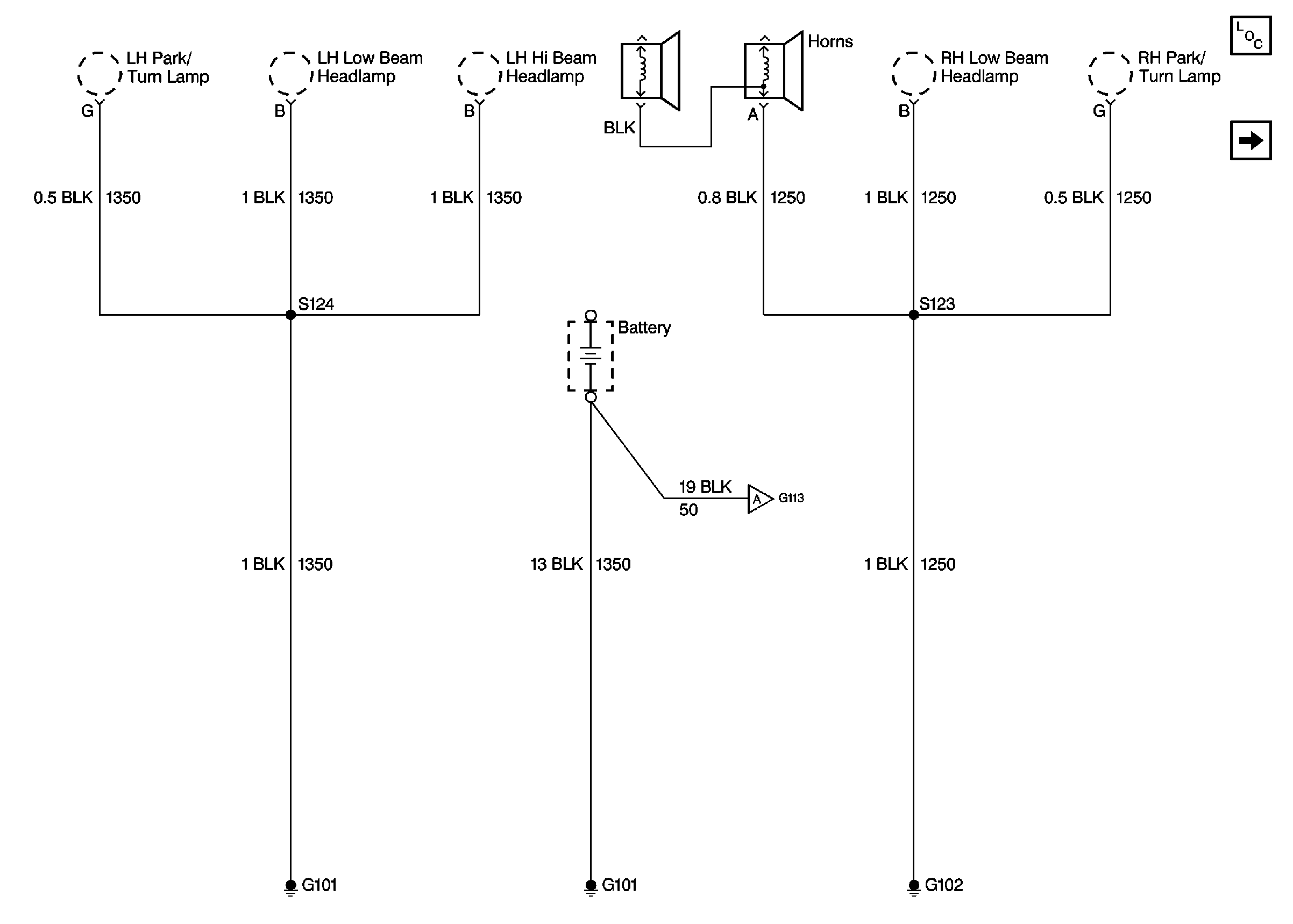

Figure 1:

Cell 14: G101, and G102
Object Number: 348962 Size: FS
Power and Grounding Components
Cell 14: G111 and G113
Cell 14: G111 and G113

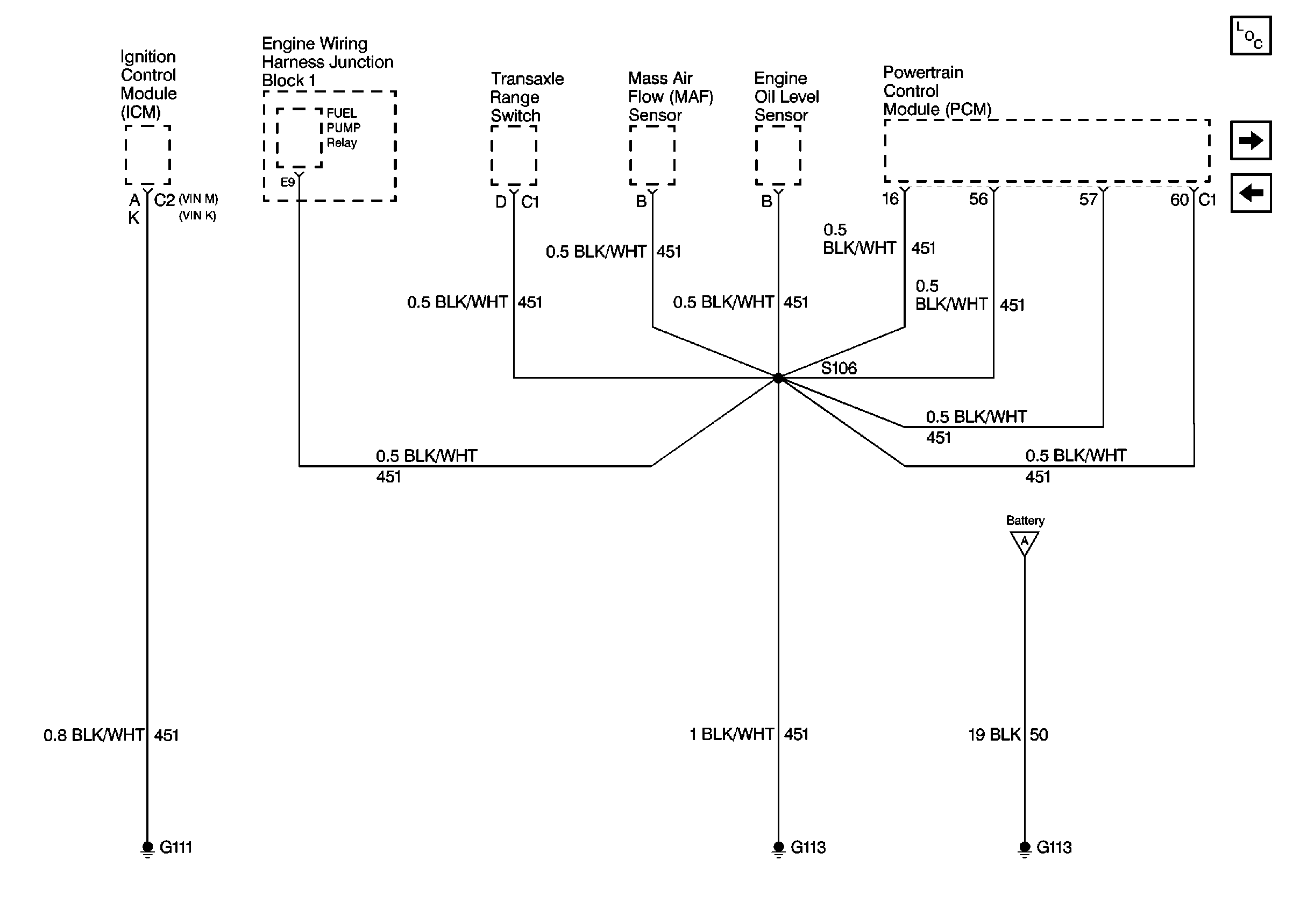

Figure 2:

Cell 14: G111 and G113
Object Number: 348967 Size: FS
Power and Grounding Components
Cell 14: G117
Cell 14: G101, and G102

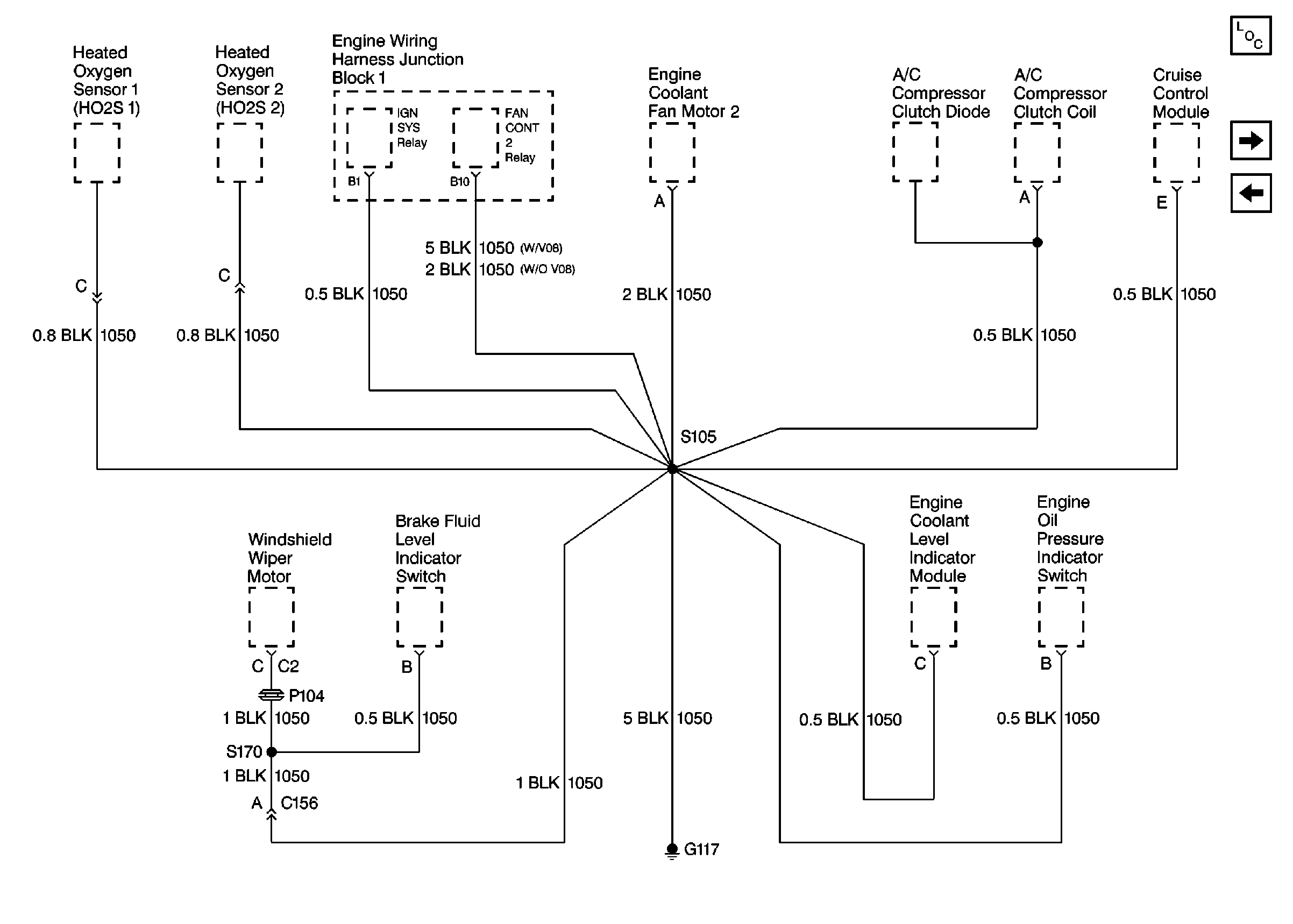

Figure 3:

Cell 14: G117
Object Number: 348969 Size: FS
Power and Grounding Components
Cell 14: G201 and G204 (SEO)
Cell 14: G111 and G113

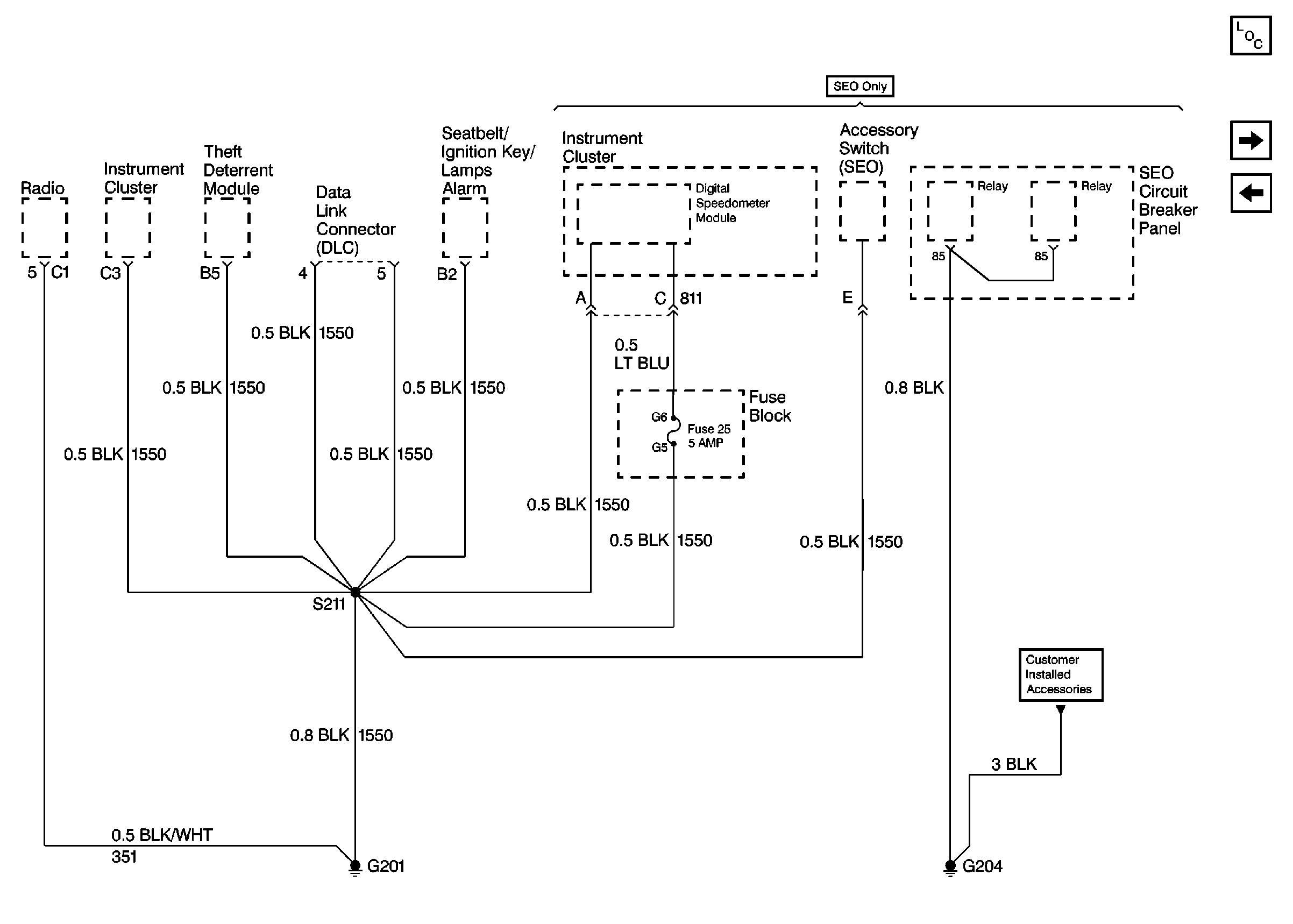

Figure 4:

Cell 14: G201 and G204 (SEO)
Object Number: 348971 Size: FS
Power and Grounding Components
Cell 14: G205 (1 of 2)
Cell 14: G117
Cell 18: Passenger Dome Lamp (RPO 6C7) and IGN and Main Power Supply(RPO 6J1)
Figure 5:

Cell 14: G205 (1 of 2)
Object Number: 348974 Size: FS
Power and Grounding Components
Cell 14: G205 (2 of 2) and G251
Cell 14: G201 and G204 (SEO)
Cell 14: G205 (2 of 2) and G251
Cell 14: G205 (2 of 2) and G251
Cell 14: G205 (2 of 2) and G251

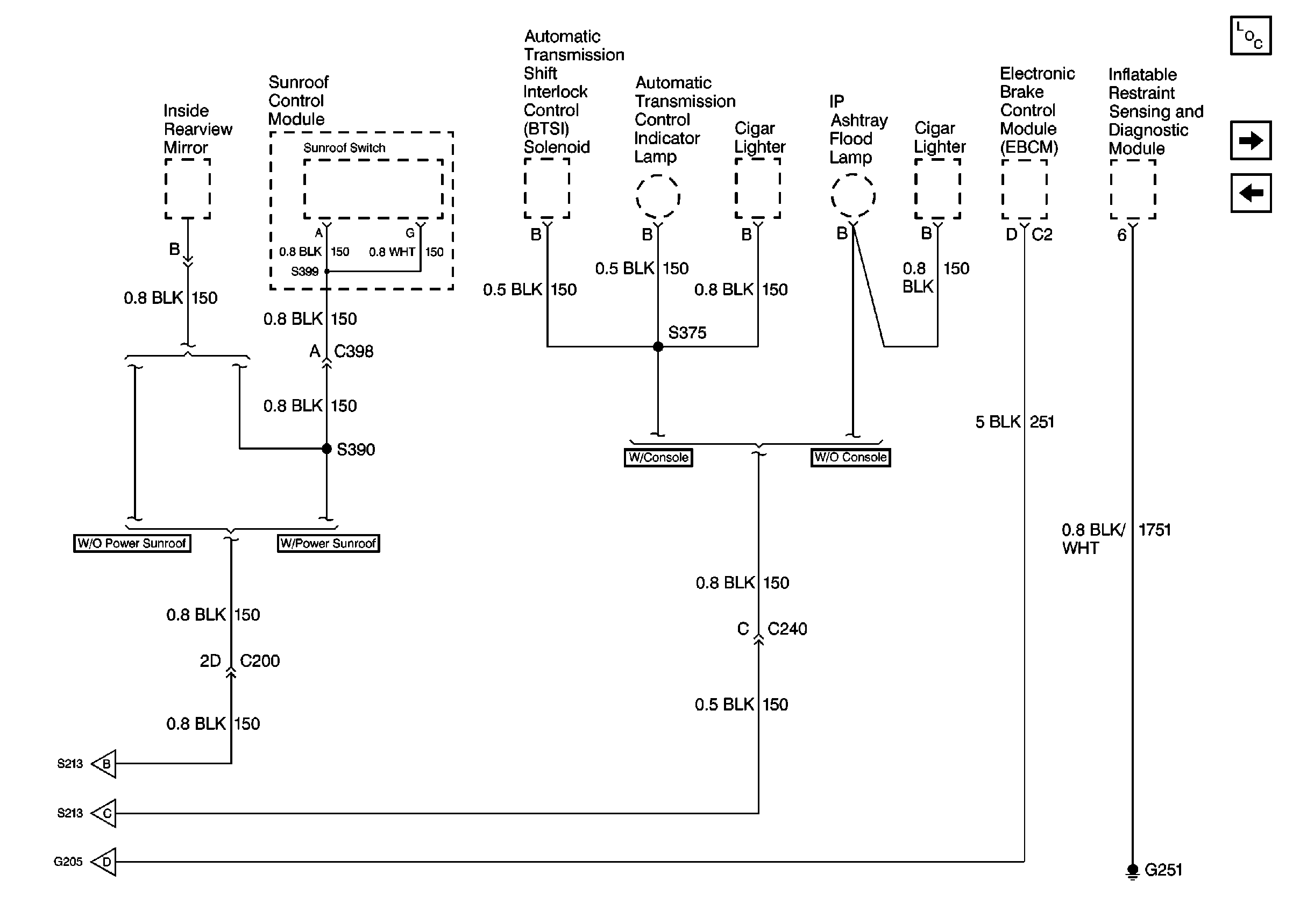

Figure 6:

Cell 14: G205 (2 of 2) and G251
Object Number: 348978 Size: FS
Power and Grounding Components
Cell 14: G302 (1 of 2)
Cell 14: G205 (1 of 2)
Cell 14: G205 (1 of 2)
Cell 14: G205 (1 of 2)
Cell 14: G205 (1 of 2)

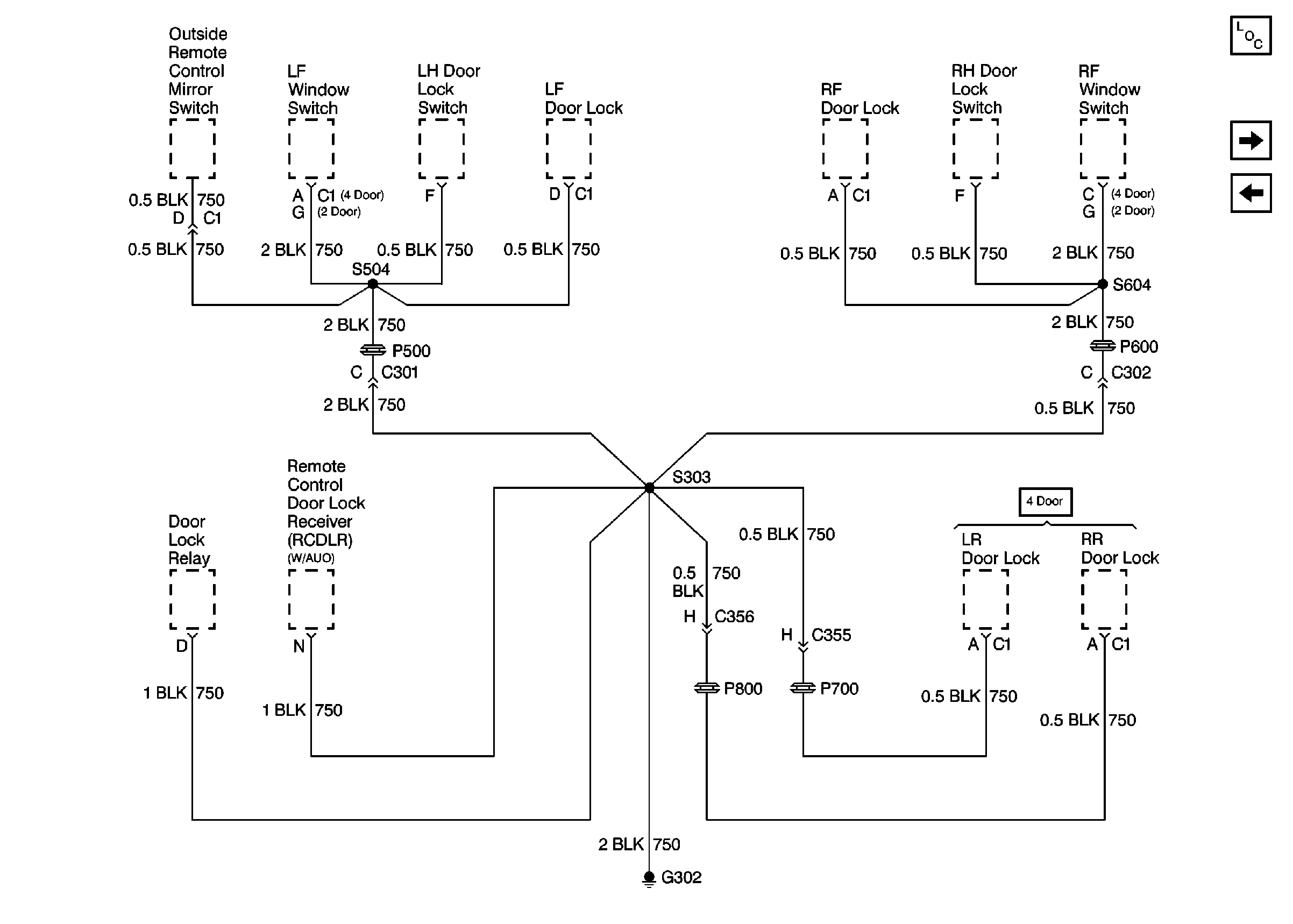

Figure 7:

Cell 14: G302 (1 of 2)
Object Number: 348983 Size: FS
Power and Grounding Components
Cell 14: G302 (2 of 2)
Cell 14: G205 (2 of 2) and G251

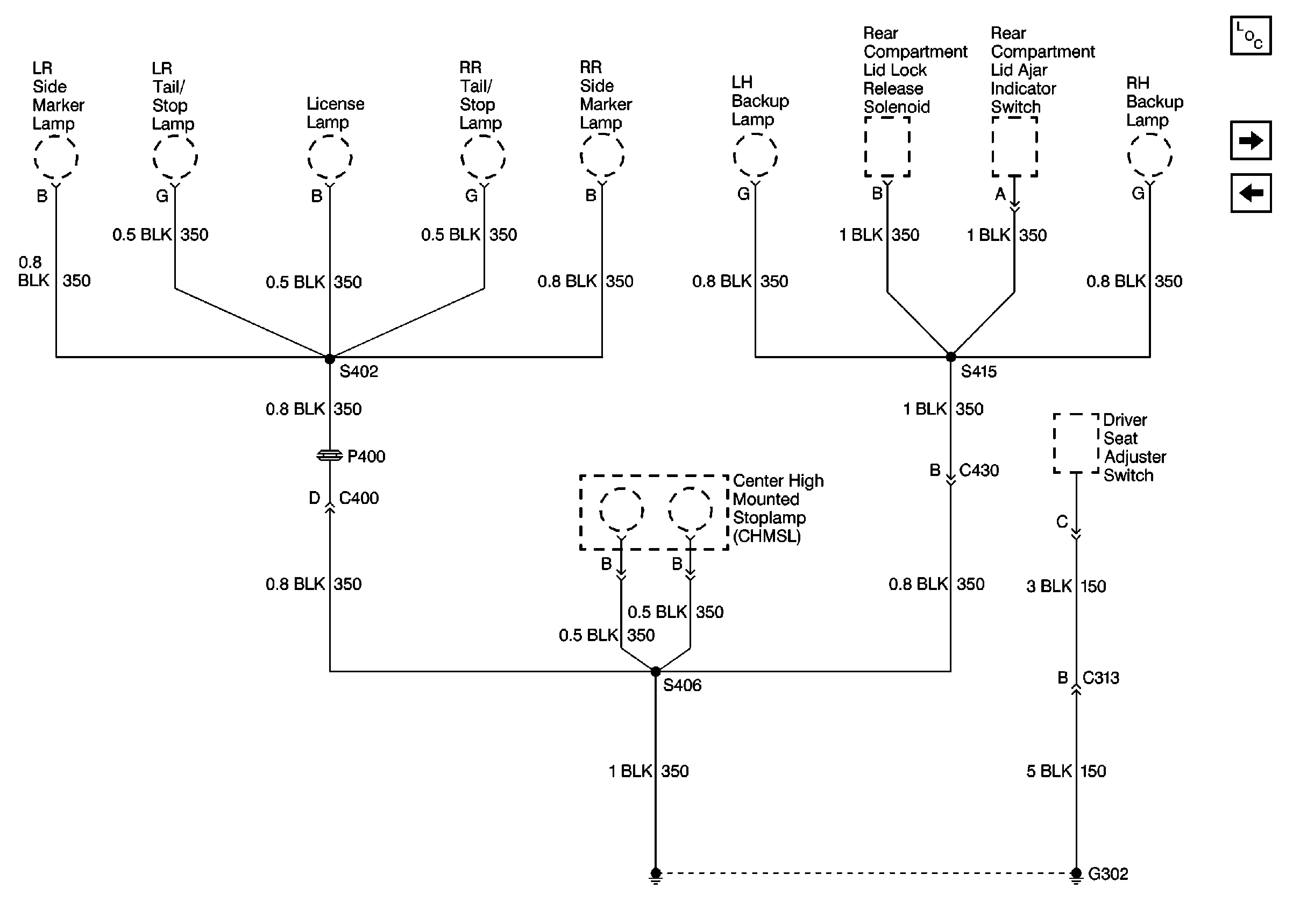

Figure 8:

Cell 14: G302 (2 of 2)
Object Number: 348986 Size: FS
Power and Grounding Components
Cell 14: G301 and G306 (SEO)
Cell 14: G302 (1 of 2)

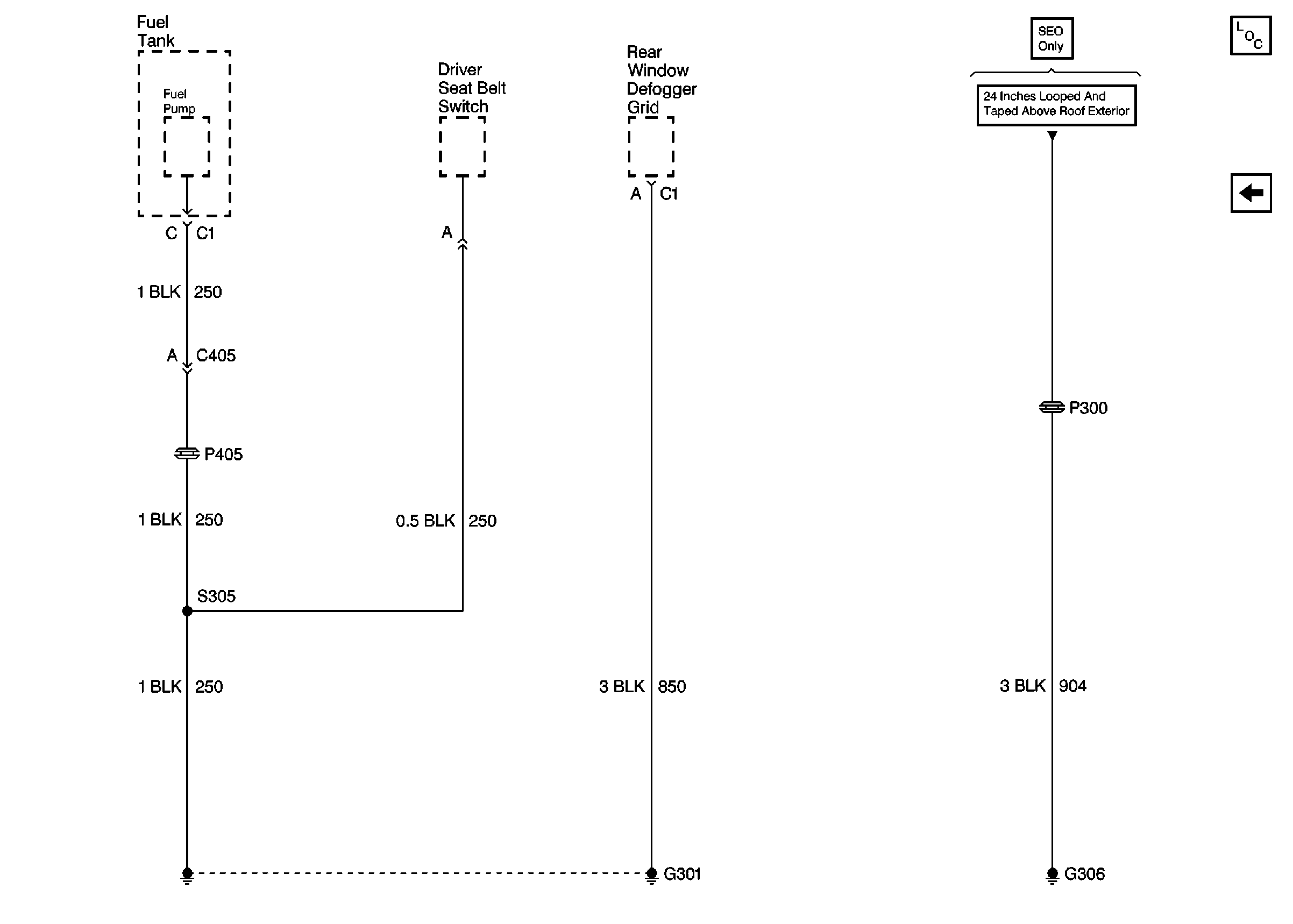

Figure 9:

Cell 14: G301 and G306 (SEO)
Object Number: 348989 Size: FS
Power and Grounding Components
Cell 14: G302 (2 of 2)

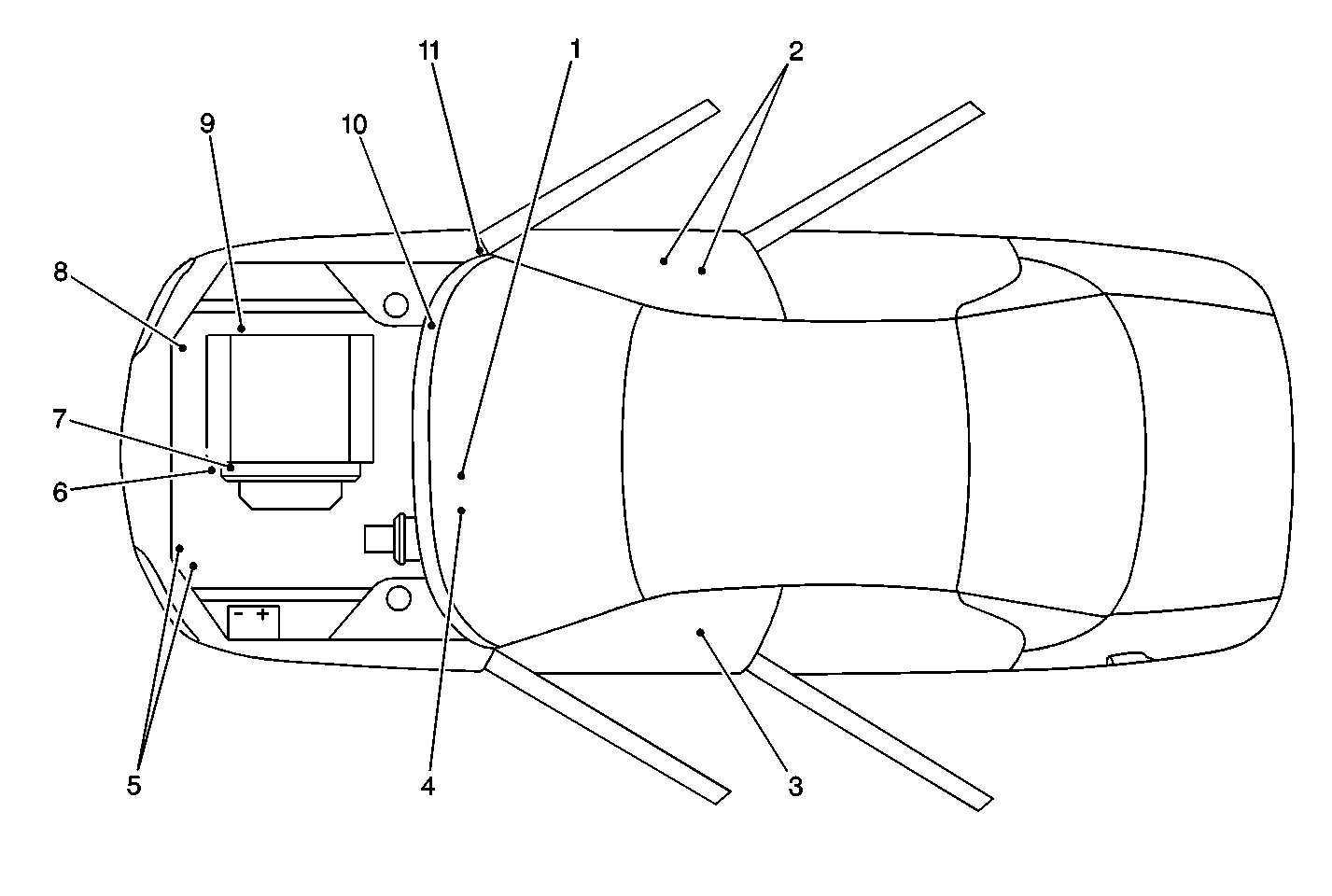

Figure 10:

Overhead View of Vehicle for Grounding Points
Object Number: 326544 Size: MF
(1)G201 and G251
(2)G302
(3)G301
(4)G205
(5)G101 (Forward Lamp and Battery Ground)
(6)G111 (VIN M), G113 (VIN K and M) and G117 (VIN K)
(7)G117 (VIN M)
(8)G102
(9)G111 (VIN K)
(10)G204 (SEO)
(11)G306 (SEO)
