Removal Procedure

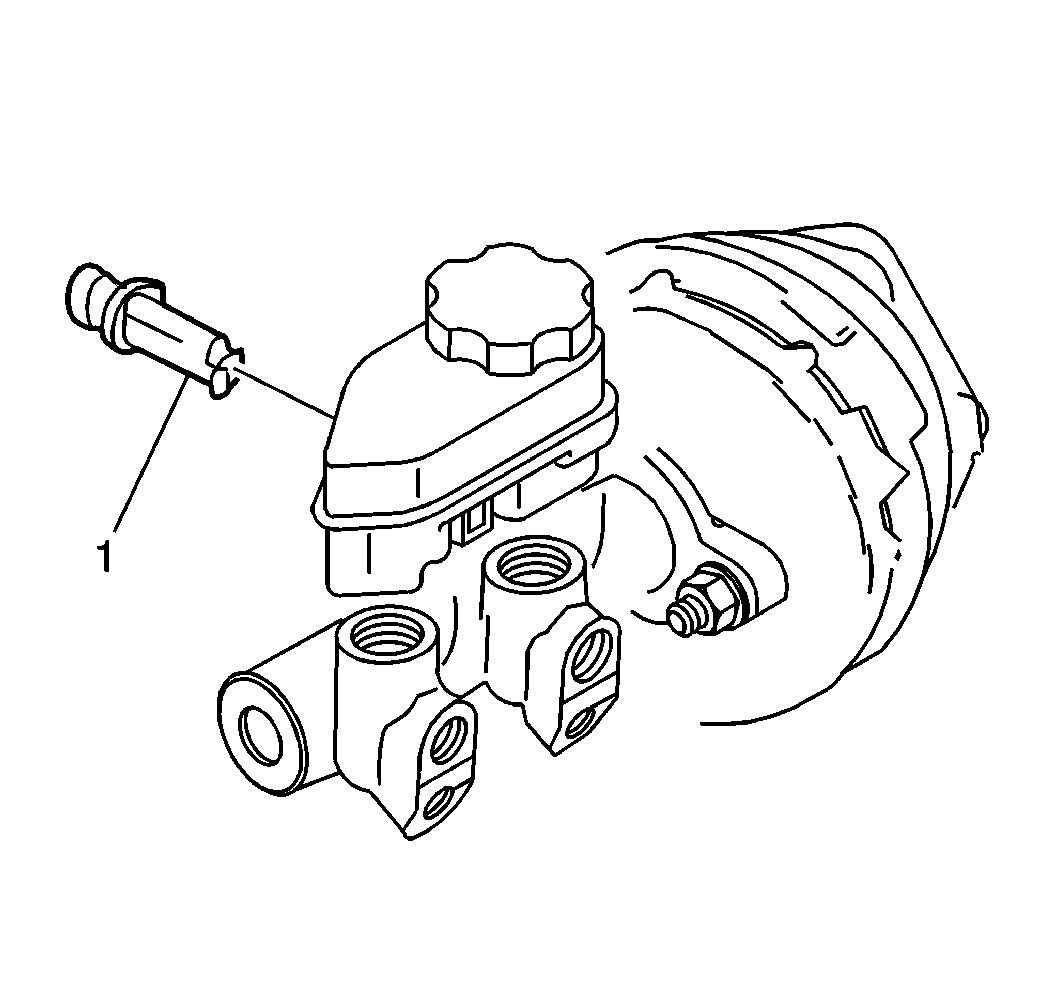

    Object Number: 176832 Size: SH
  1. Disconnect the electrical connector from the fluid level sensor.

    2. Object Number: 176836 Size: SH
  2. Remove the fluid level sensor using needle nose pliers. This action compresses the switch locking tabs at the inboard side of the master cylinder.

Installation Procedure
  1. Install the fluid level sensor until the locking tabs snap into place.

    2. Object Number: 176832 Size: SH
  2. Connect the electrical connector to the fluid level sensor.
