Wheel Speed Sensor Jumper Harness Replacement Front Wheels

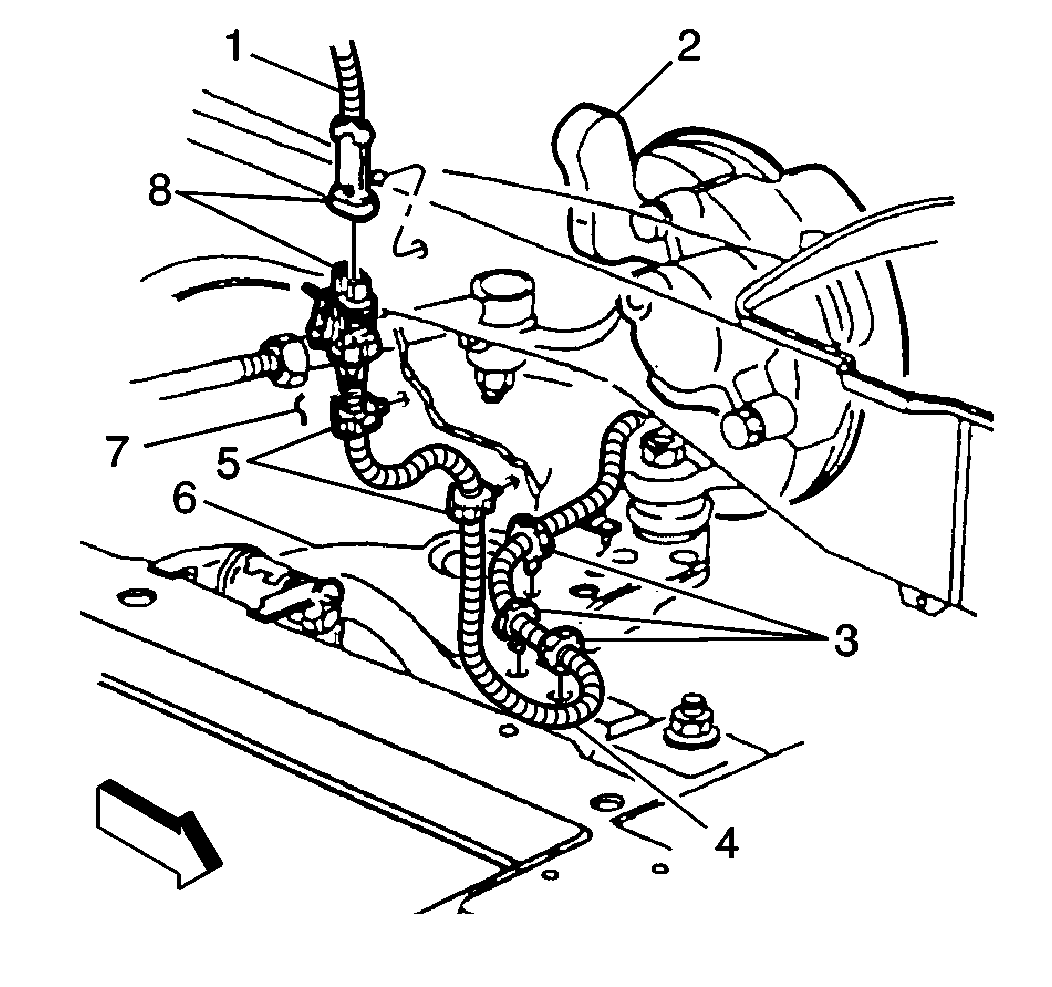

1. Disconnect the front wheel speed sensor jumper harness to ABS harness connector (8).
2. Raise and support the vehicle on a suitable hoist. Refer to Lifting and Jacking the Vehicle in General Information.
3. Remove the harness (4) from the splash shield retaining clip (5).
4. Remove the harness (4) from the control arm retaining clips (3).
5. Disconnect the front wheel speed jumper harness connector from the front wheel sensor.
6. Remove the front wheel speed sensor jumper harness.

1. Connect the front wheel speed sensor jumper harness connector to the wheel speed sensor.



2. Install the harness (4) to control arm retaining clips (3).
3. Install the harness (4) to splash shield retaining clip (5).
4. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
5. Connect the front wheel speed sensor jumper harness to ABS harness connector (8).
6. Turn the ignition switch to the ON position, with the engine off.
7. Perform the Diagnosis System Check. Refer to Diagnostic System Check - ABS .

Wheel Speed Sensor Jumper Harness Replacement Rear Wheels

1. Raise and support the vehicle on a suitable hoist. Refer to Lifting and Jacking the Vehicle in General Information.
2. Disconnect the rear wheel speed jumper harness connector at the pass thru connector.
3. Remove the rear wheel speed sensor jumper harness from the retaining clips.

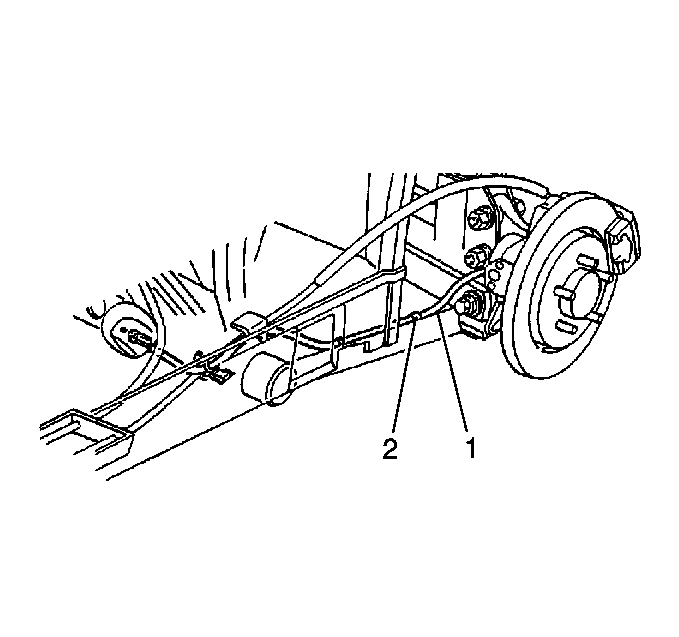

4. Disconnect the rear wheel speed sensor jumper harness connector (1) from the wheel speed sensor, located next to rear strut (2).
5. Remove the rear wheel speed sensor jumper harness.

1. Connect the rear wheel speed sensor jumper harness connector (1) to the wheel speed sensor, located next to rear strut (2).



2. Install the rear wheel speed jumper harness (1) into the retaining clips (2).
3. Connect the rear wheel speed sensor jumper harness connector to the pass thru connector.
4. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
5. Turn the ignition switch to the ON position, do not start engine.
6. Perform the Diagnosis System Check. Refer to Diagnostic System Check - ABS .
